Rockville RRM704 User manual

M
V1/V2
RRM704
REAR VIEW MONITOR OWNER’S MANUAL

MENU
ASPECT RATIO
FEATURES AND SPECIFICATIONS
MULTI-FUNCTION REMOTE
SCROLL THROUGH
MENU ITEMS
POWER ON / OFF
SWITCH BETWEEN
VIDEO INPUTS
SCROLL THROUGH
MENU ITEMS
BLACK ( – )
WIRE to
GROUND
• 7˝High Resolution TFT LCD Color Monitor
• Easy Clip-on Installation
• PAL / NTSC System Auto Switching
• Video System: Color PAL 94.43 Mhz / NTSC 93.58Mhz
• Display Method: TFT Active Matrix System
• Power Supply: DC 12V / 8W
• 2 x Video Inputs
• Automatic Reverse Trigger
• Multi-Function Remote Control
• Touch Screen Controls
• Special Anti-Glare Glass
• Resolution: 800 x 480 RGB
• Contrast Ratio: 350:1
• Brightness: 400 Nits
LCD REMOTE
MENU
VIDEO
SELECT
MODE
SELECT

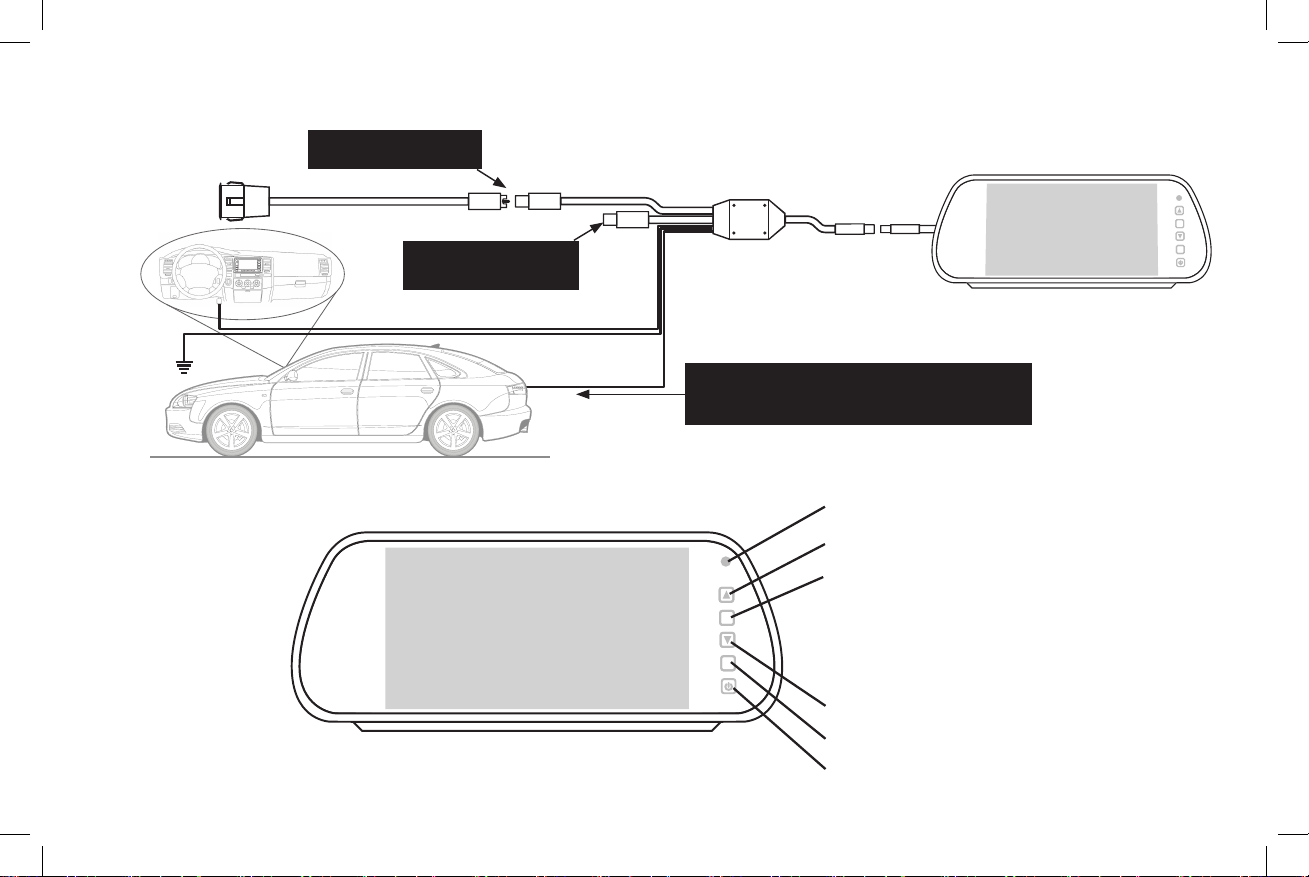

WIRING DIAGRAM
FUNCTIONS
SCROLL THROUGH MENU ITEMS
REMOTE IR RECEIVER
SCROLL THROUGH MENU ITEMS
SWITCH BETWEEN VIDEO INPUTS
POWER ON / OFF
MENU: Press once for brightness.
Press twice for contrast.
Press three times for color.
Press four times for language.
Press ve times for aspect ratio.
Press six times for rotate.
Press seven times to reset.
BLACK ( – )
WIRE to
GROUND
RED ( + ) WIRE to ACC (12V+)
BLUE
Connect BLUE wire to RED or positive wire of reverse light.
1. As a precaution, disconnect vehicle battery before installation.
2. If wires are not color coded, use a volt-meter or a multi-meter to
determine which is positive and which is negative.
VIDEO 2 allows for additional video
connections such as DVD / VCD
signal input.
VIDEO 1 connects directly to your
rearview camera.
CAMERA
(Not Included)
VIDEO 1 (YELLOW)
VIDEO 2
(WHITE)
M
V1/V2
M
V1/V2
Never attempt to disassemble camera as there are no user serviceable parts. If probelms persist
please contact Rockville for technical assistance: 1-646-758-0144, Monday - Friday, 9am - 5pm EST
