RODE Microphones NTH-100 User manual

USER GUIDE & SUPPORT
The RØDE NTH 100 professional over - ear headphones offer exceptional sonic performance and superior comfort that inspires
creativity . Featuring custom - matched drivers that deliver an incredibly accurate frequency response and ultra - low distortion , and a
precision - engineered acoustic design optimised for exceptional detail and clarity , they are ideal for all forms of content creation ,
including music production , mixing and audio editing , podcasting , streaming and location recording .
Find out all you need to know about using your NTH 100 s here .
Contents
Features
1 Removable  Alcantara ® headband cushion
NTH -100 / USER GUIDE & SUPPORT

EN
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Rode NTH-100 o cerca il
tuo prodotto tra le migliori offerte di Cuffie e Microfoni

2
FitLok ™ locking tab
Twist to lock and unlock headband size adjustment
3 Ergonomic earcup shape
4
Right cable attachment socket
Push plastic cable bayonet into place and turn clockwise to lock
5 Headband cushion locking tabs
Slide locking tabs down on either side to release
6 Red indicator for right earcup
7 Removable Alcantara ® ear cushion
Pull to remove
8 Left cable attachment socket
Use included rubber seal to close unused socket

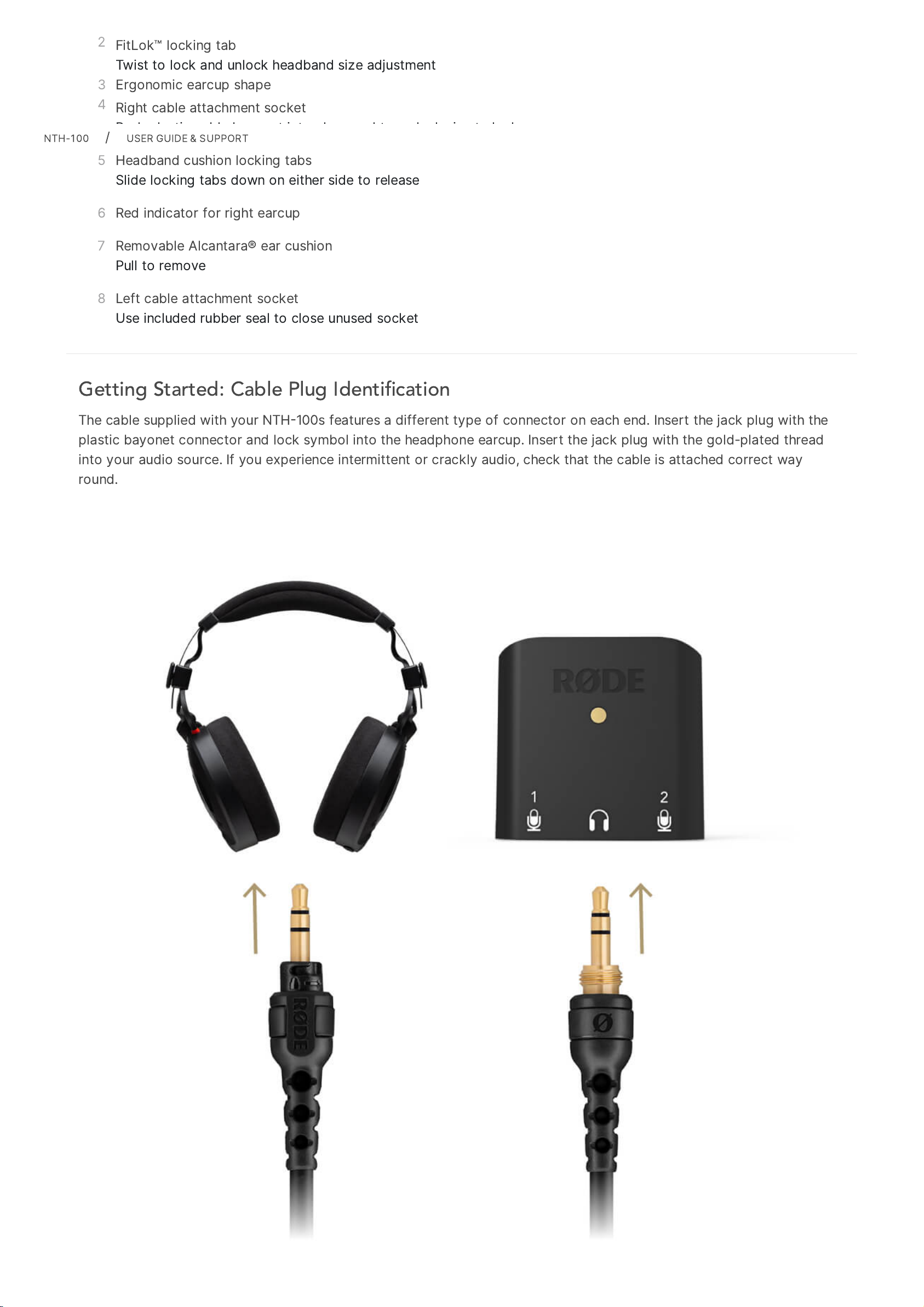

Getting Started: Cable Plug Identi cation
The cable supplied with your NTH 100 s features a different type of connector on each end . Insert the jack plug with the
plastic bayonet connector and lock symbol into the headphone earcup . Insert the jack plug with the gold - plated thread
into your audio source . If you experience intermittent or crackly audio , check that the cable is attached correct way
round .
NTH -100 / USER GUIDE & SUPPORT

Connecting the Cable to the Headphones
To connect the cable to the headphone earcup , simply insert the plastic bayonet end into the socket and twist the
connector clockwise to lock it into place . To remove it , simply twist counter - clockwise to unlock and pull free .
The NTH 100 s feature cable attachments on both earcups , allowing you to connect the cable where is most convenient .
Connecting the Headphones to your Device
The supplied cable comes with a standard 3.5 mm jack plug for connecting to devices with a 3.5 mm output , such as a
smartphone . Also included is a 1/4- inch to 3.5 mm adaptor for connecting to professional audio equipment , such as mixers
and audio interfaces . This screws securely onto the end with the gold - plated thread .
NTH -100 / USER GUIDE & SUPPORT

Pro Tip
The NTH 100 s are a low - impedance , high - sensitivity headphone , which means they can be used with virtually any
equipment . This may mean a low volume setting on your amplifier could result in a loud signal – so turn down your
volume to zero before plugging in the headphones , and then gradually raise the volume to the desired level .
Using the Rubber Seal
Included in the accessory pack is a rubber seal for closing off the earcup socket that is not in use . We recommend using
this at all times . Not only will it prevent dirt and debris entering the socket , but it also ensures that the frequency
response is perfectly matched between left and right earcups for critical monitoring .
NTH -100 / USER GUIDE & SUPPORT

Using the COLOR ID Rings
The NTH 100 s come with a set of eight COLOR ID rings . These can be used for quick identification in setups where
multiple pairs of headphones are in use . To use them , remove the black ID ring that clips around the body of the plugs at
either end of the cable , and replace it with your preferred colour . Note that the colours match the channel ID colours used
by the RØDECaster Pro and RØDE Connect .
NTH -100 / USER GUIDE & SUPPORT

Using the FitLok ™ Locking System
The FitLok ™ system allows you to set the NTH 100 headband size to your preferred comfort setting , and then lock this in
place , meaning you never have to adjust it again . To unlock the headband adjustment , twist the locking cams clockwise .
The earcups will now slide freely , allowing you to set them to your preferred position . Once you are comfortable , simply
turn the cams counter - clockwise to lock the earcups into place
NTH -100 / USER GUIDE & SUPPORT

Pro Tip
You can unlock and lock the Fitlok ™ adjustment whilst wearing the NTH 100 s for the optimal fit – perfect for long hours of
content creation .
Earpad and Headband Cushion Removal and Cleaning
To remove the earpads from the headphones , simply pull them away from the earcup . To replace , push them back into
place , working around the perimeter to ensure all the tabs are locked into place .
To remove the headband pad , slide the locking tabs on either side of the earpad away from the pad . You may need to
push the locking tab from underneath to facilitate this . Pull off the lower cushion ( held in place by Velcro ), and then slide
off the upper one . To replace , reverse the steps , ensuring that the locking clips are correctly positioned over the top of
the ends of the cushions before sliding them into place , then make sure they click as they lock into position .
To clean the pads , simply wipe with a damp cloth . Do not immerse the pads in water , or use leather or suede cleaning
products , as this may damage the pad . Replacement pads are available – please contact our service centre if you need
new pads .
