USER GUIDE & SUPPORT
The Wireless ME is an ultra - compact wireless microphone system that makes
recording professional audio for your videos effortless .
Discover everything you need to know about using your Wireless ME here .
Contents
Features
Receiver  RX 
Wireless ME / USER GUIDE & SUPPORT

EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
2/23
1 Power Button
2 USB  C Connector
33.5 mm TRS Output
4 In - built Microphone
5 Battery Indicator LED
6 Connectivity Indicator LED
Transmitter  TX 
1 Power Button
2 USB  C Connector
33.5 mm TRS Microphone Input
4 In - built Microphone
5 Battery Indicator LED
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
3/23
6 Connectivity Indicator LED
Getting Started
The Wireless ME consists of both a transmitter  TX  and receiver  RX . The transmitter picks up audio either with its in - built
microphone or an external mic plugged into its 3.5 mm input , and then transmits this audio to the receiver wirelessly . The
receiver then sends this audio via either USB  C or its 3.5 mm output to your camera , phone , computer or another audio
device .
Powering On and Pairing
To turn on your Wireless ME , simply press and hold the power buttons on both the transmitter and receiver for three 3
seconds . Repeat the process to power down both units .
The Wireless ME ’ s transmitter and receiver are already paired out of the box . When you turn them both on , you ’ ll notice the
connectivity indicator LED on the RX unit flash amber * briefly before turning to solid amber , indicating that it has paired to
the transmitter .
Manually Pairing
With both units powered on , simply short - press the power button on the transmitter and receiver to enter pairing mode . As
long as neither unit is already paired to another device , they will quickly pair and the connectivity indicator LEDs will remain
solid .
Note : Both the transmitter and receiver will automatically power down after three 3 minutes if they aren ’ t paired .
* The connectivity LED may be green rather than amber if the ME Mic is switched on . See the below section on the ME Mic
to learn more .
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
4/23

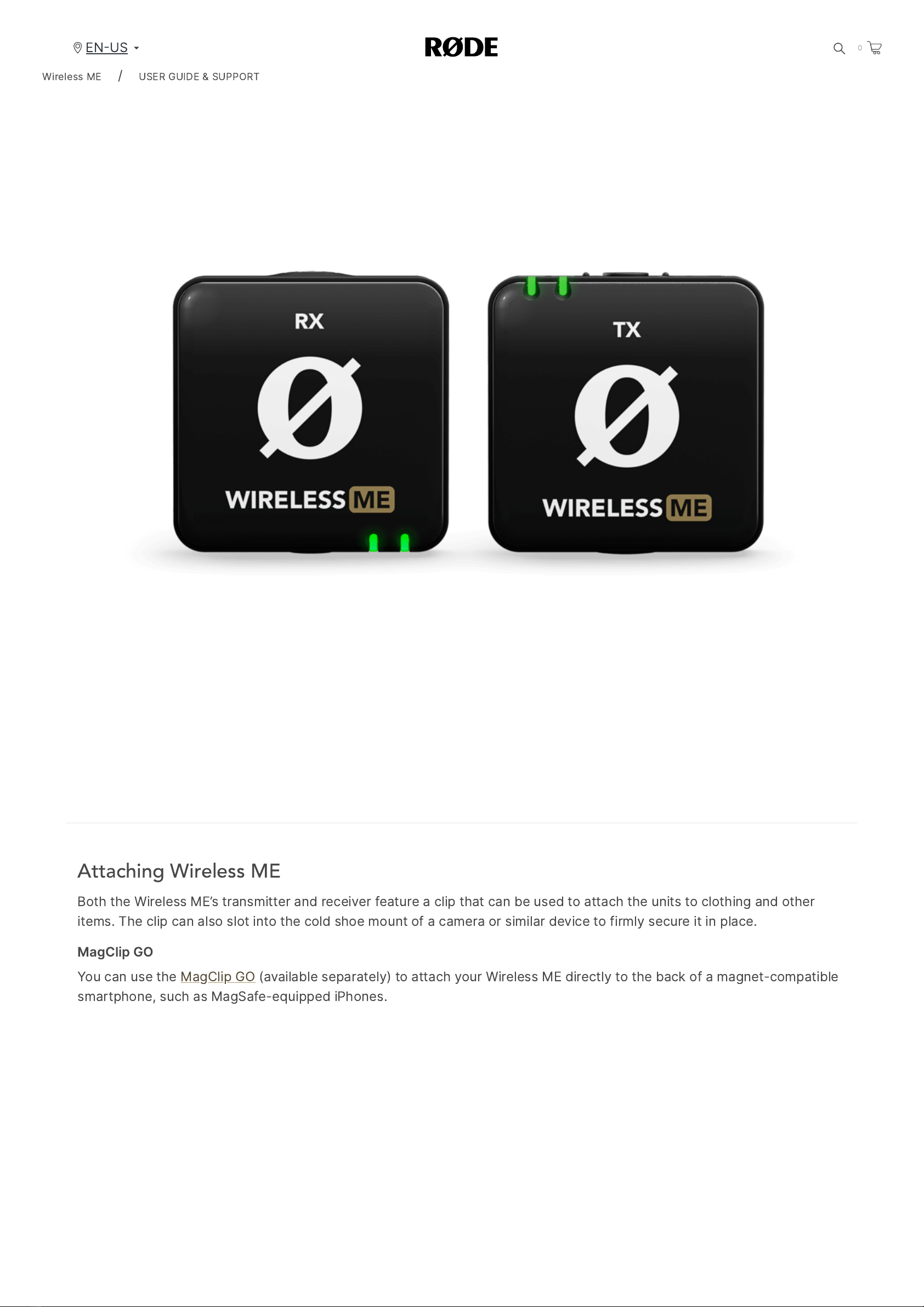

Attaching Wireless ME
Both the Wireless ME ’ s transmitter and receiver feature a clip that can be used to attach the units to clothing and other
items . The clip can also slot into the cold shoe mount of a camera or similar device to firmly secure it in place .
MagClip GO
You can use the MagClip GO ( available separately ) to attach your Wireless ME directly to the back of a magnet - compatible
smartphone , such as MagSafe - equipped iPhones .
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
5/23

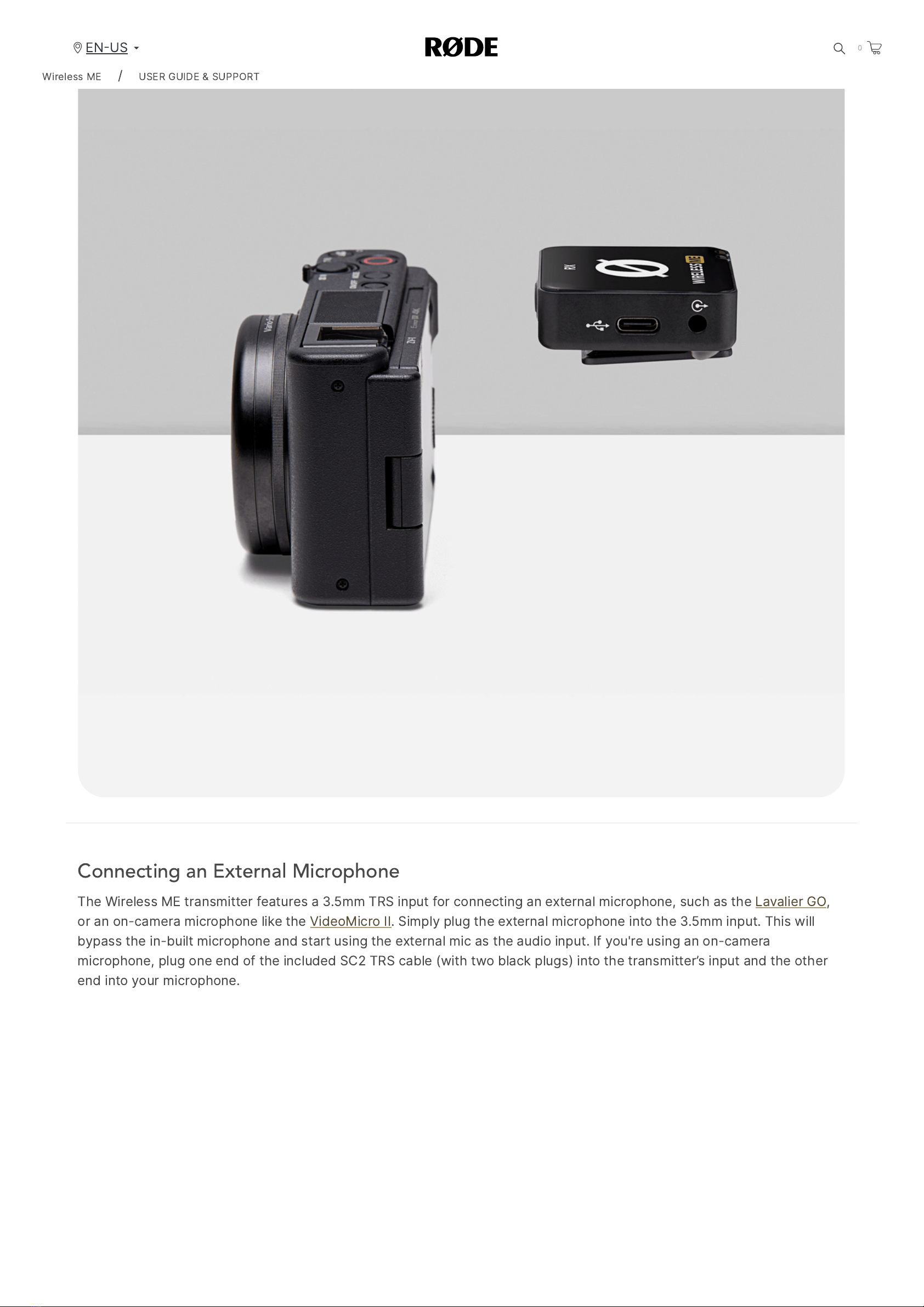

Connecting an External Microphone
The Wireless ME transmitter features a 3.5 mm TRS input for connecting an external microphone , such as the Lavalier GO ,
or an on - camera microphone like the VideoMicro II . Simply plug the external microphone into the 3.5 mm input . This will
bypass the in - built microphone and start using the external mic as the audio input . If you ' re using an on - camera
microphone , plug one end of the included SC 2 TRS cable ( with two black plugs ) into the transmitter ’ s input and the other
end into your microphone .
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
6/23
Pro Tip
For a more discreet setup , you can clip the Wireless ME ’ s transmitter to the belt or rear of your subject ’ s clothing and run a
lavalier microphone to their shirt collar . You can also select the “ Dim ” LED setting to reduce the brightness of both the
transmitter and receiver ’ s indicator lights via RØDE Central .
Device Connectivity
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
7/23
Connecting to a Camera
Use the supplied SC 2 cable ( with the two black plugs ) to connect your Wireless ME receiver to a camera or other device
with a 3.5 mm TRS input . With the receiver in your camera ’ s shoe mount , the SC 2 cable is the perfect length for running
between your Wireless ME receiver ’ s output and camera ’ s input .
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
8/23

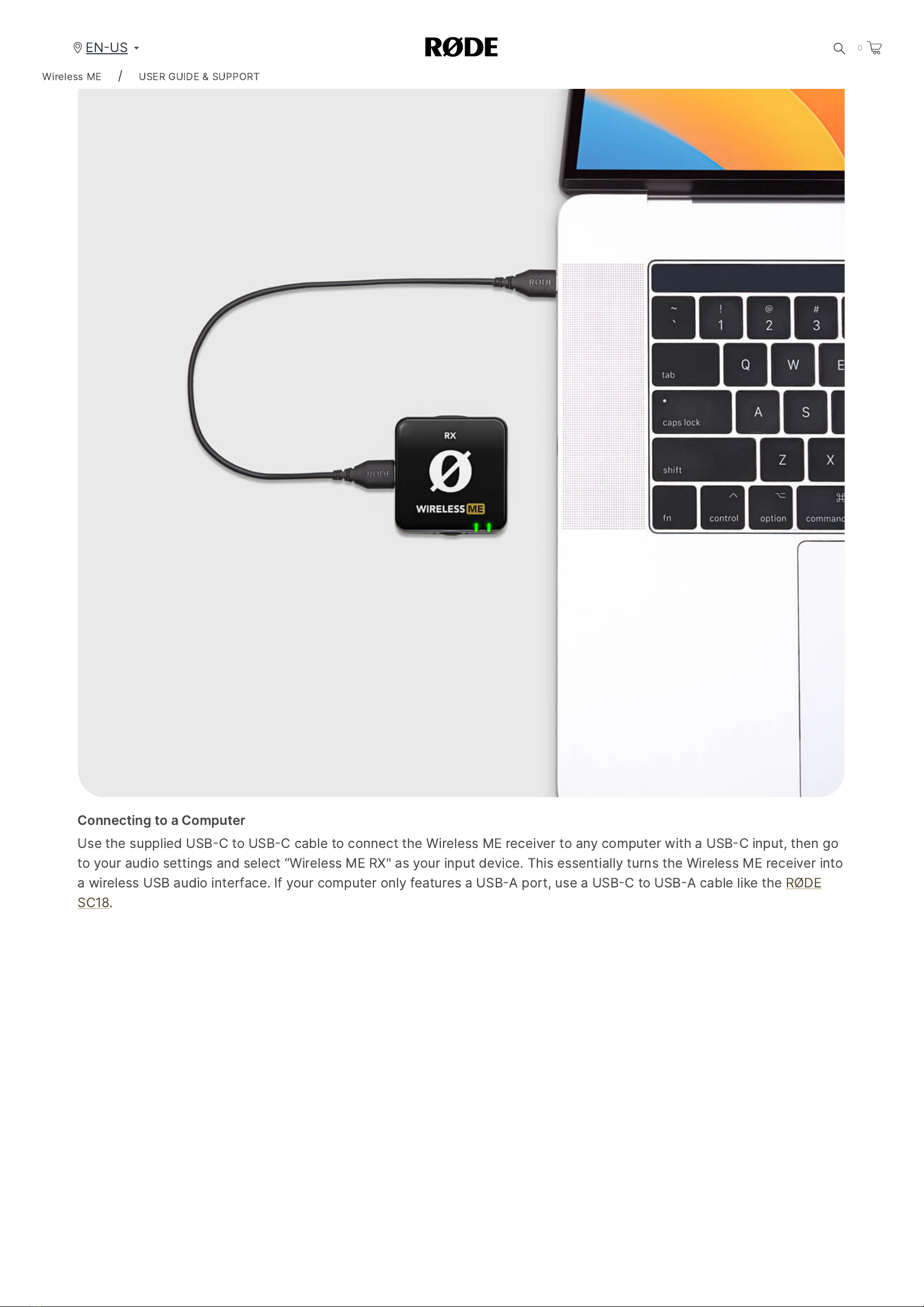

Connecting to a Computer
Use the supplied USB  C to USB  C cable to connect the Wireless ME receiver to any computer with a USB  C input , then go
to your audio settings and select “ Wireless ME RX " as your input device . This essentially turns the Wireless ME receiver into
a wireless USB audio interface . If your computer only features a USB  A port , use a USB  C to USB  A cable like the RØDE
SC 18.
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
9/23

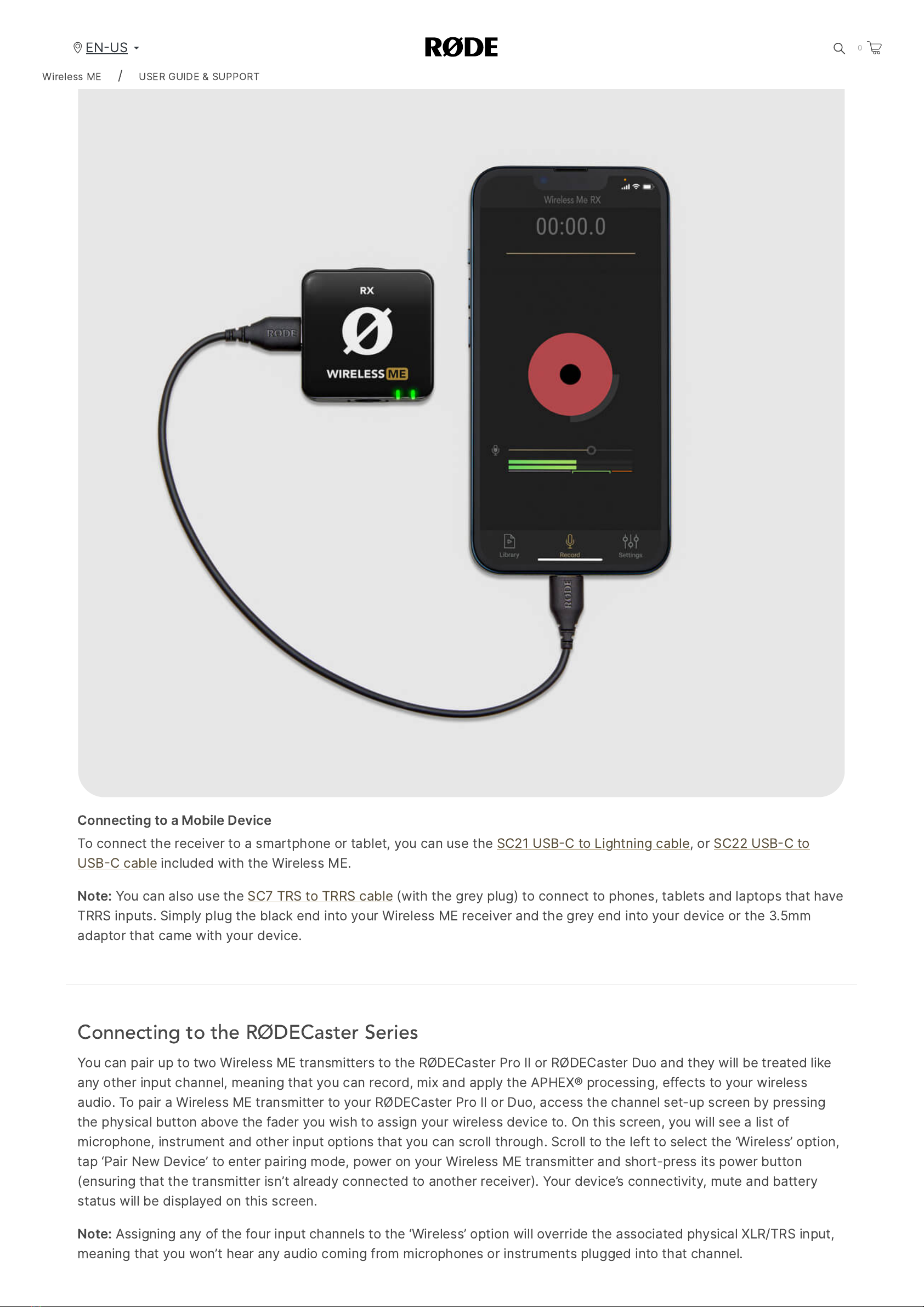

Connecting to a Mobile Device
To connect the receiver to a smartphone or tablet , you can use the SC 21 USB  C to Lightning cable , or SC 22 USB  C to
USB  C cable included with the Wireless ME .
Note : You can also use the SC 7 TRS to TRRS cable ( with the grey plug ) to connect to phones , tablets and laptops that have
TRRS inputs . Simply plug the black end into your Wireless ME receiver and the grey end into your device or the 3.5 mm
adaptor that came with your device .
Connecting to the RØDECaster Series
You can pair up to two Wireless ME transmitters to the RØDECaster Pro II or RØDECaster Duo and they will be treated like
any other input channel , meaning that you can record , mix and apply the APHEX ® processing , effects to your wireless
audio . To pair a Wireless ME transmitter to your RØDECaster Pro II or Duo , access the channel set - up screen by pressing
the physical button above the fader you wish to assign your wireless device to . On this screen , you will see a list of
microphone , instrument and other input options that you can scroll through . Scroll to the left to select the ‘ Wireless ’ option ,
tap ‘ Pair New Device ’ to enter pairing mode , power on your Wireless ME transmitter and short - press its power button
( ensuring that the transmitter isn ’ t already connected to another receiver ). Your device ’ s connectivity , mute and battery
status will be displayed on this screen .
Note : Assigning any of the four input channels to the ‘ Wireless ’ option will override the associated physical XLR / TRS input ,
meaning that you won ’ t hear any audio coming from microphones or instruments plugged into that channel .
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
10/23
LEDs, Battery and Charging
The Wireless ME ’ s indicator LEDs provide feedback on battery and connectivity conditions . The connectivity indicator LED
will flash slowly when unpaired and will start to flash more quickly when attempting to pair . When succesfully paired , the
connectivity indicator LEDs will be solid .
Note : The connectivity indicator LED on the receiver will be amber if the ME Mic is switched off , and green if it is switched
on .
Batteries
The Wireless ME ’ s transmitter and receiver each have an in - built lithium - ion battery that can last up to seven 7 hours .
When the battery is getting low on either unit , the battery LED will turn amber and when it is very low , it will turn red . This
LED will start flashing red when the battery level is critical .
The Wireless ME can be recharged using the supplied SC 22 USB  C to USB  C cable . While charging , the battery LED on the
transmitter and receiver will flash green . The LEDs will turn solid green when fully charged . You can still use the Wireless
ME while it ' s charging .
Note : You can lower the brightness of the LEDs by selecting the “ Dim ” option in RØDE Central under the LEDs setting .
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
11/23
Adjusting Wireless ME Settings Using RØDE Central
RØDE Central is an easy - to - use desktop and mobile companion app for the Wireless ME that allows for complete device
configuration anywhere . Once you adjust these settings using RØDE Central , they will persist on your Wireless ME for use
with other devices like cameras , computers and smartphones . The settings include :
Enabling or disabling the ME Mic
Setting the GainAssist mode  Auto , Dynamic , Off )
Pairing and unpairing up to two transmitters
Switching between Split and Merged modes
Setting output gain
Adjusting LED brightness
Updating to the latest firmware
Download it for free to unlock the full potential of your Wireless ME .
Note : OS Requirements  MacOS 10.14 or later ; Windows 10 Version 1803 or later ; iOS 14 or later ; Android 9.0 or later .
Learn More
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
12/23

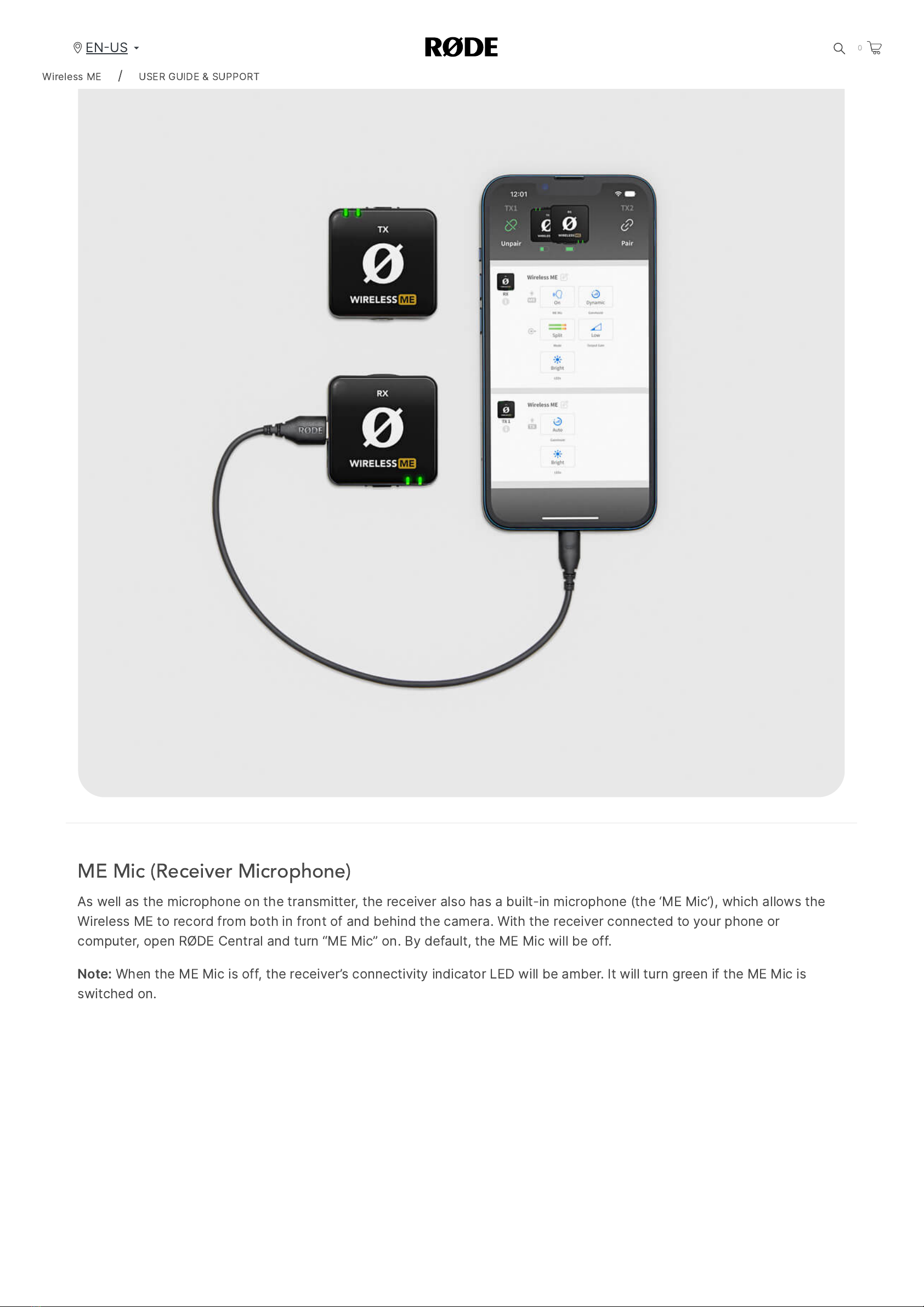

ME Mic (Receiver Microphone)
As well as the microphone on the transmitter , the receiver also has a built - in microphone ( the ‘ ME Mic ’), which allows the
Wireless ME to record from both in front of and behind the camera . With the receiver connected to your phone or
computer , open RØDE Central and turn “ ME Mic ” on . By default , the ME Mic will be off .
Note : When the ME Mic is off , the receiver ’ s connectivity indicator LED will be amber . It will turn green if the ME Mic is
switched on .
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
13/23

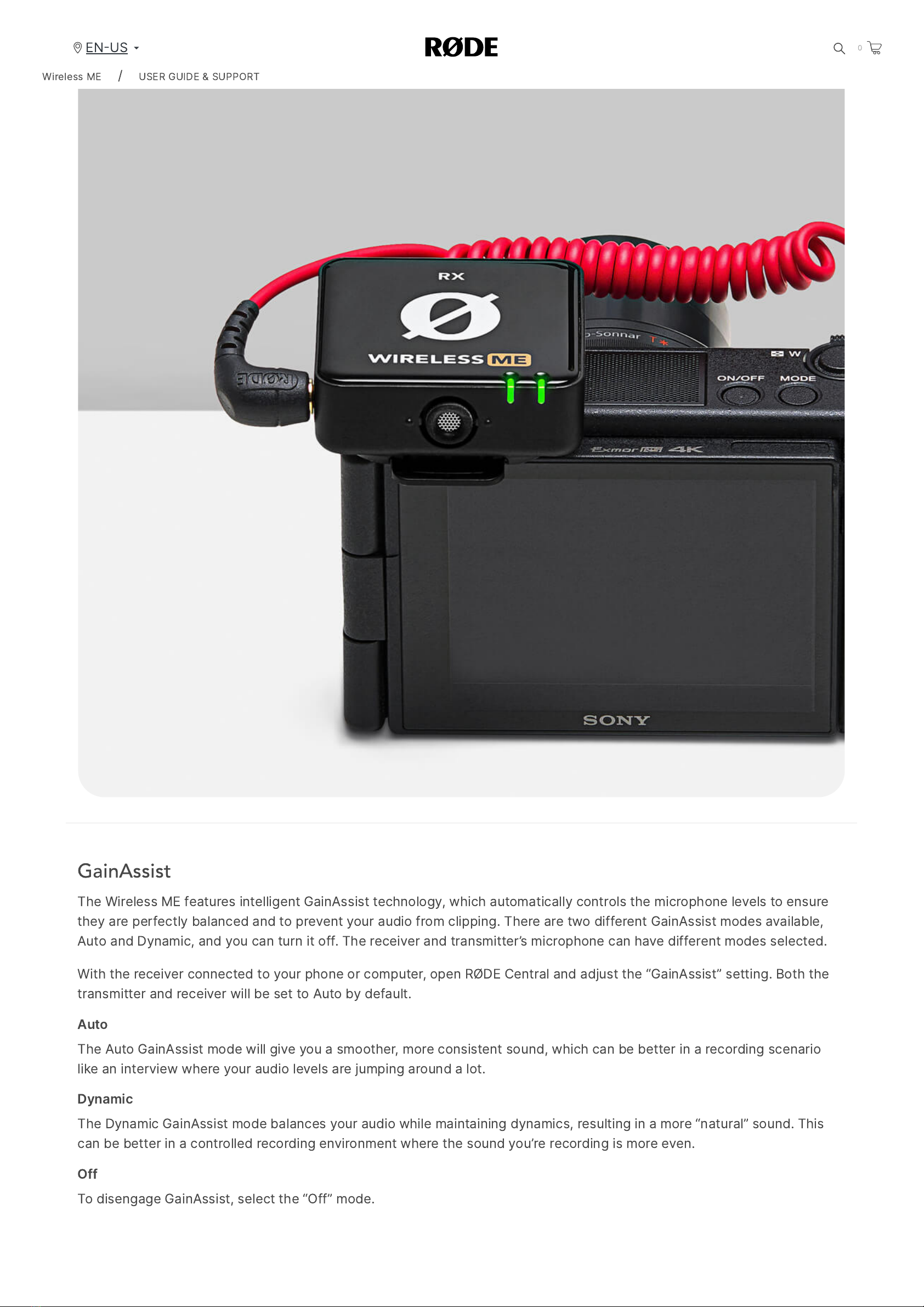

GainAssist
The Wireless ME features intelligent GainAssist technology , which automatically controls the microphone levels to ensure
they are perfectly balanced and to prevent your audio from clipping . There are two different GainAssist modes available ,
Auto and Dynamic , and you can turn it off . The receiver and transmitter ’ s microphone can have different modes selected .
With the receiver connected to your phone or computer , open RØDE Central and adjust the “ GainAssist ” setting . Both the
transmitter and receiver will be set to Auto by default .
Auto
The Auto GainAssist mode will give you a smoother , more consistent sound , which can be better in a recording scenario
like an interview where your audio levels are jumping around a lot .
Dynamic
The Dynamic GainAssist mode balances your audio while maintaining dynamics , resulting in a more “ natural ” sound . This
can be better in a controlled recording environment where the sound you ’ re recording is more even .
Off
To disengage GainAssist , select the “ Off ” mode .
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
14/23
Setting Gain Levels With A Camera
While GainAssist will help prevent clipping , it is still possible for your camera ’ s preamp to distort if your audio levels are set
incorrectly . To avoid this , it ’ s important to set your Wireless ME output gain and your camera ’ s input gain to the appropriate
levels .
Output Gain
The Wireless ME features a three - level output gain control  Low  0 dB , Medium  10 dB , and High  20 dB  which you can
adjust to suit your device . We recommend setting your camera ’ s input volume as low as possible and adjusting the output
gain on your Wireless ME to increase volume if needed .
Camera Settings
Many cameras come with a number of audio settings enabled by default , such as equalisation , noise reduction and AGC
( Automatic Gain Control ) – these are primarily implemented to improve the sound of the camera ’ s on - board microphone ,
which is typically of low quality . Turn all of these settings off when using your camera with your Wireless ME . When setting
your camera gain , start low and use the Wireless ME ’ s output gain control to increase the volume if needed . Your audio
level should be jumping around the 70% mark of the level meter while you or your subject is talking . If your output gain is
set to High , increase your camera ’ s gain in small increments until the desired audio level is achieved .
Note : Check out this article for more information on how to get the best audio from your camera .
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
15/23
Pairing Multiple Transmitters
If you have another RØDE Series IV wireless transmitter ( such as the Wireless GO II or another Wireless ME , you can pair
up to two transmitters to a single Wireless ME receiver . To do this , connect your Wireless ME RX to RØDE Central on
desktop or mobile , turn on the transmitter you ’ re trying to connect and put it in pairing mode , then tap the ‘ pair ’ button
under either TX 1 or TX 2 in RØDE Central . Once paired , you can tap ' unpair ' to unpair a transmitter .
Note : If you have two transmitters paired to your Wireless ME RX and the ME Mic is also enabled , both of your transmitters
will record to the left channel and the ME Mic will record to the right channel ( in Split mode ). In Merged mode , all three
audio sources are summed to the one ( mono ) channel – see below for more information on Split and Merged mode .
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
16/23

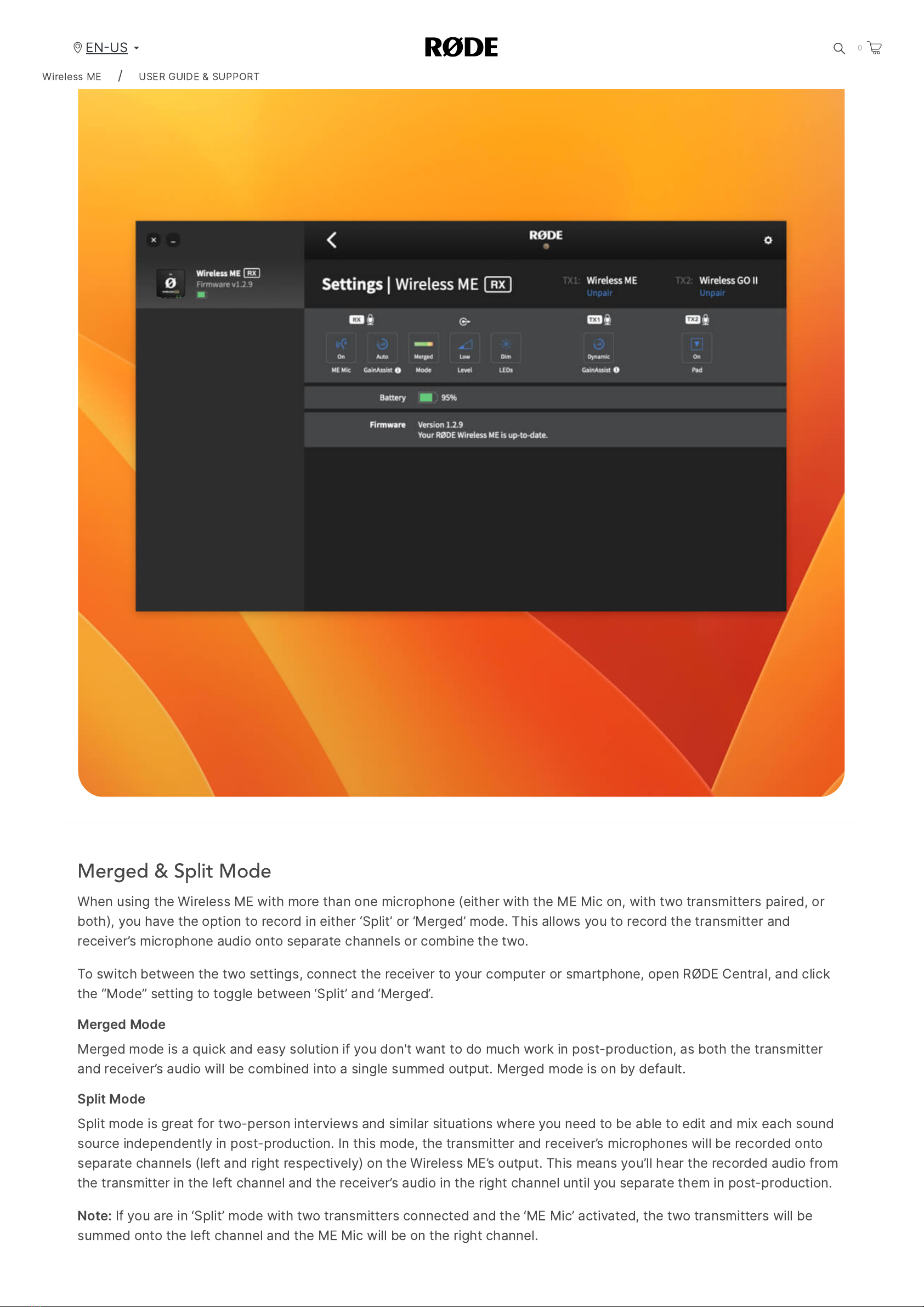

Merged & Split Mode
When using the Wireless ME with more than one microphone ( either with the ME Mic on , with two transmitters paired , or
both ), you have the option to record in either ‘ Split ’ or ‘ Merged ’ mode . This allows you to record the transmitter and
receiver ’ s microphone audio onto separate channels or combine the two .
To switch between the two settings , connect the receiver to your computer or smartphone , open RØDE Central , and click
the “ Mode ” setting to toggle between ‘ Split ’ and ‘ Merged ’.
Merged Mode
Merged mode is a quick and easy solution if you don ' t want to do much work in post - production , as both the transmitter
and receiver ’ s audio will be combined into a single summed output . Merged mode is on by default .
Split Mode
Split mode is great for two - person interviews and similar situations where you need to be able to edit and mix each sound
source independently in post - production . In this mode , the transmitter and receiver ’ s microphones will be recorded onto
separate channels ( left and right respectively ) on the Wireless ME ’ s output . This means you ’ ll hear the recorded audio from
the transmitter in the left channel and the receiver ’ s audio in the right channel until you separate them in post - production .
Note : If you are in ‘ Split ’ mode with two transmitters connected and the ‘ ME Mic ’ activated , the two transmitters will be
summed onto the left channel and the ME Mic will be on the right channel .
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
17/23
Transmitter  TX  ME Mic
No transmitter paired On Merged Mode Only
1 Transmitter Off Merged Mode Only
1 Transmitter On Merged or Split ( Left  TX , Right  ME Mic )
1 Transmitter ( paired but off ) On Merged or Split ( Left  TX , Right  ME Mic )
2 Transmitters On Merged or Split ( Left  TX 1  TX 2, Right  ME Mic )
2 Transmitters Off Merged or Split *
Output Mode
* This option appears if a transmitter is assigned on both TX 1 and TX 2, even if one of them is turned off .
Using the Windshields
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
18/23
Both the transmitter and receiver feature a high - quality built - in omnidirectional condenser capsule . These are sensitive
microphones that are designed to pick up sound from all around in great detail . When recording outdoors or in windy
environments , it ’ s recommended you use the supplied furry windshields to help reduce any wind noise in your recording .
The Wireless ME comes with two furry windshields . To securely attach them , align the two white dots on the windshield
with the black dots on the TX or RX unit , then push the windshield down and twist clockwise to lock in place . Reverse the
process to remove them . The windshields are designed to ensure an extremely strong connection and will not fall , even
with vigorous use .
RØDE Capture
RØDE Capture is a video recording app that pairs seamlessly with RØDE microphones for professional video and audio
capture . As well as being able to access Wireless ME device configuration , RØDE Capture ’ s dual - camera mode makes it
ideal for recording video and audio from both in front of and behind the camera when the Wireless ME ’ s transmitter and
receiver microphones are both switched on .
When using Wireless ME with RØDE Capture , you can set the ME Mic to ‘ Auto ’ mode . This will automatically enable the
built - in microphone on the receiver when you engage the dual cam mode in Capture , and disable the ME Mic when you
return to single camera operation .
Note : Any settings adjusted using RØDE Capture will persist on your Wireless ME for use with other devices like cameras ,
computers and smartphones .
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
19/23
Download for iOS
RØDE Connect
RØDE Connect is a simple and powerful software solution for podcasting and streaming with the Wireless ME . Capable of
connecting up to four Wireless ME receivers or transmitters to a single computer , RØDE Connect is the easiest way to
create professional sounding podcasts . It ’ s also incredibly useful for streamers , with dedicated outputs for connecting to
streaming software like OBS or XSplit .
Note : Any settings adjusted using RØDE Connect will persist on your Wireless ME for use with other devices like cameras ,
computers and smartphones .
 Mac Download  Windows Download
Wireless ME / USER GUIDE & SUPPORT
EN  US
0

2/20/24, 9:52 AM
Wireless ME | USER GUIDE & SUPPORT | RØDE
https://rode.com/en-us/user-guides/wireless-me
20/23
RØDE Reporter
RØDE Reporter is a mobile recording app for iOS and Android that also acts as a companion for a range of RØDE
microphones . It offers a simple and intuitive solution for recording audio onto your phone when connected to your Wireless
ME .
 Download for iOS  Download for Android
Wireless ME / USER GUIDE & SUPPORT
EN  US
0
