Rohde & Schwarz TSMA6 Series User manual

R&S®TSMA6-BP
R&S®TSMA6B-BP
Battery Pack Unit
Getting Started
Getting Started
Version 05
4900903002
(a0èN2)

This manual describes the following R&S®TSMA6 accessory:
●R&S®TSMA6-BP Battery Pack Unit (4900.9001.02)
●R&S®TSMA6B-BP Battery Pack Unit (4900.9001.20)
●R&S MNT®BP89WH Batteries (1321.3772.00) for R&S®TSMA6-BP
●R&S®MNT-BP99WH Batteries (3660.9109.02) for R&S®TSMA6B-BP
© 2020 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: [phone] - 0
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – Data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
4900.9030.02 | Version 05 | R&S®TSMA6-BP R&S®TSMA6B-BP
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol , e.g.
R&S®TSMA6 is indicated as R&S TSMA6.

Contents
R&S®TSMA6-BP R&S®TSMA6B-BP
3Getting Started 4900.9030.02 ─ 05
Contents
1 Safety Information................................................................. 5
2 Documentation Overview......................................................6
2.1 Getting Started Manual.........................................................................6
2.2 Basic Safety Instructions..................................................................... 6
2.3 Li-Ion Batteries Safety Instruction...................................................... 6
2.4 Data Sheets and Brochures................................................................. 6
3 Key Features.......................................................................... 8
4 Preparing for Use...................................................................9
4.1 Unpacking the Instrument..................................................................10
4.1.1 Hardware.............................................................................................. 10
4.1.2 Standard Accessory.............................................................................. 11
4.1.3 Optional Accessory............................................................................... 12
4.2 Connecting with External Power Supply and Charging the Batter-
ies......................................................................................................... 12
4.3 Connecting the R&S TSMA6/6B-BP with R&S TSMA6.................... 14
4.4 Connecting the R&S TSMA6/6B-BP with R&S TSME6 and Down-
converter R&S TSMExxDC.................................................................17
4.5 Connecting the R&S TSMA6/6B-BP with Multiple Devices.............19
4.6 Disconnecting the R&S TSMA6/6B-BP from R&S TSMx Devices
.............................................................................................................. 25
5 Operation..............................................................................27
5.1 Operation Modes.................................................................................27
5.2 Power On/Off....................................................................................... 27
5.2.1 Auto Power On......................................................................................27
5.2.2 Standby.................................................................................................28

Contents
R&S®TSMA6-BP R&S®TSMA6B-BP
4Getting Started 4900.9030.02 ─ 05
5.3 Battery Charging.................................................................................28
5.4 Power Path Switching........................................................................ 28
5.5 Monitoring Battery Charge State.......................................................28
5.5.1 Battery Charge Display......................................................................... 29
5.5.2 Rear Panel LEDs.................................................................................. 30
5.5.3 R&S TSMA6 web-GUI / Tray Icon (Only Host-Controlled Mode)..........32
5.6 Battery Exchange - Hot Swapping.................................................... 32
6 Contacting Customer Support........................................... 35
Index..................................................................................... 36

Safety Information
R&S®TSMA6-BP R&S®TSMA6B-BP
5Getting Started 4900.9030.02 ─ 05
1 Safety Information
The product documentation helps you use the R&S TSMA6/6B-BP safely and effi-
ciently. Follow the instructions provided here and in the printed "Basic Safety
Instructions". Keep the product documentation nearby and offer it to other users.
Intended use
The R&S TSMA6/6B-BP is intended for the development, production and verifica-
tion of electronic components and devices in industrial, administrative, and labo-
ratory environments. Use the R&S TSMA6/6B-BP only for its designated purpose.
Observe the operating conditions and performance limits stated in the data sheet.
Where do I find safety information?
Safety information is part of the product documentation. It warns you about the
potential dangers and gives instructions how to prevent personal injuries or dam-
age caused by dangerous situations. Safety information is provided as follows:
●The printed "Basic Safety Instructions" provide safety information in many lan-
guages and are delivered with the R&S TSMA6/6B-BP.
●Throughout the documentation, safety instructions are provided when you
need to take care during setup or operation.

Documentation Overview
R&S®TSMA6-BP R&S®TSMA6B-BP
6Getting Started 4900.9030.02 ─ 05
2 Documentation Overview
This section provides an overview of the R&S TSMA6/6B-BP user documenta-
tion. Unless specified otherwise, you find the documents on the R&S TSMA6/6B-
BP product page at:
www.rohde-schwarz.com/manual/tsmx
2.1 Getting Started Manual
Introduces the R&S TSMA6/6B-BP and describes how to set up and start working
with the product. Includes basic operations, typical measurement examples, and
general information, e.g. safety instructions, etc. A printed version is delivered
with the instrument.
2.2 Basic Safety Instructions
Contains safety instructions, operating conditions and further important informa-
tion. The printed document is delivered with the instrument.
2.3 Li-Ion Batteries Safety Instruction
Contains safety instructions, operating conditions and further important informa-
tion. The printed document is delivered with the instrument.
2.4 Data Sheets and Brochures
The data sheet contains the technical specifications of the R&S TSMA6/6B-BP. It
also lists optional accessories.
The brochure provides an overview of the instrument and deals with the specific
characteristics.
Data Sheets and Brochures

Documentation Overview
R&S®TSMA6-BP R&S®TSMA6B-BP
7Getting Started 4900.9030.02 ─ 05
See www.rohde-schwarz.com/brochure-datasheet/tsmx
Data Sheets and Brochures

Key Features
R&S®TSMA6-BP R&S®TSMA6B-BP
8Getting Started 4900.9030.02 ─ 05
3 Key Features
This manual describes two models of the battery pack.
●R&S TSMA6-BP
●R&S TSMA6B-BP
If descriptions in this manual are valid for both models, the term
R&S TSMA6/6B-BP is used.
The R&S TSMA6/6B-BP enhances the R&S TSMA6 device to a portable mea-
surement solution based on a battery powered system.
Key Features
●Power supply for R&S TSMA6 in portable applications
●Power supply for up to 4 additional devices (mobile network scanner R&S
TSME6 resp. downconverter R&S TSMExxDC*)
●Usage as a power buffer for connected devices in scenarios with cracking or
shortly interrupted external DC power supplies / (e.g. in vehicles)
●Dual battery bay for hot-swap support and endless portable mode
●In-bay charging via smart battery controller
●Charge indicator LED for each individual battery bay
●SMBus interface with connected R&S TSMA6
* R&S TSMExxDC includes the device types R&S TSME30DC and R&S
TSME44DC.

Preparing for Use
R&S®TSMA6-BP R&S®TSMA6B-BP
9Getting Started 4900.9030.02 ─ 05
4 Preparing for Use
Risk of injury and instrument damage
The instrument must be used in an appropriate manner to prevent electric
shock, fire, personal injury, or damage.
●Do not open the instrument casing.
●Read and observe the "Basic Safety Instructions" delivered as a printed
brochure with the instrument.
In addition, read and observe the safety instructions in the following sec-
tions. Notice that the data sheet may specify additional operating condi-
tions.
Risk of instrument damage during operation
An unsuitable operating site or test setup can cause damage to the instru-
ment and to connected devices. Ensure the following operating conditions
before you switch on the instrument:
●The instrument is dry and shows no sign of condensation.
●The instrument is positioned as described in the following sections.
●Signal levels at the input connectors are all within the specified ranges.

Preparing for Use
R&S®TSMA6-BP R&S®TSMA6B-BP
10Getting Started 4900.9030.02 ─ 05
4.1 Unpacking the Instrument
Risk of instrument damage due to inappropriate operating conditions
Specific operating conditions are required to ensure accurate measure-
ments and to avoid damage to the instrument. Observe the information on
appropriate operating conditions provided in the basic safety instructions
and the instrument's data sheet.
Check the equipment for completeness using the delivery note and the accessory
lists for the various items. Check the instrument for any damage. If there is dam-
age, immediately contact the carrier who delivered the instrument. Make sure not
to discard the box and packing material.
Packing material
Retain the original packing material. If the instrument needs to be transpor-
ted or shipped later, you can use the material to protect the control ele-
ments and connectors.
Accessory list
4.1.1 Hardware
●R&S TSMA6/6B-BP unit premounted with one of the following battery types (2
batteries are used):
– Battery for R&S TSMA6-BP (R&S MNT_BP89WH, R&S
No. 1321.3772.00)
Unpacking the Instrument

Preparing for Use
R&S®TSMA6-BP R&S®TSMA6B-BP
11Getting Started 4900.9030.02 ─ 05

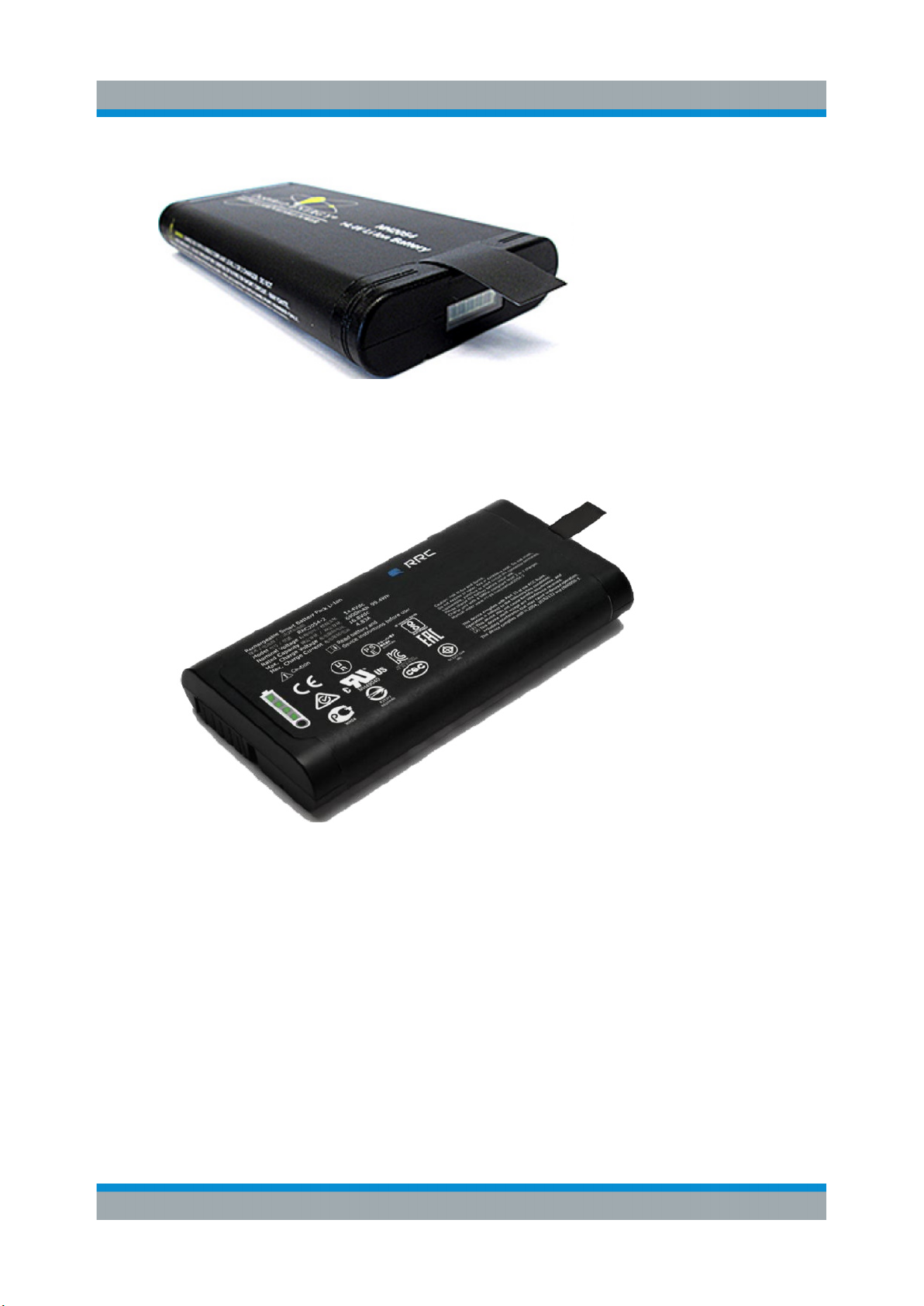

Figure 4-1: R&S MNT-BP89WH
– Battery for R&S TSMA6B-BP (R&S MNT_BP99WH, R&S
No. 3660.9109.02)
Figure 4-2: R&S MNT-BP99WH
4.1.2 Standard Accessory
The following items are included with shipment of the R&S TSMA6/6B-BP:
●DC power cable with a cigarette lighter adapter
●4 x collar screws M2.5 for connecting R&S TSMA6 resp. R&S TSME6 /
TSMExxDC
●Getting Started Manual (Printed)
●Safety instruction booklet
Unpacking the Instrument

Preparing for Use
R&S®TSMA6-BP R&S®TSMA6B-BP
12Getting Started 4900.9030.02 ─ 05
●Safety instruction Li-Ion batteries
4.1.3 Optional Accessory
The following items are optional and must be ordered separately:
●R&S TSMA6-Z1 R&S No. 4901.0550.02
AC power supply
●Only for model R&S TSMA6-BP: Additional Li-Ion battery pack R&S
MNT_BP89WH, R&S No. 1321.3772.00 (see Figure 4-1)
●Only for model R&S TSMA6B-BP: Additional Li-Ion battery pack (R&S
MNT_BP99WH, R&S No. 3660.9109.02 (see Figure 4-2)
●External charger for batteries
– R&S TSMA-BC2,
Dual charger for R&S TSMA6/6B-BP batteries including country-specific
power cord
– R&S TSMA6-BC4, R&S No. 3630.7708.02
4-bay charger for R&S TSMA6/6B-BP batteries including country-specific
power cord
●Collar screws (as a spare part) (R&S No. 4900.0804.00)
To power TSMEx devices (scanner, downconverter), the following accessory
cables are necessary.
●R&S TSMA6-BPPT (single TSMEx power cable, R&S No. 4900.1730.02)
●R&S TSMA6-BP2T (dual TSMEx power cable, R&S No. 4901.0566.02)
4.2 Connecting with External Power Supply and
Charging the Batteries
Risk of instrument damage during operation
Read and observe the "Safety Instruction for rechargeable Li-Ion batteries"
delivered as a printed brochure with the instrument.
Connecting with External Power Supply and Charging the Batteries

Preparing for Use
R&S®TSMA6-BP R&S®TSMA6B-BP
13Getting Started 4900.9030.02 ─ 05
Connecting with External Power Supply
The DC power supply connector is on the rear panel. It has a wide range DC
input voltage from 11 V to 28 V.
Figure 4-3: DC power supply connector
●DC power supply via cigarette lighter using the accessory DC power cable
●DC power supply from a vehicle terminal block with a modified DC power
cable
Demount the cigarette lighter adapter from the supplied power cable and con-
nect the open ends of the cable to the proprietary power supply. Be sure to
respect the correct polarity.
Figure 4-4: Supplied power cable with cigarette lighter adapter
Connecting with External Power Supply and Charging the Batteries

Preparing for Use
R&S®TSMA6-BP R&S®TSMA6B-BP
14Getting Started 4900.9030.02 ─ 05
●AC supply via R&S TSMA6-Z1 (optional accessory)
Charging the Batteries
The batteries are not charged on delivery. Before initial operation, the bat-
teries must be fully charged without connected load (R&S TSMA6, R&S
TSME6 reps. R&S TSMExxDC).
For charging the batteries, the following possibilities are available:
●Charging starts automatically when DC power is connected.
●Usage of external battery charger (optional accessory)
The external recharging of the batteries is only allowed via the following
charger types:
●R&S TSMA6-BC4, 4-bay charger
●R&S TSMA-BC2, 2-bay charger
To check, if the batteries are fully charged, refer to Chapter 5.5, "Monitoring Bat-
tery Charge State", on page 28.
4.3 Connecting the R&S TSMA6/6B-BP with R&S
TSMA6
Before initial operation, the batteries must be fully charged without an R&S
TSMA6 connected (see Chapter 4.2, "Connecting with External Power Sup-
ply and Charging the Batteries", on page 12).
To connect the R&S TSMA6 with the R&S TSMA6/6B-BP, the following steps
must be performed.
1. Remove the cover cap from the docking connector of the R&S TSMA6.
Connecting the R&S TSMA6/6B-BP with R&S TSMA6

Preparing for Use
R&S®TSMA6-BP R&S®TSMA6B-BP
15Getting Started 4900.9030.02 ─ 05
2. Screw the collar screws on the top of the R&S TSMA6/6B-BP with a Torx 8
screw driver.
● Torque: 0.66 Nm ± 0.05 Nm
Figure 4-5: Collar screws
1 = Collar screws
3. Align the collar screws with the snap-in holes on the bottom of an R&S
TSMA6 and press the device down.
Connecting the R&S TSMA6/6B-BP with R&S TSMA6

Preparing for Use
R&S®TSMA6-BP R&S®TSMA6B-BP
16Getting Started 4900.9030.02 ─ 05
Figure 4-6: Aligning R&S TSMA6/6B-BP and R&S TSMA6
1 = R&S TSMA6/6B-BP
2 = Collar screws
3 = R&S TSMA6
4 = Snap in holes on the bottom pane of R&S TSMA6
4. Move the R&S TSMA6 to the rear side (2) until you hear a click when the col-
lar screws are locked in.
Connecting the R&S TSMA6/6B-BP with R&S TSMA6

Preparing for Use
R&S®TSMA6-BP R&S®TSMA6B-BP
17Getting Started 4900.9030.02 ─ 05
Figure 4-7: Connected R&S TSMA6 and R&S TSMA6-BP
1 = Attach R&S TSMA6 to R&S TSMA6/6B-BP
2 = Move R&S TSMA6 to the rear side
3 = Power connection established (docking connector is snapped in)
4.4 Connecting the R&S TSMA6/6B-BP with R&S
TSME6 and Downconverter R&S TSMExxDC
The following steps are valid for R&S TSME6 and R&S TSMExxDC.
For the cabling of the devices, the accessory cables R&S TSMA6-BPPT or
R&S TSMA6-BP2T are necessary.
Additional cabling may be necessary for proper operation. For complete
cabling instructions, refer to the R&S TSME6 User Manual and the R&S
TSMExxDC Getting Started.
1. Screw the collar screws (1) on the top of the R&S TSMA6/6B-BP with a Torx 8
screw driver.
Connecting the R&S TSMA6/6B-BP with R&S TSME6 and Downconverter R&S
TSMExxDC

Preparing for Use
R&S®TSMA6-BP R&S®TSMA6B-BP
18Getting Started 4900.9030.02 ─ 05
● Torque: 0.66 Nm ± 0.05 Nm

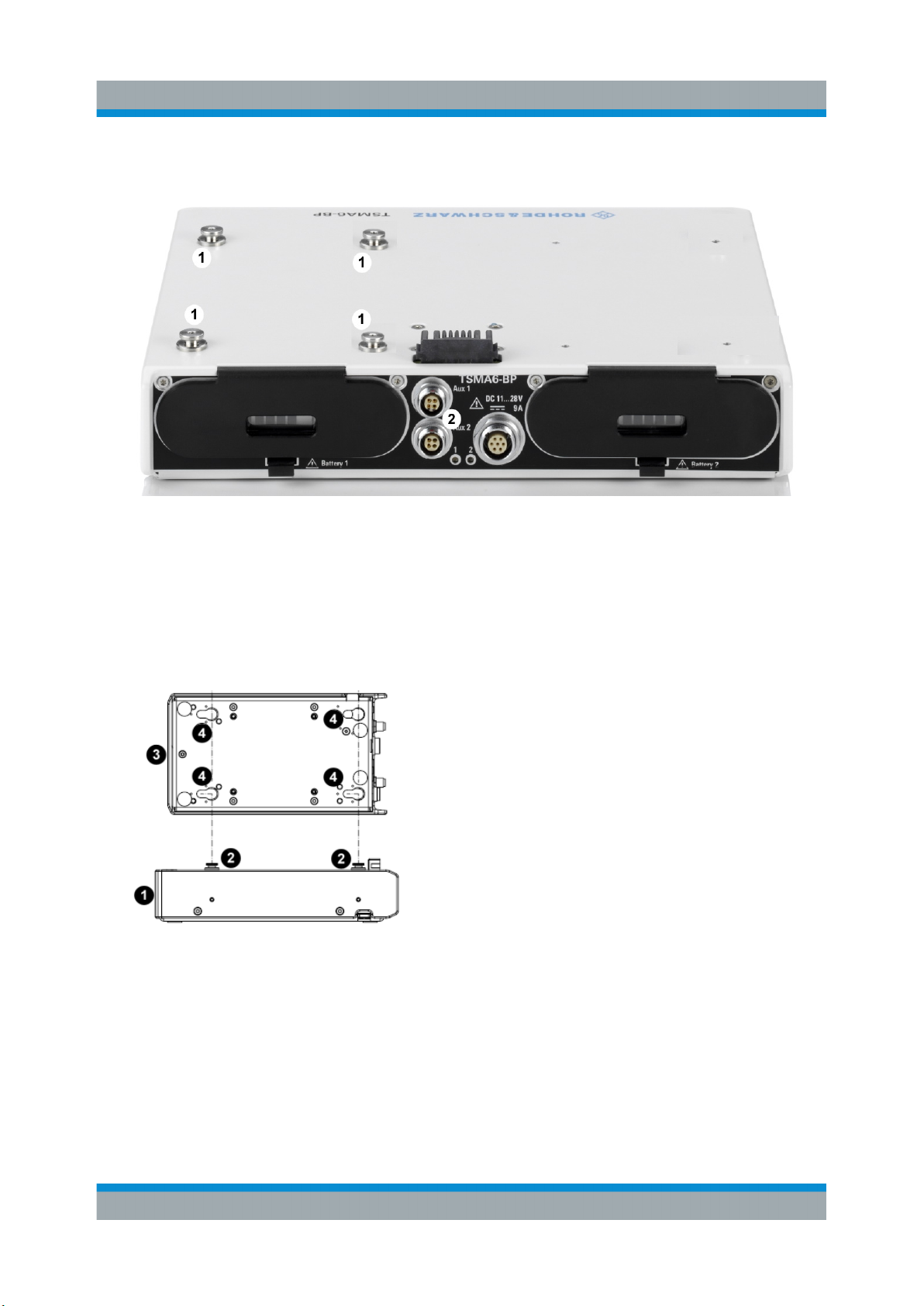

Figure 4-8: Example: R&S TSMA6-BP
1 = Collar screws for connecting R&S TSME6
2 = Aux 1 / Aux 2 (auxiliary power out for connecting R&S TSME6/TSMExxDC via power
cable R&S TSME-ZYC)
2. Align the collar screws with the snap-in holes on the bottom of an R&S
TSME6/TSMExxDC and press the device down.
Figure 4-9: Example: Aligning R&S TSMA6/6B-BP and R&S TSME6
1 = R&S TSMA6/6B-BP
2 = Collar screws
3 = R&S TSME6/TSMExxDC
4 = Snap-in holes on the bottom pane of R&S TSME6/TSMExxDC
3. Move the R&S TSME6/TSMExxDC to the back side, until you hear a click
when the collar screws are locked in.
Connecting the R&S TSMA6/6B-BP with R&S TSME6 and Downconverter R&S
TSMExxDC

Preparing for Use
R&S®TSMA6-BP R&S®TSMA6B-BP
19Getting Started 4900.9030.02 ─ 05

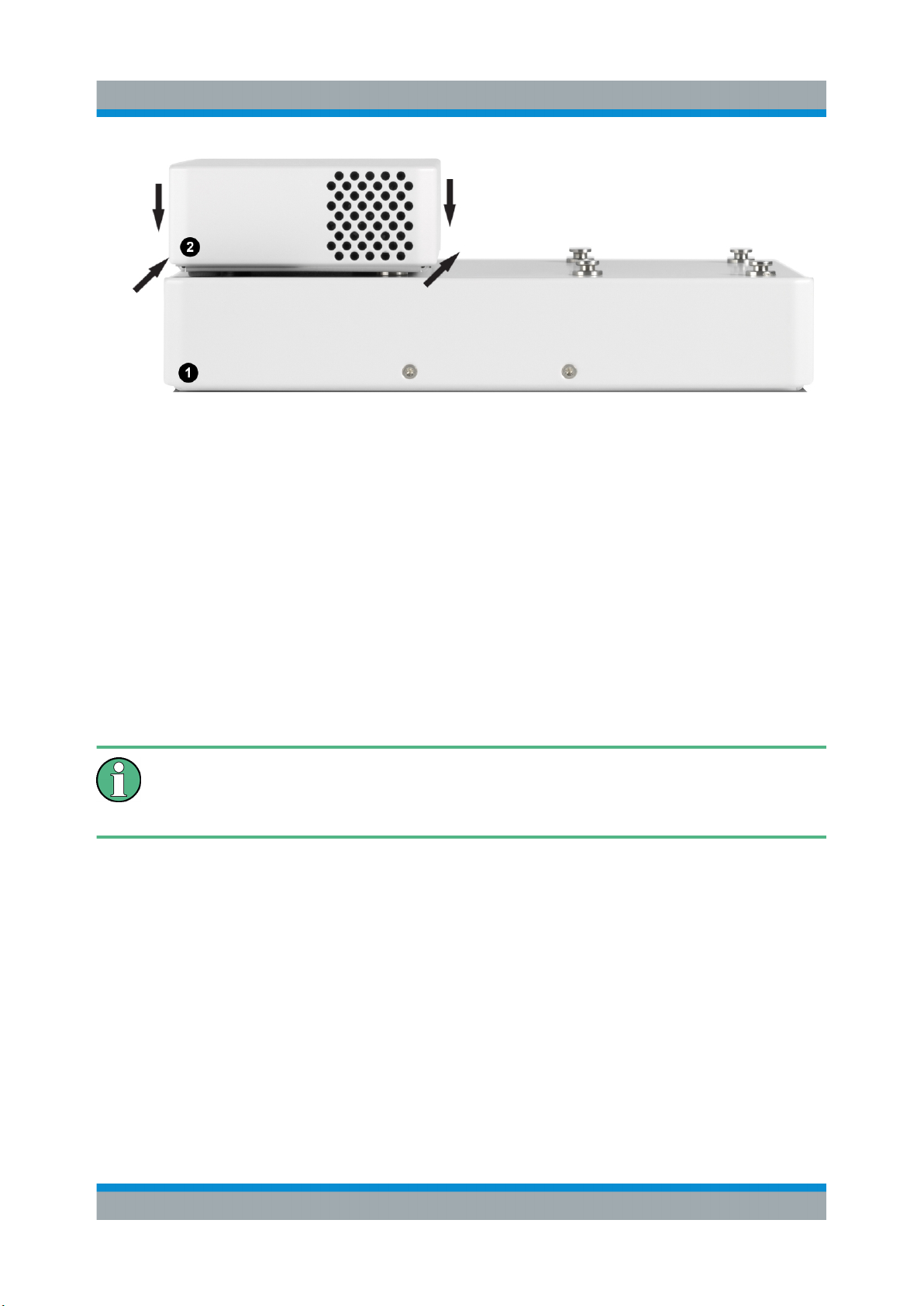

Figure 4-10: Connected R&S TSME6/TSMExxDC and R&S TSMA6/6B-BP
1 = R&S TSMA6/6B-BP
2 = R&S TSME6/TSMExxDC
4. Connect the power cable R&S TSMA6-BPPT resp. R&S TSMA6-BP2T from
AUX1 resp. AUX2 to DC IN of R&S TSME6/xxDC (see Figure 4-12).
4.5 Connecting the R&S TSMA6/6B-BP with Multiple
Devices
Additional cabling may be necessary for proper operation. For complete
cabling instructions, refer to the R&S TSME6 User Manual and the R&S
TSMExxDC Getting Started.
The R&S TSMA6/6B-BP can be connected with several devices at the same time.
In the following, examples for such multiple device combinations are shown.
The connection of up to 4 R&S TSME6/TMSExxDC devices is possible.
●For up to 2 devices, 1 x R&S TSMA6-BP2T dual power cable or 2 x R&S
TSMA6 BPPT single power cables are required.
●For up to 4 devices, 2 x R&S TSMA6-BP2T dual power cables are required.
Per device, 4 collar screws are required.
Connecting the R&S TSMA6/6B-BP with Multiple Devices

Preparing for Use
R&S®TSMA6-BP R&S®TSMA6B-BP
20Getting Started 4900.9030.02 ─ 05
4 collar screws are part of the standard accessory of the R&S TSMA6/6B-
BP. Additional collar screws are part of the R&S TSME6/TSMExxDC acces-
sory or can be ordered as spare parts (R&S no. 4900.0804.00).
Setup with TSMA6/6B-BP + TSMA6 + Downconverter TSMExxDC
Figure 4-11: TSMA6/6B-BP + TSMA6 + downconverter TSMExxDC
Setup with TSMA6/6B-BP + TSME6 + TSMExxDC
Connect up to two R&S TSME6/TSMExxDC. Use one of the following solutions.
●Connect the devices with 2 x R&S TSMA6-BPPT single power cables to
AUX1 and AUX2 port of the R&S TSMA6/6B-BP (see Figure 4-12).
●Connect the devices with 1 x R&S TSMA6-BP2T dual power cable to AUX1 or
AUX2 port of the R&S TSMA6/6B-BP (see Figure 4-18).
Connecting the R&S TSMA6/6B-BP with Multiple Devices
