ROHS LED-PAR64-3W90BL-RGBW User manual

USER MANUAL
High Power LED PAR, RGB 90 3W
LEDs Waterproof Black
（LED-PAR64-3W90BL-RGBW）

summarize .................................................................................................................1
safety instruction ........................................................................................................1
outside size picture .....................................................................................................2
light bady structure description..................................................................................3
main function ..............................................................................................................3
DMX controller function .............................................................................................4
Display operation instruction......................................................................................5
Manual instruction......................................................................................................6
Operating control instruction .....................................................................................7
XRL connection instruction .........................................................................................9
Connection picture....................................................................................................10
Exploded Views .........................................................................................................12
illuminance list .......................................................................................................... 13
Problem analyse........................................................................................................14
Technical specification…………………………………………………………………………………………15
Please read over this manual before operating the light
catalogue

1
1. Summarize
Summarize
Thank you for purchasing our LED PAR lighting. Please read these instructions
carefully before begin and operate the fixtures according to these instructions to avoid any
possible damages and accidents causes by misusage.
Products introduce
This led par color-changing projecting light is covered by high strength die-casting
aluminum which is able to endure high temperature, designed in a fashion of
hydrodynamic form. It takes uses high power 3W, R，G，B，W 4 kinds LED, the color
mixing effect is very good, high brightness. Each color can be independently dimmer, fading
changes and so on. It uses power switch, performs low weight and consumption, stable
capability and long life. The built-in program includes dimmer, strobe, eotic, gradual change,
fading and so on. International standard DMX 512 signal is requested.
Packing list
LED-PAR64-3W90BL-RGBW light 1PC (waterproof power in/out extension
cable,waterproof DMX in/out extension cable)
waterproof power in cable 1PC (with plugs)
waterproof DMX in cable 1PC(connect to the controller)
The use manual
Warranty Card
2. Safety Information
Safety Notes
! Enquire the skilled people before any repair;
! Always make sure disconnect from the power source before setting up, serving and moving;.
! Avoid direct eye exposure to the fixture when it is on;

2
Safety instuction
● Make sure the power supply voltage are consistent with this lights，Ensure the use of
voltage is in the range of the request technical parameter.
●before the installation , please check the light’s fasteners and mechanical structure
have been received in good condition and appear no damage.
●This light is designed for indoor use, working temperature is lower than 40 degree.
●The fixtures maybe mounted in any position provided there is adequate room for
ventilation. Make sure there are no inflammable and explosive items(ornaments) in 0.5
meters away.
●Yellow / green cabling earthling safety; no flicker when the fixture is working on.
3. Outside Size Picture

3

4
4. Light body structure description
Order
number
Item
Quantity
Remarks
Order
number
Item
Quantity
Remarks
1
Front cover
1
11
Power main
board bracket
1
2
Glass
1
12
Main board
1
3
Glass waterproof
silicone
1
13
Display platen
1
4
Lens plate
1
14
display
1
5
Lamp panel
1
15
Silica gel
tabletting
1
6
bulb holder
1
16
waterproof
silicone
7
bracket
1 set
2PCS
17
Bottom base
1
8
Bottom case cover
1
18
wire clip
1
9
Bottom case
waterproof silicone
1
19
bumper
bracket
1
10
Power supply
1
5. Main Function
Protection rating:IP65,in-door or out-door use
unique cooling mode: natural convection

5
DMX512 Controller，4 button set DMX ID address with led display
master slave/interconnected multi-machine control
lens degree: 15º、25º、45º optional
using switching power supply to protect the LED to work well
48*3W R,G,B,W LED
Stobe、gradual change、jumping change
6. DMX Control Function
(3CH）
Channel
DMX Value
Control Function
Remark
1CH
0-255
RGB mixing
Hue
2CH
0-255
White diming0-100%
Color Saturation
3CH
0-255
General dimming 0-100%
brightness
Note: In this mode, the color represents visible light, such as red, green, yellow, blue and so
on. Color saturation refers to proportion of the main color ,100% saturation means it has
reached the solid.Value refers to the purity of the color brightness, 100% is the brightest.
（4CH）
Channel
DMX Value
Control Function
Remark
1CH
0-255
R 0-100%
2CH
0-255
G 0-100%
3CH
0-255
B 0-100%
4CH
0-255
W 0-100%
（5CH）
Channel
DMX Value
Control Function
Remark
1CH
0-255
General dimming
2CH
0-255
R 0-100%
3CH
0-255
G 0-100%
4CH
0-255
B 0-100%
5CH
0-255
W 0-100%
（8CH）

6
Channel
DMX Value
Control Function
Remark
1CH
0-255
General dimming
2CH
0-255
Red Dimming 0——100%
3CH
0-255
Green Diming0——100%
4CH
0-255
Blue Dimming 0——100%
5CH
0-255
White 0——100%
6CH
0-14
Dimming
When the 7CH above31，this
function is invalid
15-255
Strobe Speed
7CH
0-31
Invalid
32-63
From dark to bright
Must use CH1、2、3、4，5
otherwise no light，From the
8CH, start the speed
adjustment
64-95
From bright to dark
96-127
From dark—bright—dark
128-159
RGB Gradient
From the 8CH, start the
speed adjustment
160-191
dark-bright-dark Automatic
192-223
4 colors jumping change
224-255
Many color mixing jumping
change
8CH
0-255
Speed adjust（7CH）
7. Display Operation
DMX IN DMXOUT
MENU UP DOWN ENTER
SAFE EYE
POWER IN POWER OUT

7
Power-in cable power-out cable
DMX-in cable DMX-out cable
Safety eye
MENU : access the menu or return to a previous menu option
ENTER:select the current menu option
UP:menu selection or parameter increments
DOWN:menu selection or parameters decrease
8. Manual Instruction
Operating instruction:
1. MENU is used to access the menu or return to a previous menu option. It can not be
used to select and store the current menu option. Press UP / DOWN to choose a desired
menu item. Here are the operation details :
”addr”: DMX mode （A001-A512）
“SLAV”:slave receive mode
“CHNd”:DMX channel (3,4,5,8CH)
”SP”; built-in program speed change model (SP00-SP15, SP00 is the fastest)
”Pr”; Built-in program （Pr00-Pr15 16 program in all）
”ASC”; seven colors jumping（AS00-AS15 speed adjustable）
”FAdE”: gradual change model（FA00-FA15 speed adjustable）
”FLAS”: white color strobe（FL00-FL15 speed adjustable）
”rL”: red dimmer （r000-r255,, r255 is the brightest）
”gL”: green dimmer（g000- g255, g255 is the brightest）
”bL”: blue dimmer（b000- b255, b255 the brightest）

8
”UL”: white dimmer（U000- U255, U255 the brightest）
2. Press ENTER to access the further menu setting. This process can be saved
automatically; that means you will enter the process saved previously when you activate
the light next time. For example, if you want to choose DMX mode A001, operate as
follows:
Press MENU, go back to the initial setting
Press UP / DOWN until Addr
Press ENTER to choose, the display will glinting at this moment
Press UP / DOWN to change the address code to selectA001
 Press ENTER to select and store the current menu options. DMX mode will be
stored automatically and the screen will stop glinting.
DMX channel choosing Operation：CHNd mode
Press Menu, go back to the initial setting
Press UP/DOWN，until shows “CHNd”
Press ENTER to access the menu items to select, the screen will now be glinting
Press UP/DOWN to change the DMX Channel: 3CH、4CH, 5CH、8CH
At last, press ENTER to confirm, if it delay for 3 seconds , DMX channel choosing will
be saved, and go back to DMX receive mode(A001); If your press ENTER for short
time or not press , delaying for 8 seconds , the DMX channel will select to be saved
automatically, and then go back to DMX receive mode(A001)
3. Details of program built inside（Pr- -）
NOTE:Pr14--- Pr30 Can change the content Of SP，correct the speed of jumping change ,
SP00 is the fastest，SP15 is the slowest
Pr00--- Pr13 :R,G,B,Wsigle or multi-colors mixing.
Pr14--- Pr27: corespond to Pr00--- Pr13,add strob.

9
Pr28:four colors jumping change.
9. Operating Control Instruction
Master/Slave
Master：The master should always working as a master as long as it is not set in a DMX
mode whatever other modes it is. And it send out the signal so that the slave synchronous
with it. To avoid the host signal and DMX512 signals interfere with each other, should cut off
the DMX512 signals. The signal lines are longer than 60 meters(20 lamps) ,should increase
a signal amplifier.
Slave：he Slave must be set in DMX mode and the address code should be A001, to
assure receive the master’s signals correctly. Only one light can be set as a Master and
others are slaves.
Note: This product uses input and output power cord 2.5 m ㎡copper core wire,
power line in series, when 220V AC should less than 10lights, and 110V AC less than 5
lights! ! !
10. XLR cable connecting
XRL cable：
The stand connection way of the XRL is: one end connect to the male plug ,and the
other connect to the female.

10
Noted：In order to avoid failures and interference signal transmission，we connect a
resistance120Ω （1/4W ）at the end of the DMX connecting as below:
The Conversion between 3pin and 5 pin XLR
If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN
cable
11. Connecting picture
Light connecting picture：

11

12

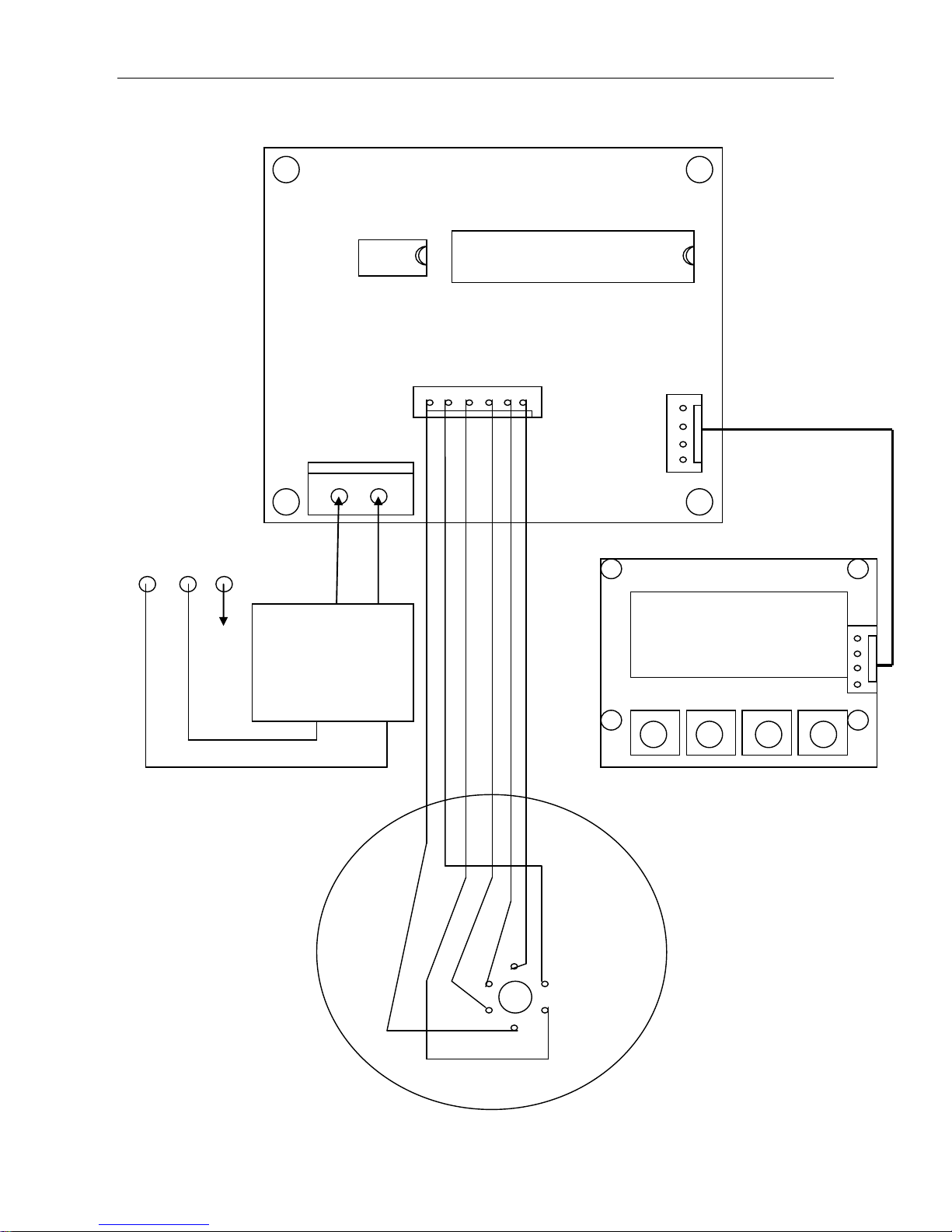

Great waterproof PAR lamp wiring diagram
AC INPUT
L N E
ground
Dashboard PCB
Aluminum Light Panel：基灯板 LED PCB
DSLM-5408-2
控制主板 Control board PCB
V+ R G B W V+
GND
TXD
GND +24V SOUND
5V
POWER IN
MCU
IC
DSLM-5408-2A
K1 K2 K3 K4
DISPLAY
GND +24V
Power supply switch
AC220V/110V
V+
W R
B G
V+

13
12. Exploded views

14
13. illuminance list

15
14. Problem Analyse
Problem
Checking way
Can not turn on the
light
Check the power source plug is in normal or not
Check the switch of the lights is off or on
Check the fuse if in normal
DMX can not control
it
Check the DMX cable is connect to the lights or not
Check the DMX512 controller work in normal or not
Check the DMX cable is normal or not
Check if the lights is in DMX mode（A001）
Display not bright
When connect to the electricity，did the led flash one time? If so，
the power source is normal; If not，please check if the switch and
the transformer has power out
Check if the power input of the IC board is normal
Check if the cable connect to the display loose
Change the main board to see if it is normal.
Chang the display
LED not light
When connect to the electricity，did the led flash one time? If so，
the power source is normal; If not，please check if the switch and
the transformer has power out
Check if the power input of the IC board is normal
Check if the cable connect to the display loose
Change the main board to see if it is normal.
Chang the display
LED is connect by leds in series first, then connect parallel, so
please check if the leds is loose

16
Some of the LED not
light
Use the multimeter to check if the led is bright or not, of not,
please change the led
check whether current limiting resistor is normal or not
Check constant current IC is normal or not (compared with the
normal IC)
Single color leds
always bright/not
bright
Check the switch of this color is normal or not
Change the IC control board
Noted：only professional persons can do as above！
15. Technical Specification
●Input voltage：AC 170V-264V/47-63HZ
●Output voltage：DC48V
●Consume：300W
●Lamp Type：High Power LED(3W)
●Lamp Spec：R（18PCS）, G（24PCS）, B（24PCS）, W（24PCS）,
●Control Signal：DMX512, master and slaver
●Control mode：stand alone/ DMX/ master and slaver
●Channel：3,4,5,8 CH
●Function Effect：dimmer, strobe, eotic, gradual change
●BeamAngle:45°
●Cooling mode: Natural Convection
●Protection rate:IP65
●Anti-electricity intension：1.5KV
●Insulation Resistance：＞２MΩ
●Size:：325*272*351mm

17
●Net Weight：13KG
6101 N 23rd Street, Suite K
McAllen, TX 78504 USA
e-mail: [e-mail]
Phone: [phone]
Fax: [phone]
