VM-7200/7100 DIF-AT Update Function
DIF-AT Auto-update function
Roland DIF-AT is an interface box to connect Alesis ADAT or
TASCAM DA series and the VM-7200/7100 Processors.
If you connect the DIF-AT and the Processor with the R-BUS
(RMDB2) cable and turn on the power of the Processor, it
detects the version of DIF-AT software, and depending on
the version, Processor may update the DIF-AT software to
the latest version. (Auto-update function)
While updating, ADAT indicator and TASCAM indicator
flash alternatively. And CTRL indicator on the Processor
flashes.
* Be sure not to turn off the power of the Processor,
or disconnect the R-BUS (RMDB2) cable.

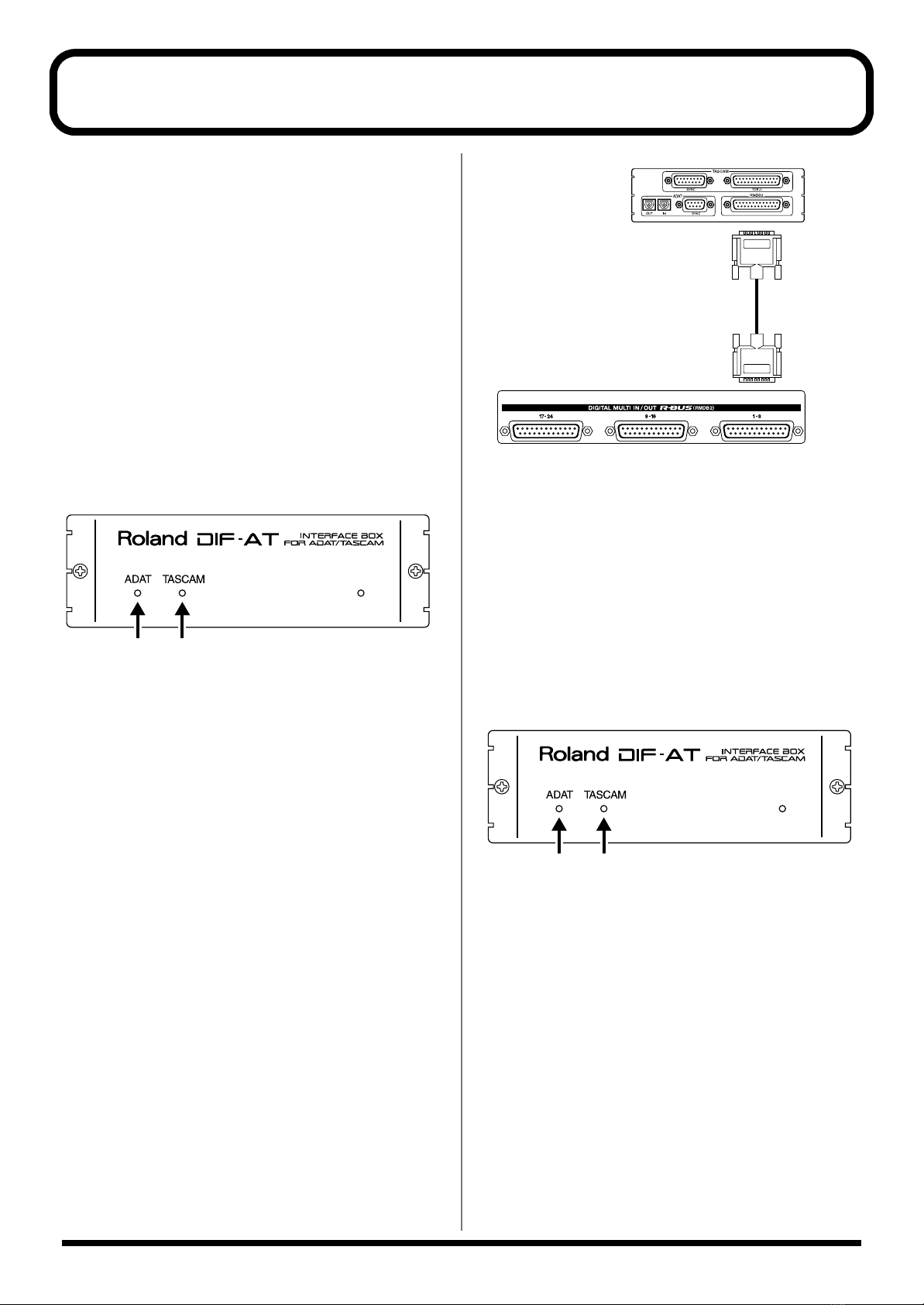

fig.1e
Update takes certain time, so please wait. When the update is
completed, both ADAT and TASCAM indicators on the
DIF-AT are lit.
After the update is completed, turn off the power of the
Processor and on again. DIF-AT works on latest version
software.
If update failed
If the power of the Processor turns off or R-BUS (RMDB2)
cable is disconnected accidentally while auto-updating the
DIF-AT, the software is destroyed and the DIF-AT cannot be
operated. Please contact Roland service center or authorized
Roland distributors.
But if you use the VM-C7200/VM-C7100 Console, you can
recover the DIF-AT software by the Console operation.
(Re-update)
1. Connect the Console and the Processor with the
VM-LINK cable.
2. Connect the Processor (DIGITAL MULTI IN/OUT 1–8
connector) and the DIF-AT with the R-BUS (RMDB2)
cable.
fig.2e
3. Turn on the power of the Processor. Please wait until the
flashing CTRL indicator stops and is lit.
4. While holding the [PROJECT] and the [F2] buttons on the
Console, turn on the power of the Console. If the V-Mixer
title appears in the display, release the buttons.
5. When “Press [F1] to Update” appears in the display,
press the [F1] button. Re-update of the DIF-AT starts.
While updating, ADAT indicator and TASCAM
indicator flash alternatively.
* Be sure not to turn off the power of the Processor,
or disconnect the R-BUS (RMDB2) cable.
fig.1e
6. Update takes certain time, so please wait. When the
update is completed, both ADAT and TASCAM
indicators on the DIF-AT are lit. “DIF-AT Updated.
Reboot Please.” appears in the display.
7. After the update is completed, turn off the power of the
Processor and on again. DIF-AT works on latest version
software.
1999. 9, 1st edition
POWER
flash alternatively
DIF-AT
R-BUS (RMDB2)
Processor (VM-7200/7100)
POWER
flash alternatively
