Roland DAC-15D User manual

Roland
GUITAR AMPLIFIER
DAC-15D
DAC-15XD
Rölartd
Owner's Manual
M FEATURES
e The Roland DAC-15D and 15XD are
15W output guitar amplifiers with
built-in digital effects. Their excellent
ability allows powerful and perfect
sounds.
e The DAC-15D is equipped with a high
quality 20cm heavy duty speaker, and
the DAC-15XD with four sets of 12cm
heavy duty speakers, both allowing
rich and dynamic sounds.
The cabinet is made extremely strong
and durable.
Three volume contro! system expands
the variations of sound creation.
A three band active equalizer allows
even more delicate sound creation.
A digital-delay, a digital-chorus and a
digital-flanger are built in.
m IMPORTANT NOTES
e Operating this amplifier near neon or
fluorescent lamp may cause noise in-
terference. if so, change the position
or the angle of the guitar.
@ When setting up a guitar with the
amplifier, connect the connection cord
to the guitar first,then to the amplifier.
When disconnecting, pull out the cord
from the amplifier first then from the
guitar.
Turn the volume of this amplifier to
zero before connecting or disconnect-
ing the plug, to protect the speaker
from excessive strain.
Avoid giving a strong shock to this
amplifier, and do not move it while it is
operating.
Do not use this amplifier in extreme
humidity or heat, or where it may be
affected by dust or direct sunlight.
Clean the amplifier with mild deter-
gent, and do not use solvents such as
thinner.
it is normal for this device to become
hot while being operated.

A
‘The lighting flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence cf un-
insulated “dangerous voltage" within the product's enciosure
that may be o! suficient magnitude to constitute a risk of
electric shock to persons.
The exciamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accom-
anying the product.
[INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS.
WARNING When using elecinc products, basic precau-
tions should always be followed. inctuding
the following;
Read ali the instructions before using tha product.
2. To reduce the risk of injury, close supervision is
necessary when a product is used near children
3. Do nat use this product near water- for example.
near a bathtub, washbowl, kitchen sink, in a wet
basement, or near a swimming pool, or the like.
volume level or at level that is uncomfortable. If you
experience any hearing loss or ringing in the ears,
you should consult an audiologist
6. The product should be located so that its location or
position does not intertere with its proper ventiaton.
8. The product should avoid using in where it may be
effected by dust.
8. The product shouid be connected to 2 power supply
only of the type described in the operating instruc-
tions or as marked on the product.
IMPORTANT SAFETY INSTRUCTIONS
10.
4. This product should be used only with a cart or 14. Care shouid be taken so thal objects do not fall and
stand that is recommended by the manufacture liquids are not spilled into the enclosure through
5. This product, either alone or in combination with an oponngs.
amplifier and headphones or speakers, may be 15. The product should be serviced by qualified service
capable of producing sound levels that could cause personnel when
permanent hearing loss. Š
Do not operate for a kong period of time at a high laleli ille Meke
mance: or
7. The product should be located away from heat
sources such as radiators, neat regi ‘or olhet E: The product has been dropped, or the enclosure
products that produce heat, damaged
16. Do not attempt to service the product beyond tha!
SAVE THESE INSTRUCTIONS
‘The power-supply cord of the product should be
unplugged from the outlet when leti unused for a
long time.
Do not tread on the pawer-supply cord
Do not pull the cord bul hold the plug when
unplugging.
When setting up with any other instruments, the
procedure should be followed in accordance with
instruction manual.
B: Objects have tallen, or liquid has been spilled
into the product; or
C: The product nas been exposed to rain: or
D: The product does not appear to operate
normally or exhibits a marked change in perfor
described in the user-mainienance instructions. Ail
other servicing shouid be referred to qualified service
personnel.
e ca mm All en ROT
| WARNING
i THIS APPARATUS MUST BE EARTH GROUNDED.
The three conductors of the mains
MAINS LEAOS PLUG
lead attached to this apparatus are
identified with color as shown in the [Conductor {Color _| Mark an the matching terminal
table below, together with the led or letter L i
matching terminal on the UK type
power plug. When connecting the at
mains lead to a plug, be sure to Green, Green-Yeilow, letter E
connect
each
conductor
to
the
cor-
or
symbol
i
rect terminal, as indicated. j
“This instruction applies to the |
product for United Kingdom.”
Black or letter N
RADIO AND TELEVISION INTERFERENCE
Bescheinigung des Herstellers /Importeurs
Hiermit wird bescheinigt, dal der/die/das
ROLAND GUITAR AMPLIFIER DAC-150:15XD
Bereeneuag
inü
instirmmung mit den Bestimmungen der
Amtsbl. Vfg 1046 / 1984
tAmmbiattveriegung
funk-entstort
ist
i
Der
Deutschen
Bundespost
wurde
das
Inverkehrbringen
dieses
Gerates
fase
LLM
Kone
sy
a
Mereni
erent
angezeigt
und
die
Berechtigung
zur
Uberpritung
der
Serie
aut
Einhaltung
der Bestimmüngen eingeräumt.
tral US “Government
Roland Corporation , Osaka / Japan
ame or Herr imei
A
ta
a
EE
TE
EE
EE
EE
İRİNLİ
İLİ
İİLİLİLİİLİZ
Lİ
ÜL
Copyright © 1987 by ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in
any form without the written permission of ROLAND CORPORATION.

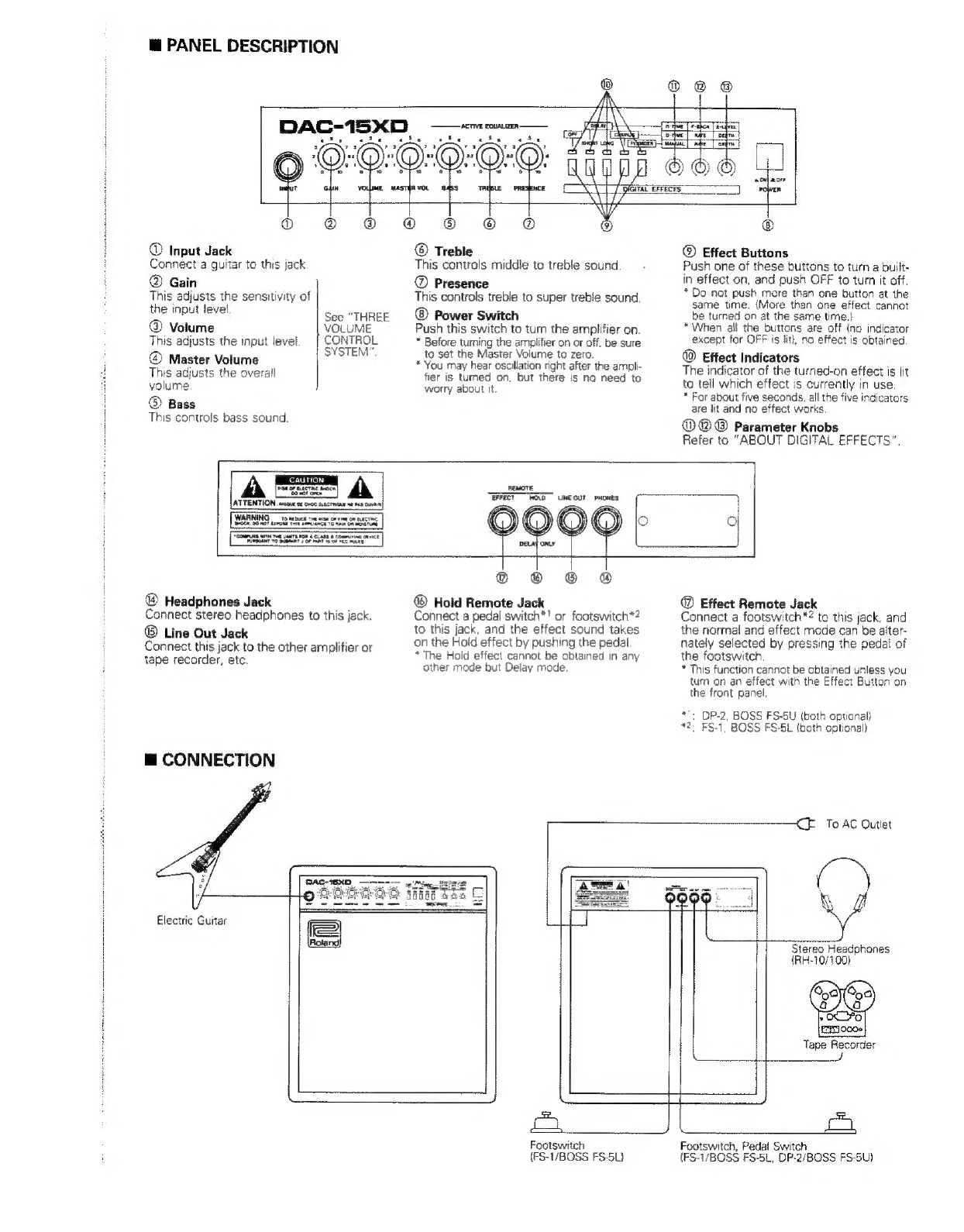

M PANEL DESCRIPTION
EE
TET
yn) İm
th:
j oO
© Input Jack
Connect a guitar to this jack
© Gain
This adjusts the sensitivity of
the input level
See “THREE
© Volume VOLUME
This adjusts the input level CONTROL
SYSTEM”.
© Master Volume
This adjusts the overall
volume
® Bass
This controls bass sound.
© Treble
This controls middie to treble sound
© Presence
This controis treble to super treble sound
Power Switch
Push this switch to turn the amplifier on.
* Before turning the amplifier on or off, be sure
to set the Master Volume to zero.
* You may hear oscillation right after the ampli-
fier is tumed on, but there is no need to
worry about it.
© Effect Buttons
Push one of these buttons to turn a built-
in effect on, and push OFF to turn it off.
* Do not push more than one button at the
same time. (More than one effect cannot
be turned on at the same time.)
* When all the buttons are off (no indicator
except for OFF is lit), no effect is obtained
© Effect Indicators
The indicator of the turned-on effect is lit
to tell which effect is currently in use.
* For about five seconds, ali the five indicators
are lit and no effect works
MOO Parameter Knobs
Refer to “ABOUT DIGITAL EFFECTS".
CAUTION
WARNING
TO MDE Te nan OF i Om
rt abe ANCE Ta tae OR
"cones wT Tot ara FoR AR
Ye Bl sor tant oe vee mata
ae ee Tn, LUNE QUT PHONES
® Headphones Jack
Connect stereo headphones to this jack.
® Line Out Jack
Connect this jack to the other amplifier or
tape recorder, etc.
E CONNECTION
569
© © 8
© Hold Remote Jack
Connect a pedal switch*! or footswitch*?
to this jack, and the effect sound takes
on the Hold effect by pushing the pedal
* The Hold effect cannot be obtained in any
other mode but Delay mode.
©) Effect Remote Jack
Connect a footswitch”? to this jack, and
the normal and effect mode can be alter-
nately selected by pressing the pedal of
the footswitch.
* This function cannot be obtained unless you
turn on an effect with the Effect Button on
the front panel.
: DP-2, BOSS FS-5U (both optional)
: FS-1, BOSS FS-5L (both optional)
<E To AC Outlet
Electric Guitar
Stereo Headphones
(RH-10/100)
Tape Recorder
pay
ii
Footswitch
(FS-1/BOSS FS-5L}
Footswitch, Pedal Switch
(FS-1/BOSS FS-5L, DP-2/BOSS FS-5U)

M
THREE
VOLUME
CONTROL
SYSTEM
The
DAC-15D
and
DAC-15XD
feature
three
volume
control
system
that
allows
wider
variation
of
sound
creation
than
two
volume
contro!
system.
Delicated
nuance
of
the
sound
and
the
depth
of
the
distortion
can
be
spontaneously
altered.
(1) Normal Sounds
ais a Sis “Ss
a ra ys 7
2 82 az a
1 gı so 2
oo ge 0
GAIN VOLUME MASTER VOL
Roughly speaking, two kinds of sounds can be created;
Normal
and
Distortion
sounds.
Depending
on
which
kind
of
sounds you wish to make, the setting of those three volume
controls differ as shown below
{2) Distortion Sounds
4 Se ita «Se
3 73 73 7
2 82 32 8
1 gı gı e
ge ga ote
GAIN VOLUME MASTER VOL
e Setting Samples of Normal Sounds
CLEAN SOUND
Adjust the volume with the Volume Knob within 0
to 5. If the volume is too low, raise the Gain Knob.
Sis «S6 «Se
3 73 73 7
2 82 82 a
1 sı 94 ə
oo oio 0
GAIN VOLUME MASTER VOL
Use this for
Use this when the volume adjustment
volume is too low
FAT SOUND
If you wish to make fat sound, raise the Volume
and the Gain, and overdrive sound is created.
GAIN VOLUME MASTER VOL
Clockwise rotation
Clockwise
rotation
deepens
makes
fatter
sound
the overdrive effect
—
© Setting Samples of Distortion Sounds
Distortion
sound
will
greately
differ
depending
on
the
depth
of
distortion.
(Setting
each
knob
of
the
equalizer to higher than 5 emphasizes the distor-
tion effect.)
NATURAL AND SHARP DISTORTION
i «S6 ae
a E4 73 7
2 aa a2 a
1 sa ay 9
10 ooo 0
GAIN VOLUME MASTER VOL
Use this for
volume adjustment
When set to lower than 5,
hard sound is obtained
Use this for
adjusting distortion
HARD AND HEAVY DISTORTION
Change positions depending
on the output level of the guitar
ase «Se ais
3 ra ra ?
2 87 82 8
1 9. ot a
w ooo ooo
GAIN VOLUME MASTER VOL
Use this for
Turn these fully clockwise — volume adjustment
for heavy metal sound
—
M ABOUT DIGITAL EFFECTS
The
three
built-in
digital
effects
can
be
controlled
with
three
Parameter
Knobs.
The
Parameter
Knobs
work
differently
depending
on
the
effect
mode.
Delay (Short/Long) Mode
@ Delay Time
This knob controls the delay time. At
Deley Short, it continuously varies from
45 to 250ms, and at Delay Long from
200 to 1000ms.
© Feedback
This knob controls the number of delay
repeats. At its counterclockwise position,
a single delay is obtained.
® Effect Level
This knob sets the volume of the delay
sound. At its clockwise position, the
volume of the effect sound is approxi-
mately equal to the direct sound. At its
counterclockwise position, no delay
sound is produced.
Chorus Mode
@ Delay Time
This knob controls the delay time from
5.5 to 45ms continuosuly.
© Rate
This knob sets the rate of the modulation.
® Depth
This knob determines the depth of
the chorus effect. Clockwise rotation
deepens the effect.
Fianger Mode
© Manual
This knob changes the delay time from
0.7 to 4.5ms continuously
© Rate
This knob sets the rate of the modulation.
® Depth
This sets the width of the modulation at
the delay time set with @ Manual
*
At
its
fully
clockwise
position,
the
Manual
Knob
@
does
not
work.

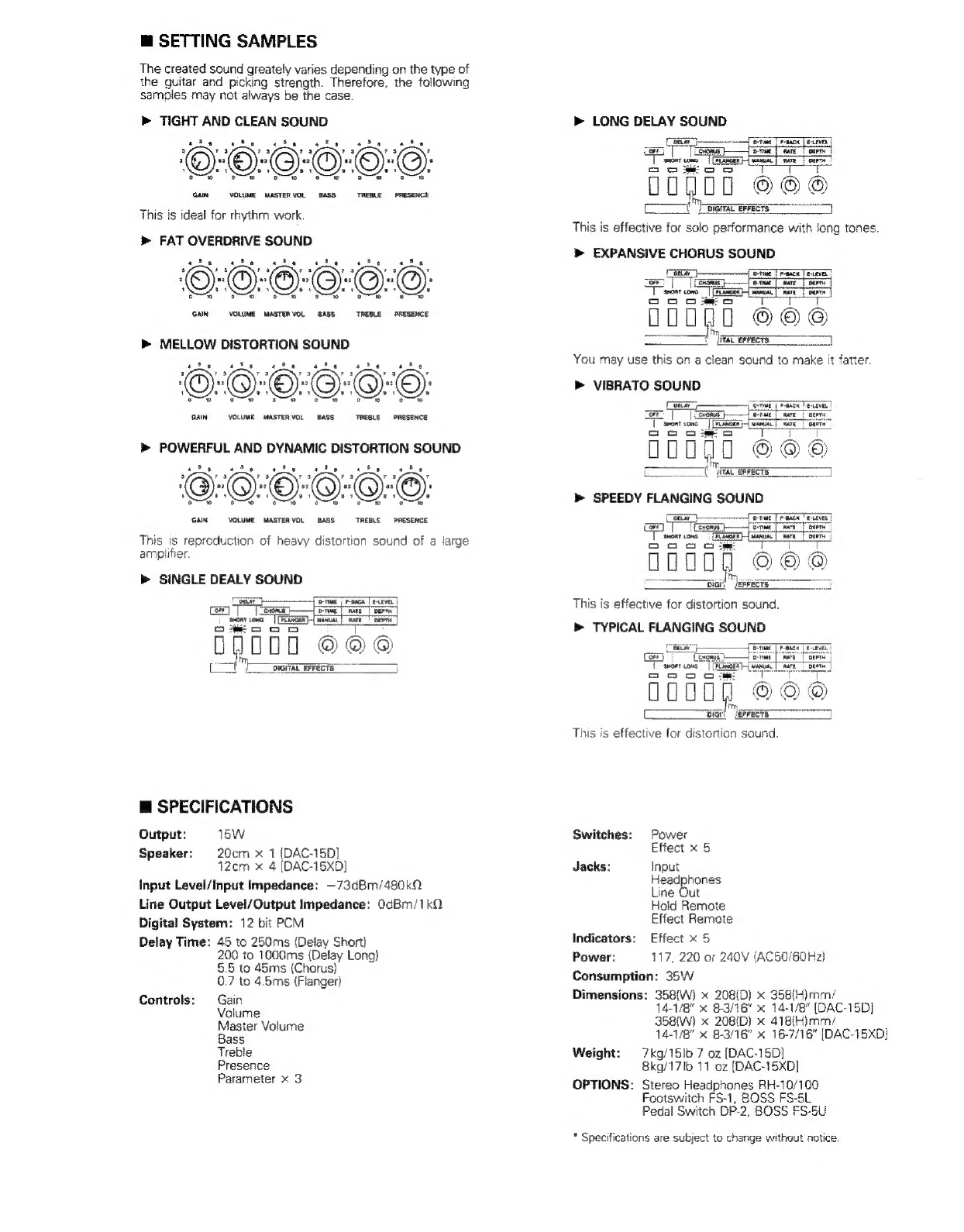

M SETTING SAMPLES
The created sound greately varies depending on the type of
the guitar and picking strength. Therefore, the following
samples may not always be the case.
> TIGHT AND CLEAN SOUND
oss "e oto sts
a ra ra ra a3 73 7
a 3 e 8 a .
r a4 on on on 3a >
oe Oe e
GAIN © VOLUME MASTERVOL BASS TREBLE PRESENCE
This is ideal for rhythm work,
> FAT OVERDRIVE SOUND
GAIN VOLUME MASTERVOL BASS TREBLE PRESENCE
> MELLOW DISTORTION SOUND
ate ate ate ats ate ate
a ra ma ra ra 73 >
2 a2 n pi pi e 8
1 OR O .. so on >
e e e e e
GAİN VOLUME MASTERVOL BASS TREBLE PRESENCE
> POWERFUL AND DYNAMIC DISTORTION SOUND
wo RRR Re,
OOO -K DE XO:
3 Gey GSi 4'e ETIS a rs
GAM © VOLUME “MASTER VOL BASS TREME PRESENCE
This is reproduction of heavy distortion sound of a large
amplifier.
> SINGLE DEALY SOUND
“Some ——— orwe | pare | erm
ong | (FLANGER + Mana vi Tem)
iff 666
DIGITAL EFFECTS
ii
1)
@ SPECIFICATIONS
Output: 15W
Speaker: 20cm x 1 [DAC-15D]
12cm x 4 [DAC-15X0]
Input Level/Input Impedance: —73dBm/480k0
Line Output Level/Output Impedance: OdBm/1k0
Digital System: 12 bit PCM
Delay Time: 45 to 250ms (Delay Short}
200 to 1000ms (Delay Long)
5.5 to 45ms (Chorus)
0.7 to 4.5ms (Flanger)
Controls: o Gain
Volume
Master Volume
Bass
Treble
Presence
Parameter x 3
> LONG DELAY SOUND
CBR} Tr Şi
m TÜ [sem ine {ate peor
| swore Lona | (FARER İnme | nave vape
Dakar
ağağağığı 080
(
DIGITAL EFFECTS
This is effective for solo performance with = tones.
> EXPANSIVE CHORUS SOUND
Coe} e | Fence [eee |
Ce] | GR} —— öm) nae | earn
T sonr ioma, İlm {et mat can
ao o
0080 066
yn EFFECTS
You may use this on a clean sound to make it fatter.
> VIBRATO SOUND
IN mo] ETME | FoRAGH T ELEVEL
TEAK
yam İLE
“T or
jiii ese
TE
\
r.
À JITA EFFECTS al
> SPEEDY FLANGING SOUND
Ciar — [me T mae eli)
İZA) Ten
sa Tr Tİ
ODUN l 000
This is effective for distortion sound.
> TYPICAL FLANGING SOUND
Trance Teva?
mİ Mak
bici EFFECTS
This is effective for distortion sound.
Switches: Power
Effect x 5
Jacks: Input
Headphones
Line Out
Hold Remote
Effect Remote
Indicators: Effect x 5
Power: 117, 220 or 240V (AC50/60Hz)
Consumption: 35W
Dimensions: 358(W) x 208(D) x 358(H)mrm/
14-1/8" x 83/16" x 14-1/8” (DAC-15Dİ
358(W) x 208(D) x 418(H)mm/
14-1/8" x 8-3/16” x 16-7/16" [DAC-15XD}
Weight: 7kg/15lb 7 oz [DAC-15D}
8kg/17!b 11 oz [DAC-15XD}]
OPTIONS: Stereo Headphones RH-10/100
Footswitch FS-1, BOSS FS-5L
Pedal Switch DP-2, BOSS FS-5U
* Specifications are subject to change without notice.

Roland’
10246
NI-
Roland
