Rollei Pictureline PL 6150 User manual

1
Cautions
Precautions and maintenance
● For indoor use only.
● To avoid risk of fire or electric shock, do not expose the unit to moisture or
condensation.
● To avoid overheating, do not block the ventilation holes on the back of the
Digital Photo Frame.
● Keep the Digital Photo Frame out of direct sunlight.
● Do not dismantle the Digital Photo Frame. There is a risk of electric shock
and there are no user-serviceable parts inside. Dismantling the Digital
Photo Frame will void your warranty.
Cleaning the LCD Screen
● Treat the screen carefully, because the screen of the Digital Photo Frame is
made of glass and it would easily be broken or scratched.
● If fingerprints or dust accumulate on the LCD screen, we recommend using
a soft, non-abrasive cloth such as a camera lens cloth to clean the LCD
screen.
● Moisten the cleaning cloth with the cleaning solution and apply the cloth to
the screen.
WARNING:
Please power off the unit before inserting or removing a card or USB
device.
Failure to do so may cause damage to the card/USB and the unit.
To reduce the risk of fire or electric shock, do not expose this
appliance to rain or moisture.

2
Introduction:
Thank you for your purchase of the Digital Photo Frame. It is designed to
allow quick and easy view of photos taken from your digital camera, mobile
phone, or from a memory storage card. Please read this User Manual
carefully to learn the correct way to use the Digital Photo Frame.
Features:
1. Support picture format: JPEG (Max. Resolution 8000x8000)
2. Support audio format: MP3, WMA
3. Support video format: MPEG1, MPEG2, MPEG4 (Divx4.0, Divx5.0, Xvid)
and AVI (Max. Resolution 720x576, Bitrate 4 Mbps, AVI 16 Mbps)
4. Support memory card: SD/SDHC/ MMC/MS
5. USB connection: USB 2.0 and Mini USB
6. Built-in memory: 4GB
7. Slideshow with background music
8. Built-in calendar, clock and alarm clock, schedule auto on/off.
9. Adjustable slideshow speed and transition effects.
10. Adjustable brightness, contrast, saturation.
11. Copy the files to the built-in memory and delete the files in the built-in
memory, on memory card or USB device
12. Slideshow mode: single window, Two windows, triple windows and four
windows
13. With Stand to place the Frame horizontal
14. OSD languages: German, English, French, Spanish, Portuguese, Italian,
Greek, Turkish, Hungarian, Polish, Russian, Danish, Swedish, Norwegian,
Finnish, Dutch
Packaging Check List:
1. 15 inch digital photo frame 1 piece
2. AC/DC adapter 1 piece
3. Remote control 1 piece
4. User manual 1 piece
5. Warranty card 1 piece
6. Bracket 1 piece
7. USB Cable (used to connect with computer) 1 piece

3
CONTENTS
1 Product Diagram ························································································· 4
1.1 Remote Control ························································································ 4
1.2 Rear of Frame ·························································································· 5
1.3 Left Side of Frame ····················································································· 5
2. Installing & Replacing the Battery ··································································· 5
3. Getting Started ··························································································· 6
4. Operating Instruction ··················································································· 6
4.1 Card and USB ·························································································· 7
5. Picture Mode ····························································································· 7
5.1 Copy & Delete function ··············································································· 8
6. Music Mode ······························································································· 9
7. Video Mode ······························································································· 9
8. File ········································································································ 10
9. Calendar ·································································································· 11
10. Setup ···································································································· 11
11. Stand Instruction ····················································································· 12
12. PC Connecting ······················································································· 13
13. Technical Specifications ············································································ 13
14.Troubleshooting Guide ·············································································· 14

4
1 Product Diagram
1.1 Remote Control
1) BGM: In slideshow mode, press this button to add background music
2) POWER: Switch On/Off.
3) MENU: Enter copy & delete interface
4) : Functional selection button from right to left cursor
5) OK: Press to confirm. Play/pause: In the playing mode, press this button, it
will pause; repress this button, it will play again.
6) SETUP: Go directly to Setup mode.
7) VOL +/-: Turn up/down the volume.
8) : Move back to previous music or video file
9) : Move forward to next music or video file
10) ROTATE: In single picture mode, press to revolve the picture 90° in
clockwise every time
11) ZOOM: In single picture mode, press to magnify picture display size.
12) (Play/Pause): Press directly to begin playback under stop or pause
status, and repress it, it will pause again.
13) : Functional selection button from the top to the bottom cursor.
14) : Functional selection button from left to right cursor.
15) RETURN: Return to upper page.
16) : Functional selection button from the bottom to the top cursor.
17) MUTE: Press Mute button to silence the voice temporarily.

5

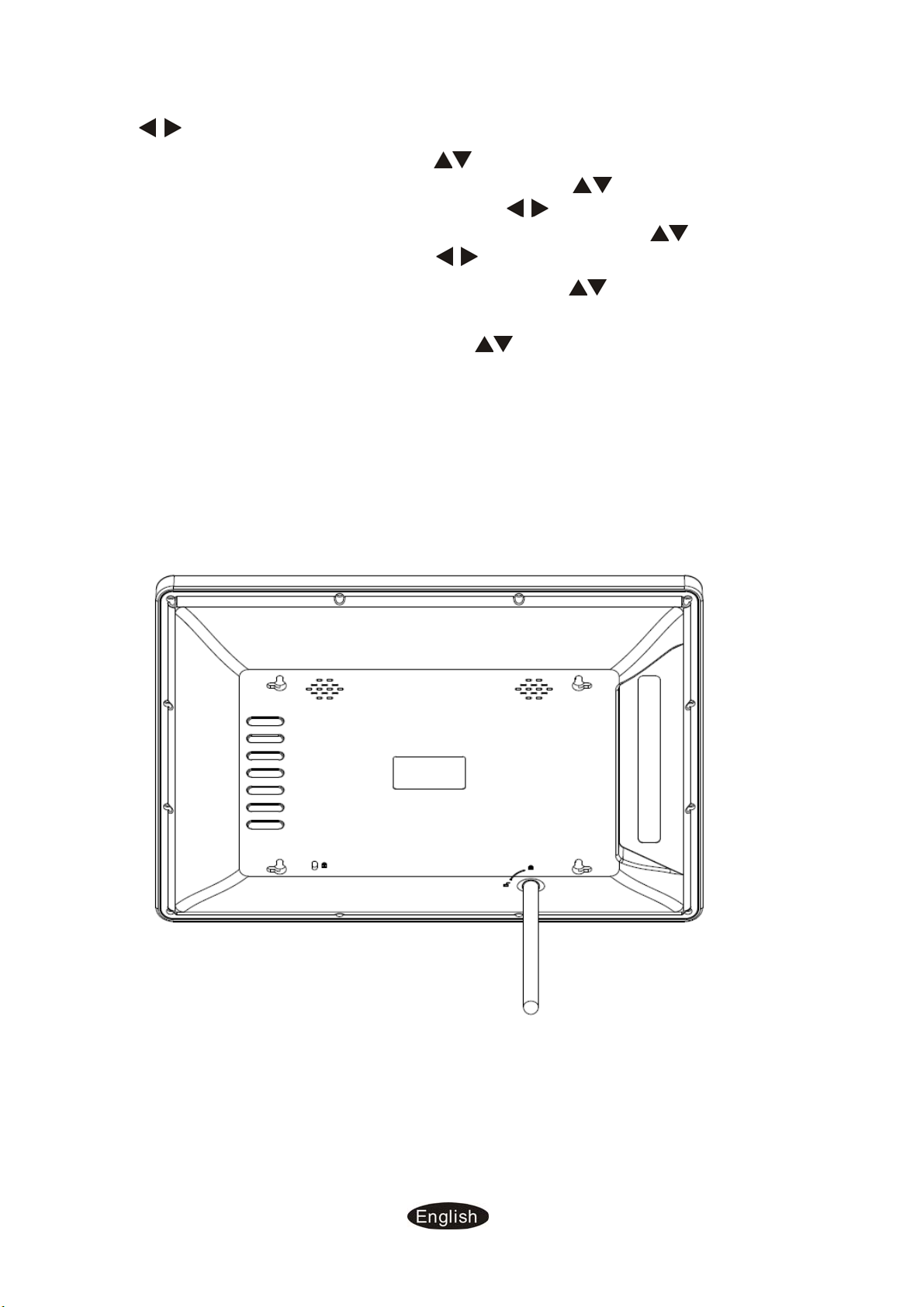

1.2 Rear of Frame
1.3 Left Side of Frame
2. Installing & Replacing the Battery
Place the upside of the remote control down, press down on the ridged area of
the battery cover and pull towards you to remove the tray. Place one CR2025
lithium button-cell battery on the tray with the positive “+”side facing you.
Reinsert the tray.

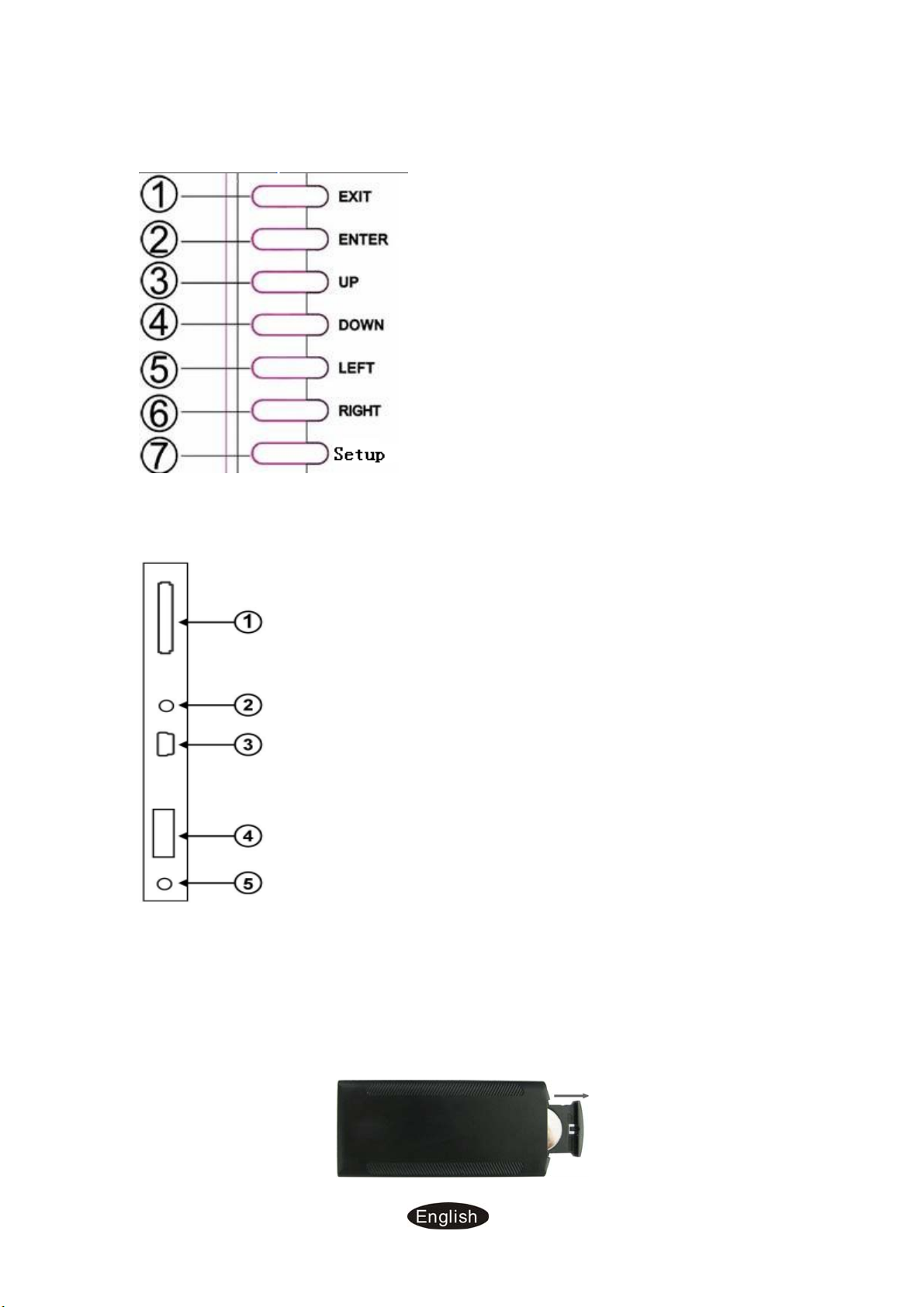

1. Menu
2. Play / Pause / OK
3. Previous / Up
4. Next / Down
5. Left / Fast backward
6. Right / Fast Forward
7. Exit
1. SD/SDHC/MMC/MS Card
2. Earphone Jack
3. Mini USB
4. USB 2.0
5. DC In

6
3. Getting Started
3.1 Plug one end of the included AC adapter into a standard 110-240V AC
electrical outlet and the other end into the DC in of the frame.
3.2. Remove the protective film covering the LCD.
3.3. Remove the plastic battery insulator from the battery compartment and
make sure the remote control has a battery inside. Please refer to “Installing &
Replacing the Battery” if you need a new battery.
3.4. Power on the unit by pressing the POWER button on the remote control.
4. Operating Instruction

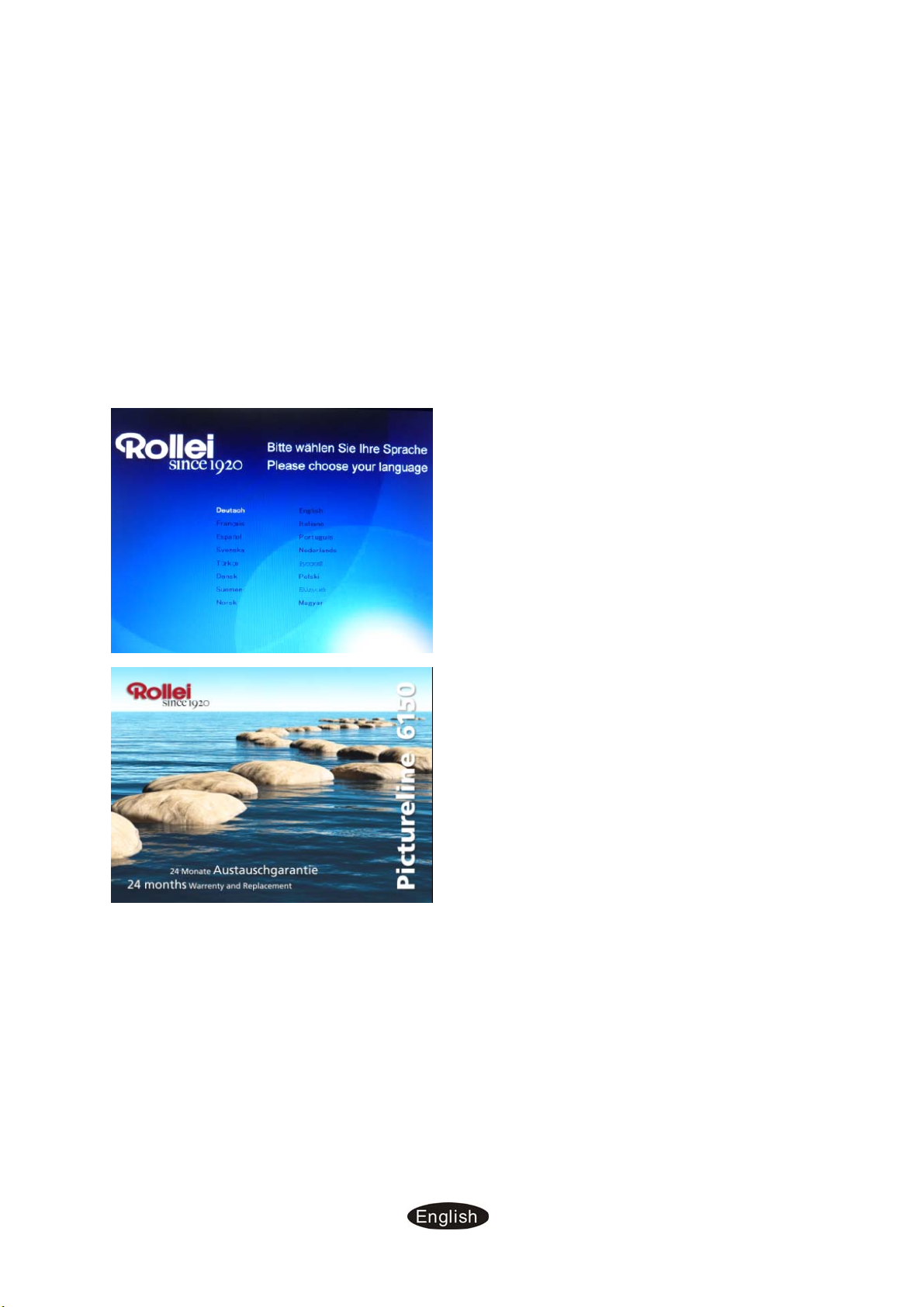

When the frame is switched on for the
very first time, a menu for the selection
of the default language appears. Please
select the desired language and
confirm with the OK-Button.
To open the "Language-Selection"
again, please use the "Reset" Function
in the Menu "Set UP".
After turning on the unit, it will show the
startup picture, then slideshow will
automatically play pictures from the
built-in memory when there is no card
insert. If there is a card or USB device,
it will slideshow pictures from the card
or USB.

7
4.1. Card and USB
Note: 1) Make sure there are supported picture, music and video files on the
Card or USB device.
2) If there are supported picture and music files in the Card or USB Device,
slideshow will play automatically with background music.
5. Picture Mode
It supports SD/SDHC/MMC/MS and USB
flash drives. After inserting a card or USB
device, slideshow will play automatically,
then press RETURN twice to access to
photo, music, video, file, calendar and
setup. Press OK to confirm.

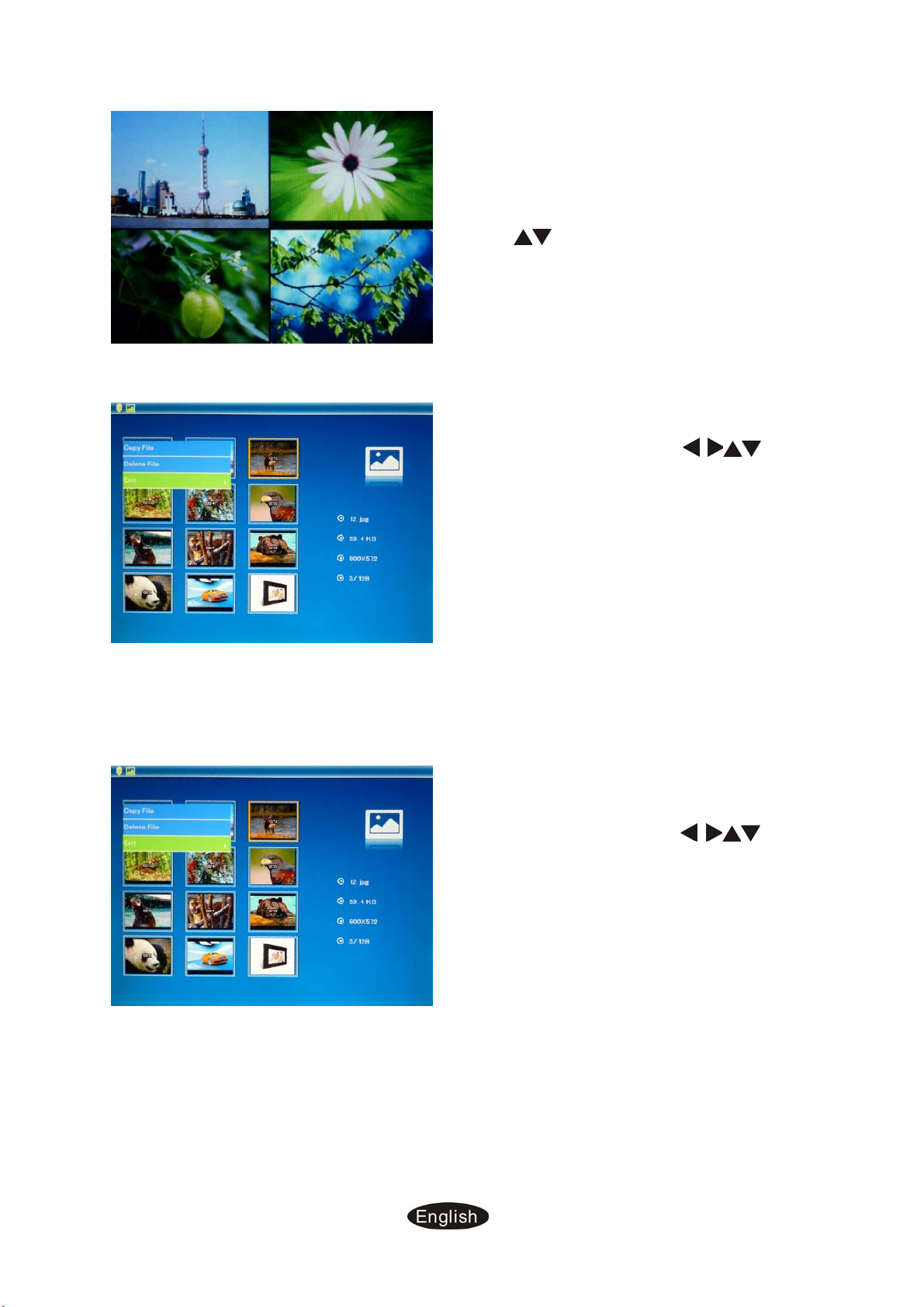

In the main menu, highlight Photo,
press OK to access to thumbnail mode,
use to choose the picture you
want to display, press OK to play the
picture in single window, press OK
again to start slideshow.
Press RETURN 3 times, it will show the
card select interface with built-in
memory, USB and SD/SDHC/MMC/MS
card.

8
5.1. Copy & Delete function
Note: 1) If saving pictures to built-in memory it will be auto decreased in size and
renamed.
2) System will mention “Memory Full” if remaining built-in memory size is not
enough to store the photo.
Press SLIDESHOW to start slideshow
pictures in the selected slide mode.
Change slide mode as follows: Press
MENU to choose SLIDE MODE, select
with (single window/two windows
/ four windows / triple windows), press
OK to confirm.
Copy pictures to built-in memory:
In thumbnail mode, use to
select the picture you want to copy to
the built-in memory. Press MENU to
enter the copy interface, press OK to
copy the picture.
Delete pictures in built-in memory or
memory card:
In thumbnail mode, use to
select the picture you want to delete,
then press MENU to enter the delete
interface, press OK to confirm.

9
6. Music Mode
Copy/Delete/Music as alarm function
7. Video Mode
Copy and Delete function
Press RETURN to choose "MEMORY
CARD" in the main menu. Choose
Music, press OK to enter the music
interface, press to select the
music from the playlist, then press OK
to confirm. Press VOL+/- to turn up/
down the volume.
Press RETURN to choose "MEMORY
CARD" in the main menu. Choose
Video, press OK to enter the video
interface, press to select the
video from the playlist, then press OK
to confirm. Press VOL+/- to turn up/
down the volume.
Use to select the music you
want to copy to the built-in memory or
delete or play as alarm music, then
press MENU to enter the interface,
select the function you need, press OK
to confirm.

10
8. File
Copy and Delete function

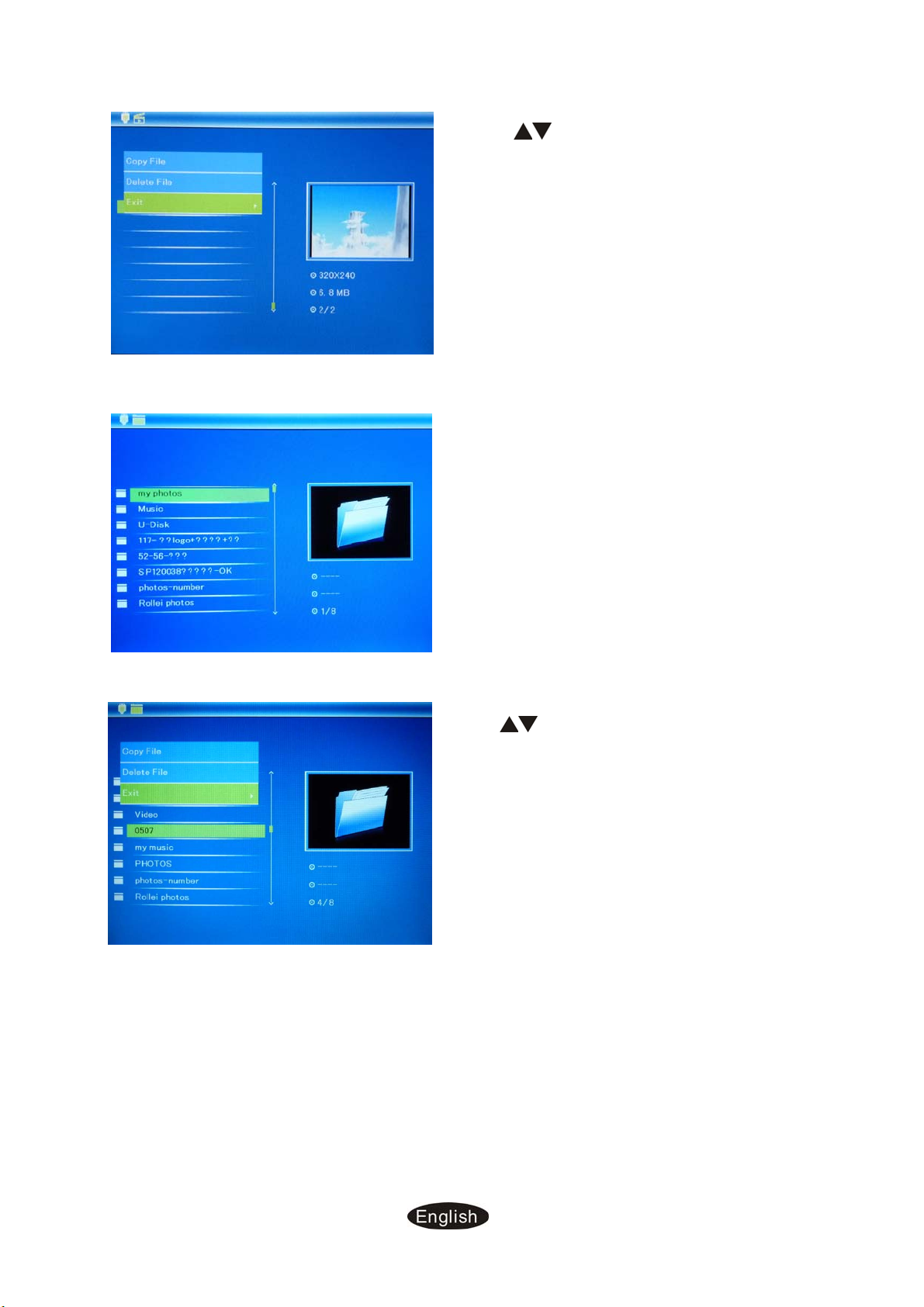

Select File, then press OK to access
to file interface. In this mode, you can
browse all the picture files and folders
in the memory card or the built-in
memory.
Use to select the file you want
to copy to the built-in memory or
delete, then press MENU to enter
copy/delete interface, press OK to
confirm.
Use to select the video you want
to copy to the built-in memory or delete,
then press MENU to enter copy/delete
interface, press OK to confirm.

11
9. Calendar
10. Setup
10.1 Language: German, English, French, Spanish, Portuguese, Italian, Greek,
Turkish, Hungarian, Polish, Russian, Danish, Swedish, Norwegian, Finnish,
Dutch
10.2 Photo Play Sequence: Sequence, Random
10.3 Boot Mode: Slideshow, Music, Video, Photo, Calendar, Choose Card
10.4 Slide Mode: Single window, Two windows, Triple windows, Four windows
10.5 Slide Speed: 3/5/15/30seconds, 1/5/15/30minutes and 1hour
10.6 Photo Effect: Color, Mono, Sepia
10.7 Slide Effect: Random, Windows, Jalousie, Fade, Insert, Off
10.8 Photo Mode: Auto Fit, Optimal, Full
10.9 Music Play Mode: Single Repeat, Circular, No Repeat
10.10 Video Mode: Original, Screen, Full
10.11 Display
Contrast: Use to select from 00 (lowest) to 40 (highest).
Brightness: Use to select from 00 (lowest) to 40 (highest).
Saturation: Use to select from 00 (lowest) to 40 (highest).
Tint: Use to select from 00 (lowest) to 40 (highest).
10.12 Set Time/Date: Press OK to enter, Press and OK to select, then use
Select Calendar from the main
menu, press OK to enter, the
calendar is displayed and any photos
on the connected memory are shown
as a slideshow to the side. Browse
the calendar by using .
Select Setup from the main menu, and
then press OK to access to Setup
interface. Use to select the item
you want to set up. Press OK to show
the sub menu, select with , then
press OK to confirm.

12
to select, then press “Save Time” to save the setting.
10.13 Set Time Format: 12/24, Press to set, use OK to confirm
10.14 Alarm: Press OK, choose setup items with as follows: Status,
Number, Hour, Minute, Mode, press OK, use to set, Press OK to confirm.
10.15 Auto Power On/Off: Press OK, choose setup items with as follows:
Hour, Minute, Status, press OK, use to set, Press OK to confirm.
10.16 Format built-in memory: Press OK enter, use to select or unselect
to format the built-in memory.
10.17 Reset setting: Press OK enter, use to select or unselect to reset all
settings to default values, press OK to confirm.
10.18 Exit: Press to exit.
11. Stand Instruction
Screw the bracket into the slot of the digital photo frame, rotate the bracket
until it is locked in place. Please refer to the illustration shown below.

13

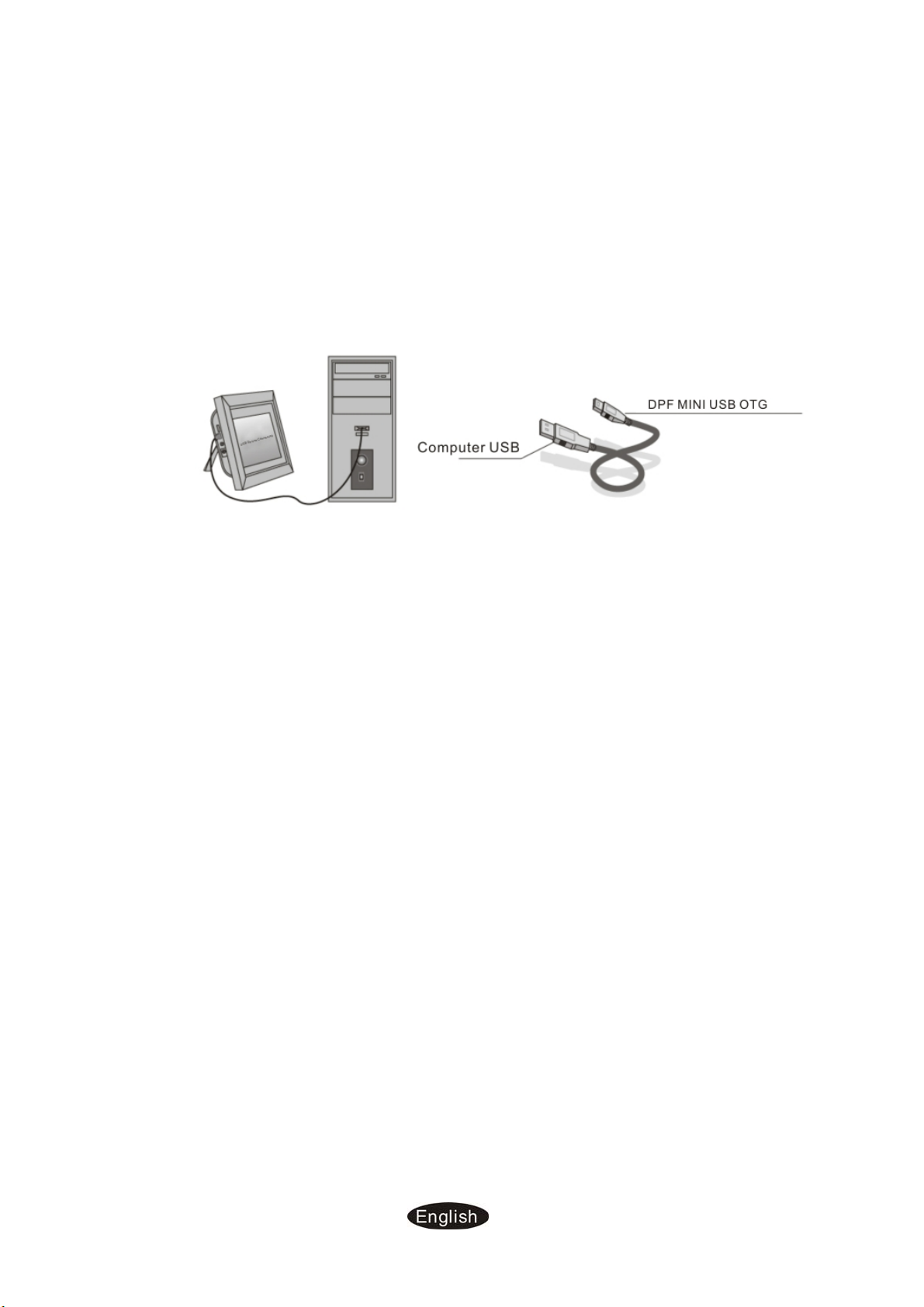

12. PC Connecting
If the unit has built-in memory and MINI USB, you can connect it to external
equipment by using USB cable:
A. Please turn on the digital photo frame, then connect it with your computer
by using USB cable
B. Then you need to restart the digital photo frame when you finished the
copy/delete operation.
IMPORTANT: Never disconnect the USB cable while files are transferring.
Doing so may damage your DPF.
13. Technical Specifications
 Adapter:Input: AC 100-240V 50/60HZ; Output: DC 12V /1.5A
15. Picture Formats: JPEG (Max. Resolution 8000x8000)
 Audio Formats: MP3, WMA
 Video Formats: MPEG1, MPEG2, MPEG4 (Divx4.0, Divx5.0, Xvid) and
AVI ((Resolution 720x576, Bitrate 4 Mbps, AVI 16 Mbps)
 Screen Parameter:
Screen Size: 15 inch TFT
Resolution: 1024*768 Pixel
Aspect Ratio: 4:3
Brightness: 300cd/m2
Contrast: 500:1
Response Time: 20ms
Viewing Angle: 60°(left/right/vertical), 40°(horizontal)
Working Temperature: 0°~40°, Humidity: 10-85%

14
14. Troubleshooting Guide
If you are having problems with your player, please consult both this guide
and manual. If you need further assistance, please contact Technical
Support.
 No power:
Please check whether the plug is inserted correctly.
 Remote control no function:
Please check whether the battery has power (the battery can be used for
half a year in normal conditions). Replace with new battery if necessary.
 Can not read the CARD or USB:
Please confirm whether there is storage in the card or USB device.
Empty devices cannot be read.
 Can not play the file:
Please confirm if the file format is compatible with the player.
 Display too bright or too dark:
Please adjust the brightness or contrast in the setup menu.
 The color is light or no color:
Please adjust the color and contrast setup.
 No sound:
Please check whether the volume is correct and the player is not in Mute
mode.
