Rollplay Peppa Pig Ride On W426AC-F Assembly instructions

®
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
Owner’s Manual and Assembly Instructions
Model #: W426AC-F W426AC-R
6V Peppa Pig Ride On

Introduction
Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys
it for miles to come. Please read this instruction guide carefully before
assembling and operating the vehicle. Please have your model number
and serial number ready before calling. Please have proof of purchase.
Keep your sales receipt or register your product at
www.rollplay.com.
Please contact Rollplay Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: [phone]
Email: [e-mail]
Web: www.rollplay.com
Specifications:
BATTERY 6V 7AH
MOTOR 6V 20W
AGE 3-8 Years
MAX WEIGHT 35 kg (77 lb)
PRODUCT SIZE 93 x 57 x 55 cm (36.6 x 22.4 x 21.6 in)
SPEED 3.0 km/h ( 1.86 mph)
RECHARGE TIME 8-12 Hours
TYPICAL RUN TIME 1-2 Hours
CHARGER OUTPUT DC 7.0V

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Call Customer Service if you need assistance or replacement parts. Please
have your model number and serial number ready before calling. Please
have proof of purchase. Keep your sales receipt or register your product at
www.rollplay.com as we may require proof of purchase.
www.rollplay.com
1 -888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.
.........

4Table of Contents
Safety.................................................................. 5
Parts .................................................................. 7
Charging Instructions ....................................... 8
Assemble the Front Wheels
Assemble the Rear Wheels
............................. 9
............................. 10
Assemble the Left Rear Wheel ....................... 11
..................... 12
........ 13
Assemble the Right Rear Wheel
14
Steering Wheel Battery ..................................... 15
Connect the Battery
........................................
Operation Instructions ..................................... 16
Maintenance ..................................................... 17
General Care ..................................................... 18
Troubleshooting Guide ..................................... 19
FCC Information ............................................... 20
Service and Repairs ........................................ 21
Warranty ............................................................ 22
Product Registration ........................................ 23
Assemble the backrest and the armrest

5
Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle. The user
must be at least 3 years old and weigh no more than 35 kg (77 lbs).
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
•
Product Safety Commission (CPSC) Standard 16 CFR 1203.
• Only sit on the seat in the vehicle.
• Do not allow more than one rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
•
• Do not operate in dangerous weather conditions such as rain or snow.
•
•
• Always use the vehicle in a safe, secure environment with adult supervision.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes. ALWAYS sit on the seat. RISK OF FIRE. Do not bypass.
Remove batteries if product is to be left unsed for a long time ; Always replace the
whole set of batteries at one time , taking care not to mix old and new ones, or
batteries of different types.

6Safety
(Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
(asic) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
•
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT:
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

7

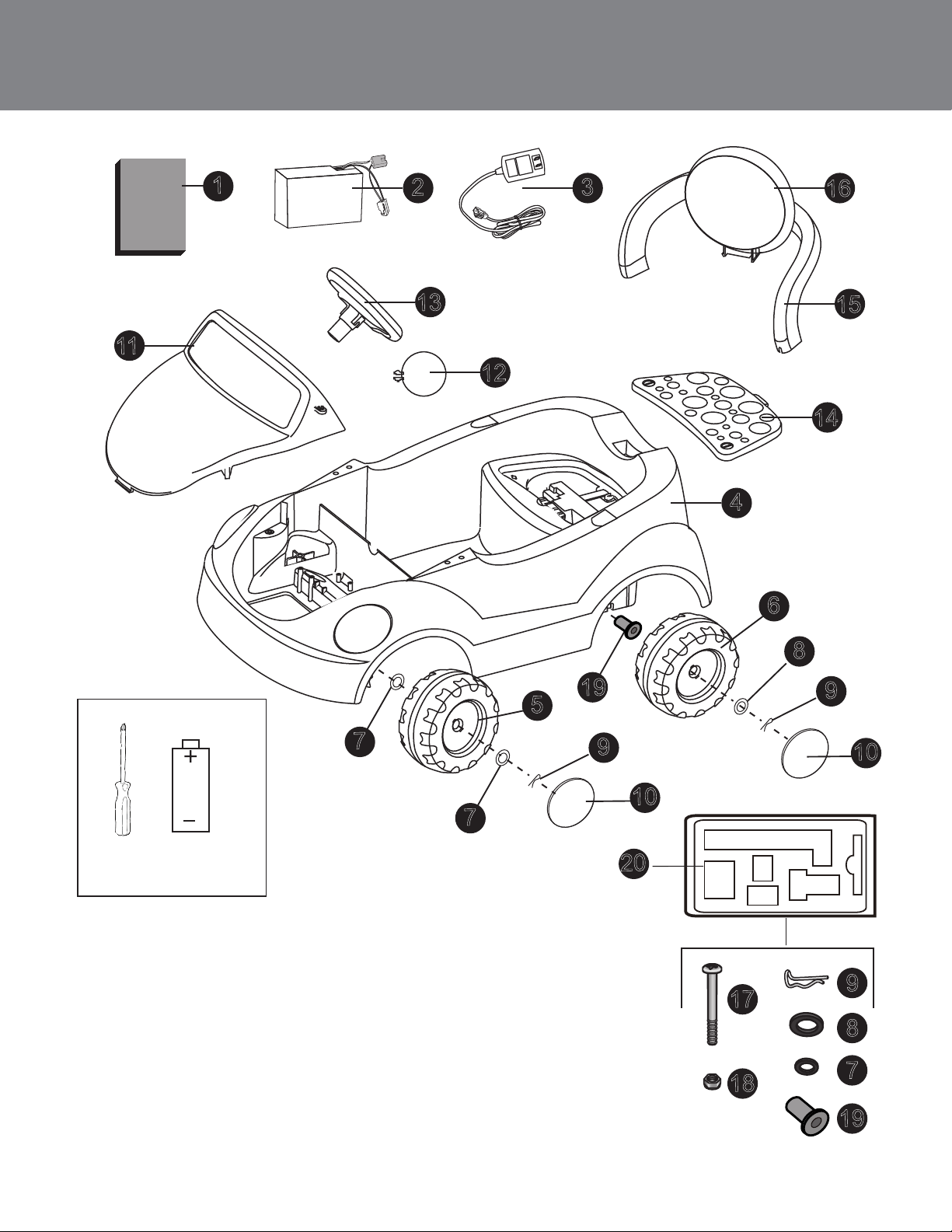

Parts
123
4
7
7
8
9
910
10
20
17
18
19
19
7
8
9
6
5
16
15
14
12
13
11
1. Manual
2. Battery
3. Charger
4. Car Body
5. Front Wheel
6. Rear Wheel
7. Small Washer
8. Big Washer
9. Pin
10. Wheel Cover
11. Front Bumper
12. Rear Mirror
13. Steering Wheel
14. Seat Cover
15. Spoiler
16. Backrest
17. Steering Wheel Screw
18. Steering Wheel Nut
19. Inner Wheel Spacer
20. Blister Pack
• Phillips scr
2 AAA batteries
ewdriver
•
Not Included:

8Charging Instructions
1. Ensure the car is stopped
and turned off. Turn the seat
lock to the unlock position
or coin. Remove the seat.
2. Unplug the red battery con-
nector from the red engine
connector.
3. Connect the red battery
connector to the red battery
charger connector and plug
into a 120V outlet.
Note: it is not necessary to
remove the battery for
charging. However if the bat-
tery does not reach the outlet,
then it can be removed for
charging.
resumable fuse

9
Assemble the Front Wheels
1. Slide the small washer onto the front axle.
2. To assemble the front wheels, slide a front wheel onto the front wheel axle.
3. Slide a small washer onto the front axle, then insert the straight end of the
snap pin through the whole on the front axle.
4. Snap the wheel cover onto the front wheel.
5. Repeat these steps for the other front wheel.

10
Left Rear Wheel:
1. Then slide the inner wheel spacer onto the axle.
2. Slide the left rear wheel onto the left rear axle. The side with the
gear teeth faces inward.
3. Slide the large washer onto the rear axle.
4. Insert the straight side of the snap pin through the hole at the end of
the axle to keep the wheel in place.
5. Finally snap the wheel cover onto the wheel to complete the assembly.
Assemble the Left Rear Wheel

11
Right Rear Wheel:
1. Slide the right rear wheel onto right rear wheel axle. The
side with gear teeth faces inward. (Note: the gear teeth must
engage with the gear box.)
2. Slide the large washer onto the rear axle.
3. Insert the straight side of the snap pin through the hole at the end
of the axle to keep the wheel in place.
4. Finally snap the wheel cover onto the rear wheel to complete wheel
assembly.
Assemble the Right Rear Wheel

Assembly the Steering Wheel
Steering Wheel
Steering Pole

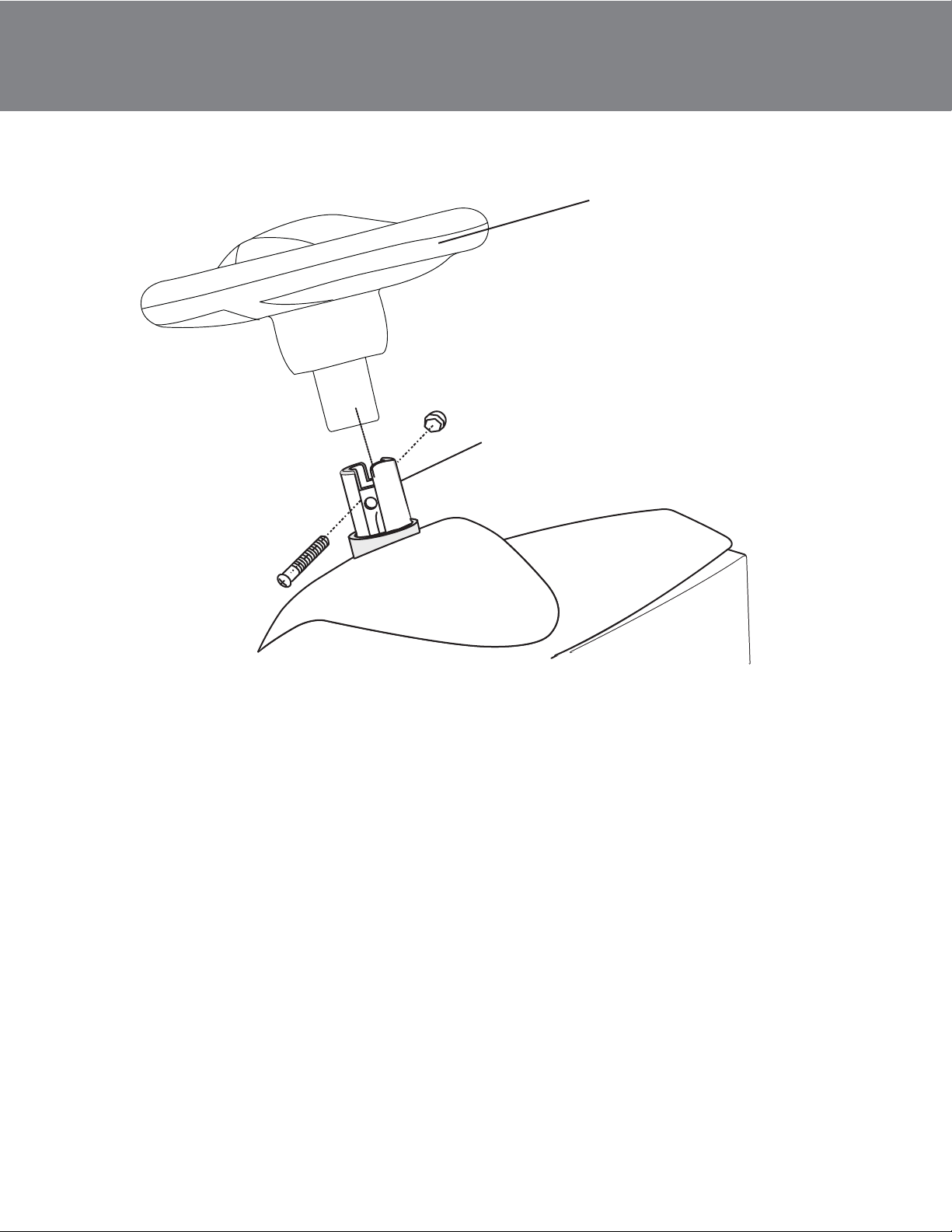

1. Remove the screw and nut from the steering wheel.
2. Insert the steering wheel onto the steering rod. Ensure the holes on the
wheel align with the holes on the axle.
3. The buttons on the steering wheel should be closest to the seat compart-
ment.
4. Insert the screw through the steering wheel and steering rod. Insert the
nut onto the other side of the steering wheel.
5. Use a screwdriver to fasten the screw.
12

13

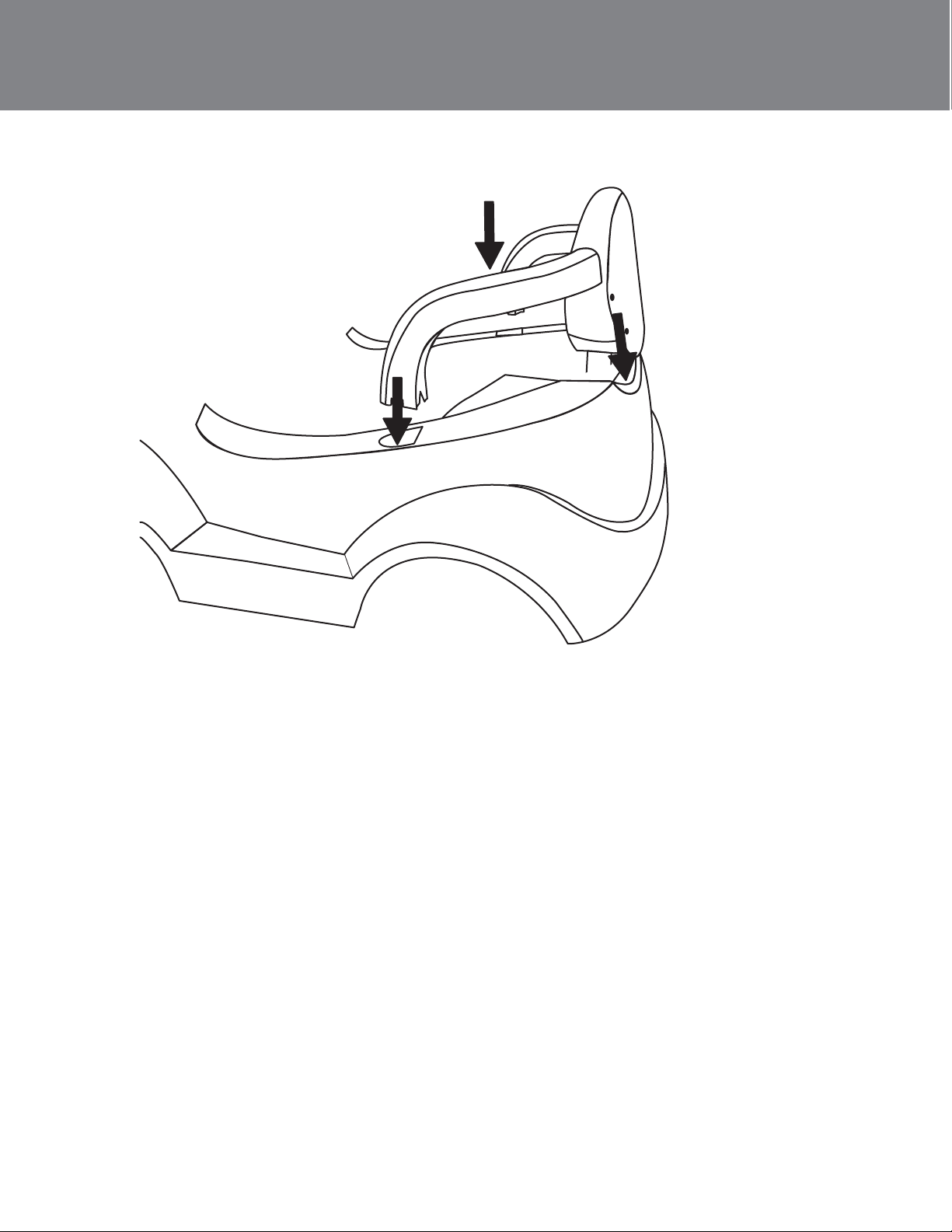

1. Insert either side of the backrest and armrest into the slot on the car body
until it clicks into place.
Assemble the Backrest and Armrest

14

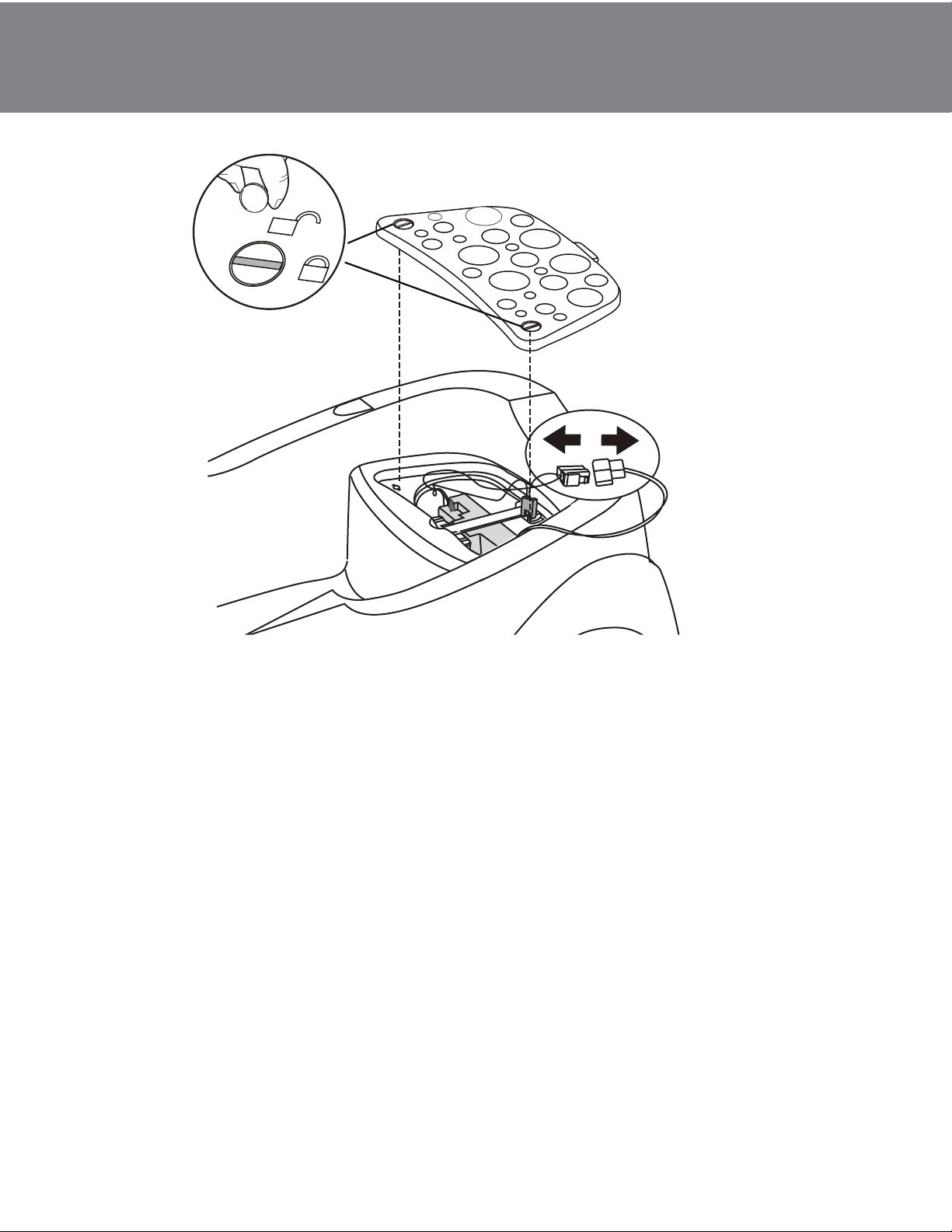

1. Use a flathead screwdriver to open the seat compartment.
2. Connect the red battery connector to the red engine connector.
3. Replace and secure the seat.
Connect the Battery

Steering Wheel Battery
Sounds Sounds
+
-
+
-
AAA1.5V
WARNING!
DO NOT mix old and new batteries.
DO NOT mix alkaline, standard (carbon-zinc)
or rechargeable (nickel-cadmium) batteries.
AAA1.5VD.C.LR03
AAA1.5VD.C.LR03

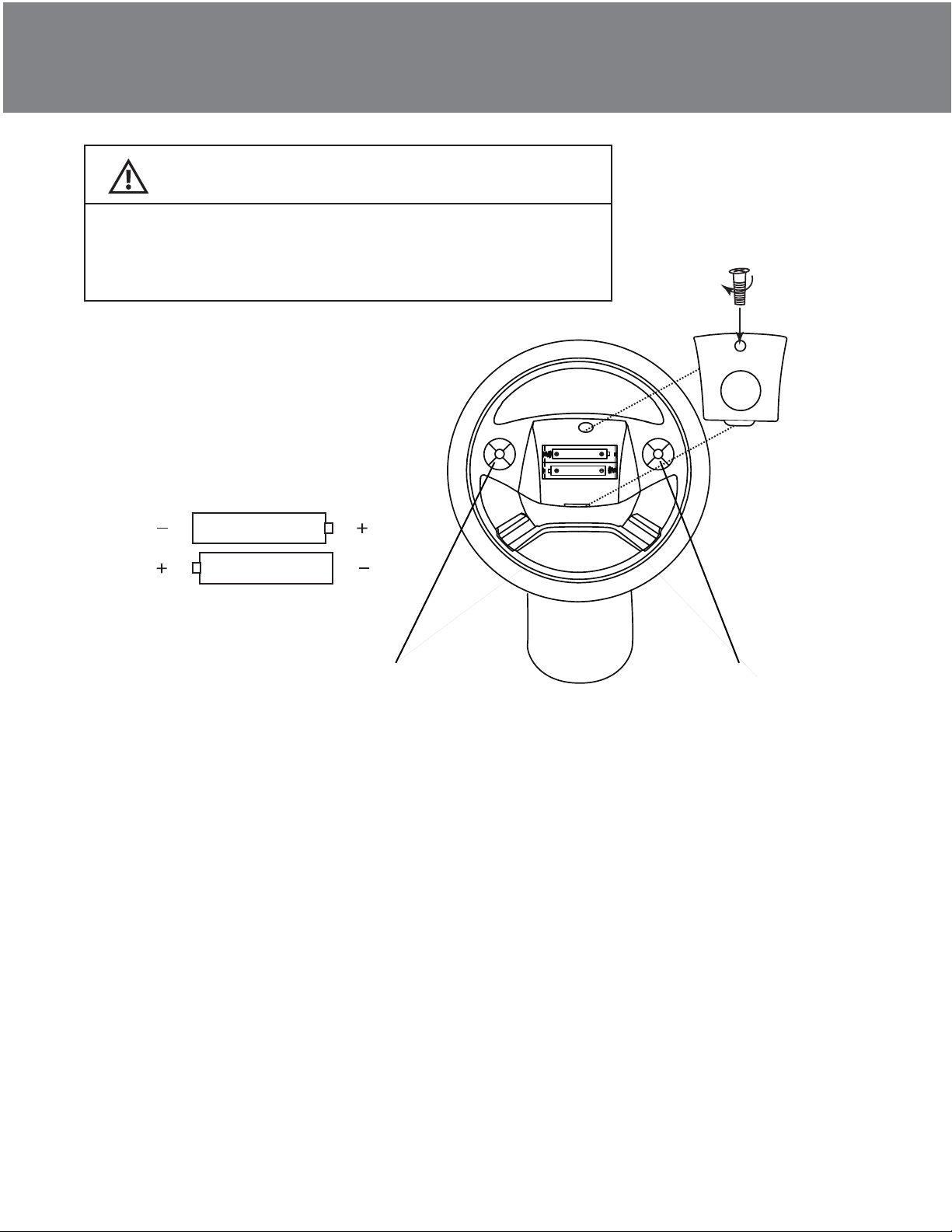

Press the left and right buttons on the steering wheel to hear sounds.
Note: The steering wheel requires 2 x 1.5v AAA/LR03 batteries to
make sounds.
15

Forward/Reverse
Power Switch
Pedal
16

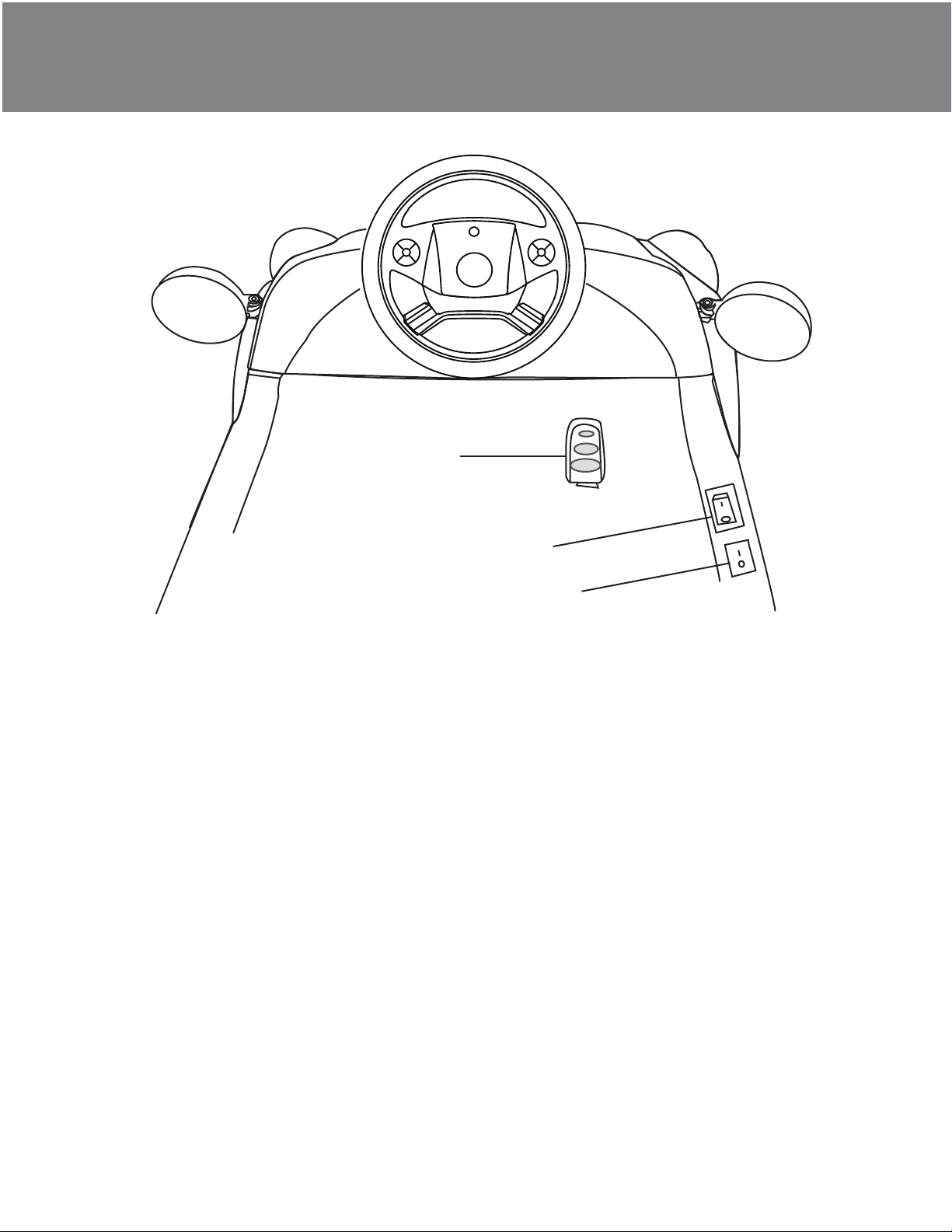

Power Switch: Turn the power switch to the ON position to turn on
the vehicle. Turn the power switch to the OFF position to turn off the
vehicle.
Forward/Reverse: Press the switch to the forward position, then press
the foot pedal to go forward. Press the switch to the reverse position,
then press the foot pedal to go reverse.
Operation Instructions

Maintenance
Important Battery and Charger Information
• Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
•
time.
• Recharge the battery immediately after each use. Charge for at least
8-12 hours, but no more than 20 hours.
• Charge the battery at least once a month, even if the vehicle is not used
or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above
71°C / 160°F, disconnect the charger and call Customer Service for
assistance.
• Keep the charger away from water or excessive moisture to prevent
short-circuiting.
• Do not charge the
battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original
charger.
• Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page 2 1 for
replacement information.
• Remove damaged batteries from the car immediately. Recycle or
dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.
17

• Regularly inspect all vehicle parts to ensure they are in good working
condition.
• Regularly inspect the charger, cord, plug, and other related parts for
damage.
• Remove any damaged parts and immediately contact Customer Service
for replacement parts. See Service information on Page 21.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not
get water in or near any electrical parts. Do not wash the vehicle with a
hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.
18
General Care

Troubleshooting Guide
Problem Potential Cause Solution
Vehicle does not run Battery is low Recharge the battery
Thermal fuse tripped Reset fuse
Loose wires or loose
connectors
Ensure the battery connectors are
securely attached. If wires are loose,
contact Customer Service for repairs
Battery is dead Call Customer Service for replacement
battery
Electrical system is damaged Call Customer Service for repairs
Motor is damaged Call Customer Service for repairs
Vehicle only runs for a
short time
Undercharged battery Ensure a secure connection when the
battery is recharging. Recharge for at
least 8-12 hours
Overcharged battery Never charge the battery for more than
30 hours
Battery is old Replace battery
Vehicle runs slowly Battery is not fully charged Ensure a secure connection when the
battery is recharging
Battery is old Call Customer Service to order
replacement battery
Too much weight on vehicle Reduce weight on vehicle 35 kg / 77
lbs
Harsh conditions Operate the vehicle on level ground
and safe surfaces
Vehicle needs a push to
start
Loose wires or loose
connectors
Ensure the battery connectors are
securely attached.
“Dead spot” on motor A “dead spot” means electricity is
not being delivered to the terminal.
Contact Customer Service
Motor or gear box making
grinding noises
Motor or gear damage Contact Customer Service
Battery will not recharge Charger is not plugged in Plug charger into the wall
Charger is broken Contact Customer Service
Loose connector or adaptor Check that the connectors are
securely plugged in to each other
Battery makes bubbling
noise while recharging
This is normal No action required
Charger is warm This is normal No action required
Completely read through the manual and troubleshooting guide before
contacting Customer Service.
19

FCC Information
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Consult dealer or an experienced radio/TV technician for help.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Check the state or local requirements for the product before using the
product.
responsible for compliance could void the user’s authority to operate the
equipment.
20
