Rolls RM64 User manual

ROLLS RM64 FOUR ZONE MIXER
The new ROLLS RM64 Four Zone Mixer combines two paging microphones
with up to four line level source inputs Each input is switch selected to output
to any combination of four zone outputs The outputs are all balanced XLR
connectors, and a 1/4" Remote Volume jack provides each zone with the
means for external volume control The Microphone inputs feature automatic
ducking for easy paging
The RM64 is the ideal solution for banquet rooms, offices, restaurant/night
clubs, etc
FEATURES
 Two Mic Inputs with Trim controls
 Four RCA source inputs
 Four Balanced XLR Zone Outputs
 Automatic paging
 Remote Volume for each output
SPECIFICATIONS
Input Impedance: 10K 9 balanced
50K 9 unbalanced RCA
Output Impedance: 50 9Balanced XLR
Max Input Level: Mic: +10 dB
Source: +22 dB
Phantom Power: +12 Volts DC
Input Connectors: XLR and RCA
Outputs: 4 ea XLR
Max Gain: 60 dB mic
30 dB line
S/N Ratio: >75 dB
THD < 3%
IMD (SMPTE) < 3%
CMRR 90 dB
Frequency Response: 20Hz to 20kHz +/- 0 dB
Power 120 VAC 50-60 Hz, 15 W
Weight: 7 lbs (3KG)
Size: 19" x 1 75" x 6 5" (48cm x 4 5cm x 17cm)
ROLLS Coporation
5968 South 350 West, Salt Lake City, UT, 84107
[phone] FAX [phone]
[email protected] • www.rolls.com
WARNING:
DO NOT EXPOSETHIS EQUIPMENT TO RAIN OR MOISTURE NO USER SERVICABLE PARTS INSIDE.
120VAC
50/60Hz 15VA
MODEL RM64
MADE IN USA
SERIAL NUMBER
64-
RISQUE DE CHOC - NE PAS ENLEVER
C US

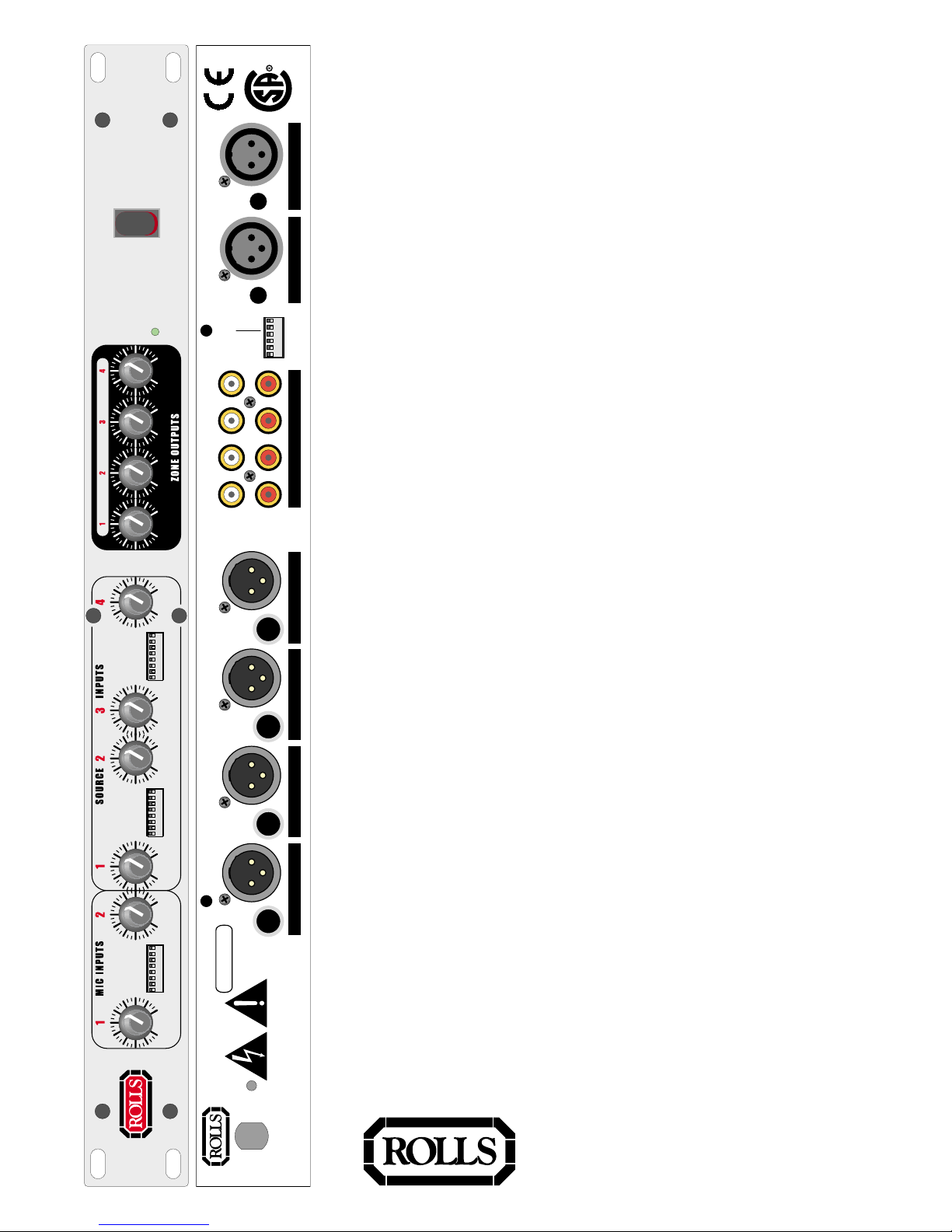

REMOTE
VOLUME REMOTE
VOLUME REMOTE
VOLUME REMOTE
VOLUME
REMOTE
VOLUME
OUTPUT
3OUTPUT
2OUTPUT
1
OUTPUT
4
ZONE FOUR ZONETHREE ZONE TWO ZONE ONE SOURCE INPUTS MICTWO MIC ONE
4321
INPUT
2INPUT
1
TRIM TRIM
123456
ZONE
DUCK
ASSIGN
1 2 3 4
PHANTOM POWER 1 2
LEVEL LEVEL
12345678 1234567812345678
LEVELLEVELLEVELLEVEL
pwr
ZONE
SELECT
1 2 3 4 1 2 3 4
ZONE
SELECT
1 2 3 4 1 2 3 4
ZONE
SELECT
1 2 3 4 1 2 3 4
LEVEL LEVEL LEVEL LEVEL
FOUR ZONE MIXER
RM64
