Rolls ZONE WOLF User manual

RM68
ZONE WOLF 2-Zone Mixer
MODEL RM68
www.rolls.com
MADE IN USA
www.rolls.com
ON 321
1
2
1
2
LEVEL BASS TREBLE LEVEL BASS TREBLE
0 10 -12 +12 -12 +12 0 10 -12 +12 -12 +12 pwr
MODEL RM68
www.rolls.com
MADE IN USA
www.rolls.com
ON 321
1
2
1
2
LEVEL BASS TREBLE LEVEL BASS TREBLE
0 10 -12 +12 -12 +12 0 10 -12 +12 -12 +12 pwr
Quick Start Guide
ROLLS CORPORATION
SALT LAKE CITY, UTAH
02/20
SPECIFICATIONS
Input Impedance: Mic: 600 Ohm XLR balanced
Source: 22K Ohm RCA unbalanced
Bus In: 22K Ohm unbalanced
Max Input Level: Mic: -14 dBV balanced
Source: +24 dBV
Input Connectors: 3: XLR, 6: stereo RCA, 2: 1/4” (Bus
inputs)
Outputs: 2 Sets Right and Left 1/4” balanced
outputs
Max Gain: Mic: 60 dB
Line: 26 dB
Tone Control: 12 dB boost/cut
Phantom Power: +12 VDC
Output Level: +17 dBV max
Output Impedance: 51 Ohm
Phase Shift: <10 degrees, 20Hz to 20 kHz
Max S/N ratio: 106 dB
THD: <.003%
CMRR: >52 dB (Mic)
Size: 19” x 1.75” x 6”
(48.3 x 4.5 x 15 cm)
Weight: 5 lbs. (2.3 kg)

INTRODUCTION
Thank your for your purchase of the Rolls RM68 ZONE WOLF 2-Zone
Mixer. The RM68 is a three microphone, six stereo RCA source mixer that
combines the signals and routes them to either of two zones or both. Mi-
crophone and Source inputs 1 through 3 share Volume sliders 1 through
3. Microphone One features a talk over function, activated automatically
when signal is present at Mic One and the Talk over switch is engaged.
+15 VDC phantom power is available for each individual microphone in-
put. Bass, Treble and overall Volume controls are provided for each zone
output.
FEATURES:
- Two separate zones with six assignable inputs
- Three XLR balanced Mic inputs with phantom power
- Six stereo RCA inputs
- Bass and Treble controls for each zone
- Automatic talk over on Mic One to the assigned zone
- Master level for each zone
- 1/4” stereo outputs
- Rugged design and steel chassis for demanding road use, or installa-
tion.

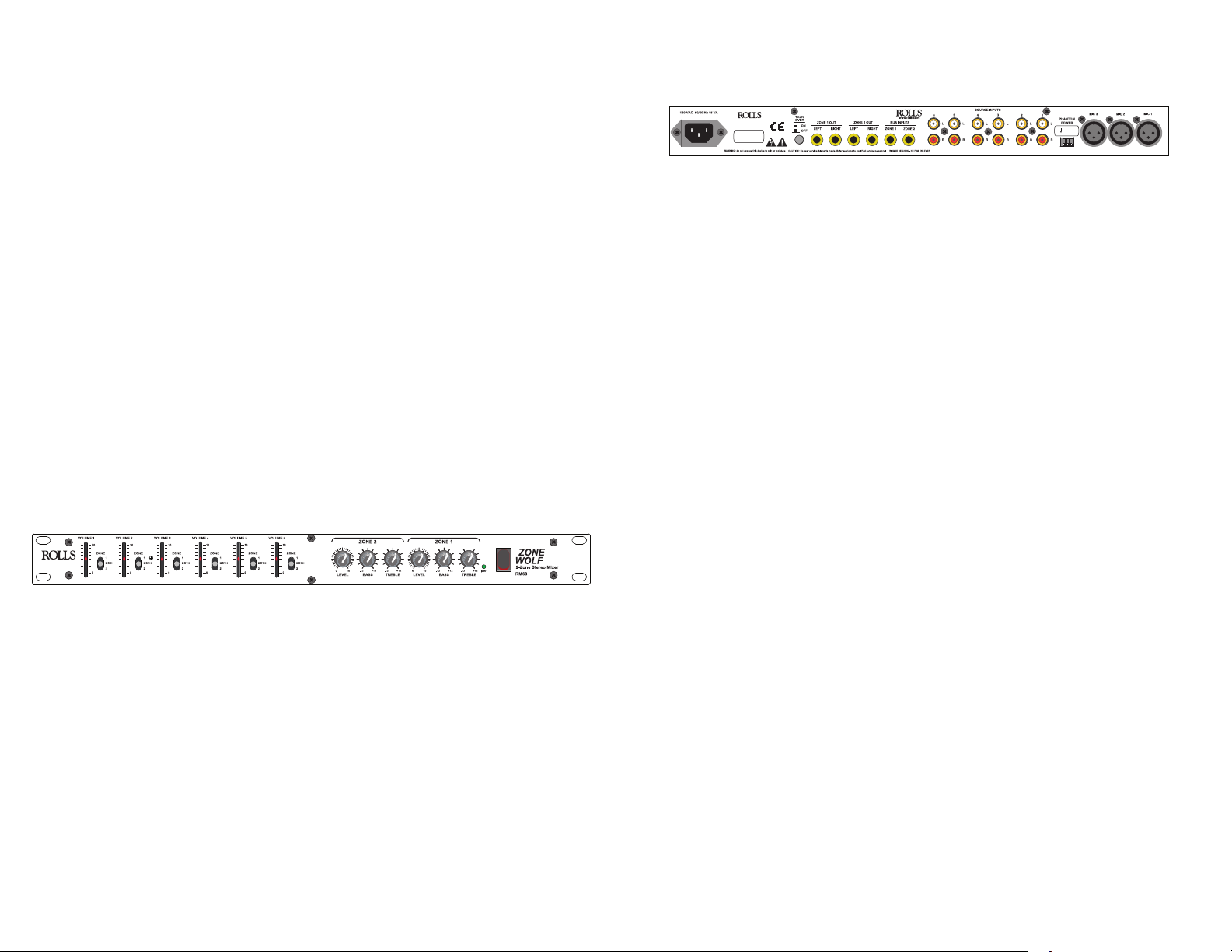

FRONT PANEL
MODEL RM68
www.rolls.com
MADE IN USA
www.rolls.com
ON 321
1
2
1
2
LEVEL BASS TREBLE LEVEL BASS TREBLE
0 10 -12 +12 -12 +12 0 10 -12 +12 -12 +12 pwr
VOLUME 1 - 3: Adjusts the level of signal from either Source Inputs
1 - 3 or Mic Inputs 1 - 3. NOTE: Channel 1 RCA and Mic Inputs are
mixed together, as are Channels 2 and 3.
VOLUME 4 - 6: Adjusts the level of signal from Sources 4 - 6 to the
selected output bus(es).
NOTE: THE DESCRIPTION FOR ZONE 1 IS IDENTICAL TO THAT
OF ZONE 2.
VOLUME: Adjusts the output level of the zone from -innity (o󰀨) to a
maximum of +26 dB of gain.
BASS: Controls the amount of the low-frequency content of the
zone signal.
TREBLE: Controls the amount of the high-frequency content of the
zone signal.
REAR PANEL
MODEL RM68
www.rolls.com
MADE IN USA
www.rolls.com
ON 321
1
2
1
2
LEVEL BASS TREBLE LEVEL BASS TREBLE
0 10 -12 +12 -12 +12 0 10 -12 +12 -12 +12 pwr
Mic 1 - 3: Balanced XLR inputs for connection to dynamic or con-
denser microphones.
Phantom Power: Dip switches to engage phantom power for each
individual mic channel. When the switch is in the down position
phantom power is engaged.
SOURCE INPUTS 1 - 6: Stereo RCA jacks. Channels 1 - 3 share
busses and volume controls with Mic inputs 1 - 3. Channels 4 - 6
are independent.
BUS INPUTS, ZONE 1 and ZONE 2: 1/4” TRS Stereo inputs for
connection to another RM68 Zone outputs using insert cables. This
provides a way to connect multiple RM68 units expand the input
numbers.
ZONE 1 and ZONE 2 OUT: Right and Left 1/4” TRS balanced out-
put jacks.
TALK OVER SWITCH: Engages the talk over function for Mic Input
1. When engaged, this is an automatic function that ducks the pro-
gram material on the Source inputs under the signal on Mic 1.
