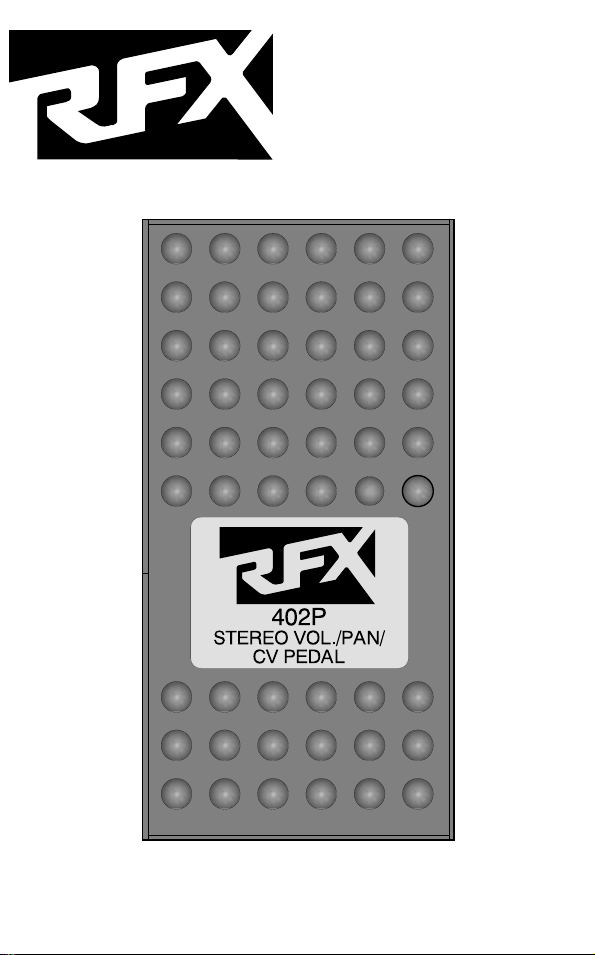

Rolls Rfx402p User manual

RFX402P

Stereo Volume/

Panner/C.V.Pedal

RFX

Salt Lake City, UT

9/00

3) Using the RFX402P as aVOLTAGE CONTROLLER

Many MIDI devices will accept standard passive (non-powered) volume pedal

outputs as a way to control Continuous Controller (or CC) functions.CC functions

are functions that allow the user to vary the amount of a particular parameter of

MIDI.For example, you can control your Chorus depth, or reverb room size, or

echo delay time - by using the RFX402P and a properly configured MIDI device.

Refer to the owners manual of your MIDI device for the correct connections and

programming configurations for this function.

If you use Channel 1's OUT/CV jack, the resistance is 0 ohms in the forward

position, and 100K ohms in the back position.If the Channel 2 IN/CV jack is used,

the resistance is 100K ohms in the forward position, and 0 ohms in the back

position.

SPECIFICATIONS

Max Resistance: 100K Ω+/-20%

Jacks: 4:1/4" unbalanced phone jacks

ControlWattage Rating: 0.1 watts

Size: 6.5" x 3.5" x 1.7"

Weight: 1 lb.

LIMITED WARRANTY

This product is warranted to the original consumer purchaser to be free from defects in

materials and workmanship under normal installation, use and service for a period of one (1) year

from the date of purchase as shown on the purchaser’s receipt.

The obligation of Rolls Corporation under this warranty shall be limited to repair or

replacement (at our option), during the warranty period of any part which proves defective in

material or workmanship under normal installation, use and service, provided the product is

returned to Rolls Corporation, TRANSPORTATION CHARGES PREPAID. Products returned to

us or to an authorized Service Center must be accompanied by a copy of the purchase receipt. In

the absence of such purchase receipt, the warranty period shall be one (1) year from the date of

manufacture.

This warranty shall be invalid if the product is damaged as a result of defacement,

misuse, abuse, neglect, accident, destruction or alteration of the serial number, improper electrical

voltages or currents, repair, alteration or maintenance by any person or party other than our own

service facility or an authorized Service Center, or any use violative of instructions furnished by us.

This one-year warranty is in lieu of all expressed warranties, obligations or liabilities.

ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITIES, INCLUDING BUT NOT

LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE ONE YEAR

DURATION OF THIS WRITTEN LIMITED WARRANTY. Some states do not allow limitations

on how long an implied warranty lasts, so the above limitation may not apply to you.

IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY,

EXPRESSED OR IMPLIED, WHATSOEVER. Some states do not allow the exclusion or

limitation of special, incidental or consequential damages so the above limitation or exclusion may

not apply to you. This warranty gives you specific legal rights, and you may also have other rights

which vary from state to state.

OWNERS MANUAL

Thank you for purchasing the RFX402P StereoVolume/Panner pedal.The 402P

is designed to provide lasting value and usefulness.It's uses are many, and

include guitar, keyboard or other electronic instrument's volume control.

WARNING: Due to the scissor like action of the foot pedal, there is a pinch

hazard. Also, the RFX402P has a few sharp metal corners. Please be careful

when handling.

INSPECTON

1.Unpack and Inspect the RFX402P package.

Your RFX402P was carefully packed at the factory in a protective carton.None-

theless, be sure to examine the unit and the carton for any signs of damage that

may have occurred during shipping. If obvious physical damage is noticed,

contact the carrier immediately to make a damage claim.We suggest saving the

shipping carton and packing materials for safely transporting the unit in the future.

2.Complete theWarranty Registration Card and return it to the factory.

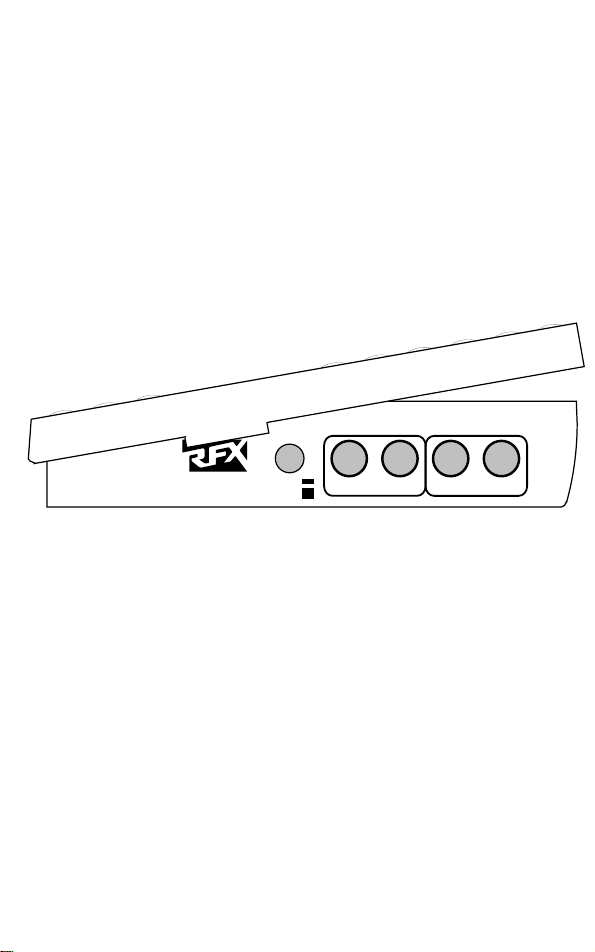

DESCRIPTION

PAN/NORM SWITCH:When pressed in, the RFX402P is in Pan mode, when out,

the unit acts as a volume pedal.

Note: All jacks are 1/4" unbalanced.

CHANNEL 1 JACKS:

IN:For receiving incoming instrument or line level signals.

OUT/CV:For sending out Channel 1 processed signal, or control voltage resis-

tance.

CHANNNEL 2 JACKS:

IN/CV: For receiving instrument or line level signals, or sending a control voltage

resistance.

OUT:For sending out Channel 2 processed signal.

OPERATION

1) NORMALVolume Mode

In this mode, the RFX402P takes either a mono or stereo signal, and controls the

overall signal level.Channel 1 Input signal level is controlled by the pedal, and

sent out Channel 1 output.The same goes for Channel 2.

Example One shows a possible connection diagram for using the RFX402P for a

stereo volume control.

RFX402P

IN/CV OUT IN OUT/CV

CHANNEL 1

CHANNEL 2

PAN

NORM

MADE IN USA

2) PANNING Mode

With the PAN/NORM switch pressed in, the RFX402 acts as a panning or balance

control.If a stereo signal is present, like the right side going to Channel 1, and the

left side going to Channel 2;the right channel is fully on when the pedal is rotated

completely forward, and the left channel is completely off.When the pedal is

rotated to it's back position, the left channel is on and the right channel is off.For

a balanced signal level, the pedal must be placed in the middle of it's rotation.

If you wish to pan a mono signal, you must use a "Y" cable to send the same

signal to both Channels 1 and 2.Then that signal is panned between Channel 1

and Channel 2 outputs.Refer to ExampleTwo.

EXAMPLE 1

EXAMPLE 2

AMPLIFIER

RFX402P

IN/CV OU T INOUT/CV

CHANNEL1

CHANNEL2

PAN

NORM

MADE IN USA

RFX402P

IN/CV OU T INOUT/CV

CHANNEL1

CHANNEL2

PAN

NORM

MADE IN USA

AMPLIFIER

AMPLIFIERAMPLIFIER
