Rolsen RDV-4002/RDV-4003 DVD Service Manual
Service Manual
SAFTY PRECAUTIONS
GENERALS GUIDELINES
1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the
short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers are property installed.。
3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.
LEAKAGE CURRENT COLD CHECK
1. Unplug the AC cord and connect a jumper between the two prongs on the plug.
2. Measure the resistance value, with an ohmmeter, between the jumped AC plug and each exposed metallic cabinet part on the equipment
such as screw-heads, connectors, control shafts, etc. When the exposed metallic part has a return path to the chassis, the reading should be
between 1MΩand 5.2MΩ. When the exposed metal does not have return path to chassis, the reading must be ∞.

Rolsen RDV-4002/RDV-4003 DVD Service Manual

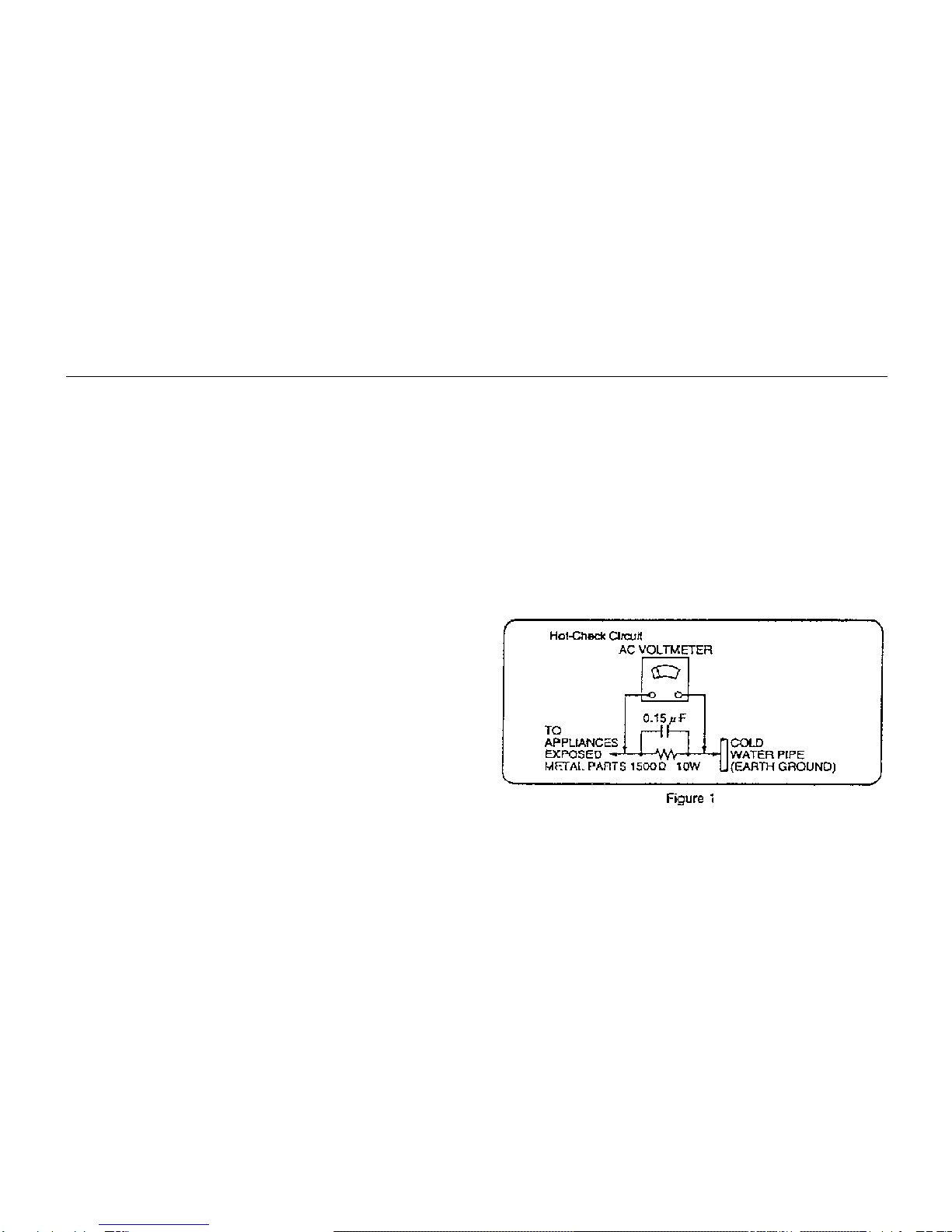

LEAKAGE CURRENT HOT CHECK ( See Figure 1.)
1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.
2. Connect a 1.5KΩ, 10 Watts resistor, in parallel with a 0.15uF capacitors, between each exposed metallic part on the set and a good earth
ground such as a water pipe, as shown in Figure 1.
3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to measure the potential across the resistor.
4. Check each exposed metallic part, and measure the voltage at each point.
5. Reverse the AC plug in the AC outlet and repeat each of the above measurements.
6. The potential at any point should not exceed 0.75 volts RMS. A leakage current tester (Slmpson Model 229 or equivalent) may be used to
make the hot checks, leakage current must not exceed 1/2 milliamp. In case a measurement is outside of limits specified, there is a possibility
of shock hazard, and the equipment should be repaired and rechecked
before it is returned to the customer.
PREVENTION OF ELECTP.O STATIC DISCHARGE (ESD) TO
ELECTROSTATICALLY SENSITIVE ( ES ) DEVICE
Some semiconductor (solid state) devices can be damaged easily by
static electricity. Such components commonly are called
Electro-statically Sensitive (ES) Device. Examples of typical ES device are integrated circuits and some field-effect transistors and
semiconductor ‘chip’ components. The following techniques should be used to help reduce the incidence of component damage caused by

Rolsen RDV-4002/RDV-4003 DVD Service Manual
electro static discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by
touching a known earth ground. Alternatively, obtain and ware a commercially available discharge ESD wrist strap, which should removed
for optional shock reasons prior to applying to the unit under test.
2. After remove an electrical assembly equipped with ES devices, Place the assembly on a conductive surface such as aluminum foil, to
prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static (ESD protected)” can generate
electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement
ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the
chassis or circuit assembly into which the device will be installed.
8. Minimize bodily motions when handling unpackaged replacement ES device. (Otherwise harmless motion such as the brushing together of
your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device.

Rolsen RDV-4002/RDV-4003 DVD Service Manual
IMPORTANT SAFETY NOTICE
There are special components used in the schematic diagram, Exploded Views and replacement part list. It is essential that these critical parts
should be replaced with manufacture’s special parts to prevent shock, fire, or other hazard.
PRECAUTION OF LASER DIODE
CAUTION:
This unit utilizes a class I laser, invisible laser radiation is emitted from the optical pickup lens when the unit is turned on:
Do not look directly into the pickup lens.
Do not use optical instruments to look at the pickup lens.
Do not adjust the preset variable resistor on the optical pickup.
Do not disassemble the optical pickup unit.
If the optical pickup is replaced, use the manufactures specified replacement pickup only.
Use of control or adjustment or performance of procedures other than those specified herein may result in hazardous radiation exposure.
HANDLING PRECAUTION FOR TRAVERSE DECK
The laser diode in the optical pickup may break down due to potential difference caused by static electricity of clothes or human body. So be
careful of electrostatic break down during repair of the optical pickup.

Rolsen RDV-4002/RDV-4003 DVD Service Manual
Handling of optical pickup
Do not subject the optical pickup to static electricity as it is extremely sensitive to
electrical shock.
To prevent the breakdown of the laser diode, an antistatic shorting pin is inserted into
the flexible board (FPC Board).
Be careful not to apply excessive stress to the flexible board (FPC Board).
Do not turn the variable resistor (Laser power adjustment). It has already been
adjusted.

Rolsen RDV-4002/RDV-4003 DVD Service Manual
Grounding for electrostatic breakdown prevention
1、Human body grounding
Use the antistatic wrist strap to discharge the static electricity from your body.
2、Work table grounding
3、Put a conductive material (sheet) or steel sheet on the area where the optical pickup is
placed and ground the sheet.
Caution:
The Static electricity of your clothes will not be grounded through the wrist strap. So
take care not to let your clothes touch the optical pickup.

Rolsen RDV-4002/RDV-4003 DVD Service Manual
DIAGRAM
FRONT VIEW
RDV-4003
RDV-4002

Rolsen RDV-4002/RDV-4003 DVD Service Manual
REAR VIEW
RDV-4003
RDV-4002

Rolsen RDV-4002/RDV-4003 DVD Service Manual
REMOTE CONTROL UNIT

Rolsen RDV-4002/RDV-4003 DVD Service Manual
EXPLODED
VIEW
RDV-4003

Rolsen RDV-4002/RDV-4003 DVD Service Manual
RDV-4002

Rolsen RDV-4002/RDV-4003 DVD Service Manual

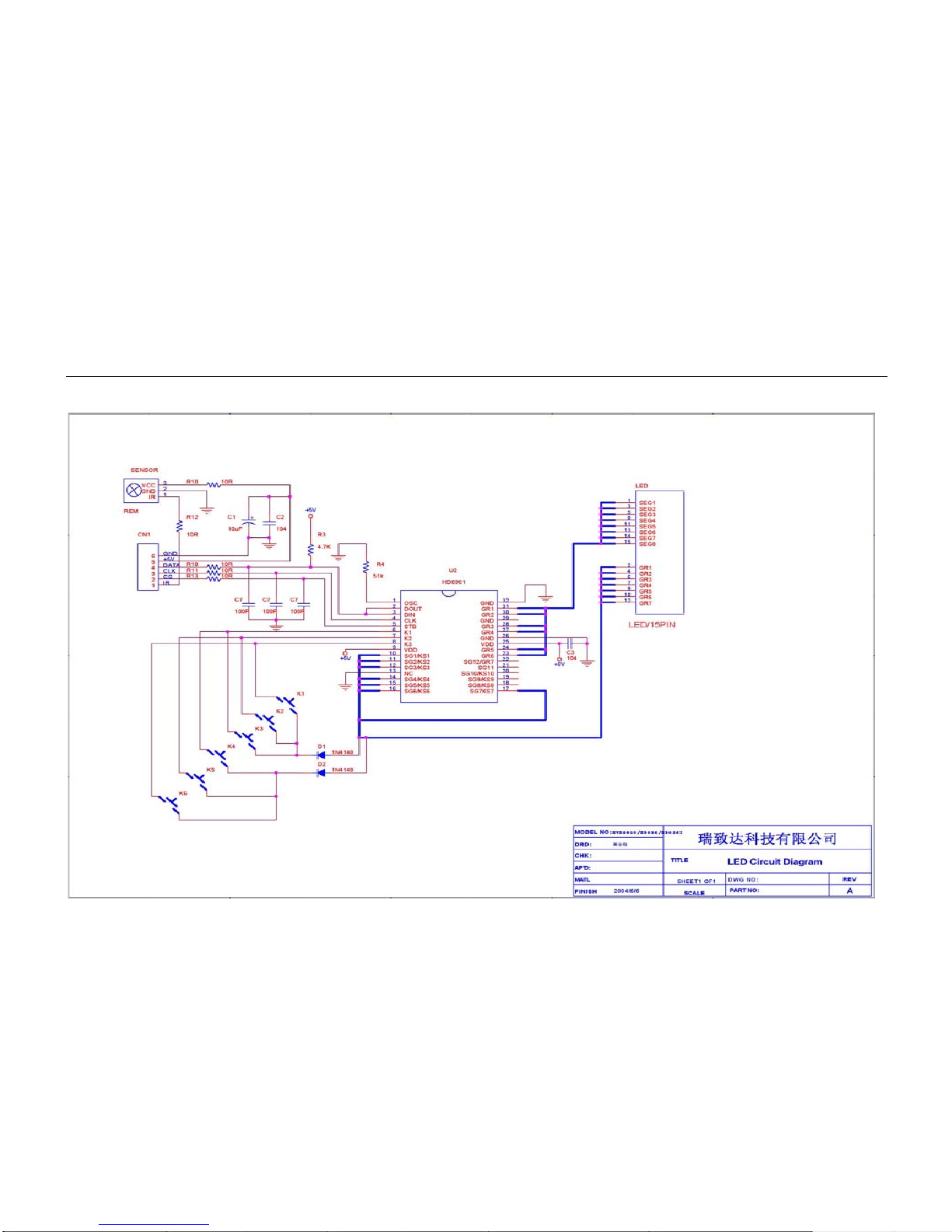

SCHEMATIC DIAGRAM OF FRONT PANEL

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
MT1389E
Audio 3.3V
DEVICE
DVDD3
TYPE
Digital 1.8V
RESET Circuit
Digital 3.3V
2 MT1389HD
OP AMP.
6 MT1392 HDMI
3 SDRAM & FLASH
5 AUDIO OUT - WM8766
AV33 Laser Diode 3.3V
COMMON1389HD_HDMI_HD60_V4
Audio DAC
NAME
DV33
Audio +12V
Digital 5V
Audio DAC
Servo 3.3V
Audio 5V
MT1389E
VCC
Digital 3.3V SDRAM
RFV33
SD33
AVDD5
1 INDEX & POWER, RESET
MT1389E
4 VIDEO OUT & AV-CON
SUPPLY
V18
+12V
MDxxx
VSDA Pull UP
MT1389HD(LQFP256) DVD MP Board for SANYO HD60 PUH (Small Size)
-12V Audio -12V OP AMP.
DateHistory
Supports 1389HD & Memory Card Interface
The original released.
V2
P#
add protection circuit for OPU
2005/03/07
2 2005/05/30
Rev
V1
V3 delete U20 and U21 4 2005/07/28
add R177 and R178 for HDMI I2CV4 6 2005/10/27
For reserve
INDEX
4
C
16Saturday, June 10, 2006
COMMON89HD_HDMI_HD60
MediaTek Confidential
Tom Wang
Tom Wang
Title
Size Document Number Rev
Date: Sheet of
MediaTek (ShenZhen) Inc.
Drawn:
Checked:
VSDA
VSTB
VSCK
VCC
VCC
URST#
IR
VSDA
+12V
-P12V
+12V
VSDA
VSCK
VSTB
IR
URST#
-12V
AVCC1
PLLVDD33
+5VV
MOVVC
DV33 SD33
RFV33
DACVDD3
ADACVDD
USBVDD
REGO1
TRB1
REGO2
TRB2
FLASH_VCCVCC
VSCK[2]
VSDA[2]
VSTB[2]
URST# [2,4,6]
IR [2]
-12V
+12V
VCC
DV33
VCC
+12V
-12V
VCC
DV33
SD33
MOVVC
FLASH_VCC
RFV33
USBVDD
AVCC1
+5VV
DACVDD3
ADACVDD
DV33
PLLVDD33
VCC
DV33
V18
LDO_AV33
V18
VCC
VCC
+
CE4
47uF/16V
C87
1uF
CB30
104pF
+
CE3
47uF/16v
CB41
104pF
R80
10k 1%
CB25
104pF
CB79
104uF
D1
1N4001
L14
FB
CB8
104pF
R32
9.1k 1%
L5
FB
L19
FB
Q29
8550
CB48
104pF
CB24
104pF
+
CE5
220uF/16v
CB43
104pF
R16
4.7k
CB13
104pF
+
E2
100uF/16v
R79
4.7k 1%
C19
1uF
CB75
104uF
+
CE7
220uF/16v
C23
100pF
CB77
104uF
+
CE1
1000uF/10v
CB3
104pF
+
CE18
220uF/16v
CB76
104uF
+
CE13
100uF/16v
L7
FB
CB20
104pF
R31
15k 1%
+
CE9
1000uF/10v
CB74
104uF
L27
FB
CB37
104pF
C36
104pF
R108
10k
CB1
104pF
CB78
104uF
CB7
104pF
CB55
104pF
CB29
104pF
CN3
6x1 W/HOUSING
DIP6/W/H/P2.54
1
2
3
4
5
6
L6
FB
+
CE2
470uF/16v
L18
FB
CB6
104pF
CB5
104pF
R18 10
CB42
104pF
Q18
8050C
+
CE16
47uF/16v
CB53
104pF
CB4
104pF
CB33
104pF
CB10
104pF
R101 6.8
J3
6x1 W/HOUSING
1
2
3
4
5
6
R104 220
D2
1N4001
L33
FB
C44
104pF
CB9
104pF
L20
FB
L29
FB
+
E1
100uF/16v
CB23
104pF
CB22
104pF
CB40
104pF
R96
10k
CB21
104pF
D3
CB11
104pF
CB27
104pF
C83
104pF
Q30
8550
+
CE17
100uF/16v
R1 10k
CB2
104pF
L21
FB
+
CE6
220uF/16v
C34
104pF
CB110
104pF

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
IIC
G
VIDEO INTERFACE
C
2SK3018
2N3904
B
FLASH
AUDIO INTERFACE
3
3
2SB1132
1
3
2
E
C
1
2
E
MEMORY
1
D
B
S
C
21
15
F-
14
6
GND-LD
11
9
Vcc
10
5
VR-CD
19
13
VR-DVD
12
A/a
T+
2
23
C/c
8
22
B/b
Vc(Vref)
SANYO
SF-HD60
20
RF
NC
HFM
3
GND-PD
T-
F+
16
MD
CD-LD
NC
7
E
F
18
CD/DVD SW
17
4
D/d
24
1
DVD-LD
RS-232
MT1389HD TQFP 256
4
Custom
26Saturday, June 10, 2006
COMMON89HD_HDMI_HD60
MediaTek Confidential
Tom Wang
Tom Wang
Title
Size Document Number Rev
Date: Sheet of
MediaTek (ShenZhen) Inc.
Drawn:
Checked:
PCE#
A
WE#
MA[0..11]
AD[0..7]
SCL
ABCK
B
RAS#
ASPDIF
PRD#
PWR#
A[0..20]
DCLK
DCKE
ASDAT[0..2]
ACLK
IOA
SDA
DQ[0..15]
ALRCK
CAS#
LD_02
CS#
BA[0..1]
DQM[0..1]
V1P4
JITFO
ADIN
OP+
XI
DQSO IOA
YUV[1..6]
LIMIT
SL+
SL-
LIMITIO_18
SPP-
SP+
C
D
IOA
RFO
A
B
F
AVCC1
E
VR_DVD
LD-CD
MDI1
AVCC1
LD-DVD
OPO
DQ12
DQ13
V1P4
89_CTR
89_AL
89_ARS
89_AR
89_ALS
89_SW
YUV7
SPLRCK
SPDATA
SPMCLK
SPBCK
VSYNC#
TRO
FOO
FMO
DMSO DMO
TMS
TDI
VSCK
VSTB
VSDA
MUTE_DAC
RxD
TxD
USBP
USBM
USBVDD
H601#
HSYNC#
AD7
GPIO_5
DACVDD3
A7
TDO
JITFN
DAC_SL
JITFO
MA4
IO_2
DQ2 DQSO A0
A14
ASDAT1
ALRCK
89_HSYNC#
Y4
UP3_1
PWR#
AD0
V18
FOO
OPO
E
DAC_CENT
GPIO_6
ABCK
DAC_MR
DQM1
MA3
IO_12
IO_4
VSTB
PRD# AD2
A5
FMO
TDI
DAC_ML
RFV33
MA2
MA5
IO_9
Y5
DQ1 DQM0
A16
LDO1
C
OP-
ASDAT0
SPDATA
IO_3
SDA
AD4 A17 A12
OP+
DAC_SR
USBP
XO
ACLK
CAS#
MA7
IO_10
IR AD5
A4
STBY
AD3
A9
USBM
IO_6
DQ0 DQ6
A6
AD6 A11
V1P4
V2P8
D
ASPDIF
ASDAT2
MA6
Y6
PCE#
OP-
DAC_LEE
JITFN
IO_18
WE#
IO_7
IO_0
DQ5
INT0#
SCL
VSYNC
TMS
A13 A20
DACVDD3
GPIO_3
SDAT3
CS#
BA0
MA11
IO_8
DQ4
VSCK
A10 A15
DMO
MDI1
DQ9
VREF
ADIN
VREF
SPBCK
RFV18 PLLVDD3
MA8
IO_15
IO_13
89_VSYNC#
Y2
DQ15
UP3_0
A19
FS
BA1
MA10
MA0
IO_16
IO_17
DACVDD3
DQ14
TXD
TEZISLV
LDO2
ADACVDD
SPMCLK
MA9
IO_1
RFV33
HSYNC
A3
A18
A8
TROPEN
DQ11
DQ10
SPLRCK/MMUTE
RAS#
MA1
DCLK
IO_11
Y3
Y1
DQ8
DQ3
VSDA
A1 AD1
A2
A
FS
LD_01
DCKE
IO_14
IO_5
YUV7
DQ7
RXD
TRO
PWDN# MUTE_DAC
PWDN#
INT0#
IR
UP3_0
XO
GPIO_[3..6]
ASDAT[0..3]
IO_[0..19]
ASDAT3
UP3_1
V601#
RFV33
V20
VR_CD
DMSO
SP-
V1P4
STBY
FMSO TDO
T-
TRSO
TRB2
FMSO
F-
TROPEN
LOAD+
SP+
TRSO
SL+ SP-
FOSO
FOSO
TRB1
LOAD+
F+
SL-
LOAD-
T+
LOAD-
V1P4
V1P4
V1P4
B
C
V18 RFV18
V2P8
D
C
RFO
RFV33
GPIO_4
URST#
URST#
T+
T-
F-
F+
21U
DQSO
LD_DVD
LD_CD
MDI1
RFO
C
A
D
B
F
E
V20
RFO
GND
OUT
SPBCK
GND
F
DACVDD3
XI
APLLVDD3
XO
REG01
REG02
USBVDD
V20
V20
APLLVDD3
XTALI
DQ[0..15] [3]
SDA [3,6]
PCE# [3]
ABCK [5,6]
ALRCK [5,6]
ASPDIF [4,6]
SCL [3,6]
ASDAT[0..2] [3,6]
MA[0..11] [3]
PRD# [3]
PWR# [3]
ACLK [5,6]
WE# [3]
CS# [3]
RAS# [3]
CAS# [3]
DCKE [3]
DCLK [3]
A[0..20] [3]
AD[0..7] [3]
BA[0..1] [3]
DQM[0..1] [3]
YUV[1..6] [4,6]
89_CTR [5]
89_AL [5]
89_ARS [5]
89_ALS [5]
89_AR [5]
89_SW [5]
SPBCK [3]
SPMCLK [3]
SPDATA [3]
SPLRCK [3]
YUV7 [3]
VSYNC# [3]
VSCK [1]
VSTB [1]
VSDA [1]
MUTE_DAC [5]
USBP [4]
USBM [4]
USBVDD [4]
H601# [4,6]
HSYNC# [3]
PWDN# [6]
INT0# [6]
IR [1]
UP3_0 [6]
XO [6]
ASDAT[0..3] [3,6]
GPIO_[3..6] [3]
IO_[0..19] [3,6]
ASDAT3 [3,6]
UP3_1 [6]
V601# [4,6]
URST# [1,4,6]
AVCC1
LD0_AV33
MO_VCC
MO_VCC
DV33
DV33
DV33
V18
V18
DV33
DV33
V18
DV33
DV33
V18
V18
AVCC1
VCC
+12V
-12V
DV33
DV33
C48
120pF
C39
330pF
C17 0.47uF/NC
R4 100k
C63
104pF
C32
C/NC
R3 10k
C90 47nF
CB38
104pF
R10 100k
R35 4.7
C30
1uF/10v
C28 1uF
J5
5x1 W/HOUSING
1
2
3
4
5
J4
6x1 W/HOUSING
1
2
3
4
5
6
R50 10k
C40
104pF
CB17
104pF
R98 10k
Y1
27MHz
C25 1uF
C62 1uF
C41
153pF
C91
1000pF
R22 1
C33
1uF/10v
C26 1uF
R24
0
C35
104pF
CB19
104F
C7 2200pF
R21
150k
R23
2.2k
TOP
CON1
HEADER 24 SMD0.5 TOP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
R59
10k
R40 10k
L23 FB
C92
104pF
R19
150k
Q7
2N3904
B
E C
TP82
C38
330pF
+
CE20
100uF/16v
+
CE14
47uF/16v
CB18
104pF
C31
104pF
CB32
104pF
C56 1uF
Pin Assignment v1.5
MT1389HD
U2
MT1389HD
2
250
3
4
5
1
252 253
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
256
28
27
30
29
32
31
43
26
25
33
34
35
36
42
41
45
39
40
46
38
37
59
75 74 72 71 70 69 68
52
91
62
63
87 86
64
65 84 83 82 81 73 93
53
54
55
56
80
57
58
67 92 85
60
61
76 78 90 79 66 77 94 95 96 97 98 99 100 101 102 103 104 105 116 106 107
244 245
108 109 110 111 112 122 113 114 115 117 118 120 119 121 123 124 125 126 128 127
129
192
191
190
189
188
187
186
185
184
183
182
181
180
179
178
177
176
175
174
173
172
171
170
169
167
168
166
165
164
163
162
161
160
159
158
156
157
155
154
153
152
151
150
148
149
147
146
145
144
143
141
142
140
139
138
137
136
134
135
133
132
131
130
249 255
24
254 231 230 238 237 248 247 236 251 246 243 241 242 240 239 234 235 232 224 225 222 221 220 219 226 218 217 215 213 214 204 211 210 209 208 212 207 206 205 203 202 201 200 199 198 197 196 195 194 193 233
44
47
48
49
50
51
88 89
216 223 228 229 227
DVDA
CRTPLP
DVDB
DVDC
DVDD
AGND
OSP
OSN
DVDRFIP
DVDRFIN
MA
MB
MC
MD
SA
SB
SC
SD
CDFON
CDFOP
TNI
TPI
MDI1
MDI2
LDO2
LDO1
AVDD3
V2REFO
SGND
VREFO
V20
TEO
FEO
VPLLVSS
RFLVL/RFON
CSO/RFOP
TEZISLV
OP_OUT
OP_INN
OP_INP
FOO
TRO
VPLLVDD3
TROPENPWM
PWMOUT1/V_ADIN9
USB_VSS
FMO
DMO
IOA5
IOA20 HIGHA1 HIGHA3 HIGHA4 HIGHA5 HIGHA6 HIGHA7
TMS/V_ADIN5
A17
HIGHA0
IOA18
IOA21 AD6
IOA19
DVDD3 AD4 AD3 AD2 DVSS HIGHA2 DVDD18
TCK/V_ADIN6
TDO/V_ADIN7
DVDD18
IOA2
AD1
IOA3
IOA4
A16 IOA0 AD5
IOA6
IOA7
IOCS# IOCE# DVSS AD0 IOWR# IOA1 UWR# URD# DVDD3 UP1_2 UP1_3 UP1_4 UP1_5 UP1_6 UP1_7 UP3_0 UP3_1 UP3_4 RD4 UP3_5 ICE
ADCVDD3
ADCVSS
PRST# IR INT0# DQM0 IO_19 RD15 RD7 RD6 RD5 RD3 DVDD3 RD1 RD2 RD0 RD14 RD13 RD12 RD11 RD9 RD10
RD8
DACVSSC
YUV1/Y
DACVDDB
YUV2/C
DACVSSB
YUV3/CVBS
DACVDDA
YUV4/G
DACVSSA
YUV5/B
YUV6/R
VSYNC/V_ADIN1
YUV7
HSYNC/V_ADIN2
DVSS
IO_17
C0/IO_0
C1/IO_1
DVDD18
C2/IO_2
C3/IO_3
C4/IO_4
DVDD3
C5/IO_5
C7/IO_7
C6/IO_6
YUVCLK/IO_8
Y0/IO_9
Y1/IO_10
Y2/IO_11
Y3/IO_12
Y4/IO_13
DVDD18
Y5/IO_14
Y6/IO_15
DVDD3
Y7/IO_16
RA4
RA5
RA6
RA7
RA8
RA9
DVSS
RA11
CKE
RCLK
DVDD3
RA3
RA2
RA1
DVDD18
RA0
RA10
BA1
BA0
RCS#
CAS#
RAS#
RWE#
DQM1
DVDD3
IO_18
HRFZC
IREF
SVDD3
RFGC
RFGND18
ADACVDD2
IDACEXLP
PLLVSS
RFRPAC
RFRPDC
JITFN
RFGND
RFVDD3
LPFOP
LPFIP
LPFIN
LPFON
PLLVDD3
XTALI JITFO
RFVDD18
AR/SDATA1
AVCM
ARF(SW)
ADACVSS1 ADACVSS2
APLLVSS
AL/SDATA2
APLLCAP
APLLVDD3
MC_DATA
DVDD18
ASDATA4
SPMCLK
ACLK
ABCK
ALRCK
DVDD3
ASDATA3
SPBCK
SPLRCK
SPDATA
ASDATA2/GPO_0 ASDATA1/GPO_1
GPIO_3 GPIO_4
RCLKB/GPIO_5
RVREF/GPIO_6
ASDATA0/GPO_2
DACVDDC
VREF
FS
YUV0/CIN
XTALO
CAPPAD
USBP
USBM
USB_VDD3
FG/V_ADIN8
TDI/V_ADIN4
ALE AD7
SPDIF
ARS/SDATA3
ALF/(CTR)
ADACVDD1
ALS/SDATA0
R20 NC
TOP
CON2
HEADER 24 SMD0.5 TOP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
+
CE21
10uF/50v
R186 0
R78 10k
R43 47k
C1 390pF
R30
R/NC
U4
BA5954
1
9
10
12
3
2
15
7
14
13
21
19
20
24
27
6
4
5
28
8
11
17
18
16
23
22
25
26
2930
VINFC
PVCC1
PGND
VOSL+
CF2
CF1
VOTK+
VNFFC
VOFC+
VOFC-
PVCC2
PGND
VNFTK
CTK2
BIAS
VOSL
VINSL+
VINSL-
STBY
VCC
VOSL-
VOLD+
VOLD-
VOTK-
VINLD
PREGND
CTK1
VINTK
G1G2
+
CE15
47uF/16v
C5
0.1uF/NC
R9
0
+
CE11
47uF/16v
R17
680k
CB16
104pF
R102
0
CB44
104pF
R8 10k
L10
FB
Q3
2SB1132
1
32
R14 680k
R6 100k
L11
FB
C53 1uF
R11 15k
+
CE12
47uF/16v
L15
10uH
C14 33nF
R45 10k
CB34
104pF
C18 47nF
L16
10uH
C4
33pF
R12
FB
R41 10k
R36 4.7
R61 10
C60 1uF
R33 10k
R7 100k
R42 47k
R27 0
R44 15k
C25
0.1uF
R25 10k
R60 10
+
CE10
47uF/16v
C20
2200pF
C27 1uF
R15 0
Q9
2SK3018
2
13
R5 0
C22 20pF
CB14 104pF
CB11
0.1uF
C49
104pF
CB12
5600pF
R2 750k
J1
4x1 W/HOUSING
1
2
3
4
CN6
1
2
3
4
5
6
C3
33pF
TP78
TP24
Q8
2SK3018
2
13
TP22
R75 10k
C12 104pF
Q4
2SB1132
1
3 2
C24 1uF
L29 FB
Q28
2SB1132
1
3 2

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
IIC
DRAM
FLASH
DRAM
Memory Card I/F
FLASH
Memory Card I/F
TSOP 48 pin
Memory Card Interface
SDRAM&FLASH
4
B
36Saturday, June 10, 2006
COMMON89HD_HDMI_HD60
MediaTek Confidential
Tom Wang
Tom Wang
Title
Size Document Number Rev
Date: Sheet of
MediaTek (ShenZhen) Inc.
Drawn:
Checked:
DQ[0..15]
SCL
SDA
AD[0..7]
WE#
CAS#
BA[0..1]
MA[0..11]
RAS#
DCLK
DCKE
CS#
DQM[0..1]
SPLRCK
SPDATA
SPMCLK
VSYNC#
HSYNC#
SPBCK
YUV7IO_[0..19]
PCE#
GPIO_[3..6]
ASDAT[0..3]
PRD#
A[0..20]
PWR#
MA1
DQ11
DCS#
DQ6
DQ7
A3
A5
MA11
MA6
A13
MA7
MA4
MA9
DWE#
MA2
AD5
DQ15
AD2
A0
AD4
AD7
A7
PCE#
MA3
DQM0
DQ9
A6
AA21
DBA0
A21
A16
DQ3
A19
A15
A14
SDCLK
MA0
AD3
DQ10
DQ13
A4
PWR#
DRAS#
A12
MA8
PRD#
DQ1
DQ14
DQ8
AA20
A1
A9
A18
MA10
AD6
DQ4
AD0
DQ0
DQM1
SDCKE
DQ12
DCAS#
AA20
DBA1
A10
AD1
DQ5
A20
A11
A17
A2
A8
MA5 DQ2
SCL
SDA
SCL
DV33
SDA
GND
HSYNC#
IO_5
IO_16
YUV7
IO_11
IO_8
ASDAT1
GPIO_5
IO_17
IO_6
SDAT2
IO_3
SPMCLK
89_VSYNC#
SPLRCK/MUTE
IO_1
SODATA
IO_15
SPBCK
IO_7
IO_14
IO_0
IO_13
IO_10
GPIO_3
IO_4
SDAT3
IO_12
GPIO_4
IO_2
GPIO_6
IO_9
SDAT0
BA1DBA1
WE#
RAS#
DCS#
DBA0
CAS#
SPBCK CF_CD
DCLKSDCLK
BA0
SPMCLK MS_CD
DCAS#
SD_CDSPDATA
DWE#
DRAS#
SM_CDSPLRCK
DCKE
CS#
SDCKE
SCL[2,6]
AD[0..7][2]
SDA[2,6]
DQ[0..15][2]
CAS#[2]
DCLK[2]
DCKE[2]
WE#[2]
RAS#[2]
DQM[0..1][2]
MA[0..11][2]
CS#[2]
BA[0..1][2]
SPBCK [2]
SPLRCK [2]
VSYNC# [2]
YUV7 [2]
SPDATA [2]
HSYNC# [2]
SPMCLK [2]
GPIO_[3..6][2]
IO_[0..19][2,6]
PCE#[2]
PWR#[2]
A[0..20][2]
ASDAT[0..3][2,6]
PRD#[2]
DV33
FLASH_VCC
SD33
FLASH_VCC
SD33
DV33
DV33
DV33
CB55
0.1uF
CN1
20x2
DIP/20X2P/P2.54
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
U9
MX29LV160
25
24
23
22
21
20
19
18
8
10
28
47
16
29
31
33
35
7
26
38
40
42
44
30
32
14
36
39
41
43
45
37
27
11
9
34
46
6
4
5
3
2
1
48
17
12
A0
A1
A2
A3
A4
A5
A6
A7
A8
A20
OE
BYTE
A18
D0
D1
D2
D3
A9
CE
D4
D5
D6
D7
D8
D9
WP/ACC
D11
D12
D13
D14
D15
VCC
GND1
WE
A19
D10
GND2
A10
A12
A11
A13
A14
A15
A16
A17
RESET
R65 33
R67 33
U10
EEPROM 24C16
SMD/SOP8/P1.27
1
2
3
4 5
6
7
8
NC
NC
NC
GND SDA
SCL
WP
VCC
R68 10K
R62 0
U8
ESMT M12L64164A-7T
SMD/TSOP54/P0.8
1
2
4
12
5
7
9
8
10
46
11
13
15
16
17
18
19
35
22
23
24
25
26
14
41
29
30
31
32
33
34
36
37
38
39
40
43
42
44
52
45
47
49
48
50
51
53
54
20
21
3
6
27
28
VCC
DQ0
DQ1
VSSQ
DQ2
DQ3
VCCQ
DQ4
DQ5
VSSQ
DQ6
DQ7
DQML
WE
CAS
RAS
CS
A11
A10/AP
A0
A1
A2
A3
VCC
VSS
A4
A5
A6
A7
A8
A9
NC
CKE
CLK
DQMH
NC
VCCQ
DQ8
DQ9
VSSQ
DQ10
DQ11
VCCQ
DQ12
DQ13
DQ14
DQ15
VSS
BA0/A13
BA1/A12
VCCQ
VSSQ
VCC
VSS
RN1
33x4
1 2
3 4
5 6
7 8
R63 R
R69
1k
R70
1k
R66 33
R71
10k
R64 33

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
S-VIDEO
COMPOSITE
USB download
VIDEO OUT & AV-CON
4
Custom
46Saturday, June 10, 2006
COMMON89HD_HDMI_HD60
MediaTek Confidential
Tom Wang
Tom Wang
Title
Size Document Number Rev
Date: Sheet of
MediaTek (ShenZhen) Inc.
Drawn:
Checked:
SC
CVBSO
SY
ASPDIF
RSCH
LCH
SUB
LSCH
CENT
RCH
YUV[1..6]
USBM
USBP
URST#
USBVDD
H601#
V601#
USBP
USBM
SY
CVBS
OPTICAL
SCY2
Y3
Y1
COAXIALASPDIF
R/VY6
RELEASE_SCART
Y4 G/Y
Y5 B/U
ASPECT
SCART_DISPLAY
RGB_SWITCH
RGB/CVBS
RELEASE_SCART
SCART_DISPLAY
RGB_SWITCH
VSYNC
HSYNC
R/V
G/Y
B/U
RGB/CVBS
SC
SY
OPTICAL
COAXIAL
LCH[5]
RSCH[5]
CENT[5]
ASPDIF[2,6]
RCH[5]
LSCH[5]
SUB[5]
YUV[1..6][2,6]
USBM[2]
USBP[2]
URST#[1,2,6]
USBVDD[2]
V601#[2,6]
H601#[2,6]
VCC
+5VV
+5VV +5VV
+5VV
+12V
+5VV
+5VV
DV33
DV33
VCC
L30 0
C68 22p
C88
330pF
Q1
2SB1132
1
3 2
L2 0
R58
75
L24 0
R72
2.2k
L1 0
R111 33
Q14
9015C
L22
1.8uH
R13
4.7
J6
555
7
6
5
4
5
3
2
1
R56
1k
C81 NC
CB64
104pF
Q15
9015C
Q10
9015C
R90
150
R82
150
R97
100
R81
15K
R28
75
C54
330pF
R57 2.2k
R77
150
C66 22p
L4
FB500
C64
330pF
L26 1.8uH
Q12
9015C
CN8
1
2
3
4
C65 22p
L17 0
Q2
2SB1132
1
3 2
R113 33
C82 NC
C51
270pF
C80
330pF
J8
1
2
3
4
R76
150
R55 2.2k
R54
1k
R116
15K
C89 NC
R99
100
L28
1.8uH
C50
330pF
L8 0
J7
555
7
6
5
4
5
3
2
1
L31 0
L25 0
R91
150
R34
4.7k
L32 0
Q11
9015C
R84
150
Q5
2SB1132
1
3 2
C52
330pF
C58
330pF
C57
330pF
GG
CY
P3 S-VIDEO + RCA
1 2
3 4
5 6 7
8
9
R29
75
R51
75
C59
270pF
C61
330pF
R86
75
C55
270pF
R52
75
Q13
9015C
R103 22

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
WM8766
31k
22k
C64
Int. DAC
22k
31k
C67 1000pF
C72
C69
1000pF
C78
R86
C73
100pF
C82
R94
C79
100pF
R98
C83
R109
C87
C86
R120
180pF
C90
R127
180pF
1800pF
180pF
1800pF
180pF
1800pF
22k
180pF
1800pF
22k
1800pF
22k
1800pF
180pF
22k
100pF
100pF
100pF
100pF
1000pF
1000pF
1000pF
1000pF
31k
31k
31k
31k
MUTE_Circuit
AUDIO OUT
4
C
56Saturday, June 10, 2006
COMMON89HD_HDMI_HD60
MediaTek Confidential
Tom Wang
Tom Wang
Title
Size Document Number Rev
Date: Sheet of
MediaTek (ShenZhen) Inc.
Drawn:
Checked:
CENT
RCH
LSCH
RSCH
SUB
LCHACLK
MUTE_DAC
89_ARS
89_AL
ALRCK
89_ALS
89_SW
89_CTR
ABCK
89_AR
ACLK SACLK1
SBCLK1ABCK
89_ALS
DAC_ASDAT2
89_AR DAC_ASDAT1
DAC_ASDAT0
89_AL
-12V
MUTE_DAC
A_MUTE
-12V
MR
R/V
SL
CENT
+12V
G/Y
A_MUTE
DAC_MR
A_MUTE
+12V
+12V
SUB
-12V
DAC_SL
DAC_SR
A_MUTE
+12V
+12V
B/U
DAC_ML
-12V
-12V
A_MUTE
SR
DAC_CENT
+12V
-12V
DAC_LFE
-12V
A_MUTE
SLML
MR SR
SPLRCK/MMUTE
ML
A_MUTE
LSCH [4]
RSCH [4]
CENT [4]
RCH [4]
LCH [4]
SUB [4]
89_ARS[2]
89_ALS[2]
89_AR[2]
ACLK[2,6]
89_AL[2]
ALRCK[2,6]
89_CTR[2]
MUTE_DAC[2]
ABCK[2,6]
89_SW[2]
R/V [ 4 ]
OUT
B/U [ 4 ]
G/Y [ 4 ]
CENT
SL
MR
OUT
SUB
CVBS
SR
ML
VCC
-12V
VCC
-12V
+
CE28
10uF/50V
C76 100pF
+
CE25
10uF/50V
+
CE29
10uF/50V
Q21
8550C
1
23
C72 100pF
R90 0
+
E3
10uF/50V
R146
5.1k
R154
5.1k
R167
1k
+
-
U15A
NJM4558 OPA
3
2
1
8 4
JP6 0
+
CE32
10uF/50V
JP7 0
+
-
U11B
NJM4558 OPA
5
6
7
8 4
+
-
U12A
NJM4558 OPA
3
2
1
8 4
R88 1K
R181 0
R125
100k
C70 120pF
R132
5.1k
R124
4.7k
R164
27K
R161 1k
C67 120pF
R85 1K
R148 1k
R128
10K
C78 100pF
Q25
9014C
1
2 3
R109
0
C77
1000pF
Q27
9014C
1
2 3
R126
27K
R159
10k
Q26
9014C
1
2 3
+
CE30
10uF/50V
C74 100pF
+
-
U11A
NJM4558 OPA
3
2
1
8 4
+
-
U12B
NJM4558 OPA
5
6
7
8 4
+
-
U15B
NJM4558 OPA
5
6
7
8 4
R141 100K
R115 10k
+ CE24
100uF/16V
R89 1K
R87 1K
+
CE23
220uF/16V
D18 1N4001
1 2
C73
1000pF
R131
10k
R119
5.1k
R153
10k
R155
1k
C79
1000pF
Q20
9014C
1
2 3
R133
1k
R118 10k
C69
2200pF
R93
1K
R127 10K
Q22
9014C
1
2 3
D19
1N4001
1 2
R112
27K
C71
2200pF
R123
10K
R158
27K
C75
1000pF
R114
22k
Q23
9014C
2
1 3
R139
27K
R179 0
Q19
8550C
1
23
R93 0
R152
27K
R129 100k
R165
10k
Q24
9014C
1
2 3
R145
10k
+
CE31
10uF/50V
R120
1k
R160
5.1k
CN5
8Px2.0
1
2
3
4
5
6
7
8
R92 1K
R166
5.1k
R180 0
R138 1K

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Differential Signal !
No Through Hole !
100 ohm - Impedance
Differential Signal !
No Through Hole !
100 ohm - Impedance
For Measurement
Closed to MT1392 Power Pin !
MT1392 HDMI
4
C
66Saturday, June 10, 2006
COMMON89HD_HDMI_HD60
MediaTek Confidential
Tom Wang
Tom Wang
Title
Size Document Number Rev
Date: Sheet of
MediaTek (ShenZhen) Inc.
Drawn:
Checked:
YUV4
YUV5
SDA
SCL
IO_0 C0
IO_1 C1
IO_2 C2
IO_3 C3
IO_4 C4
IO_5 C5
IO_6 C6
YUV6
HDMI_SDAUP3_1
HDMI_SCLUP3_0
UP3_1
UP3_0
PWDN#
ACLK
ABCK
ASPDIF
HDMI_SCL
ALRCK
ASDAT[0..3]
HSYNC
VSYNC
URST#
INT0#
XO
92_SCL SCL
92_SDA SDA
92_INT0# INT0#
F_TX1-
HDMI_SCL
HDMI_SDA
F_TXC+
HPD
HDMI_VCC
H601#
V601#
TX1+
TX2-
IO_[0..19]
Y5IO_14
GPO10
TXC+
ALRCK
ASDAT1 ASDAT3 YUV4
Y0
ASDAT0
Y4IO_13
YUV6
MSD
92_SDA
C1
TX0-
VREF_1392
C4
TX2+
GPO9
Y7
ASDAT2 ASPDIF
MSCK
C3
TX0+
ABCK
TX1-
GPO7
Y5
Y1
92_SCL
C2
F_TX1+
F_TX2-
TX0+
TXC-
YUV5
TX2+
C7
C5
TX0-
TRAP1 TRAP2
URST#
TX1-
ACLK
TX1+
TRAP0
Y4
F_TX0+
F_TX2+
Y2
C0
F_TX0-
GPO8
TX2-
HPD
Y6
TXC+
92_INT0#
Y3
C6
Y0IO_9
Y2IO_11
Y7IO_16
Y1IO_10
Y3IO_12
Y6IO_15
PWDN#
IO_8 VCK
IO_7 C7
HDMI_SDA
TXC-
F_TXC-
IO_8
XO
XO
MSD
MSCK
CVBS
SUB
SR
SL
CENY
ASPECT
ML
MR
FS_1392
YUV4[2,4]
SCL [2,3]
SDA [2,3]
YUV6[2,4]
UP3_1 [2]
UP3_0 [2]
PWDN#[2]
ALRCK[2,5]
ACLK[2,5]
ABCK[2,5]
ASPDIF[2,4]
ASDAT[0..3][2,3]
INT0#[2]
URST#[1,2,4]
XO[2]
H601#[2,4]
V601#[2,4]
YUV5[2,4]
IO_[0..19][2,3]
1392_AVDD3
92_DV33
1392_AVDD3
92_DV33
DV33
DV33
VCC
1392DAC_AVDD3
1392PLL_AVDD3
92_DV33
VCC
DVDD18
1392PLL_AVDD3
1392PLL_AVDD3
1392DAC_AVDD3
DVDD18
V18
DV33
L39 FB
R176
1k
TP90
CB71
104pF
C98
104pF
R181 NC
L54
FB
L9 FB
CB102
104pF
R174 10K
L48
FB
R171 100
R182 NC
+ CE45
100uF/6.3v
CB72
104pF
R157
510
R230 1k
C146 5600pF
L37
FB
U19
EEPROM 24C04
SOP8/SMD
1
2
3
4 5
6
7
8
NC
NC
NC
GND SDA
SCL
WP
VCC
TP93
TP/SMD/D1.0
R156
NC
CB107
104pF
R172 100
R177 1k
R170 NC
L51
FB
U24
MT1392E HDMI TX PROCESSOR
SPQFP80/SMD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21 22 23 25 24 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80
DVSS
C0
C1
C2
C3
C4
C5
C6
C7
DVDD33
VCK
DVSS
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
SSCK SSD DVDD18 RST PWDN CLK INT DVSS A7/GPO0 A6/GPO1 TRAP2/GPO2 TRAP1/GPO3 TRAP0/GPO4 MSCK/GPO5 MSD/GPO6 GPO7 GPO8 GPO9 GPO10 HTPLG
AVSS
PLLC0
PLLC1
AVDD
AVDD
AVSS
AVSS
TCK-
TCK+
AVDD
TX0-
TX0+
AVSS
TX1-
TX1+
AVDD
TX2-
TX2+
AVSS
SWING
AVDD
VREF
FS
AVSS
AVDD
AVSS
AVDD
G
AVSS
B
R
SPDIF
AD3 AD2 AD1 AD0
ACK
ABCK
ALRCK
DVDD18
CB81
104pF
R173
NC
CN7
555
7
6
5
4
5
3
2
1
8
9
J2
HDMI/SMD/CON/A
HDMI TYPE-A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2221
20 23
R169 0
CB73
104pF
R175
1k
+
CE44
10uF/50v
+ CE46
100uF/6.3v
CB82
0.1uF
R231 1k
CB104
104pF
R179 NC
L56 FB
TP89
R178 NC
CB108
104pF
CB103
104pF
CB105
104pF
R180 NC
L34
FB
R162
510
R0603/SMD
R168 0
CB88
104pF
L52
FB

Rolsen RDV-4002/RDV-4003 DVD Service Manual
