Ronbow CONTEMPO DEVON 032523 Assembly instructions

MODEL: 032523
032531
032536
CONTEMPO COLLECTION
INSTALLATION GUIDE REV. 061915
ronbow.com
INSTALLATION SHEET
DEVON 23" / 31" / 36"
NOTE: For installing under counter sink with
counter top.
STEP 1: Apply adhesive caulking around the
topside of rim near the edge. Carefully raise
sink in place, align, and press firmly.
See Figure 1.
STEP 2: Attach 4 undermount-clips to hold
lavatory in place
See Figure 2.
STEP 3: Secure top & back splash to cabinet
by using adhesive caulk
See Figure 3.
Figure 1.
Counter Top
Back Splash
Adhesive Caulking
Figure 2.
Undermount Clip
Figure 3.
Adhesive Caulking

CONTEMPO COLLECTION
INSTALLATION GUIDE REV. 061915ronbow.com
INSTALLATION SHEET
DEVON 23" / 31" / 36"
NOTE: For installing under counter sink with
WideAppeal Top.
STEP 1: DO NOT DISCARD WOODEN
INSTALLATION BRACKET!
• Make sure wooden installation bracket is
safely secure
• Install under counter sink by following
specific sink installation
See Figure 1.
STEP 2:
• For best results, clean the mounting
• surfaces with a dry cleaning cloth
• To prevent over flow of adhesive, use
masking tape to tape o the edges of the
STEP 3: Apply adhesive on wood bracket and
mounting surfaces of the cabinet
See Figure 2.
Figure 1.
Adhesive Caulking
Figure 2.
Figure 3.
STEP 4: Carefully place countertop on to the
cabinet, align, and press firmly
See Figure 3.
!
1. Wooden Installation Bracket
2. Undercounter Sink
MODEL: 032523
032531
032536

CONTEMPO COLLECTION
INSTALLATION GUIDE REV. 061915ronbow.com
INSTALLATION SHEET
DEVON 23" / 31" / 36"
NOTE: For installing Ceramic Sinktop.
STEP 1: Place adhesive around top of cabinet.
See Figure 1.
STEP 2: Place a generous portion of
plumbers' putty under drain cap and insert
whole drain body inside the bowl and through
the countertop.
(There may be a small beveled rubber
washer packaged with your drain, please
discard this and use plumbers' putty
instead.)
See Figure 2.
STEP 3: From under the drain, insert the
think rubber washer and screw on and tighten
the metal nut. Remove excess plumbers' putty.
See Figure 3.

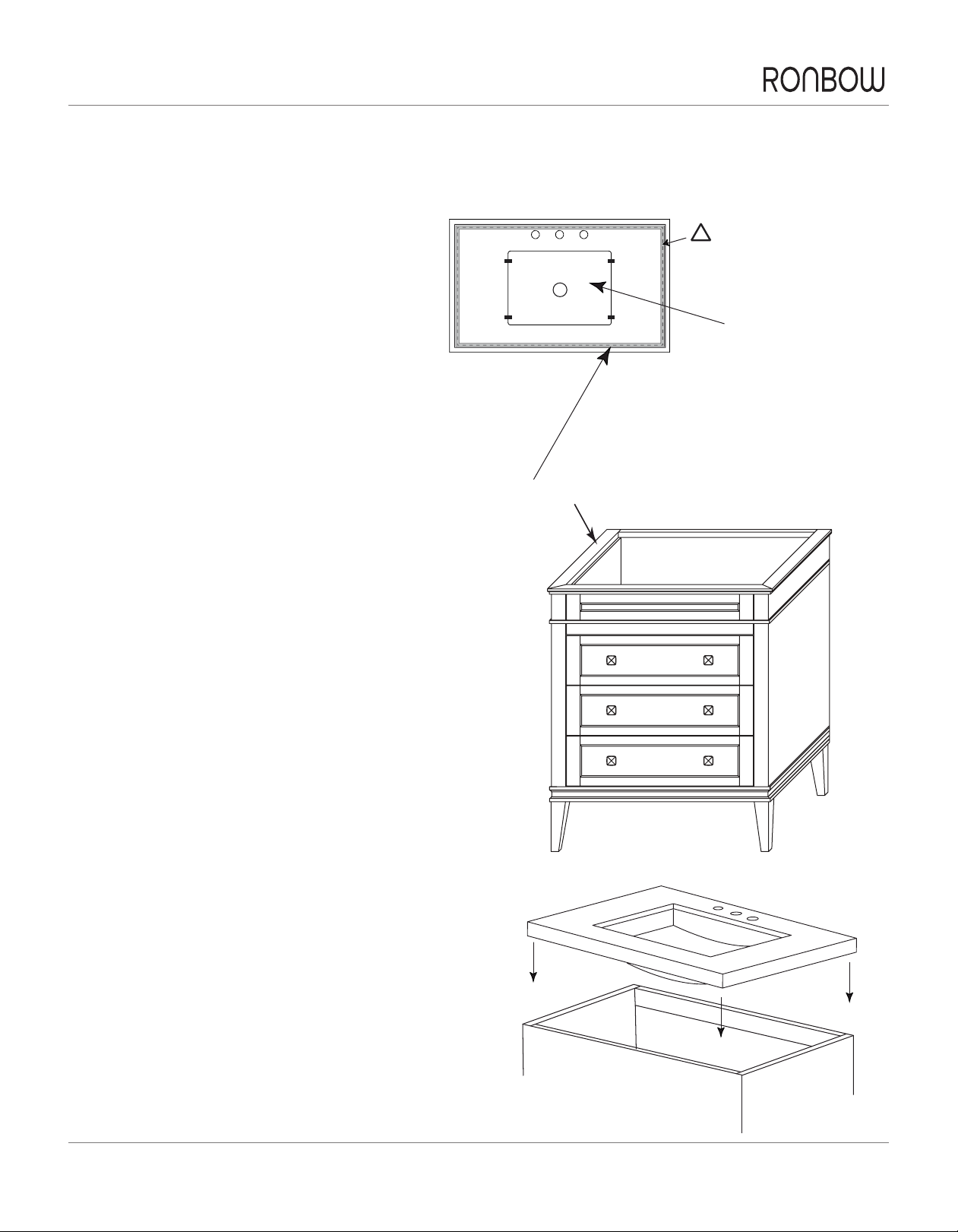

Figure 1.
Figure 2.
Figure 3.
STEP 4: Attach p-trap to tailpiece.
Drain Cap
Thick Rubber
Washer
Metal Nut
Overflow Hole
Tailpiece
Drain
Thick Rubber Washer
Drain Nut
Tailpiece
P-Trap
MODEL: 032523
032531
032536
