Ronix RC-5010 User manual

AIR COMPRESSOR 50LITER
RC-5010

USER MANUAL 3
PARTS LIST
1) ON/OFF switch
2) Handle
3) Safety switch
4) Power cord
5) Drain valve
6) Coupler
7) Pressure gauge
8) Pressure regulator
9) Filter
10) Motor housing
11) Sight glass
12) Oil ll hole
1

AIR COMPRESSOR
4
PRODUCT SPECIFICATIONS
GENERAL POWER TOOL SAFETY WARNINGS
WARNING!
- Read all safety warnings and all instructions. Failure to follow
the warnings and instructions may result in electric shock, re
and or serious injury.
- Save all warnings and instructions for future reference.
- The term “power tool” in the warnings refers to your mains-op-
erated (corded) power tools or battery operated (Cordless) Power
tools.
.WORK AREA SAFETY
- Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
- Don’t operate power tools in explosive atmospheres, such as
in the presence of ammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
- Keep children and bystanders away while operating a power
tool. Distractions can cause you to lose control.
2
Model RC-5010
Power 2HP or 1490W
Voltage 220V
Frequency 50Hz
No Load Speed 2800RPM
Air Tank Capacity 50L
Max Pressure 8.0BAR
Air delivery 200L/Min
Net. Weight 30KG

USER MANUAL 5
.ELECTRIC SAFETY
- Power tool plugs must match the outlet. Never modify the plug
in any way. Don’t use any adaptor plugs with earthed (grounded)
power tools. Unmodied plugs and matching outlets will reduce
risk of electric shock.
- Avoid body contact with earthed or grounded surfaces such as
pipe, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed or grounded.
- Don’t expose power tools to rain or wet conditions. Water entering
a power tool will increase the risk of electric shock.
- Don’t abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled cords increased
the risk of electric shock.
- When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Using a cord suitable for outdoor use will
reduce the risk of electric shock.
- If operating a power tool in a damp location is unavoidable, use
a residual current device (RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
- Use of power supply via a RCD with a rated residual current of
30mA or less is always recommended.
.PERSONAL SAFETY
- Stay alert, watch what you are doing and use common sense
when operating a power tool. Don’t use a power tool while you
are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in
serious personal injury.
- Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes,
hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
3

AIR COMPRESSOR
6
- Prevent unintentional starting. Ensure the switch is in the off-po-
sition before connecting to power source and/or battery pack,
picking up or carrying the tool. Carrying power tools with your n-
ger on the switch or energizing power tools that have the switch on
invites accidents.
- Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of the
power tool may result in personal injury.
- Don’t overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected sit-
uations.
- Dress properly. Don’t wear loose clothing or jewelry. Keep your
hair, clothing, and gloves away from moving parts. Loose cloths,
jewelry or long hair can be caught in moving parts.
- If devices are provided for connection of dust extraction and
collection facilities, ensure these are connected and properly
used. Use of dust collection can reduce dust-related hazards.
POWER TOOL USE AND CARE
- Don’t force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and
safer at the rate for which it was designed.
- Don’t use the power tool if the switch doesn’t turn it on and
off. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.
- Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustments, chang-
ing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
- Store idle power tools out of the reach of children and don’t
allow persons unfamiliar with power tool or these instructions to
operate the power tool. Power tools are dangerous in the hands
of untrained users.
- Maintain power tools. Check for misalignment or binding of
moving parts, breakage o parts and any other condition that
4

USER MANUAL 7
may affect the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are caused by
poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are
easier to control.
- Use the power tool, accessories and tool bits etc. in accordance
with the instruction, taking into account the working conditions
and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
SERVICE
- Have your power tool serviced by qualied repair person using
only identical replacement parts. This will ensure that the safety
of power tool is maintained.
- Follow instruction for lubricating and changing accessories.
- Keep handles dry, clean and free from oil and grease.
AIR COMPRESSOR USE AND CARE
- Do not exceed the pressure rating of any component in the
system.
- Protect material lines and air lines from damage or puncture.
Keep hose and power cird away from sharp objects, chemical
spills, oil, solvents, and wet oors.
- Check the tank before each use, making, certain all connections
are secure. Do not use if defect is found.
- Release all pressures within the system slowly. Dust and debris
may be harmful.
- Store idle air compressors out of the reach of children and
other untrained persons. Air compressors are dangerous in the
hands of untrained users.
- Maintain air compressors with car. Follow maintenance in-
structions. Properly maintained products are easier to control.
- Check for misalignment or binding of moving parts, breakage
5

AIR COMPRESSOR
8
of parts, and any other condition that may affect the product’s
operation. If damaged, have the air compressor serviced before
using. Many accidents are caused by poorly maintained prod-
ucts.
- Keep the exterior of the air compressor dry, clean and free from
oil and free from oil and grease. Always use a clean cloth when
cleaning. Never use break uids, gasoline, petroleum- based
products, or any strong solvents to clean the unit.
- Following this rule will reduce the risk of deterioration of the
enclosure plastic.
.SPECIAL SAFETY RULES
- Know your air compressor. Read operator’s manual carefully.
Learn its applications and limitations, as well as the specic
potential hazards related to this product. Following this rule will
reduce the risk of electric shock, re or serious injury.
- Drain tanks of moisture after each day’s use. If unit will not be
used for a while, it is best to leave drain valve open unit such
time as it to be used. This will allow moisture to completely drain
out and help prevent corrosion on the inside of tanks.
- Risk of re or explosion. Do not spray ammable liquid in a con-
ned area must be well ventilated Do not smoke while spraying
or spray where spark or ame is present. Keep compressors as
far from the sparing arras as possible, at least 4.5m (15 feet) from
the spraying area and all explosive vapors.
- Risk of bursting. Do not adjust regulator to result in output pres-
sure greater than marked maximum pressure of attachment. Do
not use at pressure greater than 10 bar.
- If connected to a circuit protected by fuses, use time delay
fuses with this product.
- To reduce the risk of electric shock, do not expose to rain.
Store indoors.
- Inspect tanks yearly for rust, pin holes, or other imperfections
that could cause it to become unsafe.
- Never weld or drill holes in the air tanks.
6

USER MANUAL 97
- Make sure the hose is free of obstructions or sangers.
- Entangled or snarled hoses can cause loss of balance or footing
and may become damaged.
- Use the air compressor only for its intended use. Do not alter
or modify the unit from the original design or function.
- Always be aware that misuse and improper handling of this
product can cause injury to yourself and others.
- Never leave a tool unattended with the air hose attached.
- Never point any air tool toward yourself or others.
- Do not operate this air compressor if it does not contain a legible
warning label.
- Do not continue to use a tool or hose that leaks air or does not
function properly.
- Always disconnect the air supply and power supply before
making adjustments, servicing a product, or when a product is
not in use.
- Your tool may require more air consumption than this air com-
pressor is capable providing.
- Always follow all safety rules recommended by the manufacturer
of your air tool, in addition to all safety rules for the air compressor.
Following this rule will reduce the risk of serious personal injury.
- Never direct a jet of compressed air toward people or animals.
Take care not to blow dust and dirt towards yourself or others.
Flowing this rule will reduce the risk of serious injury.
- Do not use this air compressor to spray chemicals.
- Your lungs can be necessary in dusty environments or when
spraying paint. Do not carry while painting.
- Never use an electrical adaptor with this grounded plug.
- Check damaged parts. Before further use of the air compressor
or air tool, a guard or other part that is damaged should be carefully
checked to determine that it will operate properly and perform its
intended function. Check for alignment of moving parts, binding
of moving parts, breakage of parts, mountings and any other con-
ditions that may affect, its operation. A guard or other part that is
damaged should be properly repaired or replaced by an authorized
service center.

AIR COMPRESSOR
10
- Following this rule will reduce the risk of shock, re, or serious
injury.
- Make sure your extension cord is in good condition. When
using an extension cord, sure to use one heavy enough to carry
the current your product will draw. A wire gauge size (A.W.G)
of at least 14 is recommended for an extension cord 7.5 m or
less in length. A cord exceeding 15 m is not recommended. If
in doubt, use the next heavier gauge. The smaller the gauge
number, the heavier the cord. An undersized cord will cause a
drop in line voltage resulting in loss of power and overheating.
- This equipment incorporates parts, such as snap switches,
receptacles, and the like that tend to produce arcs or sparks
and, therefore, when located in a garage, it should be in a room
or enclosure provided for the purpose, or should be 460mm or
more above the oor.
- Never store a tool with air connected. Storing the tool with air
connected can result in unexpected ring and possible serious
personal injury.
- Protect your lungs. Wear a face or dust mask if the operation is
dusty. Following this rule will reduce the risk of serious personal
injury.
- If the power supply cord is damaged, it must be replaced only by
the manufacture or by an authorized service center to avoid risk.
- Save these instructions. Refer to them frequently and use
them to instruct others who may use this product.
- If you loan someone this product, loan them these instructions
also.
- The machine shall be connected to a circuit protection device
(fuse or circuit breaker). The protection device shall be set at 8 A
current, and the use shall do necessary test according to clause
18.2.2 of EN 60204-1:2006 to check if the protection device is
suitable for use.
- When the machine is in operation, many parts of machine may
cause a high temperature. Use as gloves to avoid injuries resulting
from a high temperature.
This appliance is not intended for use by persons (including
8

USER MANUAL 11
children) with reduced Physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety. Children should be su-
pervised to ensure that they do not play with the appliance.
ASSEMBLY
.UNPACKING
This product requires assembly. Carefully remove the product
and any accessories from the box.
WARRNING!
This product requires assembly. Carefully remove the product
and any accessories from the box.
WARRNING!
Do not use this product if any parts on the packing list are already
assembled to your product when you unpack it. Use of a product
that may have been improperly assembled could result in serious
personal injury.
Inspect the product carefully to make sure no breakage or damage
occurred during shipping.
Do not discard the packing material unit you have carefully
inspected and satisfactorily operated the product.
WARRNING!
If any parts are damaged or missed, do not operate this product
until the parts are replaced. Use of this product with damaged
or missing parts could result in serious personal injury.
WARRNING!
Do not attempt to modify this product or create accessories not
recommended for use with this product. Any such alteration or
modication is misuse and could result in a hazardous condition
9

AIR COMPRESSOR
12
leading to possible serious personal injury.
WARRNING!
Do not connect to power supply until assembly is complete.
Failure to comply could result in accidental starting and possible
serious personal injury.
.CHECKING THE OIL
Always check the oi; when the unit is sitting on a level surface
and before rst use.
1) The sight glass is located above the tank. There is a red dot
in the center of the glass.
2) An oil level at the top of the red dot indicates oil is at maximum
level.
3) An oil level at or below the bottom of the red dot indicates oil
is below desired level, and oil should be added
TO ADD OIL:
1) Unscrew the cap of oil ll hole.
2) Using a funnel, carefully pour oil into the oil ll hole.
3) Tighten the cap securely into the oil ll hole.
NOTE:
Avoid too much oil. Ensure that the level of the oil does not exceed
the top of red dot at sight glass.
10

USER MANUAL 13
APPLICATIONS
Air compressors are utilized in a variety of air variety of air system
applications. Match hoses, connectors, air tools, and accessories
to the capabilities of the air compressor.
You may use this product for the purposes listed below:
- Operating some air-powered tools
- Operating air accessories such as air nozzles and tire inators.
.TO MOVE THE AIR COMPRESSOR
Ensure the air compressor is unplugged, make sure the power
cord is secured in the cord warp.
1) Facing the back of the air compressor, grasp the handle rmly
with two hands.
2) Life the air compressor toward you until it balances on the
wheels.
3) Push the unit along to the desired location.
Lower their air compressor unit it sits securely on a at surface.
.BREAK- IN PERIOD
Before rst use, run the air compressor at zero tank pressure
with the drain valves fully open for 30minutes.
11

AIR COMPRESSOR
14
.TURNING THE AIR COMPRESSOR ON/OFF
1) With the air compressor plugged in, pull the power switch to
the ON position to power the compressor on.
2) To turn the air compressor off, push the power switch to the
OFF position.
NOTE:
When the compressor is in the ON position, the air compressor
will automatically turn back on when the designated tank air
pressure limit. It will also shut off again when the desired limit.
It will also shut off again when the desired pressure is reached.
WARNING!
Never exceed the air tool’s pressure rating as recommended by
the manufacturer. When using this air compressor as an ination
device, always follow the maximum ination guidelines stated
by the manufacturer of the item being inated.
WARNING!
Always ensure the switch is in the OFF (O) position and the
regulator pressure gauge reads zero before changing air outlet.
Failure to do so could result in possible serious personal injury.
USING THE AIR COMPRESSOR
1) Ensure power switch is in OFF (O) position and air compressor
is unplugged.
2) If not already installed, attach hose to compressor

USER MANUAL 15
3) Attach 6.35 mm (1/4 in.) NPT quick- connect air tting to accessory
or tool you intend to use.
4) Insert the other end of the quick connect air tting to the quick
coupler on the open end of hose.
5) Connect the power cord to the power supply.
6) Turn the switch ON (1).
7) Pull out and rotate pressure regulator knob to desired line
pressure at the outlet; turning counterclockwise regulator knob
to desired line pressure. Turning the knob clockwise increases
air pressure at the outlet; turning counterclockwise reduces air
pressure at the outlet.
8) Following all safety precautions in the air tool manual. You may
now proceed to use your air-powered tool.
WARNING!
Air-powered tools may require more air consumption than this
air compressor is capable of providing. Check the tool manual
to avoid damage to the tool or risk of personal injury.
1) Control the amount of air ow with the pressure regulator
knob. Turning the knob fully counterclockwise will completely
stop the ow of air.
NOTE:
Always use the minimum amount of pressure necessary for
your application. Using a higher pressure than needed will drain
air from the tank more rapidly and cause the unit to cycle on
more frequently.
13

AIR COMPRESSOR
16
14
1) When nished, always drain the tank and unplug the unit.
Never leave the unit plugged in and/or running unattended.
2) Recommended for the use of a residual current device with a
rated residual current of 30mA or less.
DRAINING THE TANKS
To help prevent tank corrosion and keep moisture out of the air,
used, the air tanks of the compressor should be drained daily.
.TO DRAIN
1) Turn the air compressor off.
2) Pull the ring on the pressure relief valve to release until pres-
sure gauge reads less than 1.4 bar.
3) Release the ring.

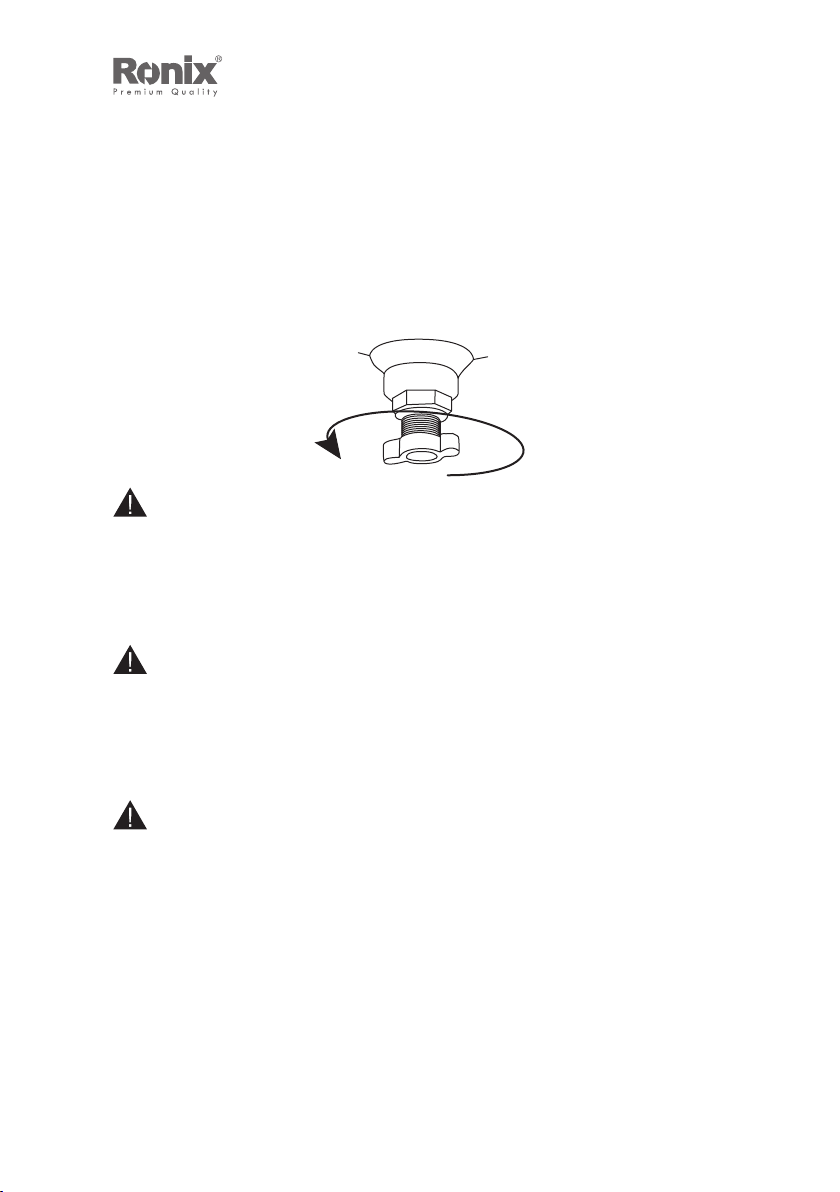

4) Rotate drain valves counterclockwise to open.
5) Tilt tank drain moisture tank into a suitable container.
NOTE:
Condensate is a polluting material and should be disposed of in
compliance with local regulations.
1) If drain valves are clogged, release all air pressure, remove
and clean valves, then reinstall.
DANGER!
Unplug the air compressor and release all air from the tanks be-
fore servicing. Failure to depressurize tanks before attempting

USER MANUAL 17
to remove valve cause serious personal injury.
Rotate drain valves clockwise until tightly closed.
CHECKING THE SAFETY VALVE
WARNING!
Do not attempt to tamper with the safety valve.
Anything loosened from this device could y up and hit you.
Failure to heed this warning could result death or serious personal
injury.
The safety valve will automatically release air if the air tank
pressure exceeds the preset maximum. The valve should be
checked before each day of use by pulling the ring by hand.
1) Turn the air compressor on and allow the tanks to ll. The
compressor will shut off when the pressure reaches the preset
maximum.
2) Turn the air compressor off.
3) Pull the ring on the safety valve to release air for three to ve
seconds.
4) The ring pin must be pushed back into position to stop the
ow so air at high pressure.
WARNING!
If air leaks after the ring has been released, or if the valve is
stuck and cannot be actuated by the ring, do not use the air
compressor until the safety valve has been replaced. Use of the
air compressor in this condition could result in serious personal
injury.
MAINTENANCE
WARNING!
When servicing use only identical replacement parts.
Use of any other parts may create a hazard or cause product
damage.
15

AIR COMPRESSOR
18
WARNING!
Always wear eye protection with side shields. Failure to do so
could result in objects being thrown into your eyes resulting in
possible serious injury.
WARNING!
Always release all pressure, all pressure, disconnect from power
supply, and allow unit to cool to the touch before cleaning or
making repairs on the air compressor.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics
are susceptible to damage from various types of commercial
solvents and be damaged by their use.
Use clean cloths to remove sort, dust, oil, grease, etc.
AS a routine part of air compressor maintenance, it is also advised
that the oil is routinely checked for proper levels.
WARNING!
Do not at any time let brake uids, gasoline, petroleum- based
products, penetrating oils, etc., come in contact with plastic parts,
Chemicals can damage, weaken or destroy plastic which may
result in serious personal injury.
Electric tools used on berglass material, wallboard, speckling
compounds, or plaster are subject to accelerated wear and pos-
sible premature failure because the berglass chips and grindings
are highly abrasive to bearings, brushes, commutators, etc. Con-
sequently, we do not recommend using this product for extended
work on these types of materials.
However, if you do work with any of these materials, it is extremely
important to clean the product using compressed air.
16

USER MANUAL 19 17
.BEARING LUBRICATION
All of the bearings in this product are lubricated with a sufcient
amount of high grade lubricant for the life of the unit under normal
operating conditions. Therefore, no further lubrication is required.
.REPLAING THE AIR FILTER
1) Turn the air lter cover counterclockwise approximately one-
quarter turn.
2) Remove the cover
3) Remove the air lter.
4) Install new air lter.
5) Replace the air lter cover and secure it by turning it clockwise.
.CHANGING THE OIL
Replace the oil after the rst 10 hours of operation and every
100 hours following the oil change.
The sight glass, located above the tank, indicates the oil level
and lets the operator see at a glance if oil should be added.
1) Place as suitable container underneath the drain to collect
used oil.
2) Remove the drain plug with an 8 mm socket or wrench.
3) When the used oil has drained, reinstall the drain plug and
tighten with the wrench.
4) Unscrew the cap of oil ll hole.
5) To rell, use a funnel to pour oil into the hole. Rell only with
synthetic oil l SAE 5W40.

AIR COMPRESSOR
20
NOTE:
Avoid relling with too much oil. Ensure that the level of the oil does
not exceed the top of the red dot at sight glass. The recommended
amount of oil for relling is 250ml.
1) Tighten the cap securely into the ll hole.
.ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing of as waste. The
machine, accessories and packaging should be sorted for envi-
ronmental-friendly recycling.
.TROUBLESHOOTING
PROBLM CAUSE POSSIBLE SOLUTION
Compressor will not run
Loss of power or overheating Check for proper use of
extension cord
NO electrical power Check to be sure unit is
plugged in
Blown shop/house fuse Check fuse/ breaker
Shop/house breaker open Replace shop/house blow
fuse
Current limiting protector
open
Reset shop/house breaker,
determine why problem
happened
Pressure switch bad Motor will restart when cool
Tank is full of air
Compressor will tum on
when tank
Pressure drops to cut- in
pressure
Motor hums but cannot run
or runs slowly
Low voltage Check with voltmeter
Wrong gauge wire or length
of extension cord
Check for proper gauge wire
and cord length
Shorted or open motor
winding
Take compressor to service
center
Defective check valve or
unloader
Take compressor to service
center
Current limiting protector
Protector cuts out repeatedly
LOW voltage Check with voltmeter
Lack of proper ventilation/
room temperature too high
Move compressor to well-
ventilated area
Wrong gauge wire or length
of extension cord
Check for proper gauge wire
and cord length
18
