Ronix 8801 User manual

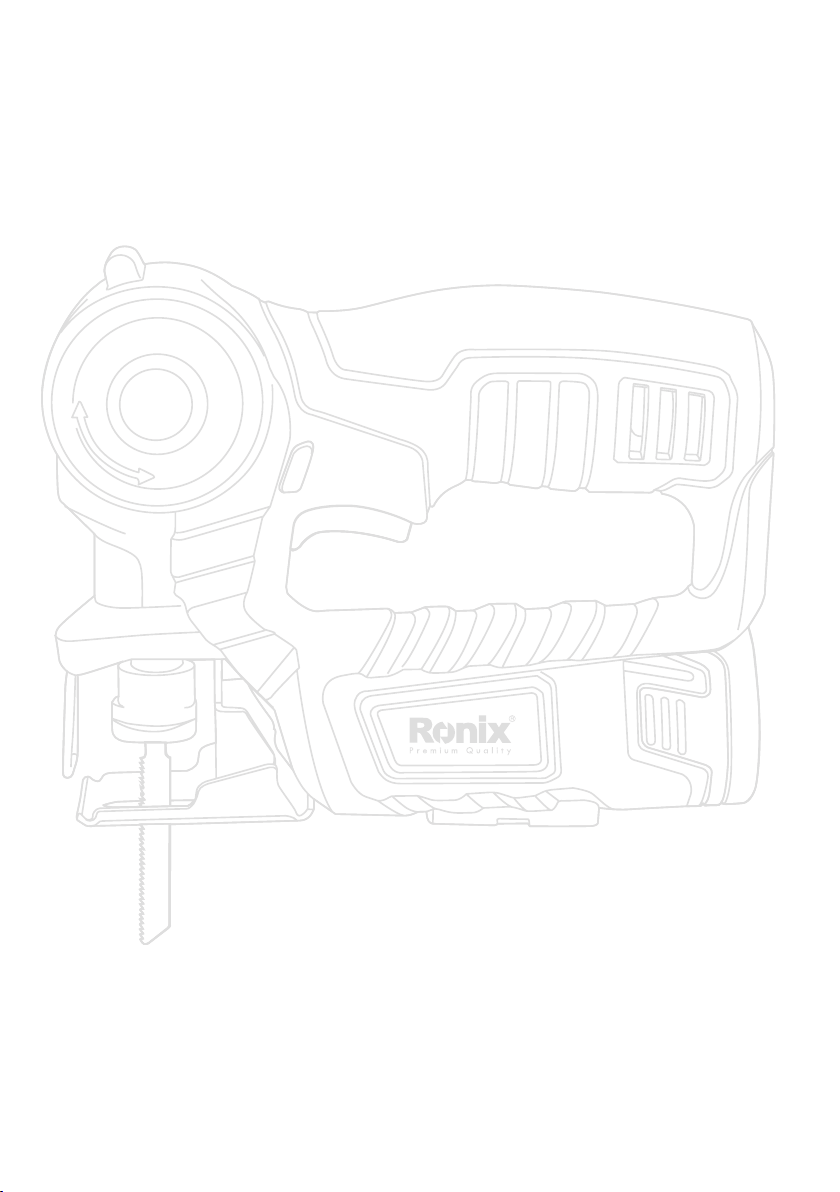

CORDLESS JIG SAW
8801

USER MANUAL 1
SPECIFICATIONS
Model 8801
Voltage 12V DC
No Load Speed 600~2500 RPM
Stroke Length 14mm
Battery 1.5 Ah Li-ion
Change Time 1 Hour
Max Cutting Capacity
Timber 30mm
PVC Tube : 16mm
Steel : 3mm
Weight 1.4 KG
PARTS LIST
Saw Arm
Swivel Button
Lock-OFF Button
Variable Speed Dial
Steel Base
ON/OFF Trigger
Charging Adaptor
Quick Release
Blade Clamp
Sure Grip Handle
12V Li-ion
Battery

CORDLESS JIG SAW
2
NOTE:
Please keep this instruction manual for future reference.
WARNING!
For your personal safety, read and understand before using.
GENERAL SAFETY RULES FOR ALL BATTERY
OPERATED TOOLS
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to
follow all instructions listed below may result in electric shock, re
and/or serious personal injury.
NOTE THE FOLLOWING ITEMS
.WORK AREA
- Keep your work area clean and well lit. Cluttered benches and dark
areas invite accidents.
- Flammable liquids, gases, or dust. Power tools create sparks which
may ignite the dust or fumes. Do not operate power tools in explosive
atmospheres, such as in the presence of ammable liquids, gases, or
dust.
- Keep bystanders, children, and visitors away while operating a power
tool. Distractions can cause you to lose control.
.ELECTRICAL SAFETY
- Do not abuse the cord. Never use the cord to carry the tool. Keep cord
away from Heat, oil, sharp edges, or moving parts. Replace damaged
cords immediately. Damaged cords may create a re.
-APPLIES ONLY TO TOOLS WITH A SEPARABLE BATTERY PACK
- A battery operated tool with integral batteries or a separate battery
pack must be Recharge only with the specied charger for the battery.

USER MANUAL 3
A charger that may be suitable for one type of battery may create a risk
of re when used with another battery.
- Use battery operated tool only with specically designated battery
pack. Use of any other batteries may create a risk of re.
.PERSONAL SAFETY
- Stay alert, watch what you are doing, and use common sense when
operating a power tool. Do not use tool while tired or under the inuence
of drugs, alcohol, or medication. A moment of inattention while operating
power tools may result in serious personal injury.
- Dress properly. Do not wear loose clothing or jewelry. Contain long
hair. Keep your hair, clothing, and gloves away from moving parts.
Loose clothes, jewelry, or long hair can be caught in moving parts.
- Avoid accidental starting. Be sure switch is in the locked or off position
before inserting battery pack.
Carrying tools with your nger on the switch or insetting the battery pack
into a tool with the switch on invites accidents.
- Remove adjusting keys or wrenches before turning the tool on. A
wrench or a key that is left attached to a rotating part of the tool may
result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. Proper
footing and balance enable better control of the tool in unexpected
situations.
- Use safety equipment. Always wear eye protection. Dust mask, non-skid
safety shoes, hard hat, or hearing protection must be used for appropriate
conditions.
TOOL USE AND CARE
- Use clamps or other practical way to secure and support the work
piece to a stable platform. Holding the work by hand or against your
body is unstable and may lead to loss of control.
- Do not force tool. Use the correct tool for your application. The correct

CORDLESS JIG SAW
4
tool will do the job better and safer at the rate for which it is designed.
- Do not use tool if switch does not turn it on or off. A tool that cannot be
controlled with the switch is dangerous and must be repaired.
- Disconnect battery pack from tool or place the switch in the locked
or off position before making any adjustments, changing accessories,
or storing the tool. Such preventive safety measures reduce the risk of
starting the tool accidentally.
- Store idle tools out of reach of children and other untrained persons.
Tools are dangerous in the hands of untrained users.
- When battery pack is not in use, keep it away from other metal objects
like: paper clips, coins, keys, nails, screws, or other small metal objects
that can make a connection from one terminal to another. Shorting the
battery terminals together may cause sparks, burns, or a re.
- Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintained tools with sharp cutting edge are less likely to bind and are
easier to control.
- Check for misalignment or binding of moving parts, breakage of parts,
and any other condition that may affect the tool›s operation. If damaged,
have the tool serviced before using. Many accidents are caused by
poorly maintained tools.
- Use only accessories that are recommended by the manufacturer for
your model. Accessories that may be suitable for one tool may create a
risk of injury when used on another tool.
SERVICE
-Tool service must be performed only by qualied repair personnel. Service
or maintenance performed by unqualied personnel may result in a risk
of injury.
- When servicing a tool, use only identical replacement parts.

USER MANUAL 5
IMPORTANT CHARGING NOTES
1. Do not store in locations where the temperature may exceed 40.
2. Charge only at ambient temperatures between 4 and 40.
3. Charge only using the charger provided with the tool as other chargers
might use different amperages and can damage or destroy your battery
and /or screwdriver
4. Unplug charger before attempting to clean.
5. Do not immerse charger in water or any other liquid.
6. Charging time around 1 hour
CAUTION:
Never attempt to open the battery pack for any reason. If the plastic
housing of the battery pack breaks or cracks, return it to a service
center for recycling.
WARNING!
Do not allow liquid to enter charger. Electric shock could result.
To cool the battery pack after use, avoid placing the charger in a
warm environment such as in a metal shed or non-insulated trailer.
SETUP & PREPARATION
WARNING!
- The charger and battery pack are specically designed to work together
so do not attempt to use any other devices.
- Never insert or allow metallic objects into your charger or battery pack
connections because an electrical failure and hazard will occur.
- Your battery pack is UNCHARGED and you must charge once before
use. The charger is designed to use standard household 230volt 50Hz
power.

CORDLESS JIG SAW
6
.CHARGING THE BATTERY
1. The green light will ash when connected with 230V power.
2. Insert the battery into charging cradle, the red light will be light up
when properly connected and charging.
3. The green lights only will illuminate when the battery reaches the full
charges.
.INSTALLING AND REMOVING BATTERY
Insert the battery into the combi saw until it clicks into place.

USER MANUAL 7
Squeeze the sides of the battery and pull away from the tool.
IMPORTANT:
- Only use the provided battery charger for charging the battery. First
place the rechargeable battery into the charging slot in the charger and
then connect the charger to the mains. Charging starts automatically.
- Remove the battery from the charge after about 1 hour. Always
disconnect the charger from the mains before you remove the battery
from the charger.
- Replacements for the rechargeable battery are available from RONIX
SERVICE.
WARNING!
- Both the battery pack and the charger may become warm to touch.
This is normal and not an issue of concern. Both the battery pack and
charger are tted with thermal safety devices and they will shut down if
the temperatures become too high.
- Avoid charging or storing your battery in temperatures
below 0 and above 40.
OPERATING
.INSTALLING BLADES
1. Press and hold the quick release blade clamp down.

CORDLESS JIG SAW
8
2. Blade can be installed with the teeth facing forward or backward to
suit the application. Insert the T-shank into the blade holder.
3. Release the quick release blade clamp.
4.Pull on the blade to ensure it is properly secured.

USER MANUAL 9
CAUTION:
Do not handle blades without gloves as they are sharp and can become
hot after use, this can cause personal injury.
.EXTENDING THE SAW ARM
1. Depress the swivel button with one hand.
2. With the other hand, pull the arm up to extend or push down to tuck.
.ON/OFF TRIGGER
To start the combi saw, depress and hold the lock off button then
squeeze the on/off trigger.

CORDLESS JIG SAW
10
BA
To turn off, release the on/ off trigger.
B
.VARIABLE SPEED
1. Scroll through the variable speed dial to select the appropriate
speed for the task at hand.
CUTTING
.JIG SAW MODE
1. Mark the cutting line with a pencil.
2. Secure the work piece if necessary.

USER MANUAL 11
3. Start the combi saw. Allow it to reach maximum speed.
BA
4. Place the base on to the work piece and move forward with light
pressure.
.RECIP MODE
1. Press the base rmly against the work piece.
2. Turn the combi saw on.
A
B

CORDLESS JIG SAW
12
3. Keep the base against the work piece throughout the cut.
Note:
Do not force the tool. Let the tool do the work.
MAINTENANCE
- Your tool requires no additional lubrication or maintenance.
- There are no user serviceable parts in your power tool.
- Never use water or chemical cleaners to clean your power tool. Wipe
clean with a dry cloth. Avoid using solvents when cleaning plastic
parts. Most plastics are susceptible to damage from various types of
commercial solvents. Use clean clothes to remove dirt,
dust, oil, grease, etc.
- Always store your power tool in a dry place.
- Keep the motor ventilation slots clean. Keep all working controls free
of dust.
- Occasionally you may see sparks through the ventilation slots. This is
normal and will not damage your power tool.
WARNING!
To avoid serious personal injury, always remove the battery pack from
the tool when cleaning or performing any maintenance.
WARNING!
When servicing, use only identical replacement parts. Use of any other
parts may create a hazard or cause product damage. To ensure safety
and reliability, all repairs should be performed by a qualied service
technician at an RONIX PLUS Authorized Service Center.
