Ronix RH-4040 User manual

SUBMERSIBLE SEWAGE PUMP 1HP
RH-4040

USER MANUAL 3
SPECIFICATION
Model RH-4040
Power 1hp
Voltage 220-240V
Frequency 50Hz
Min.flow 0.6m3/h
Max. flow 10m3/h
Min. head 2.8m
Max. head 9 m
Outlet port diameter 11/2"
Speed 2850 RPM
Max. liquid temperature 35℃
Max. Ambient temperature 40℃
Working pressure 0.9BAR
solid passage diameter 4mm
max immersion depth 5m
max dry running tim 30seconds
Protection level IP68
Insulation class CLASS B
Pump housing material PP
Motor housing material PP
Mechanical seal material C/G
Motor protection Thermal protector
Coil Winding Material COPPER
Impeller Material PPO
Shaft Material SS304+45
Weight 4.7Kg
Supplied in Ronix Color Box
Include Float Switch, 9m Cable

SUBMERSIBLE SEWAGE PUMP 1 HP
4

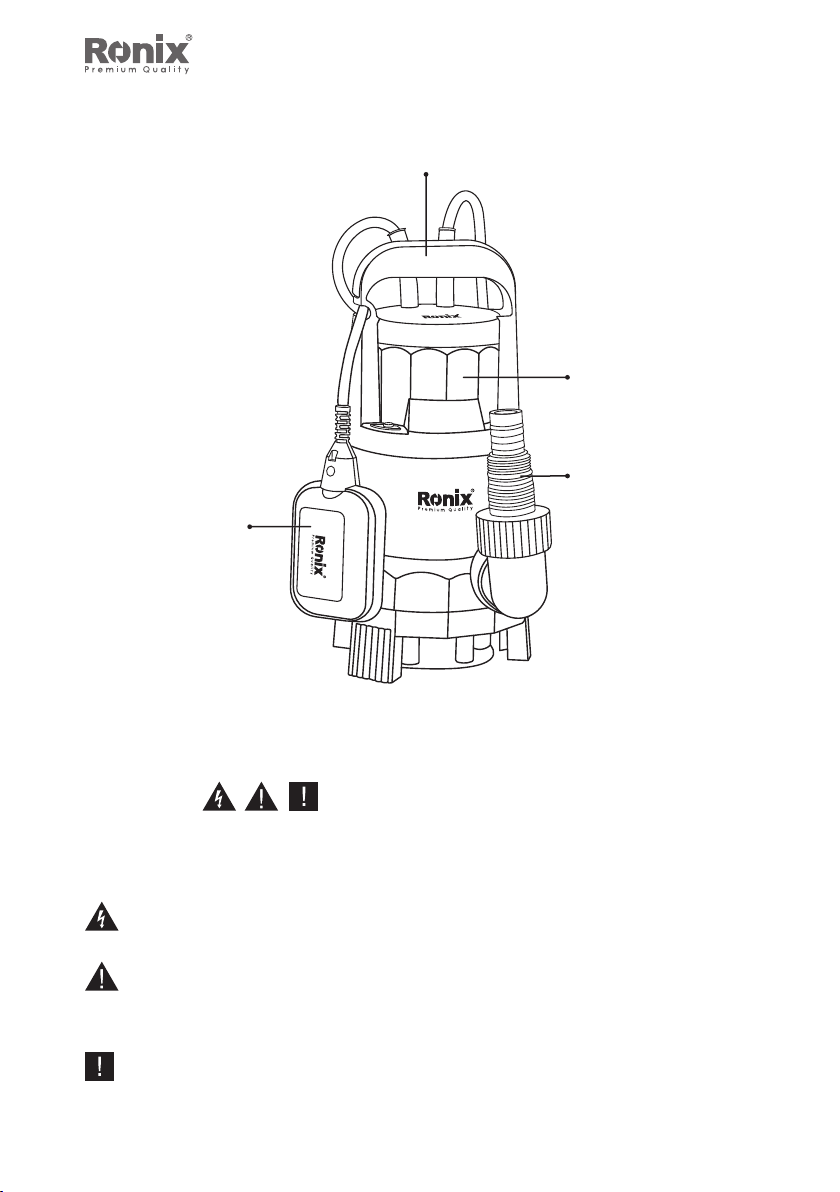

PART LIST
Handle
Motor
Outlet Water Pipe
Float Switch
SAFETY PRECAUTIONS
The symbol and sentences with words “Danger” or “Warning”
indicate the risks and results from failing to comply with the safety
precautions.
Failure to comply with the precautions may results in electric shock.
Failure to comply with the precautions may cause serious damage
to health.
Failure to comply with the precautions may damage the pumps.

USER MANUAL 5
NOTE!
In order to achieve the best performance of your product, please
read this instruction manual carefully before using, and keep it for
future reference.
CAUTION!
To reduce the risk of electric shock do not open this device, there are
not serviceable parts for customers. Please refer any maintenance or
repair to qualied personnel.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING!
- Read all safety warnings and all instructions. Failure to follow the warnings
and instructions may result in electric shock, re and or serious injury.
- Save all warnings and instructions for future reference.
- The term “power tool” in the warnings refers to your mains-operated
(corded) power tools or battery operated (cordless) power tool.
.WORK AREA SAFETY
- Keep work area clean and well lit. Cluttered or dark areas invite accidents.
- Don’t operate power tools in explosive atmospheres, such as in the presence
of ammable liquids, gases or dust. Power tools create sparks which may
ignite the dust or fumes.
- Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
.ELECTRIC SAFETY
- Power tool plugs must match the outlet. Never modify the plug in any
way. Don’t use any adaptor plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce risk of electric shock.

SUBMERSIBLE SEWAGE PUMP 1 HP
6
- Avoid body contact with earthed or grounded surfaces such as pipe,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
- Don’t expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
- Don’t abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords increased the risk of electric
shock.
- When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Using a cord suitable for outdoor use will reduce the risk
of electric shock.
- If operating a power tool in a damp location is unavoidable, use a
residual current device (RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
- Use of power supply via a RCD with a rated residual current of 30mA
or less is always recommended.
.PERSONAL SAFETY
- Stay alert, watch what you are doing and use common sense when
operating a power tool. Don’t use a power tool while you are tired or
under the inuence of drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious personal injury.
- Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
- Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your nger on the switch or
energizing power tools that have the switch on invites accidents.
- Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may
result in personal injury.

USER MANUAL 7
- Don’t overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
- Dress properly. Don’t wear loose clothing or jewelry. Keep your hair,
clothing, and gloves away from moving parts. Loose cloths, jewelry or
long hair can be caught in moving parts.
- If devices are provided for connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust
collection can reduce dust-related hazards.
POWER TOOL USE AND CARE
-Don’t force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for
which it was designed.
- Don’t use the power tool if the switch doesn’t turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.
- Disconnect the plug from the power source and/or the battery pack
from the power tool before making any adjustments, changing accessories,
or storing power tools. Such preventive safety measures reduce the risk
of starting the power tool accidentally.
- Store idle power tools out of the reach of children and don’t allow persons
unfamiliar with power tool or these instructions to operate the power
tool. Power tools are dangerous in the hand s of untrained users.
- Maintain power tools. Check for misalignment or binding of moving
parts, breakage o parts and any other condition that may affect the power
tool’s operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools
with sharp cutting edges are less likely to bind and are easier to control.
Use the power tool, accessories and tool bits etc. in accordance with the
instruction, taking into account the working conditions and the work to
be performed. Use of the power tool for operations different from those
intended could result in a hazardous situation

SUBMERSIBLE SEWAGE PUMP 1 HP
8
PUMPS SAFETY WARNINGS
- Be sure the installation is correct to make the product performance best.
- All the materials have passed strict inspection. Install correctly could
keep the pumps from damage and over-loading. Failure to do as instruction
could result in damage for which we decline all responsibility.
.INSTALLATION
CAUTION !
The pump must be totally submerged which will provide it with necessary
be submerged which will provide it with the necessary cooling.
- Install the pump away from the bottom to avoid dirt blocking the wet
end, if use the pump in the water tank with a lot of dirt.
- Never use electric wire or pipe to hang the pump.
- Ensure there is enough space for the free operation of the oat switch.
.ASSEMBLY OF THE DISCHARGE PIPE
It is recommended to install a pipe with larger diameter than the discharge
outlet to reduce the friction loss as much as possible.
- Install a check valve to the outlet of the pump to prevent pipe from emptying
each time pump stops.
- Avoid twisted or curved routing of the pipework and ensure correct
connection at outlet. In both cases ow at outlet will be reduced if the
connection is wrong.
INSPECTION BEFORE STARTING :
Motor with single phase had been installed with thermal protector
- Ensure that the voltage and frequency are the same as those shown
on the motor specication plate.
- Ensure the pump is totally submerged into the water.

USER MANUAL 9
- Never make the pump operated dry.
Never modify the float switch position, which is adjusted by the
manufacturer.
Maintenance
MAINTENANCE
Our pumps require no specic maintenance but our advices are as
follow:
- In colder seasons, or the ambient temperature is low, empty the discharge
pipe.
-If the pump will not be used for a long time, it should be cleaned and
stored in a dry place to avoid corrosion.

SUBMERSIBLE SEWAGE PUMP 1 HP
10
SAFETY AND INSTALLATION GUIDE
5cm
5cm
5cm
