Rotary Lift ML40 Manual

Rheinland
TUV
O
P
E
R
A
T
I
O
N
&
M
A
I
N
T
E
N
A
N
C
E
M
A
N
U
A
L
O
P
E
R
A
T
I
O
N
&
M
A
I
N
T
E
N
A
N
C
E
M
A
N
U
A
L
© October 2006 by Rotary Lift Rev. B 03/2013
ML40, ML50
Scissor Lifts

EC Declaration of Conformity
according to EU machine directive 2006/42/EG (Annex II A)
Name and address of manufacturer: BlitzRotary GmbH
Hüfinger Str.55
78199 Bräunlingen,
Germany
This declaration only relates to the machine in condition as supplied; components added and/or subsequent
modifications made by the end user are disregarded. This declaration becomes invalid if the product is
changed or modified without permission.
We declare that the undermentioned machine,
Product name: SCISSOR LIFT
Serial / type name: M 50, ML 40, ML 50
Machine/serial number: .............................................................
Year of manufacture: 20…
complies with all relevant provisions or the machine directive 2006/42/EG.
In addition the machine complies with the provisions of the directives 2004/108/EG electro-magnetic compat-
ibility (safety objectives were complied with according to Annex I, no. 1.5.1 machine directive 2006/42/EG).
Applied harmonized standards:
EN 1493:1998+A1:2008 Vehicle lifts
EN ISO 12100-1 : 2003 Safety of machinery –Basic concepts
EN ISO 12100-2 : 2003 Safety of machinery –Basic concepts
EN 60204-1:2006+7/2007 Electrical equipment of machines
EN 349:1993+A1:2008 Safety of machinery –Minimum gaps
EN ISO 13850:2008 Safety of machinery –Emergency stop
Other applied technical standards and specifications:
BGG 945 Inspections of lifts
BGR 500 Operation of work equipment
BGV A3 Accident prevention regulation electric equipment and production equipment
EU prototype examination no.: D 06 AA3887101
EU notified body No. 0124 , DEKRA certification
Representative for the compilation of relevant technical documentation
BlitzRotary GmbH, Hüfinger Str. 55, 78199 Bräunlingen
Place, date
Bräunlingen, 20.03.2013 ___________________________
Frank Scherer / Managing Director

Contents
2
Contents
1 Identification and warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Manufacturer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Product description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 Operating manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.5 Transport damage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.6 Ordering of spare parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Product description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1 Mechanical design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Functional description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Basic safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1 General safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.2 Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 Warning and safety notices used . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3.1 Structure of the warning notices . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3.2 Explanation of the warning levels . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3.3 Explanation of the icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.4 Technical condition of the equipment . . . . . . . . . . . . . . . . . . . . . . . 12
3.5 Obligations of the operating company . . . . . . . . . . . . . . . . . . . . . . 12
3.6 General work safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.7 Safety instructions in regard to specific energy systems . . . . . . . . 13
3.7.1 Electrical system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.7.2 Hydraulic system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.7.3 Mechanical system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.7.4 Surface temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.8 Safety devices on the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.8.1 Deadman control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.8.2 Independent hydraulic circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.8.3 Euro Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.8.4 Main switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.8.5 Pressure limiting valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.8.6 Line breakage protection in the cylinder connection. . . . . . . . . . . . 15
3.9 Safety and warning notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.10 Safety instructions for personnel. . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.10.1 Personnel and qualifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.11 Safety instructions for auxiliary materials and consumables . . . . . 17
3.11.1 Hydraulic oils, lubricants and cleansers . . . . . . . . . . . . . . . . . . . . . 17
4 Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.1 Basic safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.2 Transport to the installation location. . . . . . . . . . . . . . . . . . . . . . . . 18
5 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.1 Basic safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.2 Location requirements for setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Contents
3
5.3 Assembly at the installation site . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.3.1 Setting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.4 Electrical installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6 Starting up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.1 Basic safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.2 Initial commissioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.3 Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.3.1 Top position sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.3.2 Euro Stop sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.3.3 Intermediate stop sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7.1 Basic safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7.2 Description of the controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7.3 Lifting and lowering the vehicle. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
8 Shutting down. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8.1 Temporary shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8.2 Permanent shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
9 Maintenance and inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
9.1 Basic safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
9.2 Maintenance schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9.3 Cleaning the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9.4 Inspecting the sliding bearings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9.5 Servicing the hydraulic system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9.5.1 Checking the hydraulic oil level. . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9.5.2 Changing the hydraulic oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9.5.3 Bleeding the hydraulic system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9.5.4 Aerating the main lifting unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9.5.5 Aerating the hydraulic system of the wheel-free lift (LT/LTAT version
only)35
9.5.6 Checking the hydraulic hoses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9.6 Inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9.6.1 Regular inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9.6.2 Additional inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
9.6.3 Inspection list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
10 Help for malfunctions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
10.1 Machine does not lift. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
10.2 Machine does not reach the full lift height. . . . . . . . . . . . . . . . . . . . 39
10.3 Electric motor does not run. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
10.4 Machine does not lower (completely down) . . . . . . . . . . . . . . . . . . 40
10.5 Oil leak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
10.6 Machine deflects heavily when load is changed. . . . . . . . . . . . . . . 40
11 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Identification and warranty
4
1 Identification and warranty
1.1 Manufacturer
1.2 Product description
1.3 Operating manual
We reserve the right to make modifications as regards content. BlitzRotary
GmbH is not liable for any errors in this documentation. Liability for secondary
damages arising in connection with the delivery or use of this documentation is
excluded to the extent that legal regulations permit.
Proprietary note
© 2008 BlitzRotary GmbH, Hüfinger Straße 55, 78199 Bräulingen, Germany. All
rights reserved. Photocopying, reproducing, translating or recording onto data
carrier devices, either in whole or in part, is only permitted with the written ap-
proval of BlitzRotary GmbH.
Manufacturer: BlitzRotary GmbH
Street: Hüfinger Straße 55
City/country: 78199 Bräunlingen, Germany
Phone: +49 (0) 771 - 92 33-0
Fax: +49 (0) 771 - 92 33-99
E-mail: [e-mail]
Internet: www.rotarylift.com
Machine type: ML 50
Machine no.:
Year of construc-
tion: 2008

Identification and warranty
5
1.4 Warranty
Every machine is covered under a 12-month warranty for material defects and
faulty assembly, providing this assembly was performed by us. The warranty ex-
tends to all parts which are sent to us for inspection free of charge within twelve
months after delivery. We will examine the parts in order to determine whether
the damage has arisen under normal conditions of use. The warranty is void if
the machine is overloaded, improperly handled, or spare parts have been im-
properly installed and thereby cause damage.
1.5 Transport damage
All deliveries are to be insured by the customer. We will not honor any claims re-
lated to transport responsibility. Our responsibility only extends to the transfer of
the machine in new factory condition to the carrier. Should you find any damage
on the machine, do not use it. Note the type of damage immediately on the bill of
lading. Contact the carrier in order to review the claim.
1.6 Ordering of spare parts
Please specify the following data when ordering:
• Machine type
• Machine no.
• Year of construction
• Part name

Product description
6
2 Product description
2.1 Mechanical design
The machine consists of the following main components:
• Two lifting units, each of which are made up of:
– underframe
– scissor assembly
– running rails
• Control column with integrated hydraulic unit
2.2 Functional description
By pressing the «Lift» control on the control device, the electric motor of the hy-
draulic unit is switched on. The oil pump of the hydraulic unit pumps hydraulic oil
into the hydraulic cylinders. The hydraulic cylinders extend and the scissor as-
sembly is pressed apart and lifts the running rails.
By pressing the «Lower» control on the control device, the electronically releas-
able check valve is opened and hydraulic oil flows back into the hydraulic tank.
The platform lowers.

Product description
7
2.3 Technical data
Mechanical data
Load capacity: 5,000 kg
Load capacity, wheel-free lift: 3,500 kg
Overall height: 200 mm (N, LT)
270 mm (NAT, LTAT)
Usable stroke: 1,670 mm
Platform length: 4,800 mm
Platform width: 729 mm
Platform surface: plain sheet
Weight: 3,500 kg
Electrical system
Connection: 3Ph400V/PE/50Hz/16A
Power: 3.6 kW (N, NAT)
4.0 kW (LT, LTAT)
Current consumption: 7,3 A
Protection type: IP54
Operating voltage: 400 V
Control voltage: 24 V
Hydraulics
Oil fill quantity: 10 l
Sound emission
Sound pressure level: <70 dB (A)

Basic safety instructions
8
3 Basic safety instructions
3.1 General safety information
The machine was designed and manufactured under consideration of a hazard
analysis and on the basis of the relevant harmonised norms as well as additional
technical specifications. It corresponds to the latest technological standards valid
at the time of manufacture and the relevant safety regulations.
The machine is equipped withprotective devices and was subject to a safety and
acceptance test. However, incorrect operation or improper use can pose a threat
to the lives and health of personnel. Damage to the machine itself, other equip-
ment or to the environment cannot be ruled out.
All work on the machine may only be performed by qualified and authorised per-
sons who have read the relevant sections in this operating manual and agree to
observe them.
For transport
•Chap. 2 "Product description", page 6
•Chap. 3 "Basic safety instructions", page 8
•Chap. 4 "Transport", page 18
For setup
•Chap. 2 "Product description", page 6
•Chap. 3 "Basic safety instructions", page 8
•Chap. 4 "Transport", page 18
•Chap. 5 "Installation", page 19
For startup
•Chap. 2 "Product description", page 6
•Chap. 3 "Basic safety instructions", page 8
•Chap. 6 "Starting up", page 22
•Chap. 7 "Operation", page 24
For operation
•Chap. 2 "Product description", page 6
•Chap. 3 "Basic safety instructions", page 8
•Chap. 7 "Operation", page 24
For shutting down
•Chap. 2 "Product description", page 6
•Chap. 3 "Basic safety instructions", page 8
•Chap. 7 "Operation", page 24
•Chap. 8 "Shutting down", page 28

Basic safety instructions
9
For maintenance and inspections
•Chap. 2 "Product description", page 6
•Chap. 3 "Basic safety instructions", page 8
•Chap. 7 "Operation", page 24
•Chap. 9 "Maintenance and inspections", page 29
3.2 Proper use
The machine lifts vehicles continuously to any ergonomically favourable height.
The permissible load capacity may not be exceeded (see load capacity plate,
type plate or Chap. 2.3 "Technical data", page 7).
The machine may only be used as intended! Severe injuries or equipment dam-
age can result from improper use! This is not the responsibility of the manufac-
turer of the machine, but of the operating company!
The machine is designed for the performance of work underneath the load-bear-
ing equipment and the vehicle. It is not approved for supporting or transporting
persons.
The following is especially prohibited:
• Transport of persons.
• Standing on the platform.
• Operating in areas at risk of explosion.
• Operating in areas requiring a protection type for the electrical equipment
higher than IP 54.

Basic safety instructions
10
3.3 Warning and safety notices used
Warning and safety notices contain information designed to point out the un-
avoidable residual risks involved in handling the machine.
The hazards apply to the following:
• Persons
• Machine
• Equipment
• Environment
3.3.1 Structure of the warning notices
The warning notices of this operating manual have an identical basic structure.
DANGER
Type and source of danger
Possible consequences of non-observance
• Avoidance: measures / prohibitions
3.3.2 Explanation of the warning levels
Icon Danger sign Signal word
Warning level Consequences of non-observance
DANGER Immediate danger of severe injuries or death
WARNING Severe injuries or death are possible
CAUTION Minor injuries are possible
NOTE Equipment damage

Basic safety instructions
11
3.3.3 Explanation of the icons
Warning and safety notices are supplementedby visual icons if possible. An icon
cannot replace the text! The text must therefore always be read in its entirety!
The following icons are examples.
Icon Meaning
Warning of a danger to persons
Warning of electrical shock
Warning of points where crushing can occur
Warning of health hazards posed by toxic substances
Warning of environmental hazards
Warning of equipment damage
The following work may only be performed by qualified
and authorised persons.
General information for better understanding and optimum
handling of the machine

Basic safety instructions
12
3.4 Technical condition of the equipment
Safe operation places particular demands on the technical condition of the ma-
chine.
• Rebuilding, manipulation or making modifications to the machine is not per-
mitted. This also applies to the use of replacement parts that are not supplied
by us.
• Care and maintenance should be performed at the specified intervals.
• Regular inspections are to be carried out.
• Complete and proper functioning of the safety devices during operation must
be ensured at all times.
• Connection and setting values must correspond to the specifications.
• Load specifications must be observed.
3.5 Obligations of the operating company
The highest possible level of safety can only be achieved in operating practice if
all measures required for it have been taken. It is the responsibility of the operat-
ing company to plan these measures and monitor their implementation.
The operating company must ensure the following in particular:
• The machine is only used as intended (Chap. 3.2 "Proper use", page 9).
• The machine is only operated in technically flawless and functional condition.
• The safety devices are regularly checked for proper functioning. The safety
devices may not be disabled or have their functions restricted.
• The maintenance and inspection intervals specified in this operating manual
are observed (Chap. 9 "Maintenance and inspections", page 29).
• All safety and warning notices attached to the machine are present and in
legible condition. Notices on the machine that have become damaged or il-
legible are to be replaced immediately.
• Only qualified and authorised personnel may operate, service and inspect
the machine.
• These persons must be regularly instructed in all applicable aspects of work
safety and environmental protection, as well as be familiar with and follow the
operating manual and the safety instructions contained within it.
• The required personal protective equipment for operating, maintenance and
inspection personnel must be made available and used.
• The operating manual should be complete and in legible condition and readi-
ly accessible where the machine is in use.
• Further risks must be determined in a risk assessment and the respective
danger zone must be identified under consideration of the special work con-
ditions where the machine is in use.
• All additional instructions and safety notices must be summarised in a com-
pany directive based on the risk assessment of the workstations on the ma-
chine.
3.6 General work safety
When the machine is used, dangers due to incorrect operation or misuse may
pose a hazard to persons, equipment or the environment.

Basic safety instructions
13
• The machine may only be operated, serviced and inspected by qualified and
authorised personnel who have read the operating manual and perform their
work accordingly.
• Only operate the machine in technically flawless and functional condition.
• If damage is detected, immediately switch off the machine, attach a sign in-
forming others that switching back on is prohibited and then inform your su-
pervisor.
• Maintain the cleanliness of the machine and its surroundings.
• Wear personal protective equipment.
3.7 Safety instructions in regard to specific energy systems
3.7.1 Electrical system
The machine is equipped with an electrical system that operates with high volt-
age.
• Prior to beginning work, inspect the electrical system for visible signs of dam-
age. Immediately replace damaged components.
• Before performing maintenance work, switch off the current to the electrical
system and prevent it from being accidentally switched back on.
• Always keep the control boxes closed.
• Lay lines so that they do not pose a stumbling hazard and so that damage
due to falling objects, pinching or abrasion is avoided.
• Do not lay lines around moving components and ensure that the lines cannot
catch on any moving components.
• Protect the electrical system from penetration by water or other liquids.
• Regularly inspect lines, especially after maintenance work, for secure fit.
3.7.2 Hydraulic system
Hydraulicoil, lubricants andothersubstances, such as solvents or cleansers, can
lead to irritation of the skin, eyes or respiratory tract. These also pose a hazard
to the environment.
• Observe the safety instructions of the manufacturer.
• Use personal protective equipment.
• Use a breathing protection mask if necessary.
• Avoid contact with the skin. Should contact with skin arise, wash thoroughly.
• In the event of contact with eyes, rinse and consult a physician.
• Ensure that no substances contaminate the ground or enter the sewer sys-
tem.
• Dispose of hydraulic oil, lubricants and cleansers in accordance with environ-
mental regulations.
3.7.3 Mechanical system
When using and working on the machine, mechanical hazards are present.
These hazards are posed in the area of the mechanics underneath the platform.

Basic safety instructions
14
• Do not reach into or enter the danger zone.
• Avoid standing in the danger zone.
• Remove any foreign objects from the danger zone.

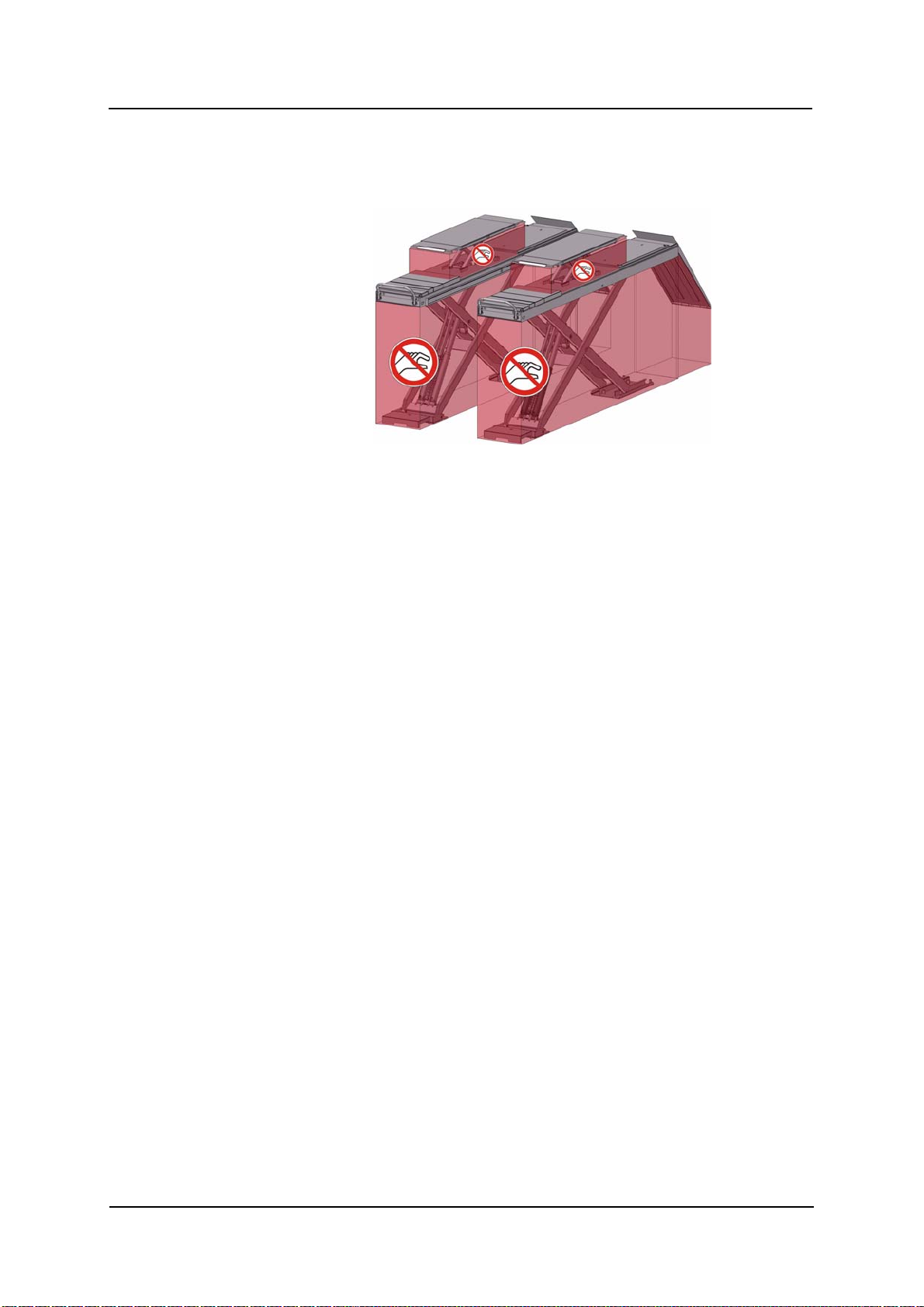

Fig. 3-1 Mechanical danger zones
3.7.4 Surface temperature
Due to friction, certain components (particularly of the hydraulic system) can
have high surface temperatures.
• Before inspections and maintenance work, allow the machine to cool down.
• Use personal protective equipment.
• Check the oil level (Chap. 9.5.1 "Checking the hydraulic oil level", page 32).
If the oil level is too low, the temperature of the hydraulic system will be ad-
ditionally increased. This can lead to higher wear.

Basic safety instructions
15
3.8 Safety devices on the machine
3.8.1 Deadman control
The deadman control of the machine ensures that the function is only carried out
as long as the operator holds the respective control pressed on the control de-
vice.
3.8.2 Independent hydraulic circuits
Two hydraulic circuits independent of one another prevent the unintended lower-
ing of the platform. In the event of abreakin a hydraulic line in one of the hydrau-
lic circuits, the other hydraulic circuit holds the platform.
3.8.3 Euro Stop
When lowering the platform, the Euro Stop feature stops the lowering process in
order to prevent crushing and other hazards. The sensor for the Euro Stop must
be set at the time of initial commissioning (Chap. 6.3.2 "Euro Stop sensor", page
23).
3.8.4 Main switch
The main switch turns the current supply to the machine on and off.
The main switch is also an emergency off switch. In the event of an emergency,
set the switch to the "0" position.
3.8.5 Pressure limiting valve
Thepressurelimitingvalve preventsoverloading of the hydraulic system. It is fac-
tory preset and may not be adjusted by the operating company. When overload-
ed, the platform can no longer be raised.
3.8.6 Line breakage protection in the cylinder connection
The line-break safety device in the cylinder connection interrupts the flow if a
break occurs in the hydraulic lines.

Basic safety instructions
16
3.9 Safety and warning notices
The machine is labelled with various notices. The notices should always be
present and in legible condition.
Note!
Maximum load capacity.

Basic safety instructions
17
3.10 Safety instructions for personnel
3.10.1 Personnel and qualifications
All persons working with the machine must read the operating manual priorto be-
ginning the work and confirm with their signature that they have understood what
they have read and agree to observe it.
• Only persons of at least 18 years of age who have been instructed in the ma-
chine's operation, and have demonstrated their ability in this regard to the
employer, may be delegated with operation of the machine.
• The assignment tothetaskofoperatingthemachinemust begiveninwriting.
• The respective authorisations of the person must be defined.
• Trainees must receive instruction. The instruction may only be performed by
experienced persons authorised to do so and using this operating manual as
a basis.
• Instructed persons confirm in writing the scope of instruction received and
their successful completion of it.
3.11 Safety instructions for auxiliary materials and consumables
3.11.1 Hydraulic oils, lubricants and cleansers
Hydraulicoil, lubricants andothersubstances, such as solvents or cleansers, can
lead to irritation of the skin, eyes or respiratory tract. These also pose a hazard
to the environment.
• Observe the safety instructions of the manufacturer.
• Use personal protective equipment.
• Use a breathing protection mask if necessary.
• Avoid contact with the skin. Should contact with skin arise, wash thoroughly.
• In the event of contact with eyes, rinse and consult a physician.
• Ensure that no substances contaminate the ground or enter the sewer sys-
tem.
• Dispose of hydraulic oil, lubricants and cleansers in accordance with environ-
mental regulations.

Transport
18
4 Transport
4.1 Basic safety instructions
WARNING
Suspended or falling loads
Severe injuries or death
• The permitted loads of the load hoisting equipment must at least correspond
to the dead weight of the machine (see load capacity plate, type plate or
Chap. 2.3 "Technical data", page 7).
• Wear a protective helmet.
• Do not step under suspended loads.
4.2 Transport to the installation location
The transport can be performed with a forklift or a crane. When transporting with
a crane, ensure that the machine does not sway too heavily.

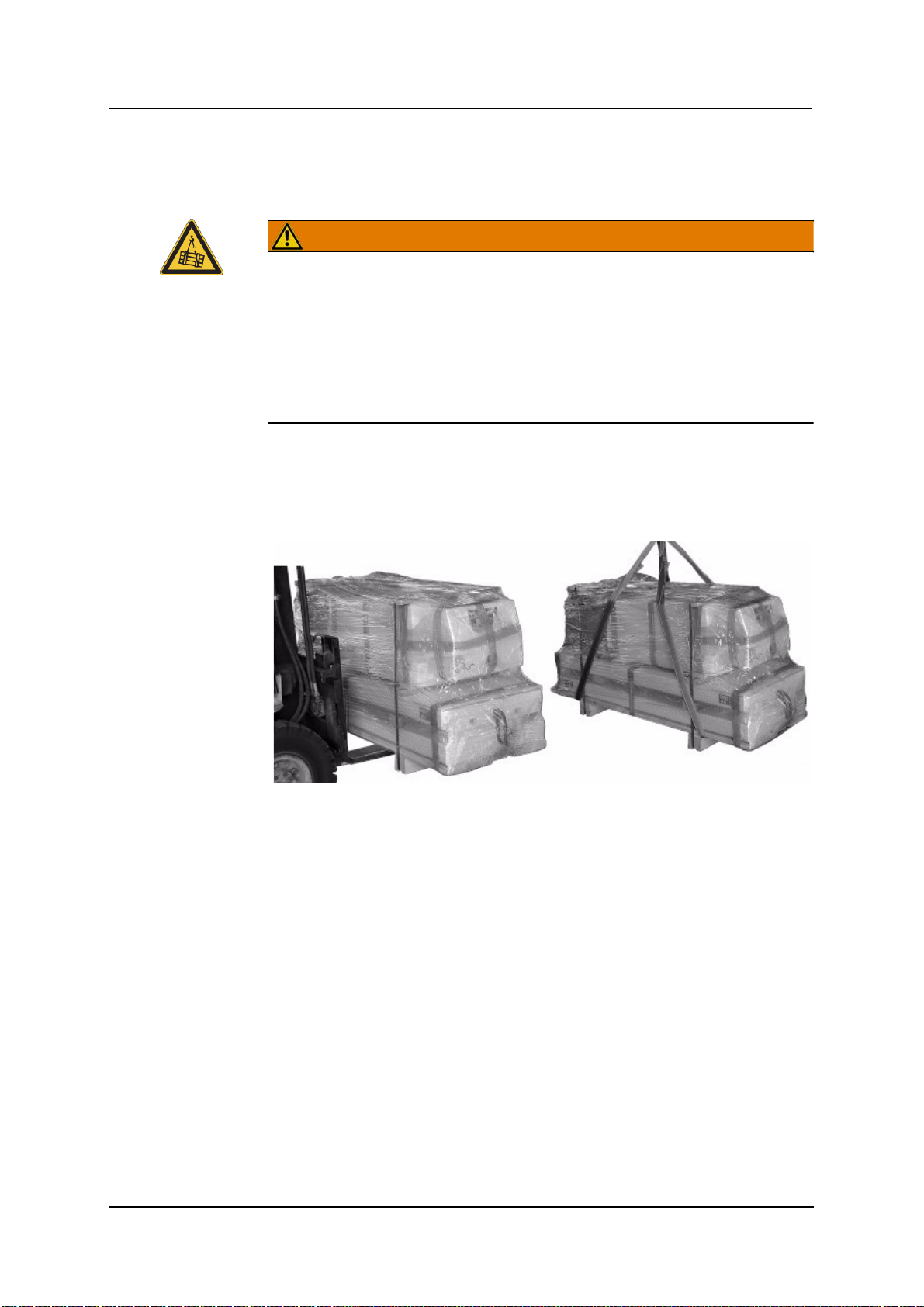

Fig. 4-1 Transport
