Roth Alfie User manual

,~ ENGLISH
";,j -~
ot
-------,
rtl1 Made for
~iPod

Thank you for purchasing the Roth Audio ALFiE.
We have designed ALFiE to look beautiful and, using today's available technologies, to sound as
good as he can. We love music and movies, and our ultimate goal is for you to get the best from your
top tunes and your favourite films. We're pleased -actually we're delighted - with the results illld we
hope you will be too.
ALFiE is special and we hope you get many years of enjoyment from using him -it's what he was born
to do, and he's
never happier than when he's singing asong or painting apicture. ALFiE will also
wake you up in the
morning (if you want him to), so don't get cross when he does ... just remember
he's
doing it not only because you asked him, but also because he simply loves to play.
Turn
It Up.
James A. Roth, England, January 2008
Dedicated to the memory of:
Hunter S. Thompson, writer (July 78, 7937 -February20,2005)
And George Roth, cellist (September 7904 -Augll'>(2004)
Alfie iPod Audio System

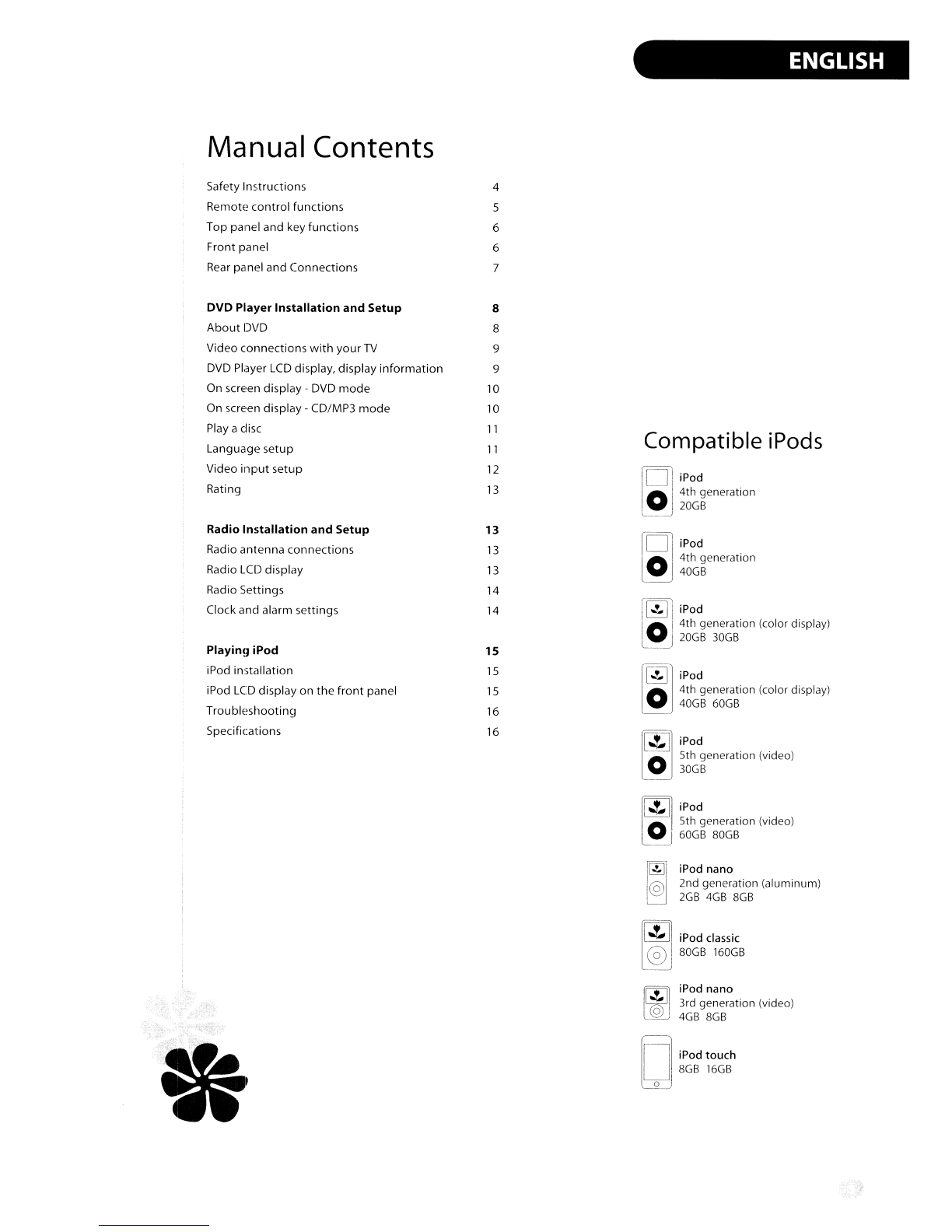

Manual Contents
Safety Instructions
Remote control functions
Top panel and key functions
Front panel
Rear panel and Connections
DVD Player Installation and Setup
About DVD

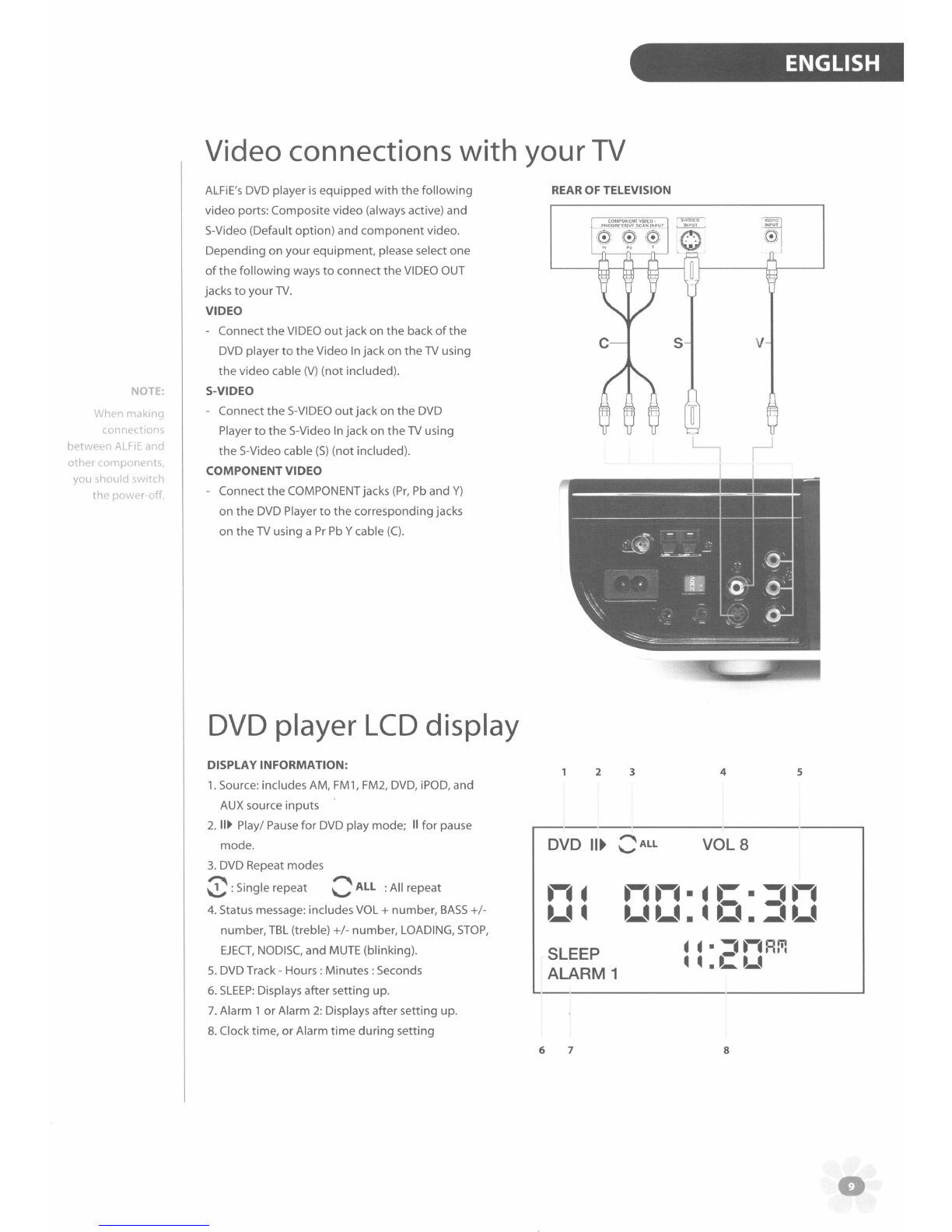

Video
connections with your TV
DVD Player LCD display, display information

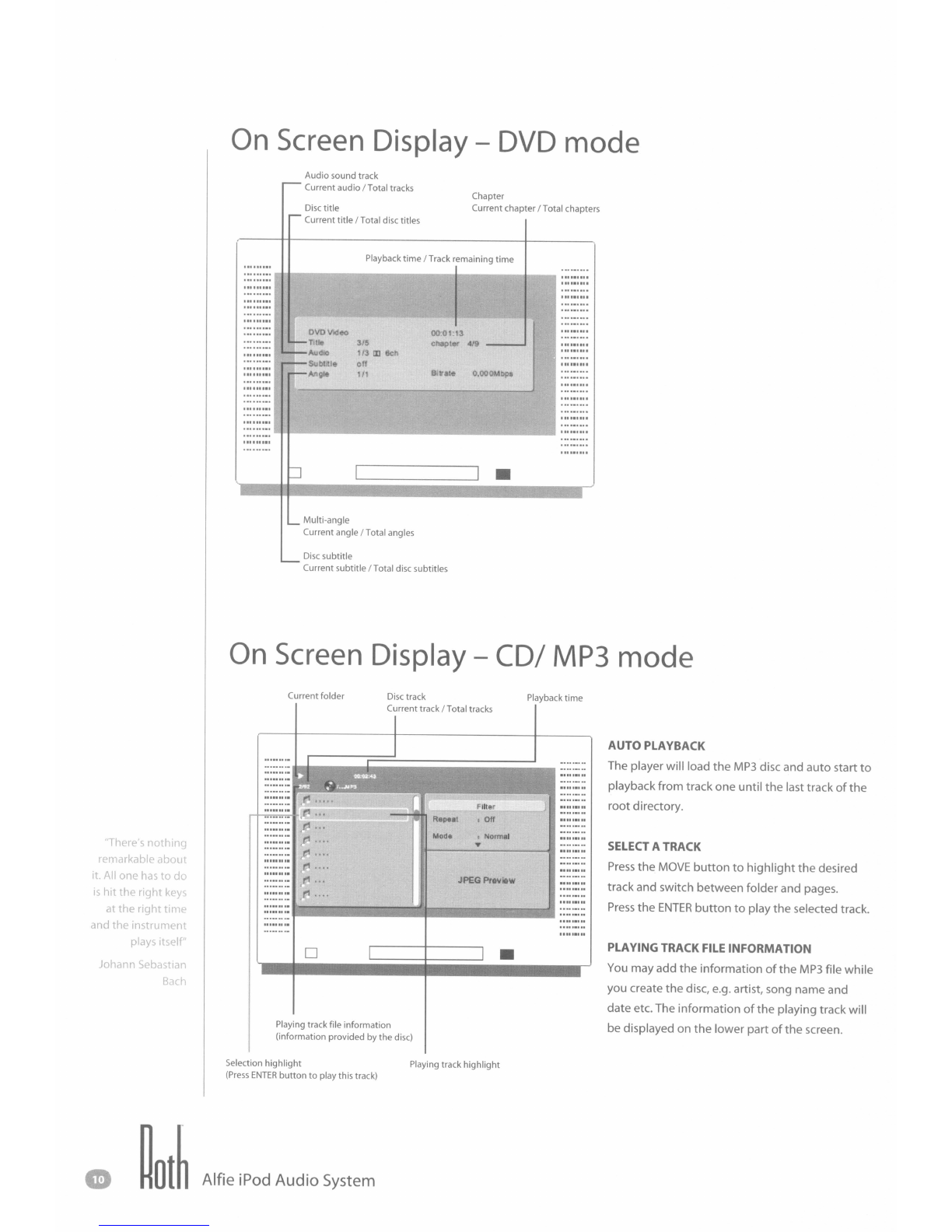

On screen display -DVD mode
On screen display -CD/MP3 mode
Playa elise
Language setup

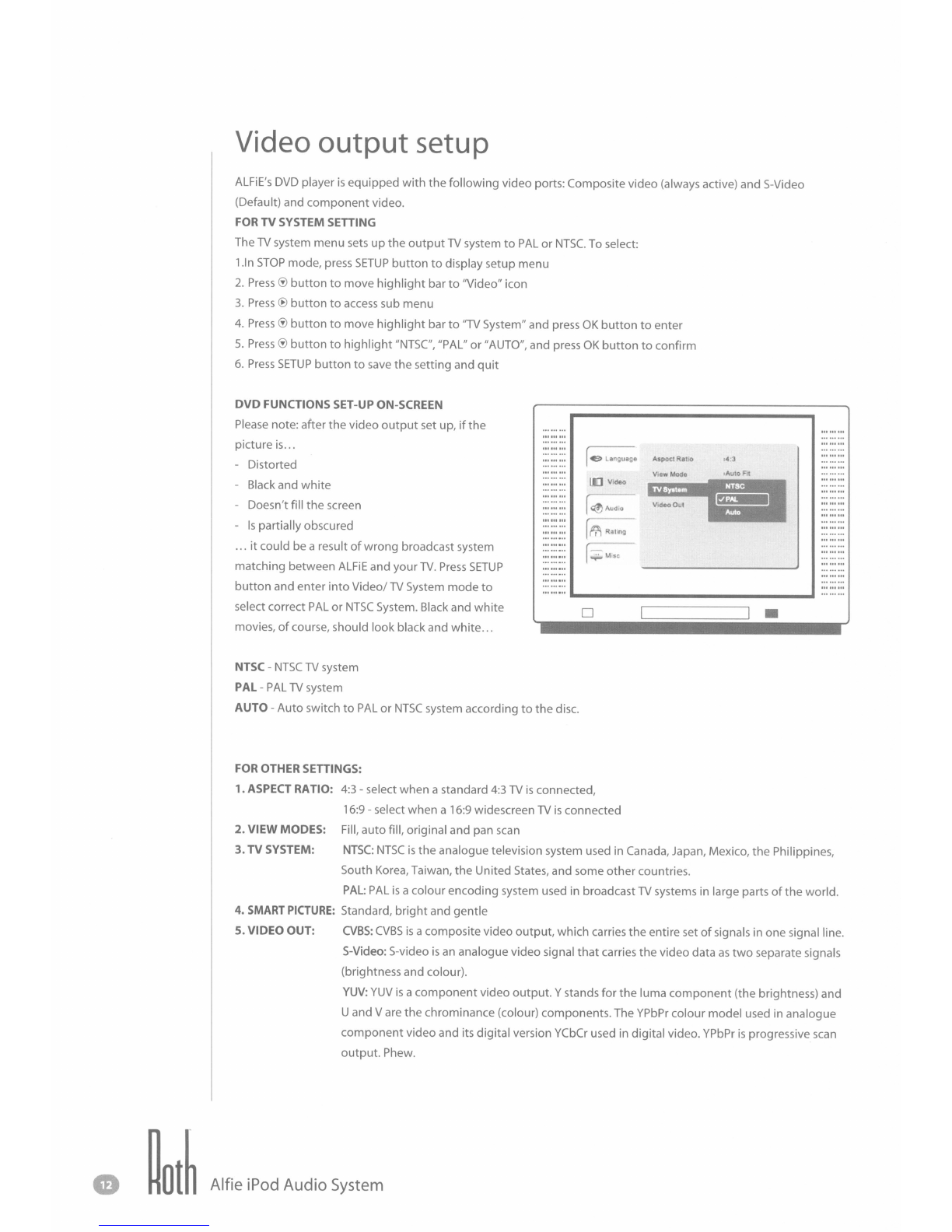

Video input setup

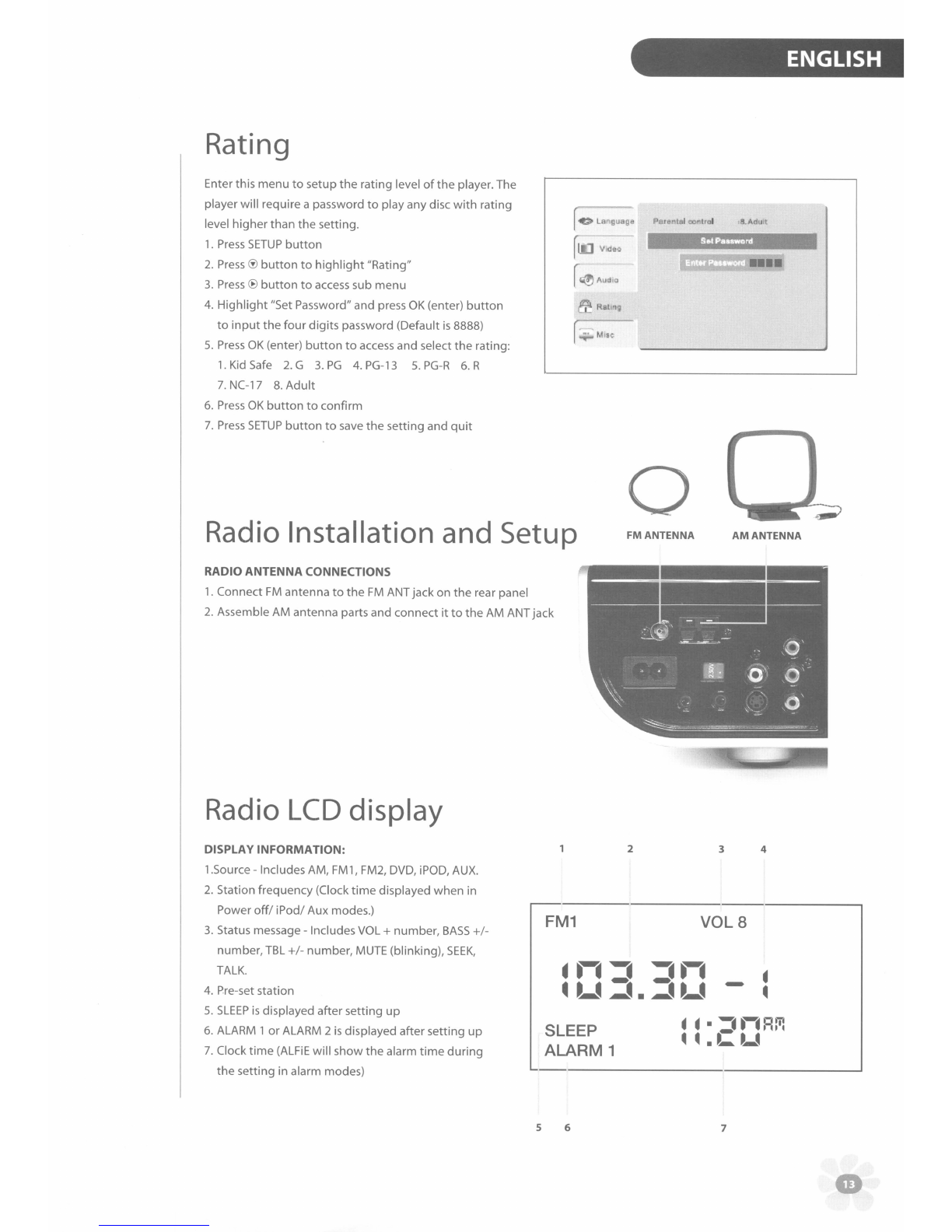

Rating
Radio Installation and Setup
Radio antenna connections
Radio LCD display
Radio Settings
Clock
and alarm settings

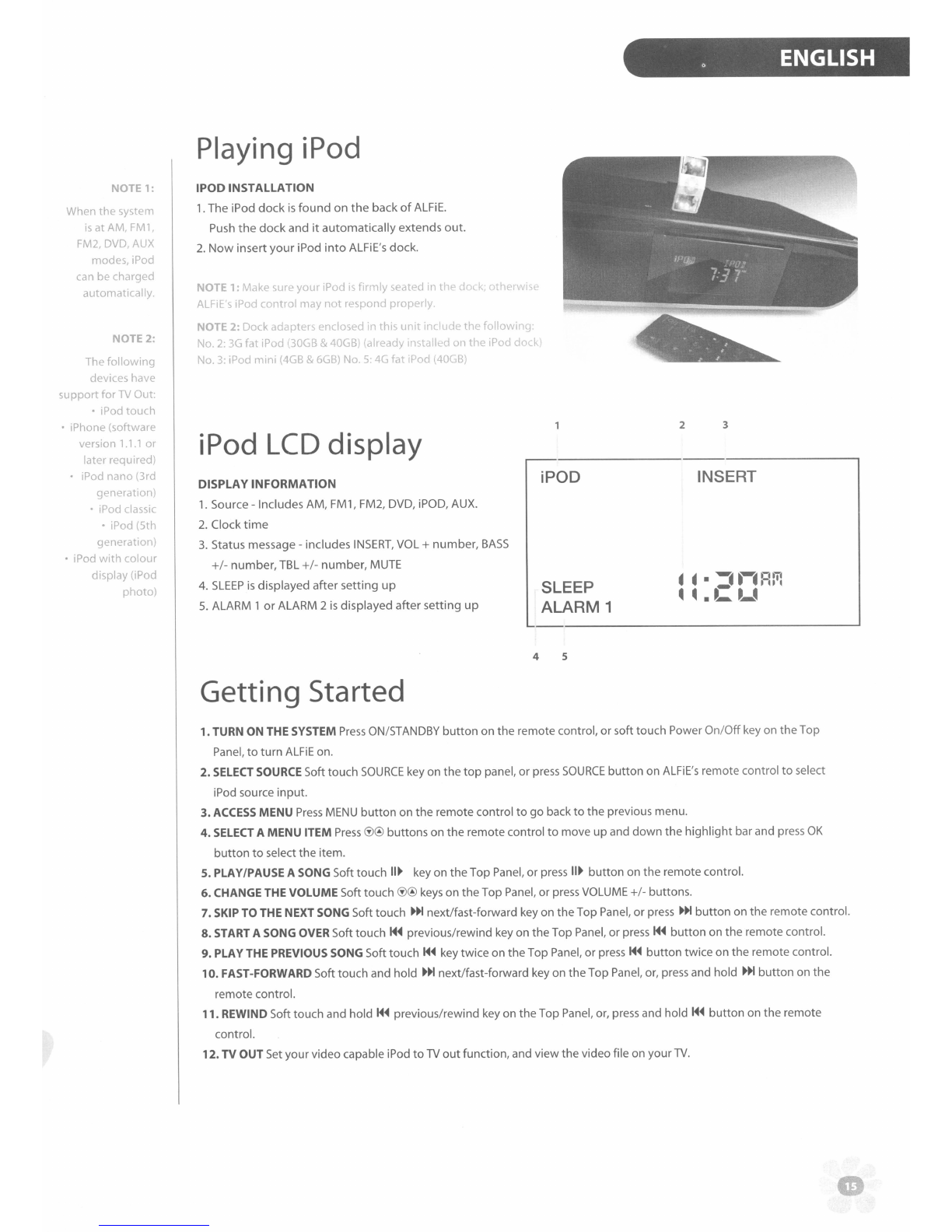

Playin!J iPod
iPod installation
iPod LCD display on the front panel
Troubleshooting
Specifications
.~
.~
4
5
6
6
7
8
8
9
9
10
10
11
11
12
13
13
13
13
14
14
15
15
15
16
16
ENGLISH
Compatible iPods
~
iPOd
O4th generation
20GB
~
iPod
O4th generation
40GB
[@-rO
d
O4th generation (color display)
20GB 30GB
I
.:r.. iPod
O4th generation (color display)
40GB 60GB
~
-.T.- iPod
O5th generation (video)
30GB
~
-.T.- iPod
O5th generation (video)
160GB 80GB
~
..!. iPod nanD
@2nd generation (aluminum)
2GB 4GB 8GB
[1..,..11 iPod d"'i<
@80GB 160GB
Ii] iPodnano
@3rd generation (video)
o 4GB 8GB
D
-iPod
touch
8GB 16GB
o

Safety Instructions
ALFiE is simple to use, however -for safety's sake, and to get the best out of your new best electronic friend
-please, before you start
him up, read the safety and operating instructions
Keep these instructions in a safe place for future reference -can we politely recommend that overflowing drawer,
in which you keep all your
other manuals)
ALFiE should NOT be situated in close proximity to water. Therefore, avoid placing little ALFiE near bathtubs,
sinks, washing machines, swimming pool, sauna etc -not only
is it dangerous, but ALFiE can't swim
Avoid exposure
to direct sunlight or to extremes of temperature or humidity - so, best not leave ALFiE under a
tanning lamp, then
Do
not place ALFiE direct heat sources such as radiators, stoves, gas fires, naked flames or candles
Please ensure that ALFiE is placed on aclean, dry and flat surface before operation. Nice, wooden table'
ogood.
Wet pile
of rocks'" bad.
Do not
drop ALFiE -he may break and he will definitely get a fright -or apply excessive force to the controls, or
place heavy objects on top of him.
Do not allow excessive levels
of dust to gather on this system.
To clean ALFiE, use asoft dry cloth. If necessary, use a damp cloth without any solvents - ALFiE is no fan of
solvents.
Please ensure that the area in which ALFiE is situated has adequate ventilation, and do not place him in aposition
where his ventilation may become obstructed. Avoid placement on beds,
sofas, rugs. enclosed bookcases I
cabinets and any other area which may cause interference to the ventilation of the product thus causing ALFiE to
overheat - a hot and bothered ALFiE is asorry sight.
Please ensure ALFiE is connected to the correct power supply as indicated on the unit, and please unplug the
system when
not in use for along period -this saves not only ALFiE's insides, but also the world outside. Always
ensure
power cables are placed safely and are not obstructing awalkway.
To avoid risk of electric shock, do not attempt to remove ALFiE's back cover -there are no user serviceable parts
anyway,
so get out of there now
'
ALFiE should be serviced by an authorized service engineer in the event of any of the following circumstances:
ALFiE's power supply or cord sustains damage
ALFiE is struck by afalling object
ALFiE is exposed to rain or moisture
ALFiE does not seem to operate normally or exhibits asudden change in performance
ALFiE has been dropped
Any unauthorized changes or modifications to ALFiE would render the manufacturer's warranty null and void
Please only insert 12cm discs - ALFiE does not like Scm discs (those little tiny discs that tend to be used for MP3
player software)
Alfie iPod Audio System

ENGLISH

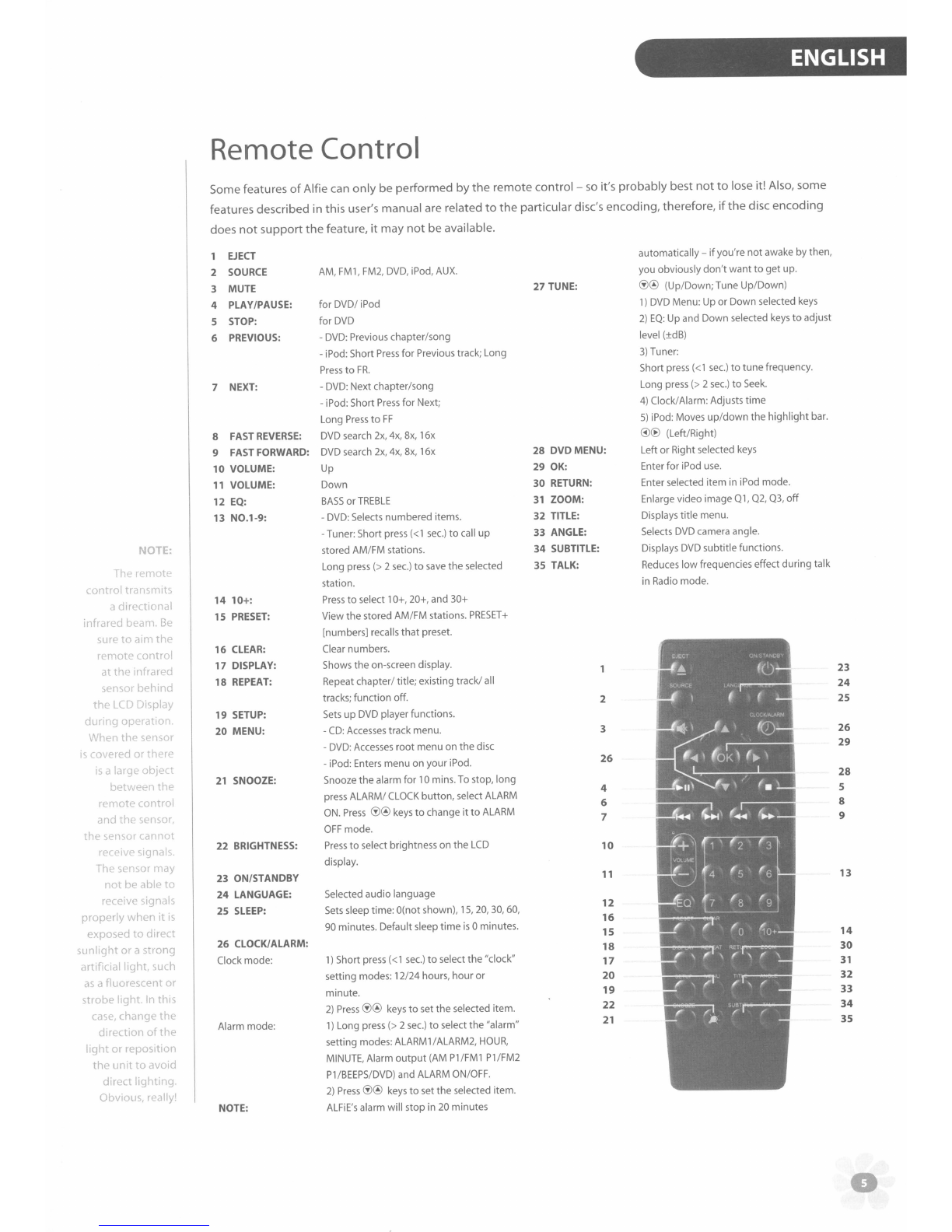

Remote Control
Some features of Alfie can only be performed by the remote control -so it's probably best not to lose it! Also, some
features described in
this user's manual are related to the particular disc's encoding, therefore, if the disc encoding
does not support the feature, it may not be available.
NOTE:
The rerr'ote
control tra
S'l1ltC,
adirect onal
infrared beam.
Be
sure to aim tre
rerr'ote control
at
t'1e i'1frared
sensor behind
t'le LCD Disp ay
dun'1g operat 01')
Whe'1 trf3 sensor
is covered or there
IS a larqE: object
between the
remotf3
CO'1t'o
and the sensor
thE' Sf3n<;or cal')ro+
recE' Vf> C:lgnal<;
TilE' sersor may
not be ~b e to
receive signals
properly when
it IS
exposed to direct
sunllgh+ or astrong
drtificiallight,
c,uch
as a f1uo'E'scf3nt or
strobe ight.
In tl is
case, change the
direction
of the
light or 'eposltion
the unit to avoid
direct IIgl"-tl'19
Obvious,
rE'll1y!
1 EJECT
2 SOURCE
3 MUTE
4 PLAY/PAUSE:
5 STOP:
6 PREVIOUS:
7 NEXT:
8 FAST REVERSE:
9 FAST FORWARD:
10 VOLUME:
11 VOLUME:
12 EQ:
13 NO.1-9:
14 10+:
15 PRESET:
16 ClEAR:
17 DISPLAY:
18 REPEAT:
19 SETUP:
20 MENU:
21 SNOOZE:
22 BRIGHTNESS:
23 ON/STANDBY
24 LANGUAGE:
25 SLEEP:
26 ClOCK/ALARM:
Clock mode:
Alarm mode:
NOTE:
AM, FM1, FM2, DVD, iPod, AUX.
for DVD/ iPod
for DVD
-DVD: Previous chapter/song
-iPod: Short
Press for Previous track; Long
Press to FR.
-DVD: Next chapter/song
-iPod: Short
Press for Next;
Long
Press to FF
DVD search 2x, 4x, 8x, 16x
DVD search 2x, 4x, 8x, 16x
Up
Down
BASS or TREBLE
-DVD: Selects numbered items.
-Tuner: Short press
«1 sec.) to call up
stored AM/FM stations.
Long press (> 2
sec.) to save the selected
station.
Press to select 10+, 20+, and 30+
View
the stored AM/FM stations. PRESET +
[numbers] recalls
that preset.
Clear numbers.
Shows
the on-screen display.
Repeat
chapter/ title; existing track/ all
tracks;
function off.
Sets up DVD player functions.
-
CD: Accesses track menu.
-DVD: Accesses
root menu on the disc
-iPod: Enters
menu on your iPod.
Snooze
the alarm for 10 mins. To stop, long
press ALARM/
CLOCK button, select ALARM
ON.
Press (!)@ keys to change it to ALARM
OFF mode.
Press to select brightness on the LCD
display.
Selected
audio language
Sets sleep time: O(not shown), 15, 20, 30, 60,
90 minutes. Default sleep
time is 0minutes.
1) Short press «1 sec.) to select the "c1ock"
setting modes: 12/24 hours,
hour or
minute.
2) Press (!)@ keys to set the selected item.
1) Long press (> 2 sec.) to select the "alarm"
setting modes: ALARM1/ALARM2,
HOUR,
MINUTE, Alarm output (AM P1/FM1 P1/FM2
P1/BEEPS/DVD) and ALARM ON/OFF.
2) Press (!)@ keys to set the selected item.
ALFiE's alarm will stop in 20 minutes
27 TUNE:
28 DVDMENU:
29 OK:
30 RETURN:
31 ZOOM:
32 TiTlE:
33 ANGLE:
34 SUBTiTlE:
35 TALK:
2
3
26
4
6
7
10
11
12
16
15
18
17
20
19
22
21
automatically - if you're not awake by then,
you obviously
don't want to get up.
(!)@ (UplDown; Tune Up/Down)
1) DVD Menu: Up or Down selected keys
2) EQ: Up and Down selected keys to adjust
level (±dB)
3) Tuner:
Short press
«1 sec.) to tune frequency.
Long press
(> 2 sec.) to Seek.
4) Clock/Alarm: Adjusts time
5) iPod: Moves up/down the highlight bar.
@(B (Left/Right)
Left or Right selected keys
Enter
for iPod use.
Enter selected item in iPod mode.
Enlarge video image
Q1, Q2, Q3, off
Displays title menu.
Selects DVD camera angle.
Displays
DVD subtitle functions.
Reduces
low frequencies effect during talk
in Radio mode.
23
24
25
26
29
28
5
8
9
13
14
30
31
32
33
34
35
•

Top Panel
TOUCH-SENSITIVE KEYS:
1. Power on/off -With your finger touching, or close to, the POWER
touch-sensitive key for more than 1.5 seconds, the power turns on and LED
brightens. Do this again and power turns off and the LED darkens.
2. Audio source inputs including AM, FM1, FM2, DVD, iPod, AUX
3. Volume up
4. Volume down
5. Play/Pause for DVD player and iPod modes
6. -DVD player: previous track
-iPod: same
as previous/rewind key on your iPod.
-Radio: Previous station (touch and
hold for 3seconds to search for stations)
7. -DVD player: next track
-iPod: same
as next/fast-forward key on your iPod.
-Radio: Next station (Touch and
hold for 2seconds to SEEK stations).
8. Eject: ejects and loads the discs
Front Panel
2
3
4
5
6
7
8
SATElLITE
SPEAKER
LCD SUBWOOFER SLOT-FEED
DISPLAY UNDERNEATH CD I
DVD DRIVE
Whe the
power
Of love
ovprcome, the
love
of powpr tt">e
world WI Iknow
p(ac
Jmi Herd IX
•
~ot~ Alfie iPod Audio System

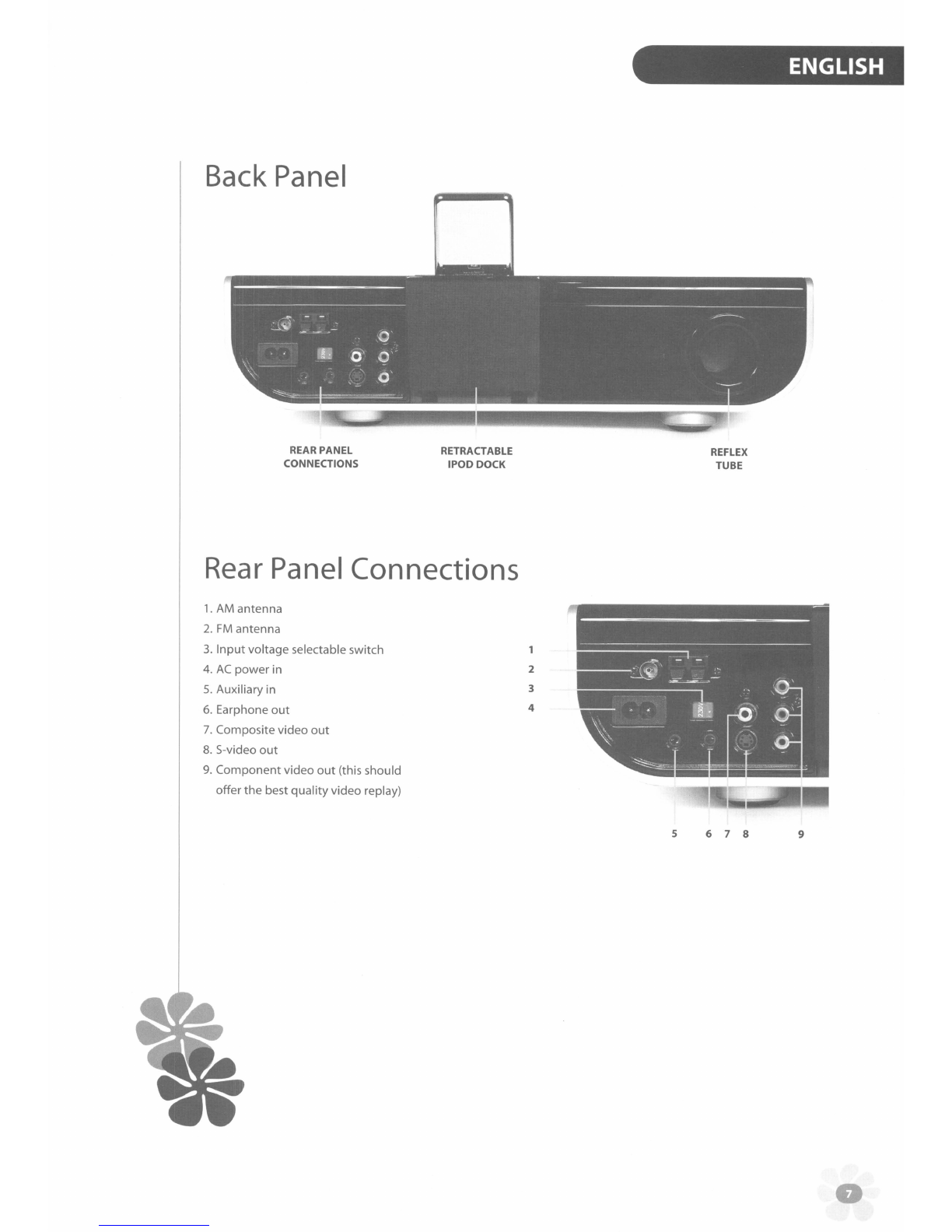

Back Panel
ENGLISH
REAR PANEL
CONNECTIONS RETRACTABLE
IPODDOCK
REFLEX
TUBE
Rear Panel Connections
1. AM antenna
2. FM antenna
3. Input voltage selectable switch
4. AC power in
5. Auxiliary in
6. Earphone out
7. Composite video out
8. S-video out
9. Component video out (this should
offer
the best qualityvideo replay)
2
3
4
5 678
9

About DVD
DVD (Digital Versatile Disc) is adigital video medium under the MPEG II format, featuring avariety of revolutionary
entertainment capabilities. The MPEG II video compression technology provides capacity for an excellent picture of
minimum 500 lines resolution on screen, up to eight language soundtracks, up to nine views from different camera
angles and
up to 32 language subtitles (provided the DVD disc itselfsupports these features). Pretty smart, huh?
DISC INFORMATION
NOT
)O'l'e ftu
lO'1tal
C'
the; DV[ pi Y r
ar
p
rela d
th~ DV[l oi e;
S( ft a' ')OrT'
fatu e
b p rf r'11 df
th disc It
support
t'"le f at
r lU rp (
t Ilj Ch k
f(>atu p) P'I tl '1
th disc pa kl 19
or fol ow th~
Irstruct ons of thp
disc's 0 1 S( raI
me'lu.
Recording Method Digital /
MPEG II
Digital
Capacity Single-layer /Single
side,4.7GB =2hr
650MB = 74 Min
Single-layer /Double sides, 85GB =4hr
Double-layers /Single
side, 904GB = 45 hr
Double-layers /Double
sides, 17GB =8hr
Horizontal Resolution
500 lines up
Disc size 12cm 12cm
Sub-titles
32
Sound tracks 8
Symbol
avo
illJD~@
~
ReWritable
CARE OF DISC
Avideo disc contains high-density compressed data that needs proper handling.
When
holding the disc, hold the disc's outer edge and/or the centre spindle hole. Do not touch the disc's surface.
Do
not bend or press the disc, and do NOT expose the disc to direct sunlight or heating sources
Store your discs in acabinet vertically, in dry condition, and prevent exposure to:
-Direct sunlight
-Heat
or exhaust from aheating device
-Extreme
humidity
Clean the disc surface with asoft, dry cleaning cloth. Wipe the disc surface gently from the centre toward the
outer edge.
Do
not apply thinner, alcohol chemical solvent, or sprays when cleaning. Such cleaning fluids will permanently
damage
the disc surface -which is not a good thing.
o
~ot~ Alfie iPod Audio System

ENGLISH
Video connections with your TV
NOTE:
When making
connections
between
ALFiE and
other components,
you should switch
the power off.
ALFiE's DVD player is equipped with the following
video ports: Composite video (always active) and
S-Video (Default
option) and component video.
Depending on your equipment, please select one
of the following ways to connect the VIDEO OUT
jacks
to your TV.
VIDEO
-Connect the VIDEO out jack on the back of the
DVD player to the Video In jack on the TV using
the video cable (V) (not included).
S-VIDEO
-Connect the S-VIDEO out jackon the DVD
Player to the S-Video In jackon the TV using
the S-Video cable (5) (not included).
COMPONENT VIDEO
-Connect the COMPONENTjacks (Pr, Pb and Y)
on the DVD Player to the corresponding jacks
on
the TV using a Pr Pb Ycable (C).
DVD player LCD display
REAR OF TELEVISION
nn·~I·,n
UU •• O.~U
DVD II~ CALL
DISPLAY INFORMATION:
1. Source: includes AM, FM1, FM2, DVD, iPOD, and
AUX source inputs
2. II. Play/ Pause for DVD play mode; II for pause
mode.
3. DVD Repeat modes
8: Single repeat (; ALL :All repeat
4. Status message: includes VOL +number, BASS +/-
number, TBL (treble) +/- number, LOADING, STOP,
EJECT, NODISC, and MUTE (blinking).
5. DVD Track -Hours: Minutes: Seconds
6. SLEEP: Displays after setting up.
7. Alarm 1 or Alarm 2: Displays after setting up.
8. Clock time, or Alarm time during setting
2
SLEEP
ALARM 1
6 7
34
VOLB
••• ~nRl'l
~ ~ • '- U
8
5
•

On Screen Display - DVD mode
Audio sound track
Current audioITotal tracks
Disc
title
Current title ITotal disc titles
Chapter
Current chapterITotal chapters
Playback time ITrack remaining
time
315
IJ lD tic
o1e0.00
•
Multi-angle
Current angle ITotal angles
Disc subtitle
Current subtitle
!Total disc subtitles
On Screen Display - CDI MP3 mode
Current folder Disc track
Current trackITotal tracks Playback
time
"There s'1ot'1 ng
remarkab e about
I,. A'l one rae; to do
IS hit the right- keys
at
the right tltr'e
and the InstrUfYler-t
plays Itself
Joha'1n Seba ,t!an
Batr
o
Playing track file information
(information provided by
the disc)
•
AUTO PLAYBACK
The player will load the MP3 disc and auto start to
playbackfrom track one until the last track of the
root directory.
SELECT A TRACK
Press the MOVE button to highlight the desired
track and switch between folder and pages.
Press the ENTER button to play the selected track.
PLAYING TRACK FILE INFORMATION
You may add the information of the MP3 file while
you create the disc, e.g. artist, song name and
date etc. The information
of the playing track will
be displayed on the lower part
of the screen.
Selection highlight
(Press ENTER button to play this track)
Alfie iPod Audio System
Playing track highlight

NOTE:
Normally, when a
MP3-loaded disc
is loaded, the unit
will take aslightly
longer
time to
download the
initial data.
ENGLISH
Playa disc
1. POWER ON AND LOAD ADISC
Insert your DVD/CD into the slot on ALFiE's front panel. ALFiE will power on, slot the disc in, and play automatically.
To power on only,
just soft touch the POWER touch-sensitive switch on the top panel for acouple of seconds, or
press ON/STANDBY
button on the remote control. The LED brightens after you switch on the power.
2. SET UP YOUR TV SYSTEM
Select the corresponding setting of the TV set (AV1, AV2, etc) until the DVD power on screen appears.
3. SET UP YOUR DVD PLAYER
1) In STOP mode, press SETUP button on the remote control to display setup menu.
2) Access to "Video" sub menu and select PAL or NTSC system. See details on video output Setup for TV
system setting.
4. IF A DVD DISC MENU APPEARS ON SCREEN
Press OK button on the remote control to start playing.
Language setup
NOTE:
Default settings are
English.
Enter this menu to setup the language using the on screen display,
DVD disc subtitle, DVD disc audio and DVD disc start menu.
1. Press SETUP button to display the menu
2. Highlight "Language"
3. Press ENTER button to display the language sub menu
4. Highlight the desired item and press the OK button
5. Move the highlight bar to select the desired item
6. Press ENTER button to confirm
7. Press SETUP button to save the setting and quit
Default Settings
OSD Language: English
Subtitle: English
Audio: English
DVD Menu: English
C language
r lIJ V'lleo
r d!)AUdIO
r~ Rilling
r -:::- M Ie
050l<ln9
u8
98
$ubtitlol
a"XSUbtlfe
AudIO
01/0 Manu
,English
English
•English
o•

Video output setup
ALFiE's DVD player is equipped with the following video ports: Composite video (always active) and S-Video
(Default) and
component video.
FOR TV SYSTEM SETTING
The TV system menu sets up the output TV system to PAL or NTSC. To select:
1.ln
STOP mode, press SETUP button to display setup menu
2. Press <!) button to move highlight bar to "Video" icon
3. Press ® button to access sub menu
4. Press <!) button to move highlight bar to "TV System" and press OK button to enter
5. Press <!) button to highlight "NTSC', "PAL" or "AUTO", and press OK button to confirm
6. Press SETUP button to save the setting and quit
DVD FUNCTIONS SET-UP ON-SCREEN
Please note: after the video output set up, if the
picture is ...
-Distorted
Black and
white
Doesn't fill the screen
-
Is partially obscured
... it could be aresult of wrong broadcast system
matching between
ALFiE and your TV. Press SETUP
button and enter into Video/ TV System mode to
select correct PAL or NTSC System. Black and white
movies, of course, should look black and white ...
NTSC - NTSC TV system
PAL - PAL TV system
AUTO - Auto switch to PAL or NTSC system according to the disc.
V~O
r ~AUd-:-
rM Ra
hn
9
r .. Mit
o
,43
•
FOR OTHER SETTINGS:
1. ASPECT RATIO: 4:3 -select when astandard 4:3 TV is connected,
16:9 -select when a16:9 widescreen
TV is connected
2.
VIEW MODES: Fill, auto fill, original and pan scan
3. TV SYSTEM: NTSC: NTSC is the analogue television system used in Canada, Japan, Mexico, the Philippines,
South Korea, Taiwan,
the United States, and some other countries.
PAL: PAL is acolour encoding system used in broadcast TV systems in large parts of the world.
4. SMART PICTURE: Standard, bright and gentle
5. VIDEO OUT: CVBS: CVBS is acomposite video output, which carries the entire set of signals in one signal line.
S-Video: S-video
is an analogue video signal that carries the video data as two separate signals
(brightness and colour).
YUV: YUV is a component video output. Ystands for the luma component (the brightness) and
Uand Vare
the chrominance (colour) components. The YPbPr colour model used in analogue
component video and its digital version YCbCr used in digital video. YPbPr is progressive scan
output. Phew.
~ot~ Alfie iPod Audio System

ENGLISH
Rating
r .. Mile.
Sf Lal eo trol II. du t
AM ANTENNA
SetP •• sword
., ....
FMANTENNA
o
folatll'1
Radio Installation and Setup
Enter this menu to setup the rating level of the player. The
player will require apassword
to play any disc with rating
level higherthan the setting.
1. Press SETUP button
2. Press (!) button to highlight "Rating"
3. Press ® button to access sub menu
4. Highlight "Set Password" and press OK (enter) button
to input the four digits password (Default is 8888)
5. Press OK (enter) button to access and select the rating:
1. Kid Safe 2. G 3. PG 4. PG- 13 5. PG-R 6. R
7. NC- 17 8. Adult
6. Press OK button to confirm
7. Press SETUP button to save the setting and quit
RADIO ANTENNA CONNECTIONS
1. Connect FM antenna to the FM ANT jack on the rear panel
2. Assemble AM antenna parts and connect it to the AM ANT jack
Radio LCD display
~ ~. ~nR:':
~ ~ • L. U
.n, ,n
.u~.~u
DISPLAY INFORMATION:
l.5ource -Includes AM, FM1, FM2, DVD, iPOD, AUX.
2. Station frequency (Clock time displayed when in
Power off/ iPod/ Aux modes.)
3. Status message -Includes VOL +number, BASS +/-
number, TBL +/- number, MUTE (blinking), SEEK,
TALK.
4. Pre-set station
5. SLEEP is displayed after setting up
6. ALARM 1or ALARM 2 is displayed after setting up
7. Clock time (ALFiE will show the alarm time during
the setting in alarm modes)
FM1
SLEEP
ALARM 1
23
VOLa
-
4
5 6 7

Radio Settings
1. SelECTING AM, FM1 OR FM2 RADIO Press SOURCE button on ALFiE's remote control, or soft touch SOURCE key
on the
top panel of ALFiE to select AM, FM1 or FM2.
2.
TUNING THE RADIO Press ('J0 TUNE buttons on the remote control, or soft touch 144 ~~I keys to tune frequency:
Ashort press «1
sec.) to next /previous station; alonger press (> 2 sec.) to seek.
3. STORING ARADIO STATION
TO MEMORY (PRESETS) Tune to the station you want to save as apreset. Short
press «1
sec.) one of nine numbers to call up stored AM/FM stations, then long press (> 2 sec.) that number to
save your selected station.
4.
VIEWING PRESET STATION FREQUENCY Press PRESET +[numbers] buttons to recall the preset and view the
stored AM/FM stations.
5. TALK
MODE Press TALK button, and TALK is displayed on the screen. It will reduce low frequencies effect during
talk in aradio program.
Clock and Alarm Settings
1. SELECT MODE Press CLOCK/ALARM button on the remote control to select clock or alarm modes:
A. Clock mode: 1) Short press «1 sec.) to select the "Clock" setting modes: 12/24 Hours, Hour or Minute
2) Press ~(i) keys to set the selected item.
B. Alarm mode 1) Long press (> 2 sec.) to select the "Alarm" setting modes: ALARM 1/ ALARM2, HOUR, MINUTE,
alarm outputs (AM Pl/FM1 Pl/FM2 P1/BEEPS/DVD) and ALARM ON/OFF.
2) Press ~0 keys to set the selected mode.
3) In alarm outputs mode, P1 (Preset 1) can be adjusted by pressing 1 to 9 number button.
2. SLEEP Press SLEEP button to set sleep time· °(not shown), 15,20, 30, 60, 90 minutes. Default: °
3. SNOOZE The snooze alarm will run for 10 minutes. To stop, long press CLOCK/ALARM button, select ALARM ON
mode, then press (!)0 buttons to change it to ALARM OFF.
Alfie iPod Audio System

oENGLISH
2 3
NOTE 1:
When the system
is at AM, FM1,
FM2, DVD, AUX
modes, iPod
can be charged
automatically.
NOTE 2:
The following
devices have
support for
TV Out:
•iPod touch
•iPhone (software
version
1.1.1 or
later required)
•iPod nano (3rd
generation)
•iPod classic
•iPod (5th
generation)
•iPod
with colour
display (iPod
photo)
Playing iPod
IPOD INSTALLATION
1. The iPod dock is found on the back of ALFiE.
Push the dock and it automatically extends out.
2. Now insert your iPod into ALFiE's dock.
NOTE 1: Make sure your iPod is firmly sedted in thE' Jo(k, nth .. rWI ,E
AL!="iFs IPod control May not respond properly
NOTE 2: Dock adapters erclosed 1'1 ~hls urlt 1'1(I..JOe the fo 10wlnC]
1\10.2 3G fat iPud 30GB & 40GB already 1'1.,t Ik·d un tne ,Pod dn k
No. "3' iPod mini (4GB & 6GB) No.5: 4G fat IPod (40(,B)
iPod LCD display
DISPLAY INFORMATION
1. Source -Includes AM, FM 1, FM2, DVD, iPOD, AUX.
2. Clock time
3. Status message -includes INSERT, VOL + number, BASS
+/- number, TBL +/- number, MUTE
4. SLEEP is displayed after setting up
5. ALARM 1 or ALARM 2 is displayed after setting up
iPOD
SLEEP
ALARM 1
INSERT
•• • -. " FIITI
• •. cu
Getting Started
4 5
1. TURN ON THE SYSTEM Press ON/STANDBY button on the remote control, or soft touch Power On/Off key on theTop
Panel,
to turn ALFiE on.
2. SELECT SOURCE Soft touch SOURCE key on the top panel, or press SOURCE button on ALFiE's remote control to select
iPod source input.
3. ACCESS MENU Press MENU button on the remote control to go back to the previous menu.
4. SELECT A MENU ITEM Press (!)@ buttons on the remote control to move up and down the highlight bar and press OK
button to select the item.
5. PLAY/PAUSE ASONG Soft touch II~ key on the Top Panel, or press II~ button on the remote control.
6. CHANGE THE VOLUME Soft touch (!)@ keys on theTop Panel, or press VOLUME +/- buttons.
7. SKIP TO THE NEXT SONG Soft touch ~~ next/fast-forward key on the Top Panel, or press .~ button on the remote control.
8. START ASONG OVER Soft touch ~~ previous/rewind key on theTop Panel, or press ~~ button on the remote control.
9. PLAY THE PREVIOUS SONG Soft touch ~~ key twice on the Top Panel, or press ~~ button twice on the remote control.
10. FAST-FORWARD Soft touch and hold .~ next/fast-forward key on theTop Panel, or, press and hold •• 1 button on the
remote control.
11. REWIND Soft touch and hold ~~ previous/rewind key on theTop Panel, or, press and hold ~~ button on the remote
control.
12. TV OUT Set your video capable iPod to TV out function, and view the video file on your TV.

Trou bleshooti ng
..
No power
Does not play
No Picture
Picture Noisel
distorted
Picture not full
screen
Cannot fast
forward
No sound
Check
if the power cord has been properly connected to the power outlet.
Check the main power has been switched on.
Check adisc
is loaded.
Check
to see if the disc has been loaded upside down. Whoops!
The disc may
not be compatible with ALFiE
If the disc is damaged or dirty, clean the disc or try another disc.
Moisture may be condensed inside
the player - to check, remove the disc and leave the unit pow-
ered on for one or two hou rs.
Check if the TV set has powered on, use TV remote to select AN signal for DVD rather than broadcast.
Check
if ALFiE's connections are secure.
Check
if the connection cables are damaged.
Clean the disc, and
try again.
If the disc is dirty or damaged,clean the disc or try another disc.
Reset
the colour system of the player or the TV set.
Hook up ALFiE directly to your TV, instead of via other components, such as a VCR.
Select the screen format from the player's SETUP MENU, see "SETUP MENU" of this manual
Select the screen format from DVD disc menu.
Some discs are
programmed to prevent users to fast forward at some sections, especially at the
beginning 'warning' section.
Check
if the MUTE function of the system has been activated.
MP3 disc,
no
sound or noisy
Remote
control
does not function
When PC program files or other files are mixed with MP3 files in the same disc, the player may play
the non-MP3 files with noise or no sound.
Check
if the disc, if all the files on disc are MP3 files. Skip the file, try some other files.
Remove
the obstacles between the remote control and the player.
Point
the remote control towards the remote sensor on the player.
Check
if the battery of the remote control has been loaded correctly.
Replace
the battery of the remote control
Specifications
Frequency response: 40 Hz-20K Hz
Audio OutputIinput: Earphone out IAux in
ACCESSORIES:
2.1 channel active system
Speaker drivers: Satellite:
2.5", 1 OW@4 ohm _ 2
Subwoofer:
4", 20W@4 ohm x 1
Alarm 1and Alarm 2with alarm outputs
(AM Presetl FM' Presetl
FM2 Preset! 8EEPSI OVO)
SPEAKER SYSTEM:
RADIO: Frequency range:
AM: 522 -1620 KHz (for Europe)
530 -1710 KHz (for USA)
FM: 87.5 - 108.0 MHz (for Europe)
87.5 - 107.9 MHz (for USA)
DIGITAL CLOCK:
SIN: >60dB THO: <0.3%
GENERAL:
Power input: 11 0-120VACl220-240VAC IN, 50/60 Hz, selectable
Power consumption: Standby
9W, maximum 32W.
Display: Large LCD display
Type
of disc supported:
DVD: oVDs,
DVD9, DVo1 0, DVo18, DVD±RlRW
CD: CD-oA, Co-R, CD-RW, MP3, VCD, SVCo
DVol CD disc specification: 12 cm
Operating temperature: 0- 60 Celcius
Dimension: 390WxlOsHx2sso mm
Weight:
5.7 kgs
VIDEO OUTPUTS FOR DVD PLAYER AND IPOD:
Video
output: 1.0V(p-p), 75~ RCA jack x 1
S-video output:
75_ CoY, 4-pin xl
Component video output: Y-Pb-Pr, 75~ RCA jack x 3
•
AM and FM antenna, Lovely remote control &Power cord
Alfie iPod Audio System Apple, the Apple
logo and iPod are trademarks of Apple Computer Inc, registered in the U.S. and other countries
Roth and the Roth brand are registered trademarks worldwide
