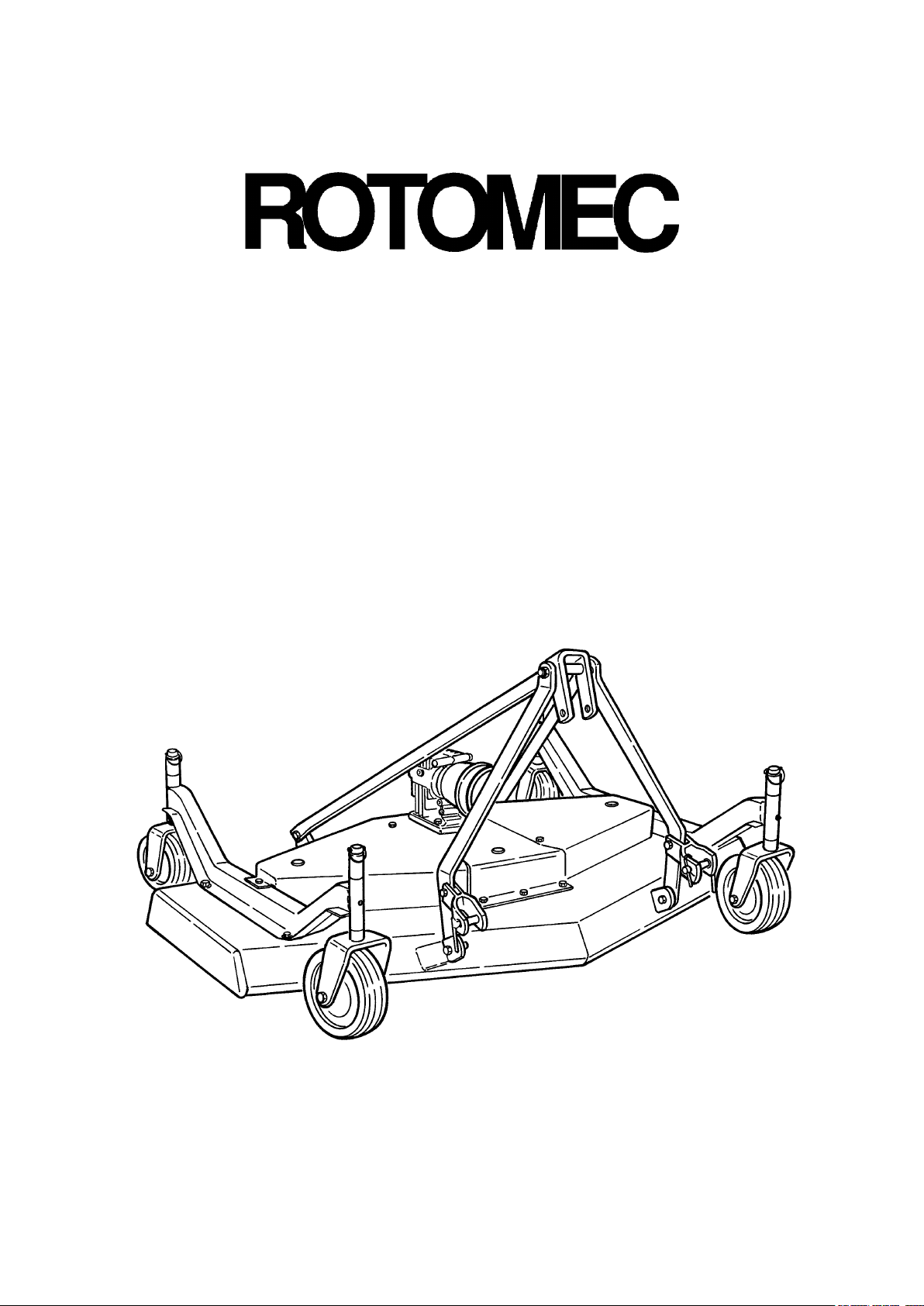

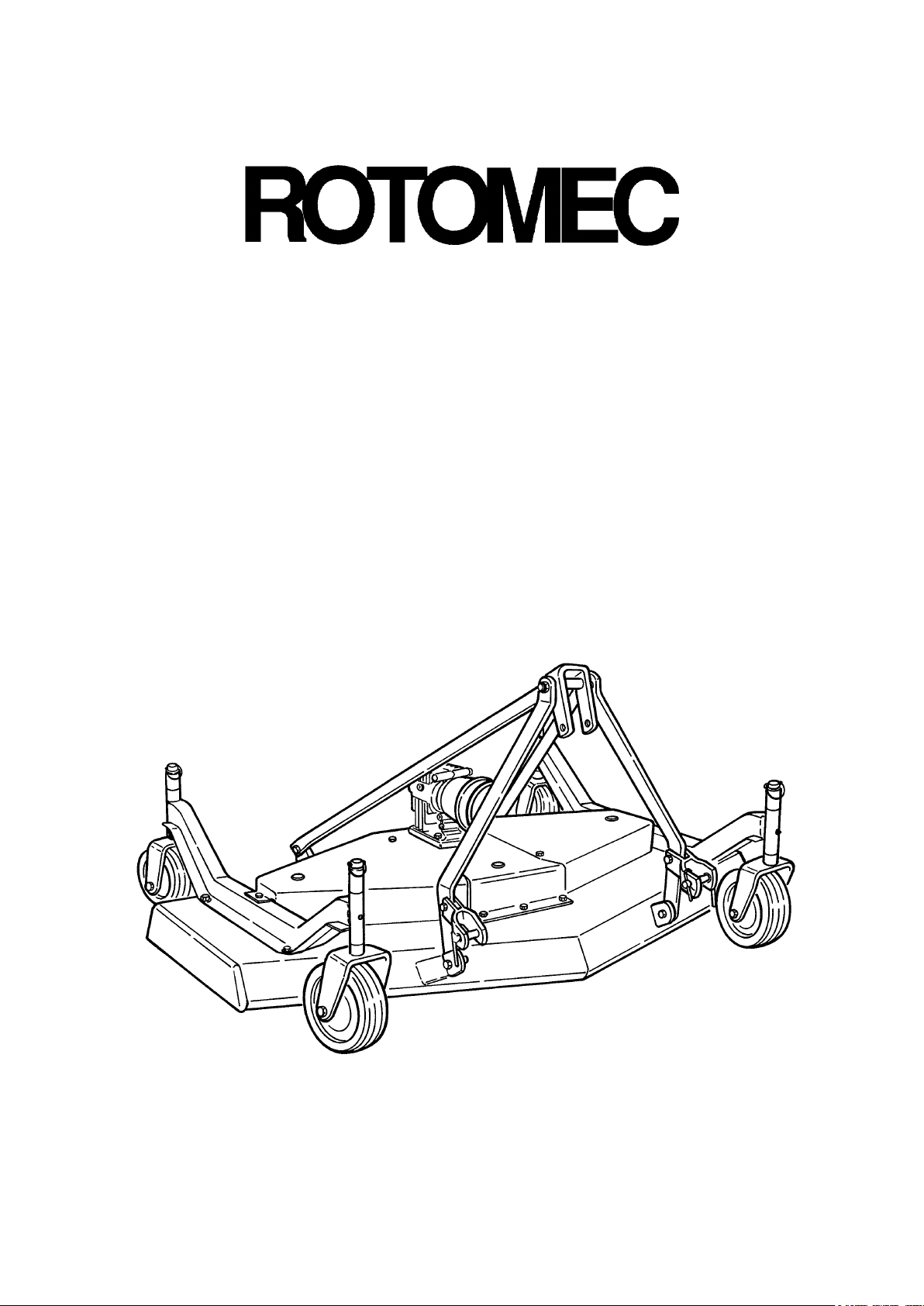

Rotomec CYCLONE C30 Series User manual

Operator's Manual
CYCLONE
CYCLONECYCLONE
CYCLONE
Three Spindle Grooming Mower
Series
SeriesSeries
Series C30
C30 C30
C30
The operator's manual is a technical service guide and must always accompany the machine.

Take note! This safety alert symbol found throughout this manual is used to call
your attention to instructions involving your personal safety and the safety of
others. ailure to follow these instructions can result in injury or death.
Signal Words
Note the use of the signal words DANGER, ARNING and CAUTION with the safety
messages. The appropriate signal words for each has been selected using the following
guidelines:
DANGER: indicates and imminently hazardous situation that, if not avoided, will result
in death or serious injury.
WARNING: indicates a potentially hazardous situation that, if not avoided, could result
in death or serious injury, and includes hazards that are exposed when guards are
removed. It may also be used to alert against unsafe practices.
CAUTION: indicates a potentially hazardous situation that, if not avoided, may result in
minor or moderate injury.
SAFETY
SAFETYSAFETY
SAFETY
This symbol means:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!

Operator's Manual
CYCLONE
CYCLONECYCLONE
CYCLONE
Three Spindle Grooming Mower
Series
SeriesSeries
Series C30
C30 C30
C30
The operator's manual is a technical service guide and must always accompany the machine.

34
8 - WARRANTY
33
7 - PRE-DELI ERY CHECKLIST
32
6 - TROUBLESHOOTING
315.04 - Storage
315.03 - Suggested Spare Parts
305.02 - Blade Spindle
305.01 - Gearbox
30
5 - REPAIR PROCEDURES
284.07 - Transport
264.06 - Driveline
264.05 - Belt Replacement
254.04 - Belt Tension
234.03 - Blade Maintenance
214.02 - Service
204.01 - Maintenance Safety
20
4 - MAINTENANCE
193.10 - Removing Mower from the Tractor
193.09 - Uneven Terrain
173.08 - Operating Techniques
173.07 - orking Speed
163.06 - Start Up
153.05 - Attaching to the Tractor
143.04 - Pre-Operational Check
133.03 - Cutting Height Adjustment
123.02 - Setup
103.01 - Operational Safety
10
3 - OPERATION
82.03 - Messages and Signs
82.02 - Starting and Stopping
72.01 - Preparation
7
2 - SAFETY PRECAUTIONS
51.03 - Model and Serial Number ID
51.01 - General
5
1 - GENERAL INFORMATION
INDEX

Thank you and congratulations for having chosen our implement.
Your new grooming mower Cyclone 'C30' is a technologically advanced machine
constructed of high quality sturdy components that will fulfil your working expectations.
Read this manual carefully. It will instruct you on how to operate and service your
mower safely and correctly. Failure to do so could result in personal injury and/or in
equipment damage.
1.01 - General
CAUTION: all hardware is metric. Only metric tools should be used. Other tools
that do not fit properly can slip and cause injury.
CAUTION: right hand and left hand sides of the implement are determined by
facing in the direction the implement will travel when going forward (see fig. 2).
1.03 - Model and Serial Number ID
Attached to the frame is an ID plate showing the model and serial number. Record your
implement model and serial number in the space provided below. Your dealer needs
this information to give you prompt, efficient service when you order parts.
1 - GENERAL INFORMATION
1 - GENERAL INFORMATION1 - GENERAL INFORMATION
1 - GENERAL INFORMATION

Carefully read the warranty section
1
, detailing coverage and limitations of this warranty.
Warranty is provided for customers who operate and maintain their equipment as
described in this manual. arranty registration is accomplished by the dealer complet-
ing and forwarding the Warranty Registration orm to the Company, along with a
copy of dealer's invoice. It is in your best interest to insure that this has been done.
arranty does not cover the following:
1. cleaning, transporting, mailing and service call charge.
2. Normal wear items such as belts, blades, bearings, drive lines, shear pins, slip
clutches, etc.
3. Depreciation or damage caused by normal wear, accidents, improper
maintenance, improper protection or improper use.
4. The use of non original spare parts and accessories.
Your Authorised Company Dealer has genuine parts in stock. Only these approved
replacement parts should be used. This limited warranty covers defective material and
workmanship. The cost of normal maintenance or repairs for accidents or improper use
and related labour will be borne by the owner.
O ERATOR'S MANUAL CYCLONE 'C30'
6
1
See chapter 8 - arranty.

Safety is the primary concern in the design and manufacture of our products. Unfortu-
nately our efforts to provide safe equipment can be wiped out by a single careless act of
an operator.
In addition to the design and configuration of equipment, hazard control and accident
prevention are dependent upon the awareness, concern, prudence and proper training
of personnel involved in the operation, transport, maintenance and storage of
equipment.
It is the operator's responsibility to read and understand all safety and operating instruc-
tions in the manual and to follow these.
Allow only properly trained personnel to operate the mower. orking with unfamiliar
equipment can lead to careless injuries. Read this manual, and the manual for your
tractor, before assembly or operating, to acquaint yourself with the machines. It is the
mower owner's responsibility, if this machine is used by any person other than yourself,
is loaned or rented, to make certain that the operator, prior to operating, reads and
understands the operator's manuals and is instructed in safe and proper use.
2.01 - Preparation
1. Before operating equipment read and understand the operator's manual and the
safety signs (see fig. 2).
2. Thoroughly inspect the implement before initial operation to assure that all
packaging materials, i.e. wires, bands, and tape have been removed.
3. Personal protection equipment including hard hat, safety glasses, safety shoes,
and gloves are recommended during assembly, installation, operation,
adjustment, maintaining and/or repairing the implement.
4. Operate the mower only with a tractor equipped with an approved
Roll-Over-Protective-System (ROPS). Always wear your seat belt. Serious injury
or even death could result from falling off the tractor.
5. Clear area to be cut of stones, branches or other debris that might be thrown,
causing injury or damage.
6. Operate only in daylight or good artificial light.
7. Ensure mower is properly mounted, adjusted and in good operating condition.
8. Ensure that all safety shielding and safety signs are properly installed and in
good condition.
2 - SAFETY PRECAUTIONS
2 - SAFETY PRECAUTIONS2 - SAFETY PRECAUTIONS
2 - SAFETY PRECAUTIONS
CYCLONE 'C30' O ERATOR'S MANUAL
7

2.02 - Starting and Stopping
1. Be sure that no one is near the machine prior to engaging or while the machine
is working.
2. Be sure the tractor is in "Neutral" before starting engine.
3. Mower operating power is supplied from tractor PTO. Refer to your tractor
manual for PTO engagement and disengagement instructions. Always operate
PTO at 540 rpm. Know how to stop the tractor and mower quickly in case of an
emergency.
4. hen engaging PTO, the engine rpm should always be low. Once engaged and
ready to start cutting, raise PTO speed to 540 rpm and maintain throughout
cutting operation.
5. Check the tractor master shield over the PTO stub shaft. Make sure it is in good
condition and fastened securely to the tractor. Purchase a new shield if old shield
is damaged or missing.
6. After striking an obstacle, disengage the PTO, shut the tractor down and
thoroughly inspect for damage before restarting.
7. Never engage the PTO until the mower is in the down position and resting on the
ground. Never raise the mower until all blades have come to a complete stop.
2.03 - Messages and Signs
1. Read and adhere to all safety and operating decals on this machine (see fig. 2).
2. Before dismounting tractor: allow moving parts to stop, stop engine, set brake
and remove the key of unattended equipment.
3. Keep away from rotating blades and driveline.
4. Keep guards and shields in place and in good condition.
5. Do not mow with bystanders in area.
6. Allow no riders on tractor or mower.
7. Allow moving parts to stop before repair.
8. Securely support mower before working underneath.
Additional warning and operating decals are available at no extra charge. Please
specify model and serial number when ordering.
O ERATOR'S MANUAL CYCLONE 'C30'
8

Fig. 2 - Safety decals; replace immediately if damaged.
1. Read the manual carefully.
2. Before maintenance operations, disengage TO and shut tractor down.
3. 540 rpm TO only.
4. Keep away from rotating driveline.
5. Keep away, objects can be thrown.
6. Never allow passengers.
7. Keep away from rotating blades.
8. Keep away from rotating belts.
9. Keep away from raised mower.
CYCLONE 'C30' O ERATOR'S MANUAL
9
123456
right side
left side
789

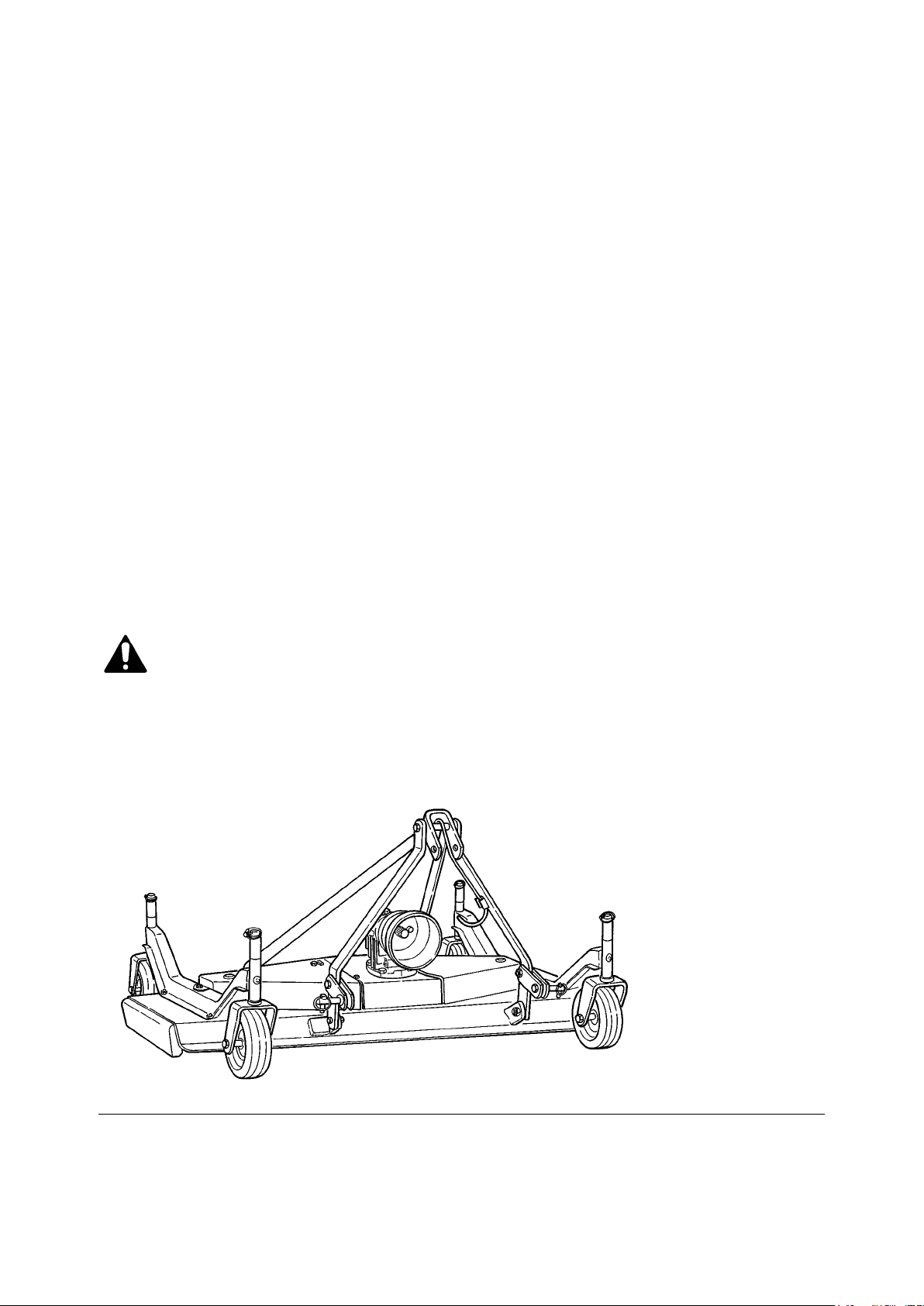

You have purchased a three spindle mower designed especially for the mowing of
grassy areas where a highly professional cut is required without wasting time.
This mower is perfect for the maintenance of parks, private lawns, industrial parks,
airports, hospital grounds, schools, highways, golf courses, sport complexes, etc. The
C30 series, for tractors up to 30 HP, come in working widths of 120, 150 and 180 cm.
(4', 5', & 6' respectively). The mower can be either tractor front or rear mounted and is
available in both rear and side discharge. On your mower, the tractor PTO transmits its
power through a driveline to a speed multiplier gearbox. A pulley is attached to the
pinion gear shaft of the gearbox which, via high resistance belts, transmits power to
pulleys coupled to the three individual spindle shafts. Blades are secured to these
shafts which turn at a high blade tip speed to cut the grass.
Our C30 grooming mower comes equipped with 4 swivel wheels. Aside from regulating
the cutting height, the wheels are set in such a way as to allow the mower to follow the
contour of the terrain and give a precise, level cut even in undulating conditions.
3.01 - Operational Safety
CAUTION: our mowers are designed considering safety as the most important
target and are the safest available in today's market. Unfortunately, human
carelessness can override the safety features built into our machines. Injury
prevention and work safety, aside from the features on our mowers, is very much
due to the responsible use of the equipment. It must always be operated
prudently following with great care, the safety instructions laid out in this manual.
1. The use of this equipment is subject to certain hazards which cannot be
prevented by mechanical means or product design. All operators of this
equipment must read and understand this entire manual, paying particular
attention to safety and operating instructions, prior to using.
2. Do not operate the tractor and mower when you are tired, sick or when using
medication.
3. Keep all helpers and bystanders at least several meters from a rotary mower.
Only properly trained people should operate this machine.
4. The majority of accidents involve entanglements on the driveline, injury of
bystanders by objects thrown by the rotating blades, and operators being
3 - OPERATION
3 - OPERATION3 - OPERATION
3 - OPERATION
O ERATOR'S MANUAL CYCLONE 'C30'
10

knocked off the tractor by low hanging limbs and then being run over by the
mower. Accidents are most likely to occur with machines that are loaned or
rented to someone who has not read the operator's manual and is not familiar
with a rotary mower.
5. Always stop the tractor, set brake, shut off the tractor engine, remove the ignition
key, lower implement to the ground and allow mower blades to come to a
complete stop before dismounting tractor. Never leave equipment unattended
with the tractor running.
6. Never place hands or feet under mower with tractor engine running or before you
are sure all motion has stopped. Stay clear of all moving parts.
7. Do not allow riders on the mower or tractor at any time. There is no safe place
for riders.
8. Do not operate unless all personnel, livestock and pets are several meters away
to prevent injury by thrown objects.
9. Before backing up, disengage the mower and look behind carefully.
10. Install and secure all guards and shields before starting or operating.
11. Keep hands, feet, hair and clothing away from moving parts.
12. This rotary mower is designed for use only on tractors with 540 rpm power take
off
2
.
13. Never operate tractor and mower under trees with low hanging limbs. Operators
can be knocked off the tractor and then run over by the rotating blades.
14. The rotating parts of this machine have been designed and tested for rugged
use. However, they could fail upon impact with heavy, solid objects such as steel
guard rails and concrete abutments. Such impact could cause the broken objects
to be thrown outward at very high velocities. To reduce the possibility of property
damage, serious injury, or even death, never allow the cutting blades to contact
such obstacles.
15. Frequently check mower blades. They should be sharp, free of nicks and cracks
and securely fastened.
16. Stop mower immediately upon striking an obstruction. Turn engine off, remove
key, inspect and repair any damage before resuming operation.
17. Stay alert for holes, rocks and roots in the terrain and other hidden hazards.
Keep away from drop-offs.
18. Use extreme care and maintain minimum ground speed when transporting on
hillside, over rough ground and when operating close to ditches or fences. Be
careful when turning sharp corners.
19. Reduce speed on slopes and sharp turns to minimise tipping or loss of control.
Be careful when changing directions on slopes. Do not start or stop suddenly on
slopes. Avoid operation on steep slopes.
20. hen using a unit, a minimum 20% of tractor and equipment weight must be on
tractor front wheels. ithout this weight, tractor could tip over, causing personal
injury or death. The weight may be attained with a front end loader, front wheel
weights, ballast in tires or front tractor weights. hen attaining a minimum 20%
of tractor and equipment weight on the front wheels, you must not exceed the
CYCLONE 'C30' O ERATOR'S MANUAL
11
2
Special versions with PTO at 1000 and 2000 rpm are available upon request.

ROPS weight certification. eigh the tractor and equipment. Do not guess or
estimate!
21. Inspect the entire machine periodically
3
. Look for loose fasteners, worn or broken
parts, and leaky or loose fittings.
22. Use only the driveline supplied with the mower. Do not use it if it is missing any
shield or safety protection.
23. Pass diagonally through sharp dips and avoid sharp drops to prevent "hanging
up" tractor and mower.
24. Avoid sudden starts and stops while travelling up or downhill.
25. Always cut down slopes; never across the face. Avoid operation on steep slopes.
Slow down on sharp turns and slopes to prevent tipping and or loss of control.
3.02 - Setup
Notice to dealer: pre-delivery setup and service including lubrication is the responsibil-
ity of the authorised dealer. It is up to him to assure that the machine is in perfect condi-
tion and ready to be used. It is his responsibility to ensure that the customer is aware of
all safety aspects and operational procedures for the mower. He must also fill out the
Pre-delivery Checklist
4
prior to delivering the mower.
CAUTION: stand clear of bands when cutting as they could be under sufficient
tension to cause them to fly loose. Take care in removing bands and wire, they
often have extremely sharp edges and cut very easy.
O ERATOR'S MANUAL CYCLONE 'C30'
12
4
See chapter 7 - Pre-delivery Checklist.
3
See chapter 4 - Maintenance.
Fig. 3
Rear discharge C30
mower, front mounted.

As mentioned above, all our grooming mowers may be either tractor front or rear
mounted. To change our mowers from front mount to rear, or vice versa, it can easily be
done at our authorised dealerships. This is accomplished by simply turning the three
point hitch and the gearbox 180 degrees (see fig. 3 & 4).
3.03 - Cutting Height Adjustment
WARNING: keep hands and feet away from moving blades.
Be sure tractor engine is off, parking brake is locked, and key is removed before
making any adjustments.
Never rely on the tractor lift system. Install blocks or stands under the mower
deck to prevent it from falling.
The cutting height is the distance from the blades to the ground. The cutting height is
adjusted by moving the spacers on the wheel yokes. Placing spacers between the
wheel arm and the wheel yoke raises the cutting height by the size of the spacer.
Removing the spacers, lowers it by the same height (see fig. 5).
Be sure all wheel arms are adjusted equally. This is the only way to ensure a
completely uniform cut.
IMPORTANT: very low cutting heights should be avoided. Damaging shock loads
occur when the blades strike the ground repeatedly. This can cause damage to
the mower.
Cutting lower than 5 cm. (2") under most circumstances should be avoided.
CYCLONE 'C30' O ERATOR'S MANUAL
13
Fig. 4
Side discharge C30
mower, rear mounted.

The cutting height is adjustable from 25 to 100 mm. (1" to 4").
A front anti-scalp roller is also available upon request. This accessory is particularly
helpful when cutting over uneven terrain.
3.04 - Pre-Operational Check
Check each of the following carefully, prior to engaging the equipment:
1. the spindle bearings have been greased.
2. The belts for proper tension.
3. The oil in the gearbox.
4. The driveline cross & bearings have been greased.
5. No wrappings or foreign objects are around the blades, belts or driveline.
6. The blades are properly installed and the blade bolts properly torqued
5
.
7. All hardware is tight.
8. The tractor, to ensure correct direction of PTO and rpm speed.
9. All safety shields and guards are in place and tightly attached.
10. No people or animals are in the work area.
11. hen working, make sure the tractor hitch is in the "float" position, in order to
allow the mower to follow the contour of the ground.
DANGER: stay clear of rotating driveline. Entanglement in rotating driveline can
cause serious injury. Disengage PTO, engage parking brake or place
O ERATOR'S MANUAL CYCLONE 'C30'
14
5
See table 1, page 29.
Fig. 5
The cutting height is
adjusted by moving
the height adjustment
spacers on the wheel
yokes above or below
the wheel arm.

transmission in "Park", shut off the tractor and remove the key before working
around hitch, attaching or detaching driveline, making adjustments, servicing or
cleaning the machine.
3.05 - Attaching to the Tractor
Only use this model implement with tractors in the correct power range
6
. Never use this
mower with tractors over 30 HP.
CAUTION: check the tractor PTO rpm to ensure it is set at 540 and turns
clockwise.
CAUTION: always ensure that the tractor tire pressure is correct according to the
tractor operator's manual.
DANGER: failure to ensure a secure coupling of the implement to the tractor can
cause injury and damage to the implement or tractor.
To attach the mower to the tractor do the following:
1. back the tractor up to the mower in order to slip the tractor hitch arms over the
hitch pins welded to the mower hitch arms. Turn off the tractor engine. Secure
them in place with the lynch pins.
2. Adjust the tractor sway blocks or chains to remove all side movement.
3. Attach the top link secure it in place with the top hitch pin. Adjust tractor top link
to allow the mower to follow the ground contour and yet remain as level as
possible when raised to the transport position.
4. Install the shielded driveline to the tractor by first lining up the splines and
depressing the snap pin. Push the yoke onto the PTO shaft as far as it will go.
Release the pin and pull back slowly until the pin clicks in place. Repeat this
operation on the implement end.
5. Attach the driveline chains to the tractor and to the mower to keep the driveline
protection from turning. The chains should not be too tight.
CYCLONE 'C30' O ERATOR'S MANUAL
15
6
See table 2, page 29.

3.06 - Start Up
DANGER: the mower must always be lowered to the ground before starting
tractor engine or engaging PTO lever.
Lower mower to the ground with the tractor rockshaft control lever. ith the engine
idling, slowly engage the PTO drive. Move the throttle lever until the PTO speed
indicated on the mower is obtained.
The mower is normally set for a PTO speed of 540 rpm
7
.
Shift the transmission to a slow speed gear and start forward, increase the ground
speed by shifting upward until the desired speed is obtained. Do not mow in reverse
unless absolutely necessary and only after careful observation of the area behind the
mower.
CAUTION: do not operate this mower at a PTO speed or direction of rotation other
than that shown on the mower. Serious damage can occur to the machine and/or
the operator.
Before starting to mow, never forget that the operator is responsible for the following:
1. safe and correct driving of the tractor and mower.
2. To learn precise safe operating procedures for both the tractor and the mower.
3. To ensure all maintenance and lubrication has been performed on the mower.
4. To have read and understood all safety aspects for the mower in the operator's
manual.
5. To have read and understood all safety decals on the mower.
6. Checking the condition of the blades. orn or damaged blades should be
changed before starting
8
.
7. Checking to ensure that the cutting edge is the leading edge of the blade
9
.
8. Checking that there is no wire, weed, grass or other material wrapped around
blades.
9. Checking to see if front weights need to be added to the tractor in order to
maintain balance.
10. Checking the tractor tires for the proper pressure in accordance with the tractor
operator's manual.
11. Checking the side discharge chute (on side discharge mowers only) to ensure
that it is properly in place. Checking that the PTO shield, belt shields and all
other shielding are on the machine and securely in place.
O ERATOR'S MANUAL CYCLONE 'C30'
16
9
See section 4.03 - Blade Maintenance.
8
See section 4.03 - Blade Maintenance.
7
Special versions with PTO at 1000 and 2000 rpm are available upon request.

12. Making sure the proper attire is worn. Avoiding loose fitting clothing which can
become entangled. earing sturdy, tough-soled work shoes and protective
equipment for eyes, hands, ears and head. Never operate tractor or implements
in bare feet, sandals or sneakers.
13. Checking area for stones, branches and other debris that might be thrown.
14. Ensuring proper lighting is available, sunlight or good artificial lighting.
3.07 - Working Speed
The mowing speed depends on ground conditions, tractor HP, mowing height, and
grass thickness. Only a test run will enable you to gauge the optimal working speed for
your conditions.
Under most conditions a 4 to 15 km/h (3 to 10 mph) ground speed is best. As a rule of
thumb, and if the conditions permit, grass dispersion is increased by higher ground
speeds. This is true for both rear and side discharge models.
In order to obtain the best cut possible, always keep the tractor rpm up to the speed
indicated on the mower. hen increasing or decreasing mowing ground speed, always
use gear selection, not engine speed. This will maintain the constant maximum blade
speed necessary for a clean cut.
3.08 - Operating Techniques
All of the following factors are important in selecting the proper forward speed:
1. height of grass.
2. Type of grass.
3. Density of grass.
4. Type of terrain.
5. Grass condition, wet or dry.
This mower has been designed to cut grass with heights from 10 to 20 cm. (4" to 8"). It
is recommended to avoid cutting grass taller than 25 cm. (10").
For the best results, try cutting the grass at least once per week during growing season.
Tall, dense grass should be cut at low speed, while thin medium grass can be cut at a
faster ground speed. For cleaner cuts and efficient mowing, the blades must be kept
sharp
10
.
Always operate PTO at 540 rpm. This is necessary to maintain proper blade speed and
obtain a clean cut.
CYCLONE 'C30' O ERATOR'S MANUAL
17
10
See Sharpening Blades in section 4.03 - Blade Maintenance.

Under certain conditions, tractor tires may roll some grass down and prevent it from
being cut at the same height as the surrounding area. If this occurs reduce the tractor
ground speed but maintain a 540 rpm engine speed. The lower ground speed will
permit the grass to at least partially rebound. Under some conditions grass will not
rebound enough to be cut even, resulting in an uneven appearance. In general, lower
cutting height gives a more even cut with less tendency to leave tire tracks. If cut is still
not satisfactory, cut the area twice.
Mow extremely tall grass twice. On the first pass use a high cutting height. On the
second pass position the mower at the desired height and when practical, mow at a
right angle in travel to the first pass.
Plan your pattern to travel straight forward whenever possible.
It is better to cut grass more often, than too short. Short grass deteriorates rapidly in hot
weather and invites weed growth during growing season.
hen using the side discharge model, operate the mower with uncut grass to the left.
Clippings will discharge over the cut area. Continued discharging of clippings over the
uncut area could result in the build up of clippings.
If at any time the mower should jam resulting in belt slippage of 2 or more seconds,
raise the mower and continue for 2-3 minutes. This will allow the pulleys to cool and
prolong belt life.
DANGER: never operate the mower without the discharge deflector on side
discharge models properly installed (see #1, fig. 6). The mower blades can throw
objects tens of meters which could result in personal or property damage.
Pick up all rocks and other debris before mowing.
O ERATOR'S MANUAL CYCLONE 'C30'
18
1
Fig. 6 - Side discharge C30 mower with the deflector properly installed.

Enter new areas carefully. Cut grass higher at first, allowing mower to clear
hidden objects.
CAUTION: for emergency reasons learn how to stop the tractor and mower
quickly. On the Cyclone mowers always disengage the PTO, lock parking brake,
stop engine and allow the mower blades to come to a complete stop before
dismounting the tractor.
3.09 - Uneven Terrain
DANGER: be careful of roll-over when operating tractor and mower over uneven
ground.
In extremely uneven terrain rear wheel weights, front tractor weights, and/or tire ballast
should be used to improve stability.
hen mowing over uneven terrain, observe the type of terrain and develop a safe
mowing pattern. henever traction or stability is doubtful, first test drive over the terrain
with the PTO disengaged.
Operate the mower up and down steep slopes, not across slopes, to prevent the tractor
from tipping. Avoid sudden stops and starts, and slow down before changing directions
on a slope.
Pass diagonally through sharp dips and avoid sharp drops to prevent hanging up the
tractor and mower.
Slow down on sharp turns and slopes to prevent tipping or loss of control.
Avoid tipping the mower while cutting. atch for holes, roots or other hidden objects.
Do not cut near the edge of a gully, ditch or stream bank.
3.10 - Removing Mower from the Tractor
CAUTION: disengage tractor PTO. Set parking brake. Stop engine and remove key
from ignition. Disconnect mower driveline from tractor PTO shaft. Collapse drive-
line and secure it in place with the storage hook on the mower three point.
Disconnect three point linkage and carefully drive tractor away from mower.
CYCLONE 'C30' O ERATOR'S MANUAL
19

DANGER: stop engine, lock parking brake and remove key before performing any
service or maintenance.
Never rely on the tractor lift system. Install blocks or stands under the mower
deck to prevent it from falling.
Always use personal protection devices, such as glasses or gloves when
performing maintenance.
Keep fingers out of slots to prevent injury.
4.01 - Maintenance Safety
1. Good maintenance is your responsibility.
2. Keep service area clean and dry. Be sure electrical outlets and tools are properly
grounded. Use adequate light for the job at hand.
3. Make sure there is plenty of ventilation. Never operate the engine of the towing
vehicle in a closed building. The exhaust fumes may cause asphyxiation.
4. Make no repair or adjustments with the tractor engine running. Before working on
the machine, disengage the PTO, shut off the engine, set the brakes, and
remove the ignition key.
5. Be certain all moving parts on attachment have come to a complete stop before
attempting to perform maintenance.
6. Never work under equipment unless it is blocked securely.
7. Always use personal protection devices such as eye, hand and hearing
protectors, when performing any service or maintenance.
8. Frequently check mower blades. They should be sharp, free of nicks and cracks
and securely fastened.
9. Periodically tighten all bolts, nuts and screws and check that all cotter pins are
properly installed to ensure unit is in a safe condition.
10. hen completing a maintenance or service function, make sure all safety shields
and devices are installed before placing unit in service.
11. After servicing, be sure all tools, parts and service equipment are removed.
12. Never replace hex bolts with less than grade five bolts unless otherwise
specified, i.e. shear bolts
11
.
4 - MAINTENANCE
4 - MAINTENANCE4 - MAINTENANCE
4 - MAINTENANCE
O ERATOR'S MANUAL CYCLONE 'C30'
20
11
Refer to table 1 - Torque Specifications, for head identification marking.
