Rotomec CYCLONE C70 Series User manual

Operator's Manual
CYCLONE
CYCLONECYCLONE
CYCLONE
Three Spindle Grooming Mower
Series C70
Series C70Series C70
Series C70
The operator's manual is a technical service guide and must always accompany the machine.
MEC70EB

Take note! This safety alert symbol found throughout this manual is used to call
your attention to instructions involving your personal safety and the safety of
others. ailure to follow these instructions can result in injury or death.
Signal Words
Note the use of the signal words DANGER, WARN NG and CAUT ON with the safety
messages. The appropriate signal words for each has been selected using the following
guidelines:
DANGER: indicates and imminently hazardous situation that, if not avoided, will result
in death or serious injury.
WARNING: indicates a potentially hazardous situation that, if not avoided, could result
in death or serious injury, and includes hazards that are exposed when guards are
removed. t may also be used to alert against unsafe practices.
CAUTION: indicates a potentially hazardous situation that, if not avoided, may result in
minor or moderate injury.
SAFETY
SAFETYSAFETY
SAFETY
MEC70EB
This symbol means:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS IN OL ED!

Operator's Manual
CYCLONE
CYCLONECYCLONE
CYCLONE
Three Spindle Grooming Mower
Series C70
Series C70Series C70
Series C70
The operator's manual is a technical service guide and must always accompany the machine.

35
8 - WARRANTY
34
7 - PRE-DELIVERY C ECKLIST
33
6 - TROUBLES OOTING
325.04 - Storage
325.03 - Suggested Spare Parts
305.02 - Blade Spindle
305.01 - Gearbox
30
5 - REPAIR PROCEDURES
294.07 - Transport
284.06 - Driveline
274.05 - Belt Replacement
264.04 - Belt Tension
244.03 - Blade Maintenance
224.02 - Service
214.01 - Maintenance Safety
21
4 - MAINTENANCE
193.10 - Removing Mower from the Tractor
183.09 - Uneven Terrain
173.08 - Operating Techniques
173.07 - Working Speed
163.06 - Start Up
153.05 - Attaching to the Tractor
143.04 - Pre-Operational Check

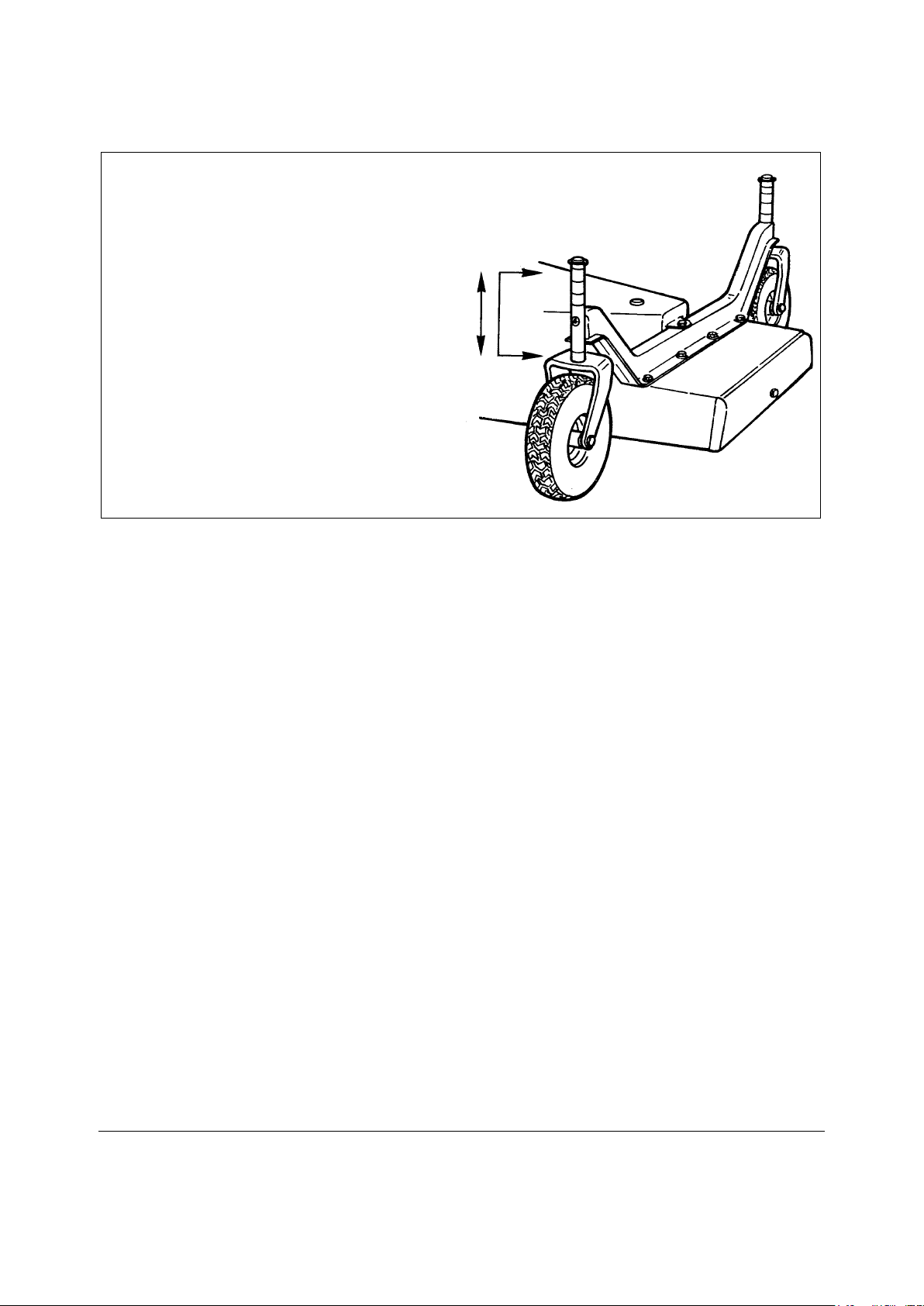

133.03 - Cutting Height Adjustment
123.02 - Setup
103.01 - Operational Safety
10
3 - OPERATION
82.03 - Messages and Signs
82.02 - Starting and Stopping
72.01 - Preparation
7
2 - SAFETY PRECAUTIONS
51.02 - Model and Serial Number D
51.01 - General
5
1 - GENERAL INFORMATION
INDEX

Thank you and congratulations for having chosen our implement.
Your new grooming mower is a technologically advanced machine constructed of high
quality sturdy components that will fulfil your working expectations.
Read this manual carefully. t will instruct you on how to operate and service your
mower safely and correctly. Failure to do so could result in personal injury and or equip-
ment damage.
1.01 - General
CAUTION: all hardware is metric. Only metric tools should be used. Other tools
that do not fit properly can slip and cause injury.
CAUTION: right hand and left hand sides of the implement are determined by
facing in the direction the implement will travel when going forward (see fig. 2).

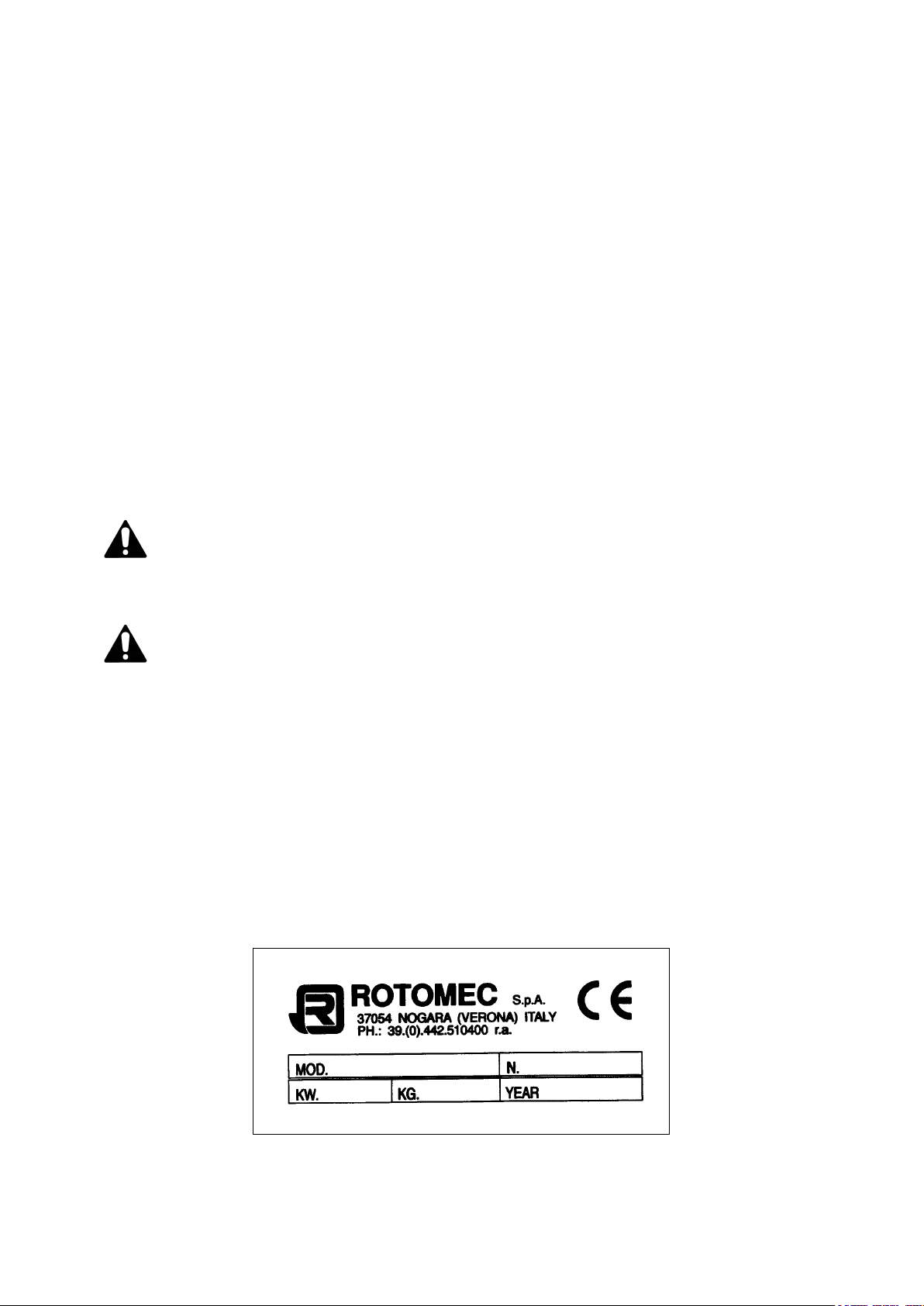

1.02 - Model and Serial Number ID
Attached to the frame is an D plate showing the model and serial number (see below).
Record your implement model and serial number in the space provided below, a
facsimile of the D Plate on the machine. Your dealer needs this information to give you
prompt, efficient service when you order parts.
1 - GENERAL INFORMATION
1 - GENERAL INFORMATION1 - GENERAL INFORMATION
1 - GENERAL INFORMATION
CYCLONE 'C70' OPERATOR'S MANUAL
GENERAL INFORMATION 5 ROTOMEC

Carefully read the warranty section
1
, detailing coverage and limitations of this warranty.
Warranty is provided for customers who operate and maintain their equipment as
described in this manual. Warranty registration is accomplished by the dealer by
completing and forwarding the Warranty Registration orm to the Company, along
with a copy of the dealer's invoice. t is in your best interest to insure that this has been
done.
Warranty does not cover the following:
1. cleaning, transporting, mailing and service call charges.
2. Normal wear items such as belts, blades, bearings, drive lines, shear pins, slip
clutches etc.
3. Depreciation or damage caused by normal wear, accidents, improper
maintenance, improper protection or improper use.
4. The use of non original spare parts and accessories.
Your Authorised Company Dealer has genuine parts in stock. Only these approved
replacement parts should be used.
This limited warranty covers defective material and workmanship. The cost of normal
maintenance or repairs for accidents or improper use and related labour will be borne
by the owner.
OPERATOR'S MANUAL CYCLONE 'C70'
ROTOMEC 6 GENERAL INFORMATION
1
See chapter 8 - Warranty.

Safety is the primary concern in the design and manufacture of our products. Unfortu-
nately our efforts to provide safe equipment can be wiped out by a single careless act of
an operator.
n addition to the design and configuration of equipment, hazard control and accident
prevention are dependent upon the awareness, concern, prudence and proper training
of personnel involved in the operation, transport, maintenance and storage of
equipment.
t is the operator's responsibility to read and understand all safety and operating instruc-
tions in the manual and to follow these.
Allow only properly trained personnel to operate the mower. Working with unfamiliar
equipment can lead to careless injuries. Read this manual, and the manual for your
tractor, before assembly or operating, to acquaint yourself with the machines. t is the
mower owner's responsibility, if this machine is used by any person other than yourself,
is loaned or rented, to make certain that the operator, prior to operating, reads and
understands the operator's manuals and is instructed in safe and proper use.
2.01 - Preparation
1. Before operating equipment read and understand the operator's manual and the
safety signs (see fig. 2).
2. Thoroughly inspect the implement before initial operation to assure that all
packaging materials, i.e. wires, bands, and tape have been removed.
3. Personal protection equipment including hard hat, safety glasses, safety shoes,
and gloves are recommended during assembly, installation, operation,
adjustment, maintaining and/or repairing the implement.
4. Operate the mower only with a tractor equipped with an approved
Roll-Over-Protective-System (ROPS). Always wear your seat belt. Serious injury
or even death could result from falling off the tractor.
5. Clear area to be cut of stones, branches or other debris that might be thrown,
causing injury or damage.
6. Operate only in daylight or good artificial light.
7. Ensure mower is properly mounted, adjusted and in good operating condition.
8. Ensure that all safety shielding and safety signs are properly installed and in
good condition.
2 - SAFETY PRECAUTIONS
2 - SAFETY PRECAUTIONS2 - SAFETY PRECAUTIONS
2 - SAFETY PRECAUTIONS
CYCLONE 'C70' OPERATOR'S MANUAL
SAFETY PRECAUTIONS 7 ROTOMEC

2.02 - Starting and Stopping
1. Be sure that no one is near the machine prior to engaging or while the machine
is working.
2. Be sure the tractor is in "Neutral" before starting engine.
3. Mower operating power is supplied from tractor PTO. Refer to your tractor
manual for PTO engagement and disengagement instructions. Always operate
PTO at 540 rpm. Know how to stop the tractor and mower quickly in case of an
emergency.
4. When engaging PTO, the engine rpm should always be low. Once engaged and
ready to start cutting, raise PTO speed to 540 rpm and maintain throughout
cutting operation.
5. Check the tractor master shield over the PTO stub shaft. Make sure it is in good
condition and fastened securely to the tractor. Purchase a new shield if old shield
is damaged or missing.
6. After striking an obstacle, disengage the PTO, shut the tractor down and
thoroughly inspect for damage before restarting.
7. Never engage the PTO until the mower is in the down position and resting on the
ground. Never raise the mower until all blades have come to a complete stop.
2.03 - Messages and Signs
1. Read and adhere to all safety and operating decals on this machine (see fig. 2).
2. Before dismounting tractor: allow moving parts to stop, stop engine, set brake
and remove the key of unattended equipment.
3. Keep away from rotating blades and driveline.
4. Keep guards and shields in place and in good condition.
5. Do not mow with bystanders in area.
6. Allow no riders on tractor or mower.
7. Allow moving parts to stop before repair.
8. Securely support mower before working underneath.
Additional warning and operating decals are available at no extra charge. Please
specify model and serial number when ordering.
OPERATOR'S MANUAL CYCLONE 'C70'
ROTOMEC 8 SAFETY PRECAUTIONS

Fig. 2 - Safety decals; replace immediately if damaged.
1. Read the manual carefully.
2. Before maintenance operations, disengage PTO and shut tractor down.
3. 540 rpm PTO only.
4. Keep away from rotating driveline.
5. Keep away, objects can be thrown.
6. Never allow passengers.
7. Keep away from rotating blades.
8. Keep away from rotating belts.
9. Keep away from raised mower.
CYCLONE 'C70' OPERATOR'S MANUAL
SAFETY PRECAUTIONS 9 ROTOMEC
right side
left side
1234 56 789

You have purchased a three spindle mower designed especially for the mowing of
grassy areas where a highly professional cut is required without wasting time.
This mower is perfect for the maintenance of parks, private lawns, industrial parks,
airports, hospital grounds, schools, highways, golf courses, sport complexes, etc. The
C70 series, for tractors up to 70 HP, come in working widths of 230 and 280 cm. (90" &
110"). The mower can be either tractor front or rear mounted. On your mower, the
tractor PTO transmits its power through a driveline to a speed multiplier gearbox. A
pulley is attached to the pinion gear shaft of the gearbox which, via high resistance
belts, transmits power to pulleys coupled to the three individual spindle shafts. Blades
are secured to these shafts which turn at a high blade tip speed to cut the grass.
Our C70 grooming mower comes equipped with 4 swivel wheels. Aside from regulating
the cutting height, the wheels are set in such a way as to allow the mower to follow the
contour of the terrain and give a precise level cut even in undulating conditions.
3.01 - Operational Safety
CAUTION: our mowers are designed considering safety as the most important
target and are the safest available in today's market. Unfortunately, human
carelessness can override the safety features built into our machines. Injury
prevention and work safety, aside from the features on our mowers, is very much
due to the responsible use of the equipment. It must always be operated
prudently following with great care, the safety instructions laid out in this manual.
1. The use of this equipment is subject to certain hazards which cannot be
prevented by mechanical means or product design. All operators of this
equipment must read and understand this entire manual, paying particular
attention to safety and operating instructions, prior to using.
2. Do not operate the tractor and mower when you are tired, sick or when using
medication.
3. Keep all helpers and bystanders at least several meters from a rotary mower.
Only properly trained people should operate this machine.
4. When this machine is operated in populated areas where thrown objects could
injure persons or property, standard equipment safety chain shielding (which is
designed to reduce the possibility of thrown objects) must be installed.
3 - OPERATION
3 - OPERATION3 - OPERATION
3 - OPERATION
OPERATOR'S MANUAL CYCLONE 'C70'
ROTOMEC 10 OPERATION
