ROVE L3510 Pro User manual

User Manual
L3510
Pro
APPLIED SCIENCE
from
Robotic Vacuum

SAFETY INFORMATION.....................................................................................................................................1
PRODUCT INTRODUCTION.................................................................................................................................5
INSTALLATION INSTRUCTION…………........................................................................................................................8
ROUTINE MAINTENANCE ......................................................................................................................................13
PRODUCT SPECIFICATIONS..................................................................................................................................16
TROUBLESHOOTING GUIDE..................................................................................................................................17
COMMON PROBLEMS........................................................................................................................................19
WARRANTY................................................................................................................................................................20
CONTENTS

1
SAFETY INFOMRATION
Usage Limitations
•The product is used for floor cleaning in home environment ONLY and cannot be used for outdoor, non-ground surfaces (such as sofa)
and commercial/industrial environment.
•Please do not operate the product when the temperature is below 32°F or above 100°F, wet surfaces or over sticky substances on the
ground.
•Please make sure no wiring is on the floor (including power cable from charging station) to prevent wiring from being trapped
in the device and being damaged.
•Please remove fragile objects (such as vases, plastic bags, etc.) on the ground to prevent device from being damaged.
•This device can be used by children age 8years and older.
•Adult supervision is required.
•Please keep main brush and other cleaning tools away from children.
•Please do not place objects (including children and pets) on a stationary or moving machine.
•Never let clothing or body parts (such as hair, nails, etc.) be drawn into the brush or wheel of this device, otherwise it may cause
personal injury.
•Please do not use this product to sweep burning objects (such as burning cigarettes, matches, etc.).
•Please do not use this product to clean long-haired carpet (some carpets may need to be cleaned differently).
•Please keep the device far away from hard or sharp objects (such as glass, iron nails, etc.).
•Please do not move the machine by holding the protective cover of the LiDAR and collision bumper.
•Please regularly clean and maintain the device and the charging base under shutdown or power-off state.
•Please do not wipe any part of the product using a wet cloth or any other liquid.
•Please operate this product in accordance with the steps indicated in the User Manual.
•Keep the User Manual for future reference.
•Any operational behavior against the guiding content in the User Manual is likely to result in serious personal injury or damage to
the product itself.

2
SAFETY INFORMATION
1. This device is only to be used with the power supply unit provided with it.
2. The adapter must be removed from the socket-outlet before cleaning or maintaining the device.
3. This device contains batteries that are only replaceable by skilled persons.
4. The battery must be removed from the device before it is disposed of.
5. This device must be disconnected from the power supply when removing the battery.
6. The battery is to bedisposed of safely.
WARNING: For the purposes of recharging the battery, only use the detachable power supply unit provided with this
device.
Battery and Charging
•Please do not use a battery, charging base or charger provided by any third parties.
•Please do not dismantle or refit battery and charging base.
•Please keep the charging base away from heat sources(such as heating plate).
•Please do not wipe or clean the charging base using a wet cloth or wet hand.
•Please do not improperly dispose of used batteries.Used batteries should be disposed of by a professional recycling
agency.
•If the power line is damaged or broken, please stop using it immediately and replace it with official Applied Science
products.
•Please ensure the robot is turned off during transportation and the product should be transported in its original
packaging.
•If the device is left unused for too long, it should be fully charged and then placed in acool and dry place. Charge the
device at least every 3 months,to avoid damaging batteries due to excessive discharge.
Plug Type Model Input Output
USA GA241-2001000U 100-240VAC 50/60Hz 0.6A 20V1A

3
SAFTETY INFORMATION
Disposal Instructions
•The following information is only applicable to the disposal of this device,not its daily use.
•The chemical substances contained in the battery will pollute the environment. Before disposing of this product, remove the battery
from it and take it to a professional recycling station. The battery should only be removed after it has been used completely.Do
not under any circumstance allow the battery to come into contact with metal objects.
Removing the Battery
1. Ensuring that the robot is not touching the charging base, keep the product running until it uses up all of the battery and shuts
down.
2. Remove the screws from the batterycover.
3. Remove the battery cover, pull out the battery plug, and then remove the battery.
Laser Safety information
•LiDAR of the product complies with the standard for class1 laser products of lEC60825 and does not produce dangerous
laser radiation.
•Laser class lEC-60825 Class1.
•The maximum laser output power of the product 10mW.
•Laser head Pulse time (1/2300s).
•invisible laser radiation.
•Laser energy-Exposure near aperture may cay cause burns.
•Standard: lEC 60825-1:2014
Frequency
2.4Ghz~2.4835Ghz
Power
≤
17dBm

WARNING !
Indoor use only.
This symbol means that according to local laws and regulations your
product and/or its battery shall be disposed of separately from household
waste. When this product reaches the end of its life, the user has the choice
to give this product to acompetent recycling organization. Proper
recycling of your product will protect human health andthe environment.
BATTERY WARNING
1. The lithium battery is built into this product. It must not be dismantled, impacted or exposed to fire.
2. The battery is subjected to extremely low air pressure conditions that may result in an explosion or leakage of flammable liquid or gas.
3. Please do not put the battery in ahigh-temperature environment or expose it to the sun; doing so could cause it to explode.
4. Please do not continue to use this product if the battery appears to be swollen.
5. Please dispose of the battery in accordance with local regulations. Do not dispose of the battery as normal household waste.
6. Please do not attempt to repair, disassemble ,modify or replace the battery.
7. Please do not place pressure on or pierce the battery with hard objects. Damaging the battery may cause battery leakage,
overheating or fires.
4

5

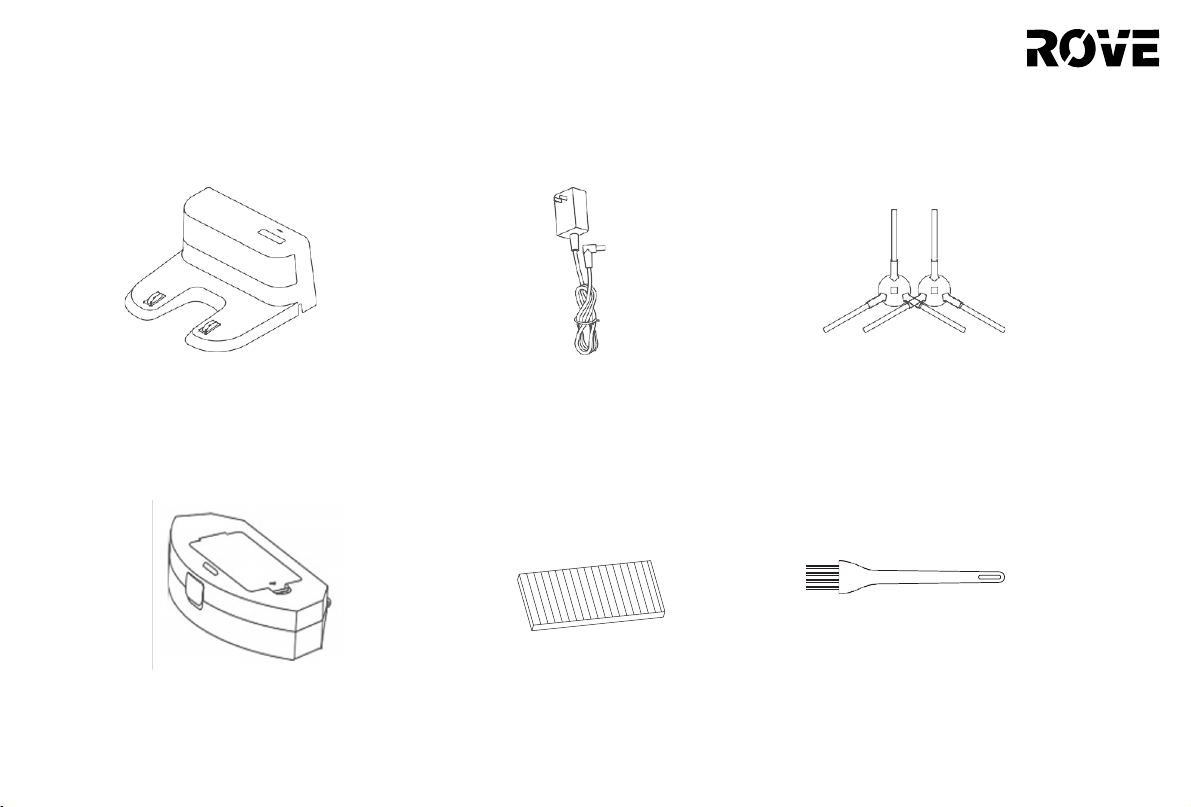

WHAT’S INCLUDED
Charging Base x 1 Adapter x 1 Left Sidebrush x1
Right Sidebrush x 1
Dust Box x 1
HEPA Filter x 1 + Sponge Foam Filter x 1 Cleaning Brush x 1
PRODUCT INTRODUCTION

PRODUCT INTRODUCTION
6

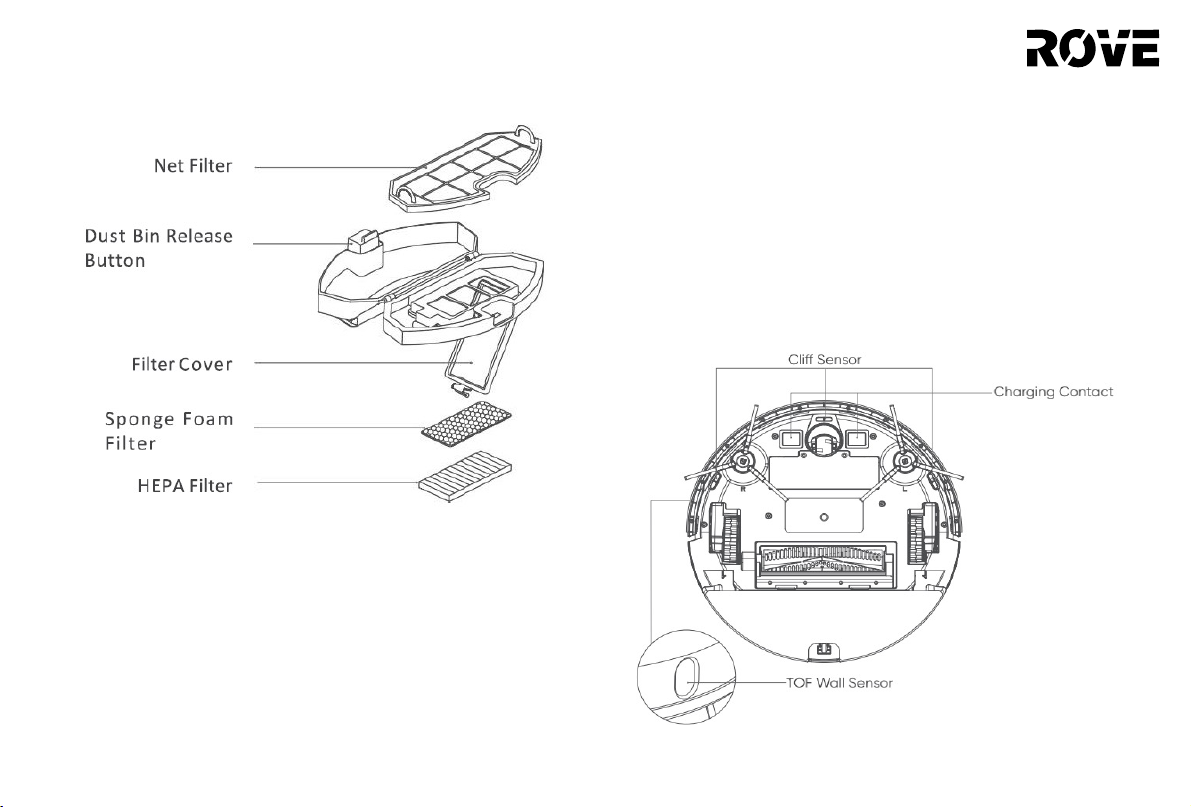

Robot Vacuum
Filter Cover
Dust Bin Release Button
TOF Wall Sensor
LiDAR Module
Charging Base
Detection Sensor
Bumper Sensor
LiDAR Collision
Detection Sensor
Obstacle Detection
Sensor
Omnidirectional Wheel
Left Side Brush
Right Side Brush
Charging Contact
Primary Wheel
Main Brush
Main Brush Cover
Buckle
Cliff Sensor

7
Robot Vacuum
Charging Base
On/Off/Clean/Pause Button
•Press once to start/pause cleaning
•Press and hold for 3 secondsto turn the
device on/off
•When an error occurs, press and hold
for 15 seconds to force shutdown
Indicator Light
•White: Connected to Wi-Fi
•Orange: Not connected to Wi-Fi
•Red: Error or low battery
Reset Wi-Fi
•Press andhold both buttons for 3 seconds
Recharge/Partial Clean/Pause Button
•Press to recharge/pause
•Press andhold for 3 seconds to start partial
cleaning
Power Indicator Light
Charging
Base Cover
Recharging Base
Signal Emitter
Power Connector
Cable Reel
Charging
Base Compartment
Charging Base
Power Pins
PRODUCT INTRODUCTION

1. Connect the adaptor power cable with the charging base,
and then place any excess cable into the charging base’s
inner compartment.
2. Place the charging base against the wall on aflat surface.
Then connect the base to apower supply.
3. Install the Side Brushes
Align the left andright brushes with the corresponding markings on
the bottom cover of the device. Press side brushes down until they click.
4. Power On and Charging
Press and hold the button to turn on the device. Wait until the indicator
light turns on, and then place the device on the charging base.
Note:
This device cannot start if it does not have enough battery power. Place the device on the
charging base, and it will automatically turn on when it has enough power. The device can work
normally only when the battery is ≥20% charged. As shown in the figure, the front of the device
should face the charging base so that the charging contact of the robot is touching the wireless
power receiver. The distance between the front of the device and the charging base should be
around 0.8 inch.
8
Note:
•Ensure that the charging base has at least 0.5 m of free space on both sides,
and 1.5 m of free space in front of it.
•During installation, keep the power cable off the ground.When the power cable is
on the ground, it may be dragged by the robot,which will cause the charging base
to power off.
•The charging indicator light will remain on as long as the charging base has power.
>0.5m
>0.5m
>1.5 m
INSTALLATION INSTRUCTION

Current Cleaning Area
Planned Cleaning Area
ON/OFF BUTTON
Press and hold the button for 3 seconds. The indicator should light
up blue to indicate that the device is turned on.
Under abnormal condition, press and hold button for 15 seconds to
force the device to shutdown immediately.
Note: The device cannot be turned off while charging in the charging base.
Note: If the device cannot find the charging base, it will return to its starting position.
Users must manually place the device on the charging base.
CLEAN/PAUSE
Once the device has turned on, press the button on the robot or use the mobile app
to start the cleaning process.
(Press any key during cleaning to pause cleaning)
Note:
•ROVE robot vacuum CANNOT be used to cleanup liquids.
•If the battery level is lower than 20%, the device will not be able to perform cleaning. Please charge
the device before cleaning.
•If the battery level falls below 20% during the cleaning process, the device will automatically return to
the charging base to recharge. Once the battery has been charged to 80%, the device will attempt to
resume itswork.
•Pickup all cables (including the power cable of the charging base) from the floor before use.It
ensures the device does not cause any power outages /object damage by dragging cables .
Cleaned Area Cleaned Area
CHARGING
Automatic Trigger Charging : When cleaning is completed, the device will return to the
charging base automatically.
Manual Trigger Charging : While the device is paused, press the key once or use the
mobile app to trigger the recharging process.
11
Note:
Do not move the device casually during cleaning operation. Once moved, please
place the vacuum at its approximate original location. Once the vacuum has
restarted, it will attempt to reposition itself. If positioning is successful, the
vacuum will resume its planned cleaning path. If positioning fails, it will abandon
previous tasks and rebuild anew map to restart the cleaning process. Under this
situation, the device may not be able to recharge automatically.
USAGE INSTRUCTION
START CLEANUP MODE
Press the ON/OFF button to start cleanup. Once the cleaning process has started, the robot will
scan the area and generate a map. The device plans its cleaning route based on its generated
map of the area. It cleans along the wall of a zone first and then moves in a S-shaped cleaning
route to cover the whole area efficiently and thoroughly.
Once the cleaning process is completed, the devicewill automatically return to the
charging base.

SPOT CLEANING MODE
Users can select the desired area on the mobile app to deep clean a
specified location.The vacuum will automatically drive through the spot
land start spot cleaning in a1.5 m x1.5 m area.
PARTIAL CLEANING MODE
Users can control the robot via the mobile app and can also
manually move the vacuum to the target area. Press and hold the
key for 3 seconds. The device will enter partial cleaning mode and
clean the 1.8 m x 1.8 m area.
1.8 m
CUSTOM CLEANING AREA
Users can use the mobile app to create the desired size and location
of the cleaning area(s).The vacuum will start cleaning the selected area
automatically.
SCHEDULED CLEANING
Users can use the mobile app to set scheduled cleaning times. The
device will start cleaning based on the set times. The device will
return tothe charging base once completed.
SUCTION POWER LEVEL
The mobile app can let the user select up to 4 different suction
levels: Quiet, Normal, Turbo or Max. The vacuum’s default suction
power is Normal.
1.8 m
12
USAGE INSTRUCTION
RESTRICTED AREA
Users can use the mobile app to define one or more restricted areas.
Once the restricted zone(s) are created , the vacuum will NOT attempt
to enter the restricted area(s).
Note:
•This device may enter a restricted area due to positioning errors or sensor
failure.
• Restricted areas may be invalid when significant changes such as the
shifting of furniture or the charging base. Do not move or interfere with the
device during its cleaning operation.
•Building anew map will delete the previously set permanent restricted areas.

10
USAGE INSTRUCTION
Wi-Fi RESET
If the cell phone cannot be connected to the robot vacuum due to change of
router configuration / password or any other reasons, please reset the Wi-Fi.
Press and hold the key and key simultaneously for 3 seconds. “Wi-Fi has
been reset” voice command will be prompted, and the indicator light will turn
purple and flick slowly.
Do Not Disturb (DND) MODE
Users can select DND MODE in the app so the device can clean the
floor without any voice command. Available timing of DND mode can be
set / modified through the app.

ROUTINE MAINTENANECE
13
Main Brush
1. Flip over the device. Press the buckle on the main brush cover to
take out the main brush.
2. Use the cleaning brush to remove dust & debris which may have
been stuck in the main brush cavity and main brush body.
3. Reinstall the main brush, then the main brush cover. Once the brush
cover has been securely installed, there will be a click sound.
Note: It is recommended to replace the side brushes once every 3to 6
months to ensure optimal performance.
Side Brush
1. Flip over the device and pull out the side brushes vertically.
2. Reinstall the brushes after removing any trapped debris and dirt.
3. Align the left and right brushes with the corresponding markings
( L/R )on the bottom cover, andthen press down to install.
Buckle (Main Brush Cover)
Main Brush
Robot Vacuum

14
Dust Bin
1. Press and hold the dust bin release button, then pull out the
dust bin as shown below.
Filters
1. After along period of use, remove the Net Filter, Sponge Foam
Filter and HEPA Filter.
2. Rinse the removed filters and dust bin under atap.
3. After rinsing ,shake off water drops. Let the filters and dust
bin dry completely.
4. After thoroughly drying, reinstall the filters in the following order:
Net Filter > Sponge Foam Filter > HEPA Filter (shown in the diagram
below).
Net Filter
2. Open the dust bin and empty the dirt into the
trash. Once cleaned up, close the dust bin
cover and then slide it in vacuum body.
Dust Bin Release
Button
Filter Cover
Sponge Foam
Filter
HEPA Filter
Note:
•Rinse the filters with clean water only. Do not add any
detergents.
•Do not use abrush or your fingers to clean the filters.
•Allow the filters to dry thoroughly for at least 24 hours.
•It is recommended to replace the filters every 3 - 6 months.
ROUTINE MAINTENANECE
Dust Bin Release
Button

15
Sensors (Regular Clean)
Use asoft, dry cloth to wipe all the sensors on the device, including the following:
1. The TOF Wall Sensor on the right of the vacuum
2. The Cliff Sensor on the bottom of thevacuum
3. The Obstacle Detection Sensor on the front of the vacuum
4. The LiDAR Collision Detection Sensor on the top of the vacuum
5. The Charging Contact Plate on the bottom of the vacuum and power
charging pins on the charging base (WARNING: Please turn off the power
before cleaning)
6. The Charging Base Signal Emission Window
ROUTINE MAINTENANECE
Battery
•The vacuum robot is equipped with ahigh-performance lithium-ion
battery. To ensure optimal battery performance, keep the device
charged.
•If you do not intend to use the device for along period of time, turn it
off and store it in a safe place. Charge the device at least once per
every 3 months in order to prevent damage to the battery due to
over-discharge.

Product Name Rove Pro L3510 Laser Navigation Robot Vacuum Cleaner
Model Rove Pro L3510
Dimensions 350x350x100 mm
Weight 3.3 kg
Battery 2600mAhLithium Battery
Input Voltage 14.4V
Rated Power 50W
16
PRODUCT PARAMETERS
Charging Base
Dimensions 160x143x80 mm
Rated Power 24W
Rated Output 24W
Vacuum Robot

17
ERROR CODE Solution
Error 1: Dust bin removed.The device was started without a dust bin. Reattach the dust bin and start the device again.
Error 2: Top sensor may be blocked. Please check.The top radar sensor has been blocked or the device was placed in an outdoor area.
Remove the blockage from the top radar or move the device into an indoor area.
Error 3: Clean the bottom sensor and restart in new position.
The cliff sensor has been obstructed or placed on non-level ground. Wipe the window of
the
cliff sensor with a soft, dry cloth or move the device to level ground, then restart the device.
Error 4: Clean the front sensor and restart in new position.
Error 5: Clean the right-side sensor and restart in new position.
The TOF wall sensor is dirty or has become obstructed. Wipe the TOF wall sensor with a soft,
dry cloth.
Error 6: Bumper may be stuck. Please check. The edge or bumper sensor is stuck. Move the front bumper left and right to ensure there’s
no jam.
Error 7: Please clean the dust bin and filters. Dust Bin is full, or filter has been blocked. Clean the dust bin and filter or replace the filter.
Error 8: The dust bin out. Please clean the filter gently.Clean the dust bin and filter or replace the filter.
TROUBLESHOOTING GUIDE
The front optical detection sensor is dirty or has been blocked. Wipe the sensor with a soft
dry cloth.

TROUBLESHOOTING GUIDE
17
ERROR CODE SOLUTION
Error 9: Robot blocked.Restart in new position.Move the device to alevel surface, then restart it.
Error 10: Robot inclined.Restart in level surface. The device is off the ground.Move the device to alevel surface, then restart it.
Error 11: Main wheel may be stuck. Please check. The driving wheel is stuck. Check the primary wheel andremove any foreign
objects.
Error 12: Brush bar may be stuck. Please check. The main brush is stuck. Check the main brush and remove any foreign objects.
Error 13: Side brush may be stuck. Please check. The side brush is stuck. Check the side brush
and remove any foreign objects.
Error 14: Chargestation not found. If the device says that the charging base is not found or not plugged in, check
whether the charging base indicator light is on, or move the device back to the
charging base.
Error 15: Battery low Place the product on the charging base.
Error 16: Remove from charge station for power off.The product cannot shut down when device is on the charging base. Move the
product away from the charging base, and then press and hold the power
button for device shut down.

Cannot be started
19
COMMON PROBLEMS
Problem Type Solution
Cannot be charged
Cannot go back to
Charging Base The product is too far away from the charging base. Move it closer and try again.
Foreign objects may be trapped in the primary brush, side brushes, or wheels. Turn off the product and clear the foreign
objects, then restart device.
When the product is on the charging base, it will consume a minimum amount of power to optimize battery performance.
Abnormal noise during operation
Reduced cleaning performance or dust
leakage from device
Cannot connect to Wi-Fi
•The battery is low. Place the device on the charging base and align its charging contact onto the charging base power charging
pins. The device should automatically turn on. If the device is out of power, it may take some time to turn on.
•The ambient temperature exceeds the normal operating range of 0-40°C. Only use this product in an environment which is
under normal operating range of 32-100° F .
•The dust bin is full and needsto be cleaned.
•The filter is blocked and needsto be cleaned or replaced.
•The main brush is stuck with a foreign object and needsto be cleaned.
•Weak Wi-Fi signal.Make sure the product is in an area with good Wi-Fi signal coverage.
•Wi-Fi connection error has occurred. Download the latest version of the app and reset the Wi-Fi connection. Try again.
•Incorrect Wi-Fi password.
•The router is running on a5GHz network. The router needs to setup a 2.4 GHz network. This device only supportsWi-Fi connection
with 2.4GHz networks.
•Remove the device and check whether the charging base indicator light is on or not.Ensure that both the charging base power
charging pins are well connected with vacuum robot device charging contact plate.
•The side brush may block the connection between the charging contact plate and charging base power charging pins.Move the side
brush to ensure there’s no blockage. Clean the charging contacts on both charging pins and device contact plate.
Consuming power while
device is placed on the
charging base
