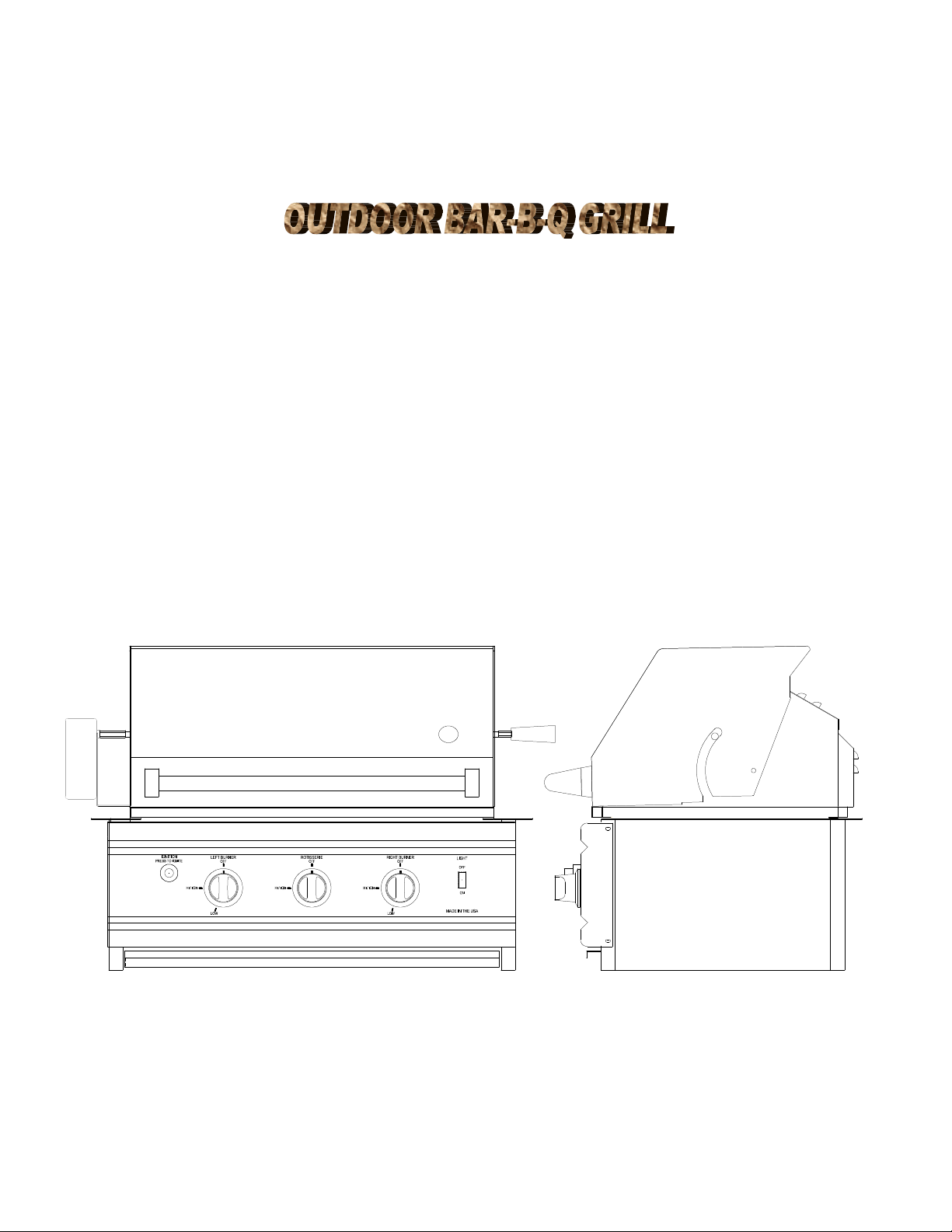

OWNERS MANUAL
For Outdoor Use Only
Installation, Operation, Maintenance Instructions
And Parts List
Models: RON-36, RON-27, RON-24
Royal Range of California, Inc. 3245 Corridor Drive, Eastvale, CA 91752
Phone: (951) 360-1600 Fax: (951) 360-7500

2
Contents Page
For Your Safety 3
Safety Rules 4
Gas Connection 5
LP Tank Requirement 8
Installation Location 9
Clearances 9
Electrical 11
Burner Adjustment 12
Low Flame Setting 13
Lighting Instructions 14
Operation 14
Cleaning and Maintenance 15
Parts Removal and Replacement 17
Trouble Shooting 18
Exploded View – Parts Identification 19, 20
Message to the Proud Owner
Congratulations on owning the high quality, high performance grill.
Carefully read this manual to understand all the instructions about how to
install, operate and maintain for optimum performance and longevity.
Keep this manual in a safe place for future reference.
For any assistance, contact us. Make sure to provide the Model Number and
Serial Number of the grill.
Thank you for buying our grill. We wish you years of cooking pleasure.

3
For Your Safety
If you smell gas :
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, immediately call your
gas supplier.
WARNING
Read the “Lighting Instructions” in this
manual,
before lighting this appliance.
For Your Safety
1. Do Not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance
.
TESTED IN ACCORDANCE WITH ANSI
STANDARD FOR OUTDOOR COOKING GAS
APPLIANCES. THIS GRILL IS FOR
OUTDOOR USE ONLY.
Check your local building codes for the proper
method of installation. In the absence of local
codes, this unit should be installed in accordance
with the National Fuel Gas Code No. Z223.1-
CAN/CGA – B149.1, natural gas installation code or
CAN/CGA – B149.2, propane installation code.

4
CALIFORNIA PROPOSITION 65-
WARNING
The Burning of gas cooking fuel generates
some by-products which are on the list of
substances which are known by the State of
California to cause cancer or reproductive
harm. California law requires businesses to
warn customers of potential exposure to
such substances. To minimize exposure to
these substances, always operate this unit
according to the use and care manual,
ensuring you provide good ventilation when
cooking with gas.
Safety Rules
1. It is important to follow these rules to avoid fire hazard, property
damage or bodily injury from improper installation or usage of the
grill. For safety, READ all rules carefully and check local codes.
2. It is prohibited to install the grill in recreational vehicles/mobile
homes, trailers, boats, etc. The grill is for outdoor installation and
use only.
3. Ensure proper installation by following the installation
instructions. Make sure to know where the gas supply shut-off
valve is located. It should be readily and easily accessible.
4. Check all gas line joints or connection for gas leak with soap water
solution. Never check gas leak with an open flame.
5. Do not attempt to repair or replace any part of the grill unless
specifically recommended in this manual. All other service should
be performed by a qualified service technician.
6. Do not place clothing or other flammable material on or near the
appliance. Do not wear loose-fitting clothes or long sleeves while
using the grill as some fabrics can be highly flammable.

5
7. Children should be carefully supervised when they are in the
vicinity of the grill. Do not allow them to get close while in use.
Items of interest to children should not be stored in or around the
grill in the cabinet or in the masonry enclosure. Portions of the
grill can be extremely hot while in use and can cause severe burns.
8. Protect your hand with a glove or mitt when opening and operating
the grill. Open grill lid slowly to allow heat and smoke to escape
before fully opening.
9. Never use aluminum foil to line the crumb pan or grill racks. This
can alter airflow for proper combustion and also build up heat in
the control area causing the knobs and igniters to melt.
10. Grease is highly flammable. Allow hot grease to cool down
before attempting to handle it. Clean grease tray often so that
grease does not collect and stay in it.
11. Do not use the grill in a windy area.
12. Do not obstruct the flow of air into the front of the grill.
Gas Connections
Check gas type - use only the type of gas indicated in the rating plate.
Do Not connect an unregulated gas line to the appliance.
Safe and satisfactory operation depends to a great extent on the proper
installation of the appliance. The installation must comply with the local
codes, or in the absence of local codes, with either the National Fuel Gas
Code, ANSI Z223.1 or CAN/CGA – B149.1 or 149.2.
Installer supplied manual gas shut-off valve must be installed in an easily
accessible location in the gas supply line ahead of the pressure regulator
(4” W.C.) which is also to be provided by the installer.

6
The outdoor cooking gas appliance and its individual shut-off valve must be
disconnected from the gas supply piping system during any pressure testing
of the system at test pressures in excess of ½ Psi (3.5 kPa).
The outdoor cooking gas appliance must be isolated from the gas supply
piping system by closing its individual manual shut-off valve during any
pressure testing of the gas supply piping system at test pressures equal to or
less than ½ Psi (3.5 kPa).
The supply line must be sized and installed to provide a sufficient supply of
gas to meet the maximum demand of the grill without undue loss of
pressure. The sealant used on the threaded joints of the gas pipe must be a
type resistant to the action of LP gases.
Natural Gas Connection: (Installer To Provide Regulator)
Appliance pressure 4” W.C.
Inlet pressure 5” - 14” W.C.
Check with your local gas utility company or with local codes before
installing gas lines.
Assemble pipe fittings as shown. Apply pipe compound on male joints only.
Install regulator with the proper orientation for the gas flow.

7
LP Gas Connection
Appliance pressure 10.5” W.C.
Inlet pressure 11” – 14” W.C.
Purchase a standard 20 lbs. LP tank with QCC – 1 fitting.

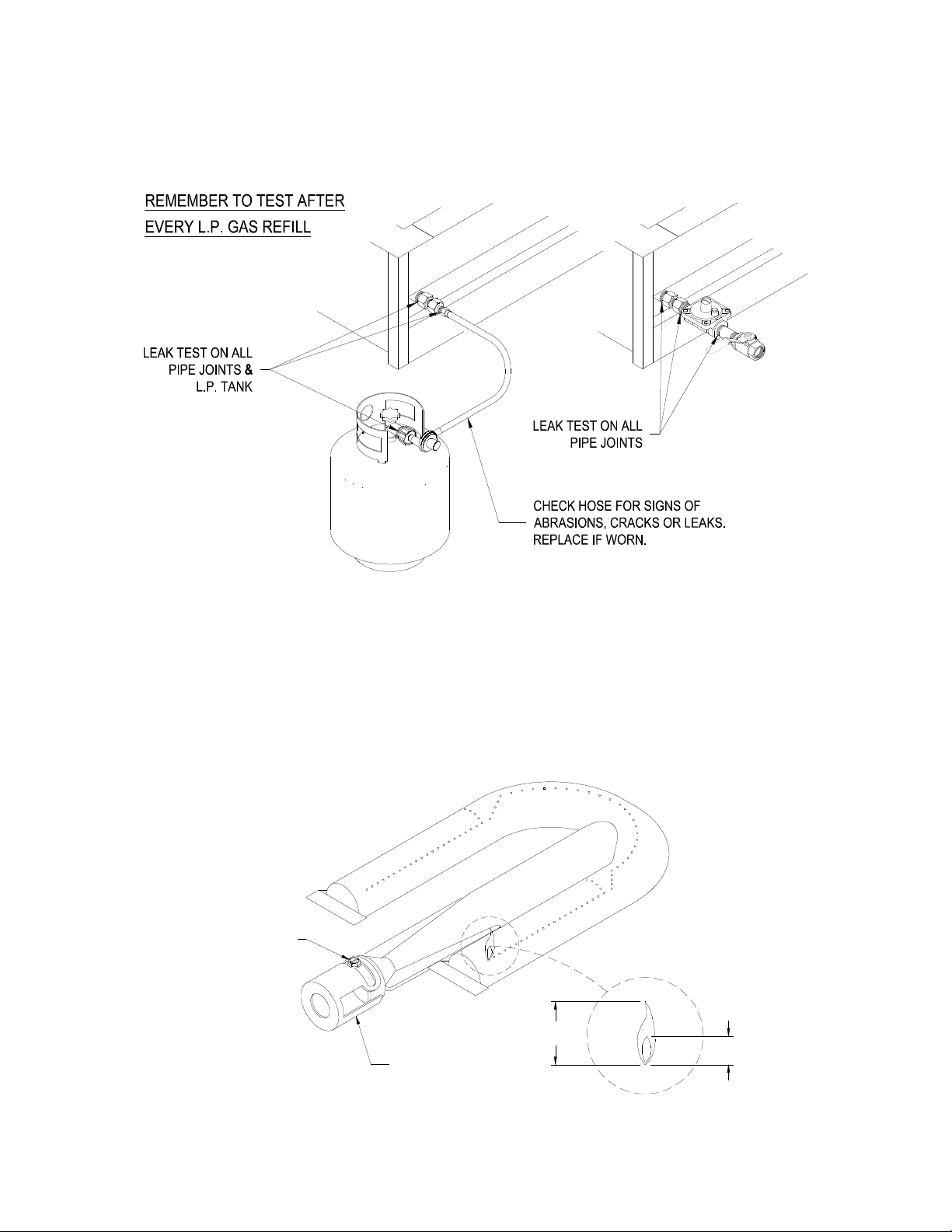

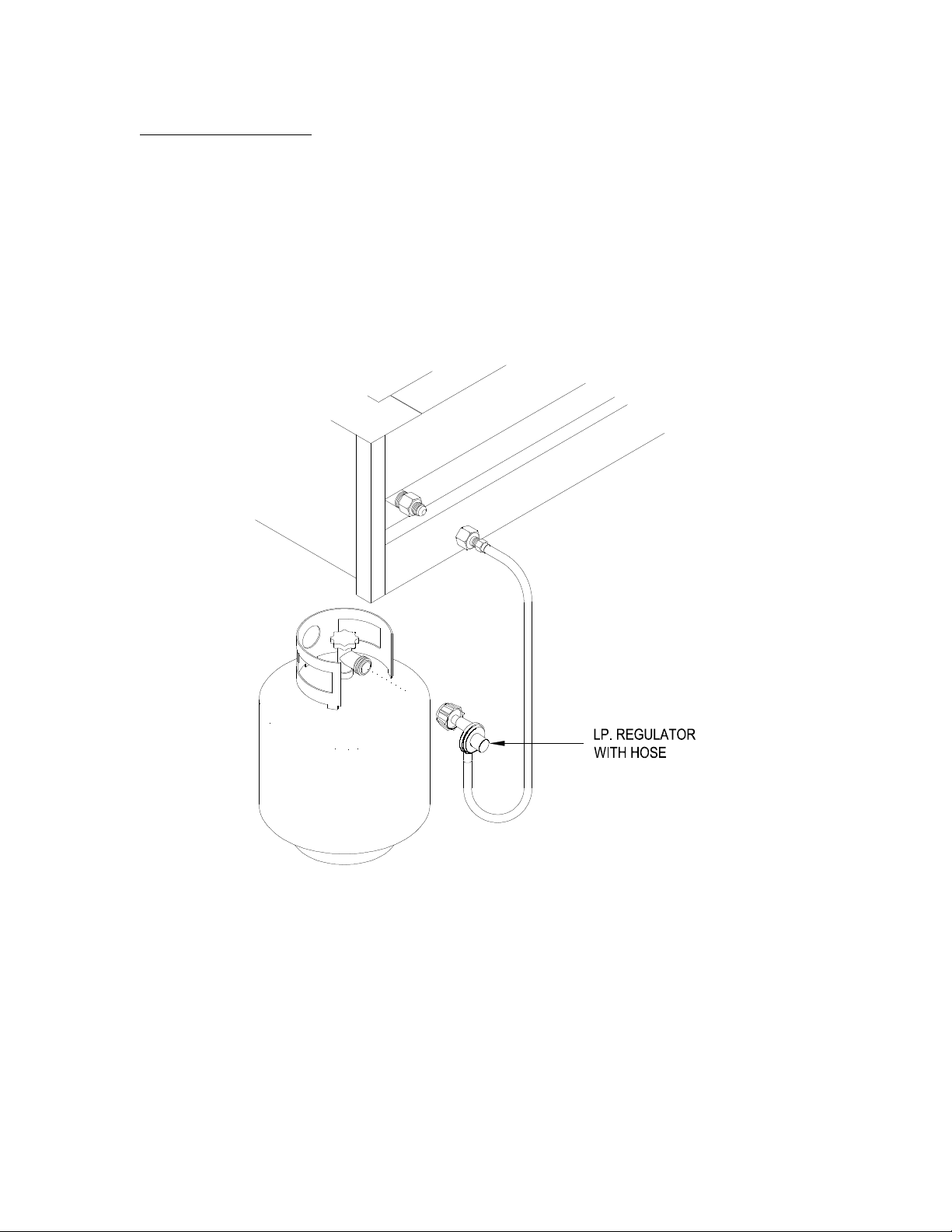

Assemble pipe/hose assembly as shown.
After completion of assembly, turn the tank valve on and turn the control
valves on the grill to the ‘HI/IGN’ position for 10 – 15 seconds to purge the
line of air.
Inspect the hose before each use of the appliance. If it is evident there is
excessive abrasion or wear, or the hose is cut, it must be replaced prior to the
appliance being put into operation. The replacement hose assembly shall be
that specified by the manufacturer.

8
To connect, insert the regulator inlet into the tank valve and turn the black
coupler clockwise until the coupler tightens up. DO NOT OVERTIGHTEN
THE COUPLER.
To disconnect, turn the tank valve off. Hold the coupler sleeve and turn
counter clockwise. The inlet line will be disengaged.
If the appliance is not in use, the gas must be turned off at the supply
cylinder. Cylinder must be stored outdoors out of the reach of children and
must not be stored in a building, garage or any other enclosed area.
A dented, rusty or damaged propane cylinder must be replaced immediately.
Check for leaks every time the cylinder is replaced or
reconnected. All leaks must be corrected immediately.
Never use an open flame to check for leaks.
LP Tank Requirements:
The L.P. gas cylinder must be constructed and marked in accordance with
the specifications for L.P. gas cylinders of the U.S. department of
Transportation (DOT) and designed for use with a QCC-1 quick disconnect
system only.
The cylinder must be provided with a shut off valve terminating in an L.P.
gas supply cylinder valve outlet specified, as applicable, for connection No.
QCC-1.
The cylinder must be provided with a listed overfilling prevention device.
The pressure regulator and hose assembly supplied with the outdoor cooking
gas appliance must be used. Replacement pressure regulators and hose
assemblies can be purchased from authorized dealer.
The cylinder supply system must be arranged for vapor withdrawal. Make
sure the LP cylinder has a collar to protect the cylinder valve.

9
(a) Do not store a spare LP gas cylinder under or near this
appliance.
(b) Never fill the cylinder beyond 80 percent full.
(c) If the information in “(a)” and “(b)” is not followed exactly, a
fire causing death or serious injury may occur.
Installation Location
Choose a location where the flow of air in the front of the grill is not
obstructed.
Due to high temperatures, place the grill out of traffic and keep away from
clothing, furniture, etc. Keep the gas line connection as short as possible.
Do not install in recreational vehicles/mobile homes, trailers, boats, etc.
Clearances
Combustible Construction
Minimum horizontal clearance from sides and back of the unit to adjacent
vertical combustible construction extending above top of unit, 6 inches from

10
side and 15 inches from back. Do not locate under overhead unprotected
combustible construction.
Non-Combustible Construction
Sides of the grill can be 0” from non-combustible wall, below the cooking
surface.
Built in Installation

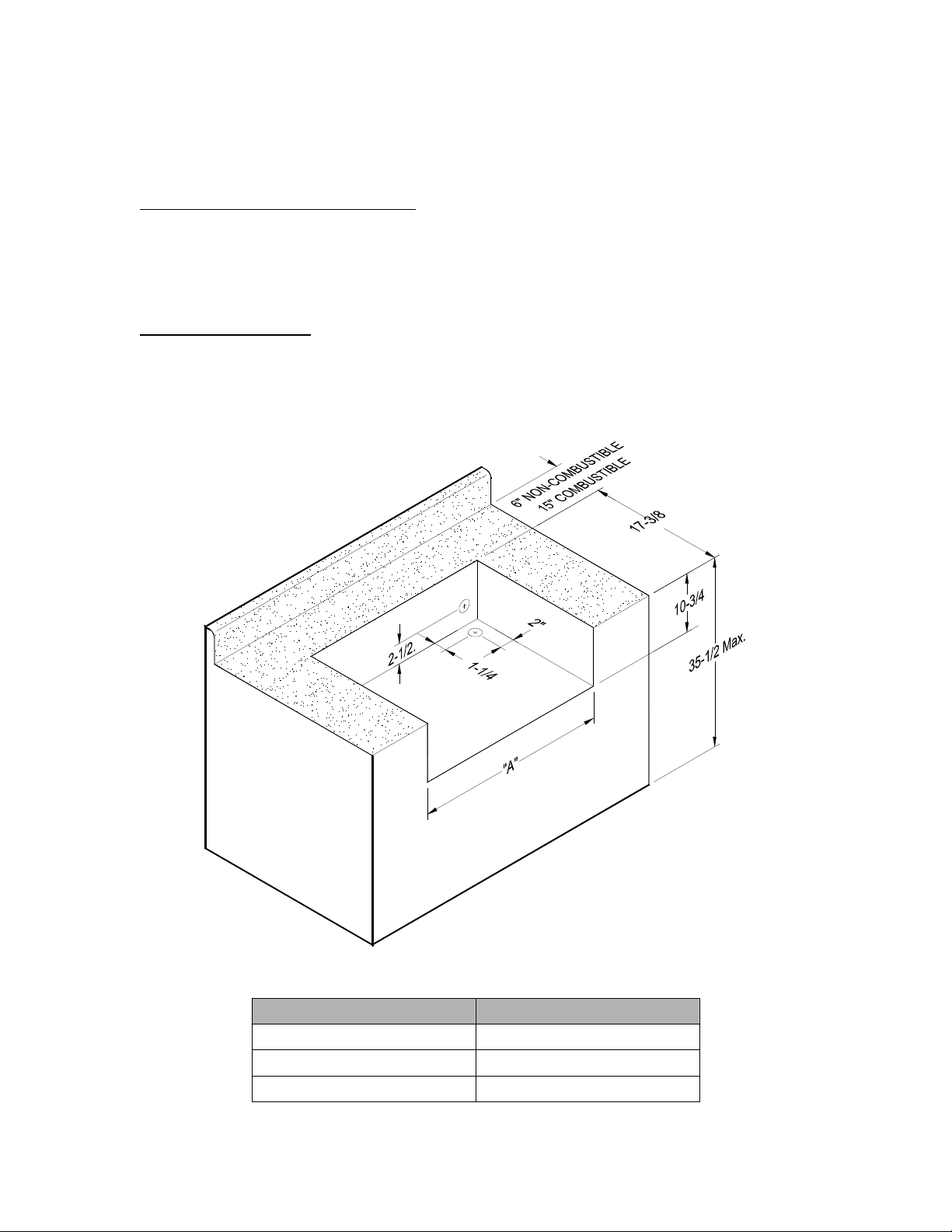

For non-combustible Masonry enclosure installation, follow the cutout
dimension as shown.
Model “A” dim
RON-24 26-1/4
RON-27 29-1/4
RON-36 38-1/4

11
The bottom of the grill must be supported on both sides and back or full
width with opening as shown for gas connection.
Electrical
Electrical outlet for Rotisserie motor must be installed to the left side of the
grill.
The outdoor cooking gas appliance, when installed, must be electrically
grounded in accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, or the Canadian
Electrical Code, CSA C22.1.
Keep any electrical supply cord and the fuel supply hose away from any
heated surface.
HALOGEN LIGHT: The grill is provided with a three prong grounding
plug for your protection against shock hazard. Connect 115V power to the
grill with a grounded cord.

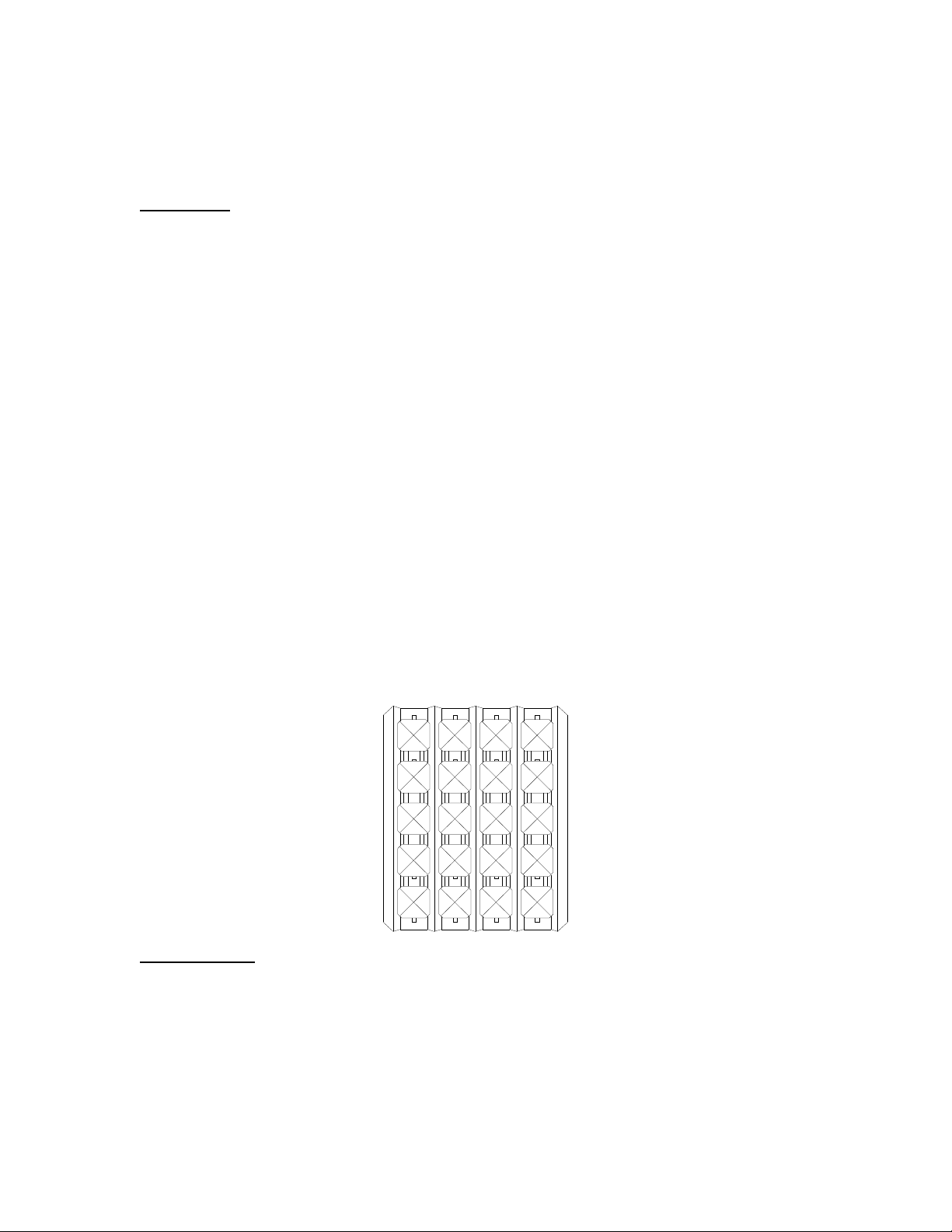

BRIQUETTES: Place 20 briquettes on each burner shield with 5 on each
row equally spaced front to back.
Leak Testing
All gas piping and connections must be tested for leaks after installation or
service. All leaks must be corrected immediately.
Open the valve (shut-off or ‘ON’ LP tank). Test for leaks by applying liquid
soap solution to all joints. Bubbles forming indicate gas leak.

12
NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS.
Burner Adjustments
Every grill is thoroughly checked for proper lighting and burner flame
pattern. Conditions at the location may necessitate minor adjustment of the
burner air intake, if the flames are not steady/stable as shown in the figure.
3/8
1"
AIR SHUTTER
ADJUSTMENT
SCREW

13
The flame should be full length of the burner, blue and stable. The air intake
should be adjusted ONLY if the flame is lifting off of the ports or has yellow
tipping.
If flame is lifting, turn the air shutter clockwise reducing this intake. The
screw should be loosened before turning the air shutter.
If the flame has yellow tipping, the air shutter should be turned counter
clockwise allowing more air in. This will stabilize the flame. Make sure to
tighten the screw, after adjustments are made. Remove the front panel as
shown (Page 17) in the diagram to access the burner front (air shutter).
In order to provide gas to the burner, the orifice must be inside the burner
venturi opening. Check to ensure that the burner is properly secured in the
front and back.
Low Flame Setting
Low flame setting is pre-adjusted at the factory. It is not likely that low
flame needs adjustments in the field. If due to gas valve changes low flame
has to be adjusted, see figure for instruction.
Hold the stem tight and with a straight screwdriver, turn the screw inside the
stem until flame is adjusted to size desired.
FRONT PANEL

14
Lighting Instructions
Before Lighting:
Check gas line/hose for signs of wear, abrasion or cuts. If evidence of
deterioration is visible, replace the part prior to use.
If you smell gas, check for leaks. If odor continues, immediately call
for service.
Keep your face and body away from grill top when lighting.
Grill and Rotisserie Burner Lighting
Open the lid during lighting. Make sure all burners are in the
‘OFF’ position.
Push in and turn burner knob to ‘HI/IGN’ position.
Press and hold the electronic igniter to light the burner.
If the burner does not ignite within 4 seconds, turn off the gas,
wait for 5 minutes and then repeat steps 2 and 3.
For complete shut down, turn all burner valves to the ‘OFF’
position. For LP, also turn off the cylinder valve when not in use.
Manual Lighting
If grill or Rotisserie burners do not light with igniter, they can be lit
manually.
Grill: Hold a lighted match over the respective flash tube opening and
Turn the burner valve to the ‘HI/IGN’ position.
Rotisserie: Place a match near the IR burner with the burner knob in the
‘HI/IGN’ position.
Operation
DO NOT LEAVE YOUR GRILL UNATTENDED WHILE IN
OPERATION.

15
Grill: Grill burners are controlled individually with a control knob.
After lighting, turn the knob to HI, LO or in between as desired.
Turn on as many burners as required.
The top cover may be closed during grilling.
Keep the top cover in the closed position during the pre heat
period.
Rotisserie: Turn the control knobs to HI.
Plug in the motor power cord to a properly grounded receptacle.
Rotisserie cooking can be done with grill burners as well as the
Rotisserie burner ‘ON’.
The skewer slides in from the side with the tip sliding into the
motor shaft adapter. The slot on the handle side should be on
the side support panel edge.
Use the prongs to hold the meat. Tighten thumbscrew on the
prong hubs to secure in place.
When ready, turn the switch on the motor box to the ‘ON’
position. The skewer will rotate slowly.
Stop the motor, before removing the skewer.
Cleaning and Maintenance
Cleaning: Your Bar-B-Q grill works better and lasts longer if properly
cleaned and maintained. Clean the grill immediately after every
use.
Turn grill off before starting to clean. Protect your hand with a
good mitt when cleaning the hot grill. Use a wire brush, dip in
water and scrub the grill to soften and loosen the food particles.
The food particles will fall into the crumb pan.
Do not use Aerosol cleaners on hot grill surface. Chemicals
may produce noxious fumes and may ignite on contact with the
hot surface.

16
Shield: Burner shields (Briquette holder) are made out of stainless
steel. After every use, allow the shields to cool down. Remove
and soak in water with a mild soap or detergent. Replace when
dry along with the briquettes.
Crumb Tray / Grease Pan:
Empty grease pan as required to prevent overflowing. After
use, remove the full width crumb pan and brush off the
contents. Clean with hot water and soap or detergent.
All stainless steel parts should be cleaned with a mild soap or detergent or
with a liquid cleanser especially for use on stainless steel. Never attempt to
clean stainless steel with steel wool, abrasive clothes or powders.
Maintenance
Keep outdoor cooking gas appliance area clear and free from combustible
materials, gasoline and other flammable vapors and liquids.
Do not obstruct the flow of combustion and ventilation air.
Keep the ventilation opening(s) of the cylinder enclosure free and clear from
debris.
Visually check burner flames.
There are many different stainless steel cleaners available. Always use the
mildest cleaning procedure first, scrubbing in the direction of the grain. To
touch up noticeable scratches in the stainless steel, sand very lightly with dry
100 grit emery paper in the direction of the grain. Specks of grease can
gather on the surfaces of the stainless steel and bake on to the surface and
give the appearance of rust. For removal use an abrasive pad (Scotch Brite
is good) in conjunction with a stainless steel cleaner. Always rub in the
direction of the grain. Never scrub the stainless steel with steel wool. Steel
particles left on the stainless steel will soon rust and give the appearance that
the parts are rusting.
The burners, control area, crumb pan, etc. should be kept clean at all times.
During prolonged non-use of the grill, spiders and insects can nest in areas

17
that will adversely affect the functioning of the grill. Check burner inlets,
orifice hood (gas inlet to burner), igniter, sparkers, etc. thoroughly and clean
before use.
Front panel removal
- Pull knobs out.
- Remove screws (4).
- Pull panel out slightly.
- Disconnect wires from
module and switch.
- Replace in reverse
order.
Parts Removal and Replacement
Grill Burner: Remove top grates.
Remove briquettes and shields
Unscrew the burner at rear and slide out.
Clean and replace in reverse order.
Grill Sparker: Remove top grates, briquettes and shields.
Unscrew the sparker bracket from inside.
Disconnect wire.
Replace in the reverse order.

18
Electronic Module: Unscrew the module cap from front.
Unscrew the holding nut from front.
Remove the module from the rear after
disconnecting the wires from the module.
Replace in reverse order.
Battery: Unscrew the module cap from front.
Remove battery.
Replace new battery and screw cap on.
Rotisserie Sparker: Remove sparker cover – lift and pull.
Remove sparker screws and pull out.
Disconnect wire at rear.
Replace in reverse order.
Switch: Remove front panel.
Disconnect wire from switch at rear.
Press and push switch from rear of the panel
Replace in reverse order.
Trouble Shooting
Problem Solution
Burner will not light Check gas supply to burner by manually
lighting the burners.
See electrode for visible damage, if damaged
replace.
If loose wire at igniter or electrode, push in tightly.
Check battery, replace if necessary.
Improper burner flame Check burner gas inlet area for any blockage and
clear.
Check orifice hoods for any clogging and clean.
Adjust air shutter, if necessary.
Check pressure if flame is too low or too high.
Check gas supply tank (LP) if running low.
Light is not ON
Connect 115V power at rear. Turn switch ON.
Check bulb. Replace if necessary.

19
39
7
40
32
27
28
29
43
18
17
13
16
12
11
8
9
5
6
4
2
1
10
14
15
36
37
33
34
41
30
26
24
25
21
22
35
31
23
20
19
3
42
38
31
Contact us for Genuine Royal BBQ Grill Parts.
1-877-386-7766 (877-DVORSON)
This manual suits for next models
2
Table of contents
Other Royal Range of California Grill manuals
Popular Grill manuals by other brands

Cuisinart
Cuisinart CGG2 instruction manual

Great Outdoors
Great Outdoors DG450 Assembly and owner's manual

Esschert Design
Esschert Design Fancy Flames FF270 manual

Broilermaster
Broilermaster P3X-3 user guide

Smoke hollow
Smoke hollow SH3020 owner's manual

Tower Hobbies
Tower Hobbies T27012 Safety and instruction manual
