Royal Sovereign RMT Series User manual

RMT Series
OWNER'S MANUAL
Royal Sovereign International Inc.
www.royalsovereign.com
Read all instructions carefully before use.
For any Customer Support needs please choose the
Customer Support tab on www.royalsovereign.com

RMT Series
2
TABLE OF CONTENTS
TOPIC PAGE
1. INTRODUCTION 3
2. SAFETY PRECAUTIONS 3
3. PRODUCT IDENTIFICATION  5
4. INSTALLATION 6
4.1 Box contents6
4.2 Assembly7
5. OPERATION9
6. MAINTENANCE 9
7. SPECIFICATIONS 10
8. WARRANTY 11

RMT Series
3
1. INTRODUCTION
2. SAFETY PRECAUTIONS
Thank you for choosing a Royal Sovereign trimmer. It has been designed and manufactured to provide
years of continuous service. For complete operating and maintenance information please read this
manual thoroughly. Upon receipt of your trimmer, please inspect the box, the machine and all other
contents for shipping damage. Damage should be brought to the immediate attention of the delivering
carrier (See page 6 for list of shipment elements).
Failure to comply with any of the following safety procedures could result in serious injury. Please read
all instructions carefully and keep for future reference. Royal Sovereign International Inc. cannot be held
responsible for any damages to people, animals or objects due to noncompliance with the safety norms
and recommendations of these documents.
1. Keep hands away from cutting blade when in operation.
2. Keep flammable and wet objects away from the machine.
3. Place machine on a level surface.
4. Avoid excessive sunlight, humidity and extreme temperatures.
5. Keep out of reach of children.
6. Only Royal Sovereign authorized maintenance and service technicians should make repairs.
7. Do not attempt to trim items that exceed total recommended material thickness for the unit.
8. When cleaning the machine, don't use flammable sprays or materials.
9. Do not touch the blade when in use or place foreign objects inside the machine.
10. Pay attention to the danger notices on the trimmer.

RMT Series
4
Dangerous areas and residual risks
All the areas around the machine in which people are at risk of injuries or health problems are
considered dangerous.
Pay close attention to hands when operating the trimmer.
During certain intervention procedures on the machine, which are pointed out each time in this manual,
residual risks for the operator may arise. Residual risks can be avoided by carefully complying with the
procedures of this manual and using the personal protection devices indicated. such as:

manufacturer.
Trimmer should only be operated by trained personnel

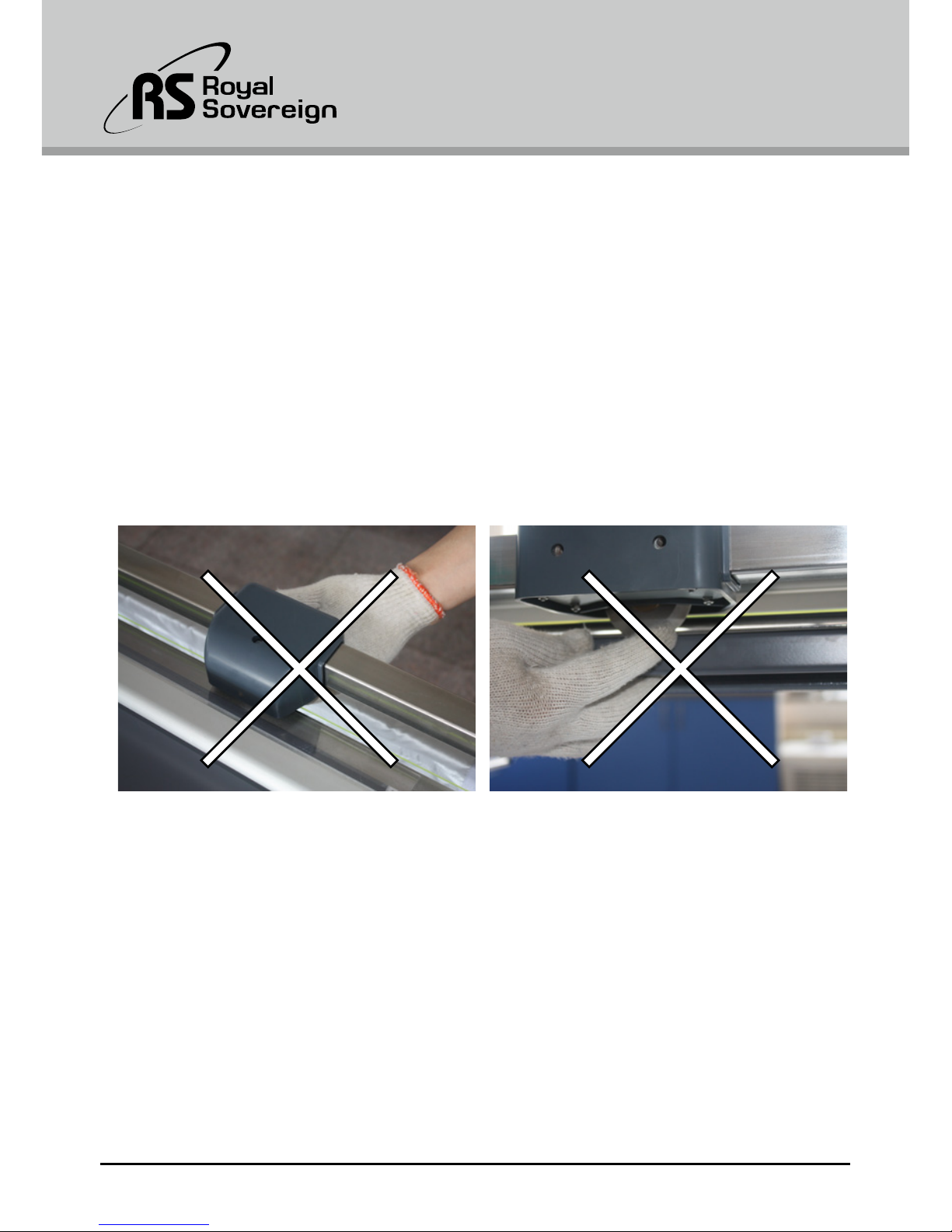

DO NOT PLACE HANDS NEAR THE CUTTING BLADE !

RMT Series
5
3. PRODUCT IDENTIFICATION
6
87
5
3
4
1
2
NO PART NAME
1 Left Side Cover
2 Feed Table Front
3 Fabric Holder Rod
4 Floor Stand
5 Waste Catcher
6 Right Side Cover
7 Middle Bar
8Cutter

RMT Series
6
4. INSTALLATION
Note: The trimmer should be installed by a trained service technician
The trimmer needs to be assembled by a trained installer.
The trimmer should only be used in an area with the following characteristics:


4.1 Box contents
Thoroughly inspect the parts and the unit. It is imperative that any missing parts are reported and a
claim is filed with the reseller immediately upon receipt of shipment.

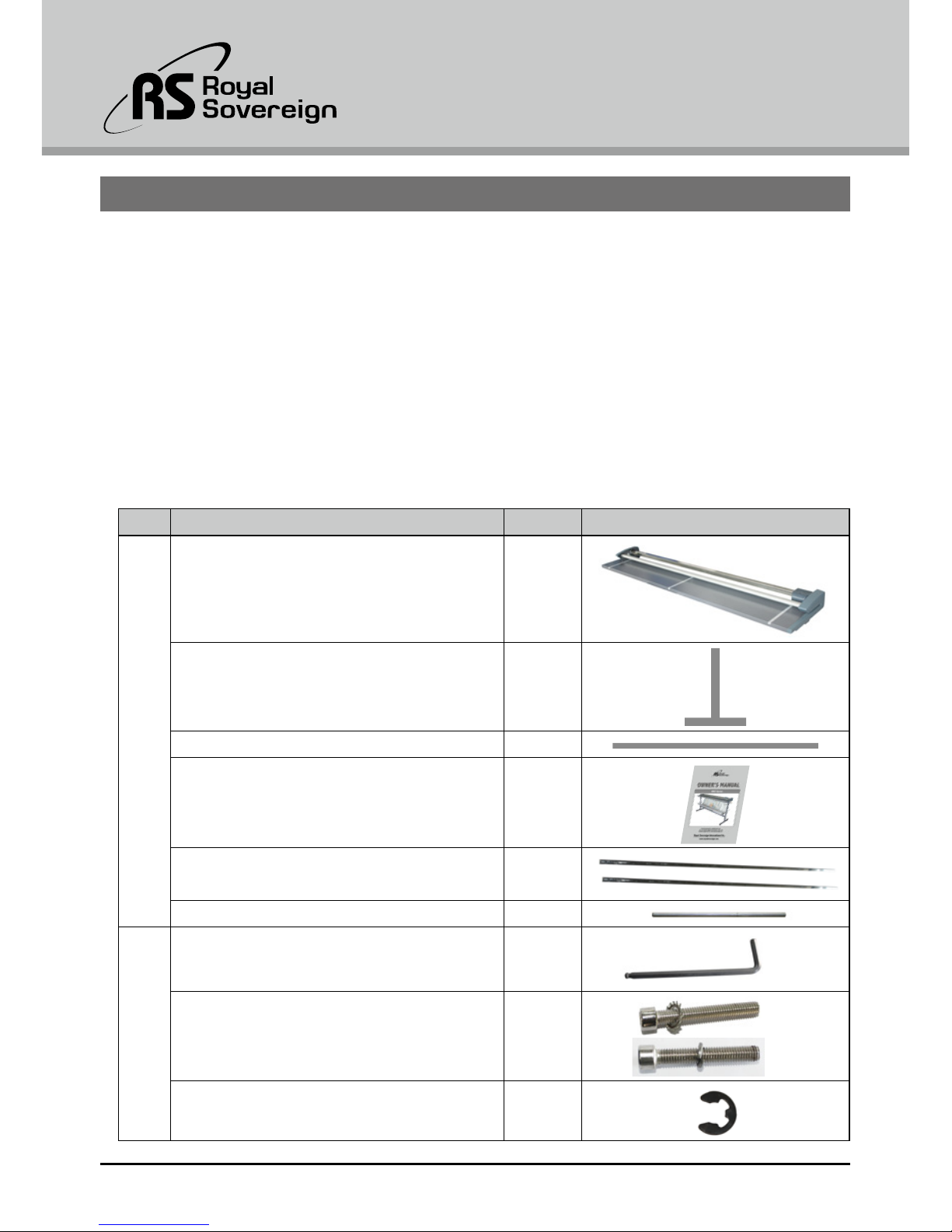

Part Name Quantity Picture
Main
Box
Main Trimmer Assembly 1
Floor Stand Side Frame 2
Floor Stand Cross Bar 1
Owner's Manual 1
Wastecatcher Square Bars 2
Fabric Holder Bars 4
Tool
Box
L-wrench (5)
L-wrench (8)
1
1
5/16 Hexa head bolt (M8*55mm)
Spring washer (Ø8.2)
8
8
E-ring (Ø8) 8

RMT Series
7
4.2 Assembly
1. Open the box carton and remove all parts.

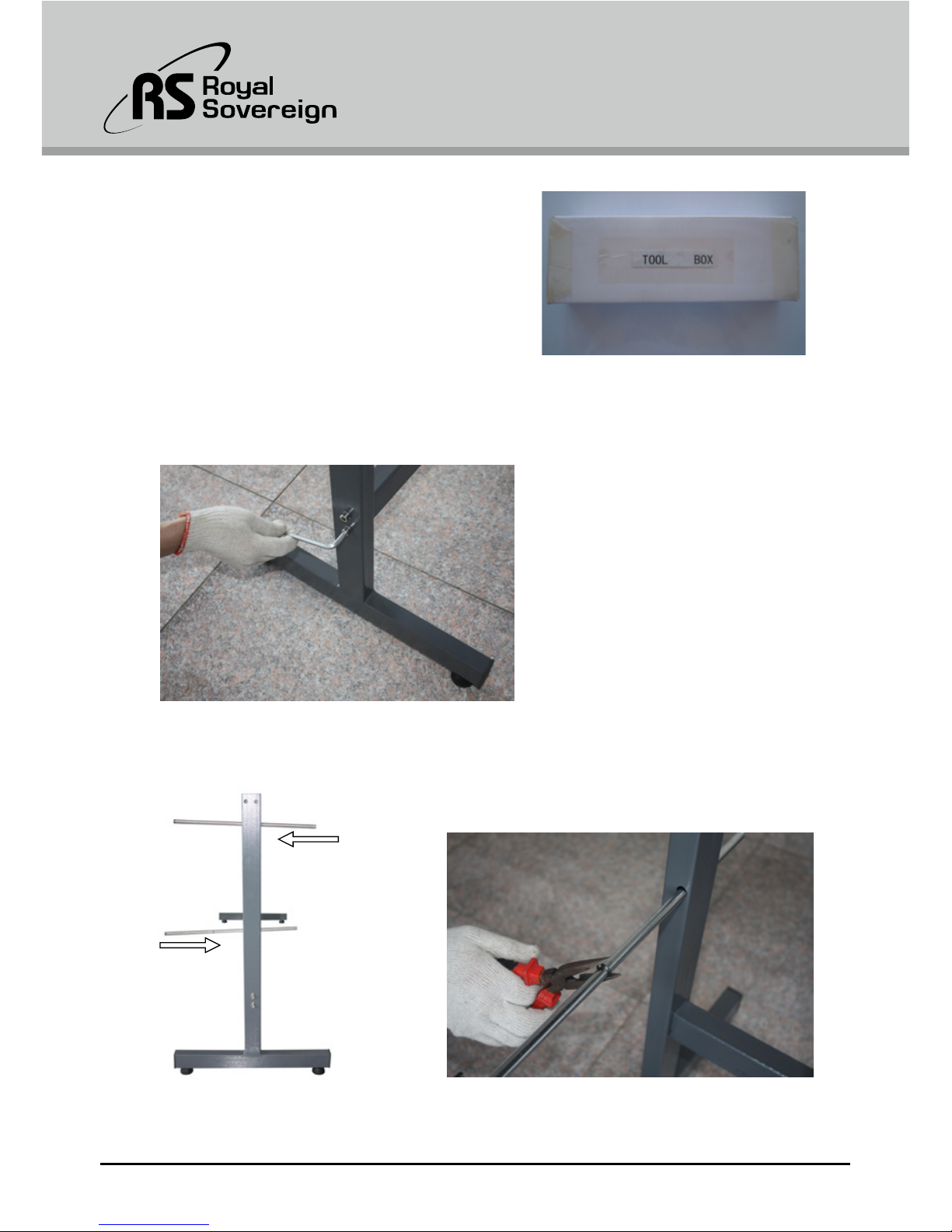

2. Open the tool-box. (Fig. 4-1)
This operation must be carried out by a minimum of two people
3. Attach the lower cross bar to the left floor stand side frame and right floor stand side frame using the
supplied screws (M8x55). (Fig. 4-2)
4. Slide the holder rods into the adjacent holes of the assembly in accordance with Fig. 4-3. Using
pinchers, place the E-rings into the appropriate mounting slots of the holder rods. (Fig.4-4)
rear
front
Fig. 4-3 Fig. 4-4
Fig. 4-2
Fig. 4-1

RMT Series
8

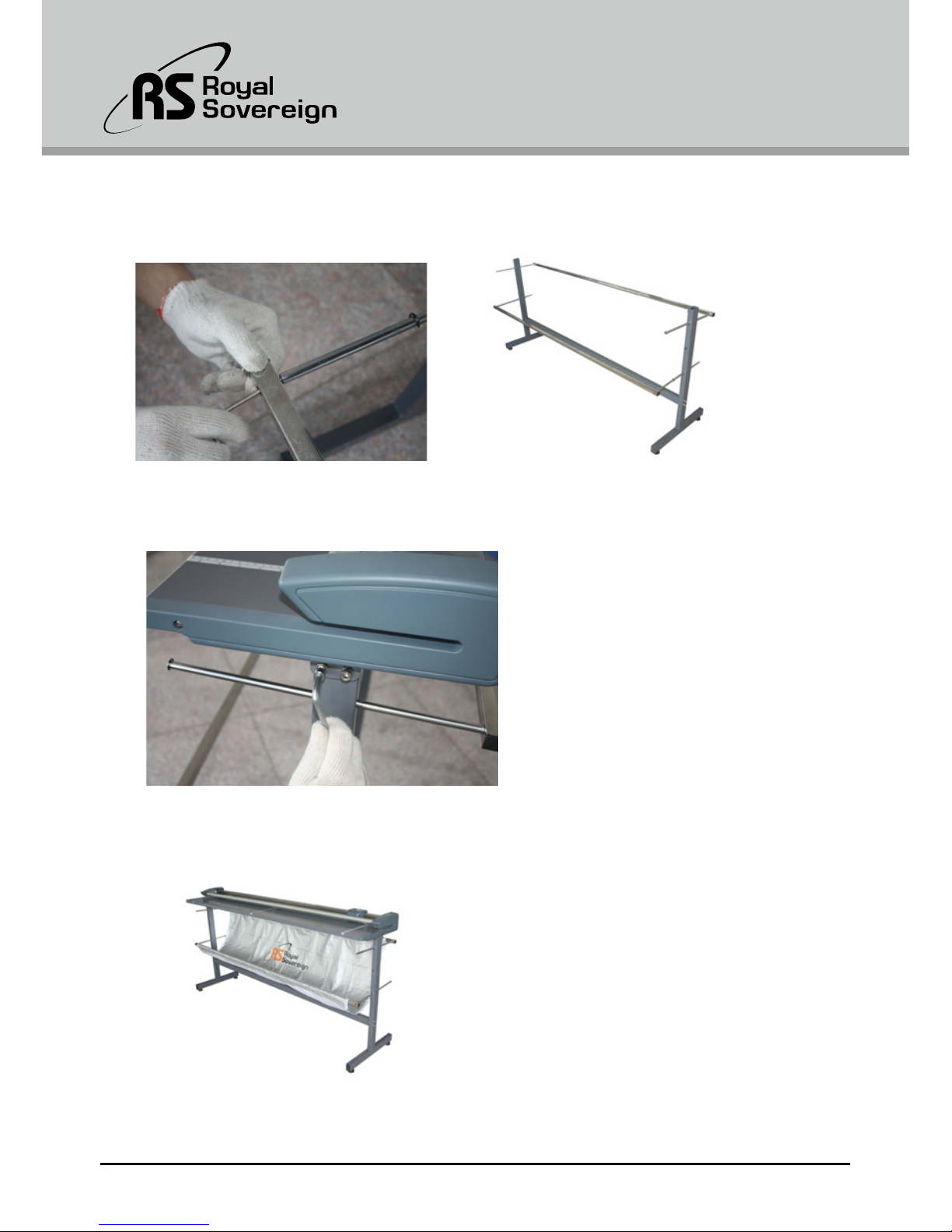

5. Screw the wastecatcher square bars into the previously inserted wastecatcher holder rods, (Fig. 4-5)
putting the supplied screws through the largest drilling in the square bar, so that the head of the screw
sits flush within the bar itself. (Fig. 4-6)
Fig. 4-5 Fig. 4-6
6. Position the main trimmer assembly on top of the floor stand. And properly align the bolt holes. Use
bolts (M8x55) to attach the main trimmer assembly to the floor stand. (Fig. 4-7)
Fig. 4-7
7. The Trimmer is now ready for Operation. (Fig. 4-8)
Fig. 4-8

RMT Series
9
5. OPERATION
The trimmer must only be used by trained and qualified personnel.
The trimmer must be used only for trimming material for which it has been designed.
For recommended maximum cutting thickness see page 10.
1. The trimmer should be positioned on a level surface in an area with adequate lighting and enough
work space for feeding materials.

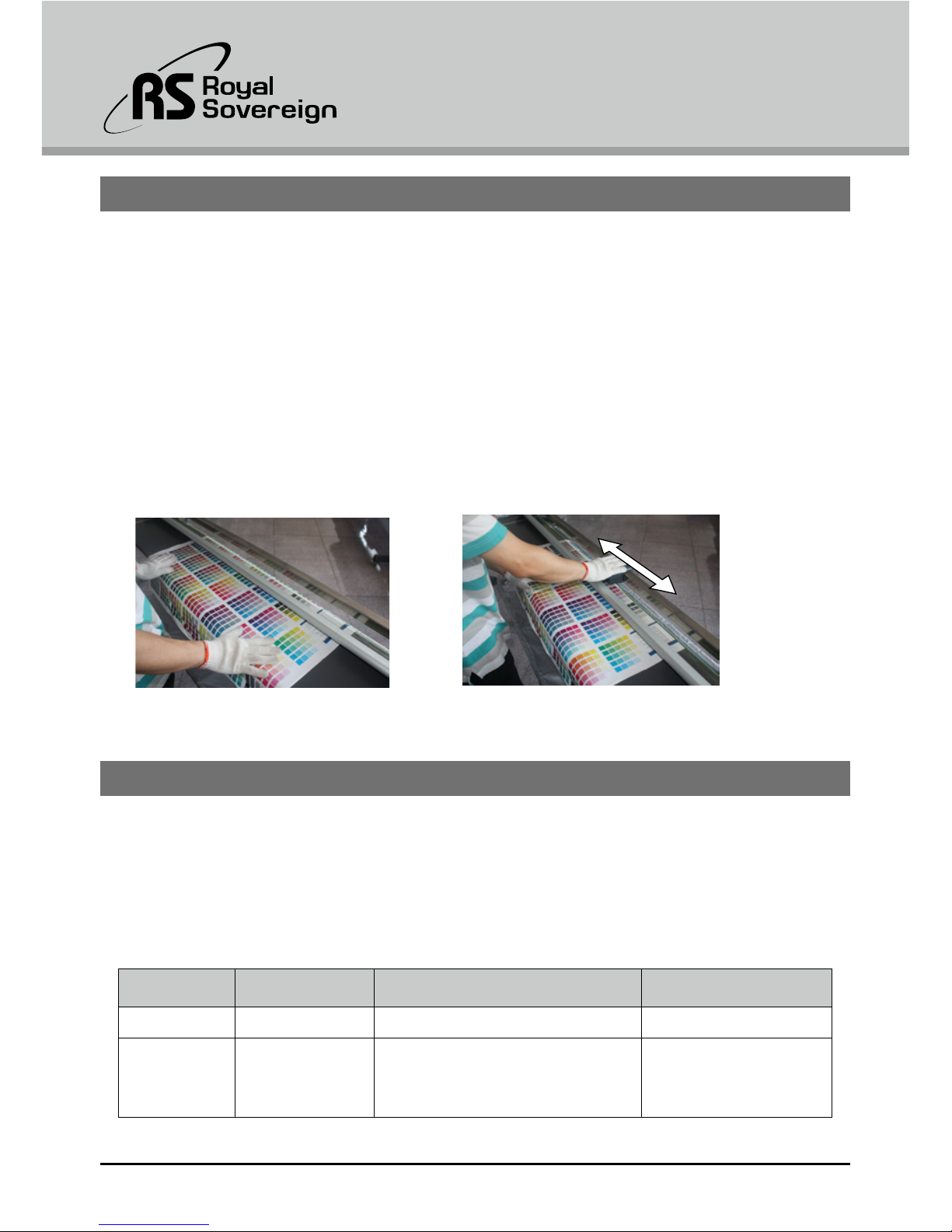

2. To begin trimming material, position the material to be trimmed on the front feeding table (Fig. 5-1)
and measure the cut by using the scales present at either side of the feed table or by the guideline.
Do not lean against or put any object on the feeding table during trimming.
Fig. 5-1 Fig. 5-2
6. MAINTENANCE
Standard maintenance
Note: Only qualified personnel should attempt standard maintenance on the trimmer.
Maintenance Procedures
Follow below procedures as needed.
Maintenance Frequency of
execution Procedure Precautions
General dusting At user's discretion  Do not use aggressive products
Cleaning the scrap
material
If there is a lot of scrap
material


aspirator and/or compressed air
Wear a pair of protection gloves

RMT Series
10
7. SPECIFICATIONS
7.1 Technical information
MODEL RMT-1300 RMT-1600 RMT-2000
Max cutting thickness 47mil/1.2mm
Usable cutting length 51inch/1300mm 63inch/1600mm 78inch/2000mm
Length 63inch/1596mm 79inch/1896mm 88inch/2246mm
Width 18inch/460mm
Height 37inch/946mm
Working table height 34inch/876mm
Unit weight 62lbs/28Kg 73lbs/33Kg 84lbs/38Kg
Accessories Roll Holder
7.2 Recommended Trimming Materials
NO Material Type Max.cutting thickness
1 Canvas 20mil/0.50mm
2 Laminate 20mil/0.50mm
3 Lexan 10mil/0.25mm
4 Paper 47mil/1.20mm
5 Styrene 10mil/0.25mm
6 Vinyl 20mil/0.50mm
Trimming any material with a thickness exceeding the maximum may
dull or damage the cutting blade.

RMT Series
11
8. WARRANTY
Royal Sovereign International warrants the equipment sold is free from defects in material and workmanship
for a period of One (1) year for Parts and Labor from the date of installation, excluding cutting blades which
are warranted for Six (6) months. This warranty is valid only to the original purchaser. This warranty is the
only warranty made by Royal Sovereign International and cannot be modified or amended. Royal Sovereign’s
sole and exclusive liability and the customer’s sole and exclusive remedy under this warranty shall be, at
Royal Sovereign’s option, to repair or replace any such defective part or product. These remedies are
only available if Royal Sovereign’s examination of the product discloses to Royal Sovereign’s satisfaction
that such defects actually exist and were not caused by misuse, neglect, attempt to repair, unauthorized
alternation or modification, fire, accident, flood or other hazard.
All warranty claims must be filed through Royal Sovereign or the authorized Royal Sovereign dealer or
reseller through which the equipment was originally purchased. Model, serial number and date of delivery
are required for all claims.
The warranty made herein is in lieu of all other warranties, expressed or implied, including any warranty or
merchantability or fitness for a particular purpose. Royal Sovereign will not be liable for personal damage or
personal injury (unless primarily caused by its negligence), loss of profit, or other incidental or consequential
damages arising out of the use or inability to use this equipment.
This warranty specifically does not cover damage to cutting blade caused by attempted cutting of
materials and/or thicknesses of materials other than those specified for use in the user manual, or failure
caused by adhesives, or damage caused by lifting, tilting or improper use of the machine. Warranty repair
or replacement by Royal Sovereign or its authorized Reseller(s) does not extend the warranty beyond
the initial one year period from the date of installation. Unauthorized customer alterations will void this
warranty.
