Royal Sovereign RBW-1500 User manual

Royal Sovereign International, Inc.
RBW-1500
BANNER WELDER
Owner's Manual
Please read and retain these instructions.
To register your product, please go to www.royalsovereign.com USA.
Click the Customer Support Tab then Registration Tab.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

2
CONTENTS
1. INTRODUCTION 3
2. SAFETY PRECAUTIONS  3
3. PRODUCT IDENTIFICATION 5
4. INSTALLATION 6
4.1 Electrical requirements  6
4.2 Box contents 6
4.3 Assembly 8
5. Control Panel 9
6. OPERATION 10
7. MAINTENANCE 11
8. TROUBLESHOOTING 14
9. SPECIFICATION 15
10. RECOMMENDED SETTING 15
11. WARRANTY 16
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

RBW-1500
3
1. INTRODUCTION
Thank you for choosing a Royal Sovereign RBW -1500. It has been designed and manufactured to provide years of
continuous service. For complete operating and maintenance information please read this manual thoroughly. Upon
receipt of your Banner Welder, please inspect the box, the machine and all other contents for shipping damage. Damage
should be brought to the immediate attention of the delivering carrier (See page 6 for list of shipment elements).
2. SAFETY PRECAUTIONS
Failure to comply with any of the following safety procedures could result in serious injury. Please read all instructions
carefully and keep for future reference. Royal Sovereign International Inc. cannot be held responsible for any damages to
people, animals or objects due to noncompliance with the safety norms and recommendations of these documents.
1. Only a licensed electrician should install wiring and outlet for the Banner Welder.
2. Ensure the unit is plugged into a properly grounded outlet with the correct voltage.
3. During operation, keep hands away from heating blocks and avoid inserting foreign objects into the machine.
4. Keep flammable and wet objects away from the machine.
5. Place machine on a level surface.
6. Avoid excessive sunlight, humidity and extreme temperatures.
7. Ensure the unit is turned off and unplugged from the outlet prior to moving and/or repairing.
8. Keep out of reach of children.
9. Only Royal Sovereign authorized maintenance and service technicians should make repairs.
10. Do not attempt to weld items that exceed total recommended material thickness for the unit.
13. Tampering with the protections and safety devices is dangerous for the people using the machine and for those
exposed to it. Royal Sovereign International Inc. cannot be held responsible for any damages to people, animals or
objects due to tampering with the protections.
14. Pay attention to the danger notices on the Banner Welder.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

4
Dangerous areas and residual risks
To avoid the risk of injury or health problems avoid all moving parts.
Pay attention to hands when operating the Banner Welder.
During certain intervention procedures on the machine, which are pointed out each time in this manual, residual risks for
the operator may arise. Residual risks can be avoided by carefully complying with the procedures of this manual and
using the personal protection devices indicated. such as:
• Carefully positioning the power cord so that it cannot be stepped on or damaged.
• Maintenance and service operations must be carried out only by the engineers authorized by the manufacturer.
• Pay attention to the danger notices on the Banner Welder.
Banner Welder should only be operated by trained personnel
DO NOT PLACE HANDS NEAR THE HOT ZONE !
× ×
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

RBW-1500
5

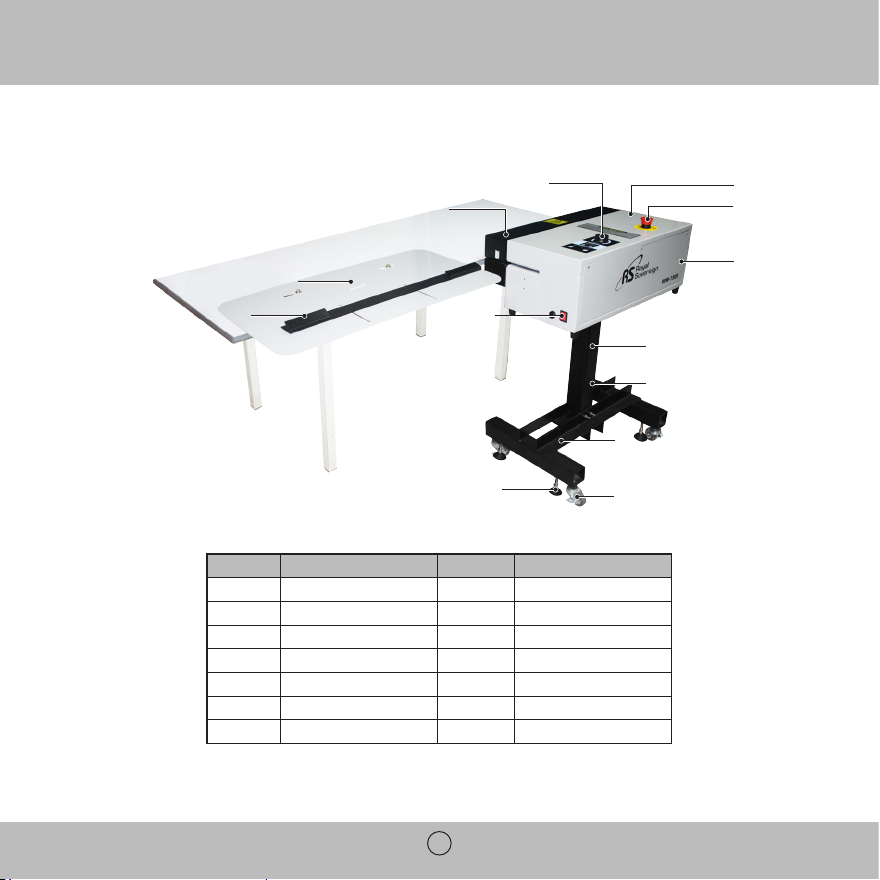

3. PRODUCT IDENTIFICATION
NO PART NAME NO PART NAME
1Guide Plate 8Main Switch
2Feed Table 9Adjustable Stand
3Top Cover 10 Support Bar
4Speed Knob 11 Base
5Body 12 Caster
6Emergency Switch 13 Leveling Legs
7Rear Cover
1 8
45
6
3
2
7
9
10
11
12
13
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

6
4. INSTALLATION
Note: The Banner Welder should be installed and assembled by a trained service technician
The Banner Welder should only be used in an area with the following characteristics:
• Protection from atmospheric agents.
• Proper illumination.
• Normal ambient operating conditions.
4.1 Electrical requirements
Royal Sovereign recommends that licensed electrician ensures proper power installation to your Banner Welder in
accordance with electrical codes in your area.
4.2 Box contents
Thoroughly inspect the parts and the unit. It is imperative that any missing parts are reported and a claim is filed with
the reseller immediately upon receipt of shipment.

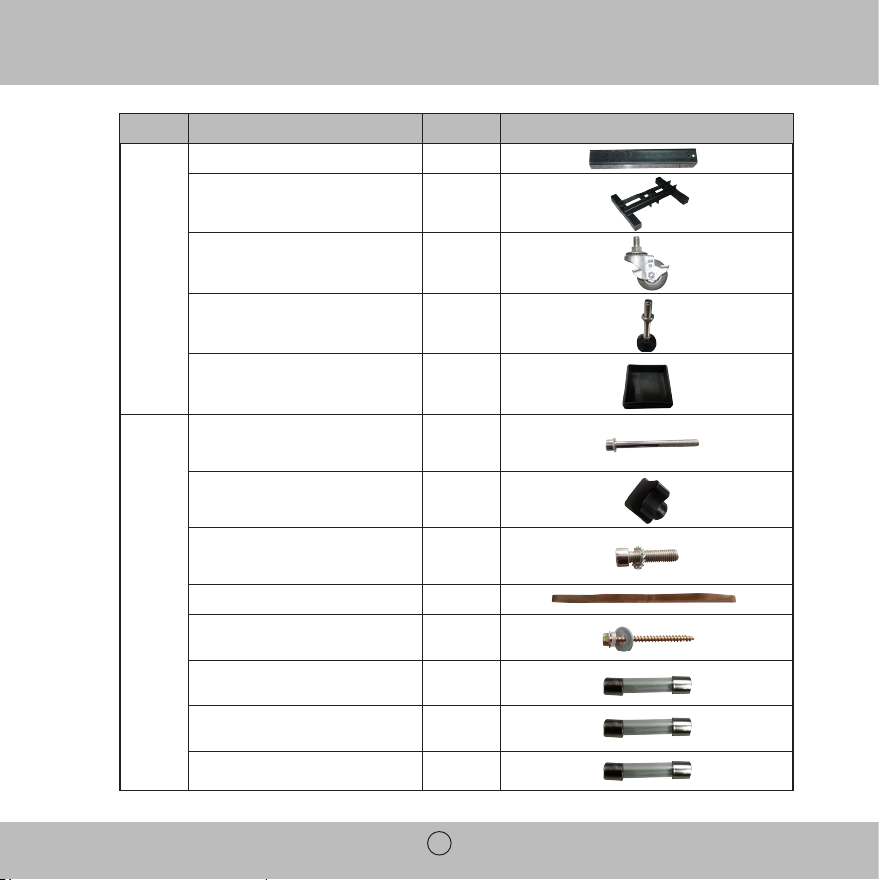

Part name Quantity Picture
Main box
Banner Welder Body 1
Banner Guide 1
Feed Table 1 1
Feed Table 2 1
Guide Plate 1
Adjustable Stand 1
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

RBW-1500
7
Part name Quantity Picture
Support Bar 1
Base 1
Caster 4
Foot 4
Tube stopper inside 4
Tool box
5/16 Hexa Head Bolt Screw (M8*80)
Star Washer (Ø8.2)
3
3
Knob-Bolt Guide 2
5/16 Hexa Head Bolt Screw (M8*30)
Spring Washer (Ø8.2)
4
4
Welding Belt 4
Wood Screw
Washer Plain
6
6
Fuse (AC250V 10A Lanbao)
(100-120V) 1
Fuse (AC250V 6.3A Lanbao)
(220-240V) 1
Fuse (AC250V 4A 5*20) 2

8
Fig. 4-5
4.3 Assembly
1. Open the box carton and remove all parts.
2. Open the tool-box.
3. Attach the caster to the base.(Fig. 4-1)
4. Attach the support bar to the base using the supplied screws (M8x80).(Fig. 4-2)
5. Attach the adjustable stand to the support bar with a suitable height using the supplied screws (M8x80).(Fig. 4-3)
6. Place the Banner Welder body on the adjustable stand and secure it with the supplied screws(M8x30).
Adjusting the leveling legs to keep it level and solid.(Fig. 4-4)
7. Attach the guide plate to the feed table using the KNOB-BOLT GUIDE. And then fasten the feed table to the work table
(Note: work table is not supplied by manufacturer) using the supplied screws.(Fig. 4-5) Attach the second feed table
as needed.
Fig. 4-1
Fig. 4-3Fig. 4-2
Fig. 4-4
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

RBW-1500
9
8. The machine is now ready for Operation(Fig. 4-6). Note the recommended component spacing.
5.CONTROL PANEL
1. Speed: To adjust the speed of the welding belt, turn the
speed knob clockwise to increase speed or
counter-clockwise to decrease the speed.
2. Temperature: To change the temperature use the up
arrow to increase temperature or the down arrow to
decrease temperature.
3. ST/BY: To switch to stand-by mode (temperature will
be automatically set to 176°F) press the ST/BY button.
If the machine is in Stand by Mode and no activity is
made for 5 minutes the machine will automatically
power off.
4. Power: Power button will power the belts and heater on/off.
(Note: To completely power the unit on/off, toggle the main switch located near the power cord)
1
2
34
Fig. 4-6
2" to 4" gap
6" to 8" gap

10
Welding line
6. OPERATION
The Banner Welder must only be used by trained and qualified personnel.
The Banner Welder must be used only for welding material for which it has been designed.
For recommended maximum welding thickness see page 15.
Welding:
NOTE: When you feed the banner into the machine, you should guide the banner by the hand or by
Banner Guide to keep it move in a straight line.
1. The Banner Welder should be positioned on a level surface in an area with adequate lighting and enough work space
for feeding materials. Connect the power cord to the AC outlet and turn the Power Switch to the on position. Depress
the power button on the control panel. The machine should
only be operated from the front (control side) of the machine.
2. Before welding, first determine the folded area to be welded, adjust
the guide plate and set it to the proper position. Set the temperature
and speed referencing the Recommended Temperature and Speed
section. (Note: Due to varying manufacturing processes of banner
material fine tuning may be required).
3. Fold over material to allow for a minimum of 1/2" weld.
4. The point of the arrow is the middle of the weld. Align the outer edge
of the fold over to the inner edge of the arrow.(Fig. 6-1)
5. Guide the banner into machine. The drive belts will grab banner and
pull the banner through machine.(Fig. 6-2)
6. Welded banner will exit machine.
7. Test the weld for tight seal.
8. For best results rotate the banner 90° in a clock wise direction.
Fold over the short side and guide the banner into the machine
with the 4 layer fold entering last. (Note: Turn the speed down 1 to 2
positions to compensate for the extra layers of material).
Fig. 6-1
Fig. 6-2
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

RBW-1500
11
9. Turn the speed back up and rotate the banner again and fold the longer side of the
banner and guide the banner into the machine with the 4 layer fold entering last.
(Note: Turn the speed back down 1 to 2 positions to compensate for the extra layers
of material).
10. Turn and weld last end of banner. (Turning the speed down accounting for the extra
layers of material).
Pole Pockets:
1. Weld all unpocketed sides first. (If you weld pockets before regular sides,
your pockets will be sealed closed).
2. Loosen the Knob-Bolt Guide on the guide plate on the bottom of the table.
Slide guide out to desired depth of pocket. Tighten the knobs on the guide plate
3. Weld pocket at slower speed than regular weld side.
Rope Pockets:
1. Weld banner the same as with pole pockets only making a smaller rope pocket.
2. Insert an electrician's fish tape through pocket and hook on end of rope using a
large paper clip. Pull rope through pocket.
Joining Two Pieces Togeather:
1. Cut two pieces to size.
2. Weld one outside edge on each piece.
3. Lay the two pieces together FACE to FACE.
4. Run through machine welding center seam.
7. MAINTENANCE
The banner welding machine has all sealed bearings which do not need any additional lubrication. The only maintenance
you may need to perform is replacing the worn out or ripped welding belts, or if you run a printed banner at too high
heat, you may need to clean your welding belts.
This is a simple procedure you do while the machine is running.
Sample Pocket Configurations
①
②
③
①
②
③
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

12
1. Run a piece of scrap material 2-3 times through the unit. This should clean belts sufficiently.
If you need a more in depth cleaning go to step 2.
2. Power the unit off and unplug the unit from the outlet. Once the unit has sufficiently cooled remove the top and bottom
cover (as needed) and use a rubber sand belt cleaner to remove residual adhesive from the belts.
DON’T TRY TO REPLACE BELTS WHEN MACHINE IS HOT
Unplug the unit and allow it to sufficiently cool.

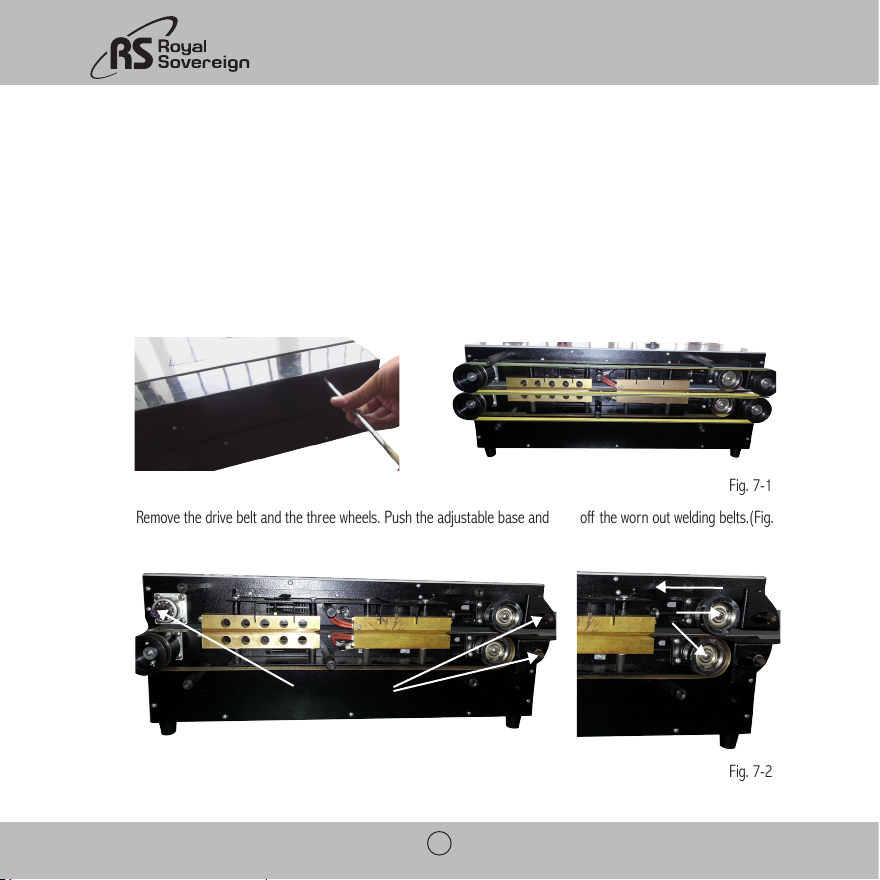

1. Remove the top/board covers. Unscrew the Philips head screws on the top cover and bottom cover.(Fig. 7-1)
2. Remove the drive belt and the three wheels. Push the adjustable base and take off the worn out welding belts.(Fig. 7-2)
Fig. 7-1
Fig. 7-2
Three wheels off
Adjustable base
Push
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

RBW-1500
13

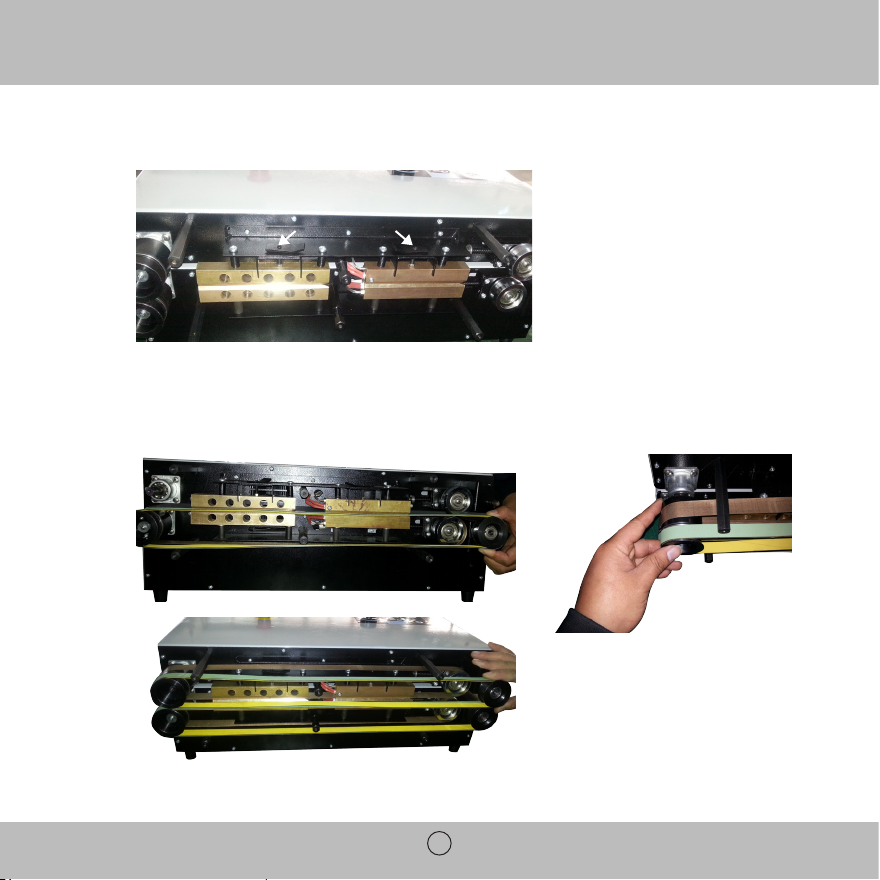

3. To increase or decrease tension on the heating blocks use the adjustment screw, one for the heating block and one
for the cooling block.(Fig. 7-3)
4. Replace the worn out belts with new belts.
5. Loosen the adjustment screw. If the banner is too thick, please tight the adjustment screw.
6. Replace the drive belt and three wheels.(Fig. 7-4)
Adjustable screw
Fig. 7-3
Fig. 7-4
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

14
7. Adjust the upper and lower screws to ensure the belts run in the proper position.(Fig. 7-5)
To move the belts closer to the machine loosen the upper screw and tighten the lower screw.
(To move the belts away from the machine tighten the upper screws and loosen the lower screw).
8. Replace covers.
8.TROUBLE SHOOTING
Symtom Cause Possible solution
Machine will not turn on a. Power switch is in “off”position.
b. Blown main power fuse.
a. Put the power switch to the “on “position
b. Replace the fuse
The display show “E0” The emergency switch is in “on” position Put the switch in “off” position
The display show “E1” a. The wire of the upper sensor is abnormal
b. The upper sensor is broken
a. Check the wire
b. Replace the upper sensor
The display show “E2” a. The wire of the lower sensor is abnormal
b. The lower sensor is broken
a. Check the wire
b. Replace the lower sensor
The display show “E3” The upper sensor is overheated Check the wire and pcb
The display show “E4” The lower sensor is overheated Check the wire and pcb
Fig. 7-5
Upper screw
Close to the machine
Lower screw

RBW-1500
15
9. SPECIFICATION
Model Name RBW-1500
Input Voltage 220V(60Hz),220~240V(50Hz),100V(50/60Hz),110~120V(60Hz)
Power Consumption 800W
Welding Width 0.6" (13~15mm)
Stock Thickness 0.03" (0.2mm-0.8mm)
Max. Pocket Width 6" (150mm)
Welding Speed 16 ft./min. ( 0-5m/min)
Max. Heating Temperature 662°F(350°C)
Adjustable stand 29"-42" (735 ~ 1055mm)
Cooling Method Fan
Digital Display LED
Unit Dimensions 24" x 15" x 9" (600 x 366 x 216 mm)
Unit Dimensions with Stand 24" x 15" x 42" (600 x 366x 1133 mm )
Net Weight 106 lbs. (48Kg)
10. RECOMMENDED SETTING
No Media Thickness Temperature Speed
110~13 OZ 464~518℉(240~270℃)6~7
215 OZ 482~536℉(250~280℃)5~6
318 OZ 536~572℉(280~300℃)4~5

16
11. WARRANTY
Royal Sovereign International warrants the equipment sold is free from defects in material and workmanship for a period of One (1)
year for Parts and Labor from the date of installation. This warranty is valid only to the original purchaser. This warranty is the only
warranty made by Royal Sovereign International and cannot be modified or amended. Royal Sovereign’s sole and exclusive liability
and the customer’s sole and exclusive remedy under this warranty shall be, at Royal Sovereign’s option, to repair or replace any
such defective part or product. These remedies are only available if Royal Sovereign’s examination of the product discloses to
Royal Sovereign’s satisfaction that such defects actually exist and were not caused by misuse, neglect, attempt to repair,
unauthorized alternation or modification, incorrect line voltage, fire, accident, flood or other hazard. All warranty claims must be
filed through Royal Sovereign or the authorized Royal Sovereign dealer or reseller through which the equipment was originally
purchased. Model, serial number and date of delivery are required for all claims.
The obligation to this warranty shall not extend to the following. The adjustment or replacement which are the normal responsibility
of the owner. Example Welding Belts, loosened fasteners (bolts, screws etc.) Chipped paint or other items such as fuses that show
wear under normal use. Normal operating adjustments to heat, speed or tension. Parts that are not manufactured by Royal
Sovereign International Inc.
The warranty made herein is in lieu of all other warranties, expressed or implied, including any warranty or merchantability or
fitness for a particular purpose. Royal Sovereign will not be liable for personal damage or personal injury (unless primarily caused
by its negligence), loss of profit, or other incidental or consequential damages arising out of the use or inability to use this
equipment.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
