RS PRO 2029 User manual

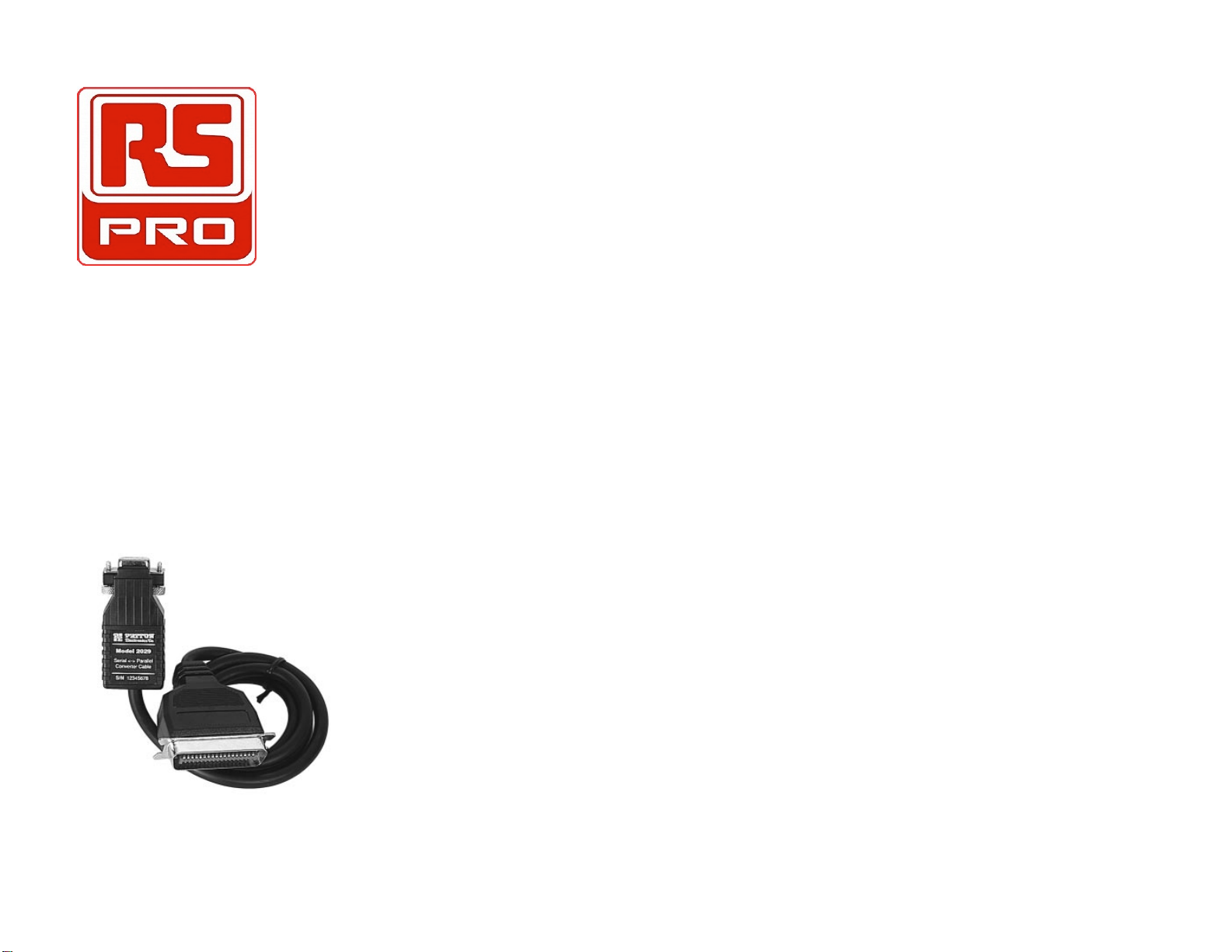

USER MANUAL
MODEL 2029
Parallel to Serial/Serial to
Parallel Interface Converter

1.0 WARRANTY INFORMATION
Patton Electronics warrants all Model 2029 components to be
free from defects, and will—at our option—repair or replace the product
should it fail within one year from the first date of shipment.
This warranty is limited to defects in workmanship or materials,
and does not cover customer damage, abuse or unauthorized
modification. If this product fails or does not perform as warranted,
your sole recourse shall be repair or replacement as described above.
Under no condition shall Patton Electronics be liable for any damages
incurred by the use of this product. These damages include, but are
not limited to, the following: lost profits, lost savings and incidental or
consequential damages arising from the use of or inability to use this
product. Patton Electronics specifically disclaims all other warranties,
expressed or implied, and the installation or use of this product shall be
deemed an acceptance of these terms by the user.
1.1 RADIO AND TV INTERFERENCE
The Model 2029 generates and uses radio frequency energy, and
if not installed and used properly—that is, in strict accordance with the
manufacturer's instructions—may cause interference to radio and
television reception. The Model 2029 has been tested and found to
comply with the limits for a Class A computing device in accordance
with the specifications in Subpart J of Part 15 of FCC rules, which are
designed to provide reasonable protection from such interference in a
commercial installation. However, there is no guarantee that
interference will not occur in a particular installation. If the Model 2029
does cause interference to radio or television reception, which can be
determined by disconnecting the RS-232 interface, the user is
encouraged to try to correct the interference by one or more of the
following measures: moving the computing equipment away from the
receiver, re-orienting the receiving antenna and/or plugging the
receiving equipment into a different AC outlet (such that the computing
equipment and receiver are on different branches).
1.2 CE NOTICE
The CE symbol on your Patton Electronics equipment indicates
that it is in compliance with the Electromagnetic Compatibility (EMC)
directive and the Low Voltage Directive (LVD) of the Union European
(EU). A Certificate of Compliance is available by contacting Technical
Support.
1
1.3 SERVICE
All warranty and non-warranty repairs must be returned freight
prepaid and insured to Patton Electronics. All returns must have a
Return Materials Authorization number on the outside of the shipping
container. This number may be obtained from Patton Electronics
Technical Support: [phone]; http://www.patton.com; or,
[email protected].
NOTE: Packages received without an RMA number will not be
accepted.
Patton Electronics' technical staff is also available to answer any
questions that might arise concerning the installation or use of your
Model 2029. Technical Support hours: 8AM to 5PM EST, Monday
through Friday.
2

3.0 CONFIGURATION
The Model 2029 is simple to install and designed for excellent
reliability. The following instructions will help you set up and install the
converter properly. If you have any questions, please call Patton
Technical Support at [phone].
3.1 CONFIGURATION SWITCHES
The Model 2029 uses a set of eight external DIP switches (see
Figure 1) that allow configuration to a wide range of applications.
Because all eight switches are in one externally accessible DIP switch
package, there is no need to open the case for configuration. The
configuration switches allow you to select data rates, parity, word length
and flow control selection. The following section describes all switch
locations, positions and functions.
The Model 2029 uses a
miniature configuration switch package.
To configure your unit, use a small screwdriver and gently push each
switch to its proper setting. The ON and OFF positions are shown in
Figure 2. Default settings for the DIP switches are shown in the table
on the following page. Detailed settings follow the table.
2.0 GENERAL INFORMATION
Thank you for your purchase of this Patton Electronics product.
This product has been thoroughly inspected and tested and is
warranted for One Year parts and labor. If any questions or problems
arise during installation or use of this product, please do not hesitate to
contact Patton Electronics Technical Support at [phone].
2.1 FEATURES
• Converts parallel data to serial data and vice versa
• Automatically selects parallel-to-serial and serial-to-parallel
operation
• Serial data rates to 38,400 bps
• No AC power required
• Supports both software and hardware flow control
• A five-state LED monitors status and diagnostics
• Ultra-miniature size
• A DB-9 female and a Centronics male connector
• Made in the U.S.A.
2.2 DESCRIPTION
The Patton Model 2029 Parallel to Serial Converter
automatically converts RS-232C serial data to parallel data format and
vice versa. Incorporating advanced microprocessor technology, the
Model 2029 is able to automatically sense and select parallel and serial
modes. Requiring no AC power, the Model 2029 supports serial data
rates to 38.4 Kbps.
For easy configuration, the Model 2029 features a convenient set
of external configuration switches. These accessible configuration
switches allow the user to control baud rate, parity, word length and
flow control. An easy-to-read LED indicator displays status and
operating condition.
Housed in an ultra-miniature ABS plastic case, the Model 2029
measures only 2.68” x 1.25” x .75”. The Patton Model 2029 comes
equipped with a DB-9 female connector on the serial side and a
Centronics 36 pin male connector on the parallel side. A 6-foot integral
cable is also included.
3 4

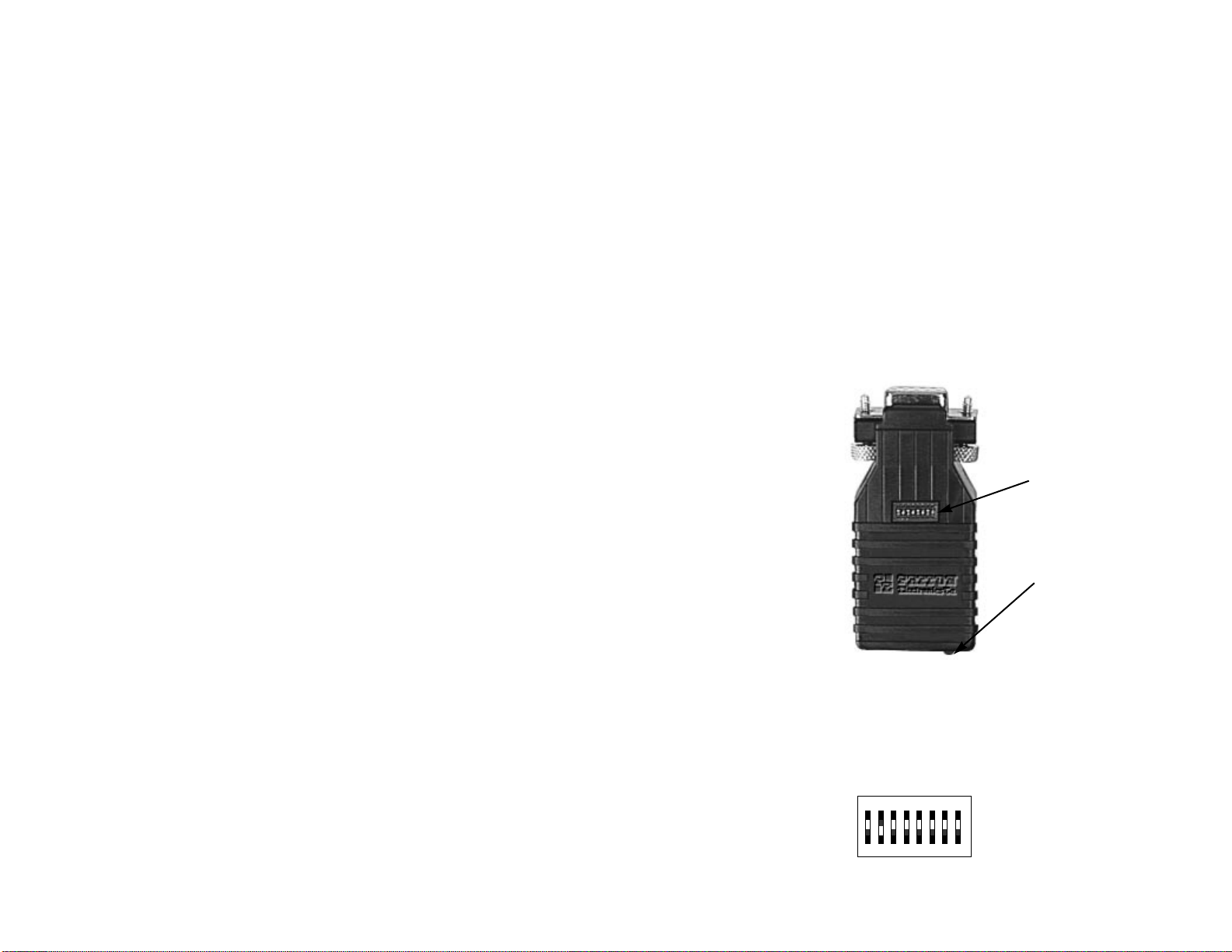

Figure 1. The location of the configuration switches
Figure 2. The miniature configuration switch package
OFF
12345678
DHS-8
Configuration
Switch
Complete
Status LED

3.2 DETAILED SWITCH SETTINGS
This section provides detailed information about the function of
each DIP switch and lists all possible settings.
Switch 1: Hardware/Software Control
The setting for Switch 1 determines whether these interface
converters will control either hardware or software flow control.
Switch 2: Enable/Disable the LED Indicator
The setting for Switch 2 determines whether the LED indicator is
enabled or disabled.
5
Switch 3 through 5: Data, Parity and Stop Bit
Switches 3 through 5 are used to specify the data, parity and stop
bits. The following table shows the settings that may be used:
Switches 6 through 8: Frequency and Data Rate
Switches 6 through 8 determine the frequency and data rate. The
following chart shows the settings that may be used:
6
300 OFF OFF ON
600 ON OFF ON
1200 ON ON OFF
2400 OFF ON ON
4800 ON ON ON
9600 OFF OFF OFF
19200 ON OFF OFF
38400 OFF ON OFF
Model 2029
Data Rate SW6 SW7 SW8
Flow Control SW1
Hardware OFF
Software ON
LED SW2
ON ON
OFF OFF
7B EP 1S ON ON ON
7B OP 1S OFF ON ON
7B NP 2S ON OFF ON
7B EP 2S OFF OFF ON
7B OP 2S ON ON OFF
8B EP 1S OFF ON OFF
8B OP 1S ON OFF OFF
8B NP 1S OFF OFF OFF
Stop
Data Parity Bit SW3 SW4 SW5
DIP SWITCH SUMMARY TABLE
Position Function Factory Default
SW1 Flow Control Off
SW2 LED Indicator On
SW3 Data, Parity, Stop Bits Off
SW4 Data, Parity, Stop Bits Off
SW5 Data, Parity, Stop Bits Off
SW6 Data Rate Off
SW7 Data Rate Off
SW8 Data Rate Off
Hardware
Enabled
8B, NP, 1S
9600 bps
}
}

4.0 INSTALLATION
The Patton Model 2029 is very simple to install. Once you have
configured the DIP switches, just plug it in like a normal cable and
you're ready to go. Figure 3 illustrates the proper connections for the
standard cables. If you have special-ordered a non-standard
connector, your connections may be different.
5.0 OPERATION
Once your interface converter is properly configured and installed,
it should operate transparently—as if it were a standard cable
connection. Operating power is derived from the RS-232 data and
control signals; there is no “ON/OFF” switch.
5.1 LED STATUS MONITORS
The Model 2029 features an easy-to-read status LED that glows
red to indicate the condition of the transmission line. Figure 1 shows
the location of the LED. The following chart describes the LED's
various functions.
The red LED indicator blinks to show data activity. However, since
there is only one indicator, it uses different LED codes to demonstrate
various messages. The following chart describes these codes:
7 8
LED Codes
● ● —● ——— ● ● —● ——— Computer is sending data
● ——— ● ——— ● ——— Serial device is connected; computer is
not sending data
● ● ——— ● ● ——— Both serial and parallel devices are
connected; computer not sending
data
● —● ——— ● —● ——— Printer not ready, data held in buffer
● ● ● ● ———● ● ● ● Computer ignoring flow control, data lost
Key:
●Blink
—Short pause
——— Long pause

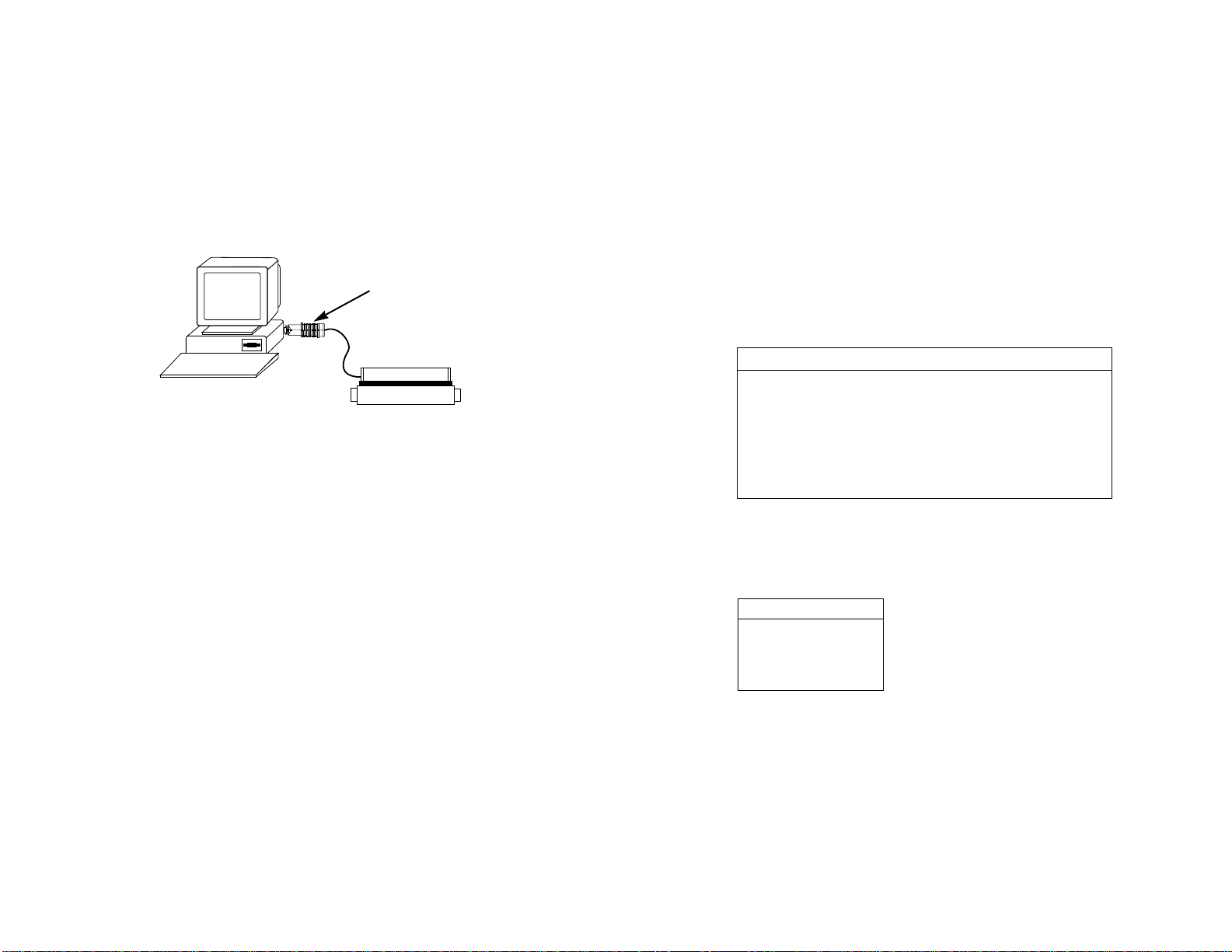

Figure 3. Installing the Model 2029
Model 2029
PC
Printer

APPENDIX A
PATTON MODEL 2029 SPECIFICATIONS
Interface: Asynchronous., RS-232C compatible
Connectors: Serial, DB-9 female; Parallel, Centronics
male
Cables: Six foot integral cable
Data Rates: 0- 38,400 Kbps
LED: LED displays status and operating condition
Power Supply: No external power required; uses power
from RS-232 interface
Data Format: 7 or 8 bits; 1 or 2 stop bits; even, odd or no
parity
Temperature Range: 0-60°C (32-140°F)
Altitude: 0-10,100 feet
Humidity: 5 to 95% non-condensing
Dimensions: 2.68” x 1.25” x .75”
Weight: 2 oz. (56.8 grams)
APPENDIX B
PATTON MODEL 2029 INTERFACE CONNECTIONS
9 10
1- Carrier Detect (CD)
2- Receive Data (RD)
3- Transmit Data (TD)
4- Data Terminal Ready (DTR)
5- Signal Ground/ Frame Ground
(SG/ FG)
Data Set Ready (DSR) - 6
Ready to Send (RTS) - 7
Clear to Send (CTS) - 8
External Power - 9
Model 2029 DB-9 Interface
1- Strobe (Output)
2- Data bit 0 (I/O)
3- Data bit 1 (I/O)
4- Data bit 2 (I/O)
5- Data bit 3 (I/O)
6- Data bit 4 (I/O)
7- Data bit 5 (I/O)
8- Data bit 6 (I/O)
9- Data bit 7 (I/O)
10- Acknowledge (Input - active low)
11- Busy (Input - active high)
12- Paper End
13- Select
14-
15- No Connect
16-
17-
18- +5 volts
Ground -19
Ground -20
Ground -21
Ground -22
Ground -23
Ground -24
Ground -25
Ground -26
Ground -27
Ground -28
Ground -29
Ground -30
-31
Error -32
Ground -33
-34
-35
Ground -36
Model 2029 Centronics Interface

APPENDIX C
PATTON MODEL 2029 BLOCK DIAGRAM
Dear Valued Customer,
Thank you for purchasing Patton Electronics products! We do
appreciate your business. I trust that you find this user manual helpful.
We manufacture one of the widest selections of data
communications products in the world including CSU/DSU's, network
termination units, powered and self-powered short range modems, fiber optic
modems, interface converters, baluns, electronic data switches, data-line surge
protectors, multiplexers, transceivers, hubs, print servers and much more. We
produce these products at our Gaithersburg, MD, USA, facility, and can
custom manufacture products for your unique needs.
We would like to hear from you. Please contact us in any of the
following ways to tell us how you like this product and how we can meet your
product needs today and in the future.
Web: http://www.patton.com
Sales E-mail: [email protected]
Support E-mail: [email protected]
Phone - Sales [phone]
Phone - Support [phone]
Fax: [phone]
Mail: Patton Electronics Company
7622 Rickenbacker Drive
Gaithersburg, MD 20879 USA
We are committed to a quality product at a quality price. Patton
Electronics is BABT and ISO 9001 certified. We meet and exceed the highest
standards in the industry (CE, UL, etc.).
It is our business to serve you. If you are not satisfied with any
aspect of this product or the service provided from Patton Electronics or its
distributors, please let us know.
Thank you.
Burton A.Patton
Vice President
P.S. Please tell us where you purchased this product.
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
11
