RSS S-OPT User manual

Owner’s Manual

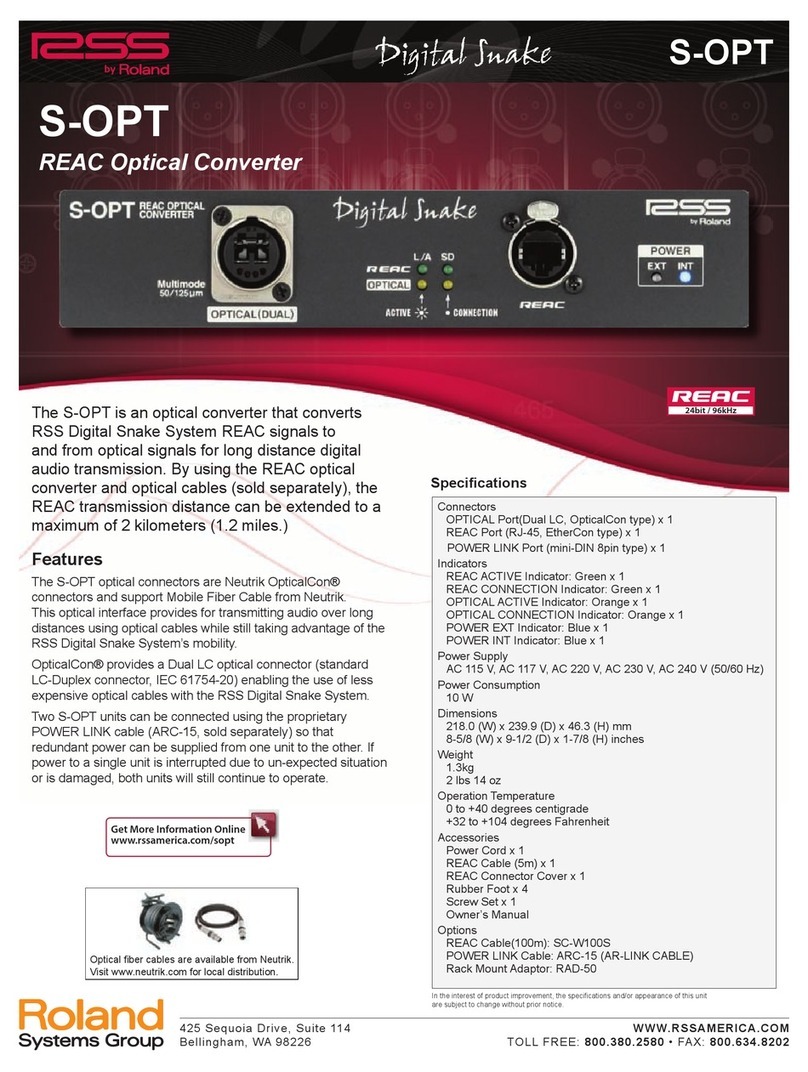

S-OPT is a REAC optical converter that converts RSS Digital Snake System REAC
signals to and from optical signals for long-distance digital audio transmission. By
using this REAC optical converter and optical cables (sold separately), the REAC
transmission distance can be extended to a maximum of 2 kilometers.
S-OPT has the following properties:
• The S-OPT optical connectors are Neutrik OpticalCon connectors and support
Mobile Fiber Cable from Neutrik. This optical interface provides for transmitting
sound over long distances via optical cables while still taking advantage of the
RSS Digital Snake System’s mobility.
• Because the OpticalCon connector also provides a Dual LC optical connector
(standard LC-Duplex connector, IEC 61754-20), less expensive optical cables
can be used for permanent installations of the RSS Digital Snake System.
• Two S-OPT units can be connected using the proprietary POWER LINK cable
(ARC-15, sold separately) so that redundant power can be supplied from one
unit to the other. If power to a single unit is interrupted due to some situation
or is damaged, both units will still continue to operate.
Main Specifications
Copyright © 2007 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form
without the written permission of ROLAND CORPORATION.
Before using this unit, carefully read the sections entitled: “IMPORTANT
SAFETY INSTRUCTIONS” (p. 2), “USING THE UNIT SAFELY” (p. 3–4), and
“IMPORTANT NOTES” (p. 5). These sections provide important information
concerning the proper operation of the unit. Additionally, in order to ensure
that you have gained a good grasp of every feature provided by your new
unit, the Owner’s Manual should be read in its entirety. The manual should be
saved and kept on hand as a convenient reference.
*04785567-01*
04785567 07-10-1N

2
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING - When using electric products, basic precautions should always be followed, including the following:
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in
accordance with the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
WARNING:
IMPORTANT:
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol or coloured GREEN or GREEN-AND-YELLOW.
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured
BLACK.
THIS APPARATUS MUST BE EARTHED
THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.
GREEN-AND-YELLOW: EARTH, BLUE: NEUTRAL, BROWN: LIVE
For the U.K.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified
by the manufacturer.
12. Unplug this apparatus during lightning storms or when
unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

3
USING THE UNIT SAFELY
001
• Before using this unit, make sure to read the
instructions below, and the Owner’s Manual.
............................................................................................
001-50
• Connect mains plug of this model to a mains
socket outlet with a protective earthing
connection.
............................................................................................
002a
• Do not open or perform any internal modifica-
tions on the unit.
............................................................................................
003
• Do not attempt to repair the unit, or replace parts
within it (except when this manual provides
specific instructions directing you to do so). Refer
all servicing to your retailer, the nearest Roland
Service Center, or an authorized Roland
distributor, as listed on the “Information” page.
............................................................................................
004
• Never use or store the unit in places that are:
• Subject to temperature extremes (e.g., direct
sunlight in an enclosed vehicle, near a heating
duct, on top of heat-generating equipment); or
are
• Damp (e.g., baths, washrooms, on wet floors);
or are
• Humid; or are
• Exposed to rain; or are
• Dusty; or are
• Subject to high levels of vibration.
............................................................................................
007
• Make sure you always have the unit placed so it is
level and sure to remain stable. Never place it on
stands that could wobble, or on inclined surfaces.
............................................................................................
008a
• The unit should be connected to a power supply
only of the type described in the operating
instructions, or as marked on the rear side of unit.
.............................................................................................
008d
• Connect only the specified device (S-OPT) to the
POWER LINK (which provide a supply of power).
And use the proprietary POWER LINK cable (ARC-
15, sold separately).
.............................................................................................
008e
• Use only the attached power-supply cord. Also,
the supplied power cord must not be used with
any other device.
.............................................................................................
009
• Do not excessively twist or bend the power cord,
nor place heavy objects on it. Doing so can
damage the cord, producing severed elements
and short circuits. Damaged cords are fire and shock
hazards!
.............................................................................................
011
• Do not allow any objects (e.g., flammable
material, coins, pins); or liquids of any kind
(water, soft drinks, etc.) to penetrate the unit.
.............................................................................................
Used for instructions intended to alert
the user to the risk of injury or material
damage should the unit be used
improperly.
* Material damage refers to damage or
other adverse effects caused with
respect to the home and all its
furnishings, as well to domestic
animals or pets.
Used for instructions intended to alert
the user to the risk of death or severe
injury should the unit be used
improperly.
The ●symbol alerts the user to things that must be
carried out. The specific thing that must be done is
indicated by the design contained within the circle. In
the case of the symbol at left, it means that the power-
cord plug must be unplugged from the outlet.
The symbol alerts the user to important instructions
or warnings.The specific meaning of the symbol is
determined by the design contained within the
triangle. In the case of the symbol at left, it is used for
general cautions, warnings, or alerts to danger.
The symbol alerts the user to items that must never
be carried out (are forbidden). The specific thing that
must not be done is indicated by the design contained
within the circle. In the case of the symbol at left, it
means that the unit must never be disassembled.

4
USING THE UNIT SAFELY
012a
• Immediately remove the power cord from the
outlet, and request servicing by your retailer, the
nearest Roland Service Center, or an authorized
Roland distributor, as listed on the “Information”
page when:
• The power-supply cord or the plug has been
damaged; or
• If smoke or unusual odor occurs
• Objects have fallen into, or liquid has been
spilled onto the unit; or
• The unit has been exposed to rain (or
otherwise has become wet); or
• The unit does not appear to operate normally
or exhibits a marked change in performance.
............................................................................................
013
• In households with small children, an adult should
provide supervision until the child is capable of
following all the rules essential for the safe
operation of the unit.
............................................................................................
014
• Protect the unit from strong impact.
(Do not drop it!)
............................................................................................
015
• Do not force the unit’s power-supply cord to
share an outlet with an unreasonable number of
other devices. Be especially careful when using
extension cords—the total power used by all
devices you have connected to the extension
cord’s outlet must never exceed the power rating
(watts/amperes) for the extension cord. Excessive
loads can cause the insulation on the cord to heat
up and eventually melt through.
............................................................................................
016
• Before using the unit in a foreign country, consult
with your retailer, the nearest Roland Service
Center, or an authorized Roland distributor, as
listed on the “Information” page.
............................................................................................
026
• Do not put anything that contains water (e.g.,
flower vases) on this unit. Also, avoid the use of
insecticides, perfumes, alcohol, nail polish, spray
cans, etc., near the unit. Swiftly wipe away any
liquid that spills on the unit using a dry, soft cloth.
............................................................................................
101a
• The unit should be located so that its location or
position does not interfere with its proper venti-
lation.
.............................................................................................
102b
• Always grasp only the plug on the power-supply
cord when plugging into, or unplugging from, an
outlet or this unit.
.............................................................................................
103a
• At regular intervals, you should unplug the power
plug and clean it by using a dry cloth to wipe all
dust and other accumulations away from its
prongs. Also, disconnect the power plug from the
power outlet whenever the unit is to remain
unused for an extended period of time. Any
accumulation of dust between the power plug
and the power outlet can result in poor insulation
and lead to fire.
.............................................................................................
104
• Try to prevent cords and cables from becoming
entangled. Also, all cords and cables should be
placed so they are out of the reach of children.
.............................................................................................
106
• Never climb on top of, nor place heavy objects on
the unit.
.............................................................................................
107b
• Never handle the power cord or its plugs with wet
hands when plugging into, or unplugging from,
an outlet or this unit.
.............................................................................................
108a
• Before moving the unit, disconnect the power
plug from the outlet, and pull out all cords from
external devices.
.............................................................................................
109a
• Before cleaning the unit, unplug the power cord
from the outlet.
.............................................................................................
110a
• Whenever you suspect the possibility of lightning
in your area, pull the plug on the power cord out
of the outlet.
.............................................................................................
118c
• Keep any ferrite core, POWER LINK cable clamp,
and screws (for the POWER LINK cable clamp and
grounding terminal) you may remove, and the
included rubber feet, REAC connector cover and
screws in a safe place out of children’s reach, so
there is no chance of them being swallowed
accidentally.
.............................................................................................

5
Important Notes
In addition to the items listed under “IMPORTANT SAFETY INSTRUCTIONS” and “USING THE UNIT SAFELY” on pages 2 and 3–4,
please read and observe the following:
301
• Do not connect this unit to the same electrical outlet that
is being used by an electrical appliance that is controlled
by an inverter (such as a refrigerator, washing machine,
microwave oven, or air conditioner), or that contains a
motor. Depending on the way in which the electrical
appliance is used, power supply noise may cause this unit
to malfunction or may produce audible noise. If it is not
practical to use a separate electrical outlet, connect a
power supply noise filter between this unit and the
electrical outlet.
307
• Before connecting this unit to other devices, turn off the
power to all units. This will help prevent malfunctions
and/or damage to speakers or other devices.
308
• This device has no power switch. Disconnect the plug
from the power outlet whenever shutdown of power is
required. The power cord’s plug should be connected to
the closest available power outlet to the device; this
should be within immediate reach during use.
352a
• This device may interfere with radio and television
reception. Do not use this device in the vicinity of such
receivers.
352b
• Noise may be produced if wireless communications
devices, such as cell phones, are operated in the vicinity of
this unit. Such noise could occur when receiving or initi-
ating a call, or while conversing. Should you experience
such problems, you should relocate such wireless devices
so they are at a greater distance from this unit, or switch
them off.
355b
• When moved from one location to another where the
temperature and/or humidity is very different, water
droplets (condensation) may form inside the unit.
Damage or malfunction may result if you attempt to use
the unit in this condition. Therefore, before using the unit,
you must allow it to stand for several hours, until the
condensation has completely evaporated.
360
• Depending on the material and temperature of the
surface on which you place the unit, its rubber feet may
discolor or mar the surface.
You can place a piece of felt or cloth under the rubber feet
to prevent this from happening. If you do so, please make
sure that the unit will not slip or move accidentally.
401a
• For everyday cleaning wipe the unit with a soft, dry cloth
or one that has been slightly dampened with water. To
remove stubborn dirt, use a cloth impregnated with a
mild, non-abrasive detergent. Afterwards, be sure to wipe
the unit thoroughly with a soft, dry cloth.
402
• Never use benzine, thinners, alcohol or solvents of any
kind, to avoid the possibility of discoloration and/or defor-
mation.
553
• Use a reasonable amount of care when using the unit’s
buttons, sliders, or other controls; and when using its jacks
and connectors. Rough handling can lead to malfunc-
tions.
556
• When connecting / disconnecting all cables, grasp the
connector itself—never pull on the cable. This way you
will avoid causing shorts, or damage to the cable’s internal
elements.
557
• A small amount of heat will radiate from the unit during
normal operation.
558b
• To avoid disturbing your neighbors, try to keep the unit’s
volume at reasonable levels (especially when it is late at
night).
559a
• When you need to transport the unit, package it in the
box (including padding) that it came in, if possible.
Otherwise, you will need to use equivalent packaging
materials.
Power Supply
Placement
Maintenance
Additional Precautions
* Neutrik, EtherCon and OpticalCon are registered trademarks of
Neutrik, Inc.
* All product names mentioned in this document are trademarks
or registered trademarks of their respective owners.

6
Panel Descriptions
Optical Port
This port is used to connect optical cables or optical cords. Two-core multimode, 50/125 micrometer core
diameter optical fibers are supported.
• Please use one of the following models of Neutrik’s Mobile Fiber Cable for the optical cable.
NKO2M-xxx(*): A 1-system cable that uses one pair of S-OPT units.
NKO4MY-xxx(*): A 2-system cable that uses two pairs of S-OPT units. Convenient when using redundant
(MAIN/BACKUP) REAC.
(*) The cable model number is determined by specifications such as the cable length. Contact Neutrik for
further details.
• Please use an optical cord equipped with a Dual LC connector (standard LC-Duplex connector, IEC
61754-20) for optical cords.
Status Indicators
These indicators display the status of the REAC or optical signal. The indicators operate as shown below.
REAC Port
This port is used to connect REAC devices and REAC cables. Connect to a REAC device using the REAC cable which
comes with the S-OPT, a SC-W100S REAC cable, or a Cat5e Ethernet cable equipped with an RJ45 plug.
POWER Indicator EXT, INT
This indicator displays the power supply status. When power is supplied from AC IN on the rear panel, the INT
LED lights blue. In addition, if another S-OPT is connected to the POWER LINK connector with a proprietary
POWER LINK cable (ARC-15, sold separately) and power is supplied from the other S-OPT, then the EXT LED lights
blue.
Front Panel
ACTIVE CONNECTION
REAC
Blinking: Communicating with the REAC device
On: Not communicating with a REAC device On: Communication with a REAC device is possible
Off: No REAC device is connected Off: No REAC device is connected
OPTICAL
Blinking: Communicating with partner S-OPT
On: Not communicating with partner S-OPT On: Communication with partner S-OPT is possible
Off: No partner S-OPT is connected Off: No partner S-OPT is connected

7
Panel Descriptions
AC IN
Connect the included power cord.
Please use the cord clamp (p. 9) to fix the power cord and prevent it from being unplugged accidentally.
POWER LINK Cable Clamp
Clamp and fix the proprietary POWER LINK cable (ARC-15, sold separately). (p. 9)
POWER LINK Connector
Connect two S-OPT units using the proprietary POWER LINK cable (ARC-15, sold separately). By sharing the
power supply, the power supply can be backed up.
Grounding Terminal
If necessary, use this terminal to connect the S-OPT chassis to an external grounding source.
Rear Panel
Never attempt to use the following sources for an external ground connection:
• Water pipes (may result in shock or electrocution).
• Gas pipes (may result in fire or explosion).
• Telephone line ground or lightning rod (may be dangerous in the event of lightning).

8
Turning the Power On and Off
This device has no power switch.
Power is switched on by plugging the power cord into a power outlet; remove the plug from the outlet to switch
power off. When powering up, first connect any peripheral devices, then plug in the power to the S-OPT before
turning on the power to the connected devices.
There are two ways to input a power supply to this device: “AC IN” and “POWER LINK.”By connecting two S-
OPT units using a proprietary POWER LINK cable (ARC-15, sold separately), power can be supplied to both S-OPT
units from a single unit. By doing so, if the power supplied to the AC IN of one unit is interrupted, both S-OPT
units can continued to be used. In addition to circuit redundancy using the S-4000 series REAC MAIN and
BACKUP, the power supply can also be backed up.
Backing up the power supply (when connecting 2 S-OPT units with POWER LINK)
• When there is no external backup power supply, such as a UPS
Connect each “AC IN” of two S-OPT units to a normal outlet.
(Although both S-OPT units will operate if one of the two S-OPT units has power supplied to its “AC IN,” it is
recommended that power be connected and supplied to AC IN of both units to improve system reliability.)
• When there is an external backup power supply separate from the normal power supply, such as UPS
Connect “AC IN” of one S-OPT unit to the normal outlet, and connect the “AC IN” of the other S-OPT unit
to the external backup power supply.
To prevent malfunction and/or damage to speakers or other devices, always turn down the
volume, and turn off the power on all devices before making any connections.
Once the connections have been completed, turn on power to your various devices in the order
specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage
to speakers and other devices.
Be sure to use the included power cord when connecting to the power supply.
To completely shut off the power to the unit, disconnect the power cords from the “AC IN”
sockets of the both units.
UPS:
Uninterruptible Power Supply

9
Turning the Power On and Off
Use the following procedure to secure the power plugs.
1.
Insert the power cord into the AC INPUT on the rear panel.
2.
Lower the power cord clamp to secure the power cord plug.
When backing up the power supply using the POWER LINK cable (ARC-15, sold separately), prevent the cable
from being unplugged by fixing it using the following procedure.
1.
Remove the clamp screws (2) specified in the diagram, and remove the POWER LINK cable clamp.
2.
As shown in the figure, clamp the POWER LINK cable using the cable clamp, and secure with the
screws (2) removed in Step 1.
How to Use the Power Cord Clamps
Using the POWER LINK Cable Clamp

10
About Placement
If you want to mount the S-OPT in a rack, make sure to use only the BOSS RAD-50 Rack Mount Adaptor (sold
separately). To install, secure the S-OPT to the RAD-50 with three screws, one is screw supplied with the RAD-
50 and another two screws are supplied with the S-OPT.
If using commercially available Cat5e Ethernet cables, attach the supplied REAC connector cover to the connector.
Attach the rubber feet when not rack mounting the unit.
Peel off the backing from the double-sided adhesive tape on the rubber feet and attach the feet at the points
indicated in the figure below.
Using the Unit While Mounted in a Rack
Using the REAC Connector Cover
Attaching the Rubber Feet
When turning the S-OPT upside down, place stacks of newspapers or magazines to support the
four corners (or two sides) so that stress is not placed on the S-OPT itself. Also, handle the S-OPT
with care, and avoid dropping it.
RAD-50
S-OPT
* Remove the REAC connector covers if you are using REAC
cables with EtherCon type connectors (the REAC cable which
comes with the S-OPT or SC-W100S). Take care not to lose
the REAC connector covers removed at this time.
bottom of the unit

11
Notes to Observe in Using the REAC System
The REAC cable connected to the REAC port used by the REAC system to transmit sound can transmit multi-
channel audio signals by using network technology.
In very rare cases, noise may be generated when these systems are used in certain environments. If noise is
present, check the following points.
As REAC cables use computer network technology, you should pay attention to the following points regarding
wiring with network cables.
• Ensure that cables used for REAC connections conform to the Cat5e (Enhanced Category 5) standard.
• No single cable should be longer than 100 meters.
• Do not use cables with cut or torn coverings.
• Do not subject cables to undue stress.
• Do not wind or bend cables such that the radius of the turn is 25 mm or less, and do not double cables over.
• Do not bind cables tightly into bundles.
If you are making your own REAC cables, note the following precautions in addition to those above.
• Use plugs (RJ-45) conforming to high reliability standards.
• Do not separate the wires (twisted pairs) within the cables.
Cat5e Ethernet Cable Types
There are two different types of Cat5e Ethernet cables that you can use with the REAC System. Though the cables
look the same on the outside, the RJ45 plugs are wired in different ways. With a:
• crossover cable —some of the wires inside the cable are “crossed over” at each RJ45 plug. As a result, the two
RJ45 plugs on each end of a single cable are wired differently.
• straight-through cable —the wires inside the cable are connected to each RJ45 plug in the same arrangement
(each plug is wired the same).
Use and Handling of REAC Systems
About REAC Cables
Notes to Observe When Producing REAC Cables
Understanding Cables and Connections
Either a crossover cable or a straight cable can be used for direct REAC connection of the S-OPT to
another REAC device.

12
Notes to Observe in Using the REAC System
Cat5e Crossover Wiring (REAC cable: SC-W100S)
fig.app-01.eps
Cat5e Straight-Through Wiring
fig.app-02.eps
Ethernet Connectors
As mentioned previously, Cat5e Ethernet cables use RJ45 plugs. Each REAC device provides an RJ45 receptacle for
its REAC ports.
Though the standard RJ45 connection is very reliable, in high-traffic installations you may want to protect the
connection between the RJ45 plug and its receptacle. To this end, REAC RJ45 receptacles utilize rugged Neutrik®
EtherCon® connectors. When used with RJ45 plugs housed in EtherCon connectors, this provides a robust
latching connection similar to that provided by an XLR connector.
Neutrik offers EtherCon connectors for the fabrication of new cables (models NE8MC-1 and NE8MC-1-B), and
EtherCon connectors that can be added to a pre-made Ethernet cable (models NE8MC and NE8MC-B).
Cat5e Ethernet Cable Pin Connection Diagram
(RJ45-type Connectors)
A REAC port’s RJ45 receptacle can accept either a regular RJ45 plug or one housed in an EtherCon
connector.
TX+
TX-
RX-
RX+
TX+
TX-
RX-
RX+
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
TX+
TX-
RX-
RX+
TX+
TX-
RX-
RX+
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
RJ45 plug REAC RJ45 receptacle

13
Notes to Observe in Using the REAC System
For REAC connections, make sure to attach ferrite cores to your cables.
If you want to use REAC cable SC-W100S (sold separately) or Cat5e cable instead of the included REAC cable with
the S-OPT, please remove the Ferrite Core from the included REAC cable, then install the ferrite core on the SC-
100S or the Cat5e cable near the RJ45 plug that will be connected to the REAC port.
Use the following procedure to install a ferrite core on an Ethernet cable.
1.
Lift up the ferrite core’s tabs and open the ferrite core.
fig.6-11.eps
2. Place the REAC cable SC-W100S or Ethernet cable in the ferrite core so that the core abuts the base of
the cable’s connector.
fig.6-12.eps
3.
Push the tabs until they close securely with a snapping sound.
fig.6-13.eps
Installing the Ferrite Core on Ethernet Cables

14
System Connection Example
S-4000S 32x8 (Master REAC device)
S-OPT
S-OPT S-4000H 8x32 (Slave REAC device)
8 outputs
from console
32 mic/line inputs
32 mic/line sources
from stage 8 outputs from console
Cat5e
cables
Cat5e
cables
Optical cables or optical cords
(in a redundant system for each
Optical line in diagram)

15
System Connection Example
S-1608 16x8 (Master REAC device)
S-0816 8x16 (Slave REAC device)
8 outputs
from console
16 mic/line sources
from stage 8 outputs from console
16 mic/line inputs
S-OPT
S-OPT
Cat5e
cable
Cat5e
cable
Optical cable or optical cord

16
Specifications
S-OPT: REAC OPTICAL CONVERTER
* In the interest of product improvement, the specifications and/or appearance of this unit are subject to
change without prior notice.
Connectors
OPTICAL Port (Dual LC, OpticalCon type) x 1
REAC Port (RJ-45, EtherCon type) x 1
POWER LINK Port (mini-DIN 8-pin type) x 1
Indicators
REAC ACTIVE Indicator: Green x 1
REAC CONNECTION Indicator: Green x 1
OPTICAL ACTIVE Indicator: Orange x 1
OPTICAL CONNECTION Indicator: Orange x 1
POWER EXT Indicator: Blue x 1
POWER INT Indicator: Blue x 1
Power Supply AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
Power Consumption 10 W
Dimensions 218.0 (W) x 239.9 (D) x 46.3 (H) mm
8-5/8 (W) x 9-1/2 (D) x 1-7/8 (H) inches
Weight 1.3 kg
2 lbs 14 oz
Operation Temperature 0 to +40 degrees centigrade
+32 to +104 degrees Fahrenheit
Accessories
Power Cord x 1
REAC Cable (5m) x 1
REAC Connector Cover x 1
Rubber Foot x 4
Screw Set x 1
Owner’s Manual
Options
REAC Cable (100m): SC-W100S
POWER LINK Cable: ARC-15 (AR-LINK CABLE)
Rack Mount Adaptor: BOSS RAD-50
Optical Cable: Neutrik NKO2M-xxx (*1), NKO4MY-xxx (*1) (*2)
Optical Cord: Two-core multimode, 50/125 micrometer core diameter optical
fibers cord with a Dual LC connector (standard LC-Duplex
connector, IEC 61754-20) (*2)
(*1) The cable model number is determined by specifications such as the cable
length. Contact Neutrik for further details.
(*2) The maximum length of Optical Cable or Optical Cord is up to 2
kilometers.

For EU Countries
For China

This product complies with the requirements of European Directives EMC 89/336/EEC and LVD 73/23/EEC.
For EU Countries
For Canada
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
NOTICE
AVIS
For the USA
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Unauthorized changes or modification to this system can void the users authority to operate this equipment.
This equipment requires shielded interface cables in order to meet FCC class B Limit.
Information
When you need repair service, call your nearest Roland Service Center or authorized Roland distributor in your country as
shown below.
As of May 1, 2007 (RSS)
ASIA
INDONESIA
PT. Citra IntiRama
JL. Cideng Timur No. 15J-15O
Jakarta Pusat
INDONESIA
TEL: [phone]
TAIWAN
ROLAND TAIWAN
ENTERPRISE CO., LTD.
Room 5, 9fl. No. 112 Chung Shan
N.Road Sec.2, Taipei, TAIWAN,
R.O.C.
TEL: [phone]
SINGAPORE/
MALAYSIA
Roland Asia Pacific Sdn.
Bhd.
45-1, Block C2, Jalan PJU 1/39,
Dataran Prima, 47301 Petaling
Jaya, Selangor, MALAYSIA
TEL: [phone]
BRAZIL
Roland Brasil Ltda.
Rua San Jose, 780 Sala B
Parque Industrial San Jose
Cotia - Sao Paulo - SP, BRAZIL
TEL: [phone]
Other CENTRAL/
LATIN AMERICA
Roland Systems Group U.S.
425 Sequoia Drive Suite 114,
Bellingham, Washington,
98226 USA
TEL: [phone]
CENTRAL/LATIN
AMERICA
FINLAND
Roland Scandinavia As,
Filial Finland
Elannontie 5
FIN-01510 Vantaa, FINLAND
TEL: [phone]
HUNGARY
Roland East Europe Ltd.
Warehouse Area ‘DEPO’ Pf.83
H-2046 Torokbalint, HUNGARY
TEL: [phone]
NORWAY
Roland Scandinavia Avd.
Kontor Norge
Lilleakerveien 2 Postboks 95
Lilleaker N-0216 Oslo
NORWAY
TEL: [phone]
POLAND
ROLAND POLSKA SP. Z O.O.
UL. Gibraltarska 4.
PL-03664 Warszawa POLAND
TEL: [phone]
ROMANIA
FBS LINES
Piata Libertatii 1,
535500 Gheorgheni, ROMANIA
TEL: [phone]
AUSTRIA/BELGIUM/
FRANCE/GERMANY/
HOLLAND/
LUXEMBOURG/
PORTUGAL/SPAIN/
SWITZERLAND
Roland Iberia, S.L.
Paseo García Faria, 33-35
08005 Barcelona SPAIN
TEL: [phone]
CROATIA
ART-CENTAR
Degenova 3.
HR - 10000 Zagreb
TEL: [phone]
CZECH REP.
CZECH REPUBLIC
DISTRIBUTOR s.r.o
Voctárova 247/16
CZ - 180 00 PRAHA 8,
CZECH REP.
TEL: [phone]
DENMARK
Roland Scandinavia A/S
Nordhavnsvej 7, Postbox 880,
DK-2100 Copenhagen
DENMARK
TEL: [phone]
EUROPE OCEANIA
Roland Corporation
Australia Pty.,Ltd.
38 Campbell Avenue
Dee Why West, NSW 2099
AUSTRALIA
For Australia
TEL: [phone]
For New Zealand
TEL: [phone]
CANADA
Roland Canada Ltd.
(Head Office)
5480 Parkwood Way, Richmond
B. C., V6V 2M4 CANADA
TEL: [phone]
Roland Canada Ltd.
(Toronto Office)
170 Admiral Boulevard
Mississauga ON L5T 2N6
CANADA
TEL: [phone]
U. S. A.
Roland Systems Group U.S.
425 Sequoia Drive Suite 114,
Bellingham, Washington,
98226 USA
TEL: [phone]
RUSSIA
MuTek
Dorozhnaya ul.3,korp.6
117 545 Moscow, RUSSIA
TEL: [phone]
SLOVAKIA
DAN Acoustic s.r.o.
Povazská 18.
SK - 940 01 Nové Zámky
TEL: [phone]
SWEDEN
Roland Scandinavia A/S
SWEDISH SALES OFFICE
Danvik Center 28, 2 tr.
S-131 30 Nacka SWEDEN
TEL: [phone]
UKRAINE
EURHYTHMICS Ltd.
P.O.Box: 37-a.
Nedecey Str. 30
UA - 89600 Mukachevo,
UKRAINE
TEL: [phone]
UNITED KINGDOM/
IRELAND
Roland (U.K.) Ltd.
Atlantic Close, Swansea
Enterprise Park, Swansea
SA7 9FJ,
UNITED KINGDOM
TEL: [phone]
NORTH AMERICA
