LAN10255HR
LAN16255HR
LAN17255HR
LAN18255HR
5-Port Gigabit Ethernet Unmanaged Switch
User’s Manual
BDM-610020107 Rev. C

RTD Embedded Technologies, Inc.
103 Innovation Boulevard
State College, PA 16803 USA
Telephone: [phone]
Fax: [phone]
www.rtd.com
[email protected]
[email protected]

RTD Embedded Technologies, Inc. | www.rtd.com iii LAN17255HR User’s Manual
Revision History
Rev A Initial Release 12/5/2012
Rev B Corrected LED connector and Ethernet DIL connector reference designations 4/3/2013
Rev C Added reference to LAN10255HR, LAN16255HR, and LAN18255HR versions. Corrected power connector table. 4/8/2013
Advanced Analog I/O, Advanced Digital I/O, aAIO, aDIO, a2DIO, Autonomous SmartCal, “Catch the Express”, cpuModule, dspFramework, dspModule, expressMate, ExpressPlatform, HiDANplus, “MIL Value for
COTS prices”, multiPort, PlatformBus, and PC/104EZ are trademarks, and “Accessing the Analog World”, dataModule, IDAN, HiDAN, RTD, and the RTD logo are registered trademarks of RTD Embedded
Technologies, Inc (formerly Real Time Devices, Inc.). PS/2 is a trademark of International Business Machines Inc. PCI, PCI Express, and PCIe are trademarks of PCI-SIG. PC/104, PC/104-Plus, PCI-104, PCIe/104,
PCI/104-Express and 104 are trademarks of the PC/104 Embedded Consortium. All other trademarks appearing in this document are the property of their respective owners.
Failure to follow the instructions found in this manual may result in damage to the product described in this manual, or other components of the system. The procedure set forth in this manual shall only be performed
by persons qualified to service electronic equipment. Contents and specifications within this manual are given without warranty, and are subject to change without notice. RTD Embedded Technologies, Inc. shall not
be liable for errors or omissions in this manual, or for any loss, damage, or injury in connection with the use of this manual.
Copyright © 2013 by RTD Embedded Technologies, Inc. All rights reserved.

RTD Embedded Technologies, Inc. | www.rtd.com iv LAN17255HR User’s Manual
Table of Contents
1Introduction 6
Product Overview........................................................................................................................................................................ 61.1
Board Features ........................................................................................................................................................................... 61.2
Ordering Information................................................................................................................................................................... 61.3
Contact Information .................................................................................................................................................................... 71.4
1.4.1 Sales Support 7
1.4.2 Technical Support 7
2Specifications 8
Operating Conditions .................................................................................................................................................................. 82.1
Electrical Characteristics ............................................................................................................................................................ 82.2
3Board Connection 9
Board Handling Precautions ....................................................................................................................................................... 93.1
Physical Characteristics.............................................................................................................................................................. 93.2
Connectors and Jumpers.......................................................................................................................................................... 103.3
3.3.1 External I/O Connectors and Jumpers 10
3.3.2 RJ45 Twisted Pair Ethernet CN5, CN7, CN9, CN11, and CN16 10
3.3.3 Twisted Pair Ethernet CN4, CN6, CN8, CN10, and CN13 11
3.3.4 Status LEDs 11
3.3.5 External Status LED Connectors CN14, CN15, CN18, CN19, and CN20 11
3.3.6 CN17 Power Connector 12
3.3.7 CN1 & CN2: PC/104 ISA Bus Connector 12
3.3.8 CN3: PCI-104 PCI Bus Connector 12
Steps for Installing .................................................................................................................................................................... 133.4
4Functional Description 14
Block Diagram........................................................................................................................................................................... 144.1
BroadCom Gig-Ethernet Switch................................................................................................................................................ 144.2
Onboard LEDs and External LED Connectors ......................................................................................................................... 144.3
5IDAN Connections 15
Module Handling Precautions................................................................................................................................................... 155.1
Physical Characteristics............................................................................................................................................................ 155.2
IDAN Connector Location ......................................................................................................................................................... 165.3
IDAN-LAN17255HR.................................................................................................................................................................. 165.4
IDAN Twisted Pair Ethernet PORT1, PORT2, PORT3, PORT4, and PORT5 ......................................................................... 175.5
Steps for Installing .................................................................................................................................................................... 175.6
6Troubleshooting 18
7Additional Information 19
PC/104 Specifications............................................................................................................................................................... 197.1
8Limited Warranty 20

RTD Embedded Technologies, Inc. | www.rtd.com vLAN17255HR User’s Manual
Table of Figures
Figure 1: Board Dimensions ..................................................................................................................................................................................... 9
Figure 2: LAN17255HR Board Connections........................................................................................................................................................... 10
Figure 3: RJ-45 Jack Connector ............................................................................................................................................................................. 11

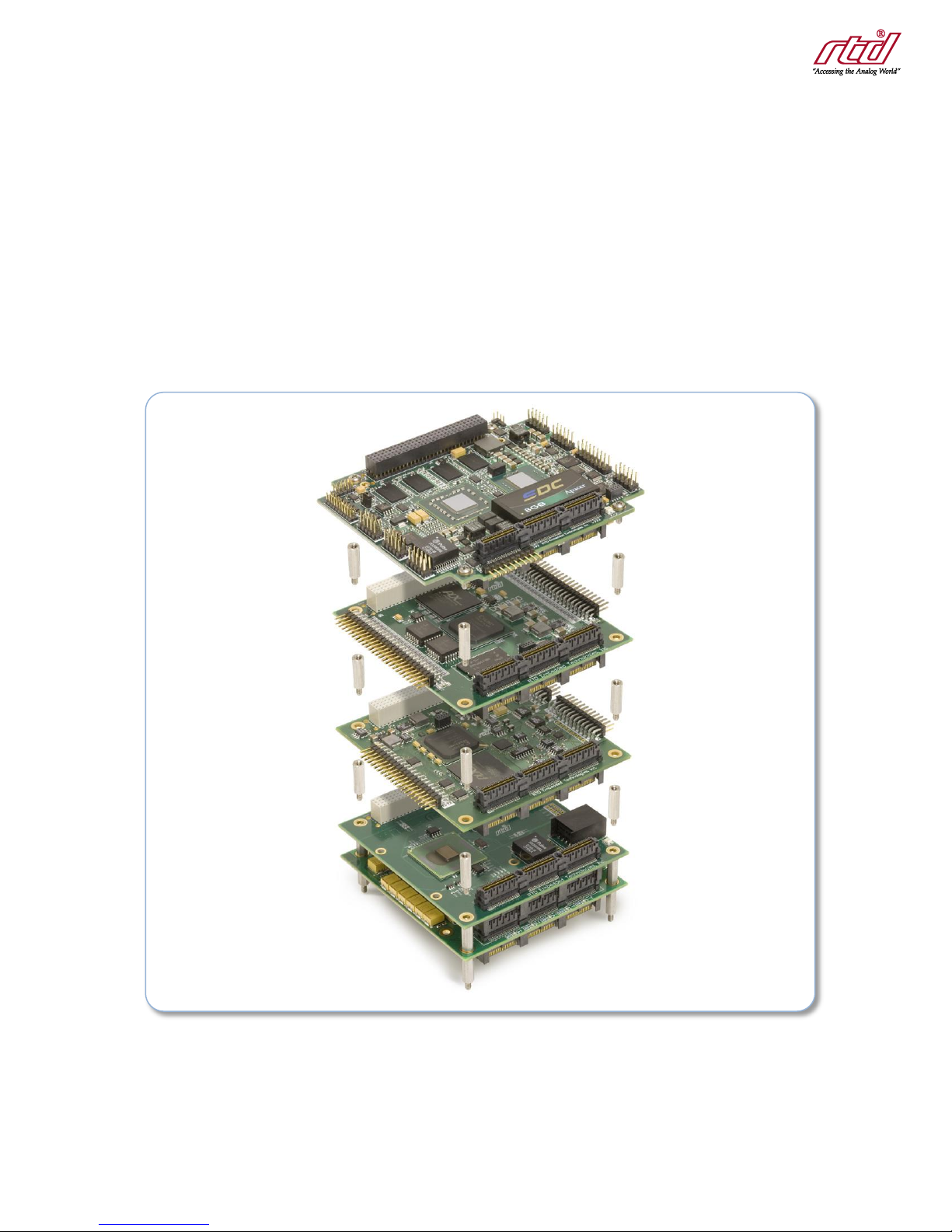

Figure 4: Example 104™Stack............................................................................................................................................................................... 13

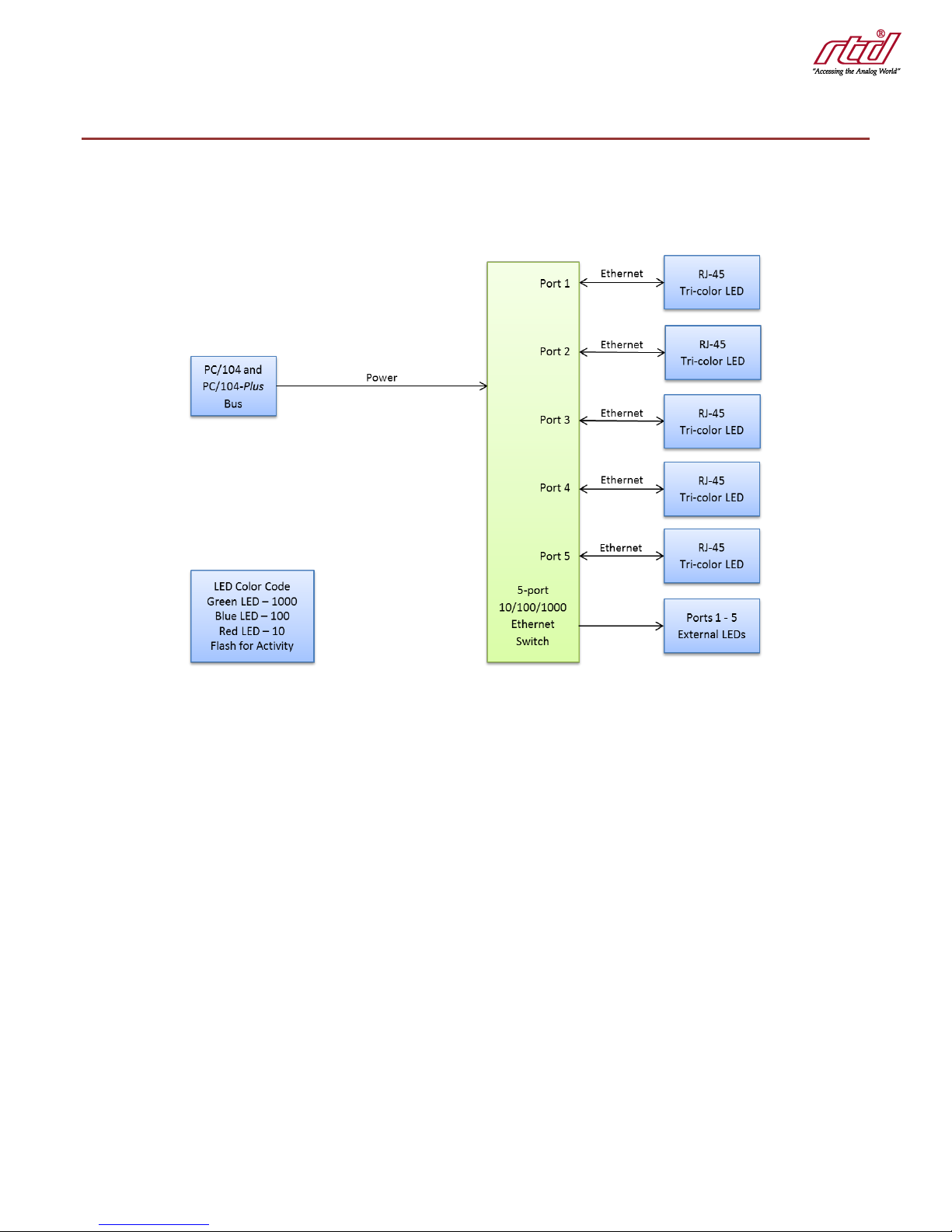

Figure 5: LAN17255HR Block Diagram.................................................................................................................................................................. 14

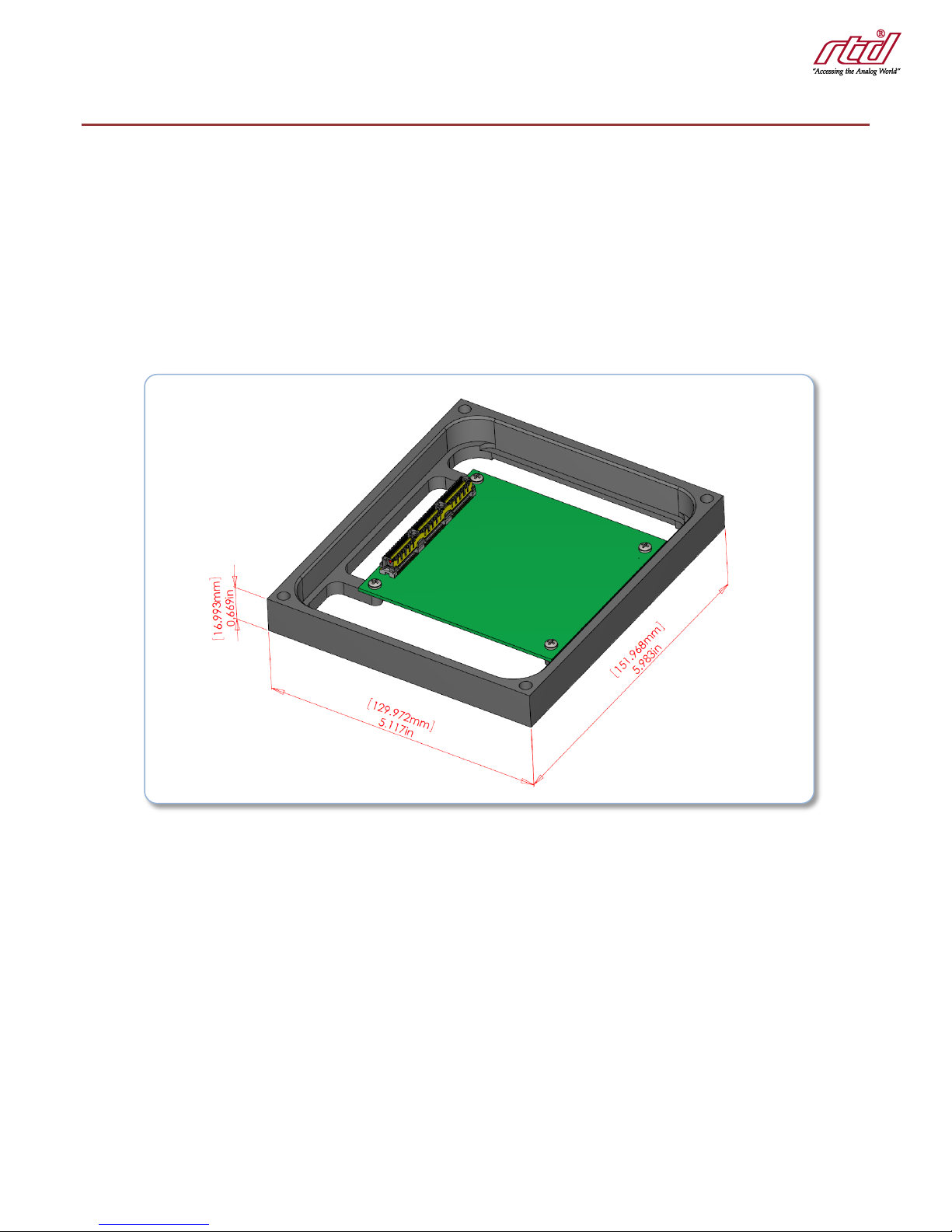

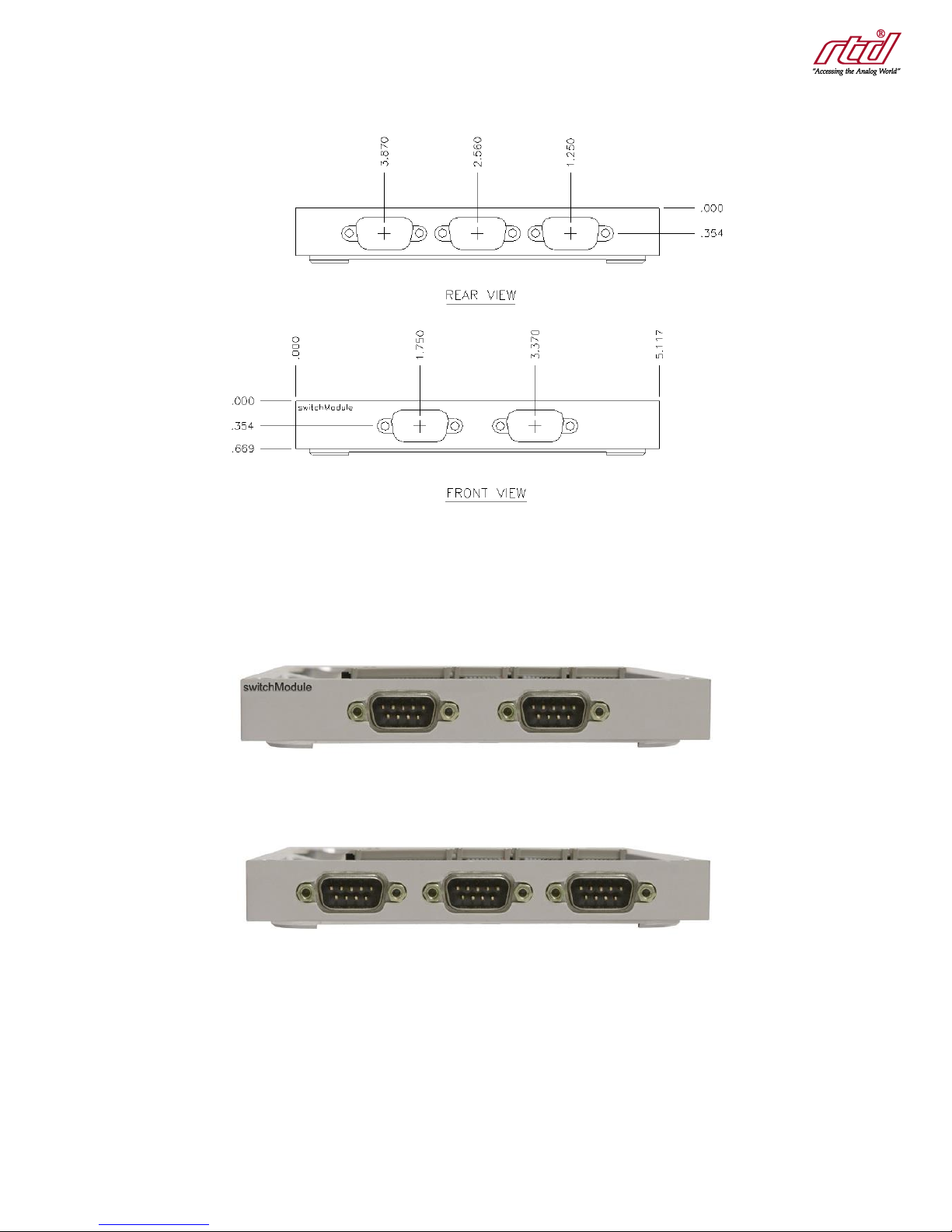

Figure 6: IDAN Dimensions .................................................................................................................................................................................... 15
Figure 7: IDAN Connector Location........................................................................................................................................................................ 16
Figure 8: IDAN-LAN17255HR Front View .............................................................................................................................................................. 16
Figure 9: IDAN-LAN17255HR Rear View............................................................................................................................................................... 16

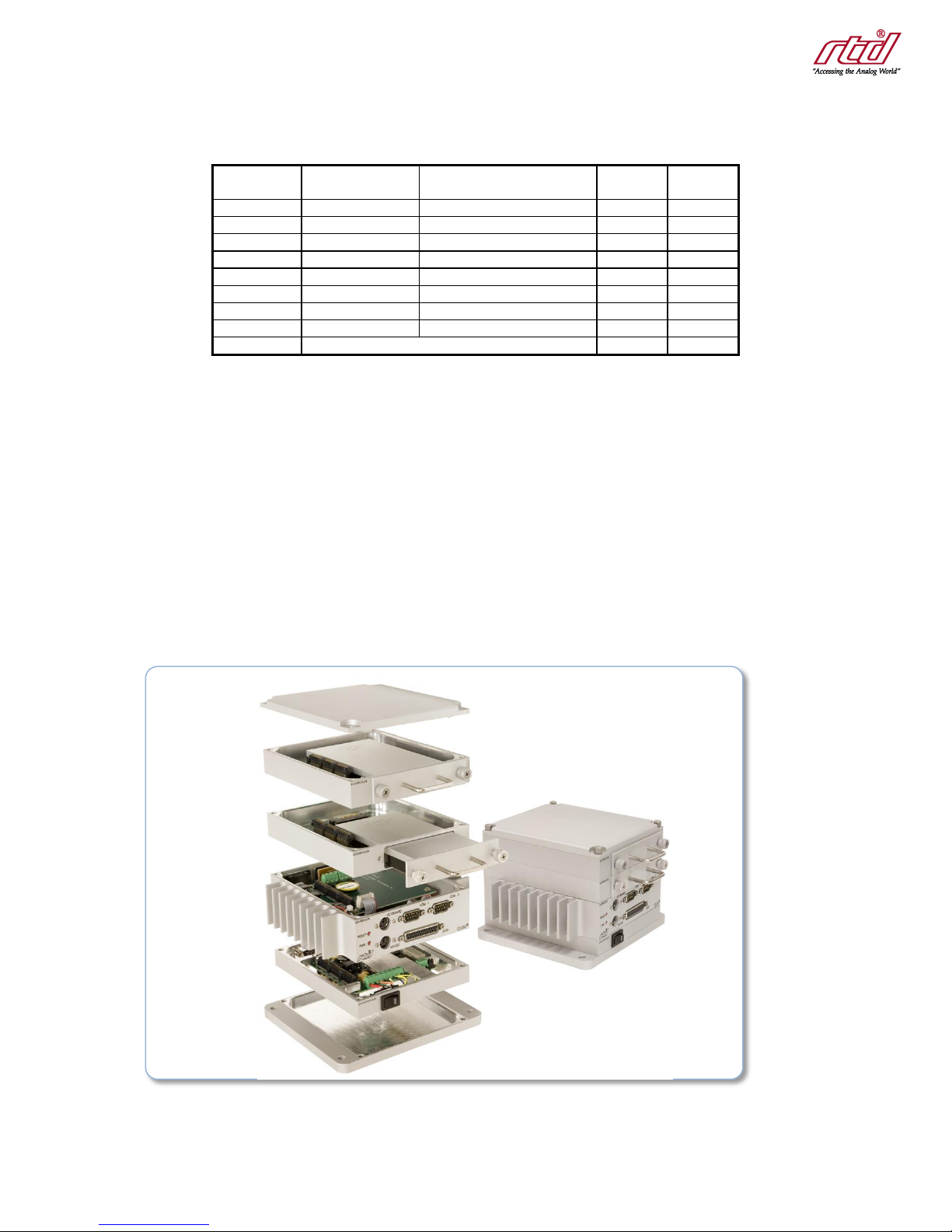

Figure 10: Example IDAN System .......................................................................................................................................................................... 17
Table of Tables
Table 1: Ordering Options ........................................................................................................................................................................................ 6
Table 2: Operating Conditions .................................................................................................................................................................................. 8
Table 3: Electrical Characteristics ............................................................................................................................................................................ 8
Table 4: RJ45 Signal Assignments......................................................................................................................................................................... 11
Table 5: DIL Signal Assignments............................................................................................................................................................................ 11
Table 6: Status LEDs.............................................................................................................................................................................................. 11
Table 7: CN14 External LED Drive ......................................................................................................................................................................... 12
Table 8: CN17 Power Connector............................................................................................................................................................................ 12
Table 9: LAN17255HR IDAN Pin Out..................................................................................................................................................................... 17

RTD Embedded Technologies, Inc. | www.rtd.com 6LAN17255HRHR User’s Manual
1Introduction
Product Overview1.1
The LAN17255HR is designed to provide five Gigabit Ethernet ports for expanding the networking capabilities of any system. The board can
be used either in a PC/104-Plus system or as a standalone module. In a stack it gets power from either the PCI bus, ISA bus, os a power
connector. It provides five RJ45 ports with auto-configuration so any of the ports can be upstream or downstream. This board is compatible
with all PC/104, PC/104-Plus, and PCI-104 cpuModules.
Board Features1.2
BroadCom BCM53115 Gigabit Ethernet Switch:
o5 Full Duplex Unmanaged Gigabit Ethernet Ports
Auto configuration means any of the ports can be an uplink or downlink
oIndustrial Temperature rated: -40 to +85 C
PC/104, PC/104-Plus, or PCI-104
oPCI and ISA Buses are used as a pass through interfaces on the LAN17255HR and only provide power to the module.
Ordering Information1.3
The LAN17255HR is available with the following options:
Table 1: Ordering Options
Part Number
Description
LAN10255HR
5 port Gigabit Ethernet Switch No Bus Connectors
LAN16255HR
5 port Gigabit Ethernet Switch PC/104
LAN17255HR
5 port Gigabit Ethernet Switch PC/104-Plus
LAN18255HR
5 port Gigabit Ethernet Switch PCI-104
IDAN-LAN10255HR
5 port Gigabit Ethernet Switch in IDAN enclosure No Bus Connectors
IDAN-LAN16255HR
5 port Gigabit Ethernet Switch in IDAN enclosure PC/104
IDAN-LAN17255HR
5 port Gigabit Ethernet Switch in IDAN enclosure PC/104-Plus
IDAN-LAN18255HR
5 port Gigabit Ethernet Switch in IDAN enclosure PCI-104
The Intelligent Data Acquisition Node (IDAN™) building block can be used in just about any combination with other IDAN building blocks to
create a simple but rugged 104™ stack. This module can also be incorporated in a custom-built RTD HiDAN™ or HiDANplus High Reliability
Intelligent Data Acquisition Node. Contact RTD sales for more information on our high reliability systems.

RTD Embedded Technologies, Inc. | www.rtd.com 7LAN17255HRHR User’s Manual
Contact Information1.4
1.4.1 SALES SUPPORT
For sales inquiries, you can contact RTD Embedded Technologies sales via the following methods:
Phone: [phone] Monday through Friday, 8:00am to 5:00pm (EST).
E-Mail: [email protected]
1.4.2 TECHNICAL SUPPORT
If you are having problems with you system, please try the steps in the Troubleshooting section of this manual.
For help with this product, or any other product made by RTD, you can contact RTD Embedded Technologies technical support via the
following methods:
Phone: [phone] Monday through Friday, 8:00am to 5:00pm (EST).
E-Mail: [email protected]

RTD Embedded Technologies, Inc. | www.rtd.com 8LAN17255HRHR User’s Manual
2Specifications
Operating Conditions2.1
Table 2: Operating Conditions
Symbol
Parameter
Test Condition
Min
Max
Unit
Vcc5
5V Supply Voltage
4.75
5.25
V
Ta
Operating Temperature
-40
+85
C
Ts
Storage Temperature
-55
+125
C
RH
Relative Humidity
Non-Condensing
0
90%
%
MTBF
Mean Time Before Failure
30C
TBD
Hours
Electrical Characteristics2.2
Table 3: Electrical Characteristics
Symbol
Parameter
Test Condition
Min
Max
Unit
P
Power Consumption
Vcc5 = 5.0V
1.25
W
Icc5
5V Input Supply Current
Active
250
mA

RTD Embedded Technologies, Inc. | www.rtd.com 9LAN17255HRHR User’s Manual
3Board Connection
Board Handling Precautions3.1
To prevent damage due to Electrostatic Discharge (ESD), keep your board in its antistatic bag until you are ready to install it into your system.
When removing it from the bag, hold the board at the edges, and do not touch the components or connectors. Handle the board in an antistatic
environment, and use a grounded workbench for testing and handling of your hardware.
Physical Characteristics3.2
Weight: Approximately 55 g (0.12 lbs.)
Dimensions: 90.17 mm L x 95.89 mm W (3.550 in L x 3.775 in W)
Figure 1: Board Dimensions

RTD Embedded Technologies, Inc. | www.rtd.com 10 LAN17255HRHR User’s Manual
Connectors and Jumpers3.3

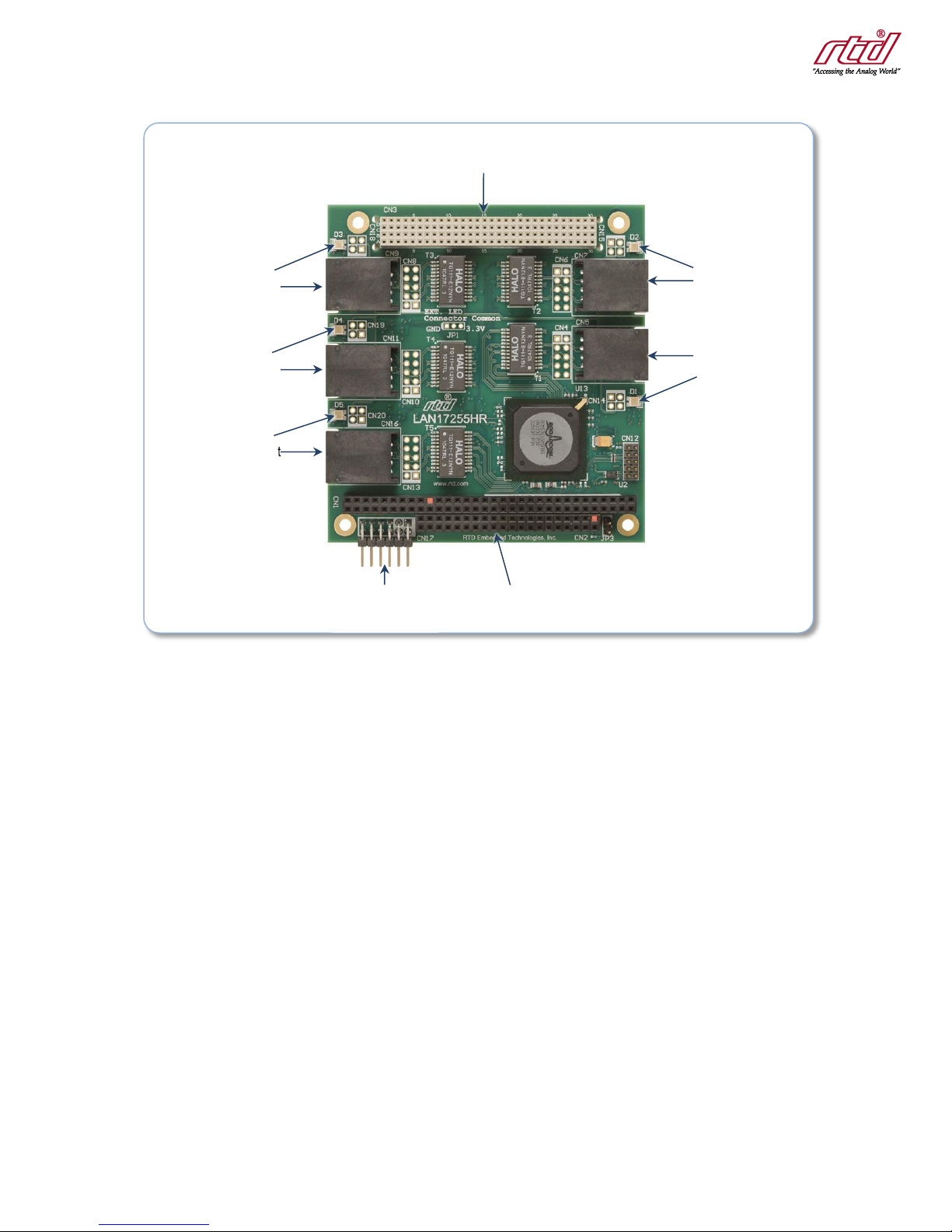

Figure 2: LAN17255HR Board Connections
3.3.1 EXTERNAL I/O CONNECTORS AND JUMPERS
CN1 & CN2: PC/104 ISA bus
CN3: PCI-104 PCI bus
CN5, CN7, CN9, CN11, & CN16: RJ-45 connectors for Ethernet
CN4, CN6, CN8, CN10, & CN13: 2x5 0.1” DIL connector not populated in standard product. Used for bringing out the Ethernet ports
in IDAN, HiDAN, and HiDANplus systems.
CN14, CN15, CN18, CN19, & CN20: External LED connectors
JP1: Power/ground selector for external LED connectors CN14, CN15, CN18, CN19, & CN20
CN17: Power connector for standalone operation
CN12 & JP3: Factory use only. Leave open.
3.3.2 RJ45 TWISTED PAIR ETHERNET CN5, CN7, CN9, CN11, AND CN16
Connectors CN5, CN7, CN9, CN11, and CN16 are for UTP (Unshielded Twisted Pair) wiring normally used for 10/100/1000 Base-T Ethernet.
It is the default factory installed twisted pair connector on the board. The following table gives the pin out of CN5, CN7, CN9, CN11, and CN16.
CN5 Switch Port
Link/ACT LED
Link/ACT LED
CN11 Switch Port
Link/ACT LED
CN16 Switch Port
Link/ACT LED
CN9 Switch Port
CN17
Power Input
CN1 & CN2: PC/104 Connector
CN3: PCI-104 Connector
Link/ACT LED
CN7 Switch Port

RTD Embedded Technologies, Inc. | www.rtd.com 11 LAN17255HRHR User’s Manual
Pin
1000 Mbps Function
10/100 Mbsp Function
1
MDI_A+
Transmit +
2
MDI_A-
Transmit -
3
MDI_B+
Receive +
4
MDI_C+
Not Used
5
MDI_C-
Not Used
6
MDI_B-
Receive -
7
MDI_D+
Not Used
8
MDI_D-
Not Used
Table 4: RJ45 Signal Assignments
CN5, CN7, CN9, CN11, and CN16 are standard female RJ-45 connectors. The figure below shows the pin numbering when looking into the
connector:
Figure 3: RJ-45 Jack Connector
3.3.3 TWISTED PAIR ETHERNET CN4, CN6, CN8, CN10, AND CN13
CN4, CN6, CN8, CN10, and CN13 are optional connectors which can be factory installed in place of the RJ45 connector. These connectors
can be connected to a 9-pin “D” connector using ribbon cable. The pin out of CN4, CN6, CN8, CN10, and CN13 is in the table below.
10-pin DIL
1000 Mbsp Function
10/100 Mbsp Function
9-Pin “D”
1
MDI_B+
Receive +
1
2
MDI_B-
Receive -
6
3
MDI_C+
Not Used
2
4
MDI_C-
Not Used
7
5
MDI_A+
Transmit +
3
6
MDI_A-
Transmit -
8
7
MDI_D+
Not Used
4
8
MDI_D-
Not Used
9
9
Shield Ground
5
10
Shield Ground
N/C
Table 5: DIL Signal Assignments
3.3.4 STATUS LEDS
The tri-color LEDs on the board are used to indicate the status of the Ethernet ports.
LED Color
Description
Off
No Link
Green
Link at 1000 Mbps
Blue
Link at 100 Mbps
Red
Link at 10 Mbps
Any color blinking
Activity
Table 6: Status LEDs
3.3.5 EXTERNAL STATUS LED CONNECTORS CN14, CN15, CN18, CN19, AND CN20
CN14, CN15, CN18, CN19, and CN20 are the status LED signals that are buffered and able to source or sink 24 mA. Additionally, JP1 can
select either 3.3 volts or ground to use with these signals. These connectors are not installed when the Ethernet RJ45 connectors and LEDs
are installed. The pin out is in the table below.

RTD Embedded Technologies, Inc. | www.rtd.com 12 LAN17255HRHR User’s Manual
CNxx Pin
Function
10/100 Function
1
Link at 10 Mbps
Low when linked at 10 Mbps, blink for activity
2
Link at 100 Mbps
Low when linked at 100 Mbps, blink for activity
3
Link at 1000 Mbps
Low when linked at 1000 Mbps, blink for activity
4
3.3 volts or ground
Depends on JP1 setting
If JP1 1-2 is shorted these pins will be ground
If JP1 2-3 is shorted these pins will be 3.3 volts
Table 7: CN14 External LED Drive
3.3.6 CN17 POWER CONNECTOR
CN17 is a power connector for standalone operation. The LAN17255HR operates on +5 volts. The pin out of the connector is shown in the
table below.
CN17 Pin
Signal
Description
1
GND
Ground
2
+5V
Power
3
RSVD
Reserved
4
RSVD
Reserved
5
RSVD
Reserved
6
RSVD
Reserved
7
GND
Ground
8
+5V
Power
9
GND
Ground
10
RSVD
Reserved
11
RSVD
Reserved
12
RSVD
Reserved
Table 8: CN17 Power Connector
Facing the connector, the pin assignments are as follows:
11
9
7
2
3
1
RSVD
GND
GND
RSVD
RSVD
GND
RSVD
RSVD
+5V
RSVD
RSVD
+5V
12
10
8
6
4
2
3.3.7 CN1 &CN2: PC/104 ISA BUS CONNECTOR
The ISA bus connector is the connection to the system CPU. This connector is used only as a +5V and ground source. The position and pin
assignments are compliant with the PC/104 Specification. (See PC/104 Specifications on page 19).
3.3.8 CN3:PCI-104 PCI BUS CONNECTOR
The PCI connector is the connection to PCI peripheral modules. This connector is used only as a +5V and ground source. The position and
pin assignments are compliant with the PC/104-Plus Specification. (See PC/104 Specifications on page 19).

RTD Embedded Technologies, Inc. | www.rtd.com 13 LAN17255HRHR User’s Manual
Steps for Installing3.4
1. Always work at an ESD protected workstation, and wear a grounded wrist-strap.
2. Turn off power to the PC/104 system or stack.
3. Select and install stand-offs to properly position the module on the stack.
4. Remove the module from its anti-static bag.
5. Check that pins of the bus connector are properly positioned.
6. Check the stacking order; make sure all of the busses used by the peripheral cards are connected to the cpuModule.
7. Hold the module by its edges and orient it so the bus connector pins line up with the matching connector on the stack.
8. Gently and evenly press the module onto the PC/104 stack.
9. If any boards are to be stacked above this module, install them.
10. Attach any necessary cables to the PC/104 stack.
11. Re-connect the power cord and apply power to the stack.
12. Boot the system and verify that all of the hardware is working properly.
Figure 4: Example 104™Stack

RTD Embedded Technologies, Inc. | www.rtd.com 14 LAN17255HRHR User’s Manual
4Functional Description
Block Diagram4.1
The Figure below shows the functional block diagram of the LAN17255HR. The various parts of the block diagram are discussed in the
following sections.
Figure 5: LAN17255HR Block Diagram
BroadCom Gig-Ethernet Switch4.2
The main component of the LAN17255HR is the BroadCom BCM53115 Gigabit Ethernet switch. This is an industrial temperature rated, 5 port
Gigabit Ethernet switch. This switch contains 5 full-duplex 10/100/1000 BASE-TX Ethernet transceivers for network interfacing. All 5 ports are
brought to RJ-45 connectors on the board. This allows the LAN17255HR to work as a switch in a stacked system. In a stand-alone system the
BroadCom switch acts as a basic Ethernet switch. Any port can be used as an upstream port to supply a connection to the 4 other ports.
Onboard LEDs and External LED Connectors4.3
The LAN17255HR has onboard LEDs for each of the five Ethernet ports on the board. The setting for the onboard LEDs is to show link activity,
link status and speed at 10/100/1000M. To bring the LEDs out of an enclosed system, there are 4-pin 0.1 inch DIL connectors for each port
that can be wired to external LED circuitry. These signals can source or sink 24 mA and the board has a jumper option for 3.3 volt or ground to
facilitate external LED configuration.

RTD Embedded Technologies, Inc. | www.rtd.com 15 LAN17255HRHR User’s Manual
5IDAN Connections
Module Handling Precautions5.1
To prevent damage due to Electrostatic Discharge (ESD), keep your module in its antistatic bag until you are ready to install it into your system.
When removing it from the bag, hold the module by the aluminum enclosure, and do not touch the components or connectors. Handle the
module in an antistatic environment, and use a grounded workbench for testing and handling of your hardware.
Physical Characteristics5.2
Weight: Approximately 0.21 Kg (0.46 lbs.)
Dimensions: 151.972 mm L x 129.978 mm W x 16.993 mm H (5.983 in L x 5.117 in W x 0.669 in H)
Figure 6: IDAN Dimensions

RTD Embedded Technologies, Inc. | www.rtd.com 16 LAN17255HRHR User’s Manual
IDAN Connector Location5.3
Figure 7: IDAN Connector Location
IDAN-LAN17255HR5.4
This utilityModule is also available in an IDAN configuration. The IDAN module is shown below.
Figure 8: IDAN-LAN17255HR Front View
Figure 9: IDAN-LAN17255HR Rear View

RTD Embedded Technologies, Inc. | www.rtd.com 17 LAN17255HRHR User’s Manual
IDAN Twisted Pair Ethernet PORT1, PORT2, PORT3, PORT4, and PORT55.5
As an IDAN, the Ethernet signals are available on five “D” connectors, two on the front and three on the back. A DB-9 to RJ-45 adapter is also
included for each port. The pin out is listed in the table below.
Board CNx
1000 Mbsp Function
10/100 Mbsp Function
9-Pin “D”
RJ-45
Adapter
1
MDI_B+
Receive +
1
3
2
MDI_B-
Receive -
6
6
3
MDI_C+
Not Used
2
4
4
MDI_C-
Not Used
7
5
5
MDI_A+
Transmit +
3
1
6
MDI_A-
Transmit -
8
2
7
MDI_D+
Not Used
4
7
8
MDI_D-
Not Used
9
8
9/10
Shield Ground
5/NC
Table 9: LAN17255HR IDAN Pin Out
Steps for Installing5.6
1. Always work at an ESD protected workstation, and wear a grounded wrist-strap.
2. Turn off power to the IDAN system.
3. Remove the module from its anti-static bag.
4. Check that pins of the bus connector are properly positioned.
5. Check the stacking order; make sure all of the busses used by the peripheral cards are connected to the cpuModule.
6. Hold the module by its edges and orient it so the bus connector pins line up with the matching connector on the stack.
7. Gently and evenly press the module onto the IDAN system.
8. If any boards are to be stacked above this module, install them.
9. Finish assembling the IDAN stack by installing screws of an appropriate length.
10. Attach any necessary cables to the IDAN system.
11. Re-connect the power cord and apply power to the stack.
12. Boot the system and verify that all of the hardware is working properly.
Figure 10: Example IDAN System

RTD Embedded Technologies, Inc. | www.rtd.com 18 LAN17255HRHR User’s Manual
6Troubleshooting
If you are having problems with your system, please try the following initial steps:
Simplify the System –Remove modules one at a time from your system to see if there is a specific module that is causing a
problem. Perform you troubleshooting with the least number of modules in the system possible.
Swap Components –Try replacing parts in the system one at a time with similar parts to determine if a part is faulty or if a type of
part is configured incorrectly.
If problems persist, or you have questions about configuring this product, contact RTD Embedded Technologies via the following methods:
Phone: [phone]
E-Mail: [email protected]
Be sure to check the RTD web site (http://www.rtd.com) frequently for product updates, including newer versions of the board manual and
application software.

RTD Embedded Technologies, Inc. | www.rtd.com 19 LAN17255HRHR User’s Manual
7Additional Information
PC/104 Specifications7.1
A copy of the latest PC/104 specifications can be found on the webpage for the PC/104 Consortium:
www.pc104.org

RTD Embedded Technologies, Inc. | www.rtd.com 20 LAN17255HRHR User’s Manual
8Limited Warranty
RTD Embedded Technologies, Inc. warrants the hardware and software products it manufactures and produces to be free from defects in
materials and workmanship for one year following the date of shipment from RTD Embedded Technologies, Inc. This warranty is limited to the
original purchaser of product and is not transferable.
During the one year warranty period, RTD Embedded Technologies will repair or replace, at its option, any defective products or parts at no
additional charge, provided that the product is returned, shipping prepaid, to RTD Embedded Technologies. All replaced parts and products
become the property of RTD Embedded Technologies. Before returning any product for repair, customers are required to contact the factory for
a Return Material Authorization (RMA) number.
This limited warranty does not extend to any products which have been damaged as a result of accident, misuse, abuse (such as: use of
incorrect input voltages, improper or insufficient ventilation, failure to follow the operating instructions that are provided by RTD Embedded
Technologies, “acts of God” or other contingencies beyond the control of RTD Embedded Technologies), or as a result of service or
modification by anyone other than RTD Embedded Technologies. Except as expressly set forth above, no other warranties are expressed or
implied, including, but not limited to, any implied warranties of merchantability and fitness for a particular purpose, and RTD Embedded
Technologies expressly disclaims all warranties not stated herein. All implied warranties, including implied warranties for merchantability and
fitness for a particular purpose, are limited to the duration of this warranty. In the event the product is not free from defects as warranted above,
the purchaser's sole remedy shall be repair or replacement as provided above. Under no circumstances will RTD Embedded Technologies be
liable to the purchaser or any user for any damages, including any incidental or consequential damages, expenses, lost profits, lost savings, or
other damages arising out of the use or inability to use the product.
Some states do not allow the exclusion or limitation of incidental or consequential damages for consumer products, and some states do not
allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
