RTS BTR-24 User manual

BTR-24
Wireless Base Station
Operating Manual

Thank you from Bosch
We, at Bosch Security Systems, Inc, would like to take this opportunity to thank you for choosing the RTS
BTR-24 Base Station. Many of the features in this product are the result of years of development work with
many of the features developed from customer feedback. We hope that your experience with this product is a
pleasant one and hope to provide you with a continuing line of RTS products well into the future. In order to
get the most out of your new wireless intercom system, please take a few moments to look through this
operating manual before using the product for the first time.

Proprietary Notice
The product information and design disclosed herein were
originated by and are the property of Bosch Security Systems,
Inc. Bosch reserves all patent, proprietary design, manufacturing,
reproduction, use and sales rights thereto, and to any article
disclosed therein, except to the extent rights are expressly granted
to others.
Copyright Notice
Copyright 2012 by Bosch Security Systems, Inc. All rights
reserved. Reproduction, in whole or in part, without prior written
permission from Bosch is prohibited.
All other trademarks are property of their respective owners.
Warranty and Service Information
For warranty and service information, refer to the appropriate
web site below:
RTS Intercoms .............www.rtsintercoms.com/warranty
•RTS Digital
•RTS TW
•Audiocom
RadioCom ..............www.telexradiocom.com/warranty
Headsets .............www.intercomheadsets.com/warranty
Customer Support
Technical questions should be directed to:
Customer Service Department
Bosch Security Systems, Inc.
12000 Portland Avenue South
Burnsville, MN 55337 U.S.A.
Telephone: [phone]
Fax: [phone]
[e-mail]
Technical Questions EMEA
Bosch Security Systems Technical Support EMEA
http://www.rtsintercoms.com/contact_main.php
Disclaimer
The manufacturer of the equipment described herein makes no
expressed or implied warranty with respect to anything contained
in this manual and shall not be held liable for any implied
warranties of fitness for a particular application or for any
indirect, special, or consequential damages.The information
contained herein is subject to change without prior notice and
shall not be construed as an expressed or implied commitment on
the part of the manufacturer.
-i-

Table of Contents
Section 1 Introduction ...............................................1-1
General Description.............................................1-1
System Features...............................................1-1
Important Safety Instructions ........................................1-1
Section 2 BTR-24 Base Station ..........................................2-1
Controls and Connections .........................................2-1
Technical Specifications ..........................................2-2
Section 3 Initial Equipment Setup.........................................3-1
Unpacking .................................................3-1
Operating for the First Time .......................................3-1
Battery Charging Instructions .......................................3-1
Antenna Connection ............................................3-1
Antenna Polarization ............................................3-1
Antenna Placement .............................................3-1
BTR-24 Base Station ........................................3-2
TR-240 (or TR-24) Beltpack ....................................3-3
Improving Range and Reception ......................................3-3
System Quick Start Guide ........................................3-4
Section 4BTR-24 Operation............................................4-1
Basic Operation Description ........................................4-1
Powering the Base Station .........................................4-1
Booting ...................................................4-1
RF Channel Selection............................................4-1
ClearScan ..................................................4-1
Lockout ...................................................4-1
Factory Reset ................................................4-2
Section 5System Operation ............................................5-1
Wireless Mode ...............................................5-1
Set-up ................................................5-1
Wireless Capacity Limit .......................................5-1
Wireless and Wired Mixed-Mode .....................................5-2
Set-up ................................................5-2
Mixed-Mode Capacity Limit ....................................5-2
Extended Wireless Mode ..........................................5-3
Set-up ................................................5-3
Extended Wireless Mode Capacity Limit ..............................5-3
Linking Multiple Base Stations .......................................5-4
Cell-Type Architecture ...........................................5-4
Channel Spacing and Utilization ..................................5-4
Separation Distance and Antenna Gain ...............................5-5
Type of Environment ........................................5-5
Guidelines for Deployment Optimization
with Multiple BTR-24s .......................................5-5
Network Requirements ...........................................5-5
-ii-

Section 6 User Configuration Options ......................................6-1
Computer Requirements ..........................................6-1
Network Configuration ...........................................6-1
Logging into a Device ...........................................6-2
Software Version ..............................................6-3
User Menu Options .............................................6-4
Enter New Login Password.....................................6-4
Display/Edit IP Address ......................................6-4
Display/Edit SSID .........................................6-4
Enable/Disable 802.11 WEP Encryption ..............................6-4
Display/Edit WEP Encryption Key.................................6-4
Display Device MAC Addresses ..................................6-4
Enable/Disable MAC Filtering ...................................6-4
Display/Edit MAC Filter List....................................6-5
Enable/Disable Beacon Broadcast .................................6-5
Exit .................................................6-5
Section 7 Maintenance and Care .........................................7-1
Li-Ion Batteries ...............................................7-1
Battery Care.................................................7-1
Long Term Battery Storage.........................................7-1
Cleaning ..................................................7-1
Temperature and Humidity .........................................7-1
Section 8 RF Channels and Interference .....................................8-1
802.11 RF Channels ............................................8-1
802.11 “Non-overlapping” Channels ....................................8-2
CSMA-CA .............................................8-2
Data vs. Real time Audio ......................................8-2
802.11 Wireless / RF Interference .....................................8-3
Wired / Network Interference........................................8-4
Section 9 Hardware Specifications ........................................9-1
Program ...................................................9-1
Section 10 Troubleshooting............................................10-1
Section 11 Regulatory Information .......................................11-1
FCC and Industry Canada .........................................11-1
EU Compliance Information .......................................11-2
China Compliance Information ......................................11-3
EU Declaration of Conformity ......................................11-4
Section 12 Accessories and Replacement Parts .................................12-1
Section 13 Glossary ................................................13-1
-iii-

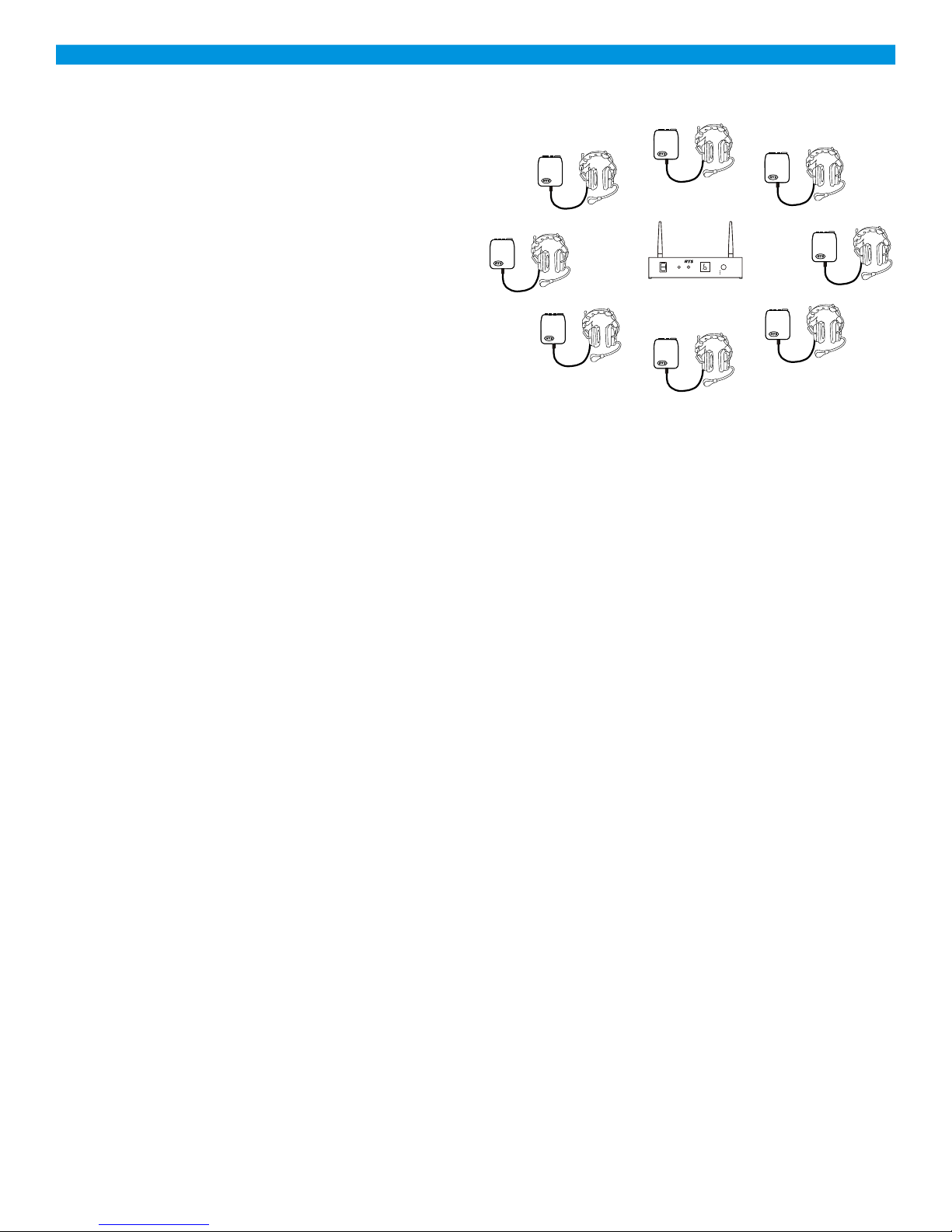

General Description
The RTS BTR-24 base station is a digital, multi-channel, wireless
access point offering reliable and secure, full-duplex
communication with up to 10 wireless TR-240 (or TR-24)
beltpacks and almost an unlimited number of half-duplex
beltpacks.
Operating in the 2.4 GHz frequency band, the BTR-24 uses the
widely adopted IEEE 802.11 technology and is approved for
license free use in most countries. The system also incorporates
ClearScan intelligence which will automatically select the optimal
radio frequency (RF) channel for communication.
The RTS BTR-24 has the ability to configure multi-level 802.11
wireless security features, such as packet encryption and MAC
address filtering, to provide a highly secure wireless intercom
system.
The BTR-24 base station serves as a central relay location which
handles the audio traffic between TR-240 (or TR-24) beltpacks.
The BTR-24 is perfectly suited for stand-alone operation and can
also interface with other BTR-24 and BTR-240 base stations to
extend range and provide wireless communication coverage to
multiple locations.
The BTR-24 base station has an internal rechargeable Li-Ion
battery that will provide up to 10 hours of uninterrupted
operation.
System Features
•Uses the widely adopted 2.4GHz IEEE 802.11 WLAN
technology.
•No FCC license required and no license required in most
countries world-wide.
•Multi-level wireless security and audio encryption.
•ClearScan intelligence to automatically select the best RF
channel to operate.
•Up to 10 wireless full-duplex TR-240 (or TR-24) beltpacks
per base station and nearly an unlimited number of half-duplex
beltpacks.
•Multiple options for antenna connections and accessories.
•BTR-240 base stations and BTR-24 access points can be
linked together to provide a wider wireless coverage area.
•Dependable, rechargeable, wide temperature range, Li-Ion
battery with low battery indicator.
•BTR-24 can be powered from external AC for endless
operation in permanent installations.
Important Safety Instructions
Prior to operation, read and follow all safety instructions.
Throughout this manual, the following notations are used:
WARNING: Indicates a situation which, when not avoided,
has the potential to result in death or severe
injury.
CAUTION: Indicates a situation which, when not avoided,
has the potential to cause the system to no longer
function properly or cause equipment damage.
NOTE: Indicates important additional information.
WARNING:
To reduce the risk of fire or electrical shock, adhere to the
following instructions:
•Do not expose the system components to rain or
moisture.
•Ensure that the power cords are in a safe and secure
place that is protected from being walked on or
pinched.
•Do not remove the cover or product casing. All
technical service must be performed by qualified
service personnel.
WARNING:
Excessive sound pressure from headsets can cause hearing
loss! The duration of exposure to high volumes must be
shortened to reduce the chance of hearing damage. Signs of
prolonged exposure to excessive audio levels include:
•Ringing sounds heard in ears.
•Can no longer hear high frequency tones, if only for a
short time.
Section 1 - Introduction
1-1

[This page intentionally left blank]
1-2

1. On/Off Switch – turns the power on/off.
2. Power / Low Battery Light – indicates the base station
has power, either from the internal battery or AC power
connected to the unit.
GREEN = Battery OK
RED =Battery Low (approx. 30 minutes left)
NO Light =Battery Depleted (needs charge)
3. AP Active Light – the green light will blink to indicate
that the BTR-24 has successfully booted and is operating.
4. RF Channel Display – displays the current RF channel of
operation.
5. <SELECT> Button – quickly press and release to
increment the RF channel of operation.
6. Receive Antenna Jack – reverse "TNC" connector.
7. Charge / Power Jack – used to charge the internal Li-Ion
battery and power the unit directly from a wall outlet.
Accepts a 12VDC regulated power supply with at least a
1.5 A current capacity.
8. Charge Light.
RED =Battery is charging.
GREEN = Battery is charged.
9.Programming Input – RJ-45 jack for wired Ethernet
connections.
10.Transmit Antenna Jack – reverse "TNC" connector.
Section 2 - BTR-24 Base Station
ON
OFF
LOW
BATTERY
POWER
AP
ACTIVE
CHANNEL
SELECT
CHANNEL
CLEAR SCAN
LOCK
BTR-24
12345
Controls and Connections
RED: CHARGING
GREEN: READY
PROGRAM
TRANSMIT
ANTENNA
1.5 A
CORD
RETAINER
RECEIVE
ANTENNA
BTR-24
Bosch Security Systems
This device complies with Part 15 of the FCC Rules
Operation is subject to the following two conditions:
(2) This device must accept any interference, received.
(1) This device may not cause harmful interference, and
Including interference that may cause undesired
operation.
Made in U.S.A. of
Domestic & Foreign Content P/N: F.01U.266.418
FCC ID: B5DM525
IC: 1321A-XOAP
S.N.: 007000
67 9
810
12V
(REV.02)
Figure 2-1
Front View
Figure 2-2
Rear View
2-1

Technical Specifications
RF Technology ........................................................IEEE 802.11b (Wi-Fi)
FCC License ...........................................................No License Required
Frequency Band of Operation
North America ......................................................2.412 to 2.462 GHz
Europe / China......................................................2.412 to 2.472 GHz
Transmitter Output Power (conducted)
North America...............................................................200 mW
Europe / China................................................................50 mW
Security and Encryption Technology
802.11 Wi-Fi....................................................40-bit and 104-bit WEP
Antennas................................................Multiple omni and directional available
Programming Port...........................................................Ethernet (RJ-45)
Number of full-duplex beltpacks ..........................................................101
Number of half-duplex beltpacks....................................................Unlimited2
Power Requirements.......................................................12 VDC, 1.5 Amps
BTR-24 Battery .....................................................Lithium-Ion Rechargeable
BTR-24 Battery Life .........................................................10 Hr (Typical)
BTR-24 Recharge Time ......................................................7-8 Hr (Typical)
BTR-24 Low Battery Indication ..............................30 minutes of battery life left (Typical)
Dimensions ..................................6" L x 7.63" W x 1.72" H (152mm x 194mm x 44mm)
Weight..................................................................2 lb. 11 oz (1.2 kg)
1With no interference on the RF channel of operation.
2Tested with over 28 half-duplex users.
2-2
