Rubi AS-30 PRO User manual

www.rubi.com
AS-30
PRO
www.rubi.com/p/50962
LEER EL MANUAL DE INSTRUCCIONES ANTES DE USAR LA MÁQUINA
READ CAREFULLY THIS USER'S GUIDE BEFORE WORKING WITH THE MACHINE

3.
AS-30 PRO
1
2
3
4
11
13
7
8
9
10
18
17
14
21
20
5
6
12
19
16
15

English
TRANSLATION OF THE ORIGINAL

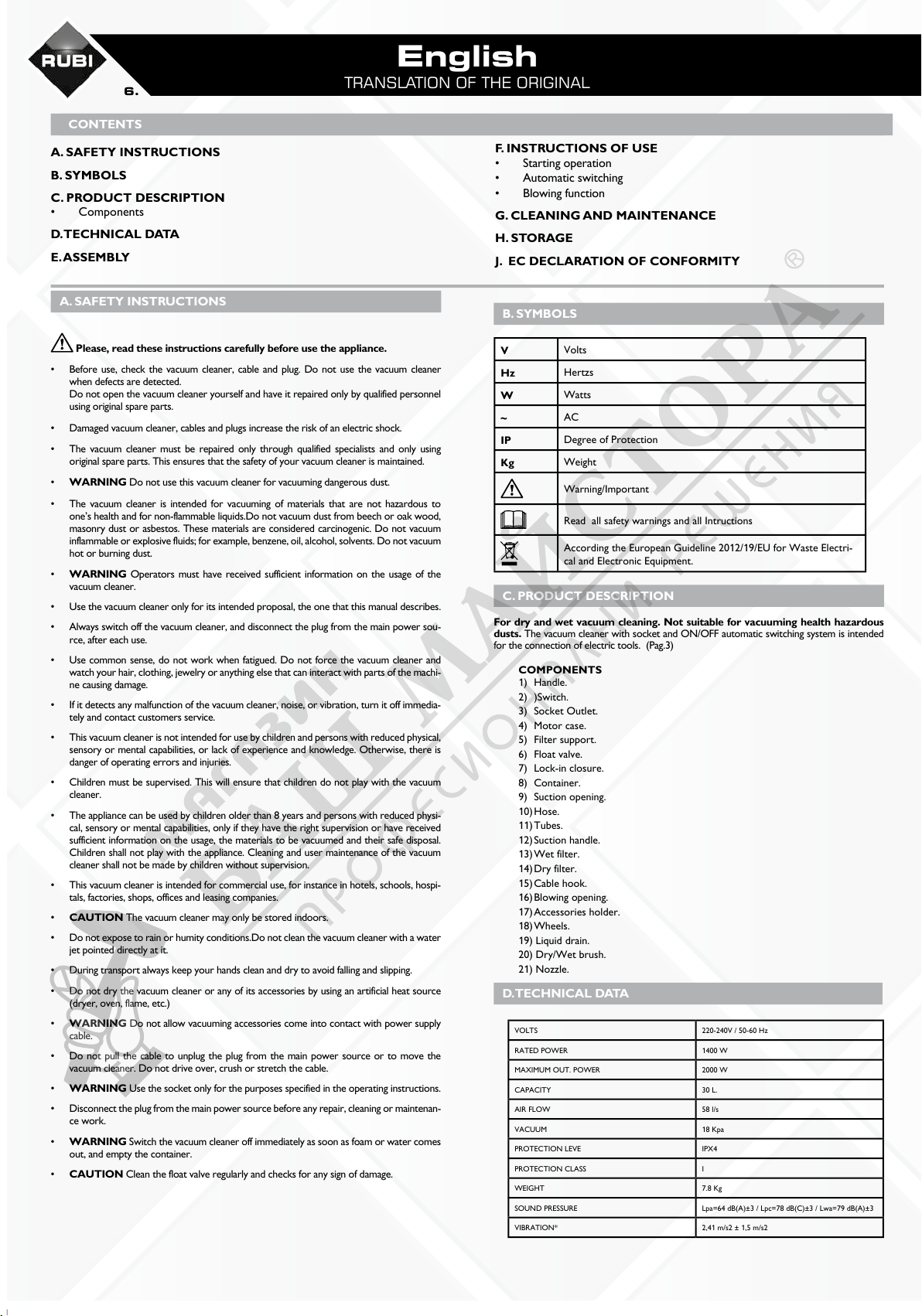

6.
A. SAFETY INSTRUCTIONS
Please, read these instructions carefully before use the appliance.
•Before use, check the vacuum cleaner, cable and plug. Do not use the vacuum cleaner
when defects are detected.
Do not open the vacuum cleaner yourself and have it repaired only by qualified personnel
using original spare parts.
•Damaged vacuum cleaner, cables and plugs increase the risk of an electric shock.
•The vacuum cleaner must be repaired only through qualified specialists and only using
original spare parts. This ensures that the safety of your vacuum cleaner is maintained.
•WARNING Do not use this vacuum cleaner for vacuuming dangerous dust.
•The vacuum cleaner is intended for vacuuming of materials that are not hazardous to
one’s health and for non-flammable liquids.Do not vacuum dust from beech or oak wood,
masonry dust or asbestos. These materials are considered carcinogenic. Do not vacuum
inflammable or explosive fluids; for example, benzene, oil, alcohol, solvents. Do not vacuum
hot or burning dust.
•WARNING Operators must have received sufficient information on the usage of the
vacuum cleaner.
•Use the vacuum cleaner only for its intended proposal, the one that this manual describes.
•Always switch off the vacuum cleaner, and disconnect the plug from the main power sou-
rce, after each use.
•Use common sense, do not work when fatigued. Do not force the vacuum cleaner and
watch your hair, clothing, jewelry or anything else that can interact with parts of the machi-
ne causing damage.
•If it detects any malfunction of the vacuum cleaner, noise, or vibration, turn it off immedia-
tely and contact customers service.
•This vacuum cleaner is not intended for use by children and persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge. Otherwise, there is
danger of operating errors and injuries.
•Children must be supervised. This will ensure that children do not play with the vacuum
cleaner.
•The appliance can be used by children older than 8 years and persons with reduced physi-
cal, sensory or mental capabilities, only if they have the right supervision or have received
sufficient information on the usage, the materials to be vacuumed and their safe disposal.
Children shall not play with the appliance. Cleaning and user maintenance of the vacuum
cleaner shall not be made by children without supervision.
•This vacuum cleaner is intended for commercial use, for instance in hotels, schools, hospi-
tals, factories, shops, offices and leasing companies.
•CAUTION The vacuum cleaner may only be stored indoors.
•Do not expose to rain or humity conditions.Do not clean the vacuum cleaner with a water
jet pointed directly at it.
•During transport always keep your hands clean and dry to avoid falling and slipping.
•Do not dry the vacuum cleaner or any of its accessories by using an artificial heat source
(dryer, oven, flame, etc.)
•WARNING Do not allow vacuuming accessories come into contact with power supply
cable.
•Do not pull the cable to unplug the plug from the main power source or to move the
vacuum cleaner. Do not drive over, crush or stretch the cable.
•WARNING Use the socket only for the purposes specified in the operating instructions.
•Disconnect the plug from the main power source before any repair, cleaning or maintenan-
ce work.
•WARNING Switch the vacuum cleaner off immediately as soon as foam or water comes
out, and empty the container.
•CAUTION Clean the float valve regularly and checks for any sign of damage.
B. SYMBOLS
VVolts
Hz Hertzs
WWatts
~AC
IP Degree of Protection
Kg Weight
Warning/Important
Read all safety warnings and all Intructions
According the European Guideline 2012/19/EU for Waste Electri-
cal and Electronic Equipment.
C. PRODUCT DESCRIPTION
For dry and wet vacuum cleaning. Not suitable for vacuuming health hazardous
dusts. The vacuum cleaner with socket and ON/OFF automatic switching system is intended
for the connection of electric tools. (Pag.3)
COMPONENTS
1) Handle.
2) )Switch.
3) Socket Outlet.
4) Motor case.
5) Filter support.
6) Float valve.
7) Lock-in closure.
8) Container.
9) Suction opening.
10)Hose.
11)Tubes.
12)Suction handle.
13)Wet filter.
14)Dry filter.
15)Cable hook.
16)Blowing opening.
17)Accessories holder.
18)Wheels.
19) Liquid drain.
20) Dry/Wet brush.
21) Nozzle.
D.TECHNICAL DATA
VOLTS 220-240V / 50-60 Hz
RATED POWER 1400 W
MAXIMUM OUT. POWER 2000 W
CAPACITY 30 L.
AIR FLOW 58 l/s
VACUUM 18 Kpa
PROTECTION LEVE IPX4
PROTECTION CLASS I
WEIGHT 7.8 Kg
SOUND PRESSURE Lpa=64 dB(A)±3 / Lpc=78 dB(C)±3 / Lwa=79 dB(A)±3
VIBRATION* 2,41 m/s2 ± 1,5 m/s2
CONTENTS
A. SAFETY INSTRUCTIONS
B. SYMBOLS
C. PRODUCT DESCRIPTION
•Components
D.TECHNICAL DATA
E.ASSEMBLY
F. INSTRUCTIONS OF USE
•Starting operation
•Automatic switching
•Blowing function
G. CLEANING AND MAINTENANCE
H. STORAGE
J. EC DECLARATION OF CONFORMITY

English
TRANSLATION OF THE ORIGINAL
English
TRANSLATION OF THE ORIGINAL 7.
Without the previous authorisation of GERMANS BOADA S.A., the partial or total reproduction of this manual, in any format or by any means or process, is strictly prohibited, whether such reproduction be mechanical, photographic or electronic.
Any of these activities will incur legal liability and may give rise to penal action being taken.
GERMANS BOADA S. A. reserves the right to make any technical modication without previous notice.
*
- The said vibration total value was measured according to a standardized test method can be used to compare one
tool to another.
- The declared vibration total value may also be used in a preliminary assessment of exposure.
- The vibration emission during actual use of the tool may be different from the total declared value, depending on how
the tool is used.
- It is necessary to identify security measures to protect the operator, which are based on an estimated exposure for
actual conditions of use (taking into account all parts of the operating cycle, such as the time that the tool is switched
off and when it is running on empty, and the starting time).

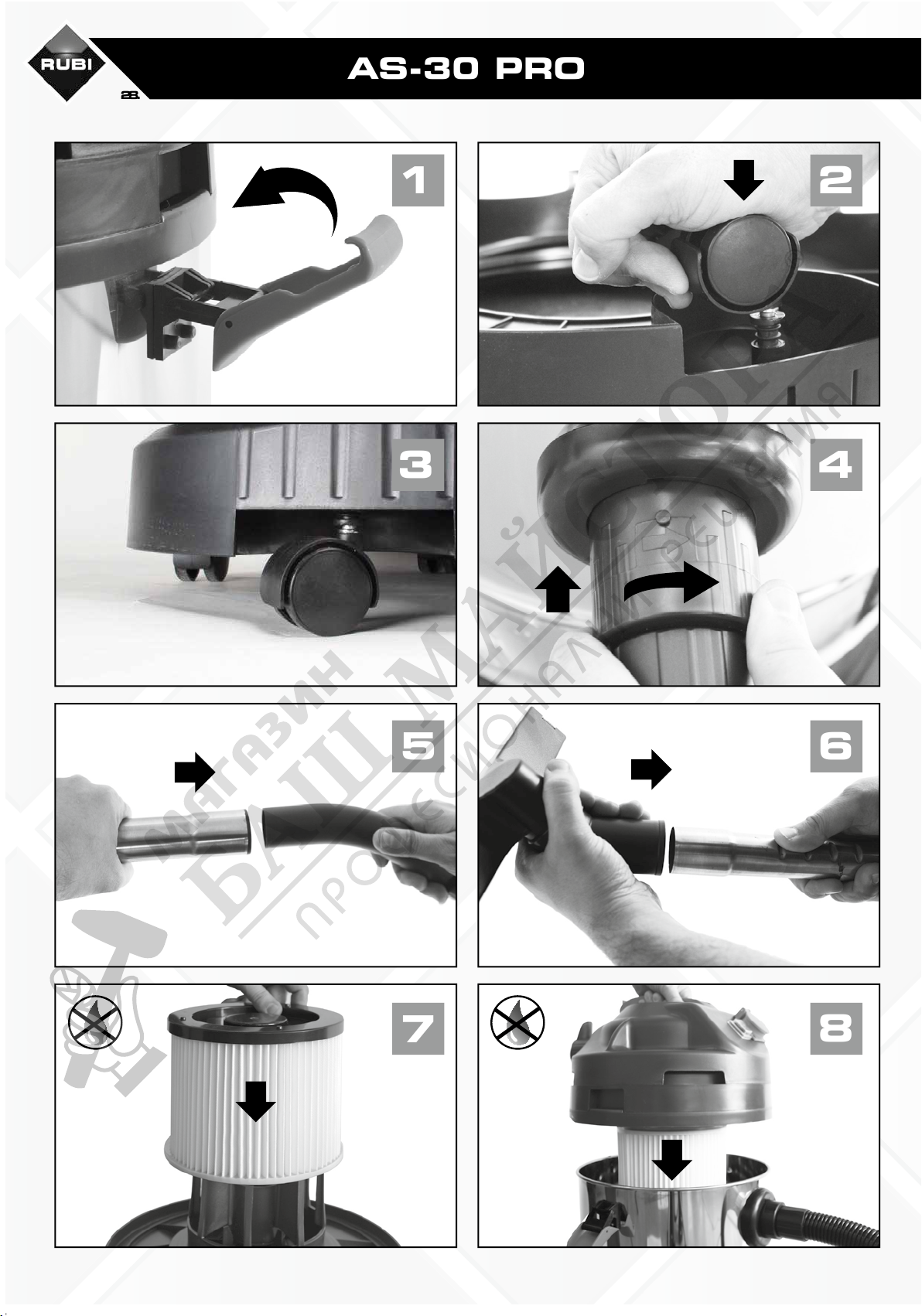

E.ASSEMBLY
When unpacking, check that the device is complete and that there is no transport damage.
Open motor case by unlocking the lock-in closures (fig.1) and remove from inside the
container all the accessories.
Tip over the container and press the wheels (fig.2, 3) on its pivots until they lock into
place.
WARNING: Do not hit the wheels neither try to remove once fixed.
Place into the suction opening the hose (fig.4) with the small tip on top and turn clockwise
until stops.
Fix tight the tubes (fig.5-6), and the chosen accessory.
F. INSTRUCTIONS OF USE
Before any work on the vacuum cleaner itself, pull the main plug out of the power source.
Dry Vacuuming:
Before use the vacuum cleaner, be sure that the tank is clean and totally dry.
Open motor case and place dry filter (fig.7), totally clean and dry on its support. Check
that it is firmly fixed and covers all filter’s support.
Mount motor case on the container (fig.8) and close with the lock-in closures (fig.9).
WARNING: Do not vacuum liquids with dry filter (fig.10) on.
IMPORTANT: Clean dry filter after each use.
IMPORTANT: Replace damaged dry filter immediately.
Wet vacuuming
Before use the vacuum cleaner, be sure that the tank is clean and totally dry.
Open motor case and place wet filter (fig.11), totally clean and dry on its support. Check
that it is firmly fixed and covers all filter’s support.
Mount motor case on the container (fig.12) and close with the lock-in closures (fig.9).
The machine is equipped with a level detection system, that will stops vacuuming, by
emitting an unusual noise when the maximum filling height is reached.
Switch off immediately the machine and disconnect plug from the main source.
Empty the container, with the liquid drain (fig.13).
WARNING: Do not vacuum dust or any other solid particles with wet filter
(fig.14) on.
IMPORTANT: Clean dry filter after each use.
STARTING OPERATION
WARNING: Check correct mains voltage! The voltage of the power source
must agree with the voltage specified on the nameplate of the vacuum clea-
ner. All equipment marked with 230V can also be operated with 220V.
Switch ON and OFF
To connect the vacuum cleaner press switch (fig.15) on position I.
To disconnect the vacuum cleaner press switch (fig.15) on position O.
AUTOMATIC SWITCHING
The vacuum cleaner includes a socket outlet (fig.15) to connect an external power tool.
WARNING: Observe the maximal allowable load of the connected power
tool.
Set the switch on position II, to select the automatic switching.
The vacuum cleaner will start when switching on the power tool connected to the socket
outlet.
The vacuum cleaner will stop approx. 5 seconds after switching off the power tool.
WARNING: Do not use automatic switching on wet vacuuming.
BLOWING FUNCTION
The vacuum cleaner can also be used as a blower.
Remove the cable hook by pulling it out.
Insert the terminal of the hose with the tab on the right and turn clockwise (fig.16) until
it locks.
WARNING: Do not use blowing function with automatic switching.
WARNING: Do not turn the airflow towards people, animals or objects as the
outcoming air may be hot.
Use the machine with RUBI ear protector (Ref. 80903).
G. CLEANING AND MAINTENANCE
Before any work on the vacuum cleaner itself, pull the main plug out of the power source.
Clean and dry the filters after each use and replace them if necessary.
Clean the container with a wet wipe and let dry after each use.
Never use inflammable substances or corrosive agents. Otherwise, they may cause dama-
ge to the machine, objects or persons.
Do not use detergents nor hot water to wash the filters.
Check that the hose or vacuum accessories do not present obstructions into them. If
damaged, replace them immediately.
H. STORAGE
Store the machine in dry and clean places.
I. MALFUNCTIONS
In the case of insufficient vacuuming performance, check the following:
- Is the motor case attached properly?
- Is the hose or the vacuum accessory blocked or damaged?
- Are the extension tubes connected firmly?
- Is the container full?
- Is the dry filter clogged with dust?
Emptying the container at regular intervals ensures optimum vacuuming performance.
If the vacuuming performance is not achieve thereafter, contact to customer service.
J. EC DECLARATION OF CONFORMITY
The company,
Germans Boada, S.A.
Avda. Olimpíades, 89-91
08191 Rubí, Barcelona (Spain)
declares under sole responsibility that the machine:
RUBI AS-30 PRO
Meets the following standards:
EN 60335-1, EN 60335-2-2, EN 60335-2-69, EN 62233, EN 55014-1, EN 55014-2, EN
61000-3-2, EN 61000-3-3
And conforms to the essential requirements of the directives:
Directive 2006/95/EC on the harmonisation of the laws of Member States relating to
electrical equipment designed for use within certain voltage limits
Directive 2004/108/EC on the approximation of the laws of the Member States relating
to electromagnetic compatibility
Directive 2002/96/EC on waste electrical and electronic equipment (WEEE))
Directive 2011/65/CE on the restriction of the use of certain hazardous substances in
electrical and electronic equipment.
Technical File responsible
Carles Gamisans Berenguer
R+D Manager
Authorised person
Carles Gamisans Berenguer
R+D Manager
In Rubi, to November 1, 2013
