IMPORTANT SAFETY INSTRUCTIONS................................................................................................................................2-3

GETTING STARTED Inspect your new machine at delivery....................................................................................................3

TO OBTAIN SERVICE ............................................................................................................................................................3

ABOUT YOUR MACHINE.......................................................................................................................................................4

OPERATING INSTRUCTIONS ..Carpet Cleaning..................................................................................................................4-5

........................................Upholstery Cleaning ..............................................................................................................5

TROUBLESHOOTING ............................................................................................................................................................6

MAINTENANCE..Normal care and storage ............................................................................................................................7

Clean up ....................................................................................................................................................7

PARTS ORDERING.................. ........................................................................................................................................8-10

WARRANTY........................................................................................................................................................................11

CONTENTS

Important

Safety

Instructions

When using an electrical appliance, basic precautions should always be followed, including the following:

■To Reduce the Risk of Fire and Electric Shock due to internal component damage, use only Rug Doctor cleaning

products intended for use with this appliance.

WARNING—to reduce the risk of fire, electric shock, or injury:

■Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.

■Use indoors only.

■Do not allow to be used as a toy. Close attention is necessary when used by or near children.

■Use only as described in this manual. Use only manufacturer’s recommended attachments.

■Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left

outdoors, or dropped into water, consult the authorized service center nearest you for repair.

■Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.

Do not run appliance over cord. Keep cord away from heated surfaces.

■Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

■Do not handle plug or appliance with wet hands.

■Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything

that may reduce air flow.

■Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

■Do not use to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

■Do not use without filters in place.

■Turn off all controls before unplugging.

■Use extra care when cleaning on stairs.

■Do not use to pick up flammable or combustible liquids such as petrol or use in areas where they may be present.

■Connect to a properly earthed outlet only. See “Earthing Instructions.”

■Use only on surfaces moistened by the cleaning process or small spills. Do not place machine in standing water or

try to clear flooded areas.

■Do not clean over floor electrical outlets.

■Do not use without upper (white) tank in place.

■The use of an extension cord is not recommended.

SAVE THESE INSTRUCTIONS

READ THESE WARNINGS FULLY BEFORE USING YOUR

RUG DOCTOR MACHINE

■This appliance is suitable for institutional and commercial use; for example: in apartment complexes, hotels, motels,

schools, hospitals, restaurants, clubs, shops, offices and furniture rental businesses.

■These carpet cleaning machines have factory measured sound emissions of 80-81 dB (A).

76801h-UK-Manual-Warranty.qxd 3/18/08 8:31 AM Page 2

Earthing Instructions

This appliance must be earthed. If it should malfunction or breakdown, earthing provides a path of least resistance for electric current to reduce the

risk of electric shock. This appliance is equipped with a cord having an equipment-earthing conductor and earthing plug. The plug must be plugged

into an appropriate outlet that is properly installed and earthed in accordance with all local codes and ordinances.

DANGER -- Improper connection of equipment-earthing conductor can result in a risk of electric shock. Check with a qualified

electrician or service person if you are in doubt as to whether the outlet is properly earthed.

This appliance is for use on a nominal 220-240 volt circuit.

Note: No adapter is to be used with this appliance.

To Keep Your Machine Working Properly

■Always use Anti-Foam with Upholstery Cleaner or when otherwise needed to prevent excess sudsing in the upper (white) tank. Foam

should never be ingested through the dome filter. Damage to the vacuum motor could result.

■If you use the Rug Doctor machine for cleaning surfaces other than carpet and upholstery such as hard surface floors,* be sure to drain and rinse the

lower tank of liquid or residue before changing cleaning applications.

■Do not attempt repair on a warrantied machine or you may void the warranty. Contact the manufacturer or distributor listed on the back of this manual

for information on where to send the machine for repair.

■Do not use replacement parts other than those available through Rug Doctor. Proper performance of the machine could be affected if substitutions

are made.

■Avoid picking up hard, sharp objects with the carpet cleaning machine. They may damage the machine.

■This machine is not outfitted with a fine dust filter. Do not use the machine for dry vacuuming, damage to the vacuum motor will occur.

■Do not use the machine to vacuum liquid (For example: a flooded basement or large spill). This machine is not equipped with an automatic

overflow shutoff.

■To avoid pump damage, do not continue to press the spray (pump) switch when the solution tank is empty.

■Store in a dry place. Do not expose machine to rain or freezing temperatures.

■For best cleaning results use only Rug Doctor products designed for use in this machine.

■Do NOT put bleach, dye or products other than Rug Doctor cleaners in this machine. Use of inappropriate products may cause this machine to

malfunction and may result in carpet damage. Read instructions carefully. Rug Doctor, Ltd., its parent company, and affiliates are not responsible for

damage due to misuse of this machine.

■Failure to comply with the warning instructions, cautions and safety warning instructions found in this manual will void the warranty.

*Hard Surface Floor Tool attachments and other specialty cleaning equipment are available by calling the number listed on the back of this manual.

Getting Started

WHEN THE MACHINE IS DELIVERED

Check the carton carefully for signs of rough handling. Remove machine from carton. If the machine is damaged, notify the carrier immediately and

request an inspection. Be sure to keep the carton, packing inserts, packing lists and carrier’s receipt until an inspector has verified your claim.

Damage occurring in transit is the carrier’s responsibility. Should damage occur, contact your Rug Doctor authorized distributor for any information

needed for the claim and to expedite repair of the machine.

Obtain a return authorization number by calling the phone number listed on the back of this manual before returning the machine for repair or service.

Before Operating the Machine

Read the manual carefully and completely before attempting to operate. This manual has important information for the use and safe operation of

the machine. Keep this manual handy at all times. This machine will ensure years of satisfactory service if operated and maintained according to

recommendations given here. If additional information is needed, please contact your local distributor or the customer service number listed on

the back.

All information and specifications printed in this instruction manual are current at the time of printing; however, because of Rug Doctor’s policy of

continual product improvement, we reserve the right to make changes at any time without notice.

To Obtain Service

1. Register your new carpet cleaner by completing and returning the attached Rug Doctor Product Registration Card. THIS IS IMPORTANT.

The registration entitles you to service work and replacement parts during the warranty period should your carpet cleaner need repairs. Without this

registration, repairs your unit could require may not be covered.

2. If you experience an operational problem, call the Customer Service phone number listed on the back of this manual. Basic replacement parts

can be ordered through Customer Service. If repair is required, you will be directed to take or ship your unit to the nearest authorized repair station.

Rug Doctor recommends you keep the original carton and packaging materials.

3. Rug Doctor will, without charge, during the Warranty Period, repair or replace, at its option, any component part which is defective or that

malfunctions when the machine is returned within the warranty period.

4. When returning a machine for non-warranty or out of warranty repairs, always insure the Rug Doctor Pro Quick Dry for its full value before shipping.

5. The warranty entitles the owner of a Quick Dry machine to specific legal rights. You also may have other rights which vary from country to country.

6. Rug Doctor’s liability is limited to the cost of the unit. Some countries do not allow the exclusion or limitation of incidental or consequential

damages, so this limitation or exclusion may not apply to you.

76801h-UK-Manual-Warranty.qxd 3/18/08 8:31 AM Page 3

The Quick Dry System

Quick Dry is a patented product and machine system allowing you the unique option to choose ultra fast drying OR

deep cleaning.

In Quick Dry mode – Cleaning solution is used at a higher concentration level and less liquid is applied than when used in

Deep Clean mode. The added Quick Dry product allows more intensive cleaning and creates a sheeting action to accelerate

drying. This results in carpet that is dry to the touch in less than half the time – often in only 1-2 hours. Quick Dry mode is

ideal for routine maintenance cleaning and spot cleaning high traffic areas.

In Deep Clean mode – For heavily soiled carpets, the recommended dilution rate is less. Deep Clean mode allows more

solution to be applied so as to penetrate beyond the surface of the carpet. This higher flow rate and greater volume of liquid

flushes dirt and contaminants out from deep within carpet fiber.

To complement the Quick Dry Carpet Cleaner, Rug Doctor manufactures a complete line of other cleaning products

including Upholstery Cleaner and Hi-Traffic Pre-Treatment for ground-in dirt plus solutions for problem areas like spots or

odors from spills, pets or other sources. Contact your Rug Doctor distributor for information on these products - visit

www.rugdoctorpro.com or www.rugdoctor.co.uk.

IMPORTANT

Rug Doctor Pro machines and Rug Doctor Pro cleaning products are safe for most carpets and many fabrics, even

delicate fibers. HOWEVER, you risk damage to carpets and fabrics not intended for water extraction method cleaning.

DO NOT use or place the Rug Doctor Pro machine or cleaning products on: Natural fiber oriental rugs (silk or wool),

hand-loomed wool rugs, braided rugs, sisal or jute carpets, hardwood or laminate flooring. Do not use Rug Doctor

machines or products to clean: Fabric with cleaning codes S or X, silk, Haitian cotton, velour, brushed corduroy,

leather or non-colorfast fabrics, mattresses or mattress toppers made with memory foam, foam or goose down.

(Some stains require professional treatment.) Use cool water when cleaning wool, wool blends or delicate fibers.

To avoid damage, do not place the machine or hand tool on hardwood or laminate flooring or allow any solution or

overspray to contact such flooring.

Rug Doctor Pro Quick Dry machines can be used with optional attachments and products for cleaning ceilings, walls, hard

surface floors and upholstery. If you use the Quick Dry machine for more than one cleaning application, every care has been

taken to ensure safe, effective products and top quality results when applied correctly. ALWAYS use Rug Doctor Pro products

to assure compatibility of cleaning products across the variety of possible applications and to achieve proper results.

IMPORTANT: Whenever using the machine for more than one type of cleaning application, you should always drain and rinse

the machine’s lower tank of liquid or residue before mixing another solution.

To assure proper results, test carpets and upholstery for colorfastness. Wet an inconspicuous area with a small

amount of cleaner/water solution. After 1-2 minutes, blot with a white paper towel and check for color transfer. If color shows

on the towel, the carpet or upholstery is probably not meant for water extraction cleaning.

Read Instructions Completely Before Using

Cleaning guidelines: If cleaning an entire room, move furniture to center of the room. Begin cleaning where furniture was,

then return furniture to its original location. Avoid staining carpet by blocking up or by placing aluminum foil under

furniture legs until carpet is completely dry.

For faster drying in Deep Clean mode: Ventilate area. Open doors and windows or place fans pointed downward

on carpet. Turn on heat in damp or cold weather. Turn on air conditioner in humid or hot weather.

1. If desired, move furniture. Use a normal dry vacuum cleaner to sweep area and remove loose dirt before using

the Quick Dry machine. This helps keep the brushes and water vacuum system efficient for better results.

2. Pre-treat any special problem areas with appropriate Rug Doctor Pro cleaners.

3. Choose setting (Quick Dry or Deep Clean) by turning selector knob to correct position at machine back (ILLUS. 1).

Mix hot tap water in a clean bucket with product (ILLUS. 2). Water should not be so hot as to scald or burn skin.

In Quick Dry Mode - Mix 30 to 60 mL of Rug Doctor Pro Quick Dry Carpet Cleaner product per litre

of water. In Deep Clean Mode - Mix 15 to 30 mL of Quick Dry Carpet Cleaner per litre of water.

4. Lower restraining wire and remove white UPPER tank .

5. Fill LOWER tank with the cleaning solution you just mixed by pouring through the white filter screen (ILLUS.

3). Machine is full when liquid halfway covers filter screen.

6. If using Rug Doctor Pro Anti-Foam, add 60 to 120 mL to white UPPER tank . Slip tank back in place and

seal tank and clear dome securely by replacing restraining wire .

7. Check the back of the machine to ensure hose connections are secure and

set up to clean carpet instead of upholstery (ILLUS. 1).

8. Plug power cord in and position machine. Refer to label on top of machine

. Press the switch for “CARPET” cleaning on the top of the machine,

then press the “VACUUM ON” switch.

9. While depressing the red button on the handle , pull machine slowly

and steadily backward in a straight line, keeping vacuum slot against

the carpet surface (illus. 4). (Please be advised that if you move too slowly

you may risk over-wetting the carpet.) You will begin to see soiled solution

entering the clear dome . (If you don’t, stop and refer to the Troubleshooting section.) IMPORTANT: When

depressing handle button keep machine moving so vibrating brush does not agitate in one place.

Before You

Begin

Carpet

Cleaning

About Your

Machine

76801h-UK-Manual-Warranty.qxd 3/18/08 8:31 AM Page 4

10. Release button 12 to 30 cm before ending each pass to stop cleaning solution. Tilt machine backward and move it forward to position it for

another backward cleaning pass. Continue cleaning in this manner, slightly overlapping each pass (ILLUS. 4). When lower tank runs

out of solution, the pump sound will increase in volume slightly and dirty water will stop entering dome. Turn off “VACUUM ON”

switch, remove and empty white UPPER tank . Rinse the upper tank and refill LOWER tank with clean solution/water mixture.

Replace upper tank and continue the cleaning process until area to be cleaned is covered.

Cleaning Tips/Cautions

■Rug Doctor machines are designed to deep clean and extract in one cleaning pass. Your best choice for cleaning difficult spots, stains or

traffic areas is to use Rug Doctor’s specialty products: Hi-Traffic Pre-Treatment, Spot, Pet Stain or Odor Removers.

■If some areas require additional cleaning, make the second pass at a right angle to the first.

■Avoid over-wetting carpet. Don’t go over a heavily-soiled spot more than 2 times. Berber, Multi-level or Looped

carpets retain more liquid. When cleaning these types of carpets in Deep Clean mode, do not repeat cleaning

passes. If additional cleaning is desired, allow carpets to dry before attempting to reclean heavily-soiled areas.

Because they retain more liquid, Berber carpets that are overwet can experience “wick up” of soils or spills

very deeply embedded in the carpet or backing. If you experience this problem it is generally easily fixed:

allow area to dry completely then clean again using single, quick passes (2 feet per second) with the

Rug Doctor machine.

■Overlap passes slightly to cover all areas. IMPORTANT: When

pressing switch (or button) keep machine moving so vibrating brush

does not agitate in one place.

■You should recover 2/3 to 3/4 tank of dirty solution for each tank

of clean solution used (depending upon carpet type). Improper

dome seal will create loss of vacuum. If you do not recover at least

2/3 of the used solution, refer to “Vacuum System” in the

Troubleshooting section.

■Open windows and doors, or turn on air conditioning or heat for faster

drying. This is highly recommended when cleaning Berber carpets.

■To prevent stains, if replacing furniture before carpet is completely

dry, place aluminum foil under furniture legs.

■Avoid excess foam in the upper white tank which can be expelled through the

machine and may affect your carpet and the machine. Add 1/4 cup of Rug Doctor Pro

Anti-Foam to the white tank. DO NOT add Anti-Foam to cleaning solution (lower tank).

Upholstery Cleaning

1. Prepare surfaces for cleaning by thoroughly vacuuming or brushing. When cleaning and drying

cushions, first spread sheets or towels on floor as a drying surface for the dampened cushions.

2. Connect Hand Tool hoses to the machine. First disconnect the machine’s large

vacuum hose. Reconnect top portion to large vacuum hose of hand tool . Slide down the ring of brass “quick

coupler” and pull out the small solution hose. Slide down the ring again to insert metal end of hand tool solution

hose (ILLUS. 5). Release brass ring to secure. Tug gently on hose to make certain the connection is complete.

3. Remove white UPPER tank , mix Rug Doctor Pro Upholstery Cleaner in a clean bucket according to

label directions and pour into LOWER tank .

4. Add 60 to 120mL of Rug Doctor Pro Anti-Foam to white UPPER tank , then slip tank back in place and seal

tank and clear dome securely by replacing restraining wire .

5. Plug power cord in and position machine. Refer to label on top of machine for . Turn on machine by pressing the

switch for “UPHOLSTERY/HAND TOOL” on top of the machine and then pressing the “VACUUM ON” switch.

6. Test upholstery for colorfastness by first cleaning a small, hidden area, then rubbing the test area with a white paper

towel. If no color appears, continue cleaning. A little color on the towel means there’s some chance of color running,

but it’s likely you can still clean safely - try using cool or cold water and test again with a white paper towel.

7. Working at a slow, steady pace - begin cleaning by squeezing hand tool lever as you pull the tool over fabric

(ILLUS. 6). Overlap strokes slightly.

8. As you clean, with the vacuum switch on, squirt a small amount of Rug Doctor Pro Anti-Foam into the small

(vacuum) opening of the hand tool every few minutes to minimize suds buildup in the vacuum hose. If foam builds

up around the hand tool, pull slightly faster or vacuum excess solution by passing over area a second time without

squeezing lever on hand tool.

9. When cleaning is complete, turn off “VACUUM ON” switch, empty any remaining solution from the machine. First disconnect both hand tool hoses from

machine. Holding hose ends over a sink, squeeze hand tool trigger until all liquid is drained. To drain the machine, follow clean up instructions on page 7

to ensure machine is properly cleaned and ready for the next use.

10. Reconnect machine vacuum and solution hoses.

NOTE: For velvet upholstery, fluff up damp pile with a soft brush or towel to keep from matting.

76801h-UK-Manual-Warranty.qxd 3/18/08 8:31 AM Page 5

Vacuum System

Problem

No electrical power.

Switch is turned on. Power is

intermittent to all motors.

Electrical shock.

Machine on. Little or no

vacuum at machine or hand

tool vacuum slot.

Machine on, vacuum motor not

working or runs intermittently.

Loss of water pressure

Machine on, spray button

depressed, no spray at

spray tip

Machine on, hand tool lever

squeezed, no spray.

Uneven or weak spray

from tips.

Excessive foaming.

Carpet Discoloration (Yellowing)

Carpet Discoloration (Stained

areas appearing after cleaning)

Streaking

Possible Cause/Remedy

1. Make sure the electrical cord is plugged in. If electrical outlet is connected to a

wall switch, be sure the wall switch is “on.”

2. Check and, if needed, press the “Power Reset” button on machine.

3. Wall circuit breaker off or fuse blown. Turn circuit breaker on or replace fuse.

Unplug any equipment using the same circuit.

4. Fuse in plug blown. (U.K./Ireland BS 1363 plug only.) Replace fuse.

5. Defective Power Cord. (Service must be performed by a qualified repair center

or agent.)

1. Faulty electrical cable, defective switches, or loose terminal connections. (Service

must be performed by a qualified repair center or agent.)

1. Equipment not earthed. Locate and use an earthed outlet.

1. Dome is not sealed. Secure with upper tank restraining wire.

2. Loose or no vacuum hose connection. Check the hose connection at back of

machine and secure if necessary.

3. Accumulated dirt on dome filter screen. Clean filter inside dome.

4. Lint & dirt buildup at vacuum slot. Remove any accumulated debris and clean.

5. Defective vacuum hose assembly inside the machine.

1. Loose wiring connection.

1. Low solution level. Check level and refill if necessary.

1. Solution line not connected. Check the small hose at the back of machine and

reconnect securely at quick coupler.

2. Check Quick Dry/Deep Clean knob at the back of the machine. It should be set

fully on one or the other selection.

3. Clogged spray tip. Remove with wrench. Rinse clean and replace.

4. Clogged solution tank line strainer. Check screen inside lower tank (see

maintenance section). Clean if necessary.

1. Solution line not connected. Check the small hose at the back of machine and

reconnect securely at quick coupler.

2. Clogged spray tip on hand tool. Clean.

3. Clogged solution tank line strainer. Check screen inside lower tank (see

maintenance section). Clean if necessary.

1. Clogged or dirty spray tips. Clean.

2. Accumulated dirt on solution tank line strainer. Check screen inside lower tank

(see maintenance section). Clean if necessary.

Foam caused most often by Upholstery Cleaning Solution or cleaning carpets where

spray foams or shampoo have been used previously.

1. Add 60 to 120 mL Anti-Foam to the white UPPER tank for carpet cleaning.

2. Add 60 to 120 mL Anti-Foam to the white UPPER tank and small amounts at the

hand tool vacuum slot periodically when cleaning upholstery.

1. Carpet may have been overwet or an excessive amount of cleaning product was

used. Spray a light application of Rug Doctor Pro Pet Stain Remover directly on

affected area and brush it in. Allow to dry.

1. Old, very deep spills in carpet padding “wicking” up to surface as carpet dries.

Allow to finish drying. Spray a light application of Rug Doctor Pro Pet Stain

Remover directly on the affected area and brush it in. Allow to dry.

2. Old, deep spills in the carpet padding “wicking” up to surface as carpet dries.

Allow to finish drying. Make one light pass over area with machine using normal

cleaning solution avoiding deep wetting (stain may continue to appear in

subsequent cleanings if overwet). Always avoid overwetting.

1. Clogged spray tip. Remove with wrench. Rinse clean and replace.

Solution System

Foaming

Carpet

Discoloration

Trouble-

shooting

Electrical System

76801h-UK-Manual-Warranty.qxd 3/18/08 8:31 AM Page 6

Maintenance Procedures

Care and Periodic Maintenance of Your Machine

1. Keep the machine stored indoors out of dusty, wet and freezing areas. This will prolong the use of your Rug Doctor Pro Quick Dry machine and

help keep it trouble free.

2. Always use recommended cleaning agents. Do not use dye or bleach in this machine.

3. Use a light lubricating oil to deter corrosion of quick disconnect and other moving parts. Be sure to wipe all excess oil from lubricated areas.

4. Quick Dry machines have been designed for rugged use; however, avoid mishandling such as dropping the unit or transporting it in an open van or

vehicle. Jarring from sudden vehicle starts or stops can cause damage. Use care when transporting.

5. Store power cord on the machine by winding it onto the machine cord wrap located on the handle. Regularly inspect cord for signs of damage.

A damaged power cord should be replaced by the manufacturer, its service agent or similarly qualified person.

Freezing Temperatures

Rug Doctor recommends that Quick Dry machines never be stored or remain for a prolonged period of time in freezing temperatures. Damage to the

pump and solution hoses caused by water in the machine system could occur. If it becomes necessary to store the machine where temperatures

could drop below 0˚C (32˚F) you should take precautions to protect the pump and solution hoses.

Clean Up

1. Drain the machine* by spraying out remaining solution over a floor drain or out-of-doors (never in rain or on wet ground). Do not allow machine

to stand in liquid while emptying. Best method: spray out liquid with machine set to Upholstery/Hand Tool to prevent brushes from movement

and wear while emptying. Using this method you can spray out remaining liquid either through Hand Tool or machine spray tips.

2. Clean the Vibrating Brush: After each use (with machine unplugged from power source), remove any debris from the vibrating brush. Use your

finger and/or an old comb for this purpose.

3. Clean the Vacuum Filters: After each use, inspect the cylindrical filter screen located inside of the clear plastic dome on the front of the machine.

If debris is present, remove the filter screen by pushing it right and compressing the spring until the filter end is clear of the dome. Clean by

running water through from the inside to the outside of the screen. Replace by compressing the spring wire and inserting the black end securely

into place in the hole inside the dome.

4. Clean the Solution Tank Filter Screen: After each use, inspect the rectangular filter screen located in the fill opening of the solution (lower) tank.

If debris is present, remove screws that hold the filter in place and remove filter from the solution tank opening. Clean filter by holding it under a

water faucet and letting the water run through the filter in the opposite direction from the normal filling flow. Replace the filter screen and fasten it

in place with the two mounting screws.

5. Clean the Solution Tank Line Strainer: Whenever the solution tank filter screen is removed for cleaning (refer to #4), inspect the cylindrical filter

mounted on the end of the solution line inside of the tank. (The larger capacity 3.7G machine has two filters.) If debris is present, remove the filter

by pulling it off the solution line. Clean by holding the filter under flowing water. Replace filter by pushing over the end of the solution hose.

6. Remove carpet fibers from Vacuum Slot: Periodically check vacuum slot on the bottom front of machine for debris. Remove any fiber, hair or other

debris that may be caught in the slot using a stiff wire with a hook on the end (a wire coat hanger can be used). Make sure the machine has the

“VACUUM ON” switch turned off, is unplugged and the tanks are empty of water.

* If you use the Rug Doctor Pro Quick Dry machine for cleaning surfaces other than carpet and upholstery (optional attachments for cleaning

hard surface walls, ceilings, and floors are available), you should always drain and rinse the lower tank of liquid or residue before changing

cleaning applications.

76801h-UK-Manual-Warranty.qxd 3/18/08 8:31 AM Page 7

Vacuum

Cover

Dome

Handle

Bottom Pan

Recovery

Tank

Main

Support

Housing

Lower

Tank

Housing

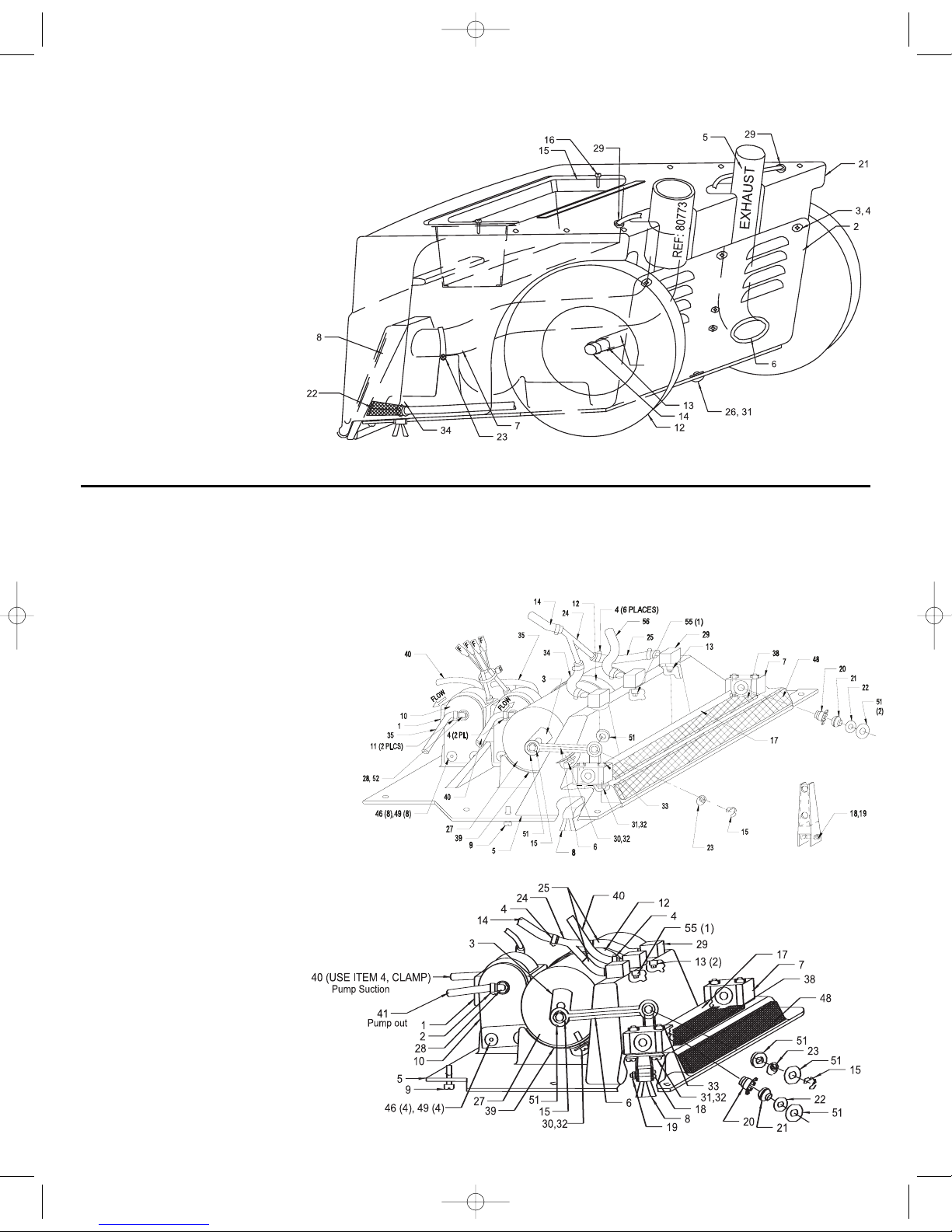

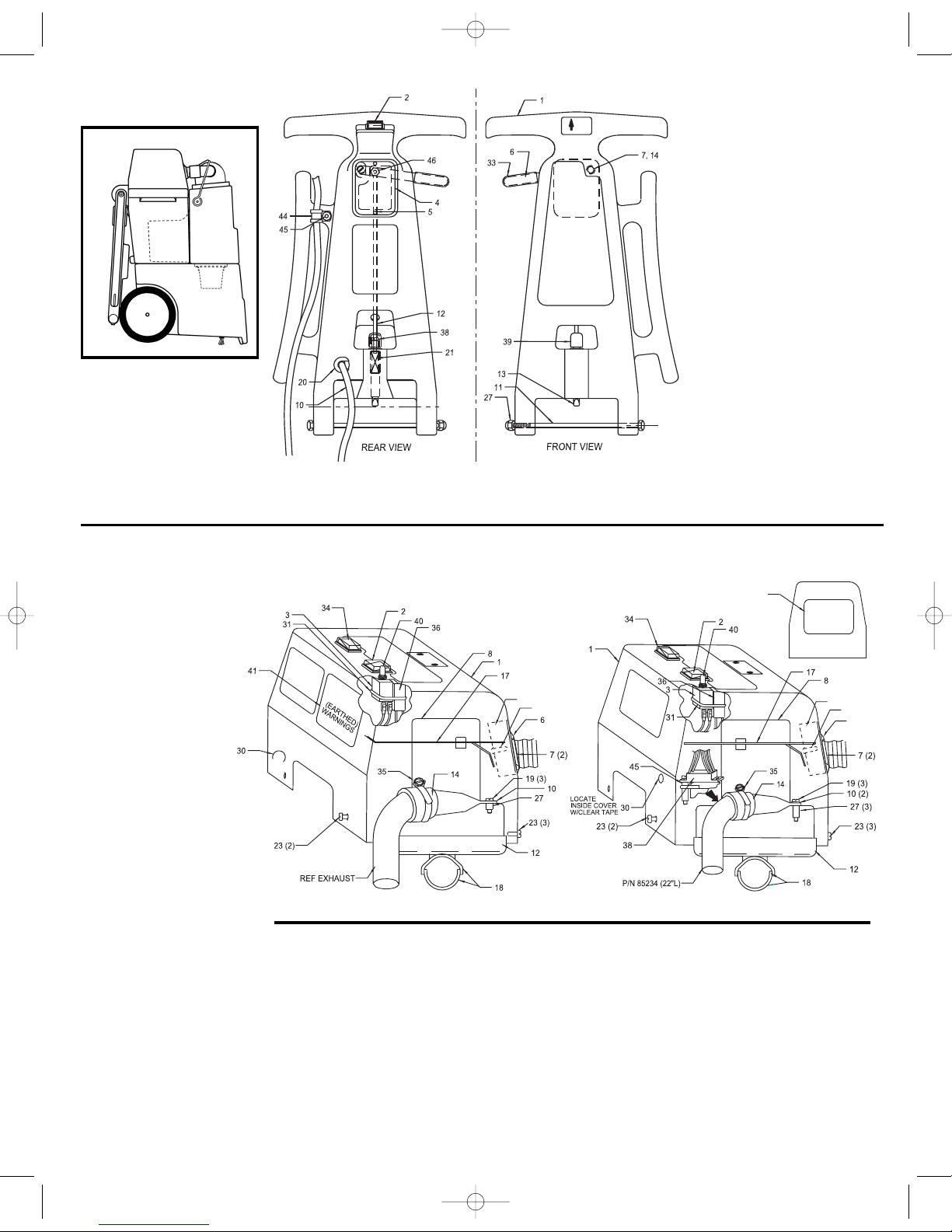

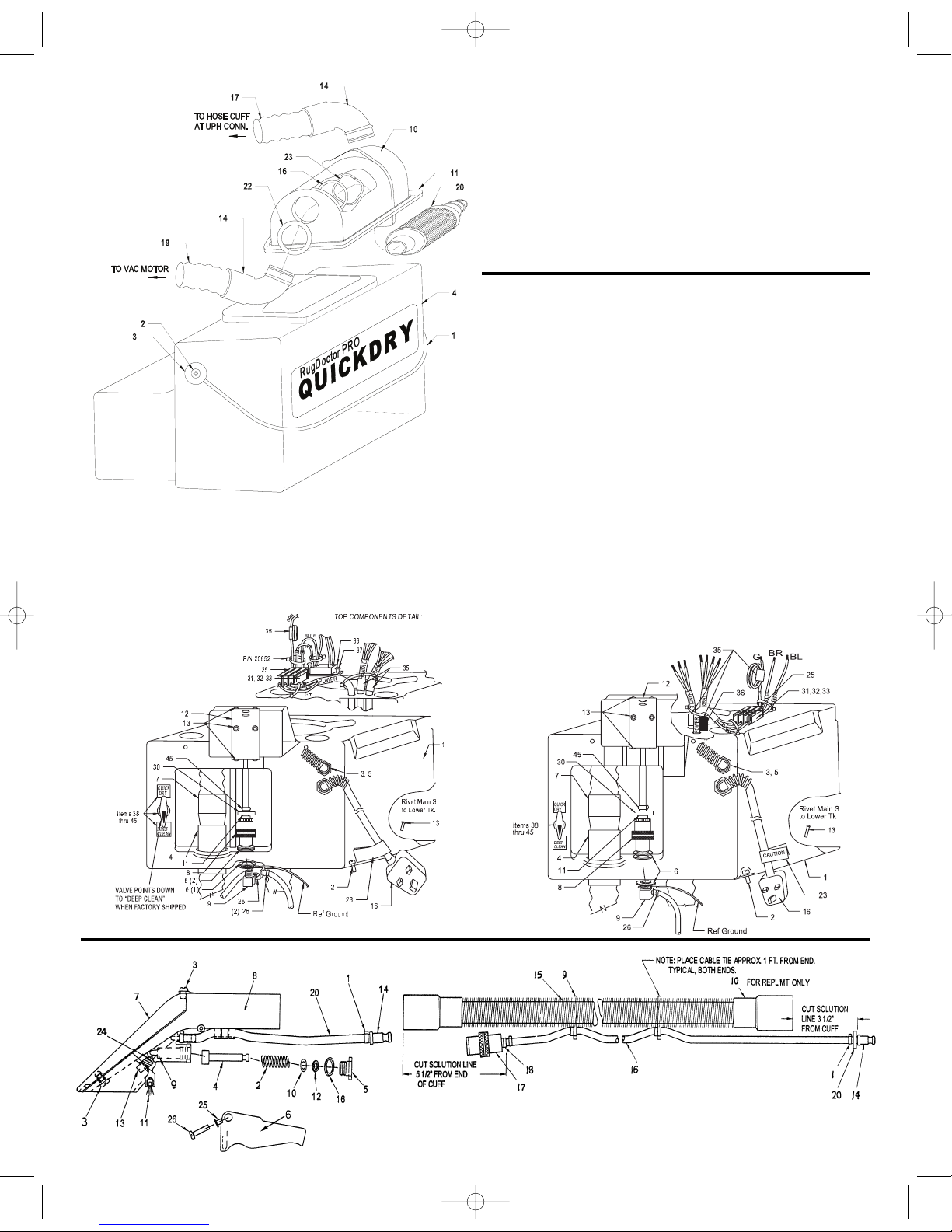

Parts Ordering

Handle Assembly

92758 Entire Assembly

1 60672 Handle, black

w/molded cord wrap

2 51060 Switch, red

60189 Clear Boot

4 60636 Access Panel

5 20934 Screw

645107 Lever

7 60181 Spacer

10 55388 Power Cord

11 20386 Bolt, 7 1/2” L

12 20369 Rod, plunger

13 20368 Plunger

14 20370 Binding Post + Screw

20 50992 Bushing

21 20373 Spring, Third Plunger

27 20859 Nut

33 60146 Rubber Boot

38 20371 Hex Nut

39 60180 Sleeve, black vinyl boot

44 51055 Cord Clamp

45 20911 Rivet

46 20231 Nut

WARNINGS

...MUST BE

EARTHED

FRONT

SIDE VIEW

Vacuum Cover Assembly

1 60453 3.7G Vac Cover

60476 2.6G

2 51073 Rocker Switch

3 51125 Circuit Breaker

6 60676 Pocket Pull Front

7 60716 Grommet, split back

8 50243 Vac Motor

9 60677 Pocket Pull Back

10 20853 Washer

11 20389 Screw #8 x 3/4

12 60635 Gasket

14 60726 Coupling, threaded

17 11849 3.7G Baffle

11848 2.6G

18 65141 Gasket

19 20534 Screw, 3.7G only

20422 Screw, 2.6G only

23 20375 Screw

27 60181 3.7G Spacer, nylon

60722 2.6G

30 75496 Label, ground symbol,

international

31 20652 Cable Tie

34 51074 Rocker Switch

35 12996 Clamp

36 51081 Filter, EMI (1 Amp),

38 51082 Filter, EMI (4 Amp),

2.6G only

40 60174 Boot, clear

41 75188 Label, Earthing Warnings

45 60752 Spacer, 2.6G only

2.6G Vacuum Cover Assembly

3.7G Vacuum Cover Assembly

Hand Tool Assembly

92396 Entire Assembly

1 11177 Clamp

2 10465 Compression Spring

320913 Screw

4 60183 Plunger, white

5 60182 Cap, black, threaded

660133 Valve Handle, black

7 60134 Sight Cover, gray

860155 Nozzle/Valve Body, gray

960638 O-Ring

10 20075 Washer

11 60428 Brush, channel strip

12 60639 O-Ring

13 60731 Spray Tip, 95º, plastic

14 80783 Nipple, standard hose barb

16 60640 O-Ring

20 85206 Solution Hose, braided

24 60148 Screen, filter for jet tip

25 60191 Spacer, nylon

26 20348 Screw

Hose Set Assembly

111177 Clamp, Oetiker

9 20652 Cable Tie, self-locking

10 60388 Hose End

14 80783 Nipple, standard hose barb

15 80776 Vacuum Hose, gray, 2 cuffs

16 85448 Solution Hose, braided

12´3.5˝

17 80208 Quick Coupler Connector

18 80219 Hose Barb

20 60725 Rubber Washer

76801h-UK-Manual-Warranty.qxd 3/18/08 8:31 AM Page 8

Recovery Tank Assembly

92591I3.7G Entire Assembly

92590I2.6G

1 45104 3.7G Bail Wire

45147 2.6G

2 20378 Screw

365704 Retainer, nylon

4 60451 3.7G Recovery Tank

60473 2.6G

Dome Assembly

92416 Entire Assembly (no hoses)

10 60717 Dome, Clear, skirtless

11 60701 Gasket, dome seating

14 60700 Elbow, 90º black

16 60196 Washer, plastic, black

17 85226 Vacuum Hose, black

19 85225 Vacuum Hose, black

20 10460 Filter, screen with spring

11840 Spring only

22 60591 Gasket, elbow

23 41183 Retaining Clip

3.7G Main Support Housing Assembly

2.6G Main Support Housing Assembly

1 60492 3.7G Main Support Housing

60490 2.6G

2 20375 Screw

3 51022 Bushing

4 80773 Hose End Enlarger

5 51091 Nut, strain relief bushing

6 20907 Washer

7 80780 Hose End, tapered

8 80208 Quick Coupler, brass

9 80280 3.7G Elbow, brass

80775 2.6G

11 80784 Nipple, plug, brass

12 45162 Striker Plate

13 20911 Rivet

16 ------ Cord With Plug, Call

Customer Service for

part information

23 76789 Label, Caution

25 51145 Cover, Term. Block

26 11852 Clamp

28 80459 Tee, brass, 3.7G only

30 60725 Washer, rubber

31 50545 Terminal Strip

32 20518 Screw

33 20706 Nut

35 51083 Bead, Ferrite

36 51082

Filter,EMI (4 Amp), 3.7G only

11997 Bead Insulator, 2.6G only

37 20504 Screw, 3.7G only

38 80809 Valve, ball, 3-way

39 60128 Elbow, 1/8 MNPT x 1/4”

40 60743 Barb, NYL, 1/8 NPT, 1/4”

41 85243 Hose, PVC, 1/4”ID, 14”L

45 11845 Clamp, hose, Oetiker

Main Support Housing Assembly

76801h-UK-Manual-Warranty.qxd 3/18/08 8:31 AM Page 9

Bottom Pan Assembly

1 50251 Pump

2 11852 Clamp

3 90069 Cam Assembly

4 11845 Hose Clamp

5 60669 3.7G Bottom Pan

60670 2.6G

6 40352 Drive Arm

740353 Pillow Block

8 60723 3.7G Brush Strip

60719 2.6G

9 20375 Screw

10 60720 Pump Mount, rubber

12 60166 Motor strap

13 80790 3.7G Jet Tip

80881 2.6G

14 80765 Hose, 16” 2.6G only

15 20604 C-Clip

17 45108 3.7G Brush Holder

45149 2.6G

18 20521 Screw

19 20241 Elastic Stop Nut

20 80597 Sleeve Holder

21 10341 Bearing, self-align

22 20840 Washer, felt

23 80596 Bushing, drive-arm

24 60138 Connector, “Y”

25 85231 Hose, reinforced

27 50262 Motor, brush drive

28 60128 Elbow/Barb, Nylon

29 60139 Fitting, 90º

30 20906 Screw

31 20390 Screw

32 20853 Washer

33 20249 Nut, Keps

34 80765 Hose, 5” 3.7G only

35 80791 Hose, 12” 3.7G only

38 60637 3.7G Seal Gasket

60599 2.6G

39 60598 Motor Gasket

40 85237 Hose, reinforced

41 80791 Hose, 11” 2.6G only

46 20388 Rivet

48 65508 3.7G Gasket

65507 2.6G

49 20266 Washer

51 10316 Washer, nylon

3.7G Bottom Pan Assembly

2.6G Bottom Pan Assembly

Lower Tank Assembly

2 60694 3.7G Vent Panel

45111 2.6G

3 20375 Screw

4 19466 Star Washer 2.6G only

585242 3.7G Hose, exhaust

85234 2.6G

6 60716 Grommet, split, black

7 85227 Vac Hose, nozzle tube

845161 3.7G Nozzle, floor

45160 2.6G

12 10231 3.7G Wheel

10281 2.6G

13 45122 3.7G Axle

45121 2.6G

14 11183 Hubcap

15 60400 Filter, screen

16 20091 Screw

18 11987 Axle Sleeving

21 60463 3.7G Housing, blue

60477 2.6G

22 10461 Line Strainer, sump

23 12995 Hose Clamp

26 20911 Rivet

29 60634 Gasket, rubber

31 20266 Washer

34 11850 Retainer,

3.7G only

55 80798 Jet tip, Vee Jet 3.7G

80797 Jet tip, Vee Jet 2.6G

56 80765 Hose, 33" 3.76G only

76801h-UK-Manual-Warranty.qxd 3/18/08 8:31 AM Page 10

DURATION OF FULL ONE (1) YEAR WARRANTY AND TO WHOM EXTENDED In keeping with its high standards of quality, Rug Doctor

provides purchasers, from purchase date, a full one (1) year Limited Warranty, referred to as The Warranty Period.

WHAT DOES THE WARRANTY COVER AND WHAT WILL RUG DOCTOR DO Rug Doctor will, without charge, during The Warranty Period, repair

or replace, at its option, any component part that is defective or that malfunctions when the machine is returned within the warranty period. To

exercise the Warranty provisions and before returning the machine, please call Rug Doctor or your authorized Rug Doctor distributor.

EXCLUSIONS FROM WARRANTY Every machine or component part returned to Rug Doctor shall be examined. Malfunctions, defects or failures of

the machine or any component part(s) due to alterations made to the machine, improper or negligent use or abuse or the unlawful use of the machine

for rental purposes or use not in accordance with this “Instruction Guide” are excluded under this Warranty. Any attempt to repair/tamper with the

machine voids the Warranty. This warranty does not include a refund of the purchase price.

Use of the machine for commercial purposes (other than rental) is covered by this Warranty to the extent that malfunctions, defects or failures of

the machine or component part(s) are not due to alterations made to the machine, improper or negligent use or abuse or use not in accordance with

this “Instruction Guide,” or normal commercial wear and tear.

FURTHER LIMITATIONS In no event shall Rug Doctor Pro be liable for any consequential or incidental damages you may incur in

connection with the purchase and use of the machine; including, without limitation, commercial loss or for any incidental expenses,

damage from improper use of either machine or products used in the machine, loss of time or inconvenience.

Some countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusion may not apply

to you.

UNAUTHORIZED USE Use of this carpet cleaning machine with Rug Doctor Pro trademarks for rental purposes is unauthorized and is in violation

of 15 U.S.C. Section 1114 (l) and 15 U.S.C. Section 1125 (a).

TO OBTAIN WARRANTY ASSISTANCE For Warranty, service or other assistance, please call the phone number listed on the back of this manual.

Rug Doctor will need the following information in order to assist you: Your name, address and telephone number

Product model and serial number

Date of purchase

Nature of the problem

Rug Doctor will review all the facts involved and advise you as to recommended procedure. We recommend you keep the original carton and packing

materials. This Warranty gives you specific legal rights, and you may also have other rights which vary from Country to Country.

Rug Doctor Pro is a registered trademark of Rug Doctor, Inc.

Thank you for buying a Rug Doctor Pro carpet cleaning machine.

Rug Doctor carpet cleaning machines are manufactured, tested and inspected in accordance with Rug Doctor’s high standards of quality. You should

be able to achieve exceptional cleaning results and enjoy many years of service from your Rug Doctor Pro Machine.

Please take a few minutes to read this informative instruction manual and return the enclosed owner registration card. Pay particular attention to the
