Rugged Ridge
Rock Crawler Rear Bumper
P/N: 11503.13 - 14
Installation Instructions.
Can be used for tires sizes up to 35"
Components - Box 1 Components - Box 2 (tire carrier)
(Box 1):
(1) Rock Crawler rear bumper (box 1)
(Box 2):
(1) Tire Carrier with latch installed
(10) M12 - 1.75 x 30mm Hex Head Bolt (1) Post Bar
(8) M12 Nylock Nuts (1) Tire Mount
(18) M12 Flat Washers (1) c45 Circle Clip
(10) M12 Lock Washers (3) 3/8"-24 x 1" Hex Head Bolt
(2) 3/8"-24 x 1 1/4" Hex Head Bolt
(8) 3/8" Flat Washers
(5) 3/8" Nylock Nuts
(1) 3/8" - 16UNC X 67 Round Cross Bolt
(4) c10 Washers
(1) 3/8" Nylock Nut
(1) Rubber Bushing/Spacer
(1) Nylon Washer
(1) ST6.3 x 25 Phillips Head Screw
NOTE: TWO PEOPLE WILL BE NEEDED TO MOUNT THIS BUMPER.
(Step 1):
Remove original factory bumper per manufacturer's instructions. The lower mounting bolts
can be reused if desired.
(Step 2):

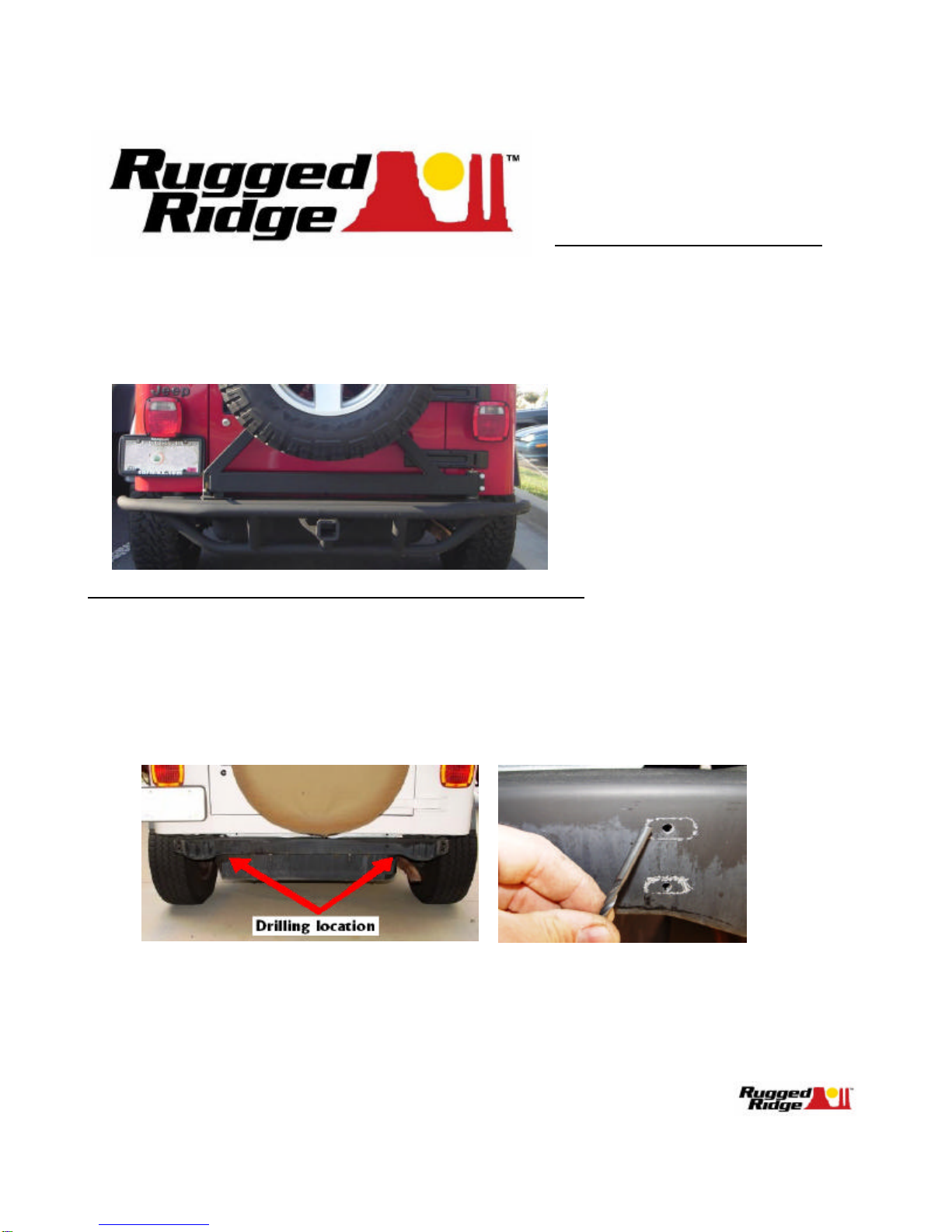

The inner mounting holes on the Rock Crawler bumper will not align with any factory holes
regardless of model year (Fig.1). With the help of another person mount the bumper using the
outer holes only. With bumper secured scribe or mark the inner hole locations. (Fig.2)
Be sure to mark hole location correctly for proper fitment. Remove bumper and set aside.
Fig.1
Fig.2
(Step 3):
With the holes marked or scribed drill a small 3/16" pilot hole in the rear cross member in the
center of your marks. The smaller pilot hole insures the centering of your larger mounting
hole when drilled.
CAUTION: EXTREME CARE SHOULD BE TAKEN BEFORE DRILLING.
THE FUEL TANK IS LOCATED JUST BEHIND THE CROSS MEMBER.
Great care will be
needed to avoid damaging the fuel tank.
With the smaller 3/16" pilot holes drilled, enlarge the holes using a 1/2" drill bit.
AGAIN, BE CAREFUL AND AVOID ANY CONTACT OF THE DRILL BIT TO FUEL TANK.
Pg.1

(Step 4):
With mounting holes drilled reposition bumper back to frame cross member and secure using
(6) M12 x 30mm Hex Head Bolts, (12) M12 Flat Washers,(6) M12 Lock Washers,
(6) M12 Nylock Nuts.
DO NOT TIGHTEN HARDWARE AT THIS TIME.
installed
(Step 5):
Locate (2) M12-1.75 x 30mm, (2) M12 Flat Washers, and (2) M12 Lock Washers
NOTE: M12 Bolts fit most TJ vehicles, 7/16" bolts fit most YJ vehicles. If unable
to use the supplied lower hardware you can reuse the original OE lower bolts.
Secure the bottom of the bumper to the lower two mounting points using supplied hardware.
Tighten all hardware at this time.
If desired the original lower mounting bolt can be reused.
(Step 6):
With help secure the tire carrier to the bumper swing spindle. Work tire carrier all the way down
onto the spindle and close. Install (2) 3/8"-24 x 1 1/4" Hex Head Bolts, (4) 3/8" Flat Washers
and (2) 3/8" Nylock Nuts to the tire carrier arm clamp. (Fig.5 & 6)
Fig.5 Fig.6
(Step 7):
Install the circle clip onto the top of the spindle (Fig.6). Install grease nipple. Add grease
using grease gun to lubricate the spindle and pivot before use.
Pg.2

(Step 8):
Install Post Bar at this time to the top of the tire carrier. Use (1) 3/4" x 3" Hex Head Bolt,
(2) 3/4" Flat Washers, and (1) 3/4" Nylock Nut.
(Step 9):
Locate tire mount and install using (3) 3/8"-24 x 1" Hex Head Bolts, (6) 3/8" Flat Washers
and (3) 3/8" Nylock Nuts. Slide mount onto tire carrier and hand tighten. There are two sets
of mounting slots on the tire carrier. With post bar installed test fit the spare tire and
determine what is the best mounting point for your vehicles spare tire. Tighten bolts.
(Step10):
Mount rubber bushing to bumper swing arm latching point using supplied phillips head screw.
The rubber bushing is needed to maintain proper preload to secure swing arm latch.
Note: When the spare tire is installed it should set snuggly against the post bar.
For most oversized tires the outer mounting holes will be used.
Tire carrier can be used with tires up to 35".
