RuggVMC ruggon VULCAN X User manual

VULCAN X
Vehicle Mount Computer
User’s Manual
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
v1.2!

Contents
CONTENTS'......................................................................................................................................................................'2!
SAFETY'PRECAUTIONS'...............................................................................................................................................'5!
REGULATORY'AND'CERTIFICATION'.......................................................................................................................'7!
FCC#......................................................................................................................................................................................................#7!
RF!EXPOSURE!WARNING#...................................................................................................................................................................#8!
CE!MARKING#......................................................................................................................................................................................#8!
RF#Power#Table#........................................................................................................................................................................#9!
LITHIUM!BATTERY!SAFETY!STATEMENT#.....................................................................................................................................#12!
CHAPTER'1.'PRODUCT'INTRODUCTION'............................................................................................................'13!
HARDWARE!SPECIFICATIONS#........................................................................................................................................................#13!
ENVIRONMENT#.................................................................................................................................................................................#15!
I/O!PORTS#........................................................................................................................................................................................#16!

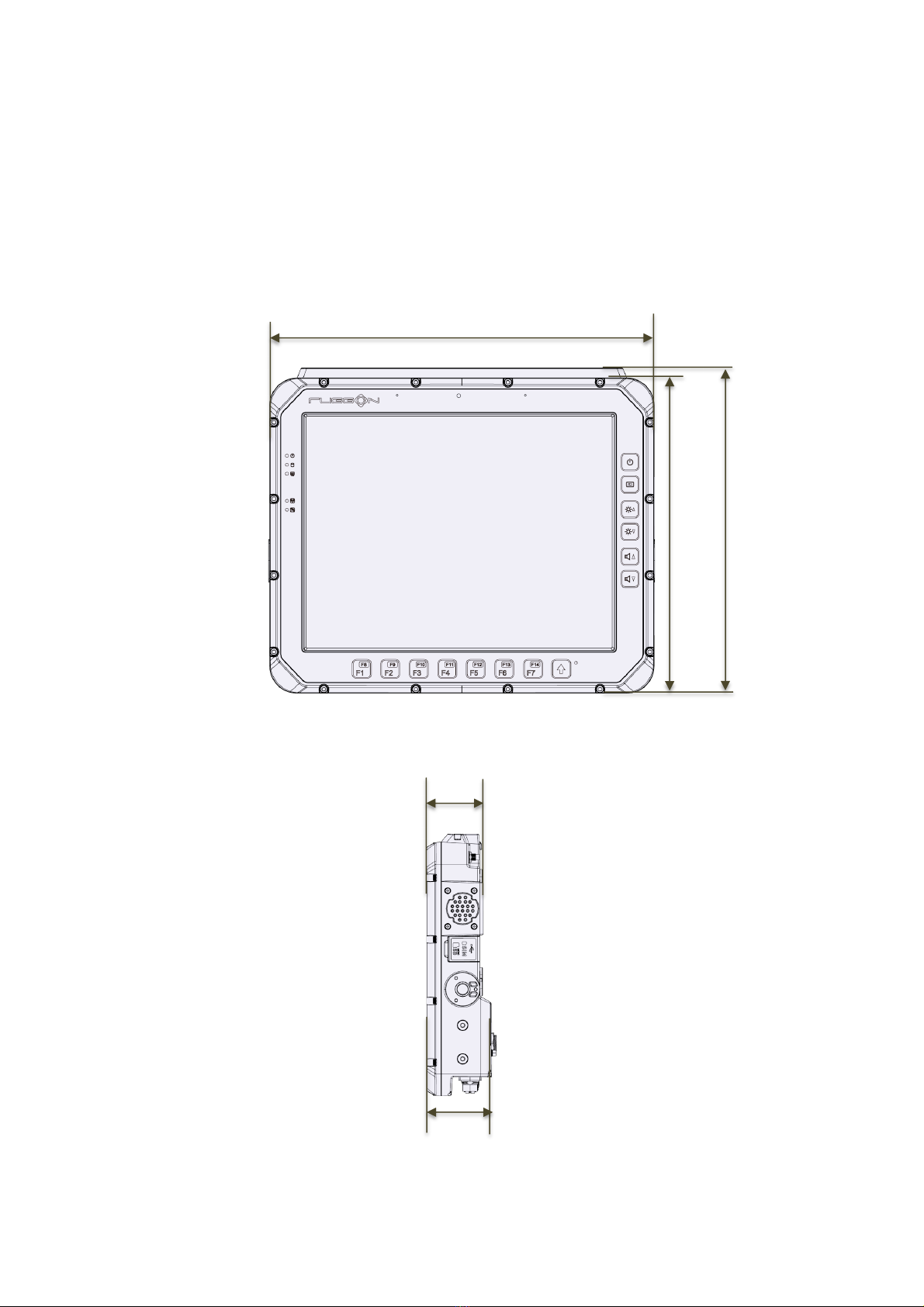

DIMENSION!AND!WEIGHT#..............................................................................................................................................................#17!
PACKAGE!LIST#..................................................................................................................................................................................#18!
CHAPTER'2.'HARDWARE'INSTALLATION'..........................................................................................................'19!
STORAGE!MODULE#..........................................................................................................................................................................#19!
Installing/Removing#a#Module#........................................................................................................................................#19!
INSTALLING/REMOVING!THE!SIM!CARD#.....................................................................................................................................#20!
SIM1#slot#on#the#side#............................................................................................................................................................#21!
SIM2#slot#at#the#back#............................................................................................................................................................#22!
CHAPTER'3.'HARDWARE'MOUNTING'.................................................................................................................'23!
CHAPTER'4.'START'UP'.............................................................................................................................................'24!
POWERING!THE!SYSTEM#................................................................................................................................................................#24!
Installation#Instructions#.....................................................................................................................................................#24!
Power#on#the#System#...........................................................................................................................................................#25!
Connector#Power#...................................................................................................................................................................#26!
Internal#Battery#......................................................................................................................................................................#28!
POWERING!DOWN!THE!SYSTEM#...................................................................................................................................................#29!
Unexpected#Power#Outage#................................................................................................................................................#30!

3"
"
LED!STATUS#.....................................................................................................................................................................................#31!
ADJUST!THE!SPEAKER!VOLUME#....................................................................................................................................................#32!
AUTO-BRIGHTNESS!ADJUSTMENT#................................................................................................................................................#32!
MANUAL!BRIGHTNESS!ADJUSTMENT#...........................................................................................................................................#33!
INTERNAL!MICROPHONE#................................................................................................................................................................#33!
DISPLAY!ON/OFF#.............................................................................................................................................................................#33!
DEFROST!AND!DEFOG!ON/OFF!(ONLY!AVAILABLE!UPON!REQUEST)#.......................................................................................#33!
PROGRAMMABLE!BUTTONS#...........................................................................................................................................................#34!
POWER!MANAGEMENT#...................................................................................................................................................................#34!
CHAPTER'5.'JUMPERS'AND'CONNECTORS'........................................................................................................'35!
BOTTOM!VIEW#.................................................................................................................................................................................#35!
EXTERNAL!CONNECTORS!PIN!ASSIGNMENTS#.............................................................................................................................#36!
Power#Connector#...................................................................................................................................................................#36!
RS-232#Port#(COM1)#............................................................................................................................................................#37!
Digital#I/O#.................................................................................................................................................................................#38!
CAN#bus#Port#and#Dual#USB#..............................................................................................................................................#39!
RS-232/422/485#Port#(COM2~COM6)#.......................................................................................................................#40!
Video#Capture/#Headset#.....................................................................................................................................................#41!
Ethernet#Port#...........................................................................................................................................................................#42!
CHAPTER'6.'KEY'MAPPING'....................................................................................................................................'43!
CHAPTER'7.'DASHON'SETTING'.............................................................................................................................'44!
DEVICE!INFORMATION#....................................................................................................................................................................#45!
VEHICLE!STATUS#..............................................................................................................................................................................#46!
COMMUNICATION!SETTING#............................................................................................................................................................#47!
SYSTEM!STATUS!&!SETTING#..........................................................................................................................................................#48!
Power#Management#Setup#................................................................................................................................................#48!
Wake#up#Setting#.....................................................................................................................................................................#52!
I/O#Configuration#..................................................................................................................................................................#54!
Brightness#Setting#.................................................................................................................................................................#56!
Watchdog#Timer#....................................................................................................................................................................#56!
Programmable#Button#.........................................................................................................................................................#58!
LOCATION!AND!SENSOR#.................................................................................................................................................................#62!
APPENDIX'A'EXTERNAL'CABLE'PIN'DEFINITION'...........................................................................................'65!

External#power#cable#wiring#............................................................................................................................................#65!
Digital#I/O#.................................................................................................................................................................................#65!
CAN#bus#Port#and#Dual#USB#..............................................................................................................................................#66!
RS-232/422/485#Port#(COM2~COM6)#.......................................................................................................................#66!
APPENDIX'B'PROGRAMMABLE'BUTTON'KEY'MAPPING'FOR'LINUX'.......................................................'69!

5"
"
Safety Precautions
1. Read these safety instructions carefully. !
2. Keep this user’s manual for later reference. !
3. Disconnect this equipment from any power source before cleaning. Use a damp cloth.
Do not use liquid or spray detergents for cleaning. !
4. For plug-in equipment, the power outlet socket must be located near the equipment and
must be easily accessible. !
5. Keep this equipment away from humidity. !
6. Put this equipment on a stable surface during installation. Dropping it or letting it fall
may cause damage. !
7. Do not leave this equipment in either an unconditioned environment or in an above
40ºC storage temperature as this may damage the equipment. !
8. The openings on the enclosure are for air convection to protect the equipment from
overheating. DO NOT COVER THE OPENINGS. !
9. Make sure the voltage of the power source is correct before connecting the equipment
to the power outlet. !
10. Place the power cord in a way so that people will not step on it. Do not place anything
on top of the power cord. Use a power cord that has been approved for use with the
product and that it matches the voltage and current marked on the product’s electrical
range label. The voltage and current rating of the cord must be greater than the volt-
age and current rating marked on the product. !
11. All cautions and warnings on the equipment should be noted.
12. If the equipment is not used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
13. Never pour any liquid into an opening. This may cause fire or electrical shock.
14. Never open the equipment. For safety reasons, the equipment should be opened only
by qualified service personnel.
15. If one of the following situations arise, get the equipment checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according to the

user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
16. Do not place heavy objects on the equipment.
17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the
unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does
not support this kind of plug, contact your electrician to replace your obsolete outlet.
18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY RE- PLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE REC- OMMENDED BY
THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE
MANUFACTURER’S INSTRUCTIONS.
19. CAUTION: Hot surface Do not touch

7"
"
Regulatory and Certification
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
n Reorient or relocate the receiving antenna.
n Increase the separation between the equipment and the receiver.
n Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
n Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables and shielded power cable must be employed with this
equipment to insure compliance with the pertinent RF emission limits governing this device.
Changes or modifications not expressly approved by the system’s manufacturer could void
the user’s authority to operate the equipment.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device is operable in 5.15 – 5.25GHz frequency range, then restricted in
indoor use only, Outdoor operations in the 5.15 – 5.25GHz is prohibitive.

RF exposure warning
This equipment must be installed and operated in accordance with provided instructions and
the antenna(s) used for this transmitter must be installed to provide a separation distance of
at least 20 cm from all persons and must not be co-located or operating in conjunction with
any other antenna or transmitter. End-users and installers must be provide with antenna
installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
CE Marking
This product has passed the CE test for environmental specifications when shielded cables
are used for external wiring. We recommend the use of shielded cables. Please contact your
local representative for ordering information.
This product has passed the CE test for environmental specifications. Test conditions for
passing included the equipment being operated within an industrial enclosure. In order to
protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage,
we strongly recommend the use of CE-compliant industrial enclosure products.
VULCAN X Conforms to the Following Specifications
LVD 2014/35/EU
EN 62368-1: 2014 +A11: 2017
EMCD 2014/30/EU
EN 55032
EN 55035
RED 2014/53/EU
ETSI EN 300 328
ETSI EN 300 440
ETSI EN 301 893
ETSI EN 303 413

9"
"
ETSI EN 301 489-1
ETSI EN 301 489-17
ETSI EN 301 489-19
EN 62311
RF Power Table
Function
Frequency
Maximum!Output!Power(EIRP)
WIFI
2412-2472!MHz
19.39dBm
5150-5350!MHz
21.17dBm
5470-5725!MHz
21.05dBm
5725-5850!MHz
13dBm
Bluetooth
2402-2480!MHz
12.61dBm

11"
"

Lithium Battery Safety Statement
Lithium battery inside. Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type of battery recommended by
battery manufacturer.
Disposal of a BATTERY into fire or a hot oven, or mechanically crushing or cutting of a
BATTERY, that can result in an EXPLOSION;
Leaving a BATTERY in an extremely high temperature surrounding environment that can
result in an EXPLOSION or the leakage of flammable liquid or gas;
A BATTERY subjected to extremely low air pressure that may result in an EXPLOSION or
the leakage of flammable liquid or gas.
THIS PRODUCT CONTAINS LITHIUM-ION BATTERY PACKS. IT MUST BE DISPOSED OF
PROPERLY. CONTACT LOCAL ENVIRONMENTAL AGENCIES FOR INFORMATION ON
RECYCLING AND DISPOSAL PLANS IN YOUR AREA.

13"
"
Chapter 1. Product Introduction
VULCAN X is a 10.4” in-vehicle terminal with 1200nits brightness display and is flexible to
support a wide range of wireless connection capability. The device is well-suited for
warehouse management, harbor management, asset management applications. VULCAN
X’s optimized power system is designed for cold cranking, load dump, transient voltage and
electronic statistic discharge (ESD) protection. The device is engineered with IP66
protection rating, a wide temperature design, wide input range, and rich expanding
interfaces that support in-vehicle connectivity.
Hardware Specifications
Item
Description
Processor
Whiskey Lake Intel Core i5-8365UE 1.6GHz, Quad core/6M Cache
Whiskey Lake Intel Celeron 4305UE 2.0GHz, Dual core/2M Cache
Memory
DDR4 SO-DIMM, 2400MHz (i5)/ 2133MHz (Celeron)
Storage
1 x M.2 2280 keyB/M support PCIe x4/ x2/ SATA3.0
1 x Micro SD card slot
Display
l Display Size: 10.4" XGA
l Resolution: 1024 x 768
l Contrast: 1:700 (typ)
l Brightness: Min. 960nits / Typ. 1200nits
l Viewing angle: 160/160 (H/V) (CR>10)
Touch Panel
l Resistive touch screen support optional defrost
l Capacitive multi touch (PCT) support optional defrost
Wireless
Connectivity
l Wi-Fi 802.11 a/b/g/n/ac
n Support external or internal antenna.
n The default setting is internal antenna.
n RP-SMA jack connectors for external antenna connection.
n External antenna connector is RP-SMA jack.
l Bluetooth V5.0
n Support external or internal antenna.

n The default setting is internal antenna.
n RP-SMA jack connectors for external antenna connection.
n External antenna connector is RP-SMA jack.
l Optional GNSS (GPS / QZSS or GLONASS, COM8)
n Support external antenna only
n SMA jack connectors for external antenna connection.
n External antenna connector is SMA plug.
l Optional 4G LTE / GPRS / HSPA+ or 5G
n WWAN support external antenna only.
n RP-SMA jack connectors for external antenna connection.
n External antenna connector is RP-SMA jack.
Item
Description
Power Input
9~60VDC,14A
Power
Consumption
42W: 25°C, run Burn-In test and without USB Type C, RS232 loading
69W: 25°C, run Burn-In test and with USB Type C, RS232 loading
108W: 0°C, run Burn-In test and with USB Type C, RS232 loading and
defrost/ defog function turn on
Battery
LI-ION battery pack for graceful shutdown
Housing
(Mechanical)
Die-casting aluminum, fanless design
Certification
CE, FCC, CB

15"
"
Environment
l Operating temperature:!
n -30°C (-22°F) to 55°C (131°F)
n In accordance with MIL-STD-810H Method 501.7 High Temperature Procedure II -
Operation
n In accordance with MIL-STD-810H Method 502.7 Low Temperature Procedure II -
Operation
l Storage temperature:!
n -40°C (-40°F) to 70 °C (158°F)
n In accordance with MIL-STD-810H Method 501.7 High Temperature Procedure I -
Storage
n In accordance with MIL-STD-810H Method 502.7 Low Temperature Procedure I -
Storage
l Relative humidity:!5% to 95% @ 30°C (86°F) to 60°C (140°F) non-condensing in
accordance with MIL-STD-810H Method 507.6 Humidity Procedure II Aggravated
Cycles
l Vibration Test:
n Operating: MIL-STD-810H Method 514.8 Category 4,
Fig 514.8C-2 Common carrier (US highway truck vibration exposure);
Fig 514.8C-4 Composite two-wheeled trailer;
Fig 514.8C-6 Composite wheeled vehicle.
n Operating: IEC 60721-3-5 Class 5M3
n Non-Operating: MIL-STD-810H Method 514.8 Category 24 Figure 514.8E-1
General minimum integrity
l Shock Test:!
n Operation: MIL-STD-810H Method 516.8 Procedure 1 Functional Shock
n Non-Operation: MIL-STD-810H Method 516.8 Procedure V Crash Hazard Shock

I/O Ports
Item
Description
Serial
RS-232 full pin with power x 1 (COM1)*
RS-232(TX,RX)/422/485 x 1 (COM2)*,
RS-232(TX,RX) x 2 (COM3/ COM4)*, RS-485 x 2 (COM5/ COM6)*
* Operate up to 115K bps
* The transmission speed is in counter-relationship to the transmission
distance
USB
USB 3.1 x 1, USB 2.0 x 2
USB 3.1 type C x 1 (DisplayPort Alt Mode supported)
Ethernet
Gigabit Ethernet x 2
CAN
Optional CAN bus 2.0B x 2 or SAE J1939 x 1
Digital I/O
DI x 2, DO x 2
Audio
Mic in x 2, Line out (L/R) x 1
Video
Optional video input
Speaker
Dual speakers (3W)

17"
"
Dimension and Weight
Dimension: 278 x 234 x 57 (mm) / 10.95 x 9.21 x 2.24 (in.) (W x H x D)
Weight: 3.2 kg/ 7.05 lbs.
Front View Dimension
Side View Dimension
278mm
234mm
47mm
227mm
57mm

Package List
Before you begin the installation or configuration process, make sure to inspect all the
components and accessories. Contact your representative if there are any missing or
damaged items.
Please verify the delivery of the contents upon receipt.
l VULCAN X vehicle mount computer (Model: VX-501)
l Quick start guide
l Touch screen protection film
l Accessory Box enclosed with one M12 cable with fork terminals (Length: 2 Meter)
NOTE:
n The packaging material provides optimal protection to your device. After unpacking,
DO store the original packaging material in the event that you need to return for
shipment.
n The protection film on the screen in the package is intended for you to increase the
durability of the touch screen and protect it from scratching, etching, and damage.
Designed with a low-tack adhesive, you can easily apply and remove the protection
film while it is also engineered to be touch-sensitive and won't affect touch or swipe
functions. It is recommended that you paste it onto the touch screen for protection.

19"
"
Chapter 2. Hardware Installation
This chapter provides information for the installation and removal of M.2 storage and SIM
card.
Please make sure the device is completely powered off and that the
power status LED light is off when you install or remove the module or
SIM card.
Storage Module
Prevention of EMI interference in this device is not guaranteed if the original components are
replaced.
A single M.2 2280 module slot is available for memory expansion to up to 512GB.
Installing/Removing a Module
1. Shut down the system properly and disconnect the device from all power sources.
2. Un-mount the device from the mounting apparatus; make sure that the display surface is
protected.
3. Remove the screws and the service cover.
!
4. Locate the M.2 module slot; see the following image.

!
!
5. Insert the M.2 module into the slot and then fasten the screws or loosen the screws to
remove the card.
6. Replace the service cover.
!
Installing/Removing the SIM card
If you have ordered VULCAN X with optional WWAN, you are able to leverage the device’s
dual micro SIM design for cellular and wireless connection with SIM1 slot accessible from
the side cover and SIM 2 slot inside the cover of the back.
To select which SIM slot you want to use from the two options, please go to DashON. The
default setting is SIM 1 slot. Please refer to instructions in the following for installing or
removing your SIM cards.
