Runcom Technologies WiMAX RNU4000BS User manual

WiMAX
RNU4000BS Base Station
User Manual
Doc
: Runcom RNU4000BS User Manual RN
-
PMG
-
041112 V
-
3.4

Preface Material RNU4000BS User Manual
II Runcom Technologies Ltd.
About this Guide
This User Manual describes the procedures for commissioning, mounting, installing and managing the
RNU4000BS Base Station.
Notice
This document contains proprietary and confidential material of Runcom td. Any unauthorized
reproduction, use or disclosure of this material, or any part thereof, is strictly prohibited. This document
is solely for the use of Runcom td. employees and authorized Runcom td. customers.
The material furnished in this document is believed to be accurate and reliable. However, no
responsibility is assumed by Runcom td. for the use of this material. Runcom td. reserves the right to
make changes to the material at any time and without notice.
All other trademarks are the property of their respective owners. Other company and brand products and
service names are trademarks or registered trademarks of their respective holders.
Safety Precautions
To avoid injury and to prevent equipment damage, observe the safety precautions below.
•Only qualified personnel should be allowed to install, replace, and service the
equipment. The device cannot be sold retail, to the general public or by mail order. It
must be sold to dealers. Installation must be controlled. Installation must be performed
by licensed professionals. Installation requires special training. The Runcom radios and
antennas should be installed ON Y by experienced installation professionals who are
familiar with local building and safety codes and, wherever applicable, are licensed by
the appropriate government regulatory authorities. Failure to do so may void product
warranty and may expose the end user or the service provider to legal and financial
liabilities.
•Always observe standard safety precautions during installation, operation and
maintenance of this product.
•This equipment must be installed according to country national electrical codes.
•Any changes and modifications to the device and the accessories must be approved by
Runcom.
•All equipment and accessories must be installed in a restricted access area.
•Observe all the labels on the equipment, providing operation details and warnings.
•Read and follow the installation instructions provided in this manual.
•The outdoor base station should be positioned more than 2 meters from humans.
•In case of using cables that are not provided with the equipment package, ensure these
cables comply with the regulatory inspection authorities and are the responsibility of the
customer.
•Do not move or ship equipment unless it is properly packed in its original wrapping and
shipping containers.
Electrical Shock Prevention
•When connecting equipment to the AC and DC voltage supplies, ensure proper polarity.
•Disconnect the power source before installing or maintaining the power wiring.
•Do not operate the equipment if there is any failure or damage to electrical
components.
•Do not touch exposed connections, components or wiring when power is on.

RNU4000BS User Manual Preface Material
Runcom Technologies Ltd. L III
•Install the equipment and the grounded DC supply circuits in adjacent cabinets.
•Protect the DC power source with an adjacent circuit breaker.
•The equipment must be properly grounded before attempting to operate or perform any
repairs.
RF Exposure
To avoid RF exposure - Installation of antennas must comply with the FCC RF exposure
requirements.
Radio Interference
This equipment generates and radiates radio frequency energy and if not installed and used
in accordance with the instruction manual, may cause interference to radio communications.
To avoid interferences:
•Avoid conjunction with any other antenna or transmitter.
•In case of Radio Interference: Relocate the antenna and Increase separation between
the equipment and the receiver (e.g. connect to a separate circuit or outlet).
•When using an external antenna, the external antenna must not be co-located or
operating in conjunction with any other antenna or transmitter
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Note:
Contention Based Protocol (CBP) MUST be activated for the specified band (3.675-3.700GHz)
wherever FCC rules and regulations are enforced. Failure to comply makes the operation of this device
illegal.

RNU4000BS User Manual Table of Contents
Runcom Technologies Ltd. V
Table of Contents
1 Introducing the RNU4000BS BS ....................................................................................... 1
1.1 Coverage Configurations ..............................................................................................................3
1.2 RNU4000BS Interfaces and Accessories.........................................................................................5
1.2.1 GPS, Power and Communication Interfaces ..........................................................................5
1.2.2 BS RF Antenna Interfaces ...................................................................................................7
1.3 Supported Antennas.....................................................................................................................7
1.3.1 RF Antennas ......................................................................................................................7
1.3.1.1 Internal Antennas...................................................................................................7
1.3.1.2 External Antenna....................................................................................................7
1.4 Optional Accessories ....................................................................................................................8
2 WEB GUI description ........................................................................................................ 9
2.1 WEB GUI Menu description.........................................................................................................10
2.2 WEB GUI working screens description .........................................................................................10
3 Commissioning Procedure ............................................................................................. 24
3.1 Overview...................................................................................................................................24
3.2 Connect BS to Power and Computer............................................................................................25
3.2.1 Configure the Computer's Network Parameters ..................................................................25
3.2.1.1 Configure Computer IP Address.............................................................................25
3.2.1.2 Disable Firewall ....................................................................................................28
4 Installing the RNU4000BS BS......................................................................................... 29
4.1 Mounting the Base Station..........................................................................................................29
4.1.1 BS Installation ocation.....................................................................................................29
4.1.2 Mounting Bracket Description............................................................................................30
4.1.3 Mounting On a Pole ..........................................................................................................32
4.1.4 Mounting On a Wall ..........................................................................................................34
4.2 Overview of the Cable and Power Connections ............................................................................36
4.3 Mounting the RF Antennas .........................................................................................................38
4.3.1 Mounting the RF Antenna .................................................................................................38
4.3.1.1 RF Antenna ocation Criteria.................................................................................38
4.3.1.2 RF Antenna Mounting ...........................................................................................38
4.3.1.3 4x4 antennas Outdoor Connection Requirements ...................................................39
4.4 Pole Mounted GPS Antenna ........................................................................................................40
4.4.1 GPS Antenna Installation...................................................................................................41
4.4.2 Criteria for selecting the GPS antenna location ...................................................................41
4.4.3 GPS antenna mounted to the RNU4000BS body .................................................................41

Table of Contents RNU4000BS User Manual
VI Runcom Technologies Ltd.
4.4.4 Multi-sector Daisy-chained GPS Antennas...........................................................................42
4.4.4.1 Hardware Interconnections ...................................................................................42
4.4.4.2 Configuration Parameters......................................................................................42
4.5 End-to-End Traffic Test ..............................................................................................................42
4.5.1 Performing a PING Test ....................................................................................................43
5 Field Test Performance Evaluation.................................................................................44
5.1 Field Test Overview....................................................................................................................44
5.2 Field Test Setup .........................................................................................................................45
5.3 Field Test Procedure ..................................................................................................................47
6 Technical Specifications .................................................................................................49
6.1 RNU4000BS BS Specifications .....................................................................................................49
6.2 External Dual-Slant RF Antennas Specifications ............................................................................51
6.2.1 Dual-Slant Antenna 2.3-2.7 GHz; 17 dBi; 65° (MT-364054/ND) ...........................................51
6.2.2 Double-dual Slant 2300-2700 MHz Remote Tilt-Panel Antenna ............................................52
6.2.3 Dual-Slant Antenna 2.3-2.7 GHz; 16 dBi; 60° (SP2327-16XP60NUF) ..................................53
6.2.4 Dual-Slant Antenna 2.3-2.7 GHz; 15 dBi; 90° (SP2327-15XP90NUF) ..................................54
6.2.5 Dual-Slant Antenna 3.3-3.8 GHz; 17 dBi; 65° (MT-404067/ND) ...........................................55
6.2.6 Dual-Slant Antenna 3.3-3.8 GHz; 17 dBi; 65° (SP3338-17XP65) ...........................................56
6.2.6.1 Radiation Patterns ................................................................................................57
SP3338-17XP65 elevation plane ..................................................................................................57
6.2.7 Dual-Slant Antenna 3.3-3.8 GHz; 17 dBi; 90° (SP3338-17XP90) ...........................................58
6.2.7.1 Radiation Patterns ................................................................................................59
SP3338-16XP90 elevation plane ..................................................................................................59
6.2.8 Dual-Slant Antenna 4.9-5.95 GHz; 16 dBi;90º (MT- 464018/ND) .........................................60
6.3 RNU4000BS Internal Antenna Specifications ................................................................................61
6.4 GPS Antenna Specifications ........................................................................................................62

RNU4000BS Base Station User Manual Introducing the RNU4000BS BS
Runcom Technologies Ltd. 1
1 Introducing the RNU4000BS BS
Runcom's RNU4000BS fully integrated outdoor WiMAX BS provides flexible, cost-effective
WiMAX network deployment solutions where increased capacity and coverage is required.
‘All-in-one’ architecture combined with simple, single-handed installation and fast rollout
make these BSs an ideal solution for operators that want to get in on the ground floor of WiMAX
deployment at significant CAPEX reductions and maximum return on their network deployment.
The RNU4000BS is designed for coverage flexibility: depending on the required scenario,
the same BS can be configured to cover more sectors with relatively sparse concurrent user
requirements or fewer sectors with higher needs.
RNU4000BS BSs provide adaptable solutions, allowing interoperability with other MSS
devices as well as ASN-GW vendors.

Introducing the RNU4000BS BS RNU4000BS Base Station User Manual
2 Runcom Technologies Ltd.
Features
•All-in-one integrated packaging of RF and Baseband components.
•Full compliance with IEEE802.16e-2005 according to the WiMAX Forum profiles.
•Frequency Bands (model dependent): 705–745MHz, 2.3-2.7GHz, 3.3-3.8GHz (CBP ca ability for
band 3.675-3.700GHz is required), 4.9-5.0GHz other bands are optional.
•Supports MIMO 2x2, HARQ, and other state of the art features which increase performance.
•4 channels ready unit – 2 channels supplied by default can be license-key activated for 4 channels.
•Transition Power – 2 or 4 x Tx, 28dBm each.
•Antenna support - model dependent: either four external or internal antennas.
•Integrated GPS receiver for time and clock synchronization with holdover for satellite signal loss.
•Flexible coverage capabilities – greater coverage area or greater penetration capabilities
•Small footprint, single-handed quick installation and simple provisioning
•Fast roll-out for service providers
•Seamless and cost-effective integration with a Backhaul network
•Optional integrated backhaul link via WiMAX R1 interface
•High performance with Quality of Service (QoS) settings, according to WiMax standards.
•Support for the latest R6 interface and GRE tunneling to ASN-GW
•Remote NMS management via Runcom’s NMS application

RNU4000BS Base Station User Manual Introducing the RNU4000BS BS
Runcom Technologies Ltd. 3
1.1 Coverage Configurations

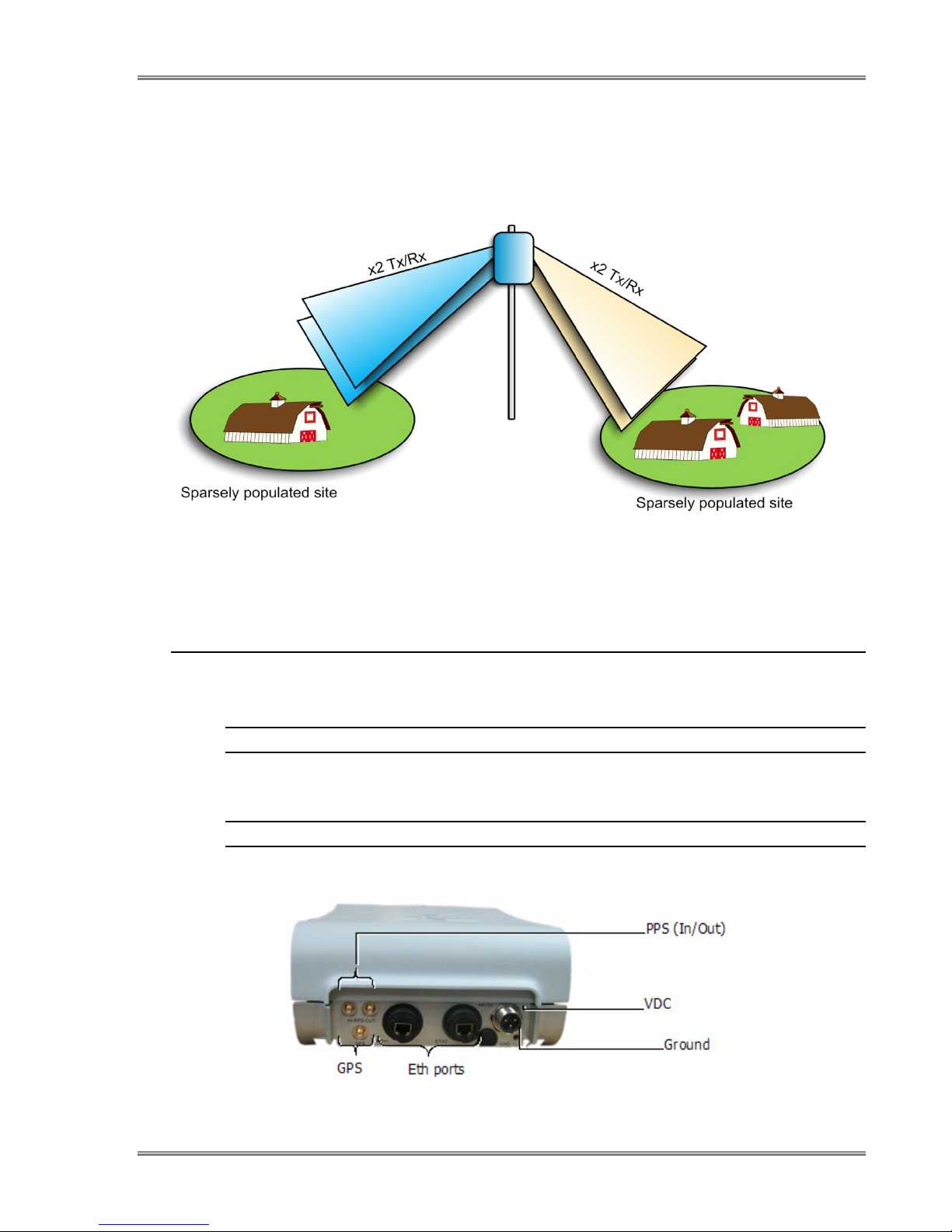

RNU4000BS supports either two or four RF channels and can provide coverage for either
one, two or four sectors depending on the sector density (throughput capacity) and radio performance
requirements (note that internal antenna can be used for single sector coverage only):
•Single-Sector solution of 4x4 – (for internal and external antennas) – used for
higher density sites: four channels for Tx and four channels for Rx MRC. This
configuration improves coverage through diversity and improve throughput through
MIMO 4x2.
•Dual-Sector solution of 2x2 (only relevant for external antennas) – used for lower
populated sites: two channels for Tx channels and two channels for Rx MRC. MIMO
of 2x2 can be perform if signal to noise ratio is good.
•Quad-Sector solution of 1x4 (only relevant for external antennas) – used for more
sparsely populated sites: single channel for Tx and single channel for Rx. This
configuration is highly cost effective but suffer from lower performance and
coverage area per sector (totally it covers more space)
The overall capacity, of single base station unit, with respect to the maximum number of
connected users, supported bands and throughput is constant; however, in a dual-sector installation, the
BS will transmit to two separate sectors in a cell, where each sector is serviced by two antennas. In quad
sector installation the BS will transmit to four sectors in a cell (Usually covers the entire cell 3600) ,
where each sector is serviced by one antenna. These two configurations reduce CAPEX and OPAX for
operators by covering cells with relatively low density or sparsely populations, which have low
requirements for concurrent user’s and / or lower data traffic.
The following figure shows a single sector covered by 4x Tx/Rx channels. Several of these sectors (within
the same site) should be installed, using the corresponding number of RNU4000BSs, to complete site
coverage. Each site can use single GPS antenna, installed on one of the BS, daisy-chained from BS to

Introducing the RNU4000BS BS RNU4000BS Base Station User Manual
4 Runcom Technologies Ltd.
another, to perform
Figure 1 Single Sector Coverage

RNU4000BS Base Station User Manual Introducing the RNU4000BS BS
Runcom Technologies Ltd. 5
•The following figure illustrates dual-sector coverage of two sites by a single RNU4000BS
unit.
Figure 2 Dual Sector Coverage
1.2 RNU4000BS Interfaces and Accessories
The interfaces of the RNU4000BS BS are distributed over two panels. Each of these panels
is referred to according to the corresponding interfaces.
Note: Install the BS so the power, GPS and communication interfaces face DOWN.
1.2.1 GPS, Power and Communication Interfaces
Note: Install the BS on the wall or pole with this panel facing DOWN.

Introducing the RNU4000BS BS RNU4000BS Base Station User Manual
6 Runcom Technologies Ltd.
Connector Descri tion
GPS Connects to an external (optional) GPS antenna. The GPS antenna is ordered
separately. Connector Type: ITT CANNON APD DIN 72585
ETH1 Primary Fast Ethernet connector. Used for initial setup (and standalone tests),
and for connection to the backhaul network (in normal installations).
Connector Type: RJ-45 TYCO part no 1546907-1
ETH2 Second Ethernet port for local and out-of-band management.
In future versions, you will be able to daisy-chain this port to ETH1 in an
adjacent Base Station (located in the same BS site) in order to allow a single
Ethernet connection to the Backhaul.
ETH2 port can also function as a serial port (connection through the cable
supplied in the kit). This function is useful if the unit is not accessible via an IP
address connection.
PPS PPS In and PPS Out can be used for synchronization of multiple sectors, where
the PPS Out of one sector is connected to the PPS In of the next BS (daisy
chained). This is relevant only for adjacent sectors at the same BS site. See
“Multi - Sector Daisy - Chained GPS antennas” section
Connector Type: SMA sealed Industrial
48VDC Power connector. External DC power connector (48VDC) for outdoor
deployment. Connector Type: RJ-45
GND Ground blind hole connector. In normal installations, connect to the pole on
which the unit is mounted. (The BS unit does not include a lightning arrester.)

RNU4000BS Base Station User Manual Introducing the RNU4000BS BS
Runcom Technologies Ltd. 7

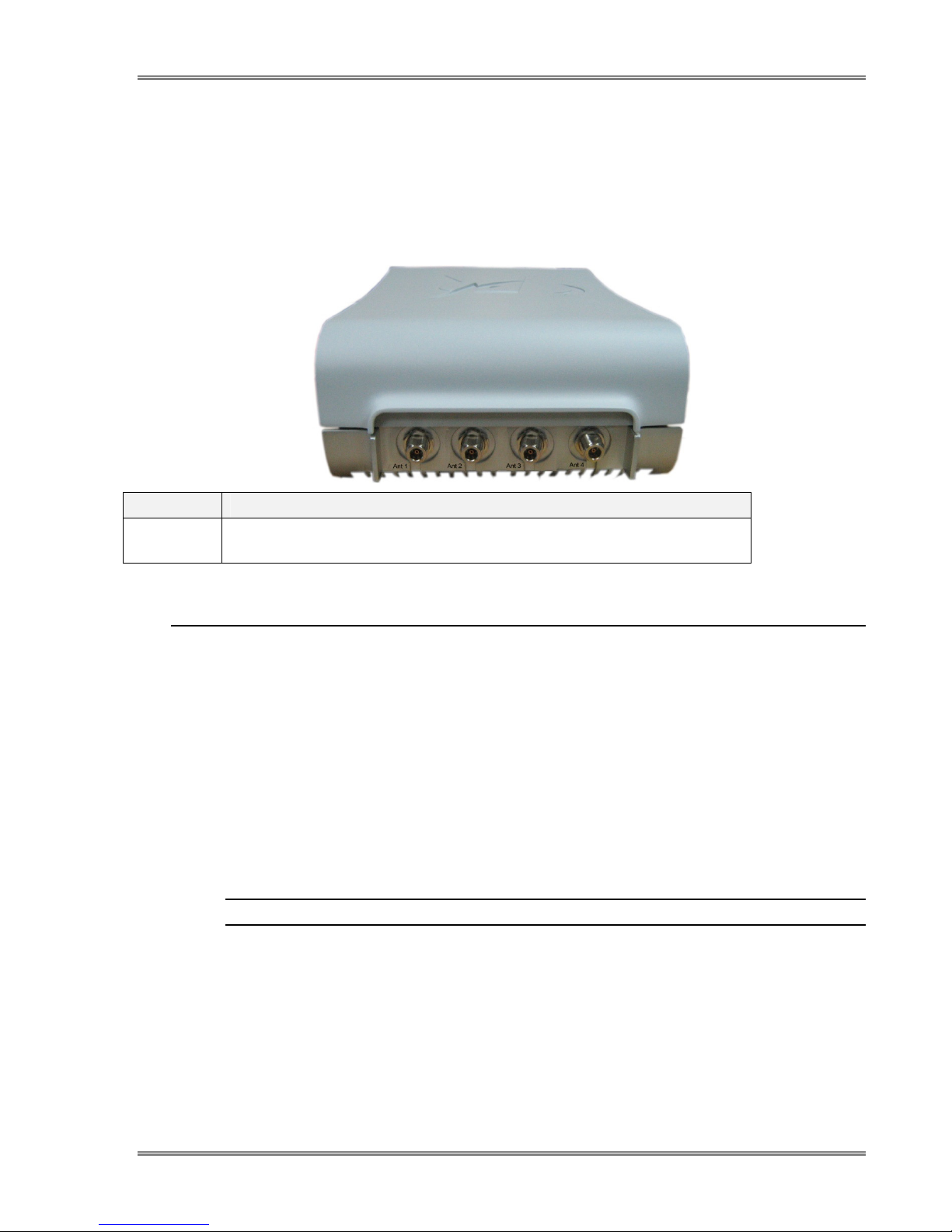

1.2.2 BS RF Antenna Interfaces
•RNU4000BS supports either four external or four internal antennas. The unit below
shows a model supporting four external antennas.
•All antennas (internal and external) are 1W each
Connector Descri tion
ANT1/2/3/4 External RF connector for the Main external antenna.
Connector Type: RJ-45 TYCO part no 1546907 1
1.3 Supported Antennas
Depending on the model, the RNU4000BS is supplied with four external or four internal
dependent.
1.3.1 RF Antennas
1.3.1.1 Internal Antennas
Four internal antennas: 12dBi each at an azimuth beam-width of 90 degrees. Refer to
specifications in section 6.3.
1.3.1.2 External Antenna
Four external antennas: 15 to 18dBi, azimuth beam-width dependent.
Note: Specs for dual-slant antennas described in section 5.2.
You may use any other antenna type or model, keeping in mind that the antenna type or
model should be based on the RF planning that was performed in preparation for
deployment at the specific site and is dependent upon the coverage and throughput
requirements of the site.

Introducing the RNU4000BS BS RNU4000BS Base Station User Manual
8 Runcom Technologies Ltd.
1.4 Optional Accessories
The following accessories are not provided with the basic kit, and can be ordered as an option.
Element Descri tion
Power Supply 110-220v AC/DC converter for 48VDC power supply
RF Antenna External directional antenna with pole mounting kit

RNU4000BS Base Station User Manual WEB GUI description
Runcom Technologies Ltd. 9
2 WEB GUI description
Follow by the next steps for BS WEB GUI menu access:
•Open Internet Explorer for access to BS WEB GUI using the BS IP address path
Figure 3 BS WEB GUI access ath
•Use the BS WEB GUI credential (user name and password) to obtain the BS WEB GUI
menu
User name Password
user password
Figure 4 BS WEB GUI ID
This section describes the WEB GUI RNU 4000 Base Station management options and theirs functionalities indented
to provide to user the next necessary abilities:
•General information (BS HW/SW info, IP status)
•Monitoring (Synchronization and BS Sector operation status, CPE Connection list info
and their link status)
•Configuration (General RF parameters settings, max. MCS settings and IP settings)
•Maintenance (Upgrade, Recovery and Default)

WEB GUI description RNU4000BS Base Station User Manual
10 Runcom Technologies Ltd.
2.1 WEB GUI Menu description
The table below describes the WEB GUI Menu options and their functionalities
Menu Section Description
General Provides BS related HW/SW info General Information
IP Status Provides BS ETH interface IP addresses status
General General Provides RF parameters and MCS settings
Configuration IP
Configuration
IP Configuration Provides BS related IP addresses settings
Synchronization Provides BS synchronization status Status
BS Status Provides BS sector configuration status
Connection Provides BS RF parameters configuration status Connection
Antenna Status Provides BS antenna configuration status
CPE Info Query Provides ability to obtain fast link status connection
parameters of specific CPE
Monitoring
CPE Info
CPE List Provides list of connected CPE’s and theirs ID and
more detailed connection parameters as link status
parameters and theirs SF connection
U grade SW U grade Provides BS SW upgrade including all SW components
Recovery Change Version Provides swap between BS SW version (current
running and the previous one)
Reset to Default Provides ability to set the BS to default parameters
related to the SW version
Maintenance
Default
Erase
Configuration File
Provides ability to erase the configuration file in case
if such file was downloaded to BS
2.2 WEB GUI working screens description
General Information Screen – The figure below represent the “General Information” working screen and
provides the next info as described in the table below:
Menu Section Description
General Provides BS ID related info:
•HW – Product Type
•SW – FW /FPAGA version
•BS ID – BS MAC address
General Information
IP Status Provides BS ETH interface IP addresses status:
•BS ETH interface AN configuration –
IP /subnet/ GW address
•ASN GW interface configuration - GW IP and
Authentication address for connection with BS
•ASN BS DHCP client – ENB/DSB

RNU4000BS Base Station User Manual WEB GUI description
Runcom Technologies Ltd. 11

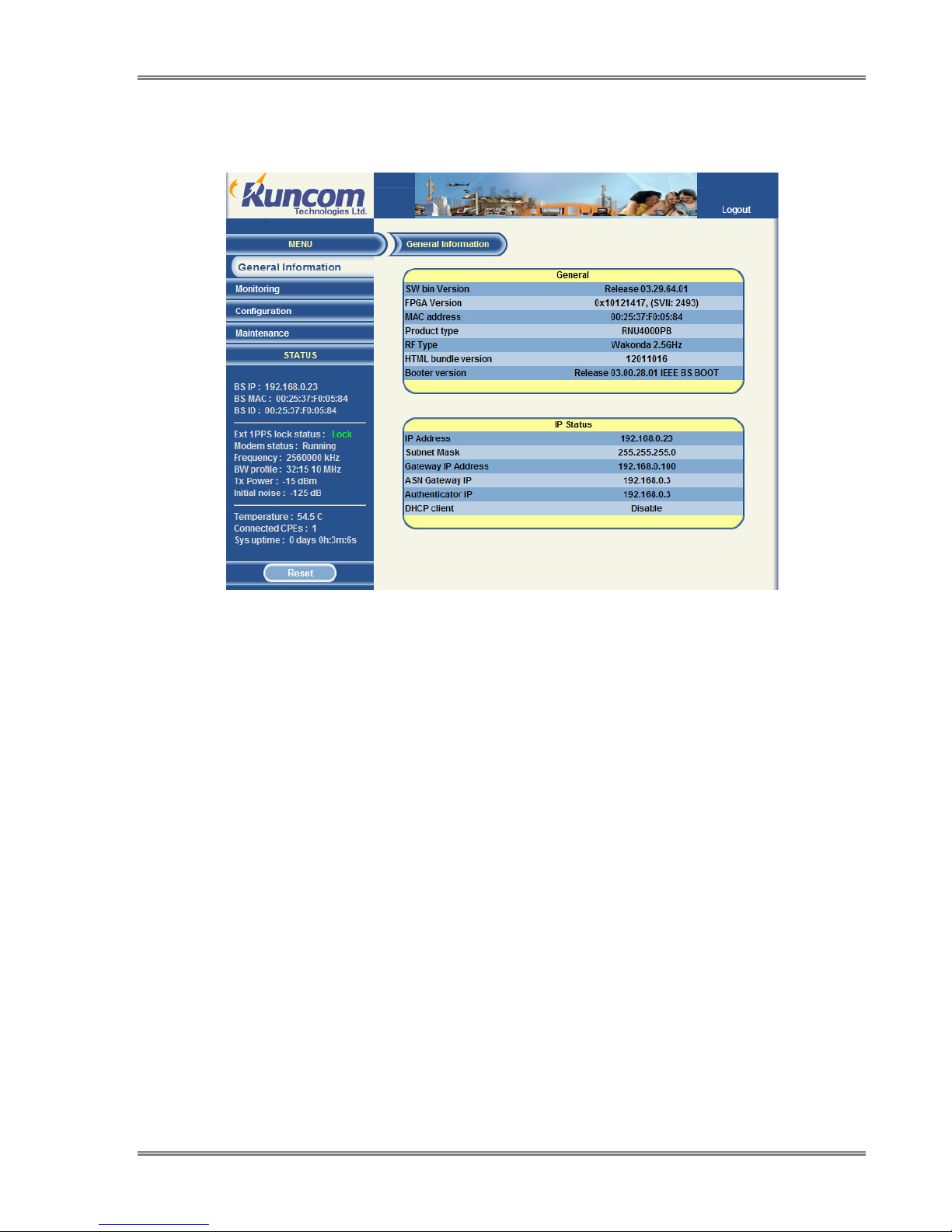

Figure 5 General Information –working screen

WEB GUI description RNU4000BS Base Station User Manual
12 Runcom Technologies Ltd.
Monitoring screen – The figures below represent the “Monitoring” working screens and provides the next info as
described in the table below:
Menu Section Description
Synchronization Provides the BS synchronization operational and configuration
status:
•1PPS lock status– “ ock” or “Unlock” indicates
the 1PPS BS GPS synchronization status
•Modem status – indicates the BS RF status:
-“running” BS RF activated / normal BS operation
-“Not running” BS RF inactivated / BS is not
operational, management is available
•1PPS source – indicates the 1PPS source
configuration (see figure “1PPS synchronization
source configuration” below)
-“GPS via ntenna” default configuration
•Physical connection status – “Connected” or “Not
Connected”- indicates physical connection status of BS
external connectors “1PPS input” or “GPS”
•GPS lock status – “ ock” or “Unlock” indicates
the BS GPS lock status
•GPS initialization status – “Initialized” or “Failed”
indicates the BS GPS initialization status
•Hold over time – “0sec to 14400sec indicates the
time of Hold over timer. The timer starts once the BS GPS
loss the 1PPS synchronization “Unlock”
-“14400 sec” default
•Hold over time expired – “Not expired” or
“expired” indicates the Hold over timer status
- Once the timer is expired (14400sec), the BS RF becomes
inactivated and that is in order to prevent interference to other
BS’s.
•Sync change state counter – counting indicates
the BS GPS 1PPS synchronization “unlock” states number “
Status
Radio Status Provides BS sector configuration status info:
•Max D Modulation
•Max D Modulation
•Initial Noise – BS receiver initial noise indicates
spectrum radio channel quality of the BS working frequency
Note: Desirable is to obtain initial noise figure less than -
117dbm
•Initial TX power
Monitoring
WiMAX Connection Provides BS connection status info:
•BS ID – indicates the BS ID
•Frequency – indicates the BS central working
frequency
•Bandwidth Profile – indicates the radio BW and
the TX/RX symbols ration
•Preamble ID – indicates the BS preamble ID
•No. connected UT’s – indicates the quantity of
connected CPE’s to the BS
•No. of known NBR Bases – Handover feature /
indicates the quantity of recognized by BS other neighbor
BS’s
Note: N/A for current BS WEB GUI version

RNU4000BS Base Station User Manual WEB GUI description
Runcom Technologies Ltd. 13
Menu Section Description
Antenna Status Provides BS antenna configuration status:
•TX ON/OFF – indicates the BS configuration
status of each one transmitter
(4 independent transmitters)
•RX ON/OFF – indicates the BS configuration
status of each one receiver
•(4 independent receivers)
CPE Info Query Provides ability to obtain fast link status connection parameters
of specific CPE per CPE MAC address:
•U /D FEC code type (see table below)
•U /D CINR
•U RSSI
•Max U subchannel and slots
•U Repetition no.
•U Headroom – remaining CPE TX power
CPE Info
CPE List Provides list of connected CPE’s ,theirs ID’s and more detailed
connection info as link status and SF connection parameters:
•Double click on “INFO” in order to obtain Radio
ink status parameters and SF parameters
FEC Code
Type
Modulation
13 QPSK 1/2
15 QPSK 3/4
16 QAM 16 1/2
17 QAM 16 3/4
18 QAM 64 1/2
19 QAM 64 2/3
20 QAM 64 3/4
21 QAM 64 5/6

WEB GUI description RNU4000BS Base Station User Manual
14 Runcom Technologies Ltd.

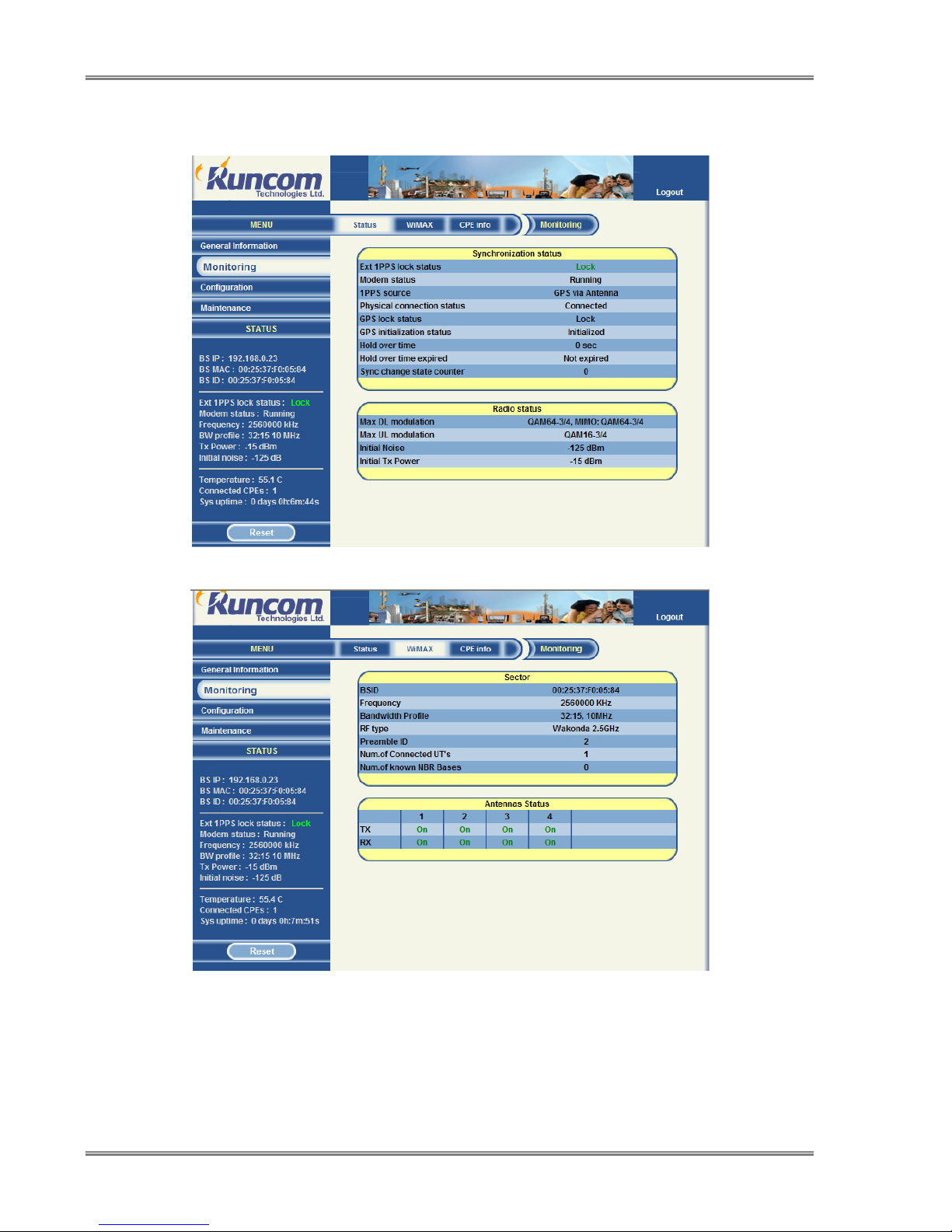

Figure 6 Monitoring Status– working screen
Figure 7 Monitoring WiMAX– working screen
