Russell Hobbs CAFE BARISTA RHCM45 Installation guide

1
INSTRUCTIONS AND WARRANTY
MODEL NO. RHCM45
CAFÉ BARISTA ONE TOUCH AUTOMATIC
COFFEE MAKER

2
Congratulations on purchasing our Russell Hobbs Café Barista One Touch Coffee Maker. Each
unit is manufactured to ensure safety and reliability. Before using this appliance for the first time,
please read the instruction manual carefully and keep it for future reference.
FEATURES OF THE RUSSELL HOBBS CAFÉ BARISTA ONE TOUCH AUTOMATIC
COFFEE MAKER
The Russell Hobbs Café Barista is the ultimate One Touch Automatic Coffee Maker. It is a barmen
style coffee maker which lets you prepare coffee with flair (just a little showing off) and just the way
you like it. The Café Barista is very easy to use and will give you a perfect result time and time
again! The best feature of this machine is its patented one touch technology for brewing a Single
Shot or Double Shot of Espresso, Cappuccino, Latte, Hot Milk or Hot Water at a single touch of a
button.
Suitable for ground coffee
Hot milk system - removable 480ml milk frothing container –can be stored in the fridge
Advanced milk frothing control to adjust intensity of foam for ideal serving preference –from
steamed milk to beautiful glossy froth
Illuminated control buttons
Optimal delivery system and preset brewing temperature for preparation of beautiful coffee
with a thick, creamy and smooth crema
Brewing temperature: 70-85℃will not burn the coffee during brewing
Able to prepare two cups of coffee with single brewing
Your choice of single or double shot espresso
Custom brew functionality allows you to brew your coffee just the way you like it!
Cup holder for larger cups as well as patented „pull-out‟ cup holder for smaller (demitasse)
cups
Removable 1.6L water tank for ease of use and cleaning
Removable drip tray for easy cleaning
Fast 90 second pre-brewing/ priming cycle for optimal flavour extraction
30 second self-cleaning function
Cup warming plate preheats your cups for best results
Includes porta-filter, single shot crema filter, double shot crema filter as well as measuring
scoop/tamper tool
15 bar pressure

3
1050W
IMPORTANT SAFEGUARDS
When using any electrical appliance, basic safety precautions should always be followed including
the following:
1. Please read the instructions carefully before using any appliance.
2. Always ensure that the voltage on the rating label corresponds to the mains voltage in your
home.
3. Incorrect operation and improper use can damage the appliance and cause injury to the
user.
4. This appliance is intended for household use only. Commercial use invalids the warranty
and the supplier cannot be held responsible for injury or damage caused when using the
appliance for any other purpose than that intended.
5. Avoid any contact with moving parts.
6. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
7. Children should be supervised to ensure that they do not play with the appliance.
8. Check the power cord and plug regularly for any damage. If the cord or the plug is
damaged, the manufacturer or a qualified person must replace it in order to avoid an
electrical hazard.
9. Do not use the appliance if it has been dropped or damaged in any way. In case of damage,
take the unit in for examination and/or repair by an authorised service agent
10. To reduce the risk of electric shock, do not immerse or expose the unit, plug or the power
cord to water or any other liquid. Do not use it with wet hands.
11. Never immerse the unit in water or any other liquid for cleaning purposes.
12. Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect
the appliance from the mains. Always the unit to cool and unplug it when not in use, before
cleaning or when adding or removing parts.
13. Insert and use only original parts.
14. The use of accessory attachments that are not recommended or supplied by the
manufacturer may result in injuries, fire or electric shock.

4
15. A short cord is provided to reduce the hazards resulting from becoming entangled in or
tripping over a longer cord.
16. Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a
position where it can be pulled on inadvertently.
17. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric
burner or in a heated oven.
18. Keep the appliance and cord away from direct radiant heat from the sun, from damp, from
sharp edges and other dangers.
19. Do not use the appliance on a gas or electric cooking top or over or near an open flame.
20. Use on a hard, flat level surface only, to avoid interruption of airflow underneath the
appliance.
21. Use of an extension cord with this appliance is not recommended. However, if it is
necessary to use an extension lead, ensure that the lead is suited to the power
consumption of the appliance to avoid overheating of the extension cord, the appliance or
plug point. Do not place the extension cord in a position where it can be pulled on by
children or animals or tripped over.
22. This appliance is not suitable for outdoor use. Do not use this appliance for anything other
than its intended use.
23. This appliance is intended to be used in household and similar applications such as:
oStaff kitchen areas in shops, offices and other working environments;
oFarm houses;
oBy clients in hotels, motels and other residential type environments;
oBed and breakfast type environments.
24. Do not operate this appliance by means of an external timer or separate remote control
system.
25. Always be sure to place the water reservoir tightly back in the unit with its lid closed and fill
with water at or above the minimum level marking before turning the appliance ON.
26. Do not remove the porta-filter while brewing coffee. Please make sure that the three lights
are ON before you remove the porta-filter to make additional coffee. Caution should also
be taken while removing the porta-filter since the metal parts will be hot. Please make sure
to hold it by the handle and to use the filter retention clip to dispose the grounds. Caution
should be taken when moving any appliance containing or in contact with hot liquids.
27. Do not remove the water reservoir until the unit is turned OFF.
28. Before removing any of the parts and accessories, make sure that the three lights are ON,
press the power button to the OFF position “0” and unplug the appliance.
29. Do not remove the porta-filter at any time during the brewing process.

5
30. Use caution when removing the porta-filter. The metal parts may still be very hot. There
may also be hot water floating on the top of the filter. Hold it only by its handle and dispose
of the brewed coffee ground by using the filter retention clip.
31. If coffee does not drip from the porta-filter during operation, the filter is blocked. Turn the
appliance OFF “0” and allow it to cool down. The blockage may be caused by the coffee
being too finely ground. Refer to the “PROBLEM SOLVING” section.
32. WHEN CLEANING THE MILK FROTHING DISPENSING TUBE: Place a large cup under
the tube. Fill the milk reservoir with water and place it back on the unit. Turn the Froth
Control Knob clockwise to the clean position “ ” then press the latte/ clean button for 3
seconds and release to activate the cleaning function. Let the unit dispense the water
through the tube for approximately 30 seconds and then press the Latte/ Clean Button once
to stop the process.
33. DO NOT carry any appliance by the power cord.
34. Do not leave this appliance unattended during use. Always unplug the unit when not in use
or before cleaning.
35. Always operate the coffee maker on a smooth, even, stable surface. Do not place the unit
on a hot surface.
36. It is absolutely necessary to keep this appliance clean at all times as it comes into direct
contact with food.
37. Do not touch any hot surfaces, use handles or knobs.
38. Ensure that the switch is in the “0” / “Off” position after each use.
39. The manufacturer does not accept responsibility for any damage or injury caused by
improper or incorrect use, or for repairs carried out by unauthorised personnel.
40. In case of technical problems, switch off the machine and do not attempt to repair it yourself.
Return the appliance to an authorised service facility for examination, adjustment or repair.
Always insist on the use of original spare parts. Failure to comply with the above mentioned
pre-cautions and instructions, could affect the safe operation of this machine.
CAUTION: PRESSURE
In order to avoid possible burns to body parts and/or other injury from hot steam and water or
damages to the unit, never remove the water reservoir or the porta-filter while your coffee maker is
brewing coffee or frothing. Make sure that the three lights are ON before you can remove the
porta-filter to make additional cups of coffee. If you need to add more water to the water reservoir
or milk to the milk frothing/ storage container, please make sure that the three lights are ON and

6
ensure to switch the unit OFF by pressing the red button on the side of the unit to the OFF position
“0”.
PARTS DIAGRAM
Water tank lid
Removable water tank
Espresso/Custom button with indicator
Cappuccino/Froth button with indicator
Latte/Clean button with indicator
Porta-Filter Milk reservoir lid
Froth control knob
Frothing tube lever
Removable /Clear milk
reservoir
Frothed milk
dispensing tube
Cup height adjusting drawer
Removable drip tray
and drip grid Power button
Water reservoir lid
Removable water reservoir
(located on the back of the
unit)
Espresso/ Custom button with indicator light
Cappuccino/ Froth button with indicator light
Latte/ Clean button with indicator light
Frothed milk dispensing tube
Adjustable cup holder
Removable drip tray and grid
Power ON/ OFF button
Porta-filter
Removable milk frothing/ storage container
Frothing tube lever (use to position the tube)
Froth control knob
Milk frothing container lid
Porta-filter
retention clip
Filter for
single
shot of
espresso
Filter for double
shot of espresso
Measuring
scoop/tamper
Measuring Tamper
spoon
Double shot crema filter
Single shot crema filter
Porta-filter retention clip

7
INTRODUCTION
ESPRESSO
A unique method of coffee brewing in which hot water is forced through finely ground coffee.
Popular in Europe, it is a far richer and more full-bodied brew than regular drip coffee because of
its richness. Espresso is usually served in 44 to 59ml (1.5 to 2 oz.) portions, in demitasse cups.
CAPPUCCINO
A drink made with about 1/3 espresso, 1/3 steamed milk and 1/3 frothed milk.
LATTE
A drink made with about 1/4 espresso and 3/4 steamed milk.
Please read ALL of the instructions, cautions, notes and warnings included in this instruction
manual carefully before you begin to use the coffee maker. When this appliance is used, some
parts and accessories get hot and need to cool down. Proper care and maintenance will ensure
the long life of the Russell Hobbs Café Barista One Touch Automatic Coffee Maker and its reliable/
consistent operation. Save these instructions and refer to them often for cleaning and care tips.
CORRECT USE OF GROUND COFFEE FOR ESPRESSO MAKERS
Please do not use sugar roasted ground coffee or sugar roasted coffee beans as these will clog
the filter and damage the appliance. If sugar roasted coffee is accidentally used, stop using the
coffee maker and take it in to the closest Home of Living Brands Service Center for maintenance.

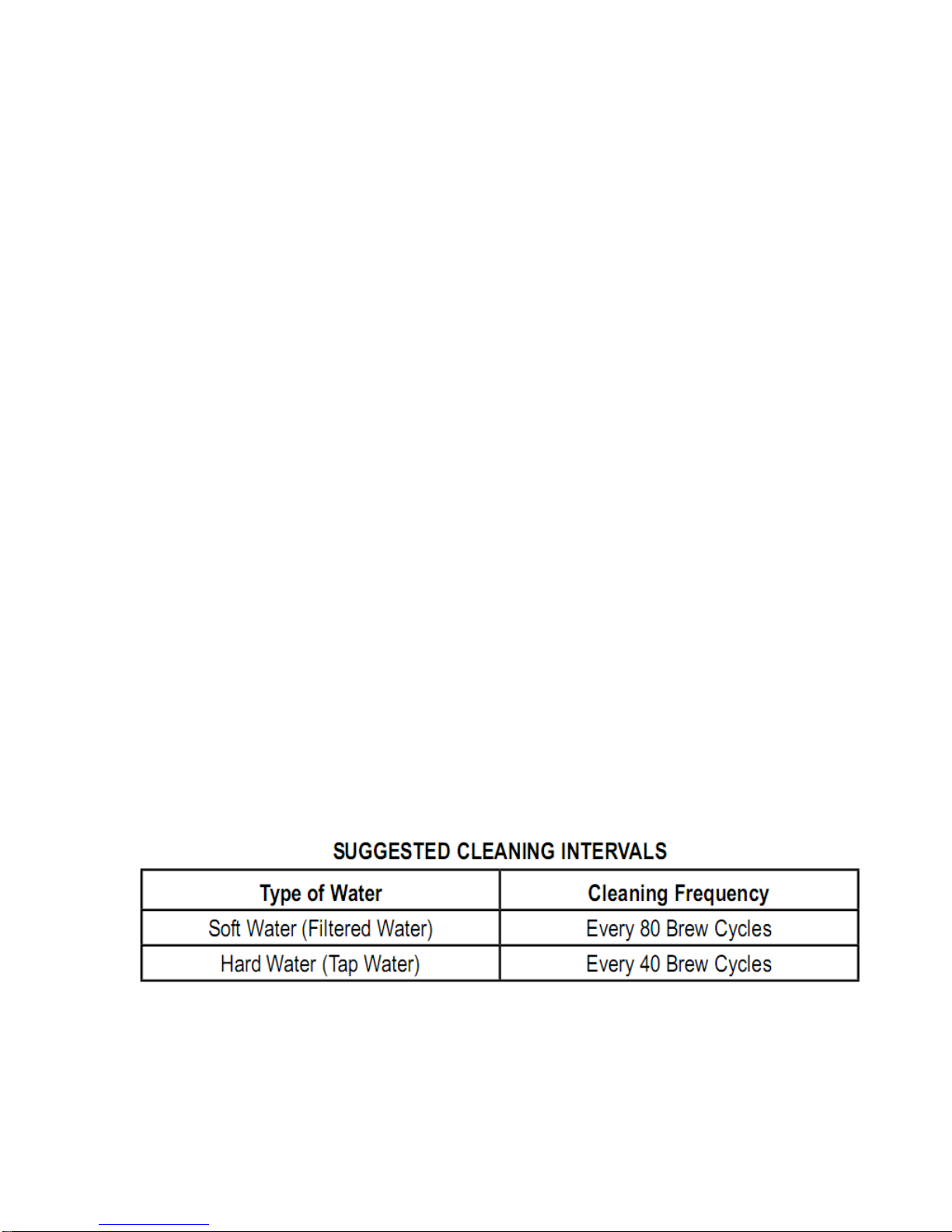

We recommend descaling the machine periodically to keep it in good working condition. Contact
any of our nationwide Service Centers should you want to learn more about this process.

8
BEFORE FIRST USE
1. Before using your appliance for the first time, take the coffee maker out of the box and take off
any protective wrappings. REMEMBER: DO NOT LEAVE PROTECTIVE PACKAGING LYING
AROUND, AS IT COULD BE DANGEROUS AROUND INFANTS.
2. Place the appliance on a dry, level surface.
3. Please refer to the “PARTS DIAGRAM” section to familiarize yourself with the coffee maker
and identify all the parts.
4. Please make sure the unit is switched OFF “0” by pressing the power button located on the
side of the unit. Make sure that it is unplugged from the electrical outlet.
5. First remove the water reservoir from the coffee maker. Now remove and discard the orange
safety plug located on the water reservoir.
6. Wash the water reservoir, the milk frothing container, the porta-filter, the two crema filters and
measuring scoop in a mixture of mild detergent and water. Rinse each component thoroughly
and place them back into the unit.
7. Refer to the “ATTACHING THE PORTA-FILTER TO THE BREW HEAD” section before
placing the porta-filter on or removing it from the unit.
8. To clean the inside of the appliance, follow the steps listed in the “PREPARING A
CAPPUCCINO” section using water in both the water reservoir and the milk frothing container,
however ensuring that there is no coffee placed in the filter. Do not immerse the appliance in
water or attempt to reach any of its internal parts. NOTE: In order for your appliance to work
properly time after time, it must be cleaned after every use.
OPERATING INSTRUCTIONS
IMPORTANT –PRIME THE COFFEE MAKER
To make a cup of good hot coffee, we recommend you pre-heat/ prime the appliance before
making coffee, including the cup, so that the coffee flavour cannot be influenced by the cold parts
of the coffee maker.

9
1. To prime the coffee maker, run the steam cycle for 90 seconds by following the steps below:
2. Fill water reservoir between the “Min” and “Max” levels.
3. Fill the milk frothing container with water between the “Min” and “Max” levels.
4. Select one of the crema filters and place it onto the porta-filter. Attach the porta-filter onto the
coffee maker ensuring it is properly locked into the brew head then place a cup under it. Make
sure that the tip of the frothed milk dispensing tube is inside the cup.
5. Plug the appliance into the appropriate power outlet.
6. Turn the power button ON “I”.
7. The three control panel lights will start flashing. Once these lights stop flashing and become
solid/uninterrupted, press the cappuccino button twice.
8. Once this process is completed, the three control panel lights will turn on solid.
9. Now your unit has been primed and is ready to be used.
SELECTING THE RIGHT CUP
Before preparing your beverage, please make sure to select the right cup size according
to the following Barista ratio‟s table:
SELECTING THE RIGHT COFFEE
THE COFFEE
The coffee should be freshly ground and dark roasted. If not, this will affect the outcome and taste
of your coffee. You may want to try a French or Italian roast ground for espresso –experiment and

10
find a regional coffee that you love. Pre-ground coffee will only retain its flavour for 7 –8 days,
provided it is stored in an airtight container and in a cool, dark area. Do not store in a refrigerator
or freezer. Whole beans are recommended to be ground just before use. Coffee beans stored in
an airtight container will keep its flavour for up to 4 weeks.
THE GRIND
This is a vital step in the espresso making process if you are grinding your own coffee and takes
practice. The coffee must be of a fine grind. The correct grind should look like salt.
If the grind is too fine, the water will not flow through the coffee even under pressure. These grinds
look like powder and feel like flour when rubbed between fingers.
If the grind is too coarse, the water flows through the coffee too fast, preventing a full-flavoured
extraction. Be sure to use a quality grinder for uniform consistency.
FILLING THE WATER RESERVOIR
Fill the water reservoir with water. You may either
use a jug to fill it up or remove it from the coffee maker
and then fill it up underneath the tap. If you have re-
moved the water reservoir from the unit to fill up with
water, please make sure to place it back tightly in its
place. Fill the water reservoir with the desired amount
of water ensuring it ranges within the“MIN” and “MAX”
level markings on the tank. Never use warm or hot
water to fill the water reservoir.
Close the water reservoir lid and place it back in the
unit ensuring it fits tightly and correctly.
FILLING THE MILK FROTHING CONTAINER
If you plan to prepare a cappuccino or latte, remove the milk frothing container from the coffee
maker, open the lid then pour the quantity of cold milk you estimate you will need between the
