Russell Hobbs RH77IH511B User manual

Model number(s):
RH77IH511B
Electric Induction Hob
Instruction Manual
IMPORTANT:
RETAIN FOR FUTURE REFERENCE
For Customer Services & Spare Parts please call 0345 208 8750
or visit us at mda.russellhobbs.com

Contents
Safety Instructions ………………………………………. 3-5
Product Overview ………………………………………. 6
Positioning ………………………………………. 7-8
Installation ………………………………………. 9-10
Induction Introduction ………………………………………. 11
Pans & Energy Saving ………………………………………. 12-13
Usage ………………………………………. 14-31
Cleaning & Maintenance ………………………………………. 32-34
Trouble shooting ………………………………………. 35
Fault codes ………………………………………. 36
Guarantee ………………………………………. 37
Technical specification ………………………………………. 38
Notes ………………………………………. 39

3
Safety Instructions
Important note:
Please read this booklet before installing and switching on this appliance.
The manufacturer assumes no responsibility for incorrect installation and
usage as described in this booklet.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance.
Electric ovens and hobs must be hard-wired to a suitably rated electrical
cooker power point –it is recommended that you consult a qualified
electrician. Failure to do so will invalidate your guarantee, liability claims
and could lead to criminal prosecution
•Children should be supervised to ensure that they do not play with the
appliance.
•If the supply lead is damaged it must be replaced by a qualified person
using the correct lead, available from 0345 208 8750.
•Packaging material is dangerous to children. Never allow children to play
with packaging material.
•Check the appliance for damage after unpacking it. Do not connect the
appliance if it has been damaged in transport.
•The appliance can only be used safely if it is correctly installed according
to the safety instructions. The installer is responsible for ensuring that
the appliance works correctly after installation.
•All operations relating to installation and regulation must be carried out
by an authorised installation engineer, respecting applicable regulations,
standards and the specifications of the local electricity providers.

4
Safety Instructions
•This appliance can only be installed in a well-ventilated place.
•This appliance is intended for domestic use and the household environment
only. The appliance is not intended for use outside.
•Do not tamper with the appliance's interior. If necessary, call our customer
helpline.
•Do not switch on the appliance if it is damaged in any way. Contact our
customer helpline.
•This appliance is only intended for cooking purposes, not as a heating system.
•Do not leave the appliance unattended during operation. The manufacturer is
not liable for damage which is caused by improper use or incorrect operation.
•Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended.
Never use water to put out burning oil or fat, switch off the appliance.
Extinguish flames carefully using a lid, fire blanket or something similar.
•Operating several cooking zones at the same time gives rise to a great deal of
heat.
•The accessible parts become very hot when in operation. Never touch hot parts.
Keep children at a safe distance.
•Do not use covers. These can cause accidents, due to overheating, catching fire
or materials shattering, for example.
•Do not use inappropriate child safety shields or hob guards. These can cause
accidents.
•The hob will become very hot. Never place combustible items on the hob.
Never place objects other than cookware on the hob.
•The appliance gets hot. Do not keep combustible objects or aerosol cans in
drawers directly underneath the hob.
•A defective appliance may cause electric shock. Never switch on a defective
appliance. Switch off the circuit breaker in the fuse box and contact customer
services.

5
Safety Instructions
•Cracks or fractures in the glass ceramic may cause electric shocks. Switch off the
circuit breaker in the fuse box. Contact customer services.
•Parts and components on the appliance may have sharp edges. Wear protective
gloves.
•Saucepans may suddenly move due to liquid between the pan base and the
hotplate. Always keep the hotplate and saucepan bases dry.
•Incorrect repairs are dangerous. Repairs may only be carried out by a qualified
electrician.
•Do not use any high-pressure cleaners or steam cleaners, which can result in an
electric shock.
•Never use strong and abrasive cleaning agents as they will cause surface
damage.
•In the event of a malfunction, turn off the appliance’s electricity supply. For
repairs, call customer services.
•This appliance complies with electromagnetic safety standards. However,
persons with cardiac pacemakers or other electrical implants (such as insulin
pumps) must consult with their doctor or implant manufacturer before using
this appliance to make sure that their implants will not be affected by the
electromagnetic field. Failure to follow this advice may result in death.
•Do not place or leave any magnetisable objects (e.g. credit cards, memory
cards, etc.) or electronic devices (e.g. computers, MP3 players, etc.) near the
appliance, as they may be affected by its electromagnetic field.

6
Product overview
1. 1800W/2300W (max)
2. 1800W/2300W (max)
3. 2200W/2600W (max)
4. 1200W/1500W (max)
5. Timer indicator & control
6. Zone indicator controls &
power level indicator
7. Power level controls
8. Boost function control,
child lock control &
ON/OFF button
9. 2 x Brackets
10. 2 x Screws
Unit & Spare Parts
If any of the above parts are missing please contact the customer service team on
0345 208 8750 or visit mda.russellhobbs.com
BC
D

Positioning
•This appliance is to be installed in a counter top.
•Ensure no occurs to the appliance during installation.
•The appliance can only be used safely if it is correctly installed according to the
safety instructions. The installer is responsible for ensuring that the appliance
works correct when installed.
•Electric ovens and hobs must be hard-wired to a suitably rated electrical
cooker power point –it is recommended that you consult a qualified
electrician. Failure to do so will invalidate your guarantee, liability claims and
could lead to criminal prosecution.
•The edges of the hob must be a minimum of 50mm from a side or rear wall.
•The highest point of the hob must be a minimum of 760mm from the underside
of any surface directly above it.
•The highest point of the hob must be a minimum of 400mm from the underside
of any surface either side of the hob. If any surface either side of the hob is
lower than 400mm, then it must be at least 50mm from the outer edges of the
hob.
•There must be a minimum of 50mm of clearance around the hob and any
combustible materials.
7
600 - 900mm
400mm
400mm
760mm
200mm

Positioning
•Be sure the thickness of the work surface is at least 30mm
•You must have a gap of a minimum gap of 25mm between the underside of the
appliance and any surface below it.
Note:
•Select heat-resistant work surface material to avoid larger deformation
caused by the heat radiation from the appliance.
•To install a hob above an oven, the oven must have forced ventilation.
•Check the dimensions of the oven when being installed with the hob
8

Installation
Preparation & installation
Ensure that there are no electric wires, gas or water pipes in the area where holes
are to be made.
Components of the appliance may have sharp edges. Wear protective gloves.
1. Ensure that there is an electrical connection within adequate distance of the
hob after it has been installed.
2. Cut out the aperture that measure 744mm by 494mm deep, in accordance
with the positioning instructions detailed on the previous page.
3. Carefully and gently lower the hob into the aperture hole that you have cut
out.
4. Fix the hob on the work surface by screwing the 2 brackets on to the underside
of hob after installation:
5. The brackets position can be adjusted to suit different thickness of work
surfaces:
9

Installation
Electrical connection
•WARNING- THIS APPLIANCE MUST BE EARTHED
•This appliance is designed to be connected to a 220-240V~50Hz AC electricity
supply.
•Before proceeding with the electrical connection, verify that the current
carrying capacity of the system and the isolator / main switch is adequate for
the maximum power rating of the hob.
•Electrical installation of the residence and of the appliance’s isolator must be
earthed and conform with the required safety regulations.
•If there is no suitable circuit and a fused switch, they must be installed
by a qualified electrician before the hob is connected.
•An isolator switch must be easily accessible once the hob has been installed.
•Do not use adaptors, multiple sockets and/or extension leads.
•A circuit breaker with a contact opening of at least 3 mm, rated 32A and
delayed functioning type must be installed inside the supply circuit.
•During installation, please ensure that insulated cables are used. An incorrect
connection might damage your appliance and will void the manufacturer’s
guarantee.
•All repairs must be carried out by an authorised service personal or a
qualified electrician.
•Switch off/isolate your appliance before each maintenance.
•Wiring diagram is below:
10

Induction introduction
Induction hobs only heat the pan rather than the cooking surface heating up like a
standard electric hob. They do this by creating a magnetic field between the pan
base and an element underneath the glass top; this makes induction hobs safer
and cheaper to run as they use only the precise amount of energy you need.
Because induction hobs create a magnetic field, pans need to either be made from
a magnet metal such as cast iron or steel, or have a magnetic base. You can check
whether your existing cookware is suitable by carrying out a magnet test: move a
magnet towards the base of the pan. If it is attracted, the pan is suitable for
induction. If you do not have a magnet then you can put some water in the pan
you want to check, if the symbol does not flash in the cooking zone
indicator and the water is heating, the pan is suitable.
If your current cookware isn’t suitable, then when purchasing new cookware you
must ensure the packaging says they are compatible with induction hobs or that
they pass the magnetic test detailed above. Please note cookware made from the
following materials is not suitable: pure stainless steel, aluminum or copper
without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.
Note:
•Because of the powerful electromagnetic field, induction may not be suitable
if you have a pacemaker fitted
•The glass of an induction hob only becomes hot because the pan eventually
warms it up
11
iron pan
magnetic circuit
ceramic glass plate
induction coil
induced currents

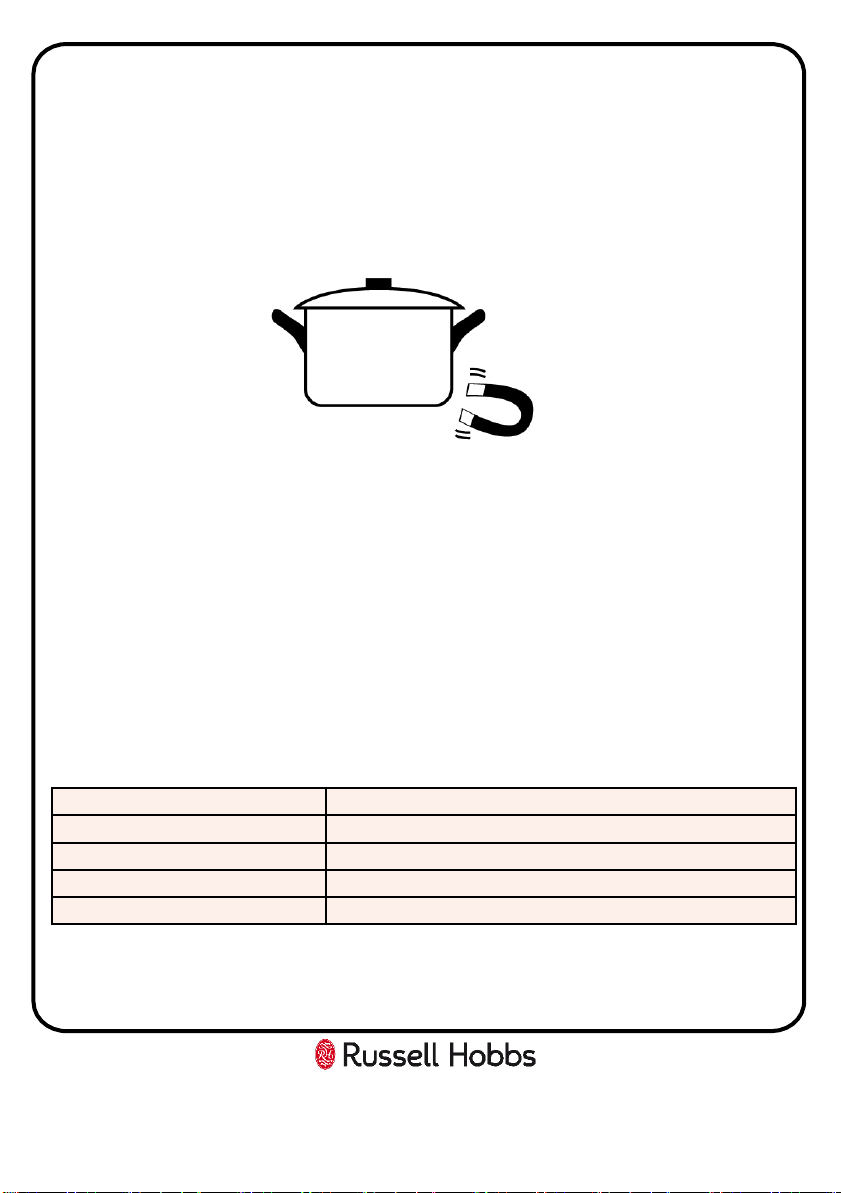

Pans & Energy Saving
•Only use cookware with a base suitable for induction cooking. Look for the
induction symbol on the packaging or on the bottom of the pan.
•You can check whether your cookware is suitable by carrying out a magnet test.
Move a magnet towards the base of the pan. If it is attracted, the pan is
suitable for induction.
•If you do not have a magnet:
•Put some water in the pan you want to check.
•Follow the steps under ‘To start cooking’.
•If does not flash in the display and the water is heating, the pan is
suitable.
•Cookware made from the following materials is not suitable: pure
stainless steel, aluminium or copper without a magnetic base, glass,
wood, porcelain, ceramic, and earthenware
The following advice is to prevent damage to pans and help you save energy:
12
Zones Suitable pan sizes (diameter)
1200W/1500W (max) 160mm
1800W/2300W (max) 180mm
1800W/2300W (max) 180mm
2200W/2600W (max) 210mm

Xa
Do not use small pans on large
zones
Always use pans that are the
right size for each zone
Do
not cook without a lid or
with the lid half off, as this
wastes energy
Place a lid on pans
Do not use damaged
pans,
which do not sit evenly on the
hob: pans may tip over.
Only use pans with a thick,
flat bottom
Do not use large
pans on
zones
near the controls, as they may
be damaged by the high
temperatures
Always place pans
centrally
over the burners not to one
side
Do not slide, or they may
scratch the glass
Always lift pans off the hob
Do not use excessive weight or
strike the hob with heavy
objects
Be careful when handling
pans when they are on the
hob or have just be taken
away from the burner
13
Pans & Energy Saving

Usage
Controls
The appliance has 4 cooking zones and these are controlled by the touch controls
at the bottom of the hob. Just above the cooking zone power controls there are
the cooking zone selection controls and to the left of the cooking zone controls is
the timer indicator:
The function of each touch control and the meaning of each icon is explained
below:
14
1 - Cooking zone selection controls and power
level indicator
2 - Power level adjustment down and up
- Minimum power level: 0
- Maximum power level: 9
3 –Boost function
4 - Child lock
5 - Power on/off
6 - Timer indicator & control
62 3 4 5
1

Usage
Using the touch controls
The controls respond to touch, so you don’t need to apply pressure to them.
Below are tips on how to use the controls:
•Use the ball of your finger, not its tip.
•You will hear a beep each time a touch is registered.
•Make sure the controls are always clean, dry, and that there is no object (e.g. a
utensil or a cloth) covering them. Even a thin film of water may make the
controls difficult to operate.
Indicators
Cooking zone indicators
The cooking zone indicators are next to the cooking zone
controls. The indicator will show the power level of the
zone, if a zone has any residual heat after operation and
if it is being used with the timer.
Timer indicator
The timer indicator is located to the left of the
power level controls. It will show the time that has been
set for the minute minder and if one cooking zone is to be
turned off after a period of time (maximum of 99 minutes).
15

Usage
Power levels
The settings below are guidelines only, the exact setting you will require will
depend on several factors, including your cookware and the amount you are
cooking. Experiment with the hob to find the settings that best suit you.
16
Heat setting Suitability
1-2
Delicate warming for small amounts of food
Melting chocolate, butter, and foods that burn quickly
Gentle simmering
Slow warming
3-4
Reheating
Rapid simmering
Cooking rice
5-6
Pancakes
7-8
Sautéing
Cooking pasta
9
Stir
-frying
Searing
Bringing soup to the boil
Boiling water

Usage
To use a cooking zone
Note:
•When you touch a symbol, the respective function is activated.
•Always keep the controls dry. Moisture reduces their effectiveness.
•Do not pull pans close to the displays and sensors. The electronics could
overheat.
Warnings:
•When it is first used, it is normal for the cooking zone to give off odours; this
does not pose any risk and does not indicate a malfunction; they will
disappear in time.
•The kitchen will become hot and humid when this appliance is used. You
must therefore ensure that the kitchen is well ventilated: either keep the
natural ventilation apertures open, or install a ventilation system (extractor
hood).
•If using the appliance intensively for prolonged periods, you may require
additional ventilation (e.g. by opening a window) or more effective
ventilation (e.g. by increasing the hob's ventilation, if possible).
1. Turn on the appliance at the circuit, the appliance will beep and all indication
lights will flash and then go out.
2. Touch the power on/off control , all indicators will display a ‘-’symbol.
3. Place a suitable pan on the cooking zone that you wish to use.
1. Make sure the bottom of the pan and the surface of the cooking zone
are clean and dry.
17

Usage
4. Select the cooking zone you want by touching the required cooking zone
control and the indicator of the zone you have selected will flash.
5. Use the power level controls to select the required power, this will be shown
on the cooking zone indicator of the cooking zone that is being used.
6. Please note that if a power level is not selected within 5 seconds of touching
the required cooking zone control it will be deselected. You will need to
retouch the required cooking zone again and select the power level you
require. If a cooking zone and power level is not selected within 1 minute of
powering on the hob, the hob will automatically switch off. If this happens
then you will need to start again from step 2.
Note: If a cooking zone indicator flashes with the symbol, this means:
i. You have not placed a pan on the correct cooking zone
ii. The pan you’re using is not suitable for induction cooking
iii. The pan is too small or not properly centred on the cooking zone.
No heating takes place unless there is a suitable pan on the cooking zone. The
display will automatically turn off after 1 minute if no suitable pan is placed on
it.
18

Usage
7. To switch the cooking zone off, you can either touch the 0 power level
indicator line (after touching/selecting the required cooking zone control) and
ensure ‘0’ is shown in the cooking zone indicator. Alternatively you touch the
power dd control and turn the hob off completely.
9. The ‘H’ symbol will be shown on the indicator of the cooking zone that have
just been used to show that there is residual heat on that cooking zone. The
‘H’ symbol will stay lit until the cooking zone has cooled down sufficiently. It
can also be used as an energy saving function if you want to heat an additional
pan or keep the contents of a pan warm, use the zone that is still hot.
19

Usage
Boost function
The function is available on all cooking zones and will increase the power of the
selected zone to its maximum power.
1. Follow steps 1 –5 from pages 17 and 18.
2. Touch the cooking zone control you want to apply the boost function
(maximum power) to. The power level indicator will flash.
3. Touch the Boost control ‘ ‘ , the cooking zone indicator will show a “b” and
the power of the cooking zone will be set to its maximum level for 5 minutes
before reverting back to its original setting.
4. To deactivate the Boost function, touch the cooking zone that the Boost
function is applied to on the cooking zone selection control.
5. Touch the “ “ control and the Boost function will be cancelled, the cooking
zone will revert back to its original setting and the power level indicator will
flash.
20
