Safety Instructions
•Please comply with these instructions. If you do not, any damage resulting from
improper, incorrect or negligent use or improper connection or installation is not
covered by the manufacturer’s guarantee.
•Electric oven and hobs must be connected to an electrical cooker powerpoint - consult
a qualified electrician. Products must be installed in accordance with the
manufacturer's safety recommendations.
•This appliance must only be used for the purpose of heating or cooking food, any other
use, for example heating rooms, working surface or storage surface is dangerous and
will void the manufacturer’s guarantee.
•Additions or modifications to the appliance are not permitted.
•Do not place or store flammable liquids, highly inflammable materials or fusible objects
on or near the appliance.
•Small children must be kept away from the appliance.
•The electrical safety of this hob is guaranteed only if it is connected to a properly
earthed system, which complies with the electrical safety standards.
•Built-in appliances may only be used after they have been built in to suitable built-in
units and work surfaces that meet the standards.
•Do not put pressure on the power supply cable while fitting the hob.
•Power supply cable length should not exceed 2m for isolation safety.
•In the event of faults with the appliance or damage to the glass ceramic (cracks,
scratches or splits), the appliance must be switched off and disconnected from the
electrical supply to prevent the possibility of an electric shock.
•Repairs to the appliance must only be carried out by authorised service personal.
•Make sure all the packaging has been removed before you use the appliance.
•Cables from electrical appliances must not touch the hot surface of the appliance or hot
cookware.
•Never leave the appliance hob unattended when cooking with fat or oil. They can rapidly
catch fire if overheated.
•Do not cut any food on the glass of the Vitroceramic hob. Glass panels should not be
used as working surfaces.
•Be careful when using small household appliances, such as irons, near the elements.
•Do not use the cooking zones with empty cookware or without cookware.
•Make sure all the controls are in the off position when not in use.
•For cleaning, the appliance must be switched off and cooled down.
•For safety reasons, the cleaning of the appliance with steam jet or high pressure
cleaning equipment is not permitted.
3
For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit us at
www.productcareuk.com

Safety Instructions
•Use only stable flat-based pans.
•This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
•Children should be supervised to ensure that they do not play with the appliance.
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
•The appliance is not intended to be operated by means of an external timer or separate
remote-control system
WARNING:
If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
WARNING:
Accessible parts may become hot during use. Young children should be kept away.
Important note
Electric oven and hobs must be connected to an electrical cooker powerpoint - consult a
qualified electrician. Products must be installed in accordance with the manufacturer's
safety recommendations.
4
For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit us at
www.productcareuk.com

Before using the appliance
For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit us at
www.productcareuk.com
5
•Electric oven and hobs must be connected to an electrical cooker powerpoint - consult
a qualified electrician. Products must be installed in accordance with the
manufacturer's safety recommendations.
•This appliance must only be used for its intended purpose, domestic cooking. Any
other form of usage is to be considered as inappropriate, dangerous and will void the
manufacturer’s guarantee
•The manufacturer declines all responsibility in the event of damage caused by
improper or incorrect use or installation of the appliance.
•Before installation, check that all parts listed below are present. If any parts are
missing, please contact the product care service team on 0845 208 8750.
Note
The drawings in the book may vary from your hob model. They are designed to show the
different features of all models covered by this book. Your model may not include all
features.

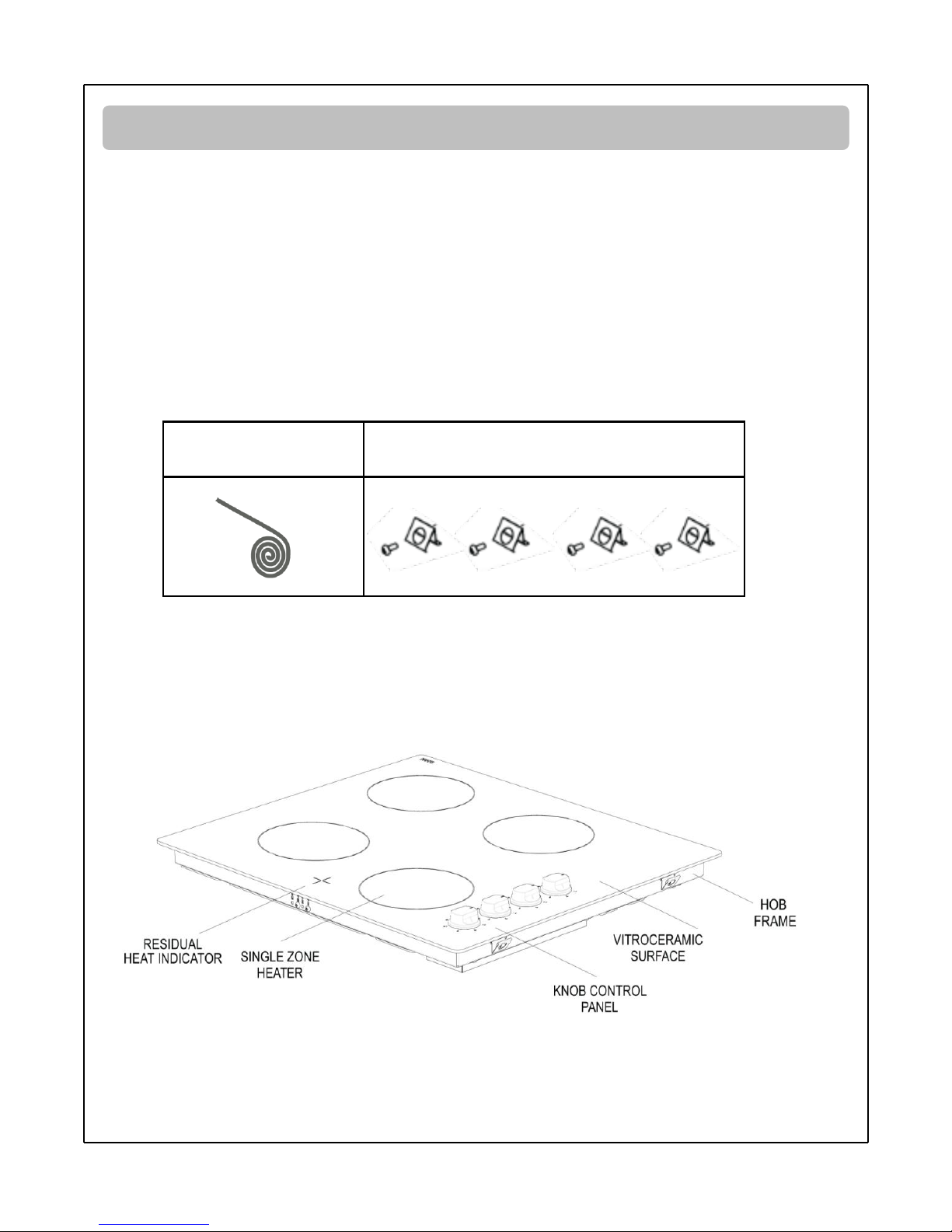

Self-adhesive tape Worktop mounting brackets & screws

Installation
6
Electric oven and hobs must be connected to an electrical cooker powerpoint - consult a
qualified electrician. Products must be installed in accordance with the manufacturer's
safety recommendations. Failure to do so will void the manufacturer’s guarantee.
Before connecting your appliance to the mains at home, make sure to check the
conformity of the voltage settings. These are specified on the information sticker attached
to the appliance and/or packaging, with the usage conditions.
The laws, ordinances, directives and standards in force in the country of use are to be
followed (safety regulations, proper recycling in accordance with the regulations, etc.)
Locating your built-in hob
After removing the packaging material from the appliance and its accessories, ensure that
the hob is not damaged. If you suspect any damage, do not use the appliance and contact
an authorised service personal, qualified electrician or Product Care, (0845 208 8750),
immediately.
This built-in hob is to be inserted into a cut out of a worktop.

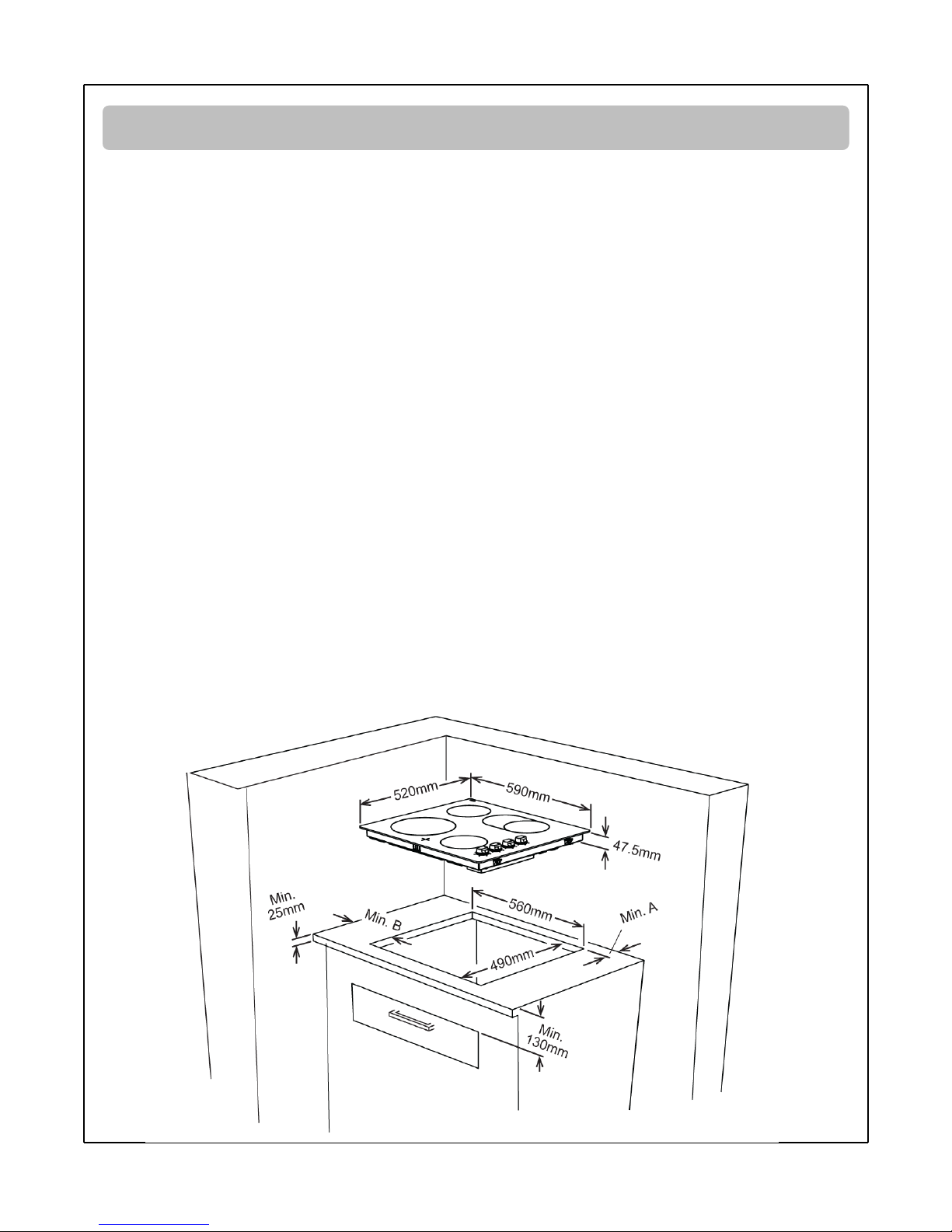

Create an opening with the dimensions shown in the picture below. The distance between
the rear edge of the hob and any adjacent wall is dependent on the wall surface. Easily
combustible material like curtains, paper, clothes, etc. should not be located nearby hob.

Installation
7
For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit us at
www.productcareuk.com
Once the cut-out in the work surface has been made and you have checked the hob will fit
correctly into it. Apply the one-sided self-adhesive sealing tape supplied all the way round
the lower edge of the hob surface along the outer edge of the glass ceramic panel.
Important note
Do not stretch the self-adhesive sealing tape

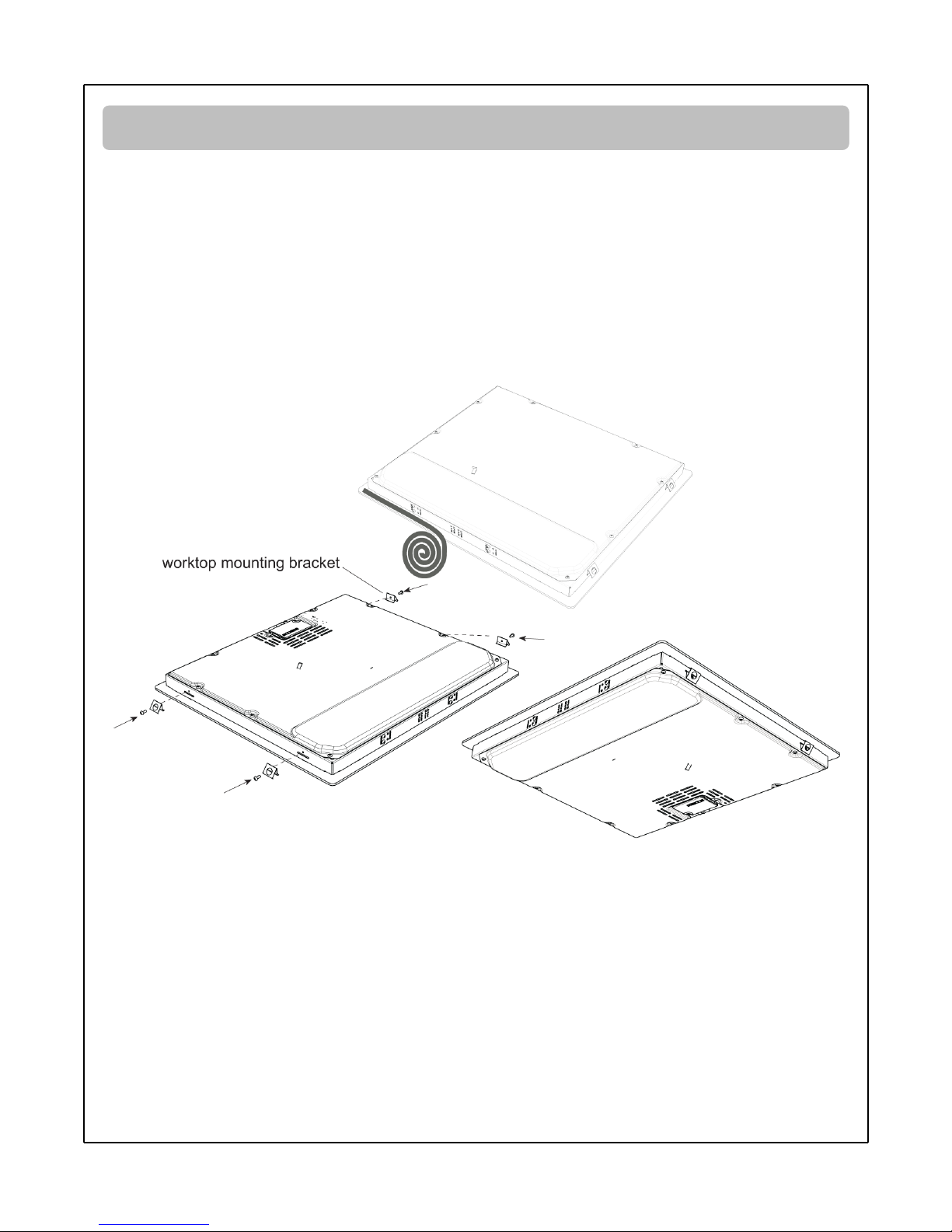

Screw the 4 worktop mounting brackets on the side walls of product.

Installation
8
For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit us at
www.productcareuk.com
Electrical connection
•Electric oven and hobs must be connected to an electrical cooker powerpoint - consult
a qualified electrician. Products must be installed in accordance with the
manufacturer's safety recommendations.
•Before proceeding with the electrical connection, verify that the current carrying
capacity of the system and the socket is adequate for the maximum power rating of the
hob.
•Electrical installation of the residence and of the appliance’s plug must be earthed and
conform with the required safety regulations.
•If there is no dedicated hob circuit and a fused switch, they must be installed by a
qualified electrician before the hob is connected.
•A Fused switch must be easily accessible once the hob has been installed.
•Do not use adaptors, multiple sockets and/or extension leads.
•This appliance conforms with the requirements of the following EEC Directives:
1. Vitroceramic hob EEC/73/23 and 93/68, EEC/89/336 relating to radio
interference,
2. EEC/89/109 relating to contact with foods.
•A circuit breaker with a contact opening of at least 3 mm, rated 20A and delayed
functioning type must be installed inside the supply circuit.

Installation
9
For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit us at
www.productcareuk.com
•For the Vitroceramic hob, the cable must be H05VV-F 3X2,5 mm² / 60227 IEC 53. You
will find the connection diagram shown on the back of your appliance.
•During installation, please insure that isolated cables are used. An incorrect connection
might damage your appliance and will void the manufacturer’s guarantee.
•All repairs must be carried out by an authorised service personal or a qualified
electrician.
•Unplug your appliance before each maintenance. For reconnection, follow the
connection diagrams strictly.

How to use
The appliance is operated by using the dial controls that
are located on the right side of the product. The dial that
operates a specific cooking zone is shown by indicator
diagram next to each dial.
Each cooking zone dial has 6 heat levels:
0 Off
1 Keep warm
2 & 3 Low heat
4,5 & 6 Cooking, roasting & boiling
To turn on a required cooking zone turn the appropriate
dial in a clockwise direction to the necessary heating level.
To turn off a required cooking zone turn the appropriate
dial in an anti-clockwise direction to the 0 mark.
When a cooking zone is turned on the residual heat display
lamp for that cooking zone will light up.
Important note
The residual heat indicator lamp for a cooking zone will
still stay lit after the cooking zone has been turned off.
This is because the surface of the cooking zone will still
be hot. The lamp will go out when the temperature of
the surface/cooking zone has cooled to the necessary
temperature. Caution still needs to be taken as even
when the lamp goes out the surface will still be
warm/hot to touch.
Note
If the power supply of the hob is interrupted or a cooking
zone is turned off and on the residual heater lamp for that
cooking zone will flash.
10

Maintenance
11
For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit us at
www.productcareuk.com
Cookware
•Cookware with rough bottoms should not be used since these can scratch the ceramic
glass surface. The bottom of the good cookware should be as thick and as flat as
possible.
•Before using any cookware with hob, make sure that the bottoms of the cookware are
clean and dry.
•Always place the cookware on the cooking zone before it is switched on. If possible,
always place the lids on the cookware, (this will ensure energy is not wasted).

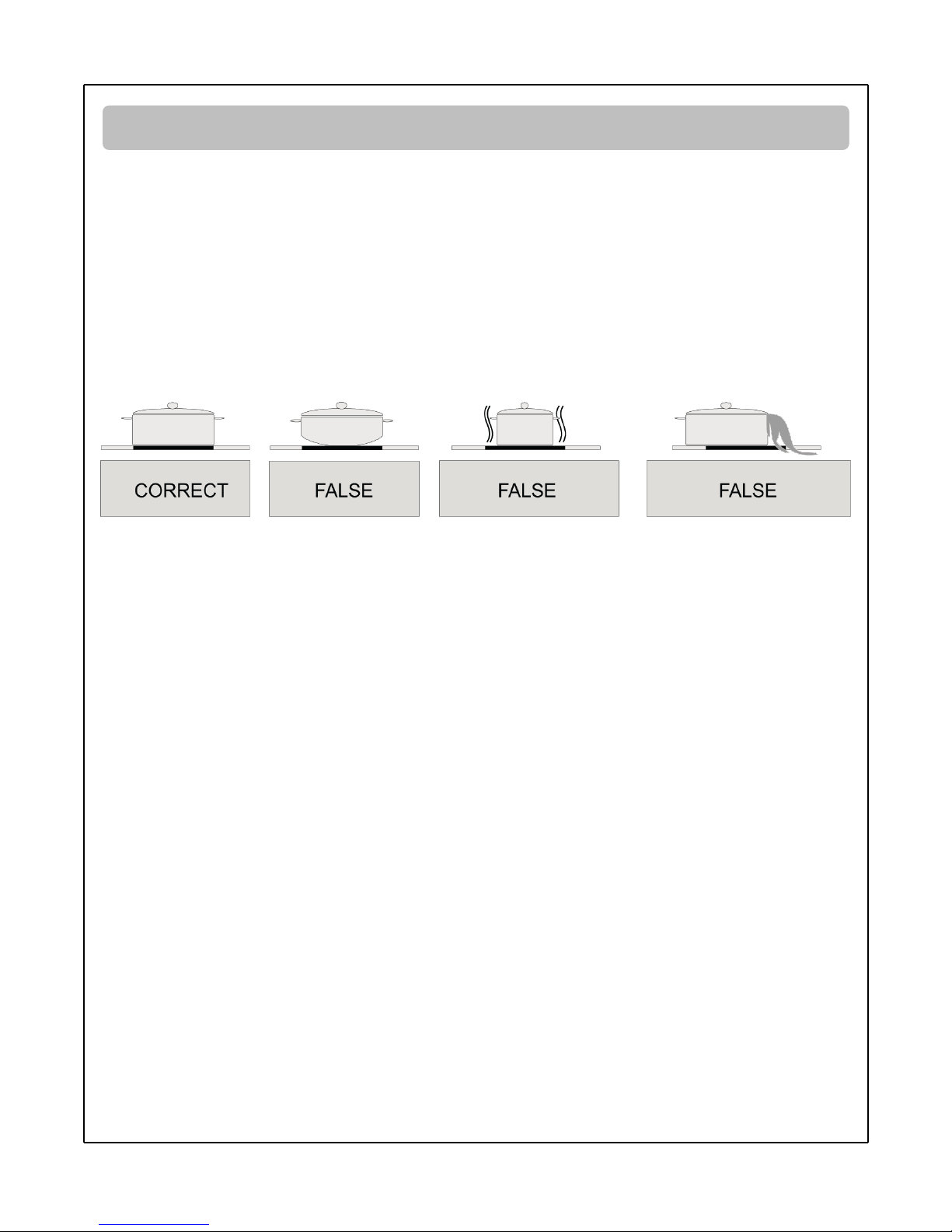

•Bottom of cookware must not be smaller or larger than the cooking zones, they should
of the correct size as indicated below, (this will ensure energy is not wasted).
Cleaning
•Before cleaning the hob, first remove the plug from the electrical supply socket. Then
ensure that there is no residual heat stored in the appliance. If there is residual heat
stored in the appliance, the appropriate residual heat indicator lamp will be on). In
order to avoid burns, let the appliance cool down.
•Remove all food and fat stains with a window scrape.
•Then wipe the hob with a suitable washing up liquid and a clean damp cloth.
•To dry the hob rub the appliance using a clean dry cloth.
•If aluminium foil or plastic items have accidentally melted on the hob surface, they
should be immediately removed from the hot cooking area with a scraper. This will
avoid any possible damage to the surface. This also applies to sugar or food containing
sugar that may have been spilt on the hob.
•If any other food or liquid has been spilt on the hob surface, remove the dirt when the
appliance has cooled down.
•Do not use a dishcloth or abrasive sponge to clean the Vitroceramic surface. These
materials may damage the surface.
•Do not use chemical detergents, sprays or stain removers on the Vitroceramic surface.
These materials may cause fire or Vitroceramic colour fade. Clean with water and
washing up liquid.

Trouble shooting
12
•Electric oven and hobs must be connected to an electrical cooker powerpoint - consult
a qualified electrician. Products must be installed in accordance with the
manufacturer's safety recommendations.
•All repairs must be carried out by an authorised service personal or a qualified
electrician.

Specification
13
For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit
us at www.productcareuk.com
Specification
Model RHEH1
Dimension (mm) (H)47.5 X (W)590 X (D)520
Cut-out dimensions (mm) (W)560 x (D)490
Hob Vitroceramic
Ø145mm radiant element (W) 1200
Ø180mm radiant element (W) 1700
Hot surface indicator light Yes
Maximum total power (depends on
model) (kW)
5,8
Voltage (V) 230/ 400V 3N~
RoHS compliance Standard
CE compliance Standard

Spare parts
14
For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit
us at www.productcareuk.com
Spare part Contact details
Adhesive tape Available at www.productcareuk.com
or
call 0845 208 8750
Dials Available at www.productcareuk.com
or
call 0845 208 8750
Other Available at www.productcareuk.com
or
call 0845 208 8750

This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is
marked on a product/batteries, it means that the product/batteries should not be
disposed of with your general household waste. Only discard electrical/electronic/battery
items in separate collection schemes, which cater for the recovery and recycling of
materials contained within. Your co-operation is vital to make sure the success of these
schemes and for the protection of the environment. For your nearest disposal facility, visit
www.recycle-more.co.uk or ask in store for details.
We reserve the right due to possible changes to design to alter the instruction manual
without prior notice.
Revision 1
For Customer Services & Spare Parts
please call
0845 208 8750
Opening times: Monday - Friday
8am –6pm & Saturday 9am –1pm
or visit us at
www.productcareuk.com
For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit
us at www.productcareuk.com
