INSTRUCTIONS AND WARRANTY
MODEL NO. 14845
RUSSELL HOBBS STEAM, SURGE AND SPRAY IRON

2
Congratulations on purchasing our RUSSELL HOBBS Steam, Surge and Spray Iron.
Each unit is manufactured to ensure safety and reliability. Before using this appliance for
the first time, please read the instruction manual carefully and keep it for future
reference.
IMPORTANT SAFEGUARDS
When using any electrical appliance, basic safety precautions should always be followed
including the following:
1. Please read the instructions carefully before using any appliance.
2. Always ensure that the voltage on the rating label corresponds to the mains
voltage in your home.
3. Incorrect operation and improper use can damage the appliance and cause injury
to the user.
4. The appliance is intended for household use only. Commercial use invalids the
warranty and the supplier can not be held responsible for injury or damage
caused when using the appliance for any other purpose than that intended.
5. Avoid any contact with moving parts.
6. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
7. Children should be supervised to ensure that they do not play with the appliance.
8. Check the power cord and plug regularly for any damage. If the cord or the plug
is damaged, it must be replaced by the manufacturer or a qualified person in
order to avoid an electrical hazard.
9. Do not use the appliance if it has been dropped or damaged in any way. In case
of damage, take the unit in for examination and/or repair by an authorised service
agent
10. To reduce the risk of electric shock, do not immerse or expose the motor
assembly, plug or the power cord to water or any other liquid.
11. Never immerse the unit in water or any other liquid for cleaning purposes.

3
12. Remove the plug from the socket by gripping the plug. Do not pull on the cord to
disconnect the appliance from the mains. Always unplug the unit when not in
use, before cleaning or when adding or removing parts.
13. The use of accessory attachments that are not recommended or supplied by the
manufacturer may result in injuries, fire or electric shock.
14. A short cord is provided to reduce the hazards resulting from becoming
entangled in or tripping over a longer cord.
15. Do not let the cord hang over the edge of a table or counter. Ensure that the cord
is not in a position where it can be pulled on inadvertently.
16. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas
or electric burner or in a heated oven.
17. Do not use the appliance on a gas or electric cooking top or over or near an open
flame.
18. Use of an extension cord with this appliance is not recommended. However, if it
is necessary to use an extension lead, ensure that the lead is suited to the power
consumption of the appliance to avoid overheating of the extension cord,
appliance or plug point. Do not place the extension cord in a position where it can
be pulled on by children or animals or tripped over.
19. This appliance is not suitable for outdoor use. Do not use this appliance for
anything other than its intended use.
20. DO NOT carry the appliance by the power cord.
21. Do not leave this appliance unattended during use. Always unplug the unit when
not in use or before cleaning.
22. Always operate the appliance on a smooth, even, stable surface. Do not place
the unit on a hot surface.
23. Ensure that the switch is in the “Off” position after each use.
24. The manufacturer does not accept responsibility for any damage or injury caused
by improper or incorrect use, or for repairs carried out by unauthorised
personnel.
25. In case of technical problems, switch off the machine and do not attempt to repair
it yourself. Return the appliance to an authorised service facility for examination,
adjustment or repair. Always insist on the use of original spare parts. Failure to
comply with the above mentioned pre-cautions and instructions, could affect the
safe operation of this machine.

4
ADDITIONAL SAFEGUARDS
•Take care not to scratch the soleplate – avoid buttons, zips, etc.
•The iron has a protective thermal fuse, which will blow if it overheats. If this
happens, the iron will stop working, and must be returned for repair.
•Don’t use the iron if it’s dropped or damaged, or if it malfunctions or leaks.
•If the cable is damaged, return the iron, to avoid hazard.

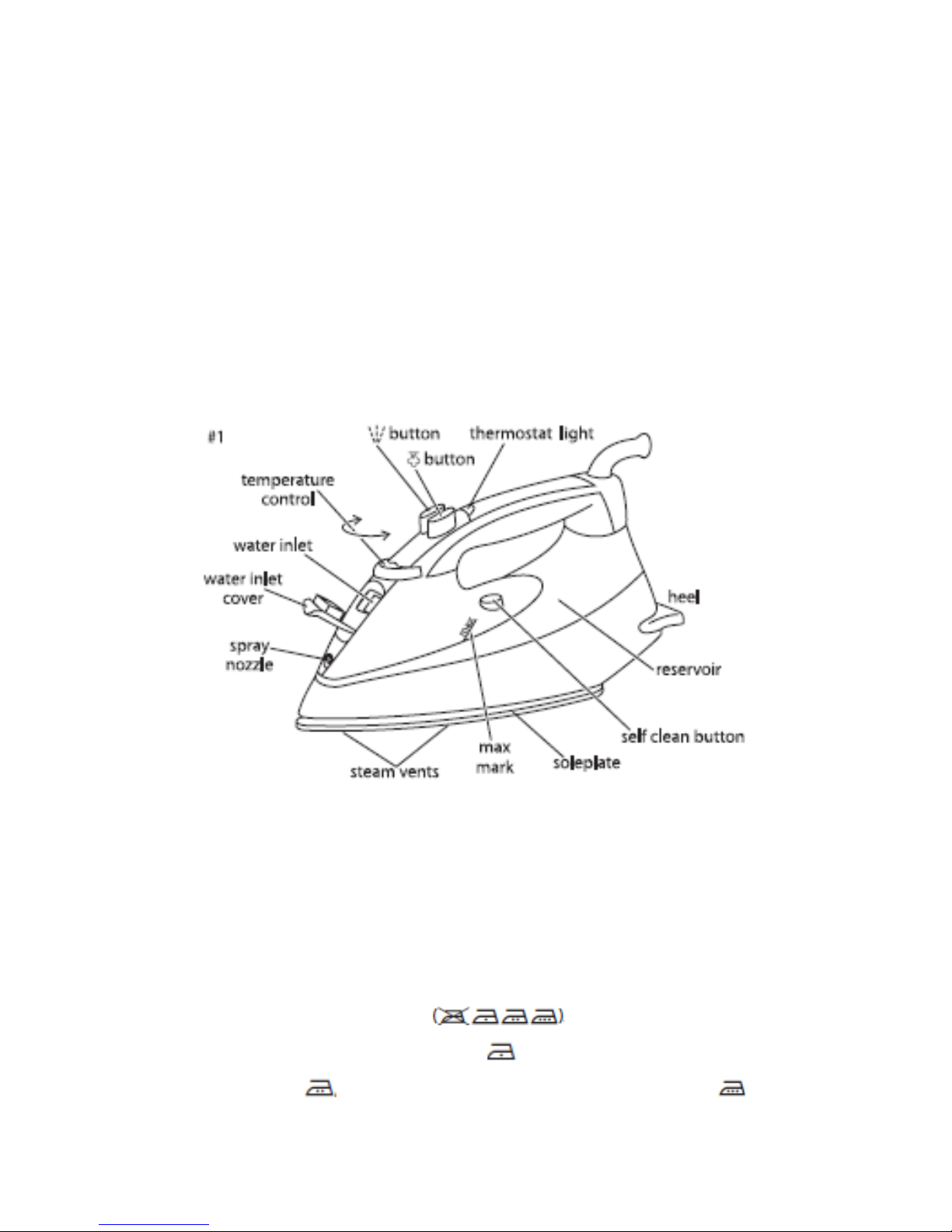

PARTS DIAGRAM
OPERATING INSTRUCTIONS
BEFORE USING FOR THE FIRST TIME:
•Don’t worry if the iron smokes a bit at first, it’ll stop as the element cures.
•Iron an old piece of cotton fabric, to clean the soleplate.
PREPARATION:
•Check for textile care symbols .
•Iron fabrics needing low temperatures first, then those that need medium
temperatures , and finish with those needing high temperatures .

5

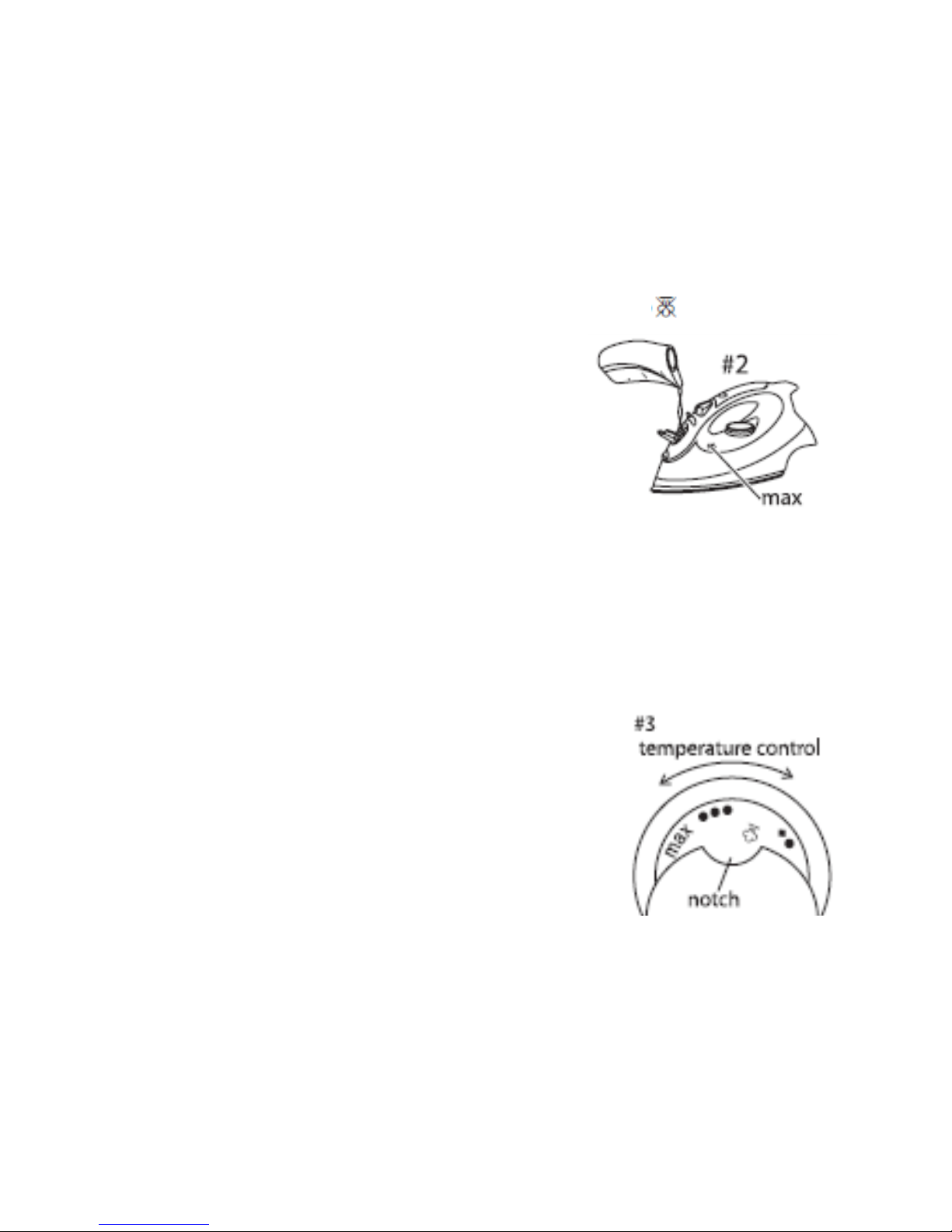

FILING (#2):
•You may use the iron with tap-water, but if you live in a hard water area, you
should use distilled water (not chemically descaled or softened water).
•If you buy distilled water, check that it’s marketed as suitable for use in irons.
•Unplug the iron.
•Turn the temperature control to ●, slide the steam control to (#3).
•Hold the iron with the soleplate down (#2).
•Lift the bottom of the water inlet cover to open it.
•Pour slowly, to let the air in the reservoir escape,
otherwise you will cause an air lock and the water
will overflow.
•Don’t fill past max, or water will escape in use.
•Wipe up any spillage.
SWITCH ON:
•Place the iron on its heel.
•Put the plug into the power socket (switch the socket on, if it’s switchable).
•The thermostat light will come on.
SET THE TEMPERATURE:
•Turn the temperature control to bring the setting you
want opposite to the notch (#3).
•When the iron reaches the temperature you set, the
thermostat light will go off. It’ll then cycle on and off
as the thermostat operates to maintain the
temperature.

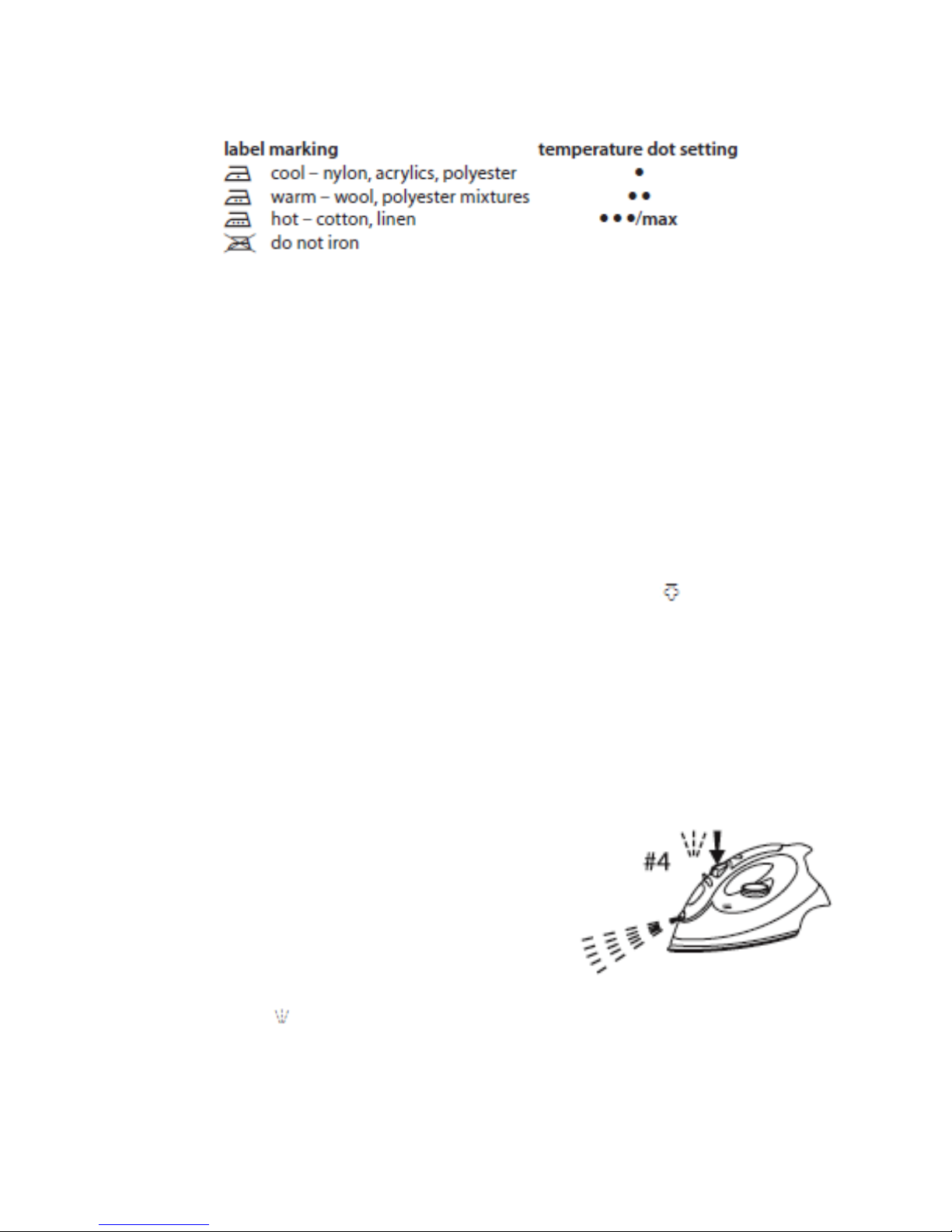

TEMPERATURE SETTING GUIDE:

6
Please Note: If the instructions on the fabric label differ from this guide, follow the
instructions on the label.
REDUCIING TEMPERATURE:
•Reducing the temperature takes a bit longer, as the element has to lose the heat
it has built up, so be patient. It’s best to organise your ironing so that you don’t
need to reduce the temperature.
STEAM IRONING:
•When steam ironing, you must set the temperature control at or higher. (#3)
•If you don’t, you’ll get water on your clothes, not steam.
•Check that there is water in the reservoir.
•The iron will adjust the amount of steam automatically.
•Wait until the thermostat light goes out then start ironing.
SPRAY:
Water spotting affects some fabrics. Test this out on a
hidden part of the fabric.
•This works with dry or steam ironing, as long as
there’s water in the reservoir.
•Check that there’s water in the reservoir.
•Lift the iron off the fabric.
•Aim the spray nozzle at the fabric.
•Press the button.
•You may have to press it 2 or 3 times to pump water through the system.

7
SHOT OF STEAM:
•This works with dry or steam ironing, as long as there’s
water in the reservoir, and the temperature is above . At
lower temperatures you will only get water spotting.
•Check that there’s water in the reservoir.
•Check that the temperature control is at or higher.
•Lift the iron off the fabric.
•Press the button.
•You may have to press it 2 or 3 times to pump water through the system.
•Leave 4 seconds between shots, to let the temperature build up.
DRY IRONING:
•If you’re going to be dry ironing for 20 minutes or more,
empty the reservoir first, to avoid spontaneous bursts of
steam.
•Unplug the iron.
•Hold it over a sink or basin.
•Flip the water inlet cover open.
Caution: The water may be hot.
•Carefully turn the iron upside down and empty the water into the sink or basin.
•Wipe any spillage off the iron before use.
•Set the temperature.
•Wait till the thermostat light goes out, then start ironing
VERTICAL STEAMING:
•Remove wrinkles from hanging clothes, hanging curtains, and
furnishing fabrics.
•Check that there’s adequate ventilation behind the fabric,
otherwise moisture may build up, causing mildew.
•Check that there’s nothing behind the fabric that may be
damaged by the steam.
•Check that pockets, turn-ups, and cuffs are empty.
•Check that there’s water in the reservoir.

8
•Turn the temperature control to max opposite the notch.
•Wait until the thermostat light goes out.
•Hold the iron close to (but not touching) the fabric.
•Press the button (you’re using the “shot of steam” function vertically).
•You may have to press it 2 or 3 times to pump water through the system.
•Leave 4 seconds between shots, to let the temperature build up.
AFTER USE:
•Unplug the iron.
•Lift the bottom of the water inlet cover to open it.
•Hold the iron over a sink, turn it upside down, and drain
the water from the reservoir.
Caution: The water may be hot
•Place the iron on its heel.
•Leave it to cool down completely.
•When it’s cold, wipe off any moisture, and close the water inlet cover.
•Store the iron on its heel, to avoid corrosion and damage to the soleplate.
SELF CLEAN:
•To prevent scale building up, use the self clean function regularly, at least
monthly in normal water areas, more often in hard water areas.
•You’ll need a basin or a large bowl to catch the water
coming out of the soleplate.
•Fill the reservoir to the max mark.
•Turn the temperature control to max, move the steam
control to .
•Place the iron on its heel.
•Put the plug into the power socket, and wait till the
thermostat light goes out.
•Now hold the iron over the basin or bowl, with the soleplate down (#9).
•Move the steam control to , hold it there, and gently move the iron to and fro,
over the basin or bowl.

9
Caution keep clear of the escaping water and steam
•Water and steam will wash scale and dust through the soleplate, and into the
sink.
•When the reservoir is empty, release the self clean button.
•Unplug the iron, and place it on its heel to cool.
•When it’s cold, wipe off any moisture.
•Store the iron on its heel, to avoid corrosion and damage to the soleplate.
ANTI-SCALE:
•The anti-scale agent incorporated in the iron helps prevent the build-up of scale.
•Don’t use a descaling solution, or you’ll destroy the anti-scale agent.
CLEANING AND MAINTENANCE
•Unplug the iron when not in use, before moving and before cleaning. Let it cool
down fully before cleaning and storing away.
•Remove spots from the soleplate with a little vinegar.
•This appliance is for household use only and is not user-serviceable.
•Do not open or change any parts by yourself. Please refer to a qualified electrical
service department or return to the supplier if servicing is necessary.
•Always remember to unplug the unit from the electrical outlet when not in use
and before cleaning. Ensure that the speed control is set to “0”.
•It is much easier to clean the accessories directly after they have been used.
Wash them in warm, soapy water, rinse and dry well.
•The body of the appliance and the stand should be cleaned with a damp cloth.
Do not let water enter the appliance or the stand.
•Do not use bleach or other abrasive substance or solvents to clean your
appliance as it can be damaging to the finish.
•Do not immerse the appliance in water or any other liquid, or hold it under a
running tap to clean.
STORING THE APPLIANCE
•Unplug the unit from the wall outlet and clean all the parts as instructed above.
Ensure that all parts are dry before storing.

10
•Store the appliance in its box or in a clean, dry place.
•Never store the appliance while it is still wet or dirty.
•Never wrap the power cord around the appliance.
SERVICING THE APPLIANCE
There are no user serviceable parts in this appliance. If the unit is not operating
correctly, please check the following:
•You have followed the instructions correctly

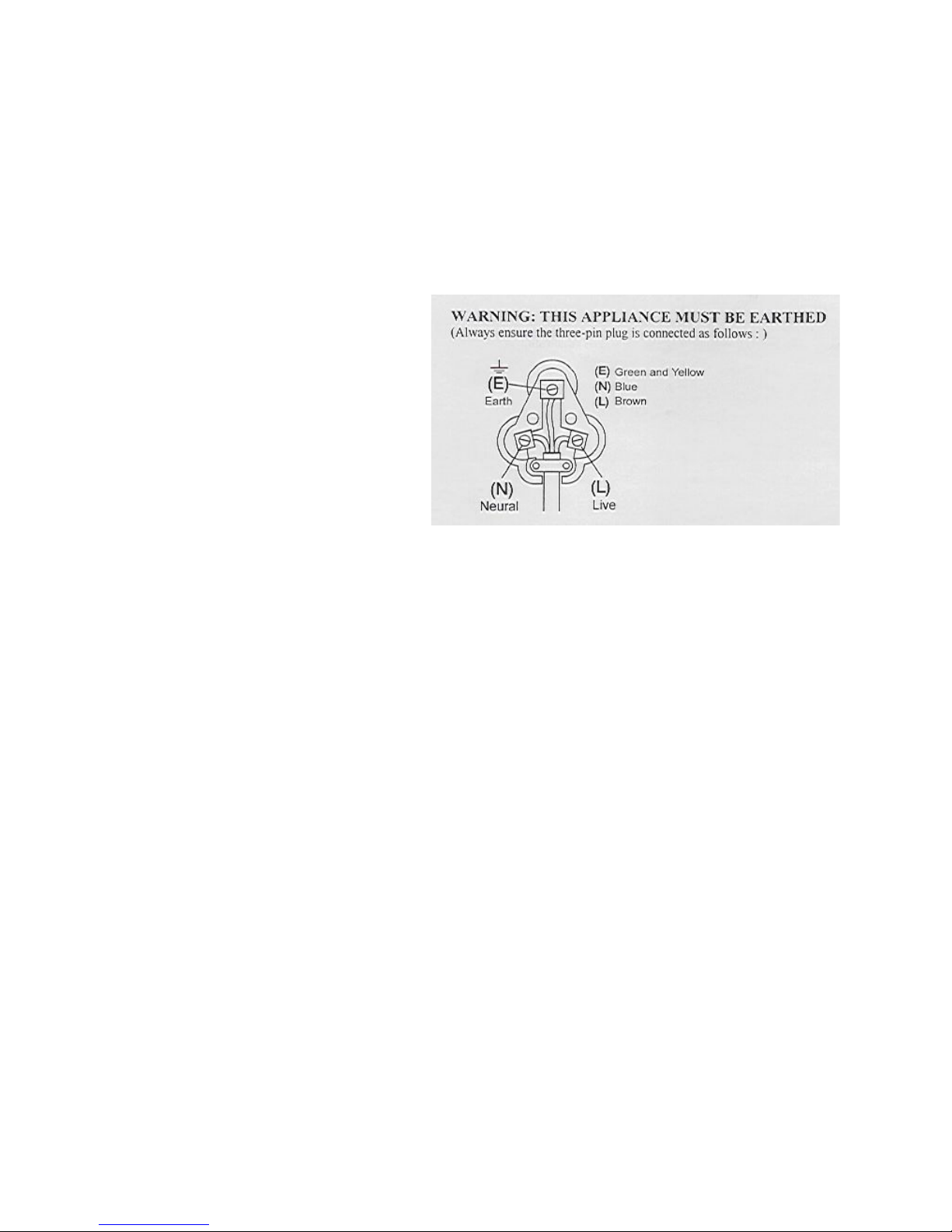

•That the unit has been wired correctly and that the wall socket is switched on.
•That the mains power supply is ON.
•That the plug is firmly in the mains socket.
If the appliance still does not work after checking the above:
- Consult the retailer for possible repair or replacement. If the retailer fails to resolve the
problem and you need to return the appliance, make sure that:
•The unit is packed carefully back into its original packaging.
•Proof of purchase is attached.
•A reason is provided for why it is being returned.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised
service agent, in order to avoid any hazard. If service becomes necessary within the
warranty period, the appliance should be returned to an approved Tedelex Trading (Pty)
Limited service centre. Servicing outside the warranty period is still available, but will,
however, be chargeable.
