Ryf Ryeco RMM2010-CNC User manual

Operating Instructions Ryeco RMM2010 - CNC
Operation Instructions
CNC Toolmaker Microscope
Ryf RMM2010-CNC

Operating Instructions Ryeco RMM2010 - CNC
1 General information
1.1 Introduction
These operating instructions contain important information regarding the safe and intended
use of a measurement device used for the optical or optical-tactile multi-sensor coordinate
measurement of workpieces that are suitable based on their characteristics, such as size, weight
and material.
The instructions are intended to help avoid hazardous situations, to prevent accidents and to
protect the system from damage due to improper conduct of personnel. The operating instructions
are aimed at all persons who operate the system or complete any mainten-ance or servicing work
on the system.
1.2 Target group
These operating instructions are only aimed at trained personnel and specialized staff with relevant
training by Ryf Ltd.in the respective area of activity. For more information see
1.3 Limitation of liability
All of the information and instructions in these operating instructions have been compiled taking
into account the applicable standards and regulations, the state-of-the-art, as well as our long-
standing knowledge and experience.
Ryf Ltd. reserve the right to implement technical changes within the scope of the ongoing
development of the product described in these operating instructions without prior notice. The
details,figures and descriptions in these operating instructions therefore only serve as indicative
information. The illustrations provided in these operating instructions also do not necessarily
correspond to the scope of delivery or any spare parts supplies. The drawings and figures are not
drawn to scale.
Ryf Ltd. shall not assume liability for damages and malfunctions caused by the following
circumstances:
• Operating errors
• Non-compliance with the documentation
• Non-intended use of the measurement device
• Deployment of personnel who are not trained for the corresponding task
• Repairs that have not been completed professionally
• Failure to complete or incorrect maintenance work
• Unauthorized technical changes
• Use of spare parts and accessories that have not been approved by Ryf Ltd. Switzerland
• Use of unsuitable or unauthorized operating materials
• Operation using faulty, non-functional or bypassed safety and monitoring equipment
• Incorrect connection or preceding work that is not included in the contractually agreed
• Retrofitting and/or other structural changes to the measurement device, if and to the extent that
they have not been expressly approved by Ryf Ltd. Switzerland in writing.
A warranty is not expressly granted.

Operating Instructions Ryeco RMM2010 - CNC
1.4 Warranty, product liability
The measurement device left our factory in a perfect condition. At the time it showed no signs of
defects in accordance with the Civil Code and no faults in accordance with the Product Liability
Act.
All of the technical information, specifications and notes relating to the operation of the
measurement device, provided in these operating instructions, have been compiled and reviewed
carefully. They meet the latest technical standards for the measurement device at the time of
printing and are based on our experiences and technical expertise gained to date.
In the event of any defects or faults arising on the delivered measurement device or the supplied
documentation and in the event of any culpable mistakes on our part, the content of the warranty
and liability framework shall be exclusively governed by the regulations set out in the main contract
relating to the acquisition. In this context, we also refer you to our general terms and conditions of
business, which form an integral part of all of our business agreements. With the exception of
liability according to statutory law as per the Swiss Product Liability Law, any further claims,
especially claims for compensation, are excluded.
Any warranty claims must be submitted to Ryf Ltd. within the warranty period immediately after the
defect or fault has been detected. The warranty period is specified in our final order confirmation.
The warranty shall not cover normal wear, especially function-related wear of all wear parts
installed in the measurement device.
2 Intended uses
2.1 General information about the intended use
Workshop microscopes from the RMM2010 series are optical or optical coordinate measurement
devices and may be used for the following purposes (= intended use):
• All models: Optical coordinate measurement of two-dimensional geometries (e.g.
points, lines, distances, circles, radii, angles) using the integrated transmitted and/or incident light
illumination.
• Details on the measurement range and maximum workpiece weight is provided in the
measurement range is dependent on the model. The maximum work piece size that can be
measured is determined from the measurement range of the measurement device. The following
must also be observed:
• The workpiece must be designed in such a way that it can be positioned securely or
fixed on the measurement table, ensuring that it cannot fall down and that the workpiece
and measurement device (sensor or housing) do not collide when the measurement
table is moved.
• Specifications regarding the measurement range apply to the primary sensor (camera).
If other sensors are used, the effective measurement range is reduced because of the following
conditions:
Offset between camera center point and probe tip center point.
Characteristics and offsets of other sensors.
It must be ensured that the measurement table is loaded evenly as this could otherwise
influence the measurement result.
The measurement device is designed for stationary applications
Any use of a RMM2010 that is not in accordance with the specified provisions and/or parameters is
deemed to be contrary to the intended use for which Ryf Ltd. shall not assume any liability for
damage or malfunctions.

Operating Instructions Ryeco RMM2010 - CNC
2.2 Use contrary to intended use
A RMM2010 must not be used as follows:
• Depending on the model, the measurement table that can be moved in the X- and
Y-direction must not be operated or moved in any other way than in manual mode
(RMM 2010 manual) or with the help of the integrated CNC control (RMM2010-CNC).
• The load placed on the measurement table must not exceed the specified total maximum
weight (do not use for material storage or as a support!).
• The measurement table must not come into contact with other objects (e.g. walls,
cabinets) even when the maximum traverse path in the X- or Y-direction is used. A
distance of one (1) meter must be maintained on all sides.
• The positioning laser (if available) must not be removed from its fastening, rotated in
another direction or modified or manipulated in any other way.
• The positioning laser must not be used for any other purpose than to position
measurement objects.
3 General safeties
3.1 Operator's area of responsibility
The operator of the measurement machine is responsible for implementing the relevant legal
provisions regarding occupational health and safety. The operator must ensure that the
measurement device is only used as intended and is operated in a fault-free, fully functional
condition.
The operator must:
• Know and implement the applicable occupational health and safety regulations.
• Ensure that the relevant task is only carried out by personnel who have the necessary
training, qualifications and authorization and who have been instructed about the
specific conditions at the location of the measurement device.
• Clearly specify and regulate personnel responsibilities regarding installation, operation,
maintenance and cleaning.
• Bear responsibility for the operation of the measurement device.
• Ensure that all employees have read and understood the parts of this documentation
that are relevant to their work. Provide personnel by Ryf with safety training at regular intervals; at
least once per year (1x / year).
• Ensure that the documentation is always in a legible condition and that it is fully accessible in the
immediate vicinity of the measurement device.
• Ensure that all of the safety and warning notices attached to the measurement device
are present, clean and legible.
• Ensure and regularly check that locally and nationally applicable safety, accident prevention and
environmental regulations are observed in addition to the occupational
health and safety regulations in these instructions.
• Provide personnel with the necessary personal protective equipment.
• Secure hazardous areas between the measurement device and operating equipment.
• Ensure that the measurement device is always in a perfect condition.
• Ensure that the functionality and completeness of the safety equipment is checked on
a regular basis.
3.2 Personnel requirements
The measurement device must only be operated by correctly trained personnel by Ryf AG.
Maintenance work must only be completed by specialized staff.
Work on electric components must only be carried out by an electrician from Ryf AG.

Operating Instructions Ryeco RMM2010 - CNC
3.2.1 Trained personnel
Within the context of this documentation, trained personnel have attended training provided by the
operator relating to the assigned work and have been instructed about possible dangers resulting
from improper behavior.
3.2.2 Specialized staff
Within the context of this documentation, specialized staff is individuals who, based on their
technical training, knowledge and experience and their awareness of the relevant regulations, are
able to:
• Safely carry out the work assigned to them and correctly assess the scope of the work
• Independently recognize possible hazards and implement the necessary measures to eliminate
them
• Have adequate language skills to understand these instructions in English.
3.2.3 Electrician
Electricians are individuals, who based on their technical training, knowledge and experience and
their awareness of the relevant standards and regulations are able to complete work on electrical
systems and independently recognize and prevent possible hazards.
3.3 Qualifications required based on the life cycle of the measurement device
WORK QUALIFICATION REQUIRED BY THE PERSONNEL
Transporting the measurement device: Specialized staff for handling the hoisting and transport
equipment. Experience of transporting heavy and bulky goods.
Assembling the measurement device: Specialized staff with relevant vocational training.
Experience of assembling similar measurement devices.
Initial commissioning: Initial commissioning must be carried out by specialized staff at Ryf.
Operating the measurement device: Trained person with relevant specialist knowledge.
Instructions on operating the measurement device.
Maintaining the measurement device: Trained personnel
• Must have received training for the relevant task
• Must have specialist knowledge about measurement devices to complete maintenance
• Must be aware of the dangers of handling measurement devices
Servicing the measurement device: Specialized staff with relevant vocational training. Experience
of servicing similar measurement devices.
Decommissioning the measurement device: Specialized staff for handling the hoisting and
transport equipment. Experience of transporting heavy and bulky goods. Knowledge
of the applicable regulations relating to environmental protection and the disposal of operating
materials at the site.
3.4 Safety and monitoring equipment
The safety and monitoring equipment is designed to protect against personnel injuries and
material damage.
Measurement devices may only be operated when all of the safety and monitoring equipment
is present and fully functional.
Once part of the safety or monitoring equipment has been triggered, the measurement device
may only be placed back into operation once the cause of the fault has been eliminated.
Safety or monitoring equipment may only be removed, changed, disabled or bypassed by qualified
specialized staff as part of temporary interventions during testing, investigations, troubleshooting,
the elimination of damage or faults, and when replacing components. In addition,
these interventions must be safety-related or adequate safety-related contingency measures
must have been implemented.

Operating Instructions Ryeco RMM2010 - CNC
3.5 Noise
If used as intended, a noise level of 70 dB(A) will not be exceeded in the operational environment
of the measurement device.
3.6 Vibrations
No health-related vibrations are emitted by the measurement device.
3.8 General safety notices for the WM1 series
3.8.1 Laser-specific hazards
The following explanations are provided in accordance with the applicable DIN standards
DIN EN 60 825-1 (VDE 0837-1):2015-07 "Safety of laser products" and Accident
Insurance (DGUV) specification 11 "Durchführungsanweisungen Laserstrahlung" ("Operational
instructions for laser radiation").
The positioning laser emits class 2M laser radiation. The available laser radiation is in the
visible spectral range of 400 nm to 700 nm. For short exposure times (up to 0.25 s), it is harmless
to the human eye as long as the cross section of the beam is not decreased with optical
instruments, e.g. magnifying glasses, lenses, telescopes. As long as no optical instruments, that
decrease the cross section of the beam, are used, the risk of class 2M laser devices is
comparable to that of class 2 laser devices.
If the eye is accidentally exposed to the laser radiation of a class 2 laser device for a short period,
i.e. exposure time of up to 0.25 s, it will not be at risk. Class 2 laser devices may therefore
be used without any other safety measures if it can be ensured that the application requires
neither deliberate eye contact of more than 0.25 s nor repeated eye contact with the laser radiation
or the laser radiation reflected by the mirror. Generally, the presence of the eyelid closing
reflex and other aversion responses to protect the eye cannot be assumed. Therefore if class 2
laser radiation strikes the eye, you should consciously close your eyes and turn your head away
immediately.
Warning: The laser emits class 2M laser radiation
Direct contact with the laser beam for a period of more than 0.25 s can damage the eyes.
• Never look into the direct or reflected laser beam.
• If the laser radiation strikes the eye, consciously close your eyes and turn your head away from
the beam immediately.
• No optical instruments, that decrease the cross section of the beam, may be used.
• The positioning laser must not be removed from its fastening, rotated in another direction or
modified or manipulated in any other way.
• The positioning laser must not be used for any other purpose than to position measurement
objects.
• The positioning laser should only be switched on when actually required.
• Any work, that requires the protective housing of the laser system to be removed, must only be
completed by qualified specialized staff from Ryf Ltd.

Operating Instructions Ryeco RMM2010 - CNC
Damaged or ineffective safety equipment and damaged components
Risk of death or serious injuries caused by ineffective safety equipment or damaged components.
• Never operate the measurement device with damaged, ineffective or bypassed safety equipment.
• Check the functionality of the safety equipment before starting work.
• Check measurement device components, the power cable and connector
for any visible damage before starting work. Do not use the measurement device if measurement
device components, the power cable or connector are damaged.
• In the event of any damage, deactivate the measurement device immediately, secure it against
accidental reactivation and inform the responsible department.
DANGER
Dangerous electrical voltage
Risk of a fatal electric shock or serious injuries upon contact with any live
parts.
• Never open the power supply.
• Any defects that are detected on electrical components must be corrected immediately.
• Operating rooms and/or control cabinets must only be opened by an electrician.
• Work on electric components must only be carried out by an electrician. Locally applicable
regulations and guidelines for the installation and operation of electrical systems must be
observed.
• Before completing any work on live components, remove the mains plug to disconnect the power
supply and secure against accidental re-start.
• Parts of the measurement device on which inspection, maintenance and repair work is carried
out, must be disconnected from the power supply, if specified. First of all, check that no voltage is
present in disconnected parts, then ground and short circuit them. Isolate any neighbouring live
parts.
• Check the system's electrical equipment on a regular basis. Defects, such as loose connections
or damaged cables must be eliminated immediately by an electrician.
• Lock away the power cable for the duration of the maintenance work.
• Attach a warning sign to the housing indicating that the measurement device is being maintained.
Risk of a fatal electric shock or serious injuries caused by water in the measurement
device.
• The measurement device must only be cleaned with a dry or, at most, a slightly
moistened cleansing tissue or microfibre cloth.
• It must be ensured that water or any other liquid never penetrates the measurement
device.

Operating Instructions Ryeco RMM2010 - CNC
Hazard caused by the measurement device falling down or tilting during transport
and assembly:
Risk of squashing, shearing or collision.
• Only use the specified attachment points for transport purposes.
• Heavy vibration and shock loads and point loads on the housing of the
measurement device must be avoided.
• Secure the measurement table of the measurement device so that it
cannot spontaneously shift or move during transport. The measurement
table must be fixed/secured with the supplied transport
securing device during transport, also see
• The measurement device must only be installed on a level, sufficiently
load-bearing and sufficiently wide surface.
• Bolt the RMM2010 and base frame together using the supplied transport securing
device.

Operating Instructions Ryeco RMM2010 - CNC
Emergency Stop button (CNC model)
In the event of a hazardous situation, press the Emergency Stop
button on the joystick immediately to stop the axis motion of the
measurement device.
"CLICK"
4.2 Structure of measurement device RMM2010-CNC (CNC
model)
NOTICE
Measurement device RMM2010-CNC is designed according to the latest technology and
currently applicable rules and regulations.
The following figure illustrates an example of a RMM2010- CNC with M3 measurement
and analysis software:
POSITION DESIGNATION
1 Housing
2 Measurement table with glass plate
3 Joystick
4 Camera lens and LED incident light illumination
5 Positioning laser (diode laser)
6 Measurement computer (in this case: all in one HP PC i9)
1
2
3
4
5
6

Operating Instructions Ryeco RMM2010 - CNC
4.3.1 Joystick (CNC model)
The joystick is used to control the axes.
The following figure illustrates an example of the
standard scope of supply:
POSITION DESIGNATION
1 Connection socket
2 Button to switch between "creep speed – normal speed"
3 Axis interlock button
4 Emergency Stop button
5 "GoTo position" button (optional)
6 Z-direction rotating
2
3
1
4
5
6

Operating Instructions Ryeco RMM2010 - CNC
M3

Operating Instructions Ryeco RMM2010 - CNC
4.6.1 Measurements using transmitted light and incident light
All models of the WM1 series can be used for transmitted light and/or incident light
measurements.The following figure provides a schematic overview of both measurement options:

Operating Instructions Ryeco RMM2010 - CNC
5 Installation location, ambient conditions, transport
5.1 Installation location
NOTICE
The measurement device must be installed on a level, sufficiently load-bearing
and sufficiently wide surface.
The installation location for the measurement device must be selected so that no direct light
from windows or lights can penetrate the measurement table of the measurement device.
Additionally, when selecting an installation location it must be ensured that no inductive loads
from fluorescent tubes, welding sets, wire or vertical arc-erosion machines, etc. are connected
as these cause spikes in the power supply system. We therefore recommend using a separate
power supply for the measurement device. If disturbances should arise despite these measures,
an alternating voltage stabilizer or mains filter may be used depending on the type of disturbance
(both are available as accessories; if required, contact the Customer Services team).
5.2 General ambient conditions
The location of the measurement device must be selected to ensure that it is not exposed to
any interferences, such as
• Dust
• Dirt
• Humidity
Vibrations of the measurement device and heat sources in its surrounding area should also be
excluded as these can cause measurement inaccuracies. Certain temperature conditions are required to
meet the specified length measurement uncertainty
5.3 Ambient conditions for transport and storage
Minimum conditions:
• Permissible ambient temperature: 5 °C – 40 °C
• No dust
• No direct sunlight
• No rain and no humidity
5.4 General notes on transport and storage
The following points must be observed to prevent any damage and fatal injuries:
• The glass plate must not be inserted in the measurement device or measurement table
during transport.
• Only use transportation means that are in accordance with the applicable laws, regulations
and provisions of the respective country.
• The measurement device may only be transported by specialized staff who are trained
and qualified for this task.
• The transport vehicle, hoisting equipment and lifting accessories must be designed for
the weight and dimensions of the system components. They must also adhere to the
requirements for safe transport of the measurement device.
• The operating instructions for the hoisting equipment and lifting accessories must be
observed.
• The transport units (measurement device, computer, accessories, etc.) must be transported
to the installation location on transport pallets by the customer.

Operating Instructions Ryeco RMM2010 - CNC

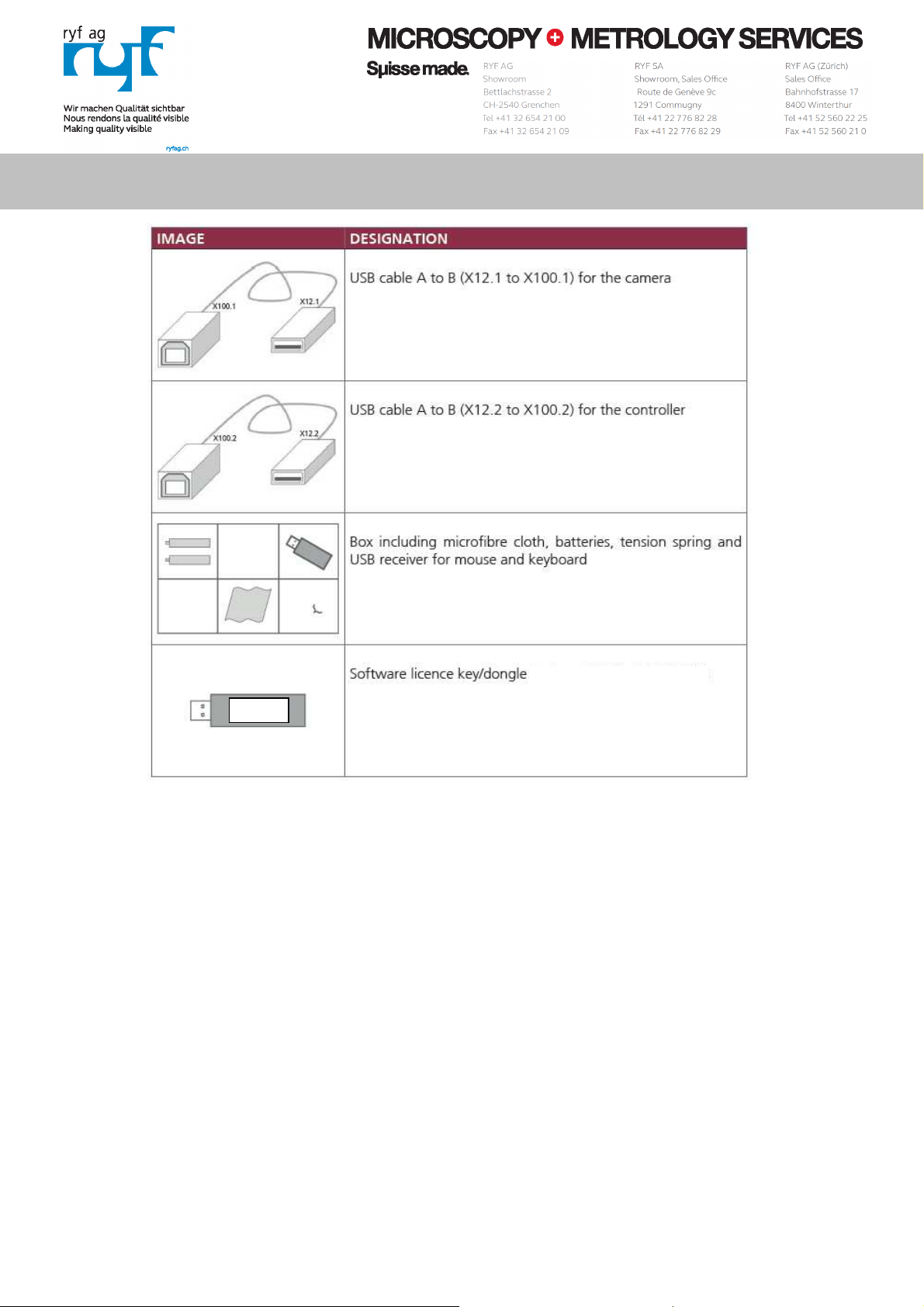

6.0 Connections on the rear of the device (CNC model)
NOTICE
All USB devices should always be connected to the same connection to prevent
any driver conflicts.
The following figure shows an example of the connections on the rear of a CNC-controlled
RMM2010; similar presentation, not to scale:
* On models with an industrial PC instead of a panel PC a FireWire connection may be used for
the camera instead of a USB connection. Designation X100.1 is retained.
6.0.1 Connections on the joystick (CNC model)
The following figure shows an example of the connections on the joystick of a CNC-controlled
WM1; similar presentation, not to scale:
6.1 Connections on the measurement computer
The following figure shows an example of the connections on a Panel PC; similar presentation,
not to scale:
* On models with an industrial PC instead of a panel PC a old FireWire connection may be used for
the camera instead of a USB2 or USB3 connection. The designation changes from X12.1 to X12.39).

Operating Instructions Ryeco RMM2010 - CNC
7.0 Activation and startup
1. Connect the multiple socket extension lead
2. Switch on the measurement computer
►► The measurement computer and Windows operating system start up
3. Log in to Windows using the "User" account
4. Models with M3 measurement software: Click on the "M3" icon on the desktop to start M3
►► The M3 measurement software opens
6. Log in as the "Super User" (password: superuser) or "User" (no password required) and click on
"Complete"
►► A reference run must be completed (see below)
7.1 Completing a reference run (models with M3)
NOTICE
Every time the computer is restarted and every time the power supply is interrupted, the M3 measurement
software automatically indicates that a reference run must be completed. This reference run is mandatory
and cannot be skipped.
7.1.1 Manual models
1. The following notification windows are displayed successively indicating that a reference run is necessary
and providing the relevant instructions:
2. Complete the reference run by moving the measurement table along the X- and Y-axis using the
handwheel and the camera lens along the Z-axis using the handhweel.
►► The M3 measurement software is available following the reference run.
7.1.2 CNC models
1. An input window indicating that a reference run is required appears:
2. Check that the Emergency Stop button on the joystick is unlocked.
3. Acknowledge the input window by pressing the "Start" button.
►► The reference run is completed automatically.
►► The M3 measurement software is available following the reference run.
7.2 Completing a measurement
NOTICE
The measurement object must be free of any impurities and must not wobble or move when the
measurement table is moved, as the measurement result will otherwise be distorted.
1. Position measurement object or sample workpiece on the glass plate.
2. Secure measurement object, if necessary.
3. Ensure that the edge of the workpiece is in focus on the screen; move the Z-axis for this purpose.
Generally, the upper edge of the workpiece should be in focus.
4. The measurement can now be started.

Operating Instructions Ryeco RMM2010 - CNC
Information on operating and handling the M3 measurement software is provided in the
supplied "M3" operating instructions.
7.2.1 Correct positioning of measurement objects
Depending on their shape and condition, measurement objects or workpieces should be aligned
at a right angle to the measurement table, as the measurement result may otherwise be distorted.
For this purpose, it may be sensible to mount or install holding devices or clamping
tools (e.g. stop bracket, prism, center supports) on the measurement table. The T-slots on the
measurement table or edges of the measurement table itself can be used as alignment aids.

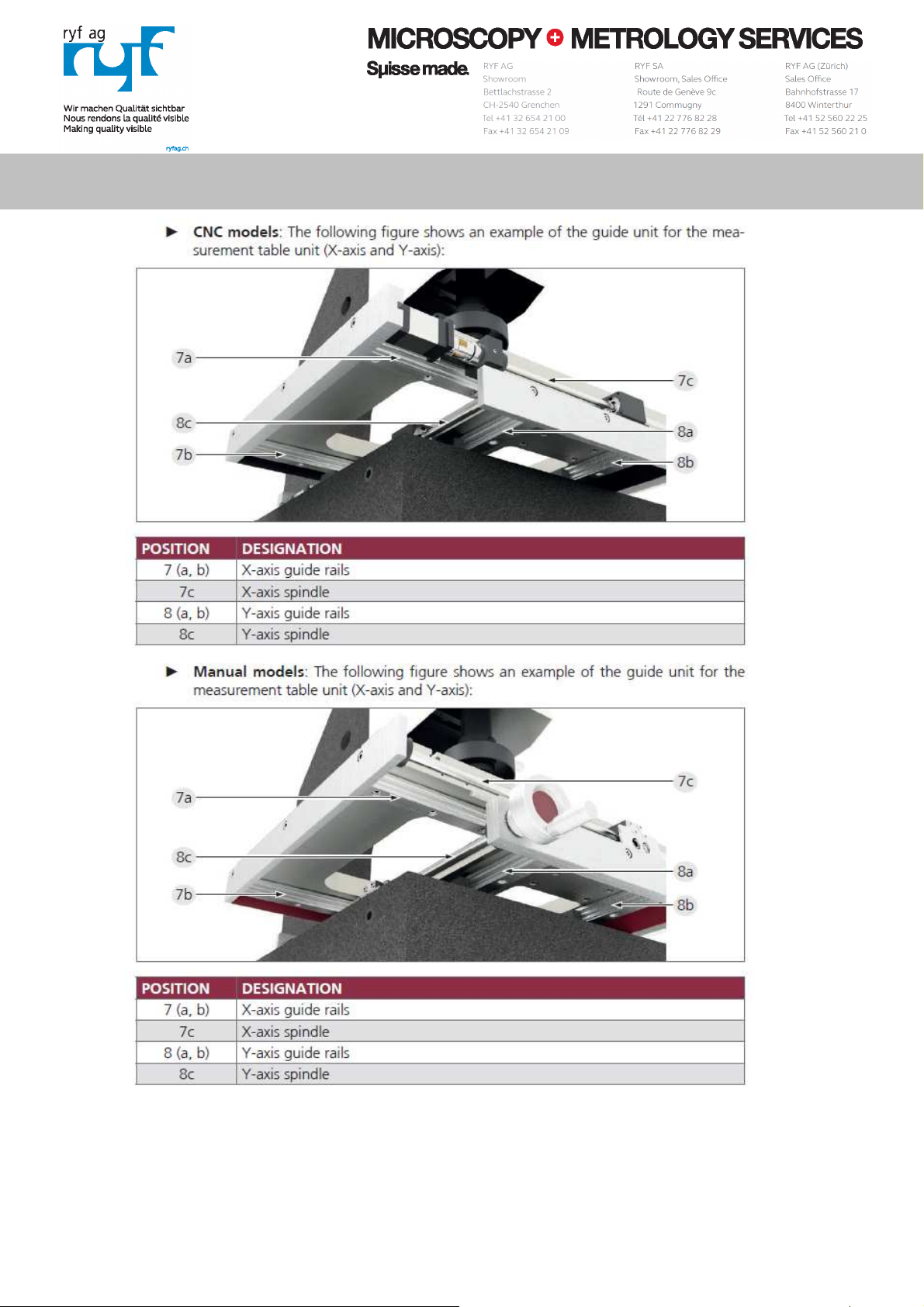

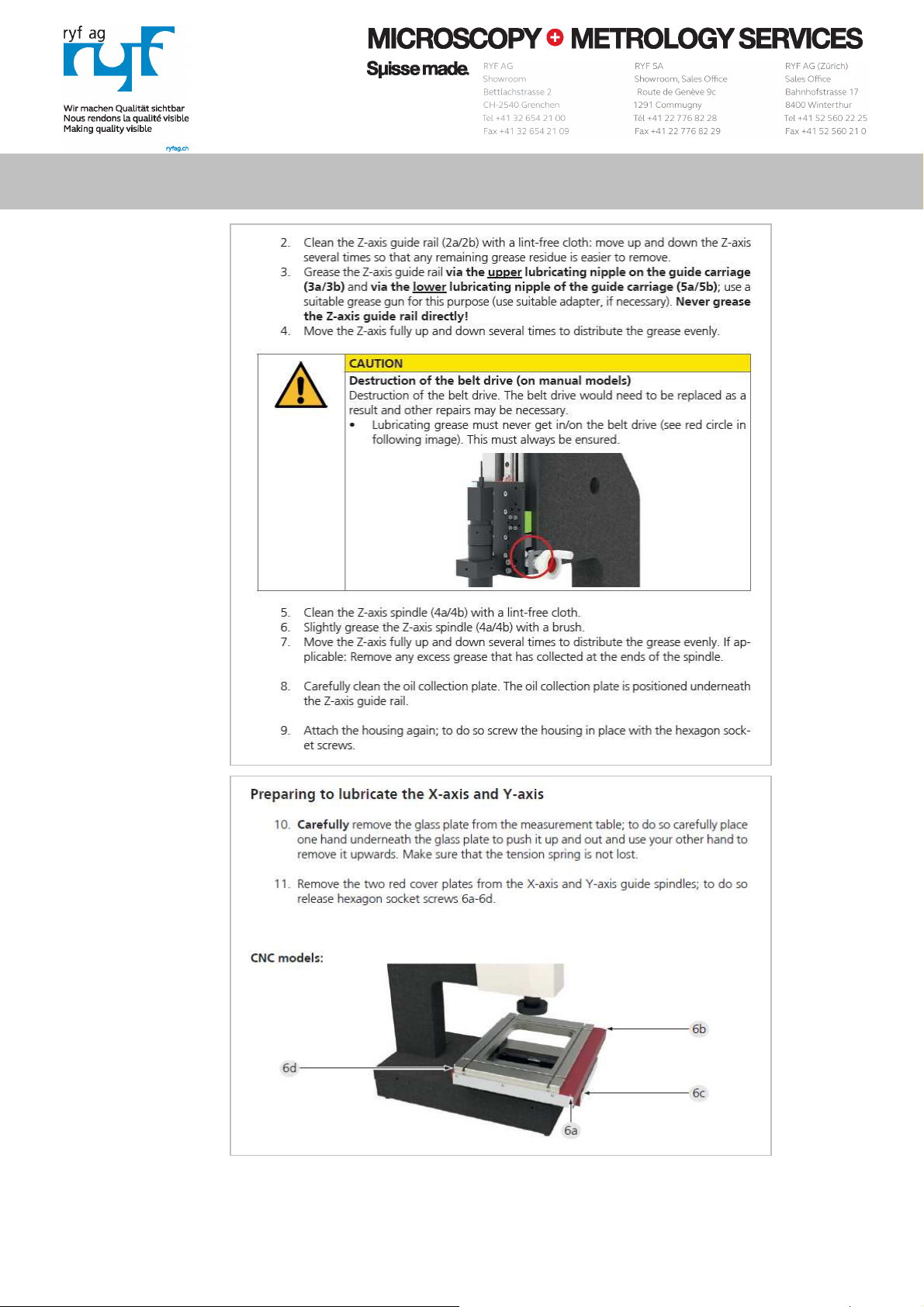

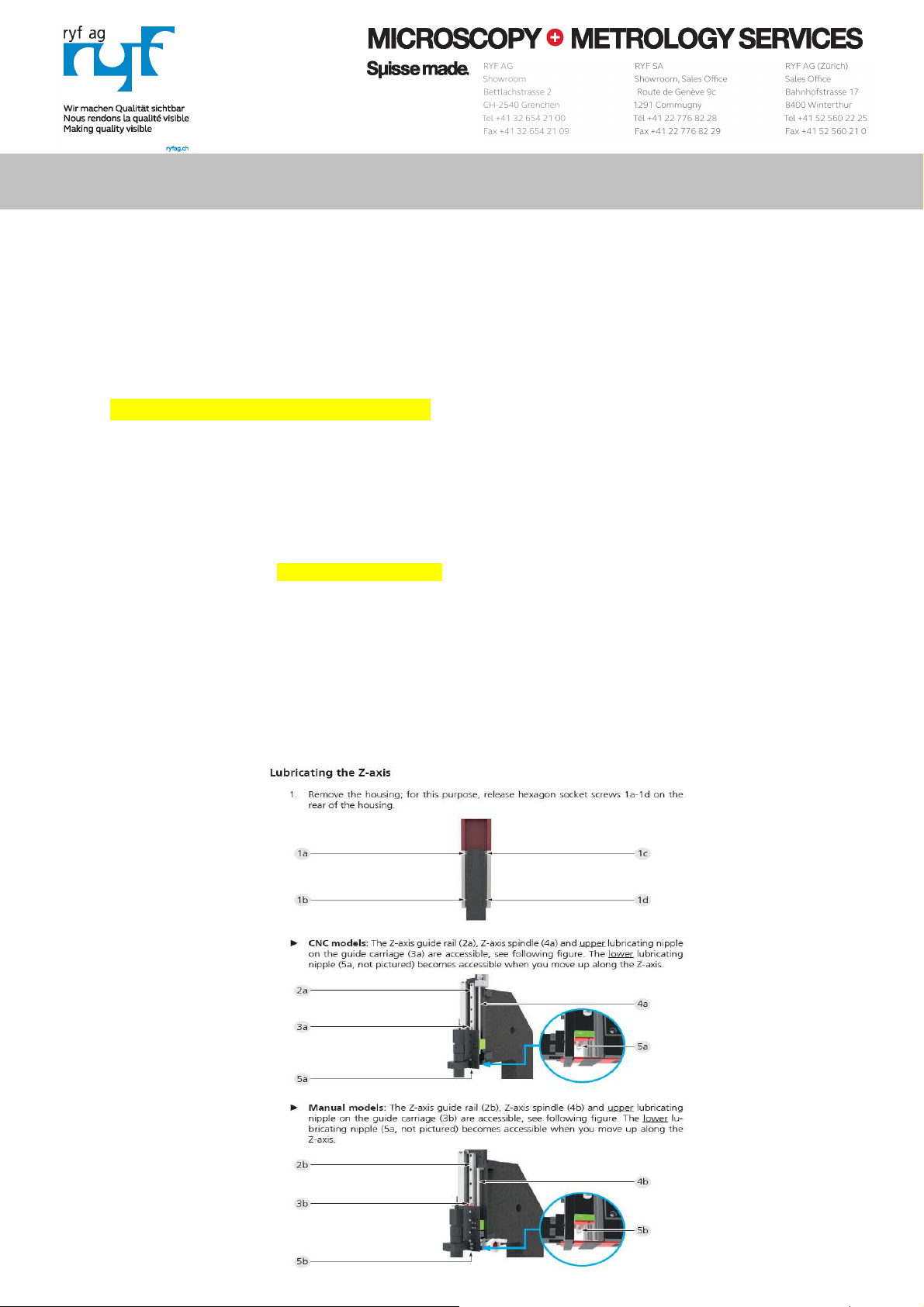

8 Maintenance of the RMM2010 CNC
Only specialised staff is authorised to complete maintenance work on the measurement device.
Maintenance work must be completed in the presence of a person who is trained at Ryf Ltd. to operate the
measurement device. All of the work must be completed in accordance with applicable provisions and
protective regulations to safeguard any warranty claims.
The functional parts inside the device are cleaned as part of the maintenance/
inspection work completed by the Customer Services team at Ryf AG in Switzerland.
We recommend that the measurement device is checked, maintained and
adjusted, if required, on an annual basis (1 x / year). Please contact Customer
Services to arrange this (tel [phone].)
The optical components (lens, condenser of LED transmitted light) should always be free from oil, dust and
finger prints. Therefore do not touch optical components directly with your hands. Only use a soft cleansing
tissue (e.g. "Kleenex® Original" or ask at Ryf Ltd.) to clean optical components.
The checks and maintenance work detailed in the following must be performed, without exception, at the
required intervals by specialised staff
8.1.1 Lubrication of guiding units
All of the guide units on the measurement table unit have highly accurate, pre-tensioned bearings.
They are sensitive to dirt, dust and humidity. Absolute cleanliness must therefore be ensured in the vicinity of
the guides. Check guide units once a year and lubricate slightly, if required. A grease gun is required for
certain work steps (a suitable adapter may be required for the lubricating nipple).

Operating Instructions Ryeco RMM2010 - CNC

Operating Instructions Ryeco RMM2010 - CNC
Lubricating the X-axis and Y-axis spindles
12. Clean the X-axis spindle (7c) with a lint-free cloth: move up and down the X-axis several times so that any remaining
grease residue is easier to remove.
13. Slightly grease the X-axis spindle (7c) with a brush.
14. Move the X-axis fully up and down several times to distribute the grease evenly. If applicable:
Remove any excess grease that has collected at the ends of the spindle.
15. Clean the Y-axis spindle (8c) with a lint-free cloth: move up and down the Y-axis several times so that any remaining
grease residue is easier to remove.
16. Slightly grease the Y-axis spindle (8c) with a brush.
17. Move the Y-axis fully up and down several times to distribute the grease evenly. If applicable:
Remove any excess grease that has collected at the ends of the spindle.

Operating Instructions Ryeco RMM2010 - CNC
18. Clean both of the X-axis guide rails (7a, 7b) with a lint-free cloth: move up and down
the X-axis several times so that any remaining grease residue is easier to remove.
19. Slightly grease both of the X-axis guide rails (7a, 7b) with a brush.
20. Move the X-axis fully up and down several times to distribute the grease evenly. If applicable:
Remove any excess grease that has collected at the ends of the rails.
21. Clean both of the Y-axis guide rails (8a, 8b) with a lint-free cloth: move up and down the Y-axis several
times so that any remaining grease residue is easier to remove.
22. Slightly grease both of the Y-axis guide rails (8a, 8b) with a brush.
23. Move the Y-axis fully up and down several times to distribute the grease evenly. If applicable:
Remove any excess grease that has collected at the ends of the rails.

Operating Instructions Ryeco RMM2010 - CNC
8.2 Troubleshooting and fault elimination
Any "Service" work must be completed by the Customer Services team at
Ryf Ltd. as additional alignment or calibration work and special tools are required.
The following faults can occur on manual and/or CNC models:
