Ryf ryeco RyecoCam 4000 User manual

Manual for: RyecoCam 4000 Digital-Microscope
RYF AG Zürich
Showroom,/Sales office
Im Hanselmaa 10
CH-8132 Egg / Uster
Tel [phone]
R-FHD-4000-1001
Instruction Manual (mode d’emploi)

Manual for: RyecoCam 4000 Digital-Microscope
RYF AG Zürich
Showroom,/Sales office
Im Hanselmaa 10
CH-8132 Egg / Uster
Tel [phone]
Before starting the turn key system system pleas resde the software manual.
1. Press ON/OFF Button to start the camera and the LED Indicator will turn into blue;
2. Open ImageView software, start the RyecoCam-4000 by clicking the camera model name listed in Camera List.
For more details please refer to the ImageView help manual
3. Plug a USB mouse into USB Mouse to get control of the camera by using built-in software XCamView;
4. Insert SD card into SD Card Slot for saving captured images and recorded videos;
5. Move mouse cursor to the left side of the video window, a Camera Control Panel will appear. It includes Manual/
Automatic Exposure, White Balance, Sharpness and other functions, please refer for details;
7. Move mouse cursor to the bottom of the video window and a System Camera Control Toolbar will appear.
Operations like Zoom In, Zoom Out, Flip, Freeze, Cross Line and Comparison can be realized. Please refer for
details;
8. Move mouse cursor to the upper side of the video window, a Measurement Toolbar with calibration and other
measurement tools will appear, please refer to 8.3 for details; The measurement data can be output with *.CSV
format..

Manual for: RyecoCam 4000 Digital-Microscope
RYF AG Zürich
Showroom,/Sales office
Im Hanselmaa 10
CH-8132 Egg / Uster
Tel [phone]

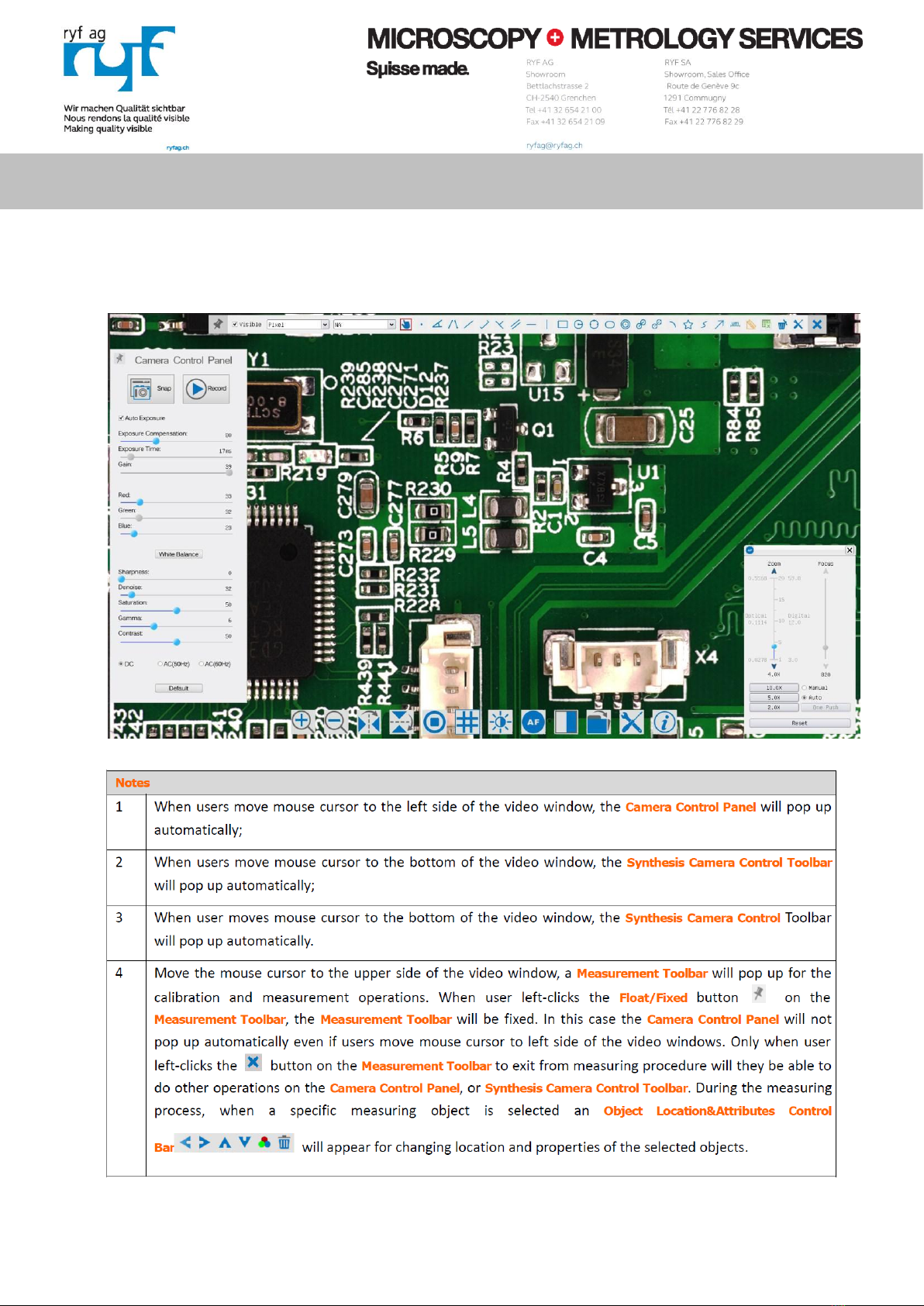

Brief Introduction of Ryecocam UI and Its Functions
The RyecoCam 4000 UI shown in Fig. 2 includes a Camera Control Panel on the left side of the video
window, a Measurement Toolbar on the upper side of the video window, a System Camera Control
Toolbar on the bottom of the video window.

Manual for: RyecoCam 4000 Digital-Microscope
RYF AG Zürich
Showroom,/Sales office
Im Hanselmaa 10
CH-8132 Egg / Uster
Tel [phone]

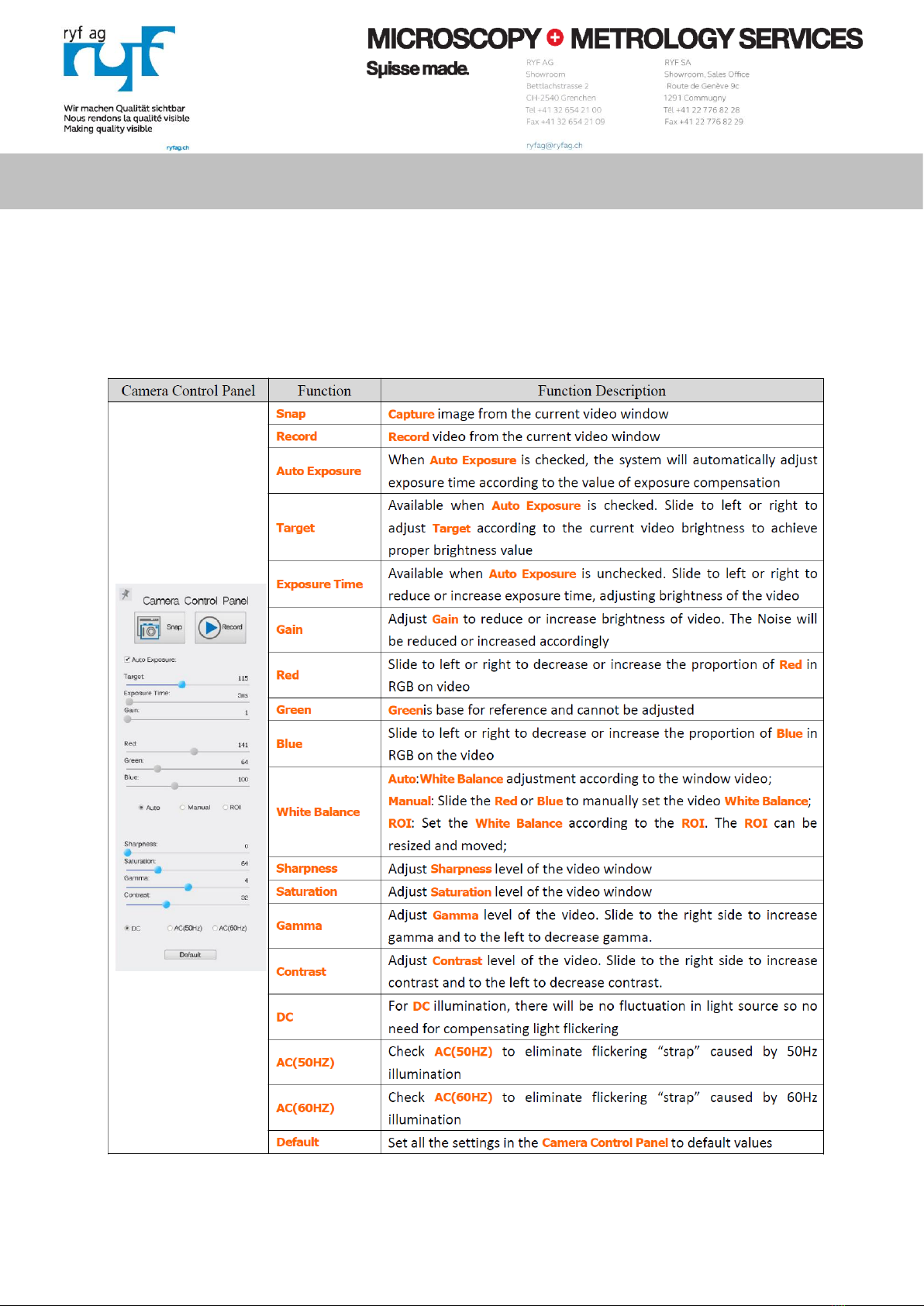

The Camera Control Panel on the Left Side of the Video Window
The Camera Control Panel controls the camera to achieve the best image quality according to the specific
applications; It will pop up automatically when mouse cursor is moved to the left side of the video window (in
measurement status, the Camera Control Panel will not pop up. Only when measurement process is
terminated will the Camera Control Panel pop up by moving mouse cursor to the left side of the video
window). Left-clicking button to achieve Display/ Auto Hide switch of the Camera Control Panel;

Manual for: RyecoCam 4000 Digital-Microscope
RYF AG Zürich
Showroom,/Sales office
Im Hanselmaa 10
CH-8132 Egg / Uster
Tel [phone]
Icons and Functions of the Synthesis Camera Control Toolbar at the Bottom of the
Video Window:
The Setting function is relatively more complicated than the other functions. Here are more info about
it:
Global：Used for setting digits behind the decimal point for measurement results;
Calibration Line Width: Used for defining width of the lines for calibration;
Color: Used for defining color of the lines for calibration;
EndPoint: Type: Used for defining shape of the endpoints of lines for calibration: Null
means no endpoints, rectangle means rectangle type of endpoints. It makes
alignment more easily;
Point, Angle, Line, Horizontal Line, Vertical Line, Rectangle, Circle, Ellipse, Annulus, Two Circles,
Polygon, Curve:
Left-click the besides the measuring patterns mentioned above will unfold the corresponding attribute
settings to set the individual property of the measuring objects.

Manual for: RyecoCam 4000 Digital-Microscope
RYF AG Zürich
Showroom,/Sales office
Im Hanselmaa 10
CH-8132 Egg / Uster
Tel [phone]
Figure: Comprehensive Magnification Calibration Management Settings Page
Name: Names such as 10X, 40X, 100X are based on magnification of the microscopes. For
continuous zoom microscopes, ensure that the selected magnification coincides with
the scale alignment line on the microscope zoom knob;
Resolution: Pixels per meter. Devices like microscopes have high resolution value;
Clear All: Click the Clear All button will clear the calibrated magnifications and resolutions;
Delete: Click Delete to delete the selected item for specific resolution; Figure 5
Comprehensive Setting of SD Card Setting Page
Current File System: The maximum file FAT32 can store is of 4G Bytes; for EXFAT, it’s 2048G Bytes.
Suggest converting FAT32 file into EXFAT format on a PC; Unknown Status: SD card not detected or the
file system is not identified.

Manual for: RyecoCam 4000 Digital-Microscope
RYF AG Zürich
Showroom,/Sales office
Im Hanselmaa 10
CH-8132 Egg / Uster
Tel [phone]

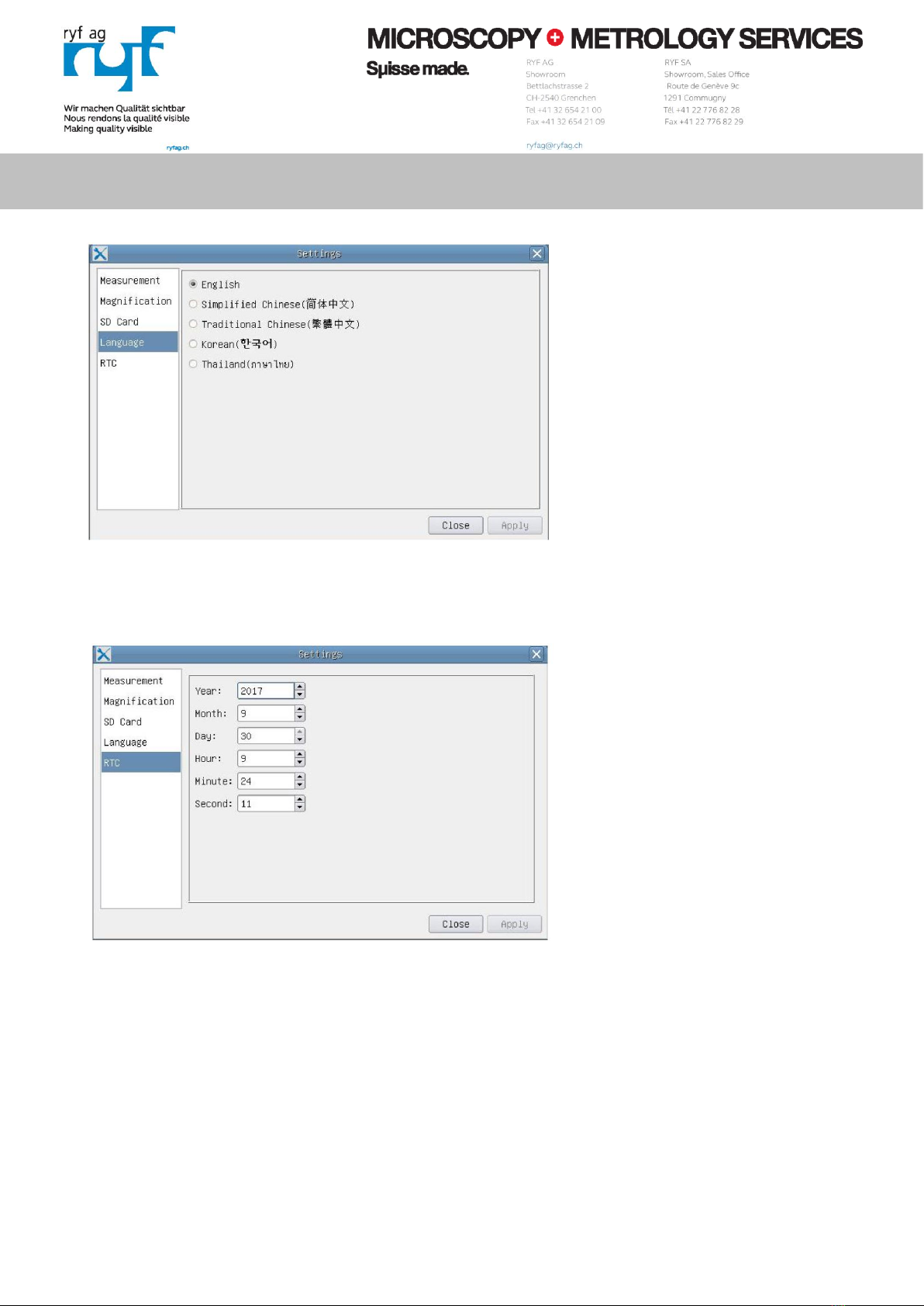

Figure Rycocam FHD Comprehensive Setting of Language Selection Setting Page
English: Set language of the whole software into English (only in English / August 2022;
Figure: The Real Time Clock Setting
Year: Current Year
Month: Current Month
Day: Current Day
Hour: Current Hour
Minute: Current Minute
Second: Current Second

Manual for: RyecoCam 4000 Digital-Microscope
RYF AG Zürich
Showroom,/Sales office
Im Hanselmaa 10
CH-8132 Egg / Uster
Tel [phone]
The Measurement Toolbar on the Upper Side of the Video Window
The Measurement Toolbar will pop up when moving mouse cursor to any place near the upper side of the
video window. Here are the introduction of the various functions on the Measurement Toolbar:
Die Mess-Symbolleiste wird angezeigt, wenn Sie den Mauszeiger an eine beliebige Stelle am oberen Rand:
Figure: The Measurement Toolbar Button on the Upper Side of the Video window

Manual for: RyecoCam 4000 Digital-Microscope
RYF AG Zürich
Showroom,/Sales office
Im Hanselmaa 10
CH-8132 Egg / Uster
Tel [phone]
Zoom factor:
Magnification:
Step 1 =
1.7x
Step 20 =
34x
Steples adusjable from 1x to 20x with the mouse in the
Software.
(Digital zoom max. 340x)
Pre-calibrated are: 2x, 5x und 10x
WD= 196mm ergibt FOV max. of 185mm x 104mm
WD= 196mm ergibt FOV min. of 1.2mm x 0.67mm
When user left-clicks Display/Hide button on the Measurement Toolbar, the Measurement
Toolbar will be fixed. In this case the Camera Control Panel will not pop up automatically even if
moving mouse cursor to the left side of the video window. Only when users left click the “X” button
on the Measurement Toolbar to exit from the measurement mode will they be able to doing other
operations in the Camera Control Panel, the Auto Focus Control Panel or the Camera Control
Toolbar.
When a specific measuring object selected during the measuring process, the Object Location
and Attributes Control Bar will appear for changing the object location and
properties of the selected objects.

Manual for: RyecoCam 4000 Digital-Microscope
RYF AG Zürich
Showroom,/Sales office
Im Hanselmaa 10
CH-8132 Egg / Uster
Tel [phone]
RyecoCam-4000 Full HD Digital Microscope:
Eyepiece-less, compact video zoom system in HDMI quality
with very good price/performance ratio. Full HD live images in
1920 x 1080P and 30/60 fps.
Very large working distance (196mm) and a motorized 20x
zoom (1:20x / mag. from 0.028x -0.56x).
The extremely large field of view from 200mm x 112m to
10mm x 5.6mm with the largest magnification.
Working distance is possible from 156mm to 196mm.
Easy operation/control via mouse:
- Controllable via Cordless USB Mouse
- 2 pieces USB 2.0 port for Wi-Fi mouse, etc.
- Photo recording in JPEG format 2MP to SD card
- Video recording (with 1080P) 30 B/sec. To SD card
- Fast image saving (via SD card)
- Crosshairs may be showed
- Simple comparison measurement software
Zoom system (optical):
- Magnification range 1.7x to 34x*,optical with 15" FHD
monitor (*with the digital zoom x 10*)
- Working distance standard: AA=196mm
- At min. magnification = 200 x 112mm field of view
- At max. magnification = 10 x 5.6mm field of view
- *Digital zoom max. magnification of 340x
LED lighting system:
Attached ring LED illumination Ryf NKl-12 LED
with built-in Ryf special diffuser, continuously
adjustable for shadow-free illumination.
Full HD / HDMI industrial camera:
- FHD resolution 1920x1080 / 30/60 fps
- Sensor Sony 1/2.8" // Pixel size 2.9 x 2.9um
- Frame rate 60 frames/sec (fast frame rate)
- Image storage and data storage via SD card
- Output: HDMI signal, USB and with SD card
slot.
LCD Screen:
- 15" LCD, Full HD 16:9 color monitor,
1920x1080P (size = 345mm x 195mm)
Ryeco by Ryf mit Swiss Garantie / Swiss
Service
www.ryfag.ch
R-FHD-4000-1001 RyecoCam 4000 digital microscope
Consisting of digital camera with magnification range from 1.7x to 34x, working distance of 196 mm,
Full HD camera with HDMI output, resolution 1920x1080P, sensor 1/2.8", image rate 60 fps, interface
2x USB and 1x SD slot, stand with focus drive (Nikon), 15" LCD color monitor, LED ring light Ryf NKL-
12 LED, including SD card and Wi-Fi mouse.
Ryf Ryeco Swiss Warranty & Service Package & Assembly / Calibration
SAP order number: R-FHD-4000-1001
www.ryfag.ch
Dimensions: L= 370mm /.280mm x t= 395mm x h= 620mm max.
