Ryobi Autoshift CDA1802 Operation manual

CDA1802
AUTOSHIFTTM DRILL DRIVER
OWNER’S OPERATING MANUAL
9611067192-01.indd A19611067192-01.indd A1 5/29/09 11:25:46 AM5/29/09 11:25:46 AM

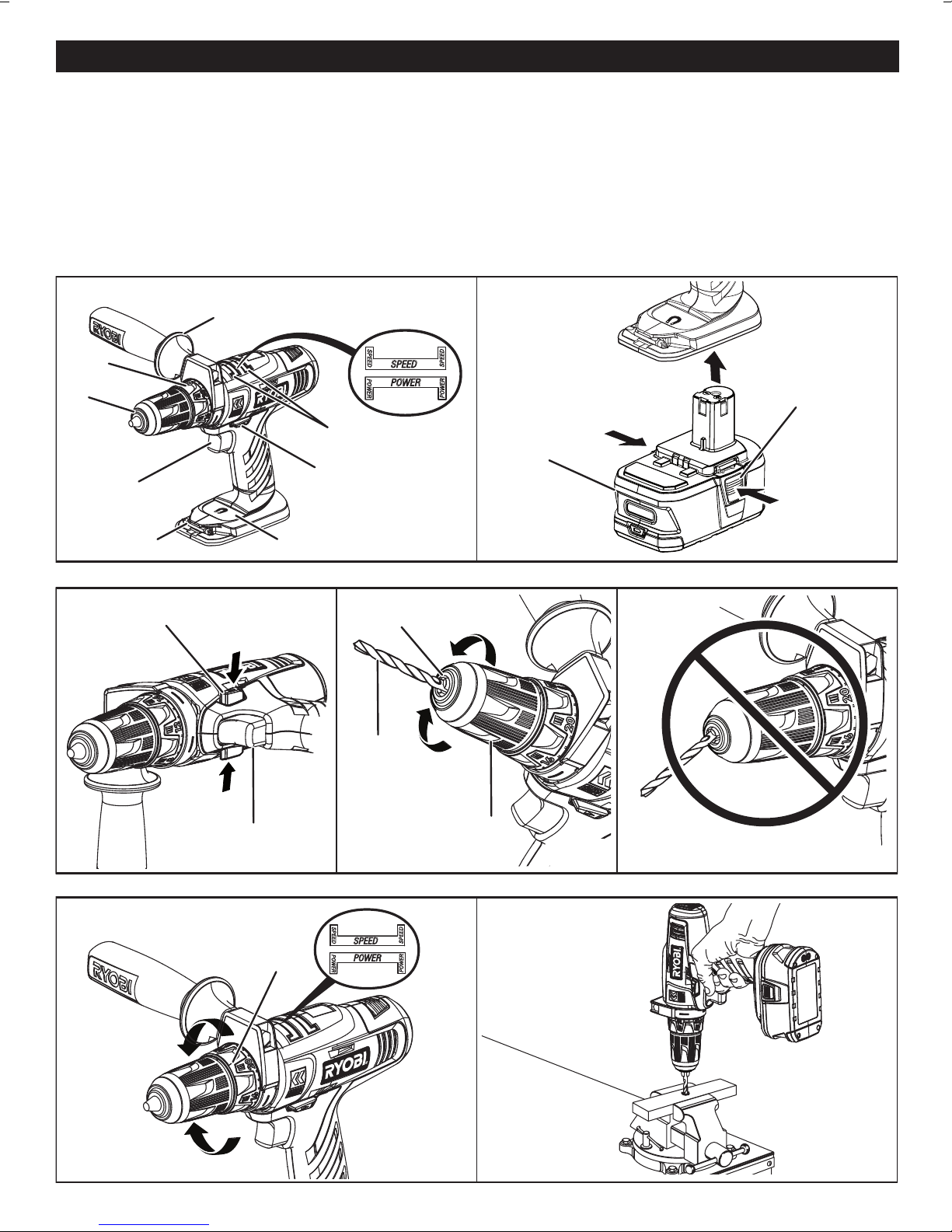

DESCRIPTION
1. Keyless Chuck
2. Torque Adjusting Ring
3. Auxiliary Handle
4. AUTOSHIFTTM indicators
5. Rotation Selector
(Forward/Reverse/Center Lock)
6. Magnetic TrayTM
7. Double-Ended Bits
8. Switch Trigger
9. Battery Pack (not included)
10. Latches
11. Depress Latched To Release Battery Pack
12. Reverse
13. Forward
14. Drill Bit
15. Chuck Jaws
16. Lock (Tighten)
17. Unlock (Release)
18. To Decrease Torque
19. To Increase Torque
SPEED
SPEED
SPEED
POWER
POWER
POWER
SPEED
SPEED
SPEED
POWER
POWER
POWER
Fig. 1
Fig. 3 Fig. 4 Fig. 5
Fig. 6 Fig. 7
Fig. 2
1
2
3
4
5
6
7
8
9
10
11
11
5
8
12
13
14
15
1
16
17
2
18
19
4
9611067192-01.indd A29611067192-01.indd A2 5/29/09 11:25:46 AM5/29/09 11:25:46 AM

Important!
It is essential that you read the instructions in this manual before
operating this machine.
Subject to technical modifications
9611067192-01.indd A39611067192-01.indd A3 5/29/09 11:25:48 AM5/29/09 11:25:48 AM

1
English
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious
injury.
Save all warnings and instructions for future reference.
The term “power tool’’ in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
WORK AREA SAFETY
■Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
■Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools
create sparks which may ignite dust or fumes.
■Keep children and bystanders away while
operating a power tool. Distractions can cause you
to lose control.
ELECTRICAL SAFETY
■Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed(grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
■Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
■Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase
the risk of electric shock.
■Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
■When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
nIf operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk
of electric shock.
PERSONAL SAFETY
■Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
■Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
■Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
■Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result
in personal injury.
■Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
■Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
■If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
POWER TOOL USE AND CARE
■Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
■Do not use the power tool if the switch does not
turn it on and off. Any power tool that can not be
controlled with the switch is dangerous and must be
repaired.
■Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
■Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
■Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tool's operation. If damaged, have the power tool
repaired before use. Many accidents are caused by
poorly maintained power tools.
9611067192-01.indd 19611067192-01.indd 1 5/29/09 11:25:48 AM5/29/09 11:25:48 AM

2
English
GENERAL POWER TOOL SAFETY WARNINGS
■Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
■Use the power tool, accessories and tool bits etc.,
in accordance with these instructions and in the
manner intended for the particular type of power
tool, taking into account the working conditions
and the work to be performed. Use of the power tool
for operations different from intended could result in a
hazardous situation.
BATTERY TOOL USE AND CARE
■Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used
with another battery pack.
■Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
■When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws, or other small metal objects that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a fire.
■Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or
burns.
SERVICE
■Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
nThis appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervi-
sion or instruction concerning use of the appliance
by a person responsible for their safety. Children
should be supervised to ensure that they do not
play with the appliance.
nThis appliance is not intended for use by young
children or infirm persons unless they have been
adequately supervised by a responsible person to
ensure that they do not play with the appliance.
nKeep children and visitors away. Visitors should
wear safety glasses and be kept a safe distance from
work area. Do not let visitors contact tool or extension
cord.
nComplies with AS/NZS 60335.
SPECIAL SAFETY RULES
■Use auxiliary handle supplied with the tool. Loss of
control can cause personal injury.
INSTRUCTIONS FOR SAFE HANDLING
■Make sure that the tool is only connected to the
voltage marked on the name plate.
■Never use the tool if its cover or any bolts are missing.
If the cover or bolts have been removed, replace them
prior to use. Maintain all parts in good working order.
■Always secure tools when working in elevated
positions.
■Never touch the blade, drill bit, grinding wheel or
other moving parts during use.
■Never start a tool when its rotating component is in
contact with the work piece.
■Never lay a tool down before its moving parts have
come to a complete stop.
■ACCESSORIES : The use of accessories or
attachments other than those recommended in this
manual might present a hazard.
■REPLACEMENT PARTS : When servicing use only
identical replacement parts.
SPECIFICATIONS
Voltage 18 V
Chuck (mm) 2-13
Switch Variable speed
No load speed (drill mode):
- Lo speed 0 - 450 min-1
- Hi speed 0 - 1500 min-1
Clutch 24 Positions
Max. Torque (Nm) 55
Max. Spade Bit (mm) 38
Weight - not incl.battery pack (KG) 1.89
9611067192-01.indd 29611067192-01.indd 2 5/29/09 11:25:49 AM5/29/09 11:25:49 AM

3
English
SPECIFICATIONS
MODEL BATTERY PACK
(not included)
CHARGER
(not included)
CDA1802
BPL-1820
BPL-1815
ABP1801
BCL-1800
BCS618
BATTERY PACK
(not included)
CHARGER
(not included)
ABP1801 ACR-180
OPERATION
WARNING
Do not allow familiarity with products to make you
careless. Remember that a careless fraction of a
second is sufficient to inflict serious injury.
WARNING
Always wear safety goggles or safety glasses with
side shields when operating products. Failure to
do so could result in objects being thrown into your
eyes, resulting in possible serious injury.
WARNING
Do not use any attachments or accessories
not recommended by the manufacturer of this
product. The use of attachments or accessories
not recommended can result in serious personal
injury.
APPLICATIONS
You may use this product for the purposes listed below:
■Drilling in all types of wood products (lumber,
plywood, panelling, composition board, and hard
board)
■Drilling in ceramics, plastics, fiberglass, and laminates
■Drilling in metals
■Mixing paint
This product will accept Ryobi One+ 18 V lithium-ion
battery packs and Ryobi One+ 18 V nickel-cadmium
battery packs.
WARNING
Always remove battery pack from your drill when
you are assembling parts, making adjustments,
assembling or removing bits, cleaning,
or when not in use. Removing the battery pack
will prevent accidental starting that could cause
serious personal injury.
BATTERY PROTECTION FEATURES
Ryobi 18 V lithium-ion batteries are designed with
features that protect the lithium-ion cells and maximize
battery life. Under some operating conditions, these
built-in features may cause the battery and the tool it is
powering to act differently from nickel-cadmium batteries.
During some applications, the battery electronics may
signal the battery to shut down, and cause the tool to
stop running. To reset the battery and tool, release the
trigger and resume normal operation.
NOTE: To prevent further shut down of the battery, avoid
forcing the tool.
If releasing the trigger does not reset the battery and
tool, the battery pack is depleted. If depleted, the battery
pack will begin charging when placed on the lithium-ion
charger.
TO INSTALL BATTERY PACK
See Figure 2.
■Place the rotation selector in the centre lock position.
■Insert the battery pack into the product as shown.
■Make sure the latches on each side of the battery
pack snap in place and that battery pack is secured in
the product before beginning operation.
TO REMOVE BATTERY PACK
■Depress the latches on each side of the battery pack.
■Remove the battery pack from the drill.
WARNING
Battery products are always in operating
condition. Therefore, the switch should always be
locked when not in use or carrying at your side.
SWITCH TRIGGER
See Figure 3.
To turn the drill ON, depress the switch trigger. To turn it
OFF, release the switch trigger.
VARIABLE SPEED
The variable speed switch trigger delivers higher speed
with increased trigger pressure and lower speed with
decreased trigger pressure.
NOTE: You might hear a whistling or ringing noise from
the switch during use. Do not be concerned; this is a
normal part of the switch function.
9611067192-01.indd 39611067192-01.indd 3 5/29/09 11:25:49 AM5/29/09 11:25:49 AM

4
English
OPERATION
DIRECTION OF ROTATION SELECTOR
(FORWARD/REVERSE/CENTER LOCK)
See Figure 3.
The direction of bit rotation is reversible and is controlled
by a selector located above the switch trigger. With the
drill held in normal operating position, the direction of
rotation selector should be positioned to the left of the
switch trigger for forward drilling. The drilling direction is
reversed when the selector is to the right of the switch
trigger.
Setting the switch trigger in the OFF (center lock) position
helps reduce the possibility of accidental starting when
not in use.
CAUTION:
To prevent gear damage, always allow the chuck
to come to a complete stop before changing the
direction of rotation.
To stop the drill, release the switch trigger and allow the
chuck to come to a complete stop.
NOTE: The drill will not run unless the direction of rotation
selector is pushed fully to the left or right.
Avoid running the drill at low speeds for extended periods
of time. Running at low speeds under constant usage
may cause the drill to become overheated. If this occurs,
cool the drill by running it without a load and at full speed.
KEYLESS CHUCK
See Figure 4.
The drill has a keyless chuck to tighten or release drill
bits in the chuck jaws. The arrows on the chuck indicate
which direction to rotate the chuck body in order to LOCK
(tighten) or UNLOCK (release) the drill bit.
WARNING
Do not hold the chuck with one hand and use the
power of the drill to tighten the chuck jaws on the
drill bit. The chuck body could slip in your hand,
or your hand could slip and come in contact with
the rotating drill bit. This could cause an accident
resulting in serious personal injury.
INSTALLING BITS
See Figures 4 - 5.
■Lock the switch trigger by placing the direction of
rotation selector in the center position.
■Open or close the chuck jaws to a point where the
opening is slightly larger than the bit size you intend
to use. Also, raise the front of the drill slightly to keep
the bit from falling out of the chuck jaws.
■Insert the drill bit.
WARNING
Make sure to insert the drill bit straight into the
chuck jaws. Do not insert the drill bit into the
chuck jaws at an angle then tighten, as shown
in figure 9. This could cause the drill bit to be
thrown from the drill, resulting in possible serious
personal injury or damage to the chuck.
■Tighten the chuck jaws securely on the bit.
NOTE: Rotate the chuck body in the direction of the
arrow marked LOCK to close the chuck jaws. Do not
use a wrench to tighten or loosen the chuck jaws.
REMOVING BITS
See Figure 4.
■Lock the switch trigger by placing the direction of
rotation selector in the center position.
■Open the chuck jaws.
NOTE: Rotate the chuck body in the direction of the
arrow marked UNLOCK to open the chuck jaws. Do
not use a wrench to tighten or loosen the chuck jaws.
■Remove the drill bit.
ADJUSTABLE TORQUE CLUTCH
This product is equipped with an adjustable torque
clutch for driving different types of screws into different
materials. The proper setting depends on the type of
material and the size of screw you are using.
ADJUSTING TORQUE
See Figure 6.
There are twenty-four torque indicator settings located on
the front of the drill.
■Rotate the adjusting ring to the desired setting.
• 1 - 4 For driving small screws
• 5 - 8 For driving screws into soft material
• 9 - 12 For driving screws into soft and hard
materials
• 13 - 16 For driving screws into hard wood
• 17 - 20 For driving large screws
• 21- For heavy drilling
AUTOSHIFT™
See Figure 6.
During drilling, if the load increases so that more torque
is required, the drill automatically shifts from high speed
to low speed.
9611067192-01.indd 49611067192-01.indd 4 5/29/09 11:25:49 AM5/29/09 11:25:49 AM

5
English
OPERATION
The green “SPEED” LED will light when the switch trigger
is depressed.
The blue “POWER” LED indicates that more torque is
required and the drill has automatically shifted into low
speed.
The variable speed switch trigger should be used to
control speed.
DRILLING
See Figure 7.
■Check the position of rotation selector for the correct
setting (forward or Reverse).
■Secure the material to be drilled in a vise or with
clamps to keep it from turning as the drill bit rotates.
■Hold the drill firmly and place the bit at the point to be
drilled.
■Depress the switch trigger to start the drill.
■Move the drill bit into the workpiece, applying only
enough pressure to keep the bit cutting. Do not force
the drill or apply side pressure to elongate a hole. Let
the tool do the work.
WARNING
Be prepared for binding at the bit breakthrough.
When these situations occur, drill has a tendency
to grab and kick opposite to the direction of
rotation and could cause loss of control when
breaking through material. If not prepared, this
loss of control can result in possible serious
injury.
■When drilling hard, smooth surfaces, use a center
punch to mark the desired hole location. This will
prevent the drill bit from slipping off-center as the hole
is started.
■When drilling metals, use a light oil on the drill bit to
keep it from overheating. The oil will prolong the life
of the bit and increase the drilling action.
■If the bit jams in the workpiece or if the drill stalls,
stop the tool immediately. Remove the bit from the
workpiece and determine the reason for jamming.
NOTE: This drill has an electric brake. When the
switch trigger is released, the chuck stops turning.
When the brake is functioning properly, sparks will be
visible through the vent slots on the housing. This is
normal and is the action of the brake.
WOOD DRILLING
For maximum performance, use high speed steel bits for
wood drilling.
■Begin drilling at a very low speed to prevent the bit
from slipping off the starting point. Increase the speed
as the drill bit bites into the material.
■When drilling through holes, place a block of wood
behind the workpiece to prevent ragged or splintered
edges on the back side of the hole.
■When drilling large holes in wood with a spade bit,
the Max admitted bit size is 38mm.
METAL DRILLING
For maximum performance, use high speed steel bits for
metal or steel drilling.
■Begin drilling at a very low speed to prevent the bit
from slipping off the starting point.
■Maintain a speed and pressure which allows cutting
without overheating the bit. Applying too much
pressure will:
• Overheat the drill;
• Wear the bearings;
• Bend or burn bits; and
• Produce off-center or irregular-shaped holes.
■When drilling large holes in metal, start with a small
bit, then finish with a larger bit. Also, lubricate the bit
with oil to improve drilling action and increase bit life.
MAINTENANCE
WARNING:
When servicing, use only identical Ryobi
replacement parts. Use of any other parts may
create a hazard or cause product damage.
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING
Do not at any time let brake fluids, gasoline,
petroleum based products, penetrating oils, etc.,
come in contact with plastic parts. Chemicals can
damage, weaken or destroy plastic which may
result in serious personal injury.
Do not abuse power tools. Abusive practices can damage
tool as well as workpiece.
WARNING
Do not attempt to modify this tool or create
accessories not recommended for use with this
tool. Any such alteration or modification is misuse
and could result in a hazardous condition leading
to possible serious personal injury.
9611067192-01.indd 59611067192-01.indd 5 5/29/09 11:25:49 AM5/29/09 11:25:49 AM

4%#(42/.)#).$5342)%3!5342!,)!049,)-)4%$
'5!2!.4%%
!".    
#ONTACT DURING NORMAL BUSINESS HOURS
!5#+,!.$  #LEMOW $RIVE -T 7ELLINGTON .:
#ONTACT DURING NORMAL BUSINESS HOURS
!,,!5342!,)!.%.15)2)%34%,

!
0URCHASED&ROM
DDRESS /F $EALER
0RESENT 4HIS &ORM 7ITH 9OUR 0URCHASE $OCKET 7HEN 'UARANTEE 3ERVICE )S 2EQUIRED
4EL   &AX     WWWRYOBICOMAU
4EL     &REE #ALL     &AX     WWWRYOBICONZ
&OR YOUR RECORD AND TO ASSIST IN ESTABLISHING DATE OF PURCHASE NECESSARY FOR INGUARANTEE SERVICE
PLEASE KEEP YOUR PURCHASE DOCKET AND THIS FORM COMPLETED WITH THE FOLLOWING PARTICULARS
4HIS 'UARANTEE &ORM 3HOULD "E 2ETAINED "Y 4HE #USTOMER !T !LL 4IMES
$ATE -ODEL .O 3ERIAL .O
39$.%9"UILDING"2OSEHILL)NDUSTRIAL%STATE3HIRLEY3TREET2OSEHILL.37
4%#(42/.)#).$5342)%3!5342!,)!049,)-)4%$
4%#(42/.)#).$5342)%3.:,)-)4%$
3UBJECT TO THE GUARANTEE CONDITION BELOW THIS 2YOBI
TOOLHEREINAFTERCALLEDhTHEPRODUCTvISGUARANTEEDBY
4%#(42/.)# ).$5342)%3 !5342!,)! 049
,)-)4%$HEREINAFTERCALLEDhTHE#OMPANYvTOBEFREE
FROMDEFECTSINMATERIALORWORKMANSHIPFORAPERIODOF
MONTHSFROMTHEDATEOFORIGINALPURCHASECOVERING
BOTHPARTSANDLABOUR5NDERTHETERMSOFTHISGUARAN
TEETHEREPAIRORREPLACEMENTOFANYPARTSHALLBETHE
OPINION OF THE #OMPANY OR ITS AUTHORISED 3ERVICE
CENTRE3HOULDSERVICEBECOMENECESSARYDURINGTHE
WARRANTY PERIOD THE OWNER SHOULD CONTACT THE
CUSTOMERSERVICE(%,0,).%ORCONTACT
THERETAILERFROMWHOMTHEPRODUCTWASPURCHASED
)NORDERTOOBTAINGUARANTEESERVICETHEOWNERMUST
PRESENTTHESALESDOCKETAND'UARANTEE#ERTIFICATETO
CONFIRMDATEOFPURCHASE4HISPRODUCTISSOLDBYTHE
DEALER OR 3ERVICE CENTRE AS PRINCIPAL AND THE DEALER
HAS NO AUTHORITY FROM THE #OMPANY TO GIVE ANY
ADDITIONALGUARANTEEONTHE#OMPANYSBEHALFEXCEPT
ASHEREINCONTAINEDORHEREINREFERREDTO
'UARANTEE#ONDITIONS
4HISGUARANTEEONLYAPPLIESPROVIDEDTHATTHE0RODUCT
HASBEENUSEDINACCORDANCEWITHTHEMANUFACTURERS
RECOMMENDATIONSUNDER NORMALUSE ANDREASONABLE
CAREINTHEOPINIONOFTHE#OMPANYANDSUCHGUARAN
TEE DOES NOT COVER DAMAGE MALFUNCTION OR FAILURE
RESULTING FROM MISUSE NEGLECT ABUSE OR USED FOR A
PURPOSEFORWHICHITWASNOTDESIGNEDORISNOTSUITED
ANDNOREPAIRSALTERATIONSORMODIFICATIONSHAVEBEEN
ATTEMPTEDBYOTHERTHANAN!UTHORISED3ERVICECENTRE
4HISGUARANTEEWILLNOTAPPLYIFTHETOOLISDAMAGEDBY
ACCIDENTORIFREPAIRSARISEFROMNORMALWEARANDTEAR
4HE#OMPANYACCEPTSNOADDITIONALLIABILITYPURSUANT
TOTHISGUARANTEEFORTHECOSTSOFTRAVELLINGORTRANSPOR
TATIONOFTHE0RODUCTORPARTSTOANDFROMTHESERVICE
DEALEROR3ERVICECENTRESUCHCOSTSARENOTINCLUDED
IN THISGUARANTEE
#ERTAINLEGISLATIONINCLUDINGTHE4RADE0RACTICES
!CT  AS AMENDED AND OTHER STATE AND
TERRITORIALLAWSGIVERIGHTSTOTHEBUYERANDIMPOSE
LIABILITYONTHESELLERINCERTAINCIRCUMSTANCES.OTHING
HEREINSHALLHAVETHEEFFECTOFEXCLUDINGRESTRICTINGOR
MODIFYING ANY CONDITION GUARANTEE RIGHT OR LIABILITY
IMPOSED TO THE EXTENT ONLY THAT SUCH EXCLUSION
RESTRICTION OR MODIFICATION WOULD RENDER ANY TERM
HEREINVOID
9611067192-01.indd 69611067192-01.indd 6 5/29/09 11:25:49 AM5/29/09 11:25:49 AM
