OPERATOR’S MANUAL
18 VOLT
RIGHT ANGLE DRILL
P240
SAVE THIS MANUAL FOR FUTURE REFERENCE
Your right angle drill has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator's manual before using
this product.
Thank you for your purchase.
ACCEPTS ALL ONE+
BATTERY PACKS
BATTERIES AND CHARGERS
SOLD SEPARATELY

2
INTRODUCTION
This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have
been given top priority in the design of this product making it easy to maintain and operate.
Introduction ..................................................................................................................................................................... 2
Warranty .......................................................................................................................................................................... 2
General Safety Rules....................................................................................................................................................3-4
Specific Safety Rules....................................................................................................................................................... 4
Symbols........................................................................................................................................................................5-6
Features........................................................................................................................................................................7-8
Assembly......................................................................................................................................................................... 8
Operation....................................................................................................................................................................9-12
Maintenance.............................................................................................................................................................13-14
Parts Ordering / Service ................................................................................................................................... Back page
TABLE OF CONTENTS
WARRANTY
RYOBI®POWER TOOL - LIMITED THREE YEAR WARRANTY AND 90 DAY EXCHANGE POLICY
One World Technologies, Inc., warrants its RYOBI®power tools with the following conditions:
90-DAY EXCHANGE POLICY: During the first 90 days after date of purchase, you may either request service under this
warranty or you may exchange any RYOBI®power tool which does not work properly due to defective workmanship or
materials by returning the power tool to the dealer from which it was purchased. To receive a replacement power tool or re-
quested warranty service, you must present proof of purchase and return all original equipment packaged with the original
product. The replacement power tool will be covered by the limited warranty for the balance of the three year period from
the date of the original purchase.
WHAT THIS WARRANTY COVERS: This warranty covers all defects in workmanship or materials in your RYOBI®power
tool for a period of three years from the date of purchase. With the exception of batteries, power tool accessories are war-
ranted for ninety (90) days. Batteries are warranted for three years.
HOW TO GET SERVICE: Just return the power tool, properly packaged and postage prepaid, to an Authorized Ser-
vice Center. You can obtain the location of the Service Center nearest you by contacting a service representative at
One World Technologies, Inc., P.O. Box 1207, Anderson, SC 29622-1207, by calling 1-800-525-2579 or by logging on to
www.ryobitools.com. When you request warranty service, you must also present proof of purchase documentation, which
includes the date of purchase (for example, a bill of sale). We will repair any faulty workmanship, and either repair or replace
any defective part, at our option. We will do so without any charge to you. We will complete the work in a reasonable time,
but, in any case, within ninety (90) days or less.
WHAT’S NOT COVERED: This warranty applies only to the original purchaser at retail and may not be transferred. This
warranty only covers defects arising under normal usage and does not cover any malfunction, failure or defects resulting
from misuse, abuse, neglect, alteration, modification or repairs by other than Authorized Service Centers. One World Tech-
nologies, Inc. makes no warranties, representations or promises as to the quality or performance of its power tools other
than those specifically stated in this warranty.
ADDITIONAL LIMITATIONS: Any implied warranties granted under state law, including warranties of merchantability or
fitness for a particular purpose, are limited to three years from the date of purchase. One World Technologies, Inc. is not
responsible for direct, indirect, or incidental damages, so the above limitations and exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

3
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS. Fail-
ure to follow all instructions listed below, may result in
electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
WORK AREA
Keep your work area clean and well lit. Cluttered
benches and dark areas invite accidents.
Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable
liquids, gases, or dust. Power tools create sparks which
may ignite the dust or fumes.
Keep bystanders, children, and visitors away while
operating a power tool. Distractions can cause you to
lose control.
ELECTRICAL SAFETY
A battery operated tool with integral batteries or a
separate battery pack must be recharged only with
the specified charger for the battery. A charger that
may be suitable for one type of battery may create a risk
of fire when used with another battery.
Use battery operated tool only with specifically
designated battery pack. Use of any other batteries
may create a risk of fire.
Use battery only with charger listed. For use with
18V nickel-cadmium and 18V lithium-ion battery packs,
see tool/appliance/battery pack/charger correlation
supplement 987000-432.
Do not overreach. Keep proper footing and balance
at all times. Proper footing and balance enable better
control of the tool in unexpected situations.
Use safety equipment. Always wear eye protection.
Dust mask, non-skid safety shoes, hard hat, or hearing
protection must be used for appropriate conditions.
Do not wear loose clothing or jewelry. Contain long
hair. Loose clothes, jewelry, or long hair can be drawn
into air vents.
Do not use on a ladder or unstable support. Stable
footing on a solid surface enables better control of the
tool in unexpected situations.
TOOL USE AND CARE
Use clamps or other practical way to secure and sup-
port the workpiece to a stable platform. Holding the
work by hand or against your body is unstable and may
lead to loss of control.
Do not force tool. Use the correct tool for your
application. The correct tool will do the job better and
safer at the rate for which it is designed.
Do not use tool if switch does not turn it on or off.
A tool that cannot be controlled with the switch is
dangerous and must be repaired.
Disconnect battery pack from tool or place the switch
in the locked or off position before making any adjust-
ments, changing accessories, or storing the tool. Such
preventive safety measures reduce the risk of starting the
tool accidentally.
Store idle tools out of reach of children and other
untrained persons. Tools are dangerous in the hands
of untrained users.
When battery pack is not in use, keep it away from
other metal objects like: paper clips, coins, keys, nails,
screws, or other small metal objects that can make
a connection from one terminal to another. Shorting
the battery terminals together may cause sparks, burns,
or a fire.
Maintain tools with care. Keep cutting tools sharp
and clean. Properly maintained tools with sharp
cutting edges are less likely to bind and are easier to
control.
Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that may
affect the tool’s operation. If damaged, have the tool
serviced before using. Many accidents are caused by
poorly maintained tools.
Use only accessories that are recommended by the
manufacturer for your model. Accessories that may be
suitable for one tool may create a risk of injury when used
on another tool.
Keep the tool and its handle dry, clean and free from
oil and grease. Always use a clean cloth when clean-
ing. Never use brake fluids, gasoline, petroleum-based
products, or any strong solvents to clean your tool. Fol-
lowing this rule will reduce the risk of loss of control and
deterioration of the enclosure plastic.
PERSONAL SAFETY
Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use tool while tired or under the influence of drugs,
alcohol, or medication. A moment of inattention while
operating power tools may result in serious personal
injury.
Dress properly. Do not wear loose clothing or jewelry.
Contain long hair. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes, jewelry, or long
hair can be caught in moving parts.
Avoid accidental starting. Be sure switch is in the
locked or off position before inserting battery pack.
Carrying tools with your finger on the switch or inserting
the battery pack into a tool with the switch on invites
accidents.
Remove adjusting keys or wrenches before turning
the tool on. A wrench or a key that is left attached to a
rotating part of the tool may result in personal injury.

4
Hold tool by insulated gripping surfaces when per-
forming an operation where the cutting tool may
contact hidden wiring or its own cord. Contact with a
“live” wire will make exposed metal parts of the cutting
tool “live” and shock the operator.
Secure work. Use clamps or a vise to hold work when
practical. It is safer than using your hand and frees both
hands to operate tool.
Hold tool by insulated gripping surfaces when per-
forming an operation where the cutting tool may con-
tact hidden wiring. Contact with a “live” wire will also
make exposed metal parts of the tool “live” and shock
the operator.
Know your power tool. Read operator’s manual care-
fully. Learn its applications and limitations, as well
as the specific potential hazards related to this tool.
Following this rule will reduce the risk of electric shock,
fire, or serious injury.
Always wear safety glasses with side shields.
Everyday glasses have only impact resistant lenses. They
are NOT safety glasses. Following this rule will reduce
the risk of eye injury.
Protect your lungs. Wear a face or dust mask if the
operation is dusty. Following this rule will reduce the
risk of serious personal injury.
Protect your hearing. Wear hearing protection during
extended periods of operation. Following this rule will
reduce the risk of serious personal injury.
Battery tools do not have to be plugged into an elec-
trical outlet; therefore, they are always in operating
condition. Be aware of possible hazards when not
using your battery tool or when changing accessories.
Following this rule will reduce the risk of electric shock,
fire, or serious personal injury.
SERVICE
Tool service must be performed only by qualified re-
pair personnel. Service or maintenance performed by
unqualified personnel may result in a risk of injury.
Do not place battery tools or their batteries near fire
or heat. This will reduce the risk of explosion and pos-
sibly injury.
Never use a battery that has been dropped or
received a sharp blow. A damaged battery is subject to
explosion. Properly dispose of a dropped or damaged
battery immediately.
Batteries can explode in the presence of a source
of ignition, such as a pilot light. To reduce the risk of
serious personal injury, never use any cordless product
in the presence of open flame. An exploded battery can
propel debris and chemicals. If exposed, flush with water
immediately.
Do not charge battery tool in a damp or wet
location. Following this rule will reduce the risk of electric
shock.
For best results, your battery tool should be charged
in a location where the temperature is more than
50°F but less than 100°F. Do not store outside or in
vehicles.
Under extreme usage or temperature conditions,
battery leakage may occur. If liquid comes in contact
with your skin, wash immediately with soap and water,
then neutralize with lemon juice or vinegar. If liquid
gets into your eyes, flush them with clean water for
at least 10 minutes, then seek immediate medical at-
tention. Following this rule will reduce the risk of serious
personal injury.
Save these instructions. Refer to them frequently and
use them to instruct others who may use this tool. If you
loan someone this tool, loan them these instructions also
to prevent misuse of the product and possible injury.
When servicing a tool, use only identical replacement
parts. Follow instructions in the Maintenance section
of this manual. Use of unauthorized parts or failure to fol-
low Maintenance Instructions may create a risk of shock
or injury.
GENERAL SAFETY RULES
SPECIFIC SAFETY RULES

5
SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper inter-
pretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
n
o
No Load Speed Rotational speed, at no load
Class II Construction Double-insulated construction
.../min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute
Wet Conditions Alert Do not expose to rain or use in damp locations.
Read The Operator’s Manual Toreducetherisk ofinjury, usermustreadand understandoperator’s
manual before using this product.
Eye Protection Always wear safety goggles or safety glasses with side shields and,
as necessary, a full face shield when operating this product.
Safety Alert Precautions that involve your safety.
No Hands Symbol Failure to keep your hands away from the blade will result in seri-
ous personal injury.
No Hands Symbol Failure to keep your hands away from the blade will result in seri-
ous personal injury.
No Hands Symbol Failure to keep your hands away from the blade will result in seri-
ous personal injury.
No Hands Symbol Failure to keep your hands away from the blade will result in seri-
ous personal injury.
Hot Surface To reduce the risk of injury or damage, avoid contact with any hot
surface.

6
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
SERVICE
Servicing requires extreme care and knowledge and should
be performed only by a qualified service technician. For
service we suggest you return the product to the nearest
AUTHORIZED SERVICE CENTER for repair. When servic-
ing, use only identical replacement parts.
WARNING:
To avoid serious personal injury, do not attempt to use this
product until you read thoroughly and understand com-
pletely the operator’s manual. If you do not understand
the warnings and instructions in the operator’s manual,
do not use this product. Call Ryobi customer service for
assistance.
WARNING:
SAVE THESE INSTRUCTIONS
The operation of any power tool can result in foreign objects being thrown into your eyes, which can
result in severe eye damage. Before beginning power tool operation, always wear safety goggles or
safety glasses with side shields and, when needed, a full face shield. We recommend Wide Vision
Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye
protection which is marked to comply with ANSI Z87.1.

7
FEATURES
PRODUCT SPECIFICATIONS
Chuck.......................................................... 3/8 in. Keyless
Motor .................................................................18 Volt DC
Switch .........................................................Variable Speed

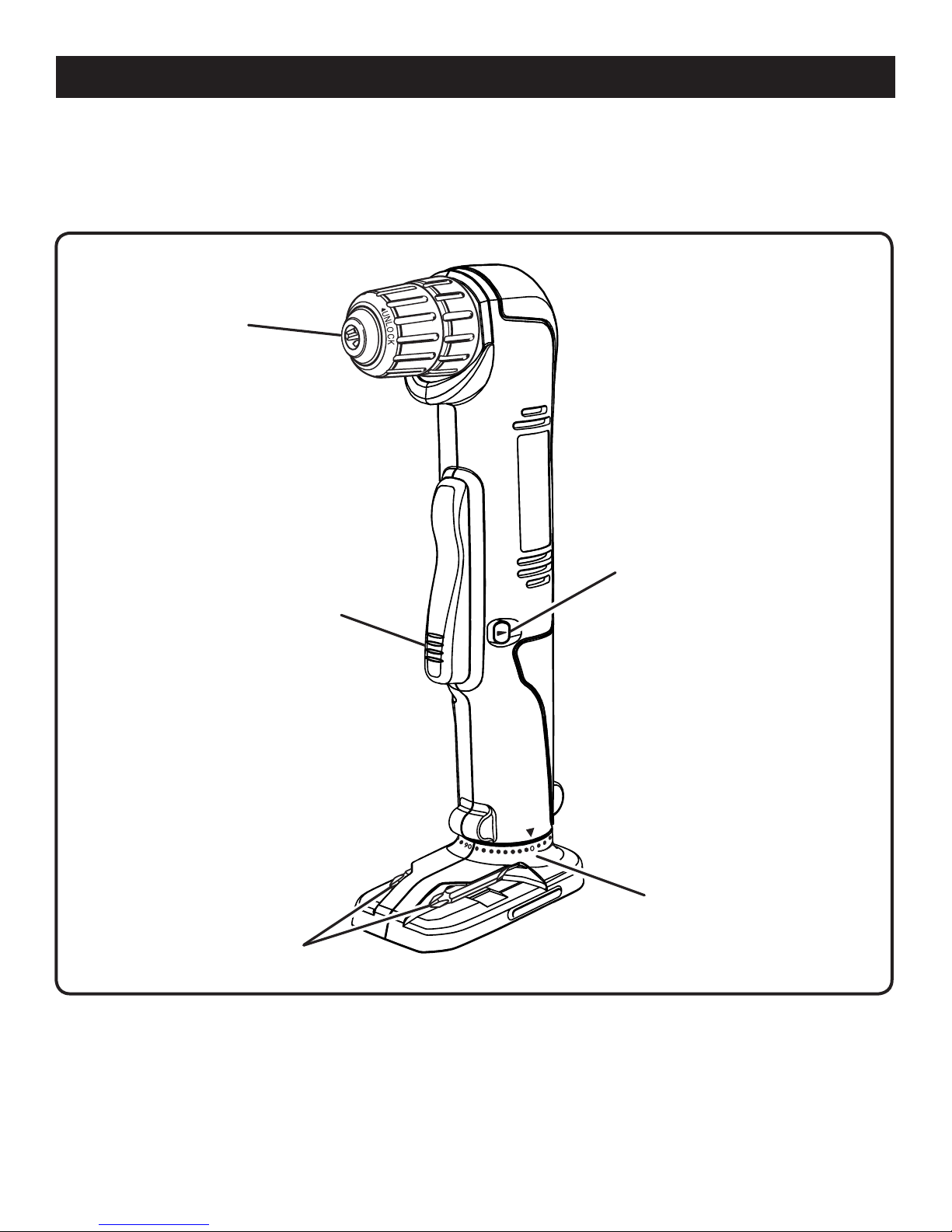

Fig. 1
KEYLESS
CHUCK
SWITCH
TRIGGER
BIT
STORAGE
DIRECTION OF
ROTATION SELECTOR
(FORWARD/REVERSE
CENTER LOCK)
SWIVELING
BATTERY FOOT
No Load Speed................................... 0-1000 r/min.(RPM)
Torque ..................................................................130 in.lb.

8
FEATURES
KNOW YOUR RIGHT ANGLE DRILL-DRIVER
See Figure 1.
The safe use of this product requires an understanding of
the information on the tool and in this operator’s manual as
well as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules.
KEYLESS CHUCK
Your drill-driver has a keyless chuck that allows you to
hand tighten or release drill bit in the chuck jaws.
VARIABLE SPEED
The variable speed switch trigger on your drill-driver delivers
higher speed with increased trigger pressure. Speed is
controlled by the amount of switch trigger depression.
SWITCH LOCK
The switch trigger can be locked in the OFF position. This
feature helps reduce the possibility of accidental starting
when not in use.
FORWARD/REVERSE SELECTOR
(DIRECTION OF ROTATION SELECTOR)
Your drill-driver has a forward/reverse selector located
above the switch trigger.
BIT STORAGE
When not in use, bits provided with your drill-driver can be
placed in the storage area located on the base of the
motor housing.
RIGHT ANGLE DESIGN
The drill-driver’s right angle head design allows you to get
into tight work areas for drilling and driving.
SWIVELING BATTERY FOOT
The drill-driver’s swiveling battery foot design positions the
battery pack in the most convenient location.
ASSEMBLY
UNPACKING
This product has been shipped completely assembled.
Carefully remove the tool and any accessories from the
box. Make sure that all items listed in the packing list are
included.
Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
If any parts are damaged or missing, please call
1-800-525-2579 for assistance.
PACKING LIST
3/8 in. Right Angle Drill-Driver with Swiveling Battery Base
Double-ended Bits (2)
Operator’s Manual
WARNING:
If any parts are missing or damaged do not operate this
tool until the missing parts are replaced. Failure to do so
could result in possible serious personal injury.
WARNING:
Do not attempt to modify this tool or create accesso-
ries not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal
injury.
WARNING:
To prevent accidental starting that could cause serious
personal injury, always remove the battery pack from the
tool when assembling parts.

9
OPERATION
WARNING:
Do not allow familiarity with tools to make you care-
less. Remember that a careless fraction of a second is
sufficient to inflict serious injury.
WARNING:
Always wear safety goggles or safety glasses with side
shields when operating tools. Failure to do so could re-
sult in objects being thrown into your eyes, resulting in
possible serious injury.
WARNING:
Do not use any attachments or accessories not recom-
mended by the manufacturer of this tool. The use of at-
tachments or accessories not recommended can result
in serious personal injury.
APPLICATIONS
You may use this tool for the following purposes:
Drilling in wood
Drilling in ceramics, plastics, fiberglass, and laminates
Drilling in both hard and soft metals
Using driving accessories, such as driving screws with
screwdriver bits
This product will accept Ryobi One+ 18 V lithium-ion
battery packs and Ryobi One+ 18 V nickel-cadmium battery
packs.
For complete charging instructions, refer to the Operator’s
Manual for the battery packs and chargers listed in the
General Safety Rules.
BATTERY PROTECTION FEATURES
Ryobi lithium-ion batteries are designed with features that
protect the lithium-ion cells and maximize battery life.
If the tool stops during use, release the trigger to reset and
resume operation. If the tool still does not work, the battery
needs to be recharged.
TO INSTALL BATTERY PACK
See Figure 2.
Lock the switch trigger on the drill by placing the direction
of rotation selector in the center position.
Place the battery pack in the drill. Align the raised rib on
the battery pack with the groove inside the drill.
Make sure the latches on each side of the battery pack
snap into place and the battery pack is secured in the
drill before beginning operation.
TO REMOVE BATTERY PACK
See Figure 2.
Lock the switch trigger on the drill by placing the direction
of rotation selector in the center position.
Locate the latches on the side of the battery pack and
depress to release the battery pack from the drill.
Remove the battery pack from the drill.

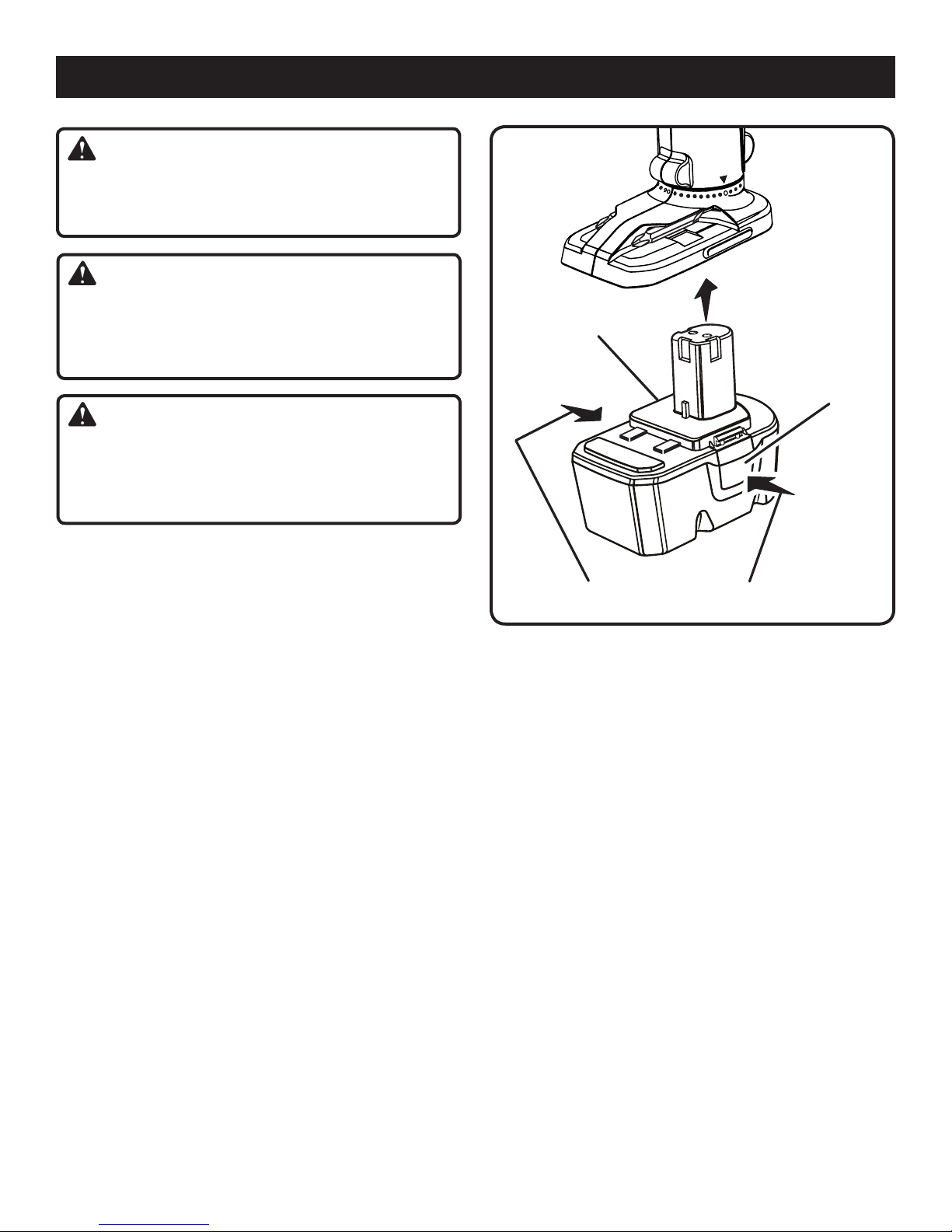

Fig. 2
DEPRESS LATCHES TO
RELEASE BATTERY PACK
LATCHES
BATTERY

10
OPERATION
WARNING:
Battery tools are always in operating condition. Therefore,
switch should always be locked when not in use or car-
rying at your side.
SWITCH TRIGGER
See Figure 3.
To turn the drill ON, depress the switch trigger. To turn it OFF,
release the switch trigger.
SWITCH LOCK
See Figure 3.
The switch trigger can be locked in the OFF position to pre-
vent the possibility of accidental starting when not in use. To
lock the switch trigger, place the direction of rotation selector
(Forward/Reverse Selector) in the center position.
VARIABLE SPEED
This tool has a variable speed switch trigger that delivers
higher speed and torque with increased trigger pressure.
Speed is controlled by the amount of switch trigger depres-
sion.
NOTE: You might hear a whistling or ringing noise from the
switch during use. Do not be concerned; this is a normal
part of the switch function.
REVERSIBLE
See Figure 3.
The direction of rotation is reversible and is controlled by a
selector located above the switch trigger. With the drill held
in normal operating position, the direction of rotation selec-
tor should be positioned to the left of the switch trigger for
drilling. The drilling direction is reversed when the selector
is to the right of the switch trigger. When the selector is in
center position, the switch trigger is locked.
CAUTION:
To prevent gear damage, always allow chuck to come
to a complete stop before changing the direction of
rotation.
To stop, release switch trigger and allow the chuck to come
to a complete stop.
KEYLESS CHUCK
See Figure 4.
The drill has a keyless chuck to tighten or release drill bits in
the chuck jaws. Grasp and hold the collar of the chuck with
one hand. Rotate the chuck body with your other hand. This
chuck has a rachetting design that allows the user to hear a
series of “clicks” while tightening the jaws. This “clicking”
will stop once the chuck and jaws are secure. The arrows on
the chuck indicate which direction to rotate the chuck body in
order to LOCK (tighten) or UNLOCK (release) the drill bit.
Fig. 3
VARIABLE SPEED
SWITCH TRIGGER
REVERSE
FORWARD
FORWARD/
REVERSE
SELECTOR WITH
CENTER LOCK
POSITION
Fig. 4
CHUCK BODY
DRILL BIT
UNLOCK
(RELEASE)
CHUCK JAWS
CHUCK
COLLAR
LOCK
(TIGHTEN)
WARNING:
Do not hold the chuck body with one hand and use the
power of the drill to tighten the chuck jaws on the drill
bit. The chuck body could slip in your hand or your hand
could slip and come in contact with rotating drill bit. This
could cause an accident resulting in serious personal
injury.

11
OPERATION

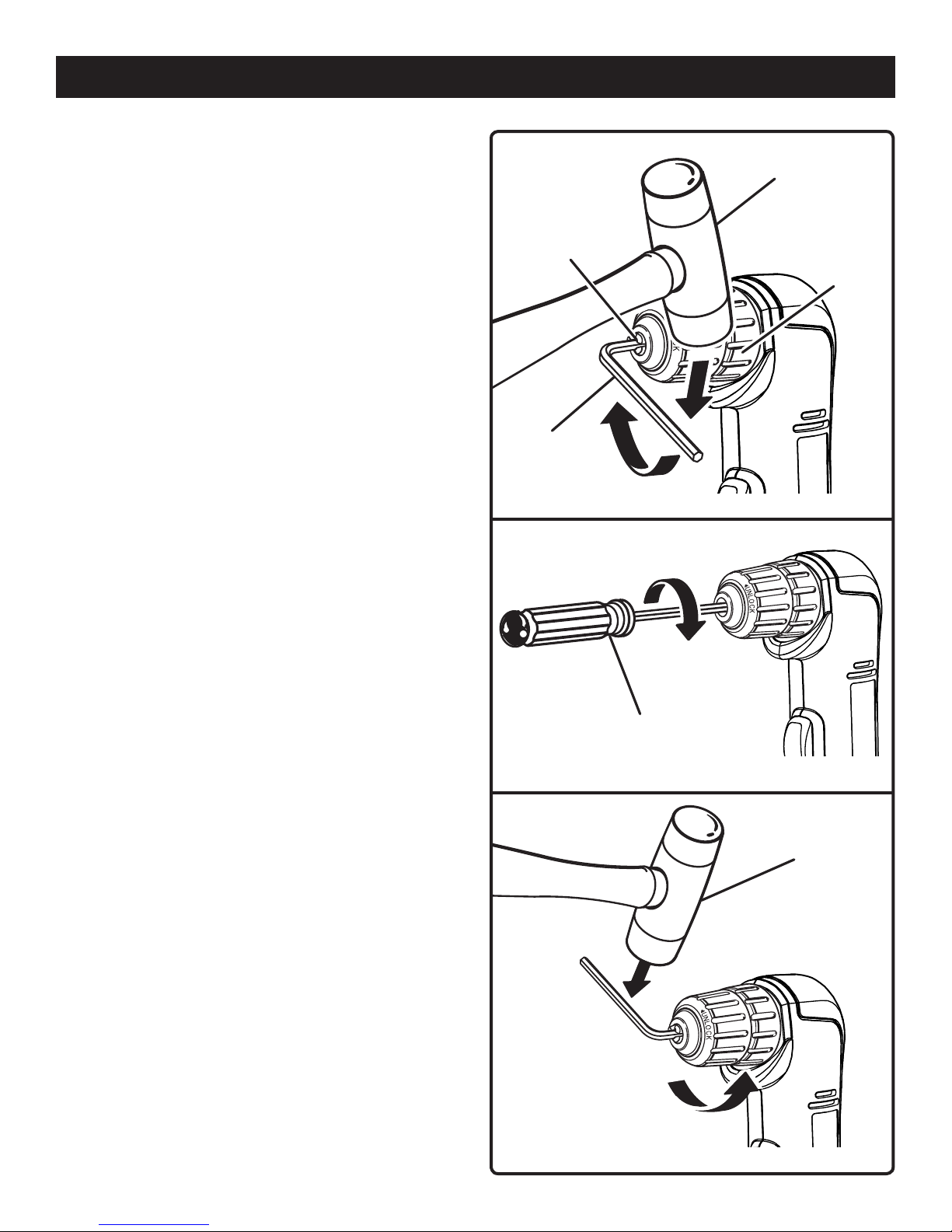

INSTALLING BITS
See Figures 5 - 6.
Lock the switch trigger by placing the direction of rotation
selector in center position.
Open or close the chuck jaws to a point where the open-
ing is slightly larger than the bit size you intend to use.
Also, raise the front of the drill slightly to keep the bit from
falling out of the chuck jaws.
Insert the drill bit straight into the chuck the full length of
the jaws.
Tighten the chuck jaws on the drill bit.

To tighten: grasp and hold the collar of the chuck with
one hand, while rotating the chuck body with your other
hand.
NOTE: Rotate the chuck body in the direction of the
arrow marked LOCK to tighten the chuck jaws.
Do not use a wrench to tighten or loosen the chuck
jaws.
WARNING:
Make sure to insert the drill bit straight into the chuck
jaws. Do not insert the drill bit into the chuck jaws at an
angle then tighten, as shown in figure 6. This could cause
the drill bit to be thrown from the drill, resulting in possible
serious personal injury or damage to the chuck.
REMOVING BITS
See Figure 5.
Lock the switch trigger by placing the direction of rotation
selector in center position.
Loosen the chuck jaws from the drill bit.
To loosen: grasp and hold the collar of the chuck with
one hand, while rotating the chuck body with your other
hand.
NOTE: Rotate the chuck body in the direction of the
arrow marked UNLOCK to loosen the chuck jaws.
Do not use a wrench to tighten or loosen the chuck
jaws.
Remove the drill bit from the chuck jaws.
BIT STORAGE
See Figure 7.
When not in use, bits provided with the drill can be placed
in the storage area located on the base of the drill.
Fig. 5
RIGHT
CHUCK
BODY
DRILL BIT UNLOCK
(RELEASE)
CHUCK
JAWS
CHUCK
COLLAR
LOCK
(TIGHTEN)
Fig. 6
WRONG
Fig. 7
SCREWDRIVER
BIT
BIT
STORAGE
AREA

12
OPERATION
WARNING:
Always wear safety goggles or safety glasses with side
shields when operating tools. Failure to do so could re-
sult in objects being thrown into your eyes, resulting in
possible serious injury.

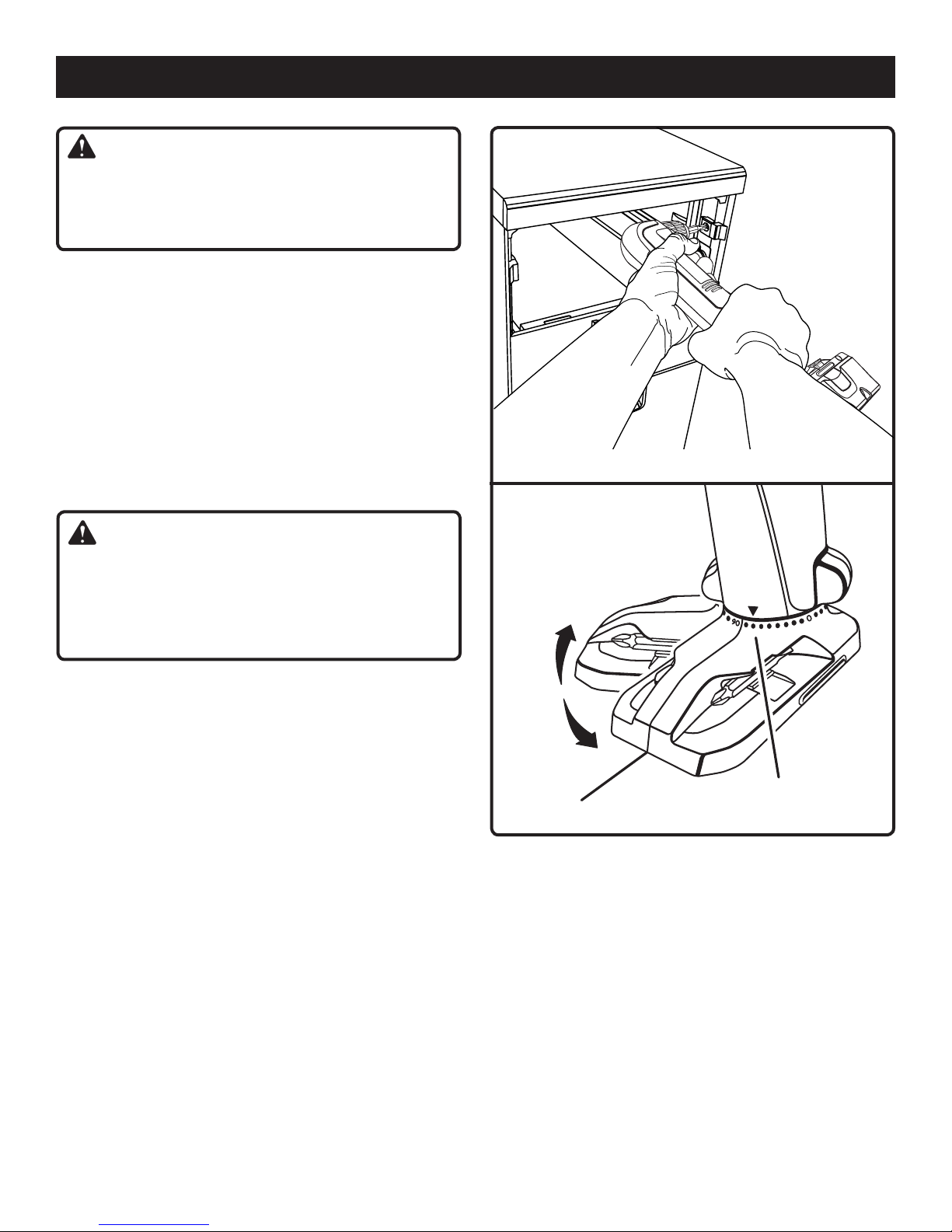

DRILLING
See Figure 8.
When drilling hard smooth surfaces use a center punch to
mark the desired hole location. This will prevent the drill bit
from slipping off center as the hole is started.
The material to be drilled should be secured in a vise or with
clamps to keep it from turning as the drill bit rotates. Hold
the tool firmly and place the bit at the point to be drilled.
Depress the switch trigger to start the tool.
Move the drill bit into the workpiece applying only enough
pressure to keep the bit cutting. Do not force or apply side
pressure to elongate a hole.
WARNING:
Be prepared for binding at bit breakthrough. When these
situations occur, drill has a tendency to grab and kick op-
posite to the direction of rotation and could cause loss of
control when breaking through material. If not prepared,
this loss of control can result in possible serious injury.
When drilling metals, use a light oil on the drill bit to keep it
from overheating. The oil will prolong the life of the bit and
increase the drilling action.
If the bit jams in workpiece or if the drill stalls, release switch
trigger immediately. Remove the bit from the workpiece and
determine the reason for jamming.
This drill has an electric brake. When the switch trigger is re-
leased, the chuck stops turning. When the brake is function-
ing properly, sparks will be visible through the vent slots on
the housing. This is normal and is the action of the brake.
USING SWIVELING BATTERY FOOT
See Figure 9.
The drill-driver’s swiveling battery foot design allows
you to position the battery pack in the most convenient
location. The swiveling battery foot has a degree scale for
accuracy.
Fig. 8
Fig. 9
SWIVELING FOOT
SCALE

13
MAINTENANCE
CHUCK REMOVAL
See Figures 10 - 12.
To remove the chuck:
Lock the switch trigger by placing the direction of rotation
selector in center position.
Insert a 5/16 in. or larger hex key into the chuck of the
drill and tighten the chuck jaws securely.
Tap the hex key sharply with a mallet in a clockwise di-
rection. This will loosen the screw in the chuck for easy
removal.
Open the chuck jaws and remove the hex key. Remove
the chuck screw by turning it in a clockwise direction.
NOTE: The screw has left hand threads.
Insert the hex key in chuck and tighten the chuck jaws
securely. Tap sharply with a mallet in a counterclockwise
direction. This will loosen the chuck on the spindle. It can
now be unscrewed by hand.
TO RETIGHTEN A LOOSE CHUCK
See Figures 11 - 13.
The chuck may become loose on the spindle and develop a
wobble. Periodically check the chuck screw for tightness.
Lock the switch trigger by placing the direction of rotation
selector in center position.
Open the chuck jaws.
Insert the hex key into the chuck and tighten the chuck
jaws securely. Tap the hex key sharply with a mallet in
a clockwise direction. This will tighten the chuck on the
spindle.
Open the chuck jaws and remove the hex key.
Tighten the chuck screw.
NOTE: The chuck screw has left hand threads.
Fig. 10
CHUCK JAWS
MALLET
KEYLESS
CHUCK
HEX KEY
Fig. 11
SCREWDRIVER
Fig. 12
MALLET
MAINTENANCE

14
BATTERY PACK REMOVAL AND PREPARATION
FOR RECYCLING
To preserve natural resources, please
recycle or dispose of batteries
properly.
This product uses nickel-cadmium and
lithium-ion batteries. Local, state or
federal laws may prohibit disposal of
batteries in ordinary trash.
Consult your local waste authority for
informationregardingavailablerecycling
and/or disposal options.
WARNING:
Upon removal, cover the battery pack’s terminals with
heavy-duty adhesive tape. Do not attempt to destroy or
disassemble battery pack or remove any of its compo-
nents. Lithium-ion and nickel-cadmium batteries must
be recycled or disposed of properly. Also, never touch
both terminals with metal objects and/or body parts as
short circuit may result. Keep away from children. Failure
to comply with these warnings could result in fire and/or
serious injury.
BATTERIES
This product will accept Ryobi One+ 18 V lithium-ion battery
packs and Ryobi One+ 18 V nickel-cadmium battery packs.
Length of service from each charging will depend on the type
of work you are doing.
The batteries for this product have been designed to provide
maximum trouble-free life. However, like all batteries, they
will eventually wear out. Do not disassemble battery pack
and attempt to replace the batteries. Handling of these
batteries, especially when wearing rings and jewelry, could
result in a serious burn.
To obtain the longest possible battery life, we suggest the
following:
For lithium-ion batteries:
Remove the battery pack from the charger once it is fully
charged and ready for use.
For battery pack storage longer than 30 days:
Store the battery pack where the temperature is below
80°F and away from moisture.
Store battery packs in a 30%-50% charged condition.
Every six months of storage, charge the pack as
normal.
For nickel-cadmium batteries:
Remove the battery pack from the charger once it is fully
charged and ready for use.
For battery pack storage longer than 30 days:
Store the battery pack where the temperature is below
80°F.
Store battery packs in a “discharged” condition.
WARNING:
When servicing, use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
WARNING:
Always wear safety goggles or safety glasses with side
shields during power product operation or when blowing
dust. If operation is dusty, also wear a dust mask.
WARNING:
To avoid serious personal injury, always remove the
battery pack from the product when cleaning or
performing any maintenance.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal
injury.
Only the parts shown on the parts list are intended to be
repaired or replaced by the customer. All other parts should
be replaced at an Authorized Service Center.

15
NOTES

16
983000-648 (WW)
6-24-11 (REV:05)
P240
OPERATOR’S MANUAL
18 VOLT
RIGHT ANGLE DRILL
P240
WARNING:
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities con-
tains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of
these chemicals are:
•leadfromlead-basedpaints,
•crystallinesilicafrombricksandcementandothermasonryproducts,and
•arsenicandchromiumfromchemically-treatedlumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment,
such as those dust masks that are specially designed to filter out microscopic particles.
• PARTS AND SERVICE
Prior to requesting service or purchasing replacement parts, please obtain your model
and serial number from the product data plate.
 • MODELNUMBER
 • SERIALNUMBER
• HOW TO OBTAIN REPLACEMENT PARTS:
Replacement parts can be purchased online at www.ryobitools.com or by calling
1-800-525-2579. Replacement parts can also be obtained at one of our Authorized
Service Centers.
• HOW TO LOCATE AN AUTHORIZED SERVICE CENTER:
Authorized Service Centers can be located online at www.ryobitools.com or by calling
1-800-525-2579.
• HOW TO OBTAIN CUSTOMER OR TECHNICAL SUPPORT:
To obtain Customer or Technical Support please contact us at 1-800-525-2579.
RYOBI®is a registered trademark of Ryobi Limited used under license.
ONE WORLD TECHNOLOGIES, INC.
1428 Pearman Dairy Road, Anderson, SC 29625
Phone [phone]
www.ryobitools.com

MANUEL D’UTILISATION
PERCEUSE 18 VOLTS
À ANGLE DROIT
P240
CONSERVER CE MANUEL POUR FUTURE RÉFÉRENCE
Votre nouvelle perceuse à angle droit a été conçue et fabriquée conformément aux strictes normes de fiabilité, simplicité
d’emploi et sécurité d’utilisation. Correctement entretenue, elle vous donnera des années de fonctionnement robuste et
sans problème.
AVERTISSEMENT : Pour réduire les risques de blessures, l’utilisateur doit lire attentivement le manuel d’utilisation
avant d’utiliser cet outil.
Merci de votre achat.
COMPATIBLE AVEC TOUS
LE BATTERIES ONE+
BATTERIES ET CHARGEUR
VENDUS SÉPARÉMENT

2
INTRODUCTION
Cet outil offre de nombreuses fonctions destinées à rendre son utilisation plaisante et plus satisfaisante. Lors de la conception
de ce produit, l’accent a été mis sur la sécurité, les performances et la fiabilité, afin d’en faire un outil facile à utiliser et à
entretenir.
Introduction ..................................................................................................................................................................... 2
Garantie........................................................................................................................................................................... 2
Règles de sécurité générales .......................................................................................................................................3-4
Règles de sécurité particulières ...................................................................................................................................... 4
Symboles......................................................................................................................................................................5-6
Caractéristiques ...........................................................................................................................................................7-8
Assemblage..................................................................................................................................................................... 8
Utilisation....................................................................................................................................................................9-12
Entretien ...................................................................................................................................................................13-14
Commande de pièces / réparation................................................................................................................................ 16
TABLE DES MATIÈRES
OUTILS ÉLECTRIQUES RYOBI®– GARANTIE LIMITÉE DE TROIS ANS ET POLITIQUE D’ÉCHANGE DE 90 JOURS
One World Technologies, Inc., garantit ses outils électriques dans les conditions suivantes :
POLITIQUE D’ÉCHANGE DE 90 JOURS : En cas de défaillance due à des vices de matériaux ou de fabrication au cours
des 90 jours suivant la date d’achat, l’acheteur pourra faire réparer tout outil électrique RYOBI®au titre de cette garantie
ou le retourner l’établissement où il a été acheté. Pour obtenir un outil en échange ou demander la réparation en garantie,
l’équipement complet devra être retourné, dans son emballage d’origine, accompagné d’une preuve d’achat. L’outil fourni en
échange sera couvert par la garantie limitée pour le restant de la période de validité de trois ans à compter de la date d’achat.
CE QUI EST COUVERT PAR LA GARANTIE : Cette garantie couvre tous les vices de matériaux et de fabrication de
cet outil électrique RYOBI®, pour une période de trois ans, à compter de la date d’achat. À l’exception des batteries, les
accessoires sont garantis pour une période de quatre-vingt-dix (90) jours. Les batteries sont garanties trois ans.
RÉPARATIONS SOUS GARANTIE : Il suffit de retourner l’outil, correctement emballé, en port payé, à un centre de
réparations agréé. L’adresse du centre de réparations agréé le plus proche peut être obtenue en contactant un représentant
du service après-vente par courrier, à l’adresse One World Technologies, Inc., P.O. Box 1207, Anderson, SC 29622-1207,
par téléphone au 1-800-525-2579 ou par courriel, à l’adresse Internet www.ryobitools.com. Lors de toute demande de
réparation sous garantie, une preuve d’achat datée (par exemple un reçu de vente) doit être fournie. Nous nous engageons
à réparer tous les défauts de fabrication et à réparer ou remplacer, à notre choix, toutes les pièces défectueuses. Les
réparations et remplacements seront gratuits. Les réparations sous garantie seront effectuées dans un délai raisonnable,
ne dépassant en aucun cas quatre-vingt-dix (90) jours.
CE QUI N’EST PAS COUVERT : La garantie ne couvre que l’acheteur au détail original et n’est pas transférable. Cette
garantie ne couvre que les défauts résultant d’une utilisation normale. Elle ne couvre pas les problèmes de fonctionnement,
défaillances ou autres défauts résultant d’un usage incorrect ou abusif, de la négligence, de la modification, de l’altération
ou de réparations effectuées par quiconque autre qu’un centre de réparations agréé. One World Technologies, Inc. ne fait
aucune autre garantie, représentation ou promesse concernant la qualité et les performances de cet outil électrique, autres
que celles expressément indiquées dans le présent document.
AUTRES LIMITATIONS : Toutes les garanties implicites accordées par les lois en vigueur, y compris les garanties de valeur
marchande ou d’adéquation à un usage particulier, sont limitées à une durée de trois ans, à compter de la date d’achat.
One World Technologies, Inc. déclinant toute responsabilité pour les dommages directs ou indirects, les limitations et
exclusions peuvent ne pas s’appliquer à chaque acheteur. Cette garantie donne au consommateur des droits spécifiques,
et celui-ci peut bénéficier d’autres droits, qui varient selon les états ou provinces.
GARANTIE

3
RÈGLES DE SÉCURITÉ GÉNÉRALES
AVERTISSEMENT !
LIRE ET VEILLER À BIEN COMPRENDRE TOUTES LES
INSTRUCTIONS. Le non respect de toutes les instructions
ci-dessous peut entraîner un choc électrique, un incendie et /
ou des blessures graves.
CONSERVER CES INSTRUCTIONS
LIEU DE TRAVAIL
Garder le lieu de travail propre et bien éclairé. Les établis
encombrés et les endroits sombres sont propices aux
accidents.
Ne pas utiliser d’outils électriques dans des atmosphères
explosives, par exemple en présence de liquides, gaz ou
poussières inflammables. Les outils électriques produisent des
étincelles risquant d’enflammer les poussières ou vapeurs.
Garder les badauds, enfants et visiteurs à l’écart pendant
l’utilisation d’un outil électrique. Les distractions peuvent
causer une perte de contrôle.
SÉCURITÉ ÉLECTRIQUE
Les batteries d’outils électriques, qu’elles soient intégrées
ou amovibles, ne doivent être rechargées qu’avec l’appareil
spécifié. Un chargeur approprié pour un type de batterie peut
créer un risque d’incendie s’il est utilisé avec un autre type de
batterie.
Utiliser exclusivement le bloc de batteries spécifiquement
indiqué pour l’outil. L’usage de tout autre bloc peut créer un
risque d’incendie.
Ne recharger les piles qu’avec l’appareil indiqué. Pour
utiliser l’appareil avec des piles au nickel-cadmium et au
lithium-ion de 18 V, consulter le supplément de raccordement
pour chargeur/outils/piles/appareil n˚ 987000-432.
SÉCURITÉ PERSONNELLE
Rester attentif, prêter attention au travail et faire preuve
de bon sens lors de l’utilisation de tout outil électrique. Ne
pas utiliser cet outil en état de fatigue ou sous l’influence
de l’alcool, de drogues ou de médicaments. Un moment
d’inattention pendant l’utilisation d’un outil électrique peut
entraîner des blessures graves.
Porter une tenue appropriée. Ne porter ni vêtements amples,
ni bijoux. Attacher ou couvrir les cheveux longs. Garder les
cheveux, les vêtements et les gants à l’écart des pièces en
mouvement. Les vêtements amples, bijoux et cheveux longs
peuvent se prendre dans les pièces en mouvement.
Éviter les démarrages accidentels. S’assurer que la gâchette
est verrouillée en position d’arrêt avant d’insérer le bloc de
batteries. Le transport d’outils avec le doigt sur le commutateur
ou l’insertion du bloc de batteries avec le commutateur en
position de marche est une invite aux accidents.
Retirer les outils et clés de réglage avant de mettre l’outil
en marche. Un outil ou une clé laissée sur une pièce rotative
de l’outil peut causer des blessures.
Ne pas travailler hors de portée. Toujours se tenir bien
campé et en équilibre. Une bonne tenue et un bon équilibre
permettent de mieux contrôler l’outil en cas de situation
imprévue.
Utiliser l’équipement de sécurité. Toujours porter une
protection oculaire. Suivant les conditions, le port d’un
masque filtrant, de chaussures de sécurité, d’un casque ou
d’une protection auditive est recommandé.
Ne porter ni vêtements amples, ni bijoux. Attacher ou couvrir
les cheveux longs. Les vêtements amples, bijoux et cheveux
longs peuvent se prendre dans les ouïes d’aération.
Ne pas utiliser l’outil sur une échelle ou un support instable.
Une bonne tenue et un bon équilibre permettent de mieux
contrôler l’outil en cas de situation imprévue.
UTILISATION ET ENTRETIEN DE L’OUTIL
Utiliser des serre-joint ou un autre système approprié pour
maintenir fermement la pièce sur une surface stable. Une
pièce tenue à la main ou contre son corps est instable et peut
causer une perte de contrôle.
Ne pas forcer l’outil. Utiliser l’outil approprié pour le travail.
Un outil approprié exécutera le travail mieux et de façon moins
dangereuse s’il est utilisé dans les limites prévues.
Ne pas utiliser l’outil si le commutateur ne permet pas de
le mettre en marche ou de l’arrêter. Un outil qui ne peut pas
être contrôlé par son commutateur est dangereux et doit être
réparé.
Déconnecter le bloc de batteries et mettre le commutateur
en position d’arrêt ou de verrouillage avant d’effectuer des
réglages, de changer d’accessoire ou de remiser l’outil.
Ces mesures de sécurité réduisent les risques de démarrage
accidentel de l’outil.
Ranger les outils non utilisés hors de la portée des enfants et
des personnes n’ayant pas reçu des instructions adéquates.
Dans les mains de personnes n’ayant pas reçu des instructions
adéquates, les outils sont dangereux.
Lorsque le bloc de batteries n’est pas en usage, le tenir
à l’écart d’articles métalliques tels que : les attaches
trombones, pièces de monnaie, clous, vis et autres petits
objets métalliques risquant d’établir le contact entre les
deux bornes. La mise en court-circuit des bornes de batteries
peut causer des étincelles, des brûlures ou un incendie.
Entretenir soigneusement les outils. Garder les outils bien
affûtés et propres. Des outils correctement entretenus et dont
les tranchants sont bien affûtés risquent moins de se bloquer
et sont plus faciles à contrôler.
Vérifier qu’aucune pièce mobile n’est mal alignée, grippée
ou brisée et s’assurer qu’aucun autre problème risque
d’affecter le bon fonctionnement de l’outil. En cas de
dommages, faire réparer l’outil avant de l’utiliser de
nouveau. Beaucoup d’accidents sont causés par des outils
mal entretenus.
Utiliser exclusivement les accessoires recommandés par le
fabricant pour le modèle d’outil. Des accessoires appropriés
pour un outil peuvent être dangereux s’ils sont utilisés avec un
autre.
Garder l’outil et sa poignée secs, propres et exempts
d’huile ou de graisse. Toujours utiliser un chiffon propre pour
le nettoyage. Ne jamais utiliser de liquide de freins, d’essence,
de produits à base de pétrole ou de solvants forts pour nettoyer
l’outil. Le respect de cette règles réduira les risques de perte
de contrôle et d’endommagement du boîtier en plastique.

4
Lorsque l’outil est utilisé pour un travail risquant de
le mettre en contact avec des fils électriques cachés
ou avec son propre cordon d’alimentation, le tenir par
les surfaces de prise isolées. Tout contact avec un fil
sous tension électrifierait les parties métalliques de l’outil,
et causerait un choc électrique.
Assujettirles pièces.Dans la mesure dupossible, utiliser
des serre-joint ou un étau pour maintenir la pièce. Cette
pratique réduit les risques et laisse les deux mains libres
pour utiliser l’outil.
Lorsque l’outil est utilisé pour un travail risquant de
le mettre en contact avec des fils électriques cachés,
le tenir par les surfaces de prise isolées. En cas de
contact avec un fil sous tension, les parties métalliques
exposées de l’outil seraient électrifées, exposant
l’opérateur à un risque de choc électrique.
Apprendre à connaître l’outil. Lire attentivement le
manuel d’utilisation. Apprendre les applications et
les limites de l’outil, ainsi que les risques spécifiques
relatifs à son utilisation. Le respect de cette consigne
réduira les risques d’incendie, de choc électrique et de
blessures graves.
Toujours porter des lunettes de sécurité avec écrans
latéraux. Les lunettes de vue ordinaires sont munies
seulement de verres résistants aux impacts. Ce ne sont
PAS des lunettes de sécurité. Le respect de cette règle
réduira les risques de lésions oculaires.
Protection respiratoire. Porter un masque facial ou
un masque anti-poussière si le travail produit de la
poussière. Le respect de cette consigne réduira les
risques de blessures graves.
Protection auditive. Porter une protection auditive
lors de l’utilisation prolongée. Le respect de cette
règle réduira les risques de blessures graves.
Les outils fonctionnant sur batteries n’ayant pas
besoin d’être branchés sur une prise secteur, ils sont
toujours en état de fonctionnement. Tenir compte des
dangers possibles lorsque l’outil n’est pas en usage
et lors du remplacement des batteries. Le respect de
cette consigne réduira les risques d’incendie, de choc
électrique et de blessures graves.
DÉPANNAGE
Le dépannage des outils doit être confié exclusivement
à un personnel qualifié. Les réparations ou entretiens
effectués par des personnes non qualifiées présentent
des risques de blessures.
Ne pas placer les outils électriques sans fil ou leurs
batteries à proximité de flammes ou d’une source
de chaleur. Ceci réduira les risques d’explosion et de
blessures.
Ne jamais utiliser une batterie qui a été endommagée
ou soumise à un choc violent. Une batterie endommagée
risque d’exploser. Éliminer immédiatement toute batterie
endommagée, selon une méthode appropriée.
Les batteries peuvent exploser en présence d’une
source d’allumage, telle qu’une veilleuse. Pour réduire
les risques de blessures graves, ne jamais utiliser un
appareil sans fil, quel qu’il soit, en présence d’une flamme
vive. En explosant, une batterie peut projeter des débris
et des produits chimiques. En cas d’exposition, rincer
immédiatement les parties atteintes avec de l’eau.
Ne pas recharger un outil fonctionnant sur batteries
dans un endroit humide ou mouillé. Le respect de cette
règle réduira les risques de choc électrique.
Pou un résultat optimal, le batteries de l’outil doivent
être rechargées dans un local où la température est
de 10 à 38 °C (50 a 100° F). Ne pas ranger l’outil à
l’extérieur ou dans un véhicule.
Si l’outil est utilisé de façon intensive ou sous des
températures extrêmes, des fuites de batterie peuvent
se produire. En cas de contact du liquide avec la
peau, rincer immédiatement la partie atteinte avec
de l’eau savonneuse, puis neutraliser avec du jus de
citron ou du vinaigre. En cas d’éclaboussure dans les
yeux, les rincer à l’eau fraîche pendant au moins 10
minutes, puis contacter immédiatement un médecin.
Le respect de cette consigne réduira les risques de
blessures graves.
Conserver ces instructions. Les consulter fréquemment
et les utiliser pour instruire les autres utilisateurs
éventuels. Si cet outil est prêté, il doit être accompagné
de ces instructions, afin d’éviter un usage incorrect et
d’éventuelles blessures.
Utiliser exclusivement des pièces identiques à celles
d’origine pour les réparations. Se conformer aux
instructions de la section Entretien de ce manuel.
L’usage de pièces non autorisées ou le non respect des
instructions peut présenter des risques de choc électrique
ou de blessures.
RÈGLES DE SÉCURITÉ GÉNÉRALES
RÈGLES DE SÉCURITÉ PARTICULIÈRES
