Ryobi EID750RG Operation manual

IMPACT DRILL
OWNER’S OPERATING MANUAL
EID750RG

7
811
1
5
2
10
6
3
5
1
4
2
Fig. 2Fig. 1
1. Trigger switch
2. Forward/reverse selector
3. Keyless chuck
4. Variable speed selector
5. Lock-on button
6. Drill mode shift knob
7. Depth gauge
8. Auxiliary handle
9. Bit (not included)
10. Air vents
11. Live tool indicator
12. To tighten chuck
13. To loosen chuck
14. To tighten handle
15. To loosen handle
DESCRIPTION

4
6
15 14
6
9
312
13
7
Fig. 5
Fig. 4Fig. 3
Fig. 6

Important!
It is essential that you read the instructions in this manual before
operating this machine.
Subject to technical modifications.

1
English
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1. WORK AREA
a. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
b. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools
create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2. ELECTRICAL SAFETY
a. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adaptor plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
d. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk
of electric shock.
f. If operating power tools in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
3. PERSONAL SAFETY
a. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medi-
cation. A moment of inattention while operating
power tools may result in serious personal injury.
b. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
c. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energising power
tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
e. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewel-
lery or long hair can be caught in moving parts.
g. If devices are provided for the connection of
dust extraction and collection facilities, en-
sure these are connected and properly used.
Use of dust collection can reduce dust-related
hazards.
4. POWER TOOL USE AND CARE
a. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b. Do not use the power tool if the switch does
not turn it on and off. Any power tool that can
not be controlled with the switch is dangerous and
must be repaired.
c. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing ac-
cessories, or storing power tools. Such preven-
tive safety measures reduce the risk of starting
the power tool accidentally.
d. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the

2
English
hands of untrained users.
e. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tools operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits
etc., in accordance with these instructions and
in the manner intended for the particular type
of power tool, taking into account the working
conditions and the work to be performed. Use
of the power tool for operations different from
intended could result in a hazardous situation.
5. SERVICE
a. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
SPECIAL SAFETY RULES
Wear ear protectors. Exposure to noise can cause
hearing loss.
Use auxiliary handles supplied with the tool. Loss
of control can cause personal injury.
If operation is dusty, also wear a dust mask.
Hold power tool by insulated gripping surfaces
when performing an operation where the cutting
accessory may contact hidden wiring or its own
cord. Cutting accessory contacting a “live” wire may
make exposed metal parts of the power tool “live” and
could give the operator an electric shock.
This appliance is not intended for use by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have been
given supervision or instruction concerning use
of the appliance by a person responsible for their
safety. Children should be supervised to ensure
that they do not play with the appliance.
This appliance is not intended for use by young
children or infirm persons. Adequate supervision by a
responsible person must be provided to ensure that
they do not play with the appliance.
Keep children and visitors away. Visitors should
wear safety glasses and be kept a safe distance from
work area. Do not let visitors contact tool or extension
cord.
Complies with AS/NZS 60745.
Recommended for the use of a residual current device
with a rated residual current of 30 mA or less.
SPECIFICATIONS
Voltage 240 V 50 Hz
Chuck capacity 13 mm (1/2”)
Drilling capacity
in wood 32 mm
in steel 13 mm
in masonry 13 mm
Input 750 W
No-load speed 0 - 2,800 min-1
Blows per minute 0 - 45,000 min-1
Weight 2.26 kg
STANDARD ACCESSORIES
Auxiliary handle and depth gauge.
OPERATION
APPLICATIONS
(Use only for the purposes listed below.)
Drilling wood, materials and resin boards.
Drilling concrete (impact drilling only).
Drilling metal: steel, brass, aluminum sheets, stainless
steel & pipe.
SWITCH
See Figure 1 and 3.
This tool can be started and stopped by squeezing
and releasing the trigger switch.
The speed can be adjusted by controlling the force
applied to the trigger.
The maximum speed of the drill may be set at different
speeds by adjusting the variable speed selector.
For continuous operation, press the lock-on button
while squeezing the trigger. Squeeze the trigger again
to release the lock.
CHANGING THE ROTATION DIRECTION
See Figure 2.
To change the direction of rotation, stop the tool and
push the forward / reverse selector.
When the forward selector is pushed in, the bit rotates
clockwise when viewed from the handle end of the tool.

3
English
When the reverse selector is pushed in, the bit rotates
counterclockwise.
MOUNTING AND REMOVING THE BIT
See Figure 4.
Insert the drill bit into the chuck as far as the plain part
of its shank will go.
Tighten the chuck securely by rotating the chuck head
in a clockwise direction.
The bit can be removed by rotating the chuck in a
counterclockwise direction.
CHANGING BETWEEN DRILLINGAND IMPACT DRILL-
ING MODE
See Figure 5.
The drilling mode shift knob for changing between
the drilling mode and impact drilling mode is positioned on
the top of the tool.
DRILLING MODE: Shift the knob to the " " and
showing " " symbol for drilling.
IMPACT DRILLING MODE: Shift the knob to the " "
and showing " " symbol for impact drilling.
OPERATING
Never cover the air vents since they must always be
open for proper motor cooling.
DRILLING IN WOOD
To prevent ugly splits around the drill hole on the reverse
side of the workpiece, put a piece of scrap timber under
the work piece.
DRILLING IN METAL
Metals such as steel, brass, aluminum sheets, stainless
steel, and pipe may also be drilled. Mark the point to be
drilled with a nail or punch.
Do not use impact drilling mode on these materials.
DRILLING IN CONCRETE
Stone and masonry are generally drilled in the impact
drilling mode.
When drilling in delicate materials such as wall tiles, it is
essential to start with ordinary drilling and, once the tile is
pierced, to continue with impact drilling.
In deep bore holes the drill bit should be pulled out
occasionally in order to remove the debris from the drill
and hole.
AUXILIARY HANDLE AND DEPTH GAUGE
See Figure 6.
Auxiliary handle
The auxiliary handle can be rotated 360º.
Loosen the handle grip by turning in direction, and tighten
it at an easy to use position by turning the grip in direction.
Depth gauge
Holes of a fixed depth can be accurately bored by using
the depth gauge.
The depth of the hole will be the distance from the end of
the bit to the end of the depth gauge.
By turning the handle grip in direction, the depth gauge
can be released and the depth adjusted. After adjusting
the depth, fix the depth gauge again by turning the handle
grip in direction.
Recommendation: Always be supplied via a residual
current device with a rated residual current of 30 mA or
less.
LIVE TOOL INDICATOR
This tool features a live tool indicator which illuminates as
soon as the tool is connected to the supply. This warns the
user that the tool is connected and will operate when the
switch is pressed.
MAINTENANCE
After use, check the tool to make sure that it is in good
condition. It is recommended that you take this tool to a
RYOBI authorised service center for a thorough cleaning
and lubrication at least once a year.
Do not make any adjustments while the motor is in
motion. Always disconnect the power cord from
the power supply before changing removable or
consumable parts (blade, bit, etc.), Lubricating or
working on the unit.
WARNING
To ensure safety and reliability, all repairs should be
performed by an authorised service center or other
qualified service organisation.
Save these instructions for future reference.

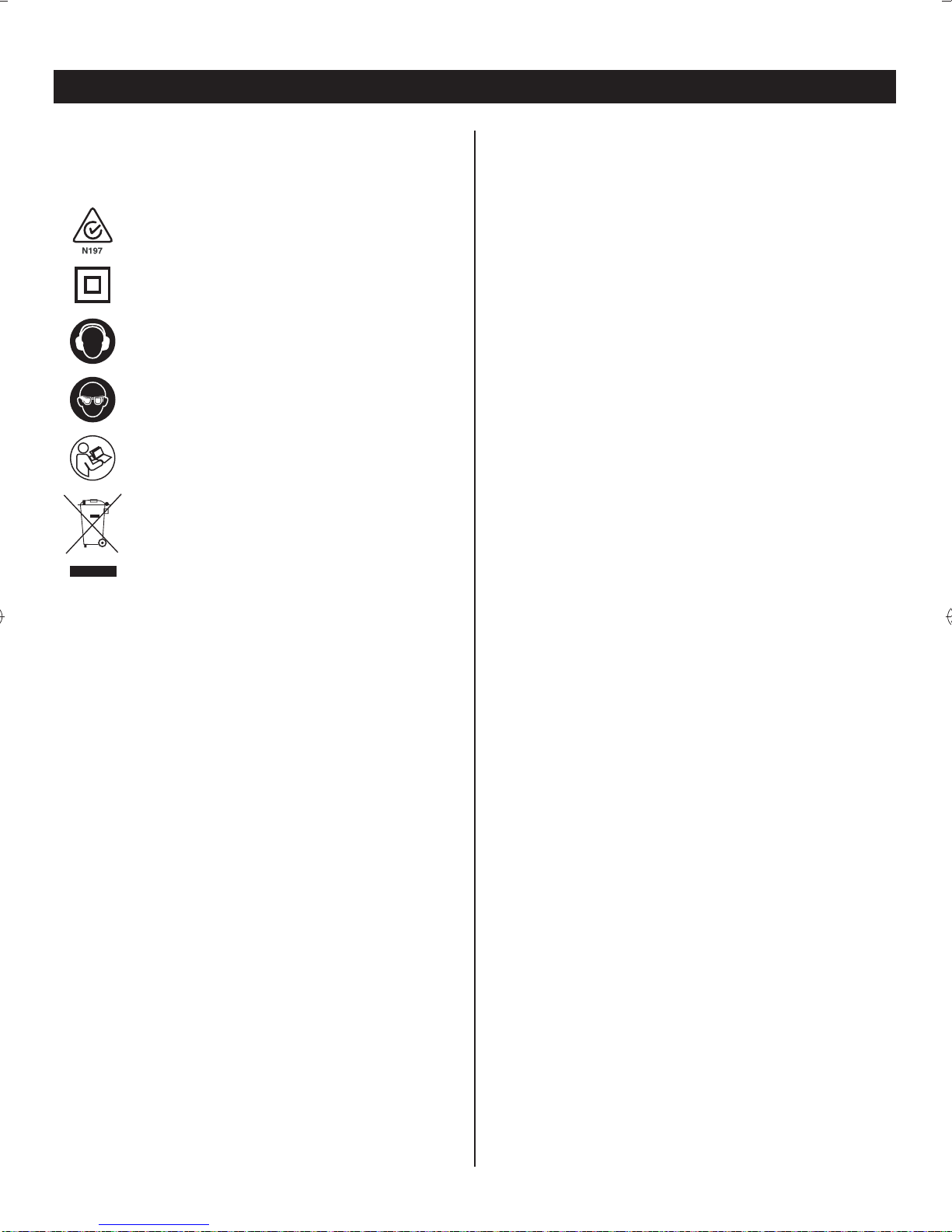

SYMBOL
Safety Alert
V Volts
Hz Hertz
Alternating Current
WWatts

4
English
J Joules
noNo-load speed
min-1Revolutions or reciprocations per minute
Conformity
Double insulation
Wear ear protection
Wear eye protection
Please read the instructions carefully before
starting the machine.
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice.

TECHTRONIC INDUSTRIES (AUSTRALIA) PTY. LTD.
Level 1. 666 Doncaster Road,
Doncaster, Victoria 3108
Australia.
Tel: [phone] Fax No.: 613 9840 6133 www.ryobi.com.au
