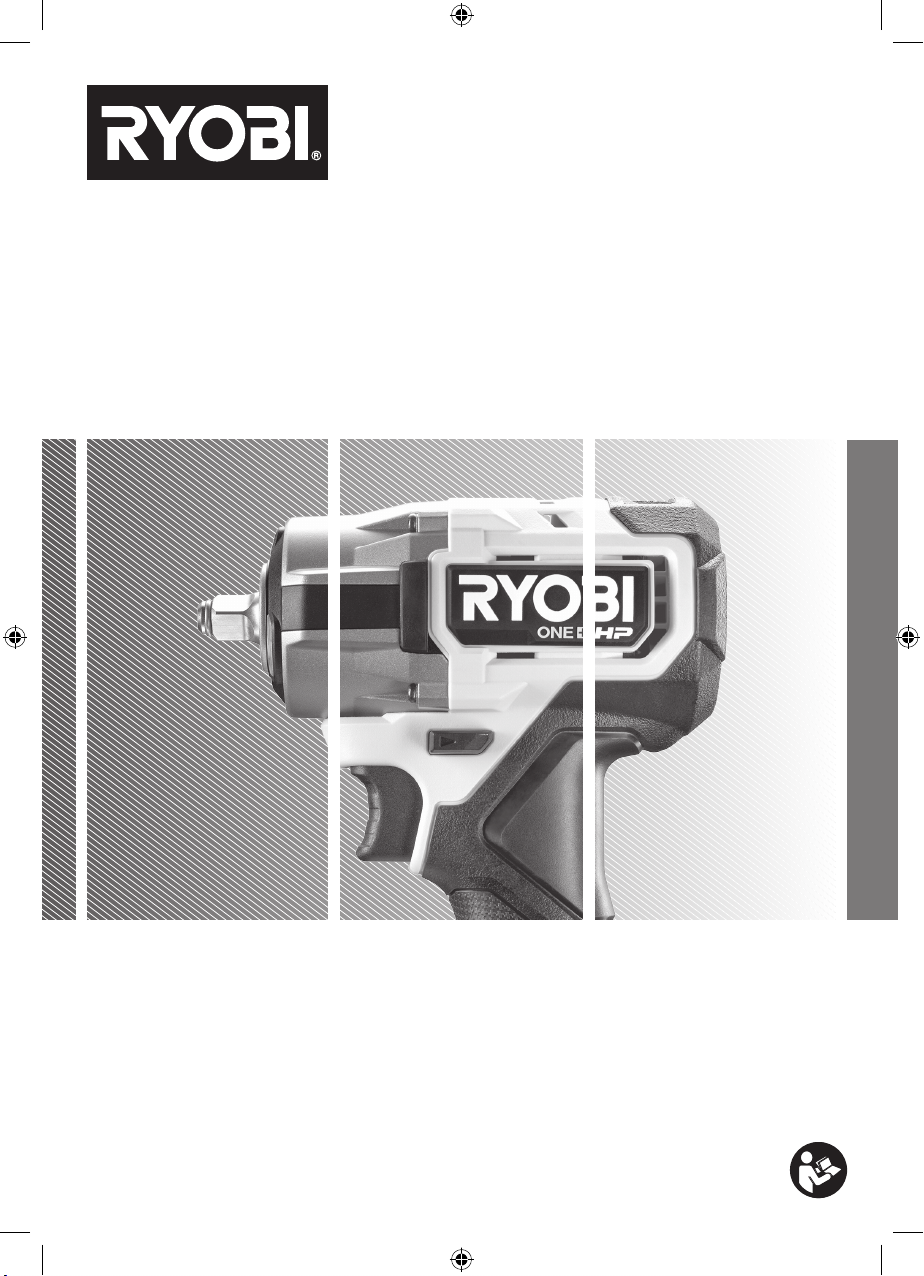

FRONT PAGE
RIW1838C

2
Original Instructions
IMPORTANT!
It is essential that you read the instructions in this manual
before assembling, operating, and maintaining the
product.
Subject to technical modication.
Safety, performance, and dependability have been given top
priority in the design of your impact wrench.
INTENDED USE
The impact wrench is intended to be used only by adults who
have read and understood the instructions and warnings in
this manual, and can be considered responsible for their
actions.
The product is intended for fastening and removing screws
and bolts using an impact socket.
The product is intended for consumer use only.
Do not use the product for any other purpose. Use of the
product for operations di󰀨erent from intended could result in
a hazardous situation.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings, instructions,
illustrations and specifications provided with this
power tool. Failure to follow all instructions listed below
may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool’’ in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
WORK AREA SAFETY
■Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
■Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
■Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
■Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
■Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
■Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
■Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
■When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
■If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
PERSONAL SAFETY
■Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
■Use personal protective equipment. Always wear
eye protection. Protective equipment such as a dust
mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce
personal injuries.
■Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch on
invites accidents.
■Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
■Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
■Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can
be caught in moving parts.
■If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
■Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
POWER TOOL USE AND CARE
■Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
■Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with switch is dangerous and must be repaired.
■Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting
the power tool accidentally.
■Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
■Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused
by poorly maintained power tools.
■Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.

3
Original Instructions
■Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
different from those intended could result in a hazardous
situation.
■Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
BATTERY TOOL USE AND CARE
■Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
■Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
■When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause burns
or a fire.
■Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from
the battery may cause irritation or burns.
■Do not use a battery pack or tool that is damaged or
modified. Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion or
risk of injury.
■Do not expose a battery pack or tool to fire or
excessive temperature. Exposure to fire or temperature
above 130°C may cause explosion.
■Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specified in the instructions. Charging
improperly or at temperatures outside the specified
range may damage the battery and increase the risk of
fire.
SERVICE
■Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
■Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorised service providers.
IMPACT WRENCH SAFETY WARNINGS
■Hold the power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory or fasteners may contact hidden wiring.
Cutting accessory or fasteners contacting a “live” wire
may make exposed metal parts of the power tool “live”
and could give the operator an electric shock.
ADDITIONAL SAFETY WARNINGS
■Do not switch on the product again after it has stalled.
Switching it on again, can cause a kickback with high
reaction force. Determine why the product has stalled
and rectify it, paying heed to the safety instructions. If
necessary, remove the insertion tool.
■Clamp workpiece with a clamping device. Unclamped
workpieces can cause severe injury and damage.
■Injuries may be caused, or aggravated, by prolonged
use of a tool. When using any tool for prolonged periods,
ensure you take regular breaks.
■Ambient temperature range for tool during operation is
between 0˚C and 40˚C.
■Ambient temperature range for tool storage is between
0˚C and 40˚C.
■The recommended ambient temperature range for the
charging system during charging is between 10˚C and
38˚C.
ADDITIONAL BATTERY SAFETY WARNINGS
■To reduce the risk of fire, personal injury, and product
damage due to a short circuit, never immerse your tool,
battery pack or charger in fluid or allow fluid to flow inside
them. Corrosive or conductive fluids, such as seawater,
certain industrial chemicals, and bleach or bleach-
containing products, etc., can cause a short circuit.
■Charge the battery pack in a location where the ambient
temperature is between 10°C and 38°C.
■Store the battery pack in a location where the ambient
temperature is between 0°C and 40°C.
TRANSPORTING LITHIUM BATTERIES
Transport the battery in accordance with local and national
provisions and regulations.
Follow all special requirements on packaging and labelling
when transporting batteries by a third party. Ensure that
no batteries can come in contact with other batteries
or conductive materials while in transport by protecting
exposed connectors with insulating, non-conductive caps or
tape. Do not transport batteries that are cracked or leaking.
Check with the forwarding company for further advice.
KNOW YOUR PRODUCT
See page 5.

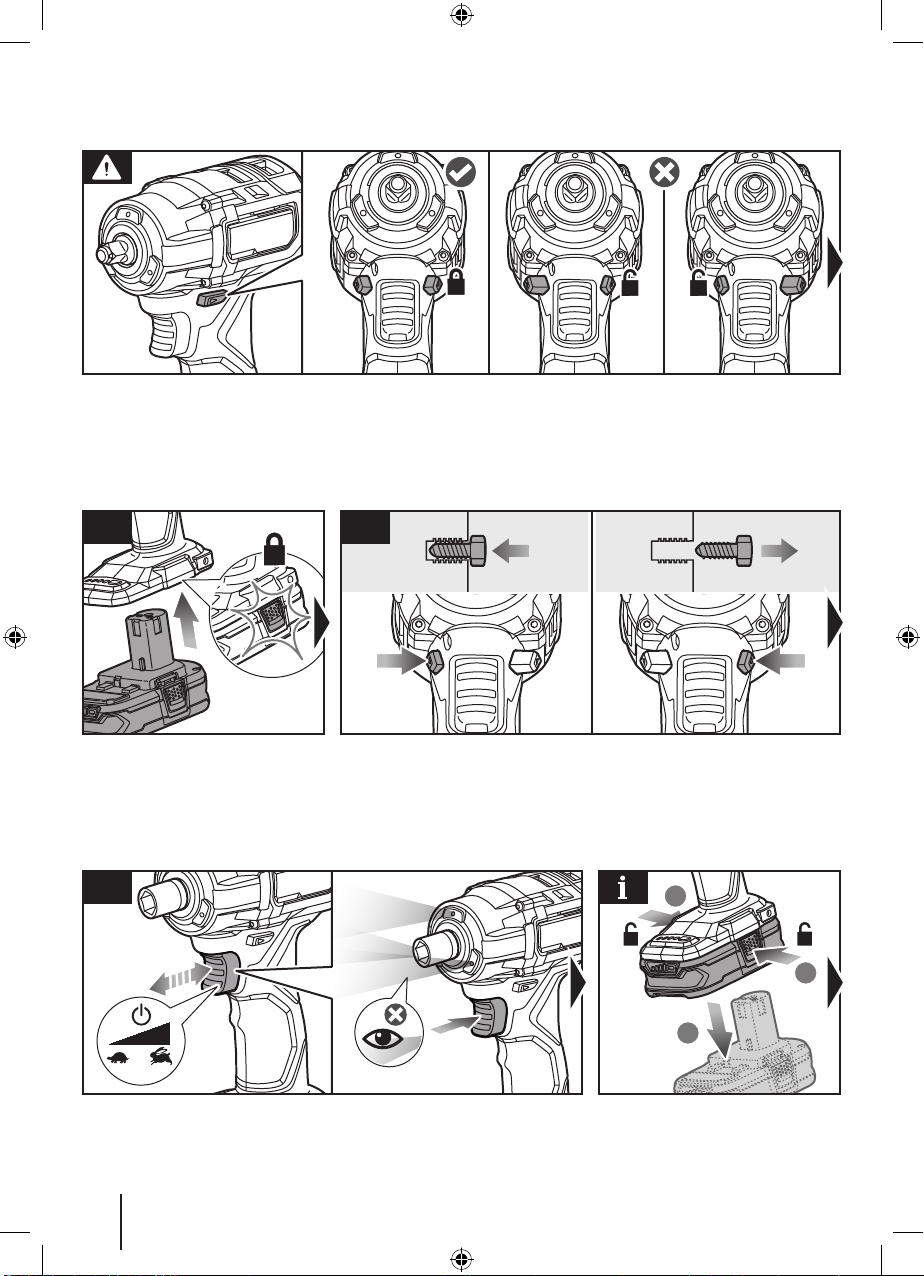

1. LED worklight
2. Direction of rotation selector
3. Anvil
4. Variable speed switch trigger
5. Handle, insulated gripping surface
6. Battery port
7. Low speed
8. Medium speed
9. High speed
10. "A" mode *
11. Mode selection button
12. Operator’s manual
13. Socket
14. Battery pack
15. Charger
*The “A” mode is a mode designed to give the user greater
control in application and reduce damage to the fastener or
work surface by automatically shutting the tool o󰀨 after the
tool senses the mechanism impacting for approximately one
second.
MAINTENANCE
■The product should never be connected to a power
supply when assembling parts, making adjustments,
cleaning, performing maintenance, or when the product
is not in use. Disconnecting the product from the power
supply will prevent accidental starting that could cause
serious injury.
■When servicing, use only original manufacturer’s
replacement parts, accessories and attachments. Use

4
Original Instructions
of any other parts may create a hazard or cause product
damage.
■Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to various types of commercial
solvents and may be damaged by their use. Use clean
cloths to remove dirt, carbon dust, etc.
■Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal
injury.
■For greater safety and reliability, all repairs should be
performed by an authorised service centre.
SYMBOLS ON THE PRODUCT
V Volts
No-load speed
min־¹ Revolutions or reciprocations per minute
IPM Impacts per minute
Direct current
European Conformity Mark
British Conformity Mark
Ukraine Conformity Mark
EurAsian Conformity Mark
Please read the instructions carefully before
starting the machine.
Wear eye protection
Hot surface
Do not dispose of waste batteries, waste
electrical and electronic equipment as
unsorted municipal waste. Waste batteries
and waste electrical and electronic equipment
must be collected separately. Waste batteries,
waste accumulators, and light sources have to
be removed from the equipment. Check with
your local authority or retailer for recycling
advice and collection point. According to
local regulations, retailers may have an
obligation to take back waste batteries and
waste electrical and electronic equipment
free of charge. Your contribution to the reuse
and recycling of waste batteries and waste
electrical and electronic equipment helps to
reduce the demand of raw materials. Waste
batteries, in particular containing lithium, and
waste electrical and electronic equipment
contain valuable and recyclable materials,
which can adversely impact the environment
and the human health if not disposed of in an
environmentally compatible manner. Delete
personal data from waste equipment, if any.
SYMBOLS IN THIS MANUAL
Note
Safety Alert
Parts or accessories sold separately
Unlock
Lock
Speed, minimum
Speed, maximum
Torque, maximum
Torque, medium
Torque, minimum

5
14
15
10
9
8
7
5
3
1
12
11
6
4
2
13

6
32
51
1
2

7
1
4
2
5
20220909v1

PRODUCT SPECIFICATIONS
18V Impact wrench
Model RIW1838C
Voltage 18 V
Coupler 9.5 mm (3/8”)
Switch Variable speed
No load speed
Speed 1 0 - 850 min-1
Speed 2 0 - 2100 min-1
Speed 3 0 - 2800 min-1
"A" mode 0 - 2600 min-1
Max torque
Speed 1 70 Nm
Speed 2 120 Nm
Speed 3 300 Nm
Impacts per minute
Speed 3 0 - 4200 IPM
Breakaway torque 450 Nm
Weight
(According to EPTA procedure 01/2014)
1.6 kg (1.3 Ah) -
2.4 kg (9.0 Ah)
Weight - excluding battery pack 1.2 kg
Measured sound values determined according to EN 62841:
A-weighted sound pressure level LpA = 102.0 dB(A)
Uncertainty K 3 dB(A)
A-weighted sound power level LWA = 110.0 dB(A)
Uncertainty K 3 dB(A)
Wear ear protectors.
The vibration total values (triaxial vector sum) determined according
to EN 62841:
Impact tightening of fasteners of the
maximum capacity of the tool
ah = 14.2 m/s2
Uncertainty K 1.5 m/s2
BATTERY AND CHARGER
Compatible battery packs (not included) RB18..
Compatible chargers
(not included)
BCL1418..H
RC18..
WARNING! The declared vibration total values and the
declared noise emission values given in this instruction
manual have been measured in accordance with a
standardised test and may be used to compare one tool with
another. They may be used for a preliminary assessment
of exposure.
The declared vibration and noise emission values represent
the main applications of the tool. However, if the tool is used
for di󰀨erent applications, used with di󰀨erent accessories,
or poorly maintained, the vibration and noise emission
may di󰀨er. These conditions may signicantly increase the
exposure levels over the total working period. An estimation
of the level of exposure to vibration and noise should take
into account the times when the tool is turned o󰀨 or when
it is running idle. These conditions may signicantly reduce
the exposure level over the total working period.
Identify additional safety measures to protect the operator
from the e󰀨ects of vibration and noise, such as maintaining
the tool and the accessories, keeping the hands warm (in
case of vibration), and organising work patterns.

RYOBI WARRANTY APPLICATION CONDITIONS
In addition to any statutory rights resulting from the purchase, this product is covered
by a warranty as stated below.
1. The warranty period is 24 months for consumers and commences on the
date the product was purchased. This date has to be documented by an
invoice or other proof of purchase. The product is designed and dedicated to
consumer and private use only. So there is no warranty provided in case of
professional or commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range of power tools
(AC/DC) the warranty period over the period described above using the
registration on the www.ryobitools.eu website. The eligibility of products for
extended warranty is clearly displayed in stores and / or on packaging and
is contained within the product documentation. The end user is required to
register his/her newly-acquired products online within 30 days from the date
of purchase. The end user may register for the extended warranty in his/her
country of residence if listed on the online registration form where this option
is valid. Furthermore, end users must give their consent to the storage of
their personal data that is required to be entered online. They must also
accept the terms and conditions. The registration confirmation receipt, which
is sent out by e-mail, and the original invoice showing the date of purchase
will serve as proof of the extended warranty.
3. The warranty covers all defects of the product during the warranty period
due to faults in workmanship or material at the purchase date. The warranty
is limited to repair and/or replacement and does not include any other
obligations including but not limited to incidental or consequential damages.
The warranty is not valid if the product has been misused, used contrary to
the instruction manual, or has been incorrectly connected to a power supply.
This warranty does not apply to:
– any damage to the product that is the result of improper or lack of maintenance
– any product that has been altered or modified
– any product where original identification (trade mark, serial number) markings
have been defaced, altered or removed
– any damage caused by non-observance of the instruction manual
– any product not displaying the CE approval mark on the rating plate
– any product that has been attempted to be repaired by a non-authorised
warranty service centre or without prior authorisation by Techtronic Industries
– any product connected to improper power supply (amps, voltage, frequency)
– any damage caused by external influences (water, chemical, physical,
shocks) or foreign substances
– normal wear and tear spare parts
– inappropriate use, overloading of the tool
– use of non-approved accessories or parts
– Power tool accessories provided with the tool or purchased separately,
including but not limited to screw driver bits, drill bits, abrasive discs, sand
paper and blades, lateral guide, etc.
– Components (parts and accessories) subject to natural wear and tear,
including but not limited to service & maintenance kits, carbon brushes,
bearings, chuck, SDS drill bit attachment or reception, power cord, auxiliary
handle, transport carry case, sanding plate, dust bag, dust exhaust tube, felt
washers, impact wrench pins & springs, etc.
4. For servicing, the product must be sent or presented to a RYOBI authorised
service station listed for each country in the following list of service station
addresses. In some countries your local RYOBI dealer undertakes to send
the product to the RYOBI service organisation. When sending a product
to a RYOBI service station, the product should be safely packed without
any dangerous contents such as petrol, marked with sender’s address and
accompanied by a short description of the fault.
5. A repair / replacement under this warranty is free of charge. It does not
constitute an extension or a new start of the warranty period. Exchanged
parts or products become our property. In some countries delivery charges
or postage will have to be paid by the sender. Your statutory rights arising
from the purchase of the product remain unaffected
6. This warranty is valid in the European Community, Switzerland, Iceland,
Norway, Liechtenstein, Turkey, Russia, and the United Kingdom. Outside
these areas, please contact your authorised RYOBI dealer to determine if
another warranty applies.
AUTHORISED SERVICE CENTRES
Any request or issue with the product can be addressed to your local authorised
service centres (visit www.ryobitools.eu) or directly to: Techtronic Industries GmbH,
Max Eyth Straße 10, 71364 Winnenden, Germany. Please state the serial number
and product type printed on the label.
EC DECLARATION OF CONFORMITY
Manufacturer: Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
We declare as the manufacturer under our sole responsibility that the product
mentioned below
18V Impact wrench
Brand: RYOBI
Model number: RIW1838C
Serial number range: 48633301000001 - 48633301999999
fulfills all the relevant provisions of the following European Directives, European
Regulations and harmonised standards.
2006/42/EC, 2014/30/EU, 2011/65/EU
EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN 62841-1:2015+A11:2022,
EN 62841-2-2:2014, EN IEC 63000:2018
Todd Chipner
Vice President, Quality - Asia
Winnenden, Sep. 27, 2022
Authorised to compile the technical file:
Alexander Krug, Managing Director
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
RYOBI is a trade mark of Ryobi Limited,
and is used under license.
GB-DECLARATION OF CONFORMITY
Manufacturer: Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
We declare as the manufacturer under our sole responsibility that the product
mentioned below
18V Impact wrench
Brand: RYOBI
Model number: RIW1838C
Serial number range: 48633301000001 - 48633301999999
fulfills all the relevant provisions of the following Regulations: S.I. 2008/1597 (as
amended), S.I. 2016/1091 (as amended), S.I. 2012/3032 (as amended) and that the
following designated standards have been used:
BS EN IEC 55014-1:2021, BS EN IEC 55014-2:2021, BS EN 62841-1:2015,
BS EN 62841-2-2:2014, BS EN IEC 63000:2018
Todd Chipner
Vice President, Quality - Asia
Winnenden, Sep. 27, 2022
Authorised to compile the technical file:
Techtronic Industries (UK) Ltd
Parkway
Marlow Bucks SL7 1YL
UK

BACK PAGE
Techtronic Industries GmbH
Max-Eyth-Straße 10,
71364 Winnenden, Germany
Techtronic Industries (UK) Ltd
Parkway
Marlow Bucks SL7 1YL
UK
961075757-01
