Süd Solar RIVA User manual

Instruction Manual Solar pump set RIVA, Article No. 01125
Distribution by Süd Solar GmbH, 71732 Tamm (Germany)
Copyright © Süd Solar GmbH 2008, Modifications reserved
www.sued-solar.de
REV-1-23-12-08
1. Introduction
Dear Customer, thank you for having purchased one of our products. This product
fulfils the requirements of the valid European and National guidelines. The conformity
has been proved, the declarations in question and the documents are deposited at the
manufacturer’s.
2. Security Advices
For damages caused by disregard of this instruction manual, the right of guarantee expires! For further
damages we do not accept any liability! For material or personal damage which occurs because of
inappropriate use or disregard of the security advices, we do not accept any liability. In such cases any right of
guarantee expires. Because of security reasons (CE) the alteration of the device is not permitted. Do not
open. Maintenance only to be executed by qualified personnel. The device is no toy. Inappropriate for children.
3. Appropriate Use
The solar pump set is destined for outdoor use.
4. Commissioning
Please pay attention, that during operation splashing water can cause damages to the subsoil and the closer
environment of the fountain. Do only put up and use the pump kit in suitable places. We do not accept any
liability for damages which occur through spraying or running out water.
1. Take all parts carefully out of the package. Treat the solar module very carefully. A broken solar
module is not subject to warranty adjustment.
2. Choose a suitable place for the battery box in order to protect it from direct meteorological influence,
for example from rain.
3. Fix the ground spike to the aluminium frame of the solar module and install it in a sunny place. Ideal is
an orientation southward. Lay the cable of the solar module in order to avoid stumbling blocks. Attach
the socket of the cable to the plug of the cable at the battery box. When the sun shines on the solar
module the integrated battery is charged.
4. Compose the standpipe out of the multipart standpipe and nozzle set and slide the LED ring for the
lighting over it. Chose one of the multi-jet or single jet nozzles. Now the standpipe is stuck on the
socket of the pump and then placed in the pond.
5. Attach the two connecting cables of the pump and the LED ring with the appropriate connections at
the battery box.
6. Activate the solar pump set via the button „EIN“(ON) at the battery box. For activation control glows
the green LED „Betrieb“(Operation). If the battery is charged only weakly, the red LED „Akku
schwach“ (battery weak) blinks. If sunlight falls on the solar module and the battery is charged, the
orange LED „Aufladung“ (charging) blinks. Please wait until the red LED expires.
7. If you push the button „ON“ on the remote control – or the button „Pumpe Ein/Aus“ (pump on/off) at
the battery box, the pump starts working. At night the LED ring switches itself automatically on to
support the lighting of the fountain. After about 2 hours the pump and the LED ring switch themselves
off again. A new start is possible as long as the charging of the battery is sufficient.
8. With the controller at the battery box you can adjust the flow rate of the pump. So you can achieve
interesting effects in the pond depending on the different fountain adapters. The effects are pointed
out even more thanks to the atmospheric lighting in the darkness.

Instruction Manual Solar pump set RIVA, Article No. 01125
Distribution by Süd Solar GmbH, 71732 Tamm (Germany)
Copyright © Süd Solar GmbH 2008, Modifications reserved
www.sued-solar.de
REV-1-23-12-08
Pb
5. Care, maintenance and malfunction
Clean the product only with a humid cloth. Please to not use any sharp cleaner or detergents. In the case of
malfunction of the pump check the position for sufficient sunlight. The function of the pump is only possible at
temporary direct sunlight on the solar module. At dull days the solar energy is possibly not enough to operate
the pump
For cleaning the filter box of the pump can be opened. Pull off the cap at the front of the pump. Take off the
foam filter elements. Clean them with clear water. Take off the lid above the pump wing as well as the magne-
tic rotor with the rotor wing. The reassembly is effected in reverse order.
The 6V lead accu installed in the battery box is changeable. If needed, open the 5 screws at the front plate
and change it against a similar one. The reassembly is effected in reverse order. Please pay attention that the
seal is right in place so that no humidity can penetrate the battery box.
Attention! During the winter and transition periods with frost the pump must be completely taken out
of the pond and cleaned and stored together with the battery box in a frost-protected and dry place. In
order to assure a longer durability of the solar module we recommend to store it as well protected
during the winter.

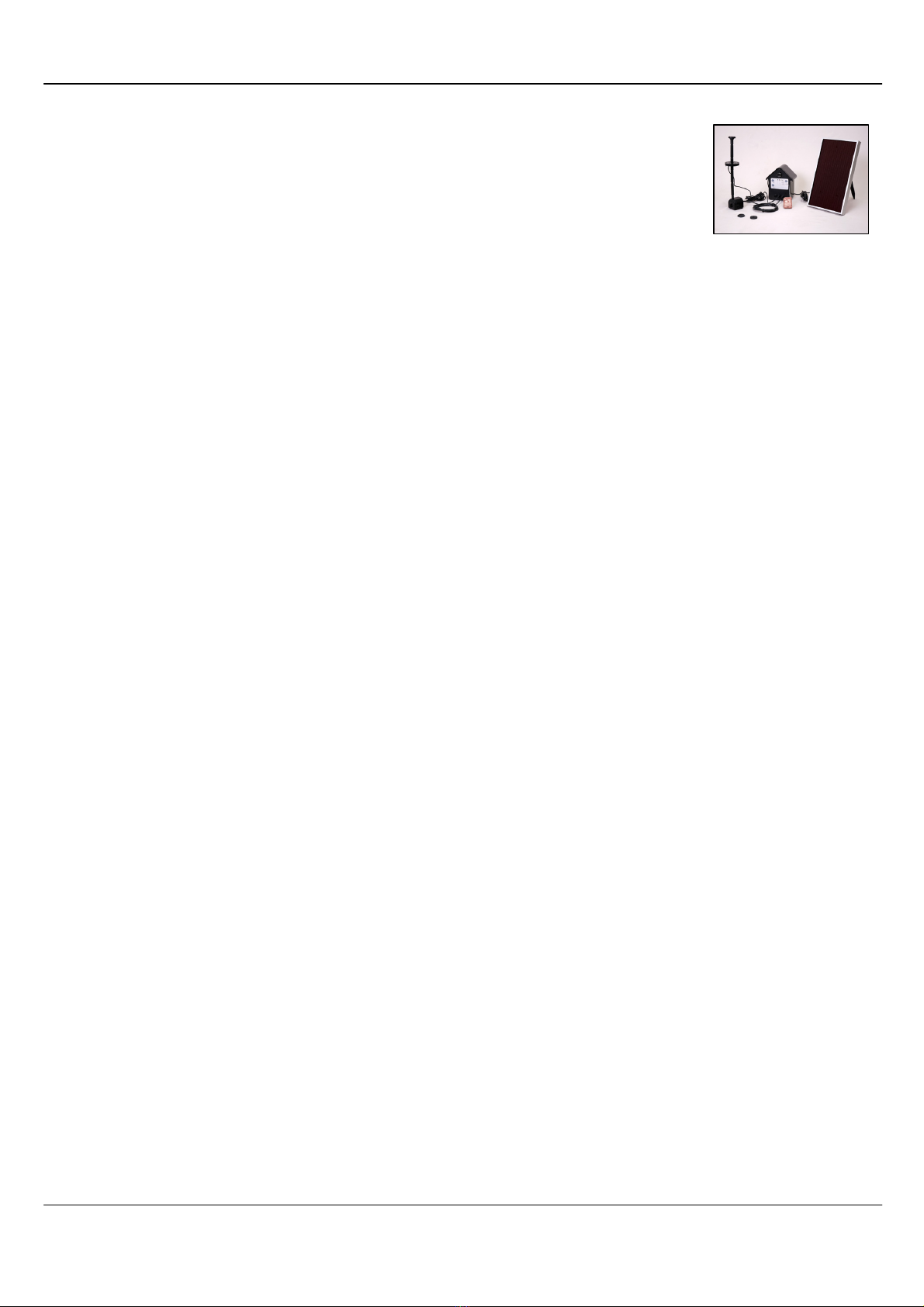

6. Scope of delivery
1. 1 x Solar module with aluminium frame
2. 1 x Ground spike set, series of three
3. 1 x Battery box (technical unit for electronic control, with integrated battery)
4. 1 x Pump
5. 1 x LED ring for lighting
6. 1 x Standpipe and nozzle set, multipart (three multi-jet fountains and one single-jet nozzle)
7. 1 x Remote control
8. 1 x Instruction Manual
7. Technical Data
Solar module : 6 Volt, 2 Watt, Silicium cover amorphous (glass module with aluminium frame)
Dimensions : approx. 31 cm x 19 cm x 1,5 cm.
Battery : 6 Volt, 4 Ah. Maintenance-free, closed lead accu in battery box.
Pump : 6 Volt, with approx. 5 meters feed cable. Flow rate 350 liters per hour maximum.
Regulation : Remote control activation and disconnection, controller for the pump performance in the
battery box.
Fountain
height
: Up to 90 cm, dependent on the battery charging and the used adaptor (nozzle or
fountains).
Lighting : 4 white LED with ring at the water exit. Automatic switching on at night if the pump is
activated.
8. Warranty
Warranty services are executed by the authorized dealer where you have bought the product.
Warranty services are executed under presentation of the invoice or receipt of the product..
9. Batteries-Taking back
Batteries must not be disposed into the ordinary rubbish.
The user is engaged by law to return batteries after use, for example
to public collecting points or to shops where batteries are sold.
