S6 HVS-6204 User manual

HDR lHDMI Splitter
User’s Manual
_English
_French
_Spanish
_German
_Italian
_Dutch
_Russian
_Polish
_Portugal
_Arabic

Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug, a
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety, if the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used. Use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or when
unused for long periods of time
14. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.

3
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERTANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON
THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus
CAUTION
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of “dangerous
voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the product.
ClassⅠconstruction
An apparatus with CLASSⅠconstruction shall be connected to a MAINS socket
outlet with a protective earthing connection.
Battery
Batteries (battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.

4
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call a
repair man in your location.
When used outside of the U.S., it may be used HAR code
with fittings of an approved agency is employed.
CAUTION
These servicing instructions are for use
By qualified service personnel only. To reduce the risk of electric shock do not
perform any servicing other than that contained in the operating instructions
unless you are qualified to do so.
Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall not be placed on the apparatus.
Where the MAIN plug or an appliance coupler is used as the disconnect device,
The disconnect device shall remain readily operable.
Listing of manufacturers and models of the relevant power supplies.
1. Dee Van Electronics (Longchan) Co., Ltd
2. DSA-42D-12 3 120300
※Digitalzone will not be responsible
for any problems caused by using
any other adapter we don't provide.

User’s Manual
5
FCC Information (for U.S.A)
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment under FCC rules.
NOTE ON RECYCLING (for EUROPE)
This product’s packaging materials are recyclable and can be
reused. Please dispose of any materials in accordance with the local
recycling regulations.
When discarding the unit, comply with local rules or regulations.
Batteries should never be thrown away or incinerated but disposed of
in accordance with the local regulations concerning chemical waste.
This product and the accessories packed together constitute the
applicable product according to the WEEE directive except batteries

HDMI Splitter
6
Important safety instructions
Please read following recommended safety instructions carefully.
Do not place this product on an uneven
surface.
Do not install on a surface where exposed
to direct sunlight, near
heating .equipment or heavy cold area.
Prevent water or dust from the product.
Do not attempt to repair this product
yourself.
Do not place glass contained of liquid
on the product.
Do not install this product near
any magnetic source.
Place the product at proper ventilation area.
Do not place heavy items on the product.
© Copyright 2016, Digitalzone Co., Ltd. All rights reserved.
Read these operating instructions carefully before using the product.
Follow the safety instructions on the unit and the safety precautions listed in the manual.
Keep this manual handy for future reference.

User’s Manual
7
Contents
Important Safety Instruction ······································································ 2
Contents································································································ 7
English ································································································ 8
Control & Connection options····································································· 8
Packages and accessories ······································································· 9
Remote control Unit ·············································································· 10
Insert battery ························································································ 10
Connection··························································································· 11
How to use HDMI Splitter ········································································ 12
Troubleshooting for no power··································································· 13
CEC, USB (Firmware upgrade) & RS-232 (Remote Control)··························· 13
Front key Lock / Unlock setting································································· 14
How to update System Firmware ······························································ 15
How to use EDID Emulation Mode ···························································· 16
Dynamic mode··················································································· 16
Static mode······················································································· 17
Troubleshooting Guide for Splitters···························································· 18
Specification························································································· 19
Troubleshooting for no power··································································· 19

HDMI Splitter
8

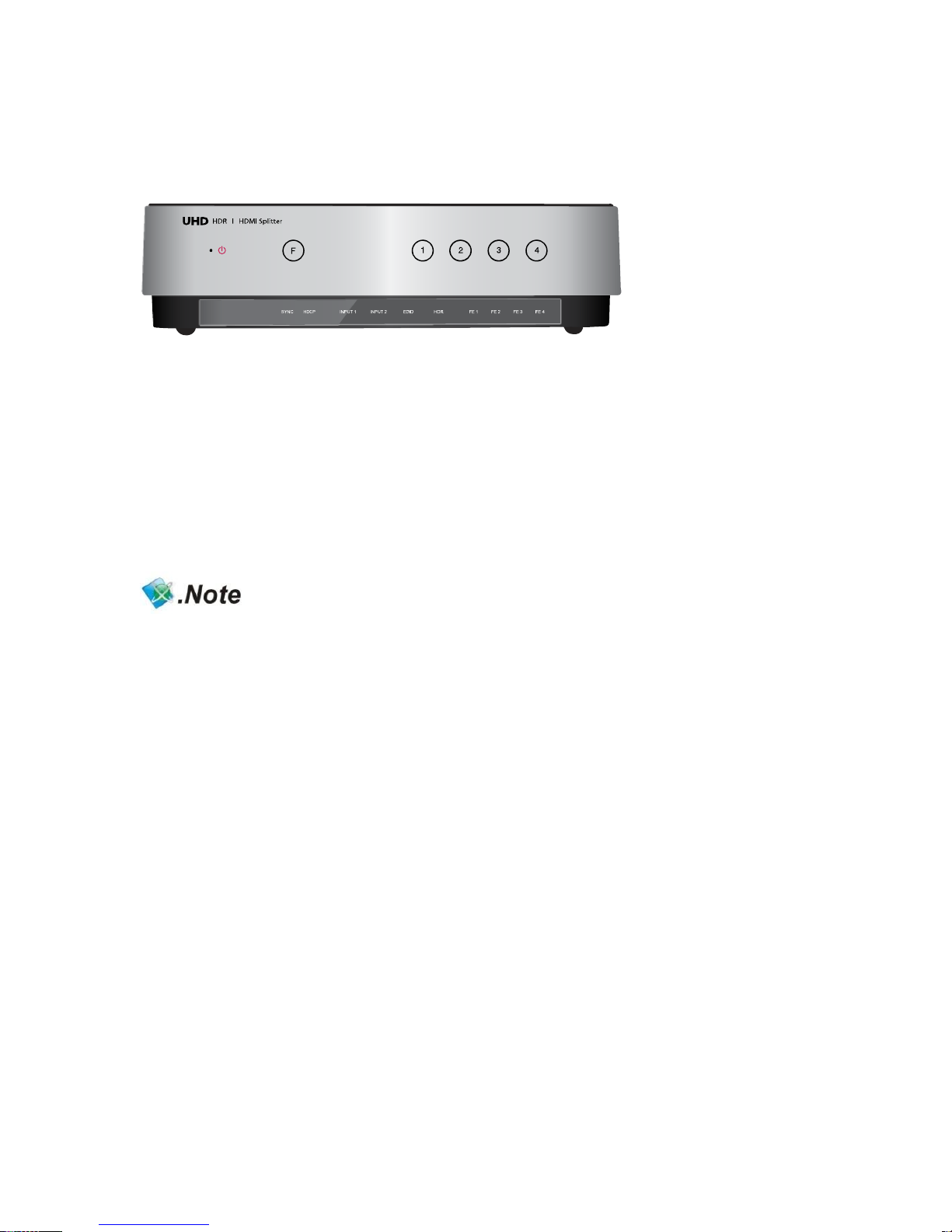

Controls & Connection Options
Front
Rear (HVS-6208)
Rear (HVS-6204)

User’s Manual
9
Packages and accessories
※Contents are subject to change without prior notice.
※Additional accessories should be purchased separately.
※Digitalzone will not be responsible for any problems caused by using any
other adopter we don't provide.
※HDMI cable is optional accessories.
※Product labels located in the bottom parts of products.

HDMI Splitter
10
Remote Control Unit
※It’s possible to use a remote controller within 3~5m, 60 degreeofanglescope.
※
You can use an extension receiver for a remote controller if it’s far away fromthesystem.
Thereceiverinthesystemwillnotworkwhentheextensionrecieverisconnected.
-Turntheunitoffbeforeconnectingtheextensionreciever.
Insert battery
1. Pull out the insert part. 2. Insert battery after checking. 3. Push in the insert part.
“+” polarity

User’s Manual
11
Connection
How to connect devices with splitter
(- Input: Blu-ray Player, FHD/UHD Stream Generator, - Output: FHD/UHD TV)
※YoumustuseHighSpeedHDMIcableifyouliketouseDeep Color,
High refresh rate and resolution above 2160p/60Hz.
(720p/1080i/50~60Hz/DeepColor,720p/1080i/1080p/100~120HzHighRefreshRate)
※Pleaseaskmanufacturerorstoreyoupurchased,ifyouneedadditionalHDMIcables
formoreconnection.

HDMI Splitter
12
Howto use HDMI Splitter
1. Power ON splitter.
2. Power on source players to use such as Blu-ray Player or FHD/UHD
Set-top box, etc
3. Power on display devices
4. Choose one of the input no. for the source player to use.
It’s possible to select the input number by touching the number
button in the front panel or by pressing the button in the remote
control unit.
You must connect UHD TV to use HD player supporting 4K.
(Blu-ray player)

User’s Manual
13

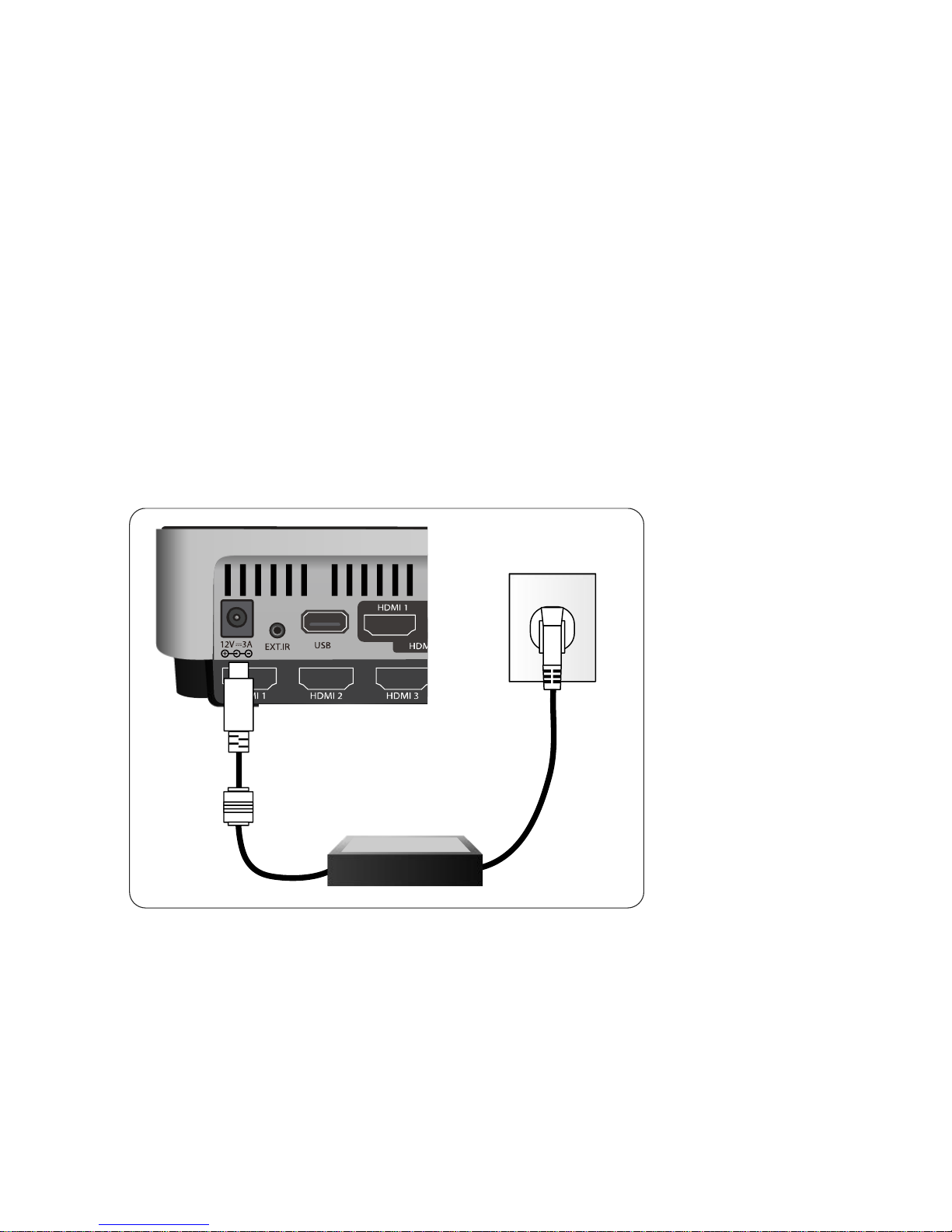

Troubleshooting for no power
- Check if LED light on the front isturned on.
- Make sure the power cord connectors on both ends are firmlyattached.
Please referto the webpage, www.dzonei.com for more detailed information
for the troubleshooting
USB(Firmwareupgrade)&RS-232(RemoteControl)
USB : You can upgrade firmware by USB easily when new firmware
is released.( FAT32 file system is only available in USB)
RS-232: RS-232 is capable of external control via serial port provided
control protocol by Digitalzone.

HDMI Splitter
14

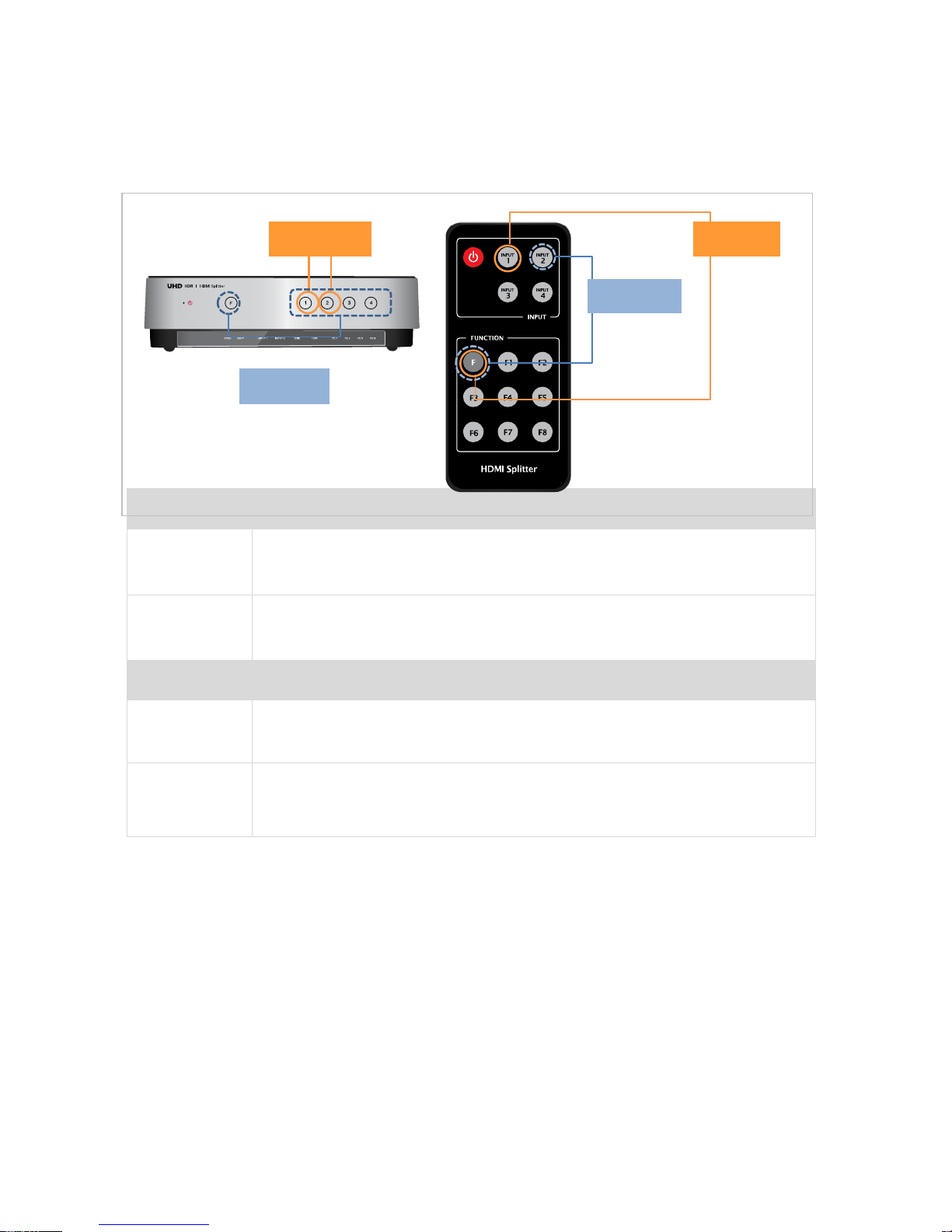

Front key Lock / Unlock setting
Front Key
Lock
Press the selected number in the front (①or ②) for 2~3
seconds.
Unlock
After pressing ‘F’key 3 times, and press all numbering keys
(①->③->②->④) in order.
IR Remote
Lock
After pressing F key 3 times, and press input 1 button.
Unlock
After pressing F key 3 times, and press input 2 button.
Note
If the front button is locked,
-All LEDs for input will be blinking.
- All other button including Power will not be working. It is only possible
to use the front button to unlock the setting.
Lock
Unlock
Unlock
Lock

User’s Manual
15
How to update System Firmware
Before
updating
Firmware
1. Connect a USB to your Computer.
2. Format the USB. USB has to be formatted in FAT32 format
(Recommended)
3. Copy Newest firmware into the connected USB Memory.
4. When the copy process is finished, remove the USB by
Safety Remove (Recommended)
How to
update
Firmware
1. Power on the HDMI splitter.
2. Insert USB Memory in the rear.
3. Firmware will be updated automatically.

HDMI Splitter
16
How to use EDID Emulation Mode
1. Dynamic mode
Function
Number
Mode
Summary
Description
F1
Normal
Safety
configuration
Intersection of all those display
devices
F2
MaxAudio
Max audio
Video : Intersection of all those
display devices
Audio: it takes maximum value.
F3
Copy
1st HDMI Port
Follow EDID information of the
display device connected 1st HDMI
output.
F4
MaxAll
Max all
capability
Joining EDID information of all those
display devices.
How to set Dynamic mode.
1. Keep touching “F” key on front over 2sec.
2. LEDs For FE2 and FE3 are blinking.
3. Select No. 1~4.
4. LED for the selected function (between FE1 ~ FE4) will be turned on and then
completed the setting.

User’s Manual
17
2. Static mode
Function
Number
Mode
Summary
Description
F5
1080i
Force1080i
Audio:2Ch,PCM
Video:1080i/50,60Hz
F6
1080p
Force1080p
Audio:2Ch,PCM
Video:1080p/50,60Hz
F7
4K
Force4K
Audio:2Ch,PCM
Video:2160p/30HzorEquiv
F8
4K-6G
Force4K-6G
Audio:2Ch,PCM
Video:2160p/60HzorEquiv
How to set Static mode.
1. Double-click “F” key.
2. LEDs For FE1,FE4 are blinking.
3. Select No. 1~4.
4. No.1->F5 No.2->F6 No.3->F7 No.4->F8
5. LED for the selected function (between FE1 ~ FE4) will be blinking and then
completed the setting.
- When above functions are selected, “FE1~FE4” LED will be ON.
- In case of using remote control, select F1~F8 after pressing "F" key.

HDMI Splitter
18
Troubleshooting Guide for Splitters
PleasecheckthefollowingbeforecontactingtheCustomerCenterforservice.
Status: When the TV screen does not show anything or is blinking
Check List
Measures
Is the product
connected to the HDMI
Cable properly?
1) Connect the product to the cable correctly.
2) Replace the cable and connect the new one.
Is the LED for “POWER,
SYNC, HDCP, INPUT,
FE LED” on the front
blinking or off?
1) Check if the power adapter is connected properly.
2) Press the “Power” button on the front.
3) Check if theAC power is connected properly.
4) Replace the adapter.
Is the adapter enclosed
with the product
supplied by
DIGITALZONE?
1) Use an adapter supplied by DIGITALZONE only.
Are the video source
equipments (Generator
and Blu-Ray) turned on?
1) Directly connect the video source equipments
(Generator and Blu-Ray) to the TV to see if they work
normally.
Check if you select the
right HDMI input
number.
1) If the source player is connected HDMI number 1,
then select HDMI Input number 1.
2) If the source player is connected HDMI number 2,
then select HDMI Input number 2.
Are you using UHD TV,
Full HD TV and HD TV
together?
1) Select F1 (Normal mode) from the EDID Emulation
mode, or select one of resolution from the static mode.
(Refer to the page 16 for Static mode)
※When additionally connecting or removing a TV to or from a splitter, the TV screen may
blink for a few seconds and then become normal due to the initialization of EDID. (This is not
an error but a normal operation.)

User’s Manual
19
Specification
Input
2EA(Model:HVS-6204 / HVS-6208)
Output
4EA (Model:HVS-6204), 8EA(Model:HVS-6208)
User Interface
Remote Control
IR
RS232
Remote PC/ Device
LED
POWER : On / Off
SYNC : Indication of valid input signal
HDCP : HDCP being used (1.4 / 2.2)
EDID : Emulation Being used
HDR : HDMI Info frame of HDMI outputs being used
INPUT : Input selection display
Buttons
Touch sensors
POWER : Power ON / OFF
Input/function (1~2) selectable.
Touch 1~4 after pressing F(Function)
Power
+12V 3A
DC Jack
Firmware Upgrade
Yes
USB memory stick(FAT32)
HDMI Version
2.0a
Upto4096x2160p@60Hz(YCbCr/RGB4:4:4)
Upto18Gbps(6Gbpsperchannel)
HDCP Version
2.2 / 1.4
HDCP 2.2 / 1.4 Support
EDID Emulation
EDID Emulation Mode Support
(Dynamic mode 4type / Static mode 4type)
Direct current
To indicate on the rating plate that the equipment is suitable for direct current only.
To identify relevant terminals.
Troubleshooting for no power
- Check if LED light on the front is turned on.
- Make sure the power cord connectors on both ends are firmlyattached.
Please referto the webpage, www.dzonei.com for more detailed information
for the troubleshooting

HDMI Splitter
20
