Saba HTS-1500 User manual

1
31-5023 OWNER’S MANUAL

2
Warning
WARNING: To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
CAUTION: To avoid electrical shock, do not open the
cabinet. There are no user serviceable
parts inside. Refer servicing to qualified
personnel only.
This symbol is intended to alert the user of the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the user of the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliances
WARNING: Any adjustments made to this unit may
alter the performance and can result in hazardous
radiation exposure.
•Do not attempt to clean the lens.
•Refer servicing to qualified personnel only.
IMPORTANT
CAUTION: This appliance contains a low powered
laser device and is classified as a CLASS 1 LASER
product. The following caution label is located on
the rear panel
To ensure continued safety do not remove any
covers or attempt to gain access to the inside of
the product.
WARNING: The laser beam used in this unit is
harmful to the eyes. Do not attempt to
disassemble the cabinet. Refer servicing to
qualified personnel only.
This product incorporates copyright protection technology that
is protected by method claims of certain U.S. patents and
other intellectual property rights owned by Macrovision
Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited
viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

3
Important safety information
FOR YOUR SAFETY, READ AND RETAIN ALL SAFETY
AND OPERATING INSTRUCTIONS. HEED ALL
WARNINGS IN THIS MANUAL AND ON THE UNIT.
POWER SOURCE
To avoid any malfunctions of the unit, and to protect against
electric shock, fire or personal injury, please observe the
following：
•This system has been designed to work with 120-volt AC
current. Connection to a line voltage other than that may
create a safety and fire hazard and may damage the
system. If you are unsure of the type of power supply to
your home, consult your local dealer or power company.
•Hold the plug firmly when connecting or disconnecting the
power cord to the wall outlet.
•Do not run power cords under rugs or carpets or place
heavy objects on them.
•Damaged or deformed power cords are hazardous and
should be replaced immediately by a qualified service
technician.
LOCATION
•Air vents are provided in the cabinet to prevent excessive
temperatures inside the unit. Do not place this unit in
closed spaces, cover it, or otherwise block the vents.
•Do not place this unit in direct sunlight, or near heat
sources.
•Keep this unit away from strong magnetic objects.
•Do not use the unit in a car. The operation can not be
guaranteed.
•Place the unit in a horizontal position, and do not place
anything heavy on it.
CARE
•Do not insert or drop anything into this unit through the air
vents as this could cause serious damage, possibly
resulting in fire.
•Do not place any object containing water or other liquids
on this unit. In the event that liquid should enter the
cabinet, unplug this unit immediately and contact the
retailer or service center immediately.
•Do not remove the cabinet. Touching parts inside the
cabinet could result in electric shock and damage to the
unit.
•Do not put any foreign objects on the disc tray.
Nonuse Periods
•When the unit is not being used, turn the power off.
•When left unused for a long period of time, the unit should
be unplugged from the household AC outlet.
Condensation
Moisture may form on the pickup lens in the following
conditions:
•Immediately after a heater has been turned on.
•In a steamy or very humid room.
•When the unit is suddenly moved from a cold environment
to a warm one.
•If moisture forms inside this unit, it may not operate
properly. In this case, turn on the power and wait about one
hour for the moisture to evaporate.
Volume control
•Do not turn up the volume while listening to a portion with
very low level input or no audio signal. The speaker may
be damaged when a peak level portion is played.
CLEANING
•Unplug the unit before cleaning.
•When the system gets dirty, wipe it with a clean, soft cloth.
If necessary, wipe it with a soft cloth, slightly dampened
with mild soapy water, then a fresh cloth with clean water.
Wipe dry immediately with a dry cloth.
•Never use benzene, aerosol cleaners, thinner, alcohol or
any volatile cleaning agent.
•Do not use abrasive cleaners, as they may damage the
finish.
•Avoid spaying insecticide near all components.
•Your speakers require minimal maintenance under normal
use. The cabinet may be cleaned using a damp cloth or a
mild, non-abrasive cleaner. To clean the grille, first remove
it from the speaker, then brush lightly with a soft brush or
use a vacuum on its lowest setting. Do not attempt to
clean the actual drivers.
SERVICE
•Do not open the cabinet of any components. There are no
user-serviceable components in this product. Opening the
cabinets may present a shock hazard, and any modification
to this product will void your guarantee.
•Do not attempt to service the unit yourself. If water or any
metal objects such as paper clips, wire or staples accidentally
fall inside, disconnect the unit from the power source
immediately, and consult an authorized service center.
•Please refer any service to the nearest service center.

4
Introduction
Thank you for choosing SABA. SABA specializes in state-of-the-art technology and elegant styling designed to
provide many years of enjoyment. This product is provided with an immense array of features. We recommend
reading this manual thoroughly before proceeding.
CUSTOMER RECORD
T
he model and serial number of this product are located on the back panel. Record the serial number in the space provided b
e
retain as a permanent record of your purchase. This will aid in the event of theft or loss.
Model Number:
Serial Number:
Contents
Warning
Important safety information
Introduction
Customer record
Contents
Getting started
Unpacking
Cautions on installation
Discs
Disc terminology
Disc handling
Function overview
Front panel
Rear panel
Remote control unit
Connections
Speaker system connection
Antenna connections
TV and optional component connections
Basic setup
Initial settings
Using the setup menu
TV display setting-selecting the aspect ratio
Selecting the on screen display（OSD）language
Downmix setting
Using test tone mode
Center delay setting
Rear delay setting

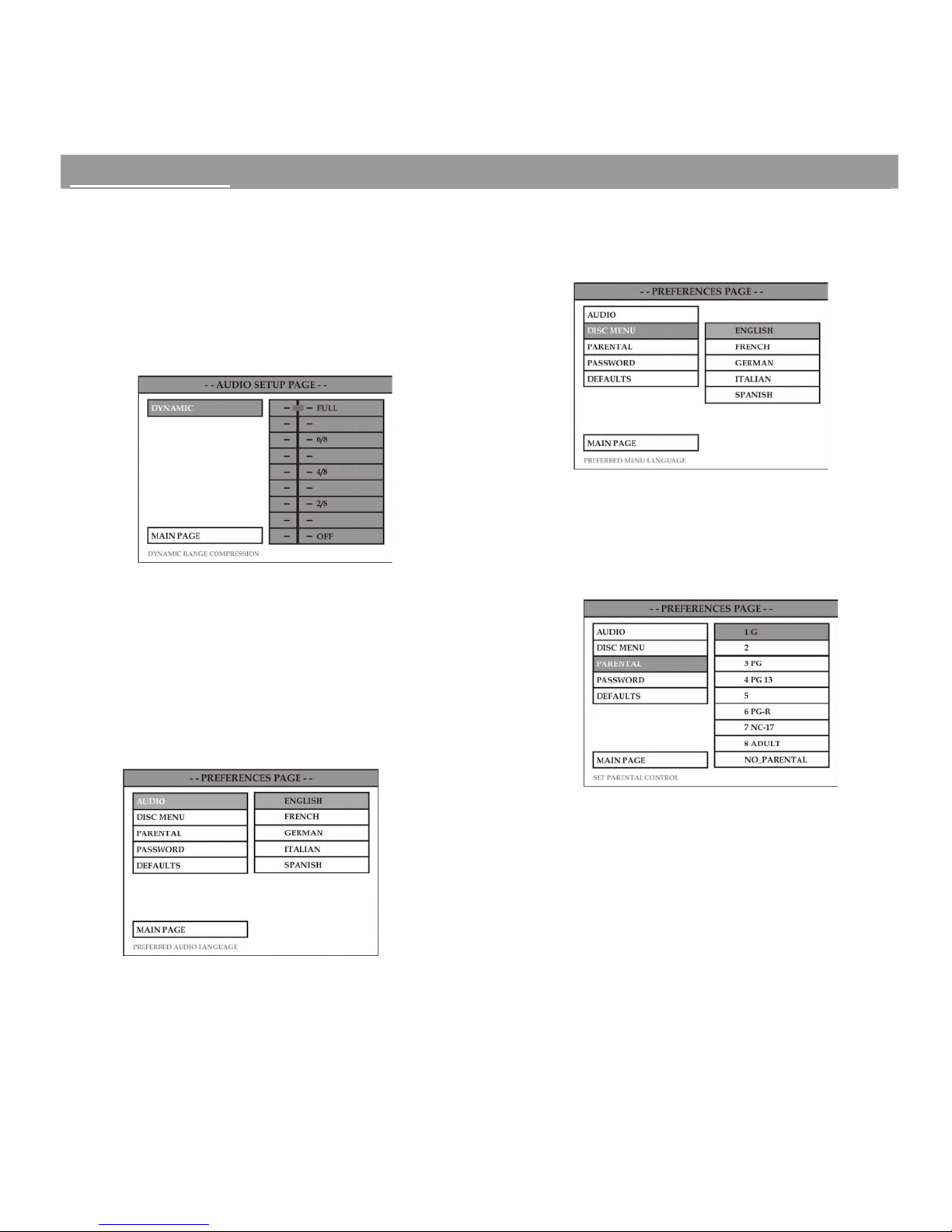

Selecting the dynamic range
Selecting the audio language
Selecting the disc menu language
Selecting the parental control level
Returning to the original factory default settings
Playback functions
DVD disc playback
Slow-motion playback
Search to locate a point quickly
Selecting the searching speed
Repeat playback
A-B repeat playback
Program playback
Selecting a start point by chapter or time code
Viewing disc information
Playing VCD discs with PBC (playback control)
Playing VCD2.0 discs with PCB
Playing MP3 discs with PCB
Special functions
Picture zoom
Angle selection
Selecting the subtitle language
Setting the audio language
Setting the audio mode for karaoke
Selecting The output signal（Progressive/Interlaced)
Setting the Pr/Pb/Y mode
Other functions
Operating the radio
Storing radio stations
Manual preset
Retrieving preset stations
Listening to an external source
Using the sleep timer
Limited warranty
Troubleshooting
Specifications

5
Features
•DVD player with built-in DTS and Dolby
Digital decoders, supporting Dolby Pro
Logic, Virtual Surround and Progressive
Scan.
•Built-in six channel amplifier system.
•AM/FM digital tuner.
•Compatible with DVD, SVCD, VCD1.1,
VCD2.0, MP3, CDR, CDRW and CD-DA
(audio) discs.
•User friendly DVD navigation functions.
•Multi-color fluorescent front panel display
and on screen display menu.
•Full function ergonomic remote control.
Manufactured under license from Dolby Laboratories.
“Dolby”, “AC-3”, “Pro Logic” and the double-D symbol
are trademarks of Dolby Laboratories. Confidential
Unpublished Works. 1992_1997 Dolby Laboratories,
Inc. All rights reserved.
Manufactured under license from Digital Theater
System, Inc. US Pat. No. 5,451,942 and other
worldwide patents issued and pending. “DTS” and
“DTS Digital Surround” are trademarks of Digital
Theater System, Inc. 1996 Digital Theater Systems,
Inc. All rights reserved.
Getting Started
Unpacking
The carton and shipping materials used to protect your new SABA Home Theater System during shipment
were specially designed to cushion it from shock and vibration. We suggest that you save this carton and
packing materials for use in shipping if you move, or should the system ever needs repair.
Your Home Theater System includes everything you need to connect the system to your television and begin
enjoying the cinema experience in your own home
Check that you have the following items:
•One DVD player/receiver
•One six-piece loudspeaker system which
includes:
•Five color coded satellite speakers:
(Two front speakers with red/black leads,
one center speaker with blue/black leads,
and two rear speakers with grey/black
leads).
•One Subwoofer Speaker (color coded
green) with attached 15-foot two-
conductor color coded (green/black)
connection wire for connecting to the
receiver’s subwoofer output.
•One 5-foot triple-lead patch cord with red,
white and yellow connectors for connecting
the composite video and analog audio
outputs from your receiver to your television.
•Five two-conductor, color-coded speaker
connection wires (two red/black 20-foot, one
blue/black 20-foot and two grey/black 40
foot) for connecting the receiver to the four
satellites and center speakers.
•One FM antenna cable
•One AM loop antenna
•One full function ergonomic remote control
•Owner’s Manual and warranty

6
Cautions on installation
•Please refer to the instruction manuals of any
components to be connected to this unit.
•Do not turn on the power or plug any of the
components into the wall outlet until all
connections are secure.
•Be sure to unplug the unit from the AC wall
outlet when connecting audio source
equipment or speakers. This prevents any
possibility of sending audio or transient signals
to the speakers and damaging them.
•When not in use, we recommend that you
leave the power for your unit turned off. If
you experience interference during normal
television viewing, simply turn the DVD player
deck off. This is not a malfunction of the unit
or the television.
•This unit is a precision device that is constructed
using extremely accurate technology. Soiling or
friction affecting the pickup lens or disc drive can
impair the image quality. At the worst, neither
video nor audio will be played back. To obtain
optimum picture quality, the players should be
checked (cleaning and replacement of some
parts）every 1,000 hours. Note that this period
varies depending on the environment
(temperature, humidity, dust, etc.）in which the
player is used
•Do not connect this unit directly to a VCR. The
playback picture will be distorted because DVD
video discs are copy protected.
Discs
The types of discs listed below will play on this
SABA DVD Player Deck.
The corresponding logos are indicated on the disc
label or jacket:
•DVD video discs
•DVD audio discs
•VCD (Video CD) discs
•SVCD discs
•CD-DA (CD audio) discs
•MP3 audio discs
•CDR and CDRW data discs
The following discs will not be play:
•Photo CD, CD-G, CD-Extra, CD-ROM, and DVD-
ROM discs are not designed to play with this
system.
•You cannot play illegally produced discs.
•You cannot play disc that are dusty, soiled,
scratched or marked with fingerprints.
•DVD discs with a Region Code other than the
one for which this player is set.
NOTE: This player is designed and
manufactured for compatibility with Region
Management Information that is encoded on
most DVD discs. This player is designed only
for playback of discs with Region Code 1, or
for discs that do not contain Region Code
information. If there is any other Region Code
encoded on a disc, it will not play.

7
Disc terminology
•Titles and chapters（DVD-video discs）
DVD video discs are divided into several lar
g
e sections
called “titles” and smaller sections called “chapters”.
Numbers are allotted to these sections. These
numbers are called “title numbers” and “chapter
numbers”.
For example:
•Tracks（audio and video CD discs)
Audio and video CD discs are divided into sections
called “tracks”.
Numbers are allotted to these sections These
numbers are called track numbers”.
For example:
•Playback control (video CDs)
Video CD discs with the words “playback control” on
the disc or jacket are equipped with a function for
displaying menus on the TV monitor. Use the menus
to select the desired position, display information,
etc. in a dialogue fashion.
This function is referred to as “PCB mode” for this
system.
Copyright: It is prohibited by law to reproduce, rent or play
discs in public without the consent of the copyright holder.
Copyright protection: This DVD player supports
Macrovision copyright protection technology. DVD discs that
contain a copy protection code are prohibited from being
copied and the copies will not play normally.
Note: KODAK and Picture CD are registered
trademarks of the Eastman Kodak Company.
Disc handling
Holding discs
•To keep the disc clean, handle the disc only by its edges.
Do not touch the surface.
Fingerprints or dirt on the disc may lower sound and picture
quality or cause breaks in playback.
Cleaning discs
•Before playing, clean the disc with a soft clean cloth.
•Wipe the disc gently from the center outwards. Do not
wipe in a circular motion.
•Do not use solvents such as benzene, thinner, commercially
available cleaners or anti-static spray intended for vinyl
record albums.
Handling discs
•Do not get fingerprints, grease, or dirt on discs.
•Be especially careful not to scratch discs when removing
them from their cases.
•Do not bend discs.
•Do not heat discs.
•Do not enlarge the center hole.
•Do not write on the labeled side of the disc.
Loading discs
•Only load one disc at a time. Loading a disc on top of
another may result in damage or scratch the discs.
•Do not place anything but discs in the disc tray.
•Do not try to close the disc tray when the disc is not
installed properly.
Storing discs
•After playing, store the disc in its case to protect them
from dust, scratches and warping.
•Do not expose discs to direct sunlight or heat sources such
as hot air ducts. Do not leave discs in cars parked in direct
sunlight as there can be a considerable rise in temperature
inside the car.
•Do not write or use tape on the label side of the discs.
•Be careful not to drop or bend the disc.

8
Function overview
Front panel
1. POWER
To turn the unit on or off. When the system is turned on,
the unit will go to the mode it was set in before the power
was turned off.
2. OPEN/CLOSE
To open/close the disc tray.
3. SOURCE
Select source: DVD, FM, AM or AUX (auxiliary component).
4. SELECT
To select the audio channel to view or adjust its level.
5. PLAY/PAUSE /
To start or temporarily stop playback.
6. STOP
Stops playback of a disc and clears the stored
program.
7. SKIP/TUNING 
In tuner mode, press to tune to a higher or
lower radio frequency. For automatic tuning,
press and hold it for more than 2 seconds.
In DVD mode, press to play a disc in fast
forward or reverse modes.
8. VOLUME +/-
Increase or decrease the master volume level.
9. PHONES
Use to connect the headphones.
12
357 9846

9
Function overview
Rear panel
1. AC Power Cord
Connects to an AC 120V/60Hz wall outlet.
2. SPEAKER output terminals
Connect to the supplied speakers as color coded.
3. FM antenna terminal（75 ohm）
Plug the FM antenna into the FM terminal of the
main unit.
4. AM antenna terminal
Plug the AM antenna into the AM terminal of the
main unit.
5. AUDIO OUT（L/R）
Connects to an optional receiver or amplifier.
6. AUDIO IN
Connects to the audio output of the television or
VCR.
7. COAXIAL OUT
Connects to an optional receiver equipped with 5.4
digital COAXIAL inputs.
8. VIDEO OUT（Pr/Pb/Y）
Connects to the television or monitor with
component video（progressive）480p input.
9. VIDEO OUT (composite)
Connects video input to the television.
10. S-VIDEO OUT
Connect to the television with S-Video input.
11. VIDEO IN
Connects video output to the VCR.
12
34
56 7 8 9
10 11
FR
(8 OHMS)
FL
(8 OHMS)
C
(8 OHMS)
RL
(8 OHMS)
SUB
(4 OHMS)
RR
(8 OHMS)

10
Function overview
Remote control unit
1. POWER
Turns the system power on or off.
（Note：Power switch on main unit must be “ON”.）
2. SOURCE
Selects the component you want to use.
3. SURR
Selects a desired speaker listening mode.
4. SLEEP
Activates the sleep timer.
5. STOP
Stops disc playback and clears the stored program.
6. PROGRAM
Stores tracks for program play.
7. A-B
Programs a section to play repeatedly.
8. REPEAT
Use to playback titles/chapters/tracks repeatedly.
9. DISPLAY
Switches the item displayed on the TV screen or /
and on the front panel display.
10. SUBTITLE
Selects a desired language for the subtitles while
playing a DVD.
11. ANGLE
Changes the angles while playing a DVD.
12. AUDIO（ST./MONO）
Selects the audio channels for sound (2.1 to 5.1)
and the desired audio language when playing a
DVD.
Switches between monaural or stereo mode
during FM stereo reception.
13. MEM 
In tuner mode, press to select the preset stations.
While playing a disc, press to select the next or
previous title, chapter or track.
14. TUNE 
In tuner mode, press to tune to a higher or lower
station frequency. For automatic tuning, press and
hold it for more than 2 second.
Press to play a disc in fast forward or reverse
mode.

11
Function Overview
15. /PLAY/PAUSE
To start or temporarily stop playback.
16. ZOOM
Zoom in the playing pictures.
17. SETUP
Displays or exits the SETUP menu.
18. MENU
Switch the PBC function to On or Off.（Video CD
2.0）
19. SLOW/MEM
Presets the radio station.
Activate the slow-motion play mode while playing
a DVD.
20. OPEN/CLOSE
To open/close disc tray.
21. GOTO
Selects a start point to play.
22. ///, ENTER/SET
Move the cursor to select and execute the items or
settings.
23. Number buttons
Select the items or setting.
24. MUTE
Mutes the sound.
25. VOLUME +/-
Increases or decreases the master volume level or
the selected channel level.
26. SELECT
Selects the audio channel to view or adjust its
level.

12
RED/BLACK
RED/BLACK
BLUE/BLACK
GREY/BLACK
GREEN/BLACK
GREY/BLACK
Front Right Front Left Center
Rear Right
Subwoofer
Rear Left
FR
(8 OHMS)
FL
(8 OHMS)
C
(8 OHMS)
RL
(8 OHMS)
SUB
(4 OHMS)
RR
(8 OHMS)
Connections
Speaker system connection
The speaker system is color coded for easy
setup. Each speaker has two color coded spring type
connectors located at the rear of its case. You will be
connecting each speaker to the player using with
corresponding color coded speaker cables. Simply
insert the black part of each speaker cable into the
black connector marked (-) and the corresponding
color (red, blue, grey or green) part of each cable to
the other corresponding color connector (+).
•Connect the red/black front left speaker to the
red/black FL terminals.
•Connect the red/black front right speaker to the
red/black FR terminals.
•Connect the blue/black center speaker to the
blue/black C terminals.
•Connect the grey/black surround left speaker to
the grey/black SL terminals.
•Connect the grey/black surround right speaker to
the grey/black SR terminals.
•Connect the green/black subwoofer speaker to
the green/black SUB terminals.
NOTE: After connecting all speakers, check the
connections using the test tone feature described on
page __. This feature will help you confirm that all
speakers are working properly. Please note that the
sound coming from the subwoofer will often be softer
that that coming from the speakers.
To avoid short-circuiting the speakers
Make sure the stripped end of each speaker cord does not
touch another speaker terminal or the stripped end of
another speaker cord.
Examples of poor speaker connections
•Stripped speaker cord is touching another speaker
terminal.
•Stripped cords are touching each other due to excessive
removal of insulation.
Note: Be Sure to match the speaker cord to the appropriate
terminal on the component: + to + and – and -. If the cords
are reversed, the sound will be distorted and will lack bass.

13
Connections
Antenna connections
Connect the supplied AM/FM antennas for listening to
the radio.
•Connect the AM antenna to the AM terminals.
•Connect the FM antenna to the Fm terminals.
FR
(8 OHMS)
FL
(8 OHMS)
C
(8 OHMS)
RL
(8 OHMS)
SUB
(4 OHMS)
RR
(8 OHMS)

14
Connections
TV and optional component connections
•Use the supplied audio cables to connect AUDIO IN
jacks to the corresponding AUDIO OUT jacks on the
television, VCR or other audio/visual components.
•Use the supplied audio cables to connect AUDIO
OUT jacks to the corresponding AUDIO IN jacks on
the television, tape or CD recorders.
•Use the cables to connect VIDEO OUT（Pr/PB/Y）
jacks to the corresponding component video inputs
on the television or monitor.
NOTE: Some televisions or monitors are equipped with
component video inputs capable of reproducing a
progressively scanned 480p video signal. Connection to
these inputs allows you to view the highest quality
pictures with high resolution.
•Use the 75 ohm coaxial cable to connect COAXIAL
OUT jacks to the corresponding Coaxial type digital
audio input on an amplifier equipped with a Dolby
Digital decoder.
•Use the video cable to connect the VIDEO OUT jack
to the Video input jacks on the television.
•Use the S-Video cable to connect the S-VIDEO OUT
jack to S-Video input jack on the television.
•Use the video cable to connect the VIDEO IN jack
to the Video output on the television or VCR.
TV with com
p
onent video
To Y video input
T
o Pb video input
T
o Pr video input
T
o video output
To video input
T
o S-video outpu t
FR
(8 OHMS)
FL
(8 OHMS)
C
(8 OHMS)
RL
(8 OHMS)
SUB
(4 OHMS)
RR
(8 OHMS)

15
Basic Setup
Setting up the surround sound system
You must connect all the speakers and setup the
system properly in order to enjoy the digital cinema
experience at home.
Note: Use the test tone mode to check the balance
level and connections of your speakers. (Refer to page
_____).
Position
For the best possible surround sound, normally all the
speakers other than the subwoofer should be placed
the same distance from the listening position.
This system allows you to place the center speaker up
to 4 feet closer
B
, and the rear speakers up to 16 feet
closer
C
to the listening position. The front speakers
can be placed from 3 to 45 feet
A
from the listening
position.
It is best to place the subwoofer near a corner to
maximize the bass output.
45
o
20
o
90
o
A A
B
CC
Place the rear speakers either behind or to the side of
the listening position, depending on the shape of the
room (as illustrated).
45
o
20
o
90
o
AA
B
CC
Height
The recommended height to place the center, front
and rear speakers is level with your ears while in a
seated position.
If necessary, the rear speakers may be placed slightly
higher than the center and front speakers. Note the
area labeled
C
in the diagram below:
30
o
60
o
C
D
C
D
Balance
To set the channel levels, you will be adjusting the
volume level on each speaker to achieve balance.
Using the remote control unit, press the SELECT
button to select a channel as follows:
FL (front left) ÖCNT (center) ÖFR (front right) ÖSR
(surround right) ÖSL (surround left) ÖSUB
(subwoofer).
The level of the selected channel will be displayed on
the television screen and on the front panel display.
Use the VOLUME+ button to adjust the selected
channel’s level between 00dB and +10dB as follows:
00DB Ö+01DB Ö+02DB Ö+03DB Ö+04DB Ö
+05DB Ö+06DB Ö+07DB Ö+08DB Ö+09DB Ö
+10DB.
Use the VOLUME- button to adjust the speaker
channel’s level between 00dB and -10dB as follows:
00DB Ö-01DB Ö-02DB Ö-03DB Ö-04DB Ö-05DB
Ö-06DB Ö-07DB Ö-08DB Ö-09DB Ö-10DB.
Notes:
•The default setting is 00DB. We suggest that you set
you subwoofer to +05DB for better balance.
•If you do not press the SELECT, VOLUME + or
VOLUME – button after a few seconds, the value
turns off and is stored in the system.
•To adjust the master volume (the volume of all
the speakers at once) use the VOLUME + and
VOLUME – buttons in normal mode.

16
Basic setup
Initial settings
This system is designed with a user-friendly setup
menu. Use the section to take you through the system
and disc setup options and recommendations.
Using the setup menu
Press the SETUP button on your remote control unit to
display the setup menu. Use the ///buttons to
select your preferred option, and press the
ENTER/SET button to confirm a highlighted selection.
To exit setup menu, press the SETUP button.
TV Display Setting: selecting the aspect ratio
The aspect ratio of a television is the relationship
between its width and height, and it defines the shape
of the picture. Television sets traditionally have an
aspect ratio of 4:3. Since most DVD discs are recorded
in “wide aspect ratio” formats, the picture must be
adjusted to fit on your screen.
•NORMAL/PS: The Pan and Scan presentation crops
both sides of the wide screen format to
fill the standard 4:3 television screen.
•NORMAL/LB: The Letterbox presentation places black
bars at the top and bottom portions of
the screen to provide the full wide
screen format of a movie on a standard
4:3 television screen.
•WIDE：When connecting to a wide screen 16:9
television, select this option. The unit
automatically sets and outputs a
recorded signal in correct aspect ratio.
Notes:
•The default setting is NORMAL/PS.
•Some DVD discs do not permit Pan and Scan mode
playback and will automatically playback in Letterbox
mode, and vice versa.
•Be sure to set the screen mode on your wide-screen TV to
“FULL”.
•If the WIDE option is selected with a standard 4:3
television, the playback picture will appear distorted
(objects will look thin).
Selecting the on screen display (OSD) language
This setting is used to establish the language that will
be displayed for all operations and on screen
messages. To change this setting, use the setup menu,
select general setup, to access the following screen:
•Select one of the five available languages: ENGLISH,
FRENCH, GERMAN, ITALIAN and SPANISH.
•The default setting is ENGLISH.
•If the selected language is not recorded on the DVD
disc, the player will automatically default to the disc’s
initial language setting.
Notes:
•The default setting is LT/RT.
•If you are not getting any output from the speakers
connected to this system, change the setting to
LO/RO.
Selecting the listening mode
When playing DVD discs recorded in DTS 5.1 signal
format, press the SURR button repeatedly to select:
STEREO ÖDTS.
When playing DVD discs recorded in Dolby Digital
signal format, press the SURR button repeatedly to
select: STEREO ÖDOLBY DIGITAL.
When playing VCD, MP3 or CD discs, press the SURR
button repeatedly to select: STEREOÖDOLBY PRO
LOGIC.
When using the auxiliary or AUX mode, press the
SURR button repeatedly to select: STEREO ÖDOLBY
PRO LOGIC.
When the system is in TUNER mode, press the SURR
button to select STEREO (the only available choice for
this mode).

17
Basic setup
DOWNMIX setting
This setting will affect the audio output signal when
playing DVD discs recorded with surround multi-
channel audio. To select one of the following Downmix
settings, use the setup menu, select speaker settings
to access the DOWNMIX menu
•LT/RT: For use with an external amplifier or
television with a Dolby Pro Logic decoder.
•LO/RO: For use with a stereo amplifier/receiver or
television with conventional 2-channel
stereo.
Using the test tone mode
We recommend that you use the test tone mode after
you have set up and connected your speakers to check
the balance level and connections of each speaker.
Use the setup menu to select speaker setup, to arrive
at the following screen:
Turn this function to ON to test each speaker
individually with a two second pink sound. The location
of the speaker will be displayed on the television
screen and the front display panel, as each speaker is
being tested.
NOTE: When performing this test, it is common for the
volume of the pink noise from the subwoofer to be
lower than the volume of the pink noise from the
center, front and rear speakers.
Center delay setting
The center delay can be adjusted in Dolby Digital
mode. To change this setting, use the setup menu,
select speaker setup to access the following screen:
SET CENTER DELAY
MAIN PAGE
- - SPEAKER SETUP PAGE - -
TEST TONE
CNTY DELAY
REAR DELAY
DOWNMIX
OFF
3MS
9MS
15MS
Select the desired delay time of the center speaker as
follows: OFF, 3MS, 6MS, 9MS, 12MS, 15MS.
NOTE: The default setting is 15ms. We recommend
that you change it to 9ms.
Rear delay setting
The rear delay can be adjusted in Dolby Digital mode.
To change this setting, use the setup menu, select
speaker setup to access the following screen:
Select the desired delay time of the surround speaker
as follows: OFF, 3MS, 6MS, 9MS, 12MS, 15MS.
NOTE: The default setting is 15ms. We recommend
that you change it to 9ms.

18
Basic setup
Selecting the dynamic range
Dynamic range compression, a function used to
compress the dynamic range (reproduction level
range) of audio signals, can be selected for Dolby
Digital mode. It is used for viewing DVD discs late at
night or at other times when high volume levels are
not desirable.
To adjust this setting, use the setup menu, select
audio setup to access the following screen:
The compression options are as follows: FULL, 7/8,
6/8, 5/8, 4/8, 3/8, 2/8, 1/8, OFF.
The default setting is OFF.
Selecting the audio language
Select a desired audio language for a DVD disc that
has audio data recorded in multiple-languages. To
adjust this setting, use the setup menu, select
preferences to access the following screen:
The default setting is ENGLISH.
Selecting the disc menu language
Select a desired language when playing a DVD disc
that has menu data recorded in multiple-languages. To
adjust this setting, use the setup menu, select
preferences to access the following screen:
The default setting is ENGLISH.
Selecting the parental control level
This player allows parents to set a restriction level
preventing the playback of certain discs.
To set this feature, use the setup menu, select
preferences to access the following screen:
The parental lock levels are as follows: 1G, 2, 3PG, 4
PG 13, 5, 6 PG-R, 7 NC-17, 8 ADULT, NO_PARENTAL.
Notes:
•The default setting is NO PARENTAL.
•The lower the value is, the more strict the limitation.
•If the parental control level of the loaded DVD disc is
lower than the level set, the screen will display
“PARENTAL VIOLATION” message, and refuse to play
the disc.
•The disc must be recorded with a parental lock, for
this feature to function.
•Before changing the parental control level, you must
enter the preset password (4-digit code) to unlock
this function. If the entered password is incorrect,
you will not be able to change the level.
•The default password is “9999”.

19
Basic setup
Changing the parental control password
To change the parental control password use the setup
menu, select preferences to access the password
menu. Press the ENTER/SET button to enter the old
password “9999”. (“XXXX” will appear as you enter the
numbers). When prompted to enter a new password,
enter a 4-digit code and enter it again when prompted
to confirm password. Press the ENTER/SET button
once more to change the password from “9999” to the
new 4-digit password you have entered.
NOTE: To avoid locking this function forever, do not
lose or forget your new password.
Returning to the original factory default settings
To return all settings to the factory defaults, use the
setup menu, select preferences to access the defaults
menu:
Select and press the ENTER/SET button to return the
system to its original factory settings.
IMPORTANT: The parental control level and the
password will not be reset. To avoid locking this
feature forever, make note of your new
password.

20
Playback functions
IMPORTANT：
Please note that some DVD movie discs may not have
all the features described in this chapter. For example,
older movies may not allow you to select multiple
camera angles. Refer to the instructions or liner notes
that are included with each disc to determine what
features and operations are available on that particular
disc.
To watch a DVD disc:
1. Turn your television set’s power on, and set the
channel to the video input.
2. Press the POWER button on the front panel to turn
on the main power of this system. The front panel
display lights up, and the DVD logo screen appears
on the television screen.
3. If the system is not in the DVD player mode, press
the SOURCE button on the front panel or remote
control to select it.
4. Press the OPEN/CLOSE button, and place a disc
on the disc tray.
NOTE: Load the disc placing the label side face up, and
using the disc tray as a guide for proper alignment.
When playing a double-sided DVD disc, load it with the
desired playing side face down.
5. Press the PLAY/PAUSE button to start playback.
Slow-motion playback
T
UNE +/-
PLAY/PAUSE
SLOW/MEM
To view playback in slow-motion, press the
SLOW/MEM button on the remote control unit during
playback.
When playing DVD discs:
Press the SLOW/MEM button repeatedly to select
the slow motion speed and direction as follows:
SLOW 1/2 ÖSLOW ¼ ÖSLOW 1/8 Ö
SLOW 1/2 ÖSLOW 1/4 ÖSLOW 1/8 Ö
NORMAL.
When playing CVD, SVCD or VCD discs:
Press the SLOW/MEM button repeatedly to select
the slow motion speed as follows:
SLOW 1/1 ÖSLOW 1/2 ÖSLOW1/3 Ö
NORMAL.
Notes：
•SLOW: Slow forward playback.
•SLOW: Slow reverse playback.
•The smaller the number, the slower the speed.
•This function is not available for CD or MP3 discs.
•On some discs, the slow-motion playback function is
not available.
POWER OPEN/CLOSE
SOURCE PLAY/PAUSE
