Sabaj A10d User manual
使用说明书
深圳市大号科技有限公司
A10d
Ver 1.0 2021.11.19
安全注意事项
请将本音响系统安装在通风良好、阴凉、干燥、干净的位置，远离直射阳光热源
、振 动 、灰 尘 、 潮湿或寒冷。
只能使用本机指定的电压。使用高于指定数值的电压很危险，而且可能导致火
灾，损坏本机或造成人身伤害。对于使用高于指定电压造成的任何损害，深圳
市大号科技有限公司将不负任何责任。
不要试图自行改造或修理本机。如果需要任何服务，请就近与有资格的深圳市
大号科技有限公司维修人员联系。不管有任何理由，都没有打开机壳的必要。
如果打算长时间不使用本机（比如度假时），请从墙壁交流电源插座上断开电
源线的连接。
A10d
保修条款
一、服务期限
深圳市大号科技有限公司承诺产品的良好品质，产品自售出之后7天内正常
使用情况下出现故障，客户可以选择退货或者保修（不影响二次销售才可退
货）。正常使用一年内出现故障可以免费保修。
二、购买日期以销售商开出的购机发票或收据日期为准，多购可以交易截图为准。
三、有以下情况都不能享受“三包”服务
1.一切人为因素损坏，包括非正常工作环境下使用或不按照说明书使用。
2.用户私自拆机、改装、维修。
3.使用非指定或许可的配件造成损坏的。
4.机身的QC或保修贴损毁。
5.不能出示有效购机凭证。
6.不属于本公司产品。
四、保修方式为送修
此条款只适于中国大陆，其它地区请参考当地销售代理商的规定和国家法规。
本说明书内容如有更新,恕不另行通知.若您使用的产品功能与说明书不一致
时,请以产品为准!
产品特点
A10d
2片ESS科技高端数模芯片ES9038Q2M；
高通最新蓝牙芯片支持LDAC、APTX/HD、SBC、AAC；
4片高端双运放OPA1612和大量音频级元器件；
第二代XMOS方案支持DoP64和原生DSD512，PCM最高支持32bit/768kHz；
音频专用时钟处理电路，大大降低时钟抖动；
内置专门设计的低噪声开关电源；
内置分立元件线性电源和多个模拟电路低噪声电源；
高品质镀金输入输出连接端子；
永不过时的钢化玻璃显示面板！
日本音响协会（JAS）Hi-Res认证；
配备全功能遥控器。
技术参数
A10d
输入方式 ..........................................................................USB/光纤/同轴/蓝牙
输出方式 ....................................6.35mm耳机/4.4mm耳机/平衡线路/单端线路
输入幅度 ................................................平衡线路 4.0Vrms
...............................................................单端线路 2.0Vrms
THD+N ..................................................解码 0.00008% (-121dB)
...............................................................耳放 0.00012% (-118dB)
耳放输出功率..................................................................................2Wx2(16Ω)
.......................................................................................................1Wx2(32Ω)
耳放增益控制……………………............低(0dB)
...............................................................高(+10dB)
动态范围.................................................平衡线路 126dB
...............................................................单端线路 124dB
...............................................................耳放 121dB
信噪比....................................................平衡线路 126dB
...............................................................单端线路 124dB
...............................................................耳放 121dB
输出阻抗................................................解码 100Ω
...............................................................耳放 接近0Ω
USB传输方式 .........................................................USB1.1与USB2.0(异步传输)
USB兼容性 ...........................................Windows 7/8/8.1/10/11(需要安装驱动)
................................................ Mac OSX10.6 or Later、Linux(不需要安装驱动)
位深 ....................................USB 1bit，16~32bit
光纤/同轴 1bit，16~24bit
采样率 ................................USB PCM 44.1~768kHz
DSD
2.8224~22.5792MHz
光纤/同轴 PCM 44.1~192kHz
DSD DSD64(DoP)
蓝牙规格.....................................................................................................5.0
LDAC ............................................... 24bit/96kHz (990kbps/660kbps/330kbps)
aptX-HD ........................................................................24bit/48 kHz_576kbps
aptX ............................................................................16bit/44.1 kHz_352kbps
SBC ............................................................................16bit/44.1 kHz_328kbps
AAC ..........................................................................16bit/44.1 kHz_320kbps
消耗功率 .................................................................................................<20W
待机功耗 ................................................................................................<0.5W
体积 ..........................................................................200x59x210mm(WxHxD)
重量 ..........................................................................................1.26kg / 2.78Ibs

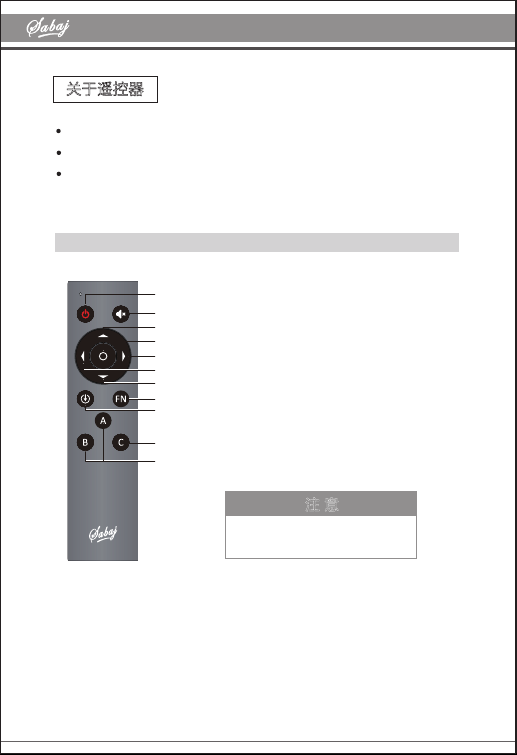

关于遥控器
如果遥控器距离本机很近时操作仍无效，请用新电池更换。
如果要长时间不使用遥控器，请取出遥控器的电池。
按照电池处置的地方性法规处置废旧电池。
遥控器的使用
注 意
1. 遥控器请使用2节7号(AAA)电池
2. 第一次操作
A10d
时 ，先 按 C 键
开关机
输入选择
FN按钮
进入菜单/确认
进入二级菜单
返回
静音
音量加/向上
音量减/向下
无功能
切换至控制 A10d
A10d
显示界面和操作介绍
A10d
显示屏
旋钮
4.4mm耳机插孔
6.35mm耳机插孔
RCA输出
平衡输出
同轴输入
光纤输入
USB输入
蓝牙天线
AC电源输入插座
7
8
9
10
1
2
3
4
511
A10d
A10d
1 2 3 4
75 6 8 9 10 11
6
蓝牙操作说明
连接: 将输入源切换至蓝牙，打开手机蓝牙功能，搜索“SABAJ A10d”, 搜索到后
点击配对连接，当手机显示“已连接”则已连接成功。
重连: 在使用蓝牙过程中, 如果失去连接, 例如: 外出, 然后回来, 有些手机不会
自动重新连接, 在这个时候, 长按遥控器上的蓝牙按键就可以重新连接。
操作说明
使用本产品时，请用带屏蔽的RCA线材。

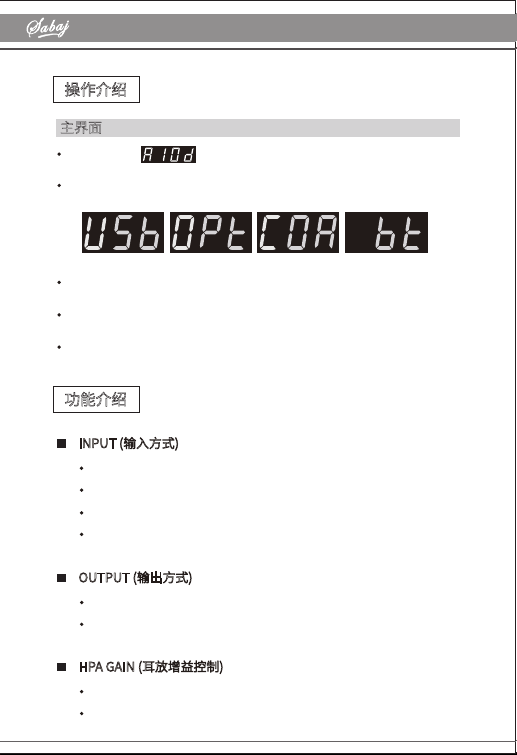

主界面
操作介绍
A10d
开机时会显示 意思为A10d。
在切换输入会显示
在调节音量时,显示音量大小。
在静音时,会闪烁显示当前音量。
在播放时,会显示当前音频文件采样率。
INPUT (输入方式)
USB1 (USB输入)
bt2 (光纤输入)
opt3 (同轴输入)
coa4 (蓝牙输入)
功能介绍
HPA GAIN (耳放增益控制)
GLO (低增益)
GH1 (高增益)
OUTPUT (输出方式)
HP (耳机口)
LINE (线路输出)
功能介绍
A10d
FL1
(修正最小相位快速滚降)
FL2
(线性慢速滚降)
FL3
(Apodizing 变迹滤波器)
FL4
(最小相位快速滚降)
FL5
(最小相位慢速滚降)
FL6
(线性快速滚降)
FL7
(Brickwall 混合滤波器)

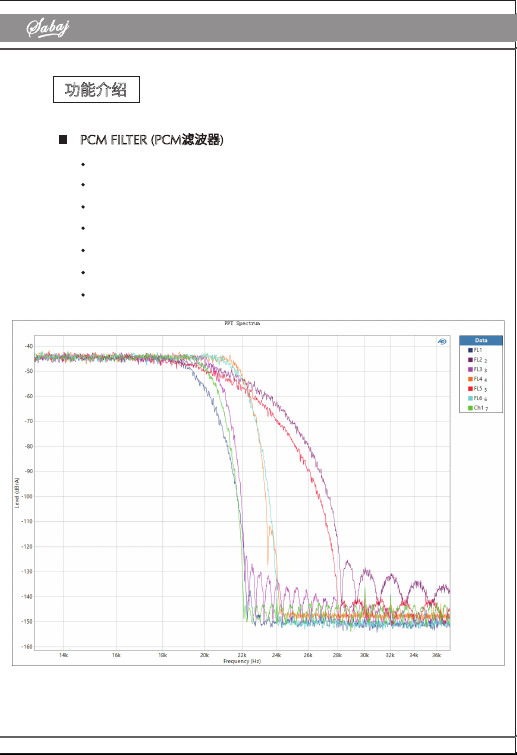

PCM FILTER (PCM滤波器)
功能介绍
A10d
DP1-DP9 (数字锁相环)
DPLL 1~9,数值越低,时钟抖动越小
BRIGHTNESS (显示屏亮度设置)
BL1-5（显示亮度从低亮1-高亮5）
这个DPLL设定是ESS系列产品特有的功能, 它可以调整芯片内部DPLL数字锁相环电
路的带宽, 使芯片在抗时钟抖动和输入宽容度之间达到一个平衡。
它的作用:
在输入信号的时钟稳定度好的情况, 可以减小这个值, 这样系统的时钟性能更佳;
在输入信号的时钟稳定度不好的情况下, 声音有可能会有中断的现象, 增大这个
值可以避免声音中断现象的发生! 特别是使用电视作为信号源时。
USB MODE (USB模式)
UAC1（WIN系统免驱，支持采样率44.1-96kHZ,24bit）
UAC2（WIN系统需要安装驱动，支持DSD）
Shenzhen DaHao Technology Co.,Ltd.
USER MANUAL
A10d
Ver 1.0 2021.11.19
Install this unit in a well ventilated, cool, dry, clean place-away from direct sunlight, heat
sources, vibration, dust, moisture, or cold..
Do not attempt to modify or fix this unit. Contact qualified Sabaj service personnel
when any service is needed. The cabinet should never be opened for any reason.
When not planning to use this unit for long periods of time ( i. e. when going
onvacation), disconnect the power cable from the AC wall outlet.
When not planning to use this unit for long periods of time (i.e. when going on vacation),
disconnect the power cable from the AC wall outlet.
A10d
Safety Notes
Warranty Terms
1. The term of service
Shenzhen Sabaj technology Co.,LTD promise good quality products. If product is
defective unit by normal use with in 7daysafterpurchasing. The customer can choose to
return or repair warranty( does not affect the secondary sales afterthey can return).
Faulty for free with in one year warranty normal use.
2. Date of purchase is in accordance with invoice date or receipt date issued by seller,
online shopping can cut trade shots.
3. Following situation can not enjoy“Three Guarantees service”
a. All damages by human factors, including use it under nonrmal workingenvironment
the and not following manual instruction.
b. User privately disassemble, modification, maintenance.
c. Use non-designated or approved accessories cause damage.
d. QC or warranty stickers damage on cabinet.
e. Can not provide a valid purchasing prove.
f. Not belong to Sabaj product.
4. How to warranty
This term is only suitable for china mainland, other regionplease refer to the policy of the
local sales agents and national regulations.
The contents of this manual are updated without prior notice. If the function of the product
you are using is inconsistent with the instructions,the function of the product shall prevail!
Features
A10d
2 pieces of ESS technology high-end digital-analog chip ES9038Q2M;
Qualcomm's latest Bluetooth chip supports LDAC, APTX/HD, SBC, AAC;
4 pieces of high-end dual op amp OPA1612 and a large number of
audio-grade components;
The second-generation XMOS solution supports DoP64 and native
DSD512, and PCM supports up to 32bit/768kHz;
Audio dedicated clock processing circuit, greatly reducing clock jitter;
Built-in specially designed low-noise switching power supply;
Built-in discrete component linear power supply and multiple analog circuit
low-noise power supplies;
High-quality gold-plated input and output connection terminals;
Timeless tempered glass display panel!
Japan Audio Association (JAS) Hi-Res certification;
Equipped with a full-featured remote control.
Specifications
A10d
Input ............................................................USB / Optical / Coaxial / Bluetooth
Output .................................6.35mm headphone/4.4mm headphone/XLR/RCA
Output Level.............................XLR 4.0Vrms
.................................................RCA 2.0Vrms
THD+N ...................................Decoder 0.00008% (-121dB)
.................................................Headphone Amplifier 0.00012% (-118dB)
HPA power.....................................................................................2Wx2(16Ω)
.......................................................................................................1Wx2(32Ω)
HPA gain……........................low (0dB)
.................................................high (+10dB)
Dynamic range........................XLR 126dB
.................................................RCA 124dB
.................................................Headphone Amplifier 121dB
SNR..........................................XLR 126dB
.................................................RCA 124dB
.................................................Headphone Amplifier 121dB
Output impedence...................Decoder 100Ω
.................................................Headphone Amplifier near0Ω
USB Spec...................................................USB1.1，USB2.0(Asynchronization)
USB compatibility..................................Windows 7/8/8.1/10/11(Needs Driver)
.......................................................... Mac OSX10.6 or Later、Linux(Driverless)
Bit Width..............................USB 1bit，16~32bit
Optical/Coaxial 1bit，16~24bit
Sampling rate.......................USB PCM 44.1~768kHz
DSD
2.8224~22.5792MHz
Optical/Coaxial PCM 44.1~192kHz
DSD DSD64(DoP)
Bluetooth.....................................................................................................5.0
LDAC ............................................... 24bit/96kHz (990kbps/660kbps/330kbps)
aptX-HD ........................................................................24bit/48 kHz_576kbps
aptX ............................................................................16bit/44.1 kHz_352kbps
SBC ............................................................................16bit/44.1 kHz_328kbps
AAC ..........................................................................16bit/44.1 kHz_320kbps
Power Consumption................................................................................<20W
Standby power.......................................................................................<0.5W
Size...........................................................................200x59x210mm(WxHxD)
Weight .....................................................................................1.26kg / 2.78Ibs
Install 2 x AAA batteries as instructions.
When using the remote control, point it toward the remote con-trol signal receiver on
the main unit from a distance of 5 m (16 ft) or less. Do not place obstructions between
the main unit and the remote control.
The remote control might not work if the remote control signal receiver on the unit is
exposed to direct sunlight or bright light. If this occurs, try moving the unit.
Beware that use of this remote control could cause the unin-tentional operation of
other devices that can be controlled by infra.
Remote Control
Operating the remote control
Note
1. This remote controller use 2 x R03/AAA battaries.
2. When you first operate A10d, press the C key first.
Power ON/OFF
Input select
FN
MENU/OK
Next level menu
Return
Mute
Volume
/up
Volume
/down
Switch to control A10d
Invalid
A10d
A10d
Display Interface and Instructions
Bluetooth Operation Instructions
Instructions
Display
Knob
4.4mm headphone jack
6.35mm headphone jack
RCA output
XLR output
Coaxial input
Optical input
USB Input
Bluetooth antenna
AC power input
7
8
9
10
1
2
3
4
511
A10d
A10d
1 2 3 4
75 6 8 9 10 11
6
When using this product, please use shielded RCA cables.
Connection: Switch the input source to bluetooth, turn on the bluetooth
function of the mobile phone, search for "SABAJ A10d", click on the
pairing connection after the search, when the mobile phone displays
"connected", the connection is successful.
Reconnection: In the process of using Bluetooth, if you lose the
connection, for example: go out and then come back, some mobile
phones will not automatically reconnect, at this time, long press the
Bluetooth button on the remote control to reconnect.
A10d
Introduction
Function introduction
When turned on, it will display meaning A10d.
When switching the input it will display
When adjusting the volume, the volume level is displayed.
When muted, the current volume will flash.
During playback, the current audio file sample rate will be displayed.
Function introduction
INPUT
USB1 (USB input)
bt2 (Bluetooth input)
opt3 (Optical input)
coa4 (Coaxial input)
HPA GAIN
GLO (Low gain)
GH1 (High gain)
OUTPUT
HP (Headphone jack)
LINE (Line output)
A10d
FL1
(Fixed minimum phase fast roll-off)
FL2
(Linear slow roll-off)
FL3
(Apodizing Apodization Filter)
FL4
(Minimum phase fast roll-off)
FL5
(Minimum phase slow roll-off)
FL6
(Linear fast roll-off)
FL7
(Brickwall Mixing Filter)
PCM FILTER
Function introduction
A10d
Function introduction
DP1-DP9 (Digital Phase Locked Loop)
DPLL 1~9, the lower the value, the smaller the clock jitter.
BRIGHTNESS
BL1-5 (1-5, display brightness from low 1-high 5)
This DPLL setting is a unique function of ESS series products. It can adjust the bandwidth
of the DPLL digital phase-locked loop circuit inside the chip, so that the chip can
achieve a balance between anti-clock jitter and input tolerance.
Effect:
When the clock stability of the input signal is good, this value can be reduced,
so that the clock performance of the system is better;
When the clock stability of the input signal is not good, the sound may be
interrupted. Increasing this value can avoid the occurrence of audio
interruption! Especially when using TV as the signal source.
USB MODE
UAC1
(The WIN system is free of drive, and supports sampling rate 44.1-96kHz, 24bit）
UAC2
( WIN system needs to install driver, support DSD)
Other manuals for A10d
1
Table of contents
Other Sabaj Media Converter manuals
