Sable C31Q14 User manual

1
EPD Digital Signage
User Manual
Model #: C31Q14/M31Q14

2
Contents

3
Important Safety Instructions
• WARNING. se caution concerning the Power Cord (Can differ by country): Do not connect too many devices to the
same AC power outlet as this could result in fire or electric shock. Do not overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are
dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your device,
and if its appearance indicates damage or deterioration, unplug it, discontinue use of the device, and have the cord
replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Be sure to grasp the plug when
unplugging the power cord.
• WARNING. To reduce the risk of fire or electrical shock, do not expose this product to rain, moisture or other liquids.
Do not touch the apparatus with wet hands. Do not install this product near flammable objects such as gasoline or
candles, or expose the apparatus to direct air conditioning.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs,
Convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• se only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
• nplug this apparatus during lightning storms or when unused for long periods of time. Refer all
servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
• Do not press strongly upon the panel with a hand or a sharp object such as a nail, pencil, or pen, or
make a scratch on it.
• Do not touch the end of the power cord while it is plugged.
• Keep the packing material out of the reach of children. Anti-moisture material is harmful if
swallowed. If swallowed, induce vomiting and go to the nearest hospital. Keep it out of the reach of
children.
• Do not expose to dripping or splashing. Do not place objects filled with liquids, such as vases, cups,
etc. over the apparatus (e.g., on shelves above the unit).

4
• Do not attempt to modify this product in any way without written authorization. nauthorized
modification could void the user’s authority to operate this product.
• Cleaning. When cleaning, unplug the power cord and wipe gently with a soft cloth to prevent
scratching. Do not spray water or other liquids directly on the apparatus as electric shock may
occur. Do not clean with chemicals such as alcohol, thinners, or benzene.
• Moving. Make sure the product is turned off and unplugged, and use the Hanging-Helper to handle
and transport the display. Do not press or put stress on the front panel of the display.
• Keep the product away from direct sunlight.
• Do not allow an impact shock or any objects to fall into the product, and do not drop anything onto
the screen.
• Do not use high voltage electrical equipment near the display. This may result in product
malfunction.

5
General Information
1. Specification
Model C31Q14 M31Q14
Size 32" 32"
Screen Type EPD Color EPD Monochrome
Panel Model # EC312TT2 ED312TT2
Display Area 691.2 ( ) × 388.8 (V) 691.2 ( ) × 388.8 (V) mm
Resolution 1280 x 720 2560 ( ) × 1440 (V)
Color 16 Gray Level (4096 color) 16 Gray Level (monochrome)
Contrast Ratio 13 12
% Reflectance 14 40
Flash Size eMMC 8G
DDR DDR 2 LP 512MB
G Sensor For Portrait Mode & Landscape Mode
Power on/off (on back)
Key Reset ole
Micro USB 2.0
SD card Slot
Connector
DC Jack
LED Indicator on back (one color Blue - Blink while power on)
Wi-Fi 802.11b/g/n, ac (2x 2)
Connectivity BT4.1
Storage External SD card
Battery(Optional) Detachable Rechargeable lithium battery 10,400 mAh
OS Android 4.4.2
Protective Glass Tempered AR Glass 2.2mm
Type DC (12V/4A)
Plug and on
Power Consumption Stand By: TBD
Sleep: TBD
Bazel Width 5.7mm/5.7mm/5.7mm/15mm (Left/Right/Top/Bottom)
Wall Mount 200 x 200
Dimension (L x W x ) 703.6 x 410.5 x 22.5mm
Net/Gross Weight TBD
AC Power Cord 1.8M
Adapter 12V/4A/48W

6
2. Dimension

7
3. Package Contents
• EPD Display
• Adapter
• AC power cord
• Li-ion Battery
(Optional)
• ser Manual
＊The appearance of the components may differ from the images sho

8
4. are Side

Battery 10400mAh (Optional)

WIFI/BT Antenna

Wall Mount (200 x 200mm)

9
5. Side I/O

SD Card (SD Card Excluded)

Micro SB

Reset Hole

LED Indicator

Power on/Off

AC In

10

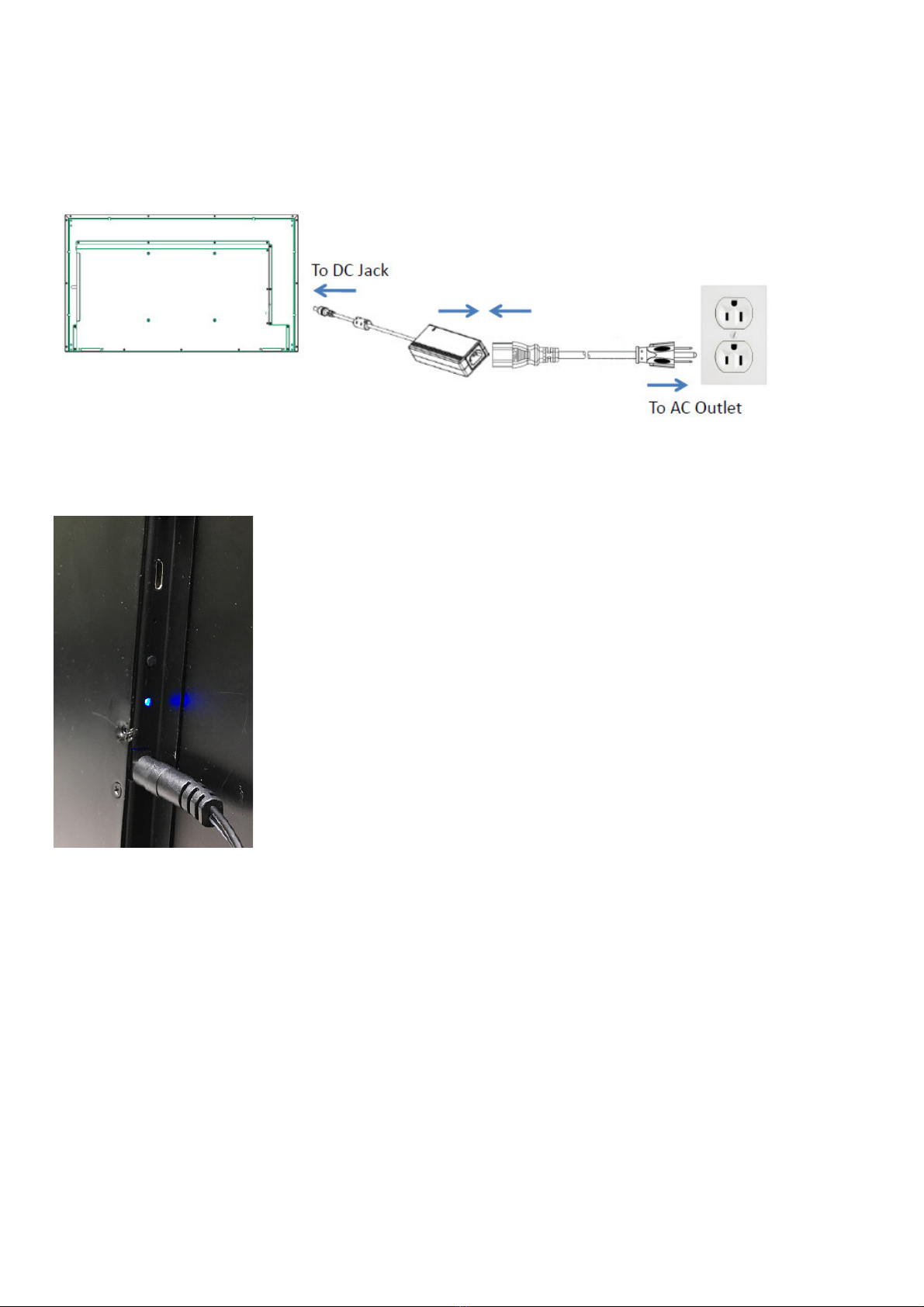

Connect to AC
Step 1: Connect Adapter & AC cord to AC Outlet.
Step 2: Once the display connected with AC power, the display will auto turn on,
Blue LED is blinking.
Step 3: The display is working.

11
Battery (Optional) Charging
Step 1: Unscrew Battery Cove
Step 2: Pull Out Battery Pack
Step 3: Connect Battery Pack with Adapter & Power cord then you can start
charging.
Step 4: Battery Charging, the Green LED is on.
(DC power is using, the Red LED is on).

12
BT Pairing
Step 1: Prepare the follows:
1) Android Mobile Phone
2) nShow_1.0.apk
Step 2: Install nShow_1.0.apk to Android Mobile Phone
Step 3: Open APP “nShow”
Step 4: Tap center of Screen
Step 5: Device list pops up. Select a Device for Pairing
Device Name “Realtek Tablet”
Device Name
MAC Address
Every nit is
with unique
MAC Address.

13
WIFI Setting
Step 1: Prepare
1) Android Mobile Phone
2) nShow_1.0.apk
Step 2: Install nShow_1.0.apk to Android Mobile Phone
(If nShow_1.0.apk is installed, you can skip step 1 & 2)
Step 3: Open APP “nShow”
Step 4: Drag Side of Screen to ight
Step 5: Main Menu Pops up
Step 6: Select “Settings”
Step 7: Setting Menu pop up
1) Type the name of Wifi Device (SSID).
2) Type “Password” of Wifi Device.

14
Password
SSID

15
Display Management
1. Picture transferred from Mobile phone to 1xEPD Display.
Step 1: Prepare
3) Android Mobile Phone
4) nShow_1.0.apk
Step 2: Install nShow_1.0.apk to Android Mobile Phone
(If nShow_1.0.apk is installed, you can skip Step 1 & 2)
Step 3: Open APP “nShow”
Step 4: Tap center of Screen
Step 5: Device list pops up. Select a Device for Pairing
Device Name “Realtek Tablet”
(If you have done pairing with EPD display, you can skip Step 4 & 5)
Step 6: Drag Side of Screen to ight

16
Step 7: Main Menu Pops up and slid down to the bottom
Step 8: Select Landscape 1x1
Step 9: Select Picture, Tap “Pick Picture”.

17
Step 10: Tap Center of Screen, file started transferring.

18
2. Picture transferred from Mobile phone to 4xEPD Displays.
Step 1: Prepare
Android Mobile Phone
nShow_1.0.apk
Step 2: Install nShow_1.0.apk to Android Mobile Phone
(If nShow_1.0.apk is installed, you can skip Step 1 & 2)
Step 3: Open APP “nShow”
Step 4: Tap center of Screen
Step 5: Device list pops up. Select a Device for Pairing
Device Name “Realtek Tablet”
(If you have done pairing with EPD display, you can skip Step 4 & 5)
Step 6: Slid Side of Screen
Step 7: Main Menu Pop up and slid down to the bottom

19
Step 8: Select Landscape 2 x 2
Step 9: Select Picture, Tap “Pick Picture”.
Step 10: Tap “Send to All Signage” and start transfer.

20
