Sabrent DA-HDEX User manual

DA-HDEX USER MANUAL

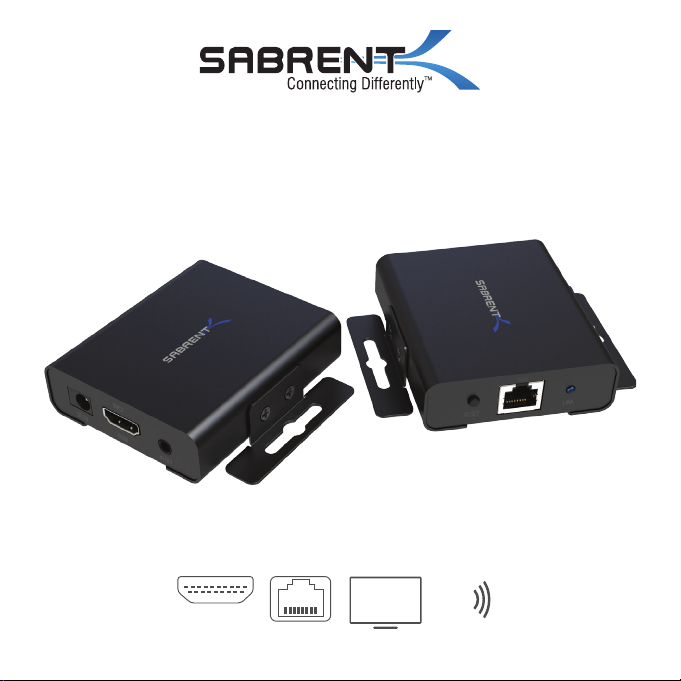

1080p 3D HDMI Extender Over CAT6 (164 feet / 50 meters)
1080p@ 60HzHDMI CAT6 IR Pass-Through
IR
1080p

Thank you for choosing Sabrent. This HDMI Extender kit includes two main units: a transmitter (TX),
and a receiver (RX). It allows an HDMI signal to be transmitted up to 164 feet (50 meters) at 1080p /
60Hz over a single CAT6 cable in a point-to-point configuration.
Additionally, it supports IR passthrough with an IR frequency of 20-60KHz, which will allow you
to use your device’s original infra-red remote control.
INTRODUCTION
1
FEATURES
• Transmission up to 164 feet (50 meters) over a single CAT6 (or higher) cable.
• Uncompressed and zero latency.
• Maximum Resolution Supported: Full HD 1080p at 60Hz.
• Full support for uncompressed audio (LPCM).
• EDID pass-through function.
• Compatible with HDMI1.4 and HDCP1.4
• Infra-Red remote control pass-through function (IR range support 20〜60KHz )
• Plug and play.
• Metal casing for optimal heat dissipation.
DA-HDEX USER MANUAL

Package Contents
2
TRANSMITER UNIT X 1 RECEIVER UNIT X 1 DC5V/1A X 2
USER MANUAL X 1 IR BLASTER EXTENSION X 1
MOUNTING BRACKETS FOR BOTH RX AND TX UNIT
IR RECEIVER EXTENSION X 1
DA-HDEX USER MANUAL
• 1 x CAT6 RJ-45 Compliance Test cable (1 meter)
RESET LINK
CAT6
RESET LINK
CAT6

Important Safety Instructions
Installation Requirements
1. Please note the different items to this product before proceeding.
2. When the device is plugged in, do not remove or attach any cables.
3. Only the included power adapter (5V DC) is approved for use with this device. It is not recommended
to use any other power adapter.
4. Static electricity can cause damage to this device. Please take ESD precautions before proceeding.
1. HDMI source device (TV cable box, computer video card, DVD or Blu-Ray player, game console, HD
monitoring equipment, etc.)
2. HDMI display device like standard-definition or high-definition TV, monitor, or projector with an
available HDMI port.
3. One CAT6 cable or better (up to 50 meters)
3
DA-HDEX USER MANUAL

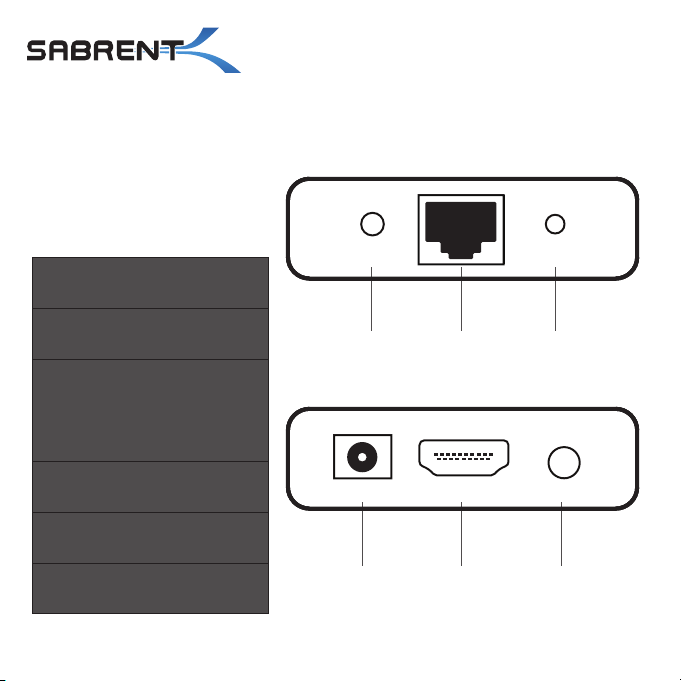

Transmitter unit (TX)
1 - Reset button
Press for restarting the unit
2 - RJ45 signal output
Output enconded HDMI signal
3 - Link indicator
LED indicator turns on when there
is signal input, it flashes when there
is not signal input
4 - DC5V input
Connect with the power supply
5 - HDMI signal input
Connect with the source device
6 - IR signal output
Connect with the IR blaster ext. cable
4
DA-HDEX USER MANUAL
1 2 3
4 5 6
RESET LINK
CAT6
INPUT
HDMIDC 5V IR OUT

1 - Reset button
Press for restarting the unit
2 - RJ45 signal input
Input enconded HDMI signal
3 - Link indicator
LED indicator turns on when there is
signal transmission, it flashes when
there is not signal transmission
4 - DC5V input
Connect with the power supply
5 - HDMI signal output
Connect with the display device
6 - IR signal input
Connect with IR receiver ext. cable
Receiver (RX)
5
DA-HDEX USER MANUAL
1 2 3
4 5 6
RESET LINK
CAT6
OUTPUT
HDMIDC 5V IR IN

CONNECTION DIAGRAM
HOW TO CONNECT IT
SOURCE HDMI EXTENDER / TX HDMI EXTENDER / RX HDMI DISPLAY
1080p @ 60Hz
HDMI IN HDMI OUT
CAT6/6A/7 cable
1. Connect your source device (Blu-ray, camera, etc.) to the Transmitter (TX), and your display device
(monitor, TV, projector, etc.) to the Receiver (RX) via HDMI cables (not included).
2. Connect Transmitter (TX) and Receiver (RX) via network cable (CAT6 / CAT6A or CAT7).
3. Connect both transmitter and receiver to their respective 5V DC power adaptors. This will begin the
connection process. Once the units are synced, you will see the image and be able to change the
resolutions to the attached display device.
NOTE: In the package, we supply a certified 1-meter CAT6 cable for you to test your
devices’ compatibility and connectivity. Whether or not your HDMI extender works with
a longer CAT6 cable will depend entirely on the quality of the cable itself.
6
DA-HDEX USER MANUAL

USING THE IR (INFRA-RED) REMOTE CONTROL PASS-THROUGH FEATURE
This feature will allow you to continue using your infra-red remote control in spite of the distance
between your source device and your display unit.
1. According to the diagram above, connect the IR IN signal cable to the receiver (RX). Then connect
the IR OUT signal cable to the transmitter (TX). For your convenience, both cables are labeled.
2. The emitter of the IR OUT cable should be as close as possible to the HDMI input source device.
7
DA-HDEX USER MANUAL
Power supply
Resolution supported
IR remote control
Power consuption
Supports 20-60khz
TX: <2W; <2W
480i@60hz, 480p@60hz
576i@50hz, 576p@50hz
720p@50/60hz, 1080i@50/60hz
1080p@50/60hz
DC5V 1A

TROUBLESHOOTING
If there is no output on the screen and all connections are correct, try the following:
1. Test your equipment with the certified CAT6 1-meter cable supplied with our unit. If it works with
our 1-meter cable, the problem is the quality of the longer cable.
2. Make sure your TV/monitor/projector supports the HDMI signal which is being fed through the HDMI
extender kit.
3. Please check and make sure the network cable is fully inserted into the network port on both sides.
4. Restart the transmitter or receiver by pressing the reset button.
5. Please check and make sure the length of your certified CAT6 network cable is within the usable
range: Up to 50 meters.
6. Reset the transmitter so that the units can resynchronize.
Q: The color or resolution becomes abnormal, or there is no audio output?
A: Reset the transmitter so that the units can resynchronize.
Q: The image goes black for a microsecond when I touch the metal casing of the TX or the RX unit
A: Avoid touching the units during operation, or ground your unit.
8
DA-HDEX USER MANUAL

Please contact our Technical Support Team
for additional troubleshooting
www.sabrent.com
